Prehospital Emergency Care Eleventh Edition Chapter 5 Communication
![Prehospital: Emergency Care Eleventh Edition Chapter 5 Communication Slides in this presentation contain hyperlinks. Prehospital: Emergency Care Eleventh Edition Chapter 5 Communication Slides in this presentation contain hyperlinks.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-1.jpg)
![Learning Readiness • EMS Education Standards, text p. 81. • Chapter Objectives, text p. Learning Readiness • EMS Education Standards, text p. 81. • Chapter Objectives, text p.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-2.jpg)
![Setting the Stage • Overview of Lesson Topics – EMS Communication System – Communicating Setting the Stage • Overview of Lesson Topics – EMS Communication System – Communicating](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-3.jpg)
![Case Study Introduction EMTs Krista Martinez and Barb Sanderson are taking a midmorning break Case Study Introduction EMTs Krista Martinez and Barb Sanderson are taking a midmorning break](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-4.jpg)

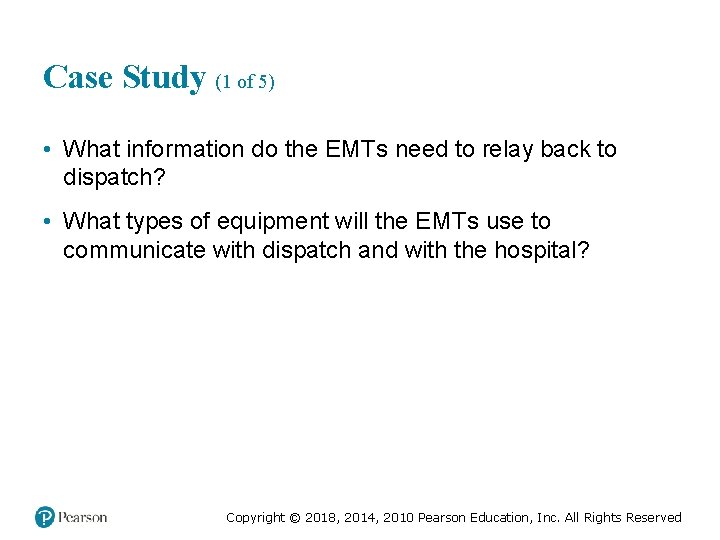

![Case Study (1 of 5) • What information do the EMTs need to relay Case Study (1 of 5) • What information do the EMTs need to relay](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-5.jpg)
![Introduction • Every EMS call involves communication. • Radio communication involves specialized communications equipment. Introduction • Every EMS call involves communication. • Radio communication involves specialized communications equipment.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-6.jpg)
![EMS Communications System (1 of 10) • Components of an Emergency Communication System – EMS Communications System (1 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-7.jpg)
![EMS Communications Center Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved EMS Communications Center Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-8.jpg)
![EMS Communications System (2 of 10) • Components of an Emergency Communication System – EMS Communications System (2 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-9.jpg)
![A Small Mobile Two-Way Radio Installed next to the Driver’s Seat in the Ambulance A Small Mobile Two-Way Radio Installed next to the Driver’s Seat in the Ambulance](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-10.jpg)
![An EMT Using the Two-Way Radio in the Ambulance Patient Compartment to Contact Medical An EMT Using the Two-Way Radio in the Ambulance Patient Compartment to Contact Medical](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-11.jpg)

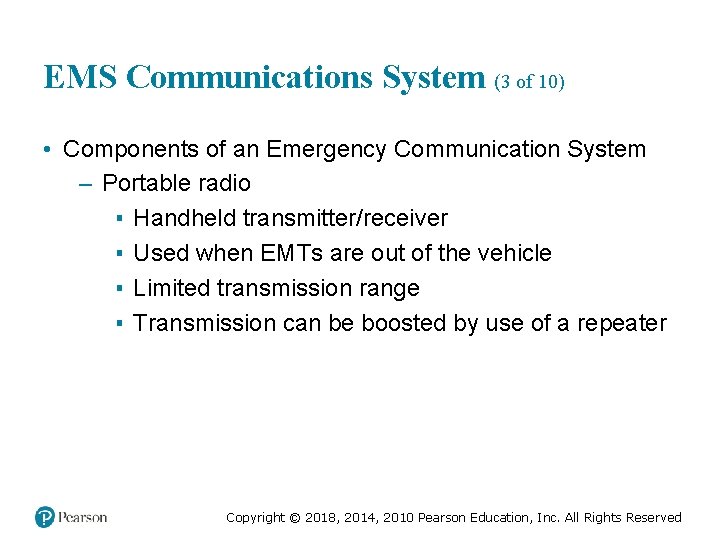

![EMS Communications System (3 of 10) • Components of an Emergency Communication System – EMS Communications System (3 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-12.jpg)

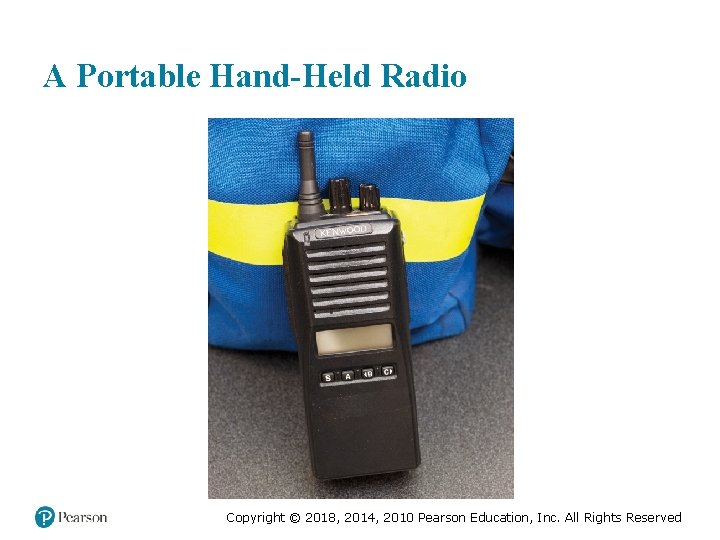

![A Portable Hand-Held Radio Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights A Portable Hand-Held Radio Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-13.jpg)
![EMS Communications System (4 of 10) • Components of an Emergency Communication System – EMS Communications System (4 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-14.jpg)
![Example of an EMS Communication System Using Repeaters Copyright © 2018, 2014, 2010 Pearson Example of an EMS Communication System Using Repeaters Copyright © 2018, 2014, 2010 Pearson](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-15.jpg)

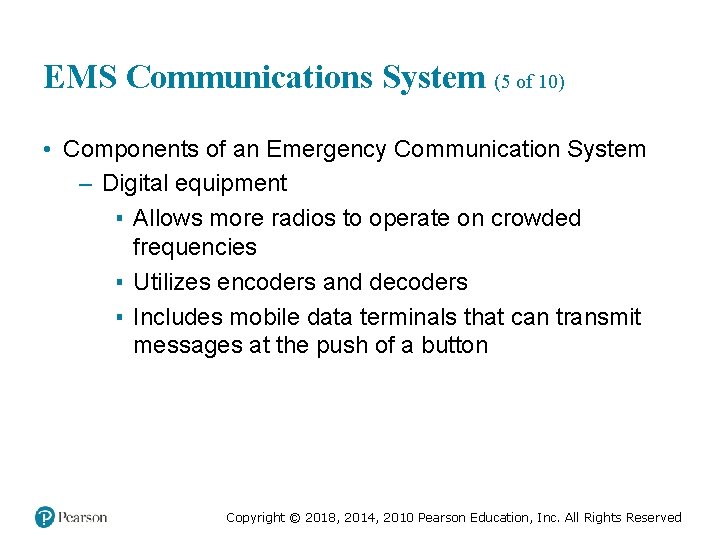

![EMS Communications System (5 of 10) • Components of an Emergency Communication System – EMS Communications System (5 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-16.jpg)
![Mobile Data Terminals Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved Mobile Data Terminals Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-17.jpg)
![EMS Communications System (6 of 10) • Components of an Emergency Communication System – EMS Communications System (6 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-18.jpg)
![Use of Cellular (Wireless) Phone is Very Common in EMS Copyright © 2018, 2014, Use of Cellular (Wireless) Phone is Very Common in EMS Copyright © 2018, 2014,](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-19.jpg)

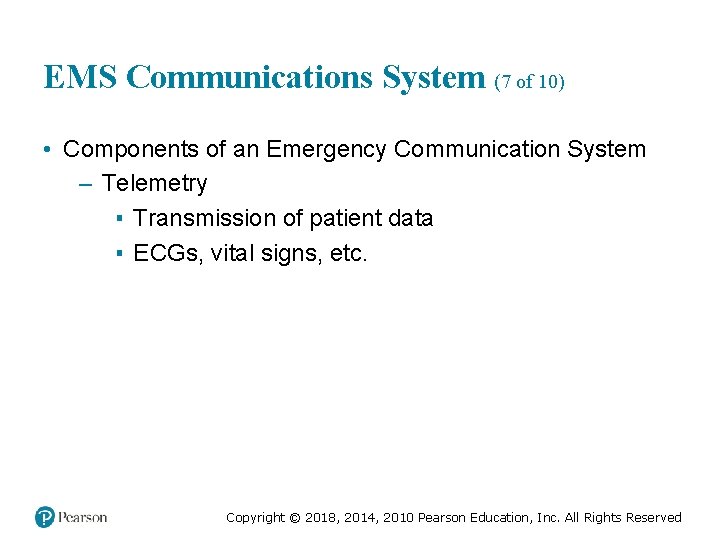

![EMS Communications System (7 of 10) • Components of an Emergency Communication System – EMS Communications System (7 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-20.jpg)
![EMS Communications System (8 of 10) • Components of an Emergency Communication System – EMS Communications System (8 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-21.jpg)
![EMS Communications System (9 of 10) • Components of an Emergency Communication System – EMS Communications System (9 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-22.jpg)
![EMS Communications System (10 of 10) • Components of an Emergency Communication System – EMS Communications System (10 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-23.jpg)
![What Piece of Radio Communication Equipment Amplifies A Low-Power Radio Transmission and Rebroadcasts It What Piece of Radio Communication Equipment Amplifies A Low-Power Radio Transmission and Rebroadcasts It](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-24.jpg)
![Case Study (2 of 5) Krista uses the portable radio to acknowledge the dispatch. Case Study (2 of 5) Krista uses the portable radio to acknowledge the dispatch.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-25.jpg)
![Case Study (3 of 5) • What further communications will need to take place Case Study (3 of 5) • What further communications will need to take place](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-26.jpg)
![Communicating Within the System (1 of 22) • EMTs communicate with: – Dispatch – Communicating Within the System (1 of 22) • EMTs communicate with: – Dispatch –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-27.jpg)
![Progression of Radio Transmissions Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Progression of Radio Transmissions Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-28.jpg)
![Communicating Within the System (2 of 22) • Ground Rules for Radio Communication 1. Communicating Within the System (2 of 22) • Ground Rules for Radio Communication 1.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-29.jpg)

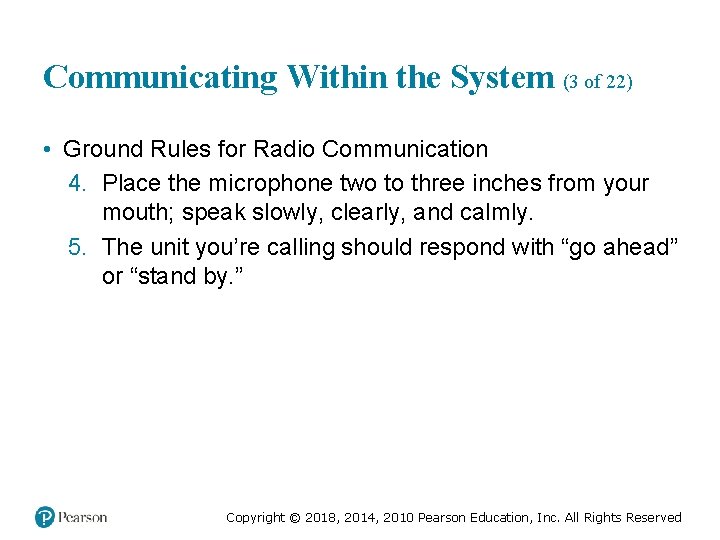

![Communicating Within the System (3 of 22) • Ground Rules for Radio Communication 4. Communicating Within the System (3 of 22) • Ground Rules for Radio Communication 4.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-30.jpg)
![Hold the Microphone About Two Inches from Your Lips as You Speak into It Hold the Microphone About Two Inches from Your Lips as You Speak into It](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-31.jpg)
![Communicating Within the System (4 of 22) • Ground Rules for Radio Communication 6. Communicating Within the System (4 of 22) • Ground Rules for Radio Communication 6.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-32.jpg)

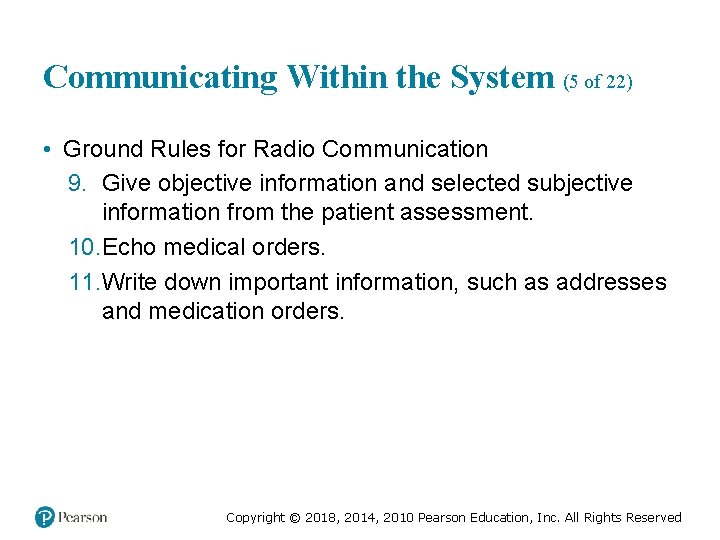

![Communicating Within the System (5 of 22) • Ground Rules for Radio Communication 9. Communicating Within the System (5 of 22) • Ground Rules for Radio Communication 9.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-33.jpg)

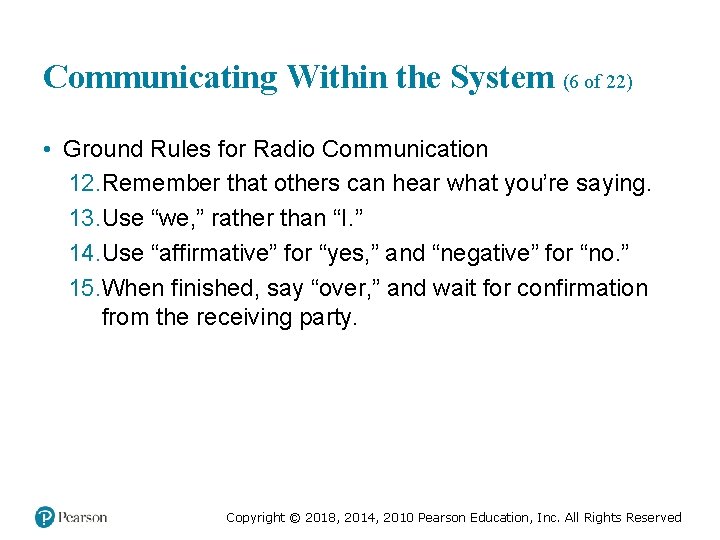

![Communicating Within the System (6 of 22) • Ground Rules for Radio Communication 12. Communicating Within the System (6 of 22) • Ground Rules for Radio Communication 12.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-34.jpg)

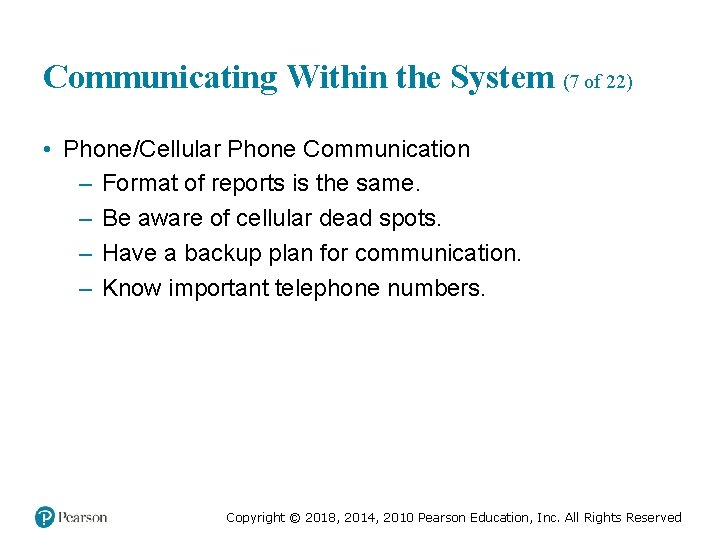

![Communicating Within the System (7 of 22) • Phone/Cellular Phone Communication – Format of Communicating Within the System (7 of 22) • Phone/Cellular Phone Communication – Format of](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-35.jpg)

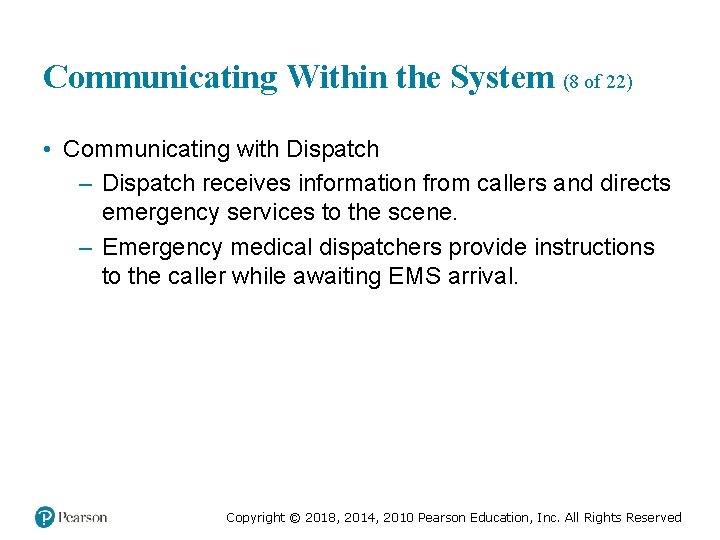

![Communicating Within the System (8 of 22) • Communicating with Dispatch – Dispatch receives Communicating Within the System (8 of 22) • Communicating with Dispatch – Dispatch receives](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-36.jpg)

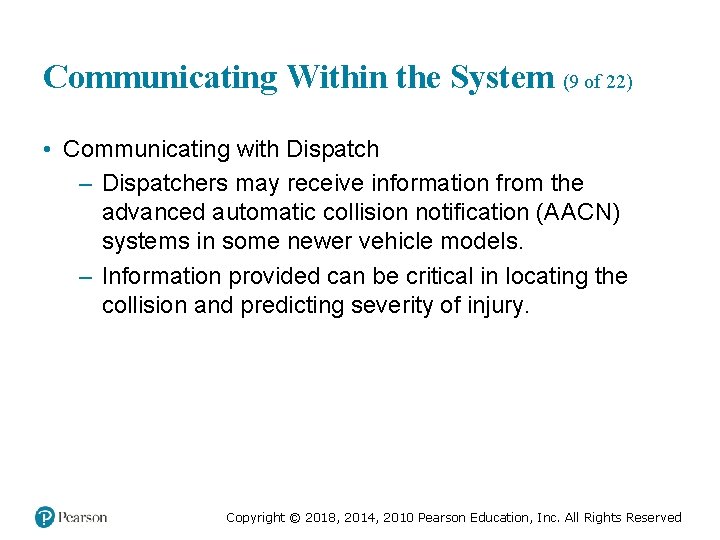

![Communicating Within the System (9 of 22) • Communicating with Dispatch – Dispatchers may Communicating Within the System (9 of 22) • Communicating with Dispatch – Dispatchers may](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-37.jpg)

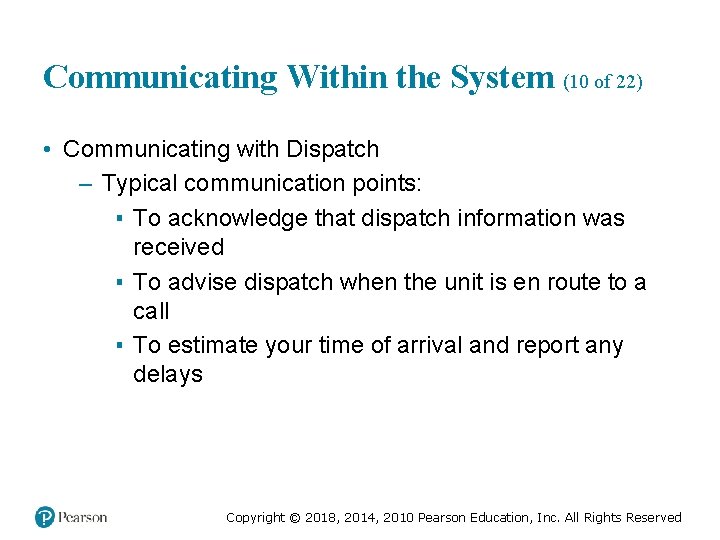

![Communicating Within the System (10 of 22) • Communicating with Dispatch – Typical communication Communicating Within the System (10 of 22) • Communicating with Dispatch – Typical communication](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-38.jpg)
![Communicating Within the System (11 of 22) • Communicating with Dispatch – Typical communication Communicating Within the System (11 of 22) • Communicating with Dispatch – Typical communication](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-39.jpg)

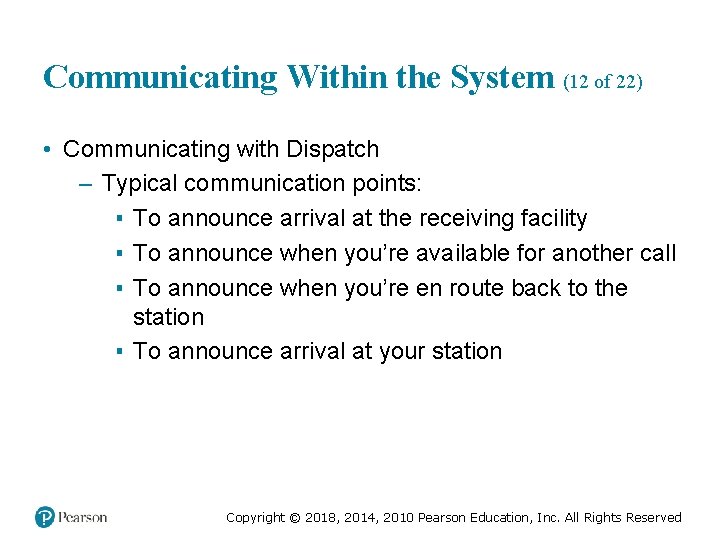

![Communicating Within the System (12 of 22) • Communicating with Dispatch – Typical communication Communicating Within the System (12 of 22) • Communicating with Dispatch – Typical communication](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-40.jpg)

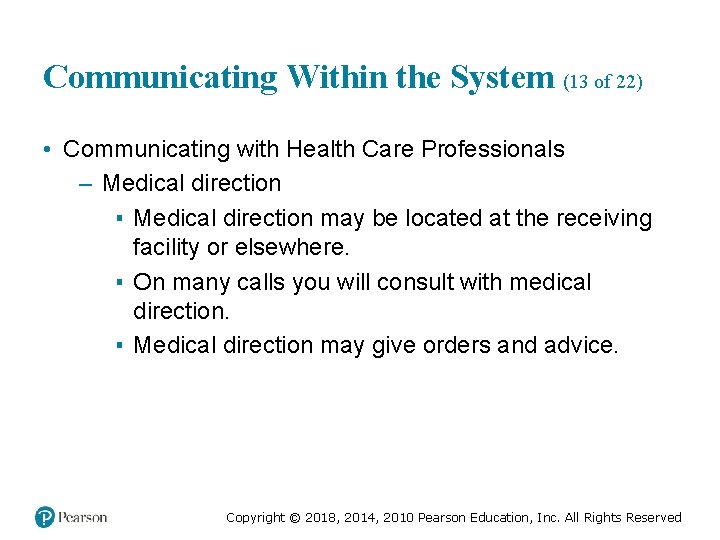

![Communicating Within the System (13 of 22) • Communicating with Health Care Professionals – Communicating Within the System (13 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-41.jpg)

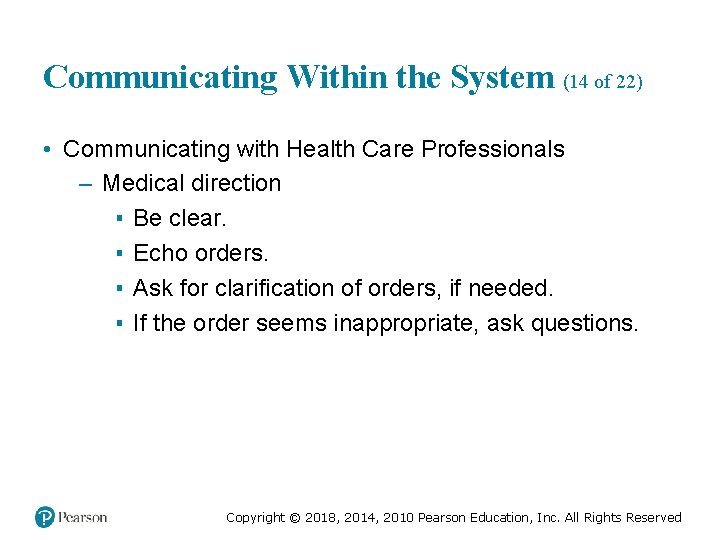

![Communicating Within the System (14 of 22) • Communicating with Health Care Professionals – Communicating Within the System (14 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-42.jpg)

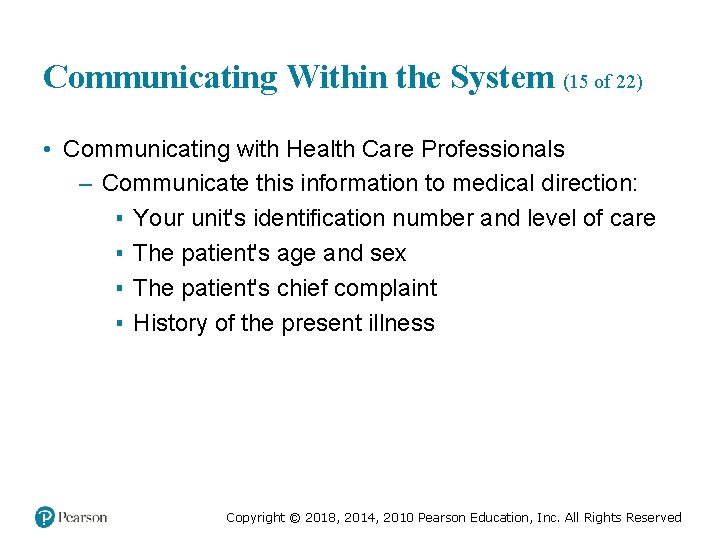

![Communicating Within the System (15 of 22) • Communicating with Health Care Professionals – Communicating Within the System (15 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-43.jpg)

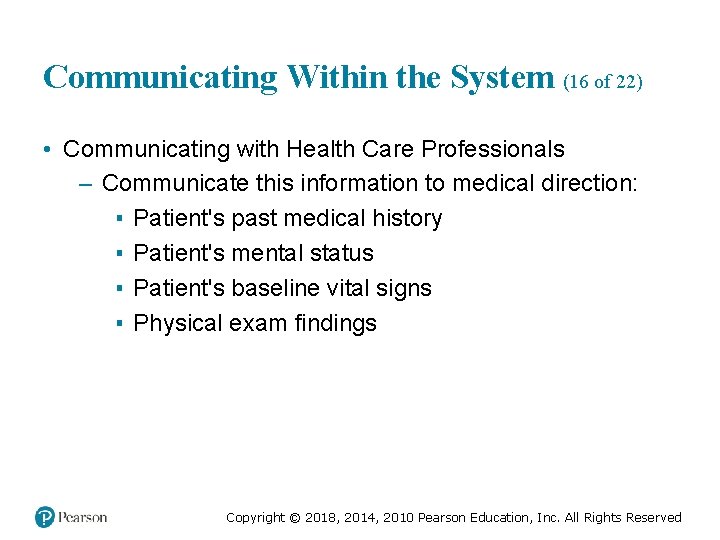

![Communicating Within the System (16 of 22) • Communicating with Health Care Professionals – Communicating Within the System (16 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-44.jpg)

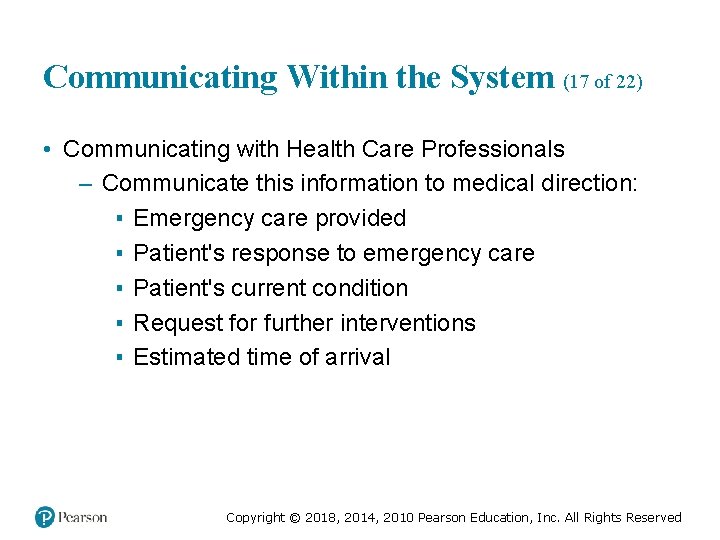

![Communicating Within the System (17 of 22) • Communicating with Health Care Professionals – Communicating Within the System (17 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-45.jpg)

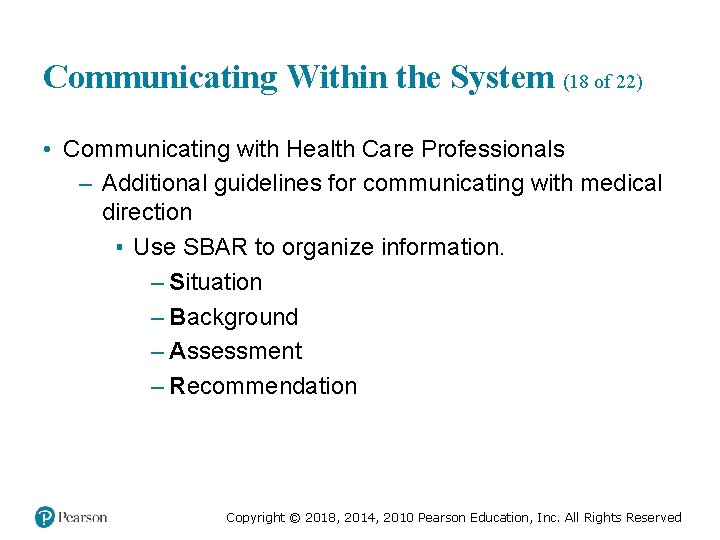

![Communicating Within the System (18 of 22) • Communicating with Health Care Professionals – Communicating Within the System (18 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-46.jpg)
![Communicating Within the System (19 of 22) • Communicating with Health Care Professionals – Communicating Within the System (19 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-47.jpg)

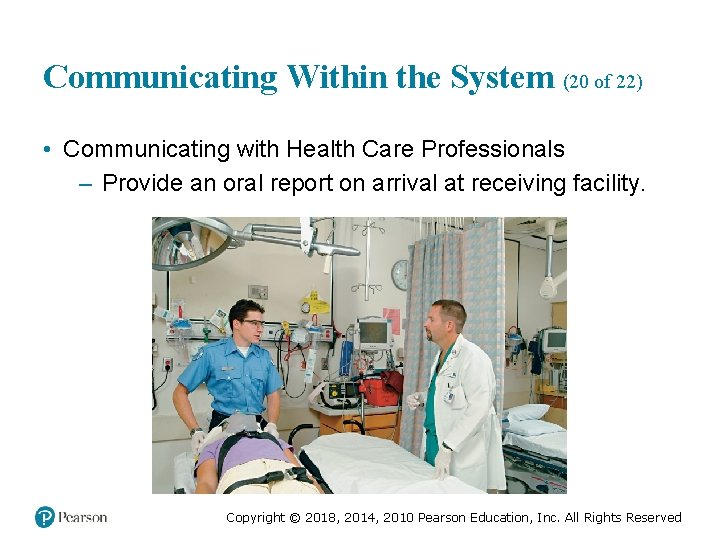

![Communicating Within the System (20 of 22) • Communicating with Health Care Professionals – Communicating Within the System (20 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-48.jpg)

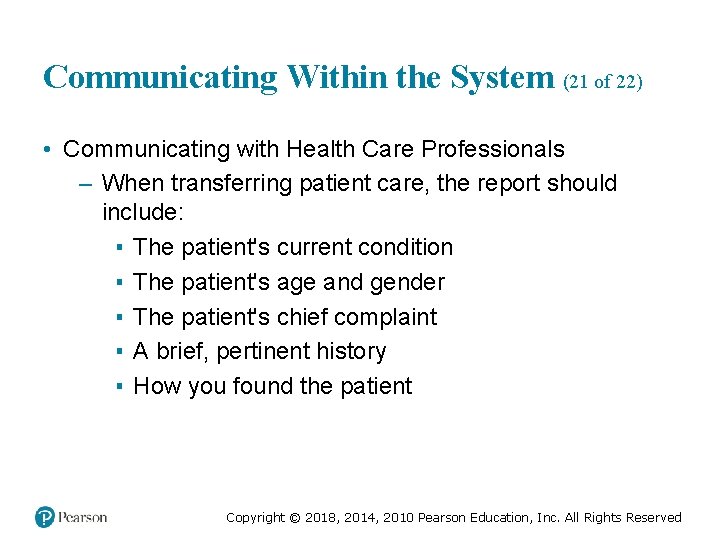

![Communicating Within the System (21 of 22) • Communicating with Health Care Professionals – Communicating Within the System (21 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-49.jpg)

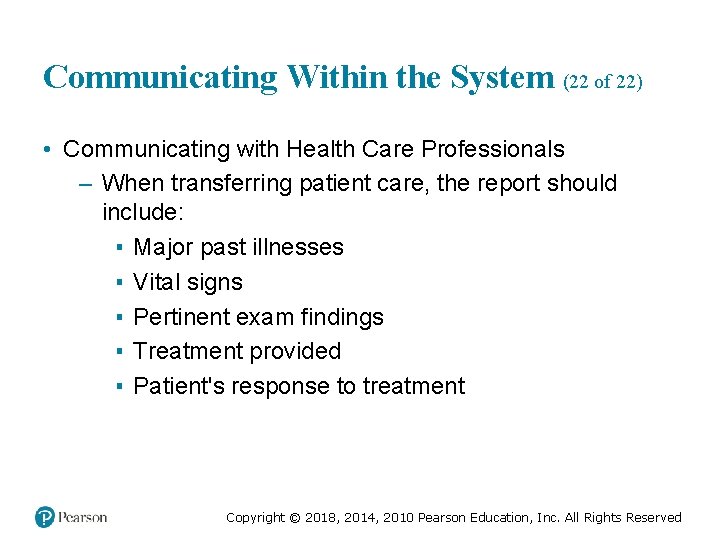

![Communicating Within the System (22 of 22) • Communicating with Health Care Professionals – Communicating Within the System (22 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-50.jpg)
![You’re Transporting a 30 -Year-Old Patient Who is Complaining of Left Arm Pain as You’re Transporting a 30 -Year-Old Patient Who is Complaining of Left Arm Pain as](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-51.jpg)

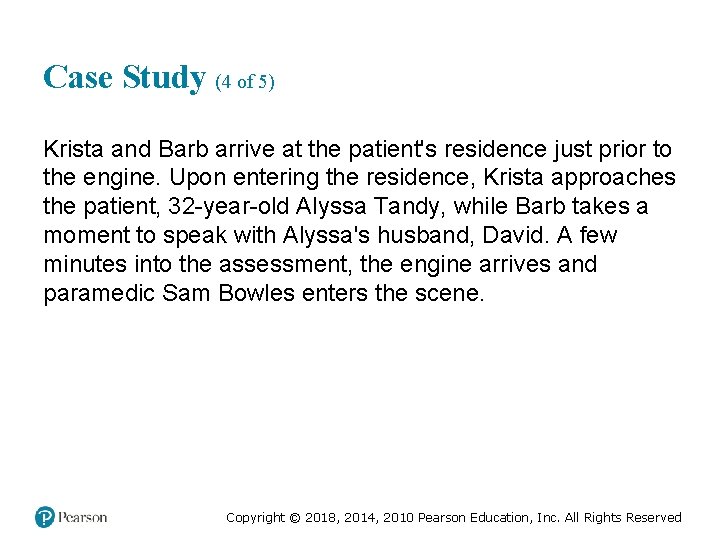

![Case Study (4 of 5) Krista and Barb arrive at the patient's residence just Case Study (4 of 5) Krista and Barb arrive at the patient's residence just](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-52.jpg)

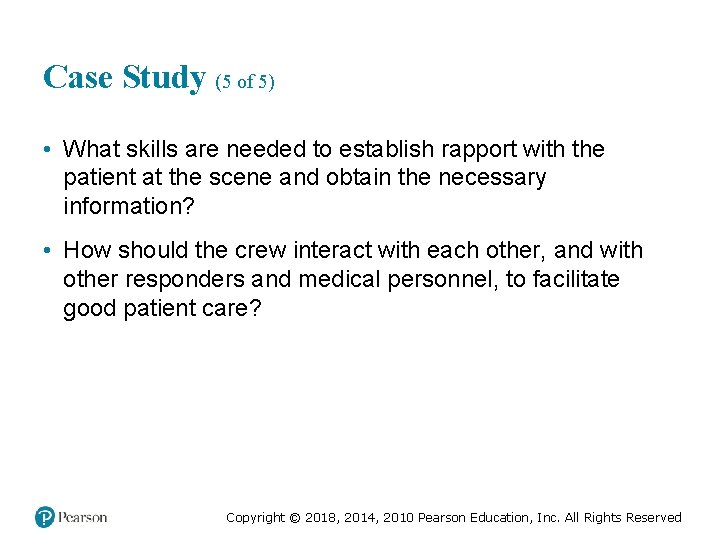

![Case Study (5 of 5) • What skills are needed to establish rapport with Case Study (5 of 5) • What skills are needed to establish rapport with](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-53.jpg)

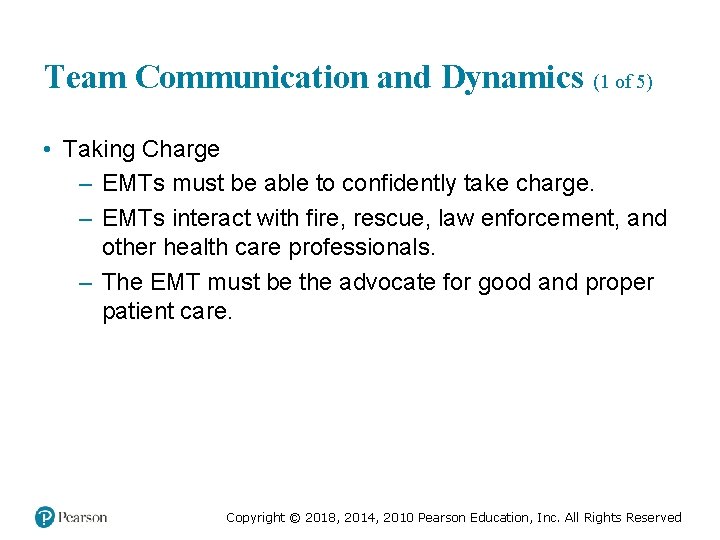

![Team Communication and Dynamics (1 of 5) • Taking Charge – EMTs must be Team Communication and Dynamics (1 of 5) • Taking Charge – EMTs must be](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-54.jpg)

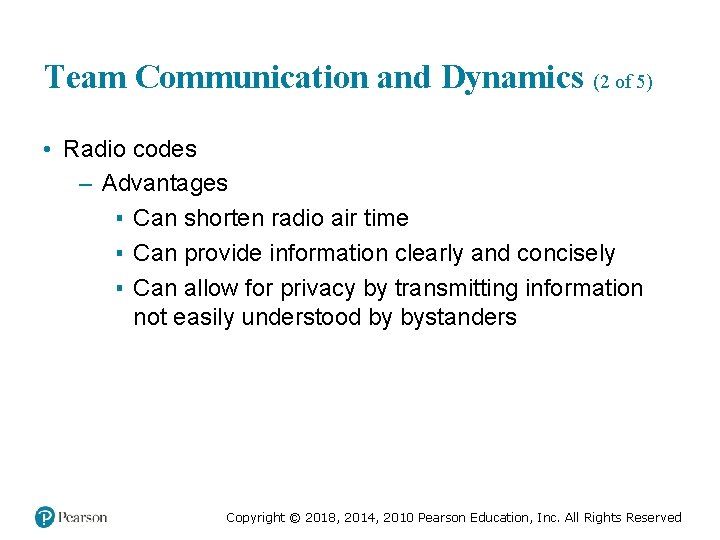

![Team Communication and Dynamics (2 of 5) • Radio codes – Advantages ▪ Can Team Communication and Dynamics (2 of 5) • Radio codes – Advantages ▪ Can](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-55.jpg)

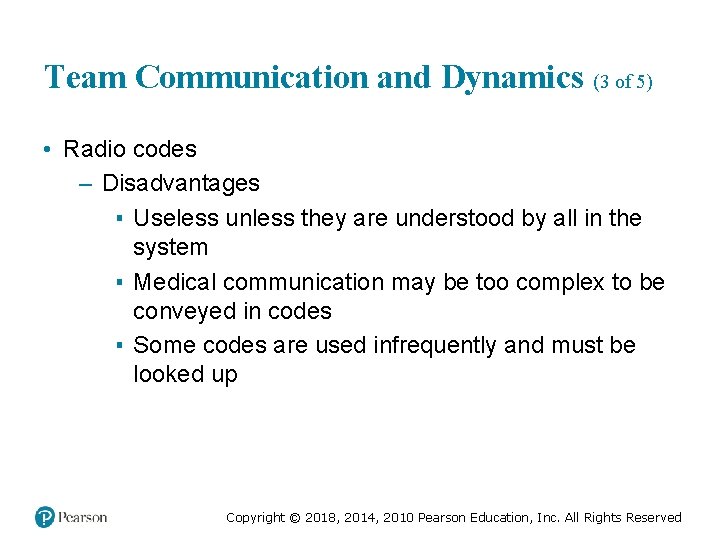

![Team Communication and Dynamics (3 of 5) • Radio codes – Disadvantages ▪ Useless Team Communication and Dynamics (3 of 5) • Radio codes – Disadvantages ▪ Useless](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-56.jpg)

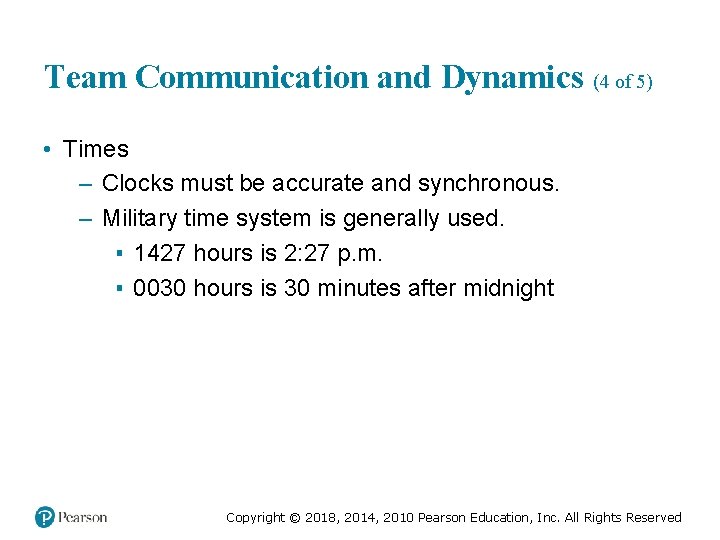

![Team Communication and Dynamics (4 of 5) • Times – Clocks must be accurate Team Communication and Dynamics (4 of 5) • Times – Clocks must be accurate](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-57.jpg)

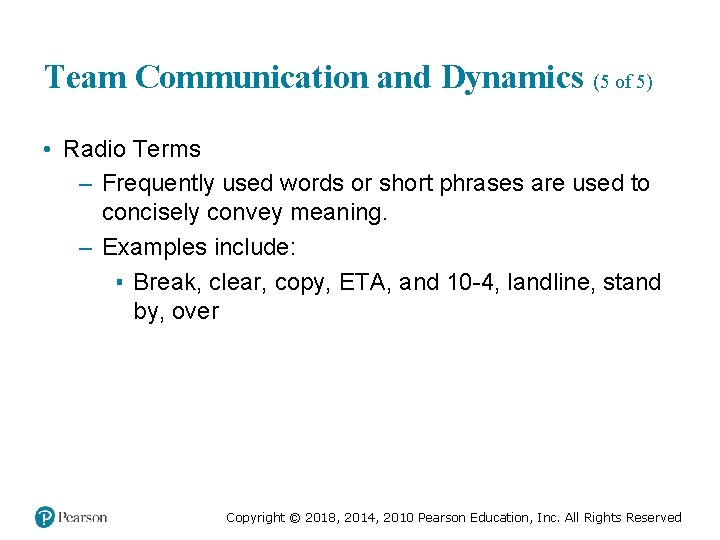

![Team Communication and Dynamics (5 of 5) • Radio Terms – Frequently used words Team Communication and Dynamics (5 of 5) • Radio Terms – Frequently used words](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-58.jpg)

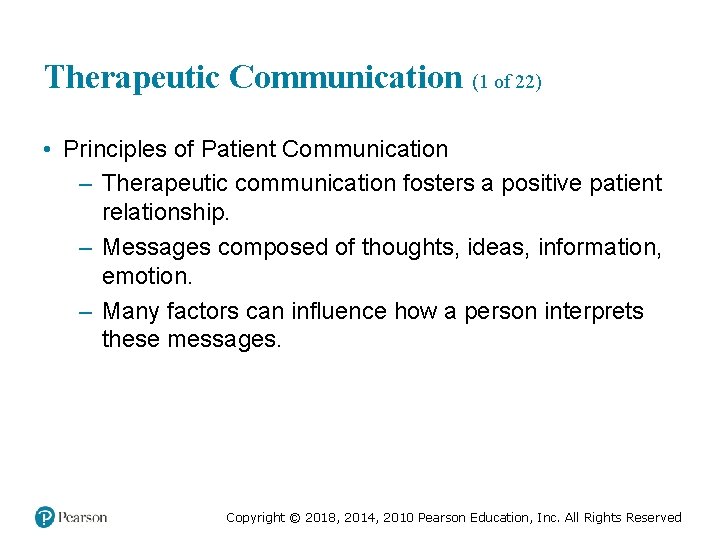

![Therapeutic Communication (1 of 22) • Principles of Patient Communication – Therapeutic communication fosters Therapeutic Communication (1 of 22) • Principles of Patient Communication – Therapeutic communication fosters](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-59.jpg)

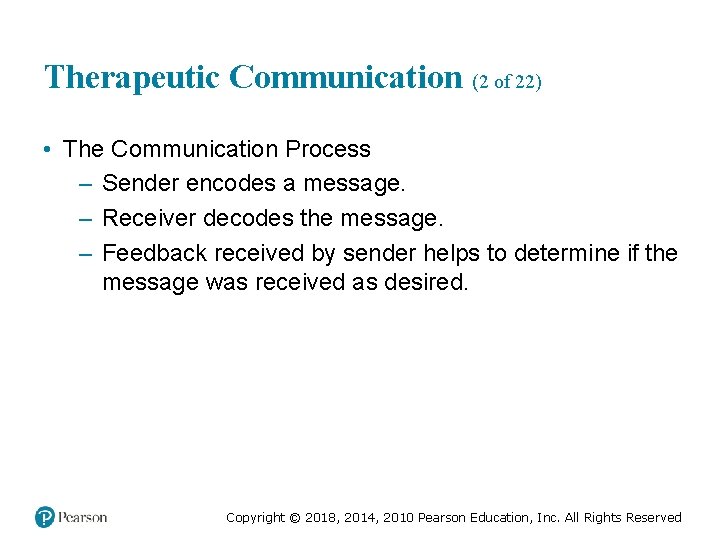

![Therapeutic Communication (2 of 22) • The Communication Process – Sender encodes a message. Therapeutic Communication (2 of 22) • The Communication Process – Sender encodes a message.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-60.jpg)
![Therapeutic Communication (3 of 22) • Communication Responses – Techniques to improve provider and Therapeutic Communication (3 of 22) • Communication Responses – Techniques to improve provider and](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-61.jpg)
![Therapeutic Communication (4 of 22) • Communication Responses – Techniques to improve provider and Therapeutic Communication (4 of 22) • Communication Responses – Techniques to improve provider and](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-62.jpg)

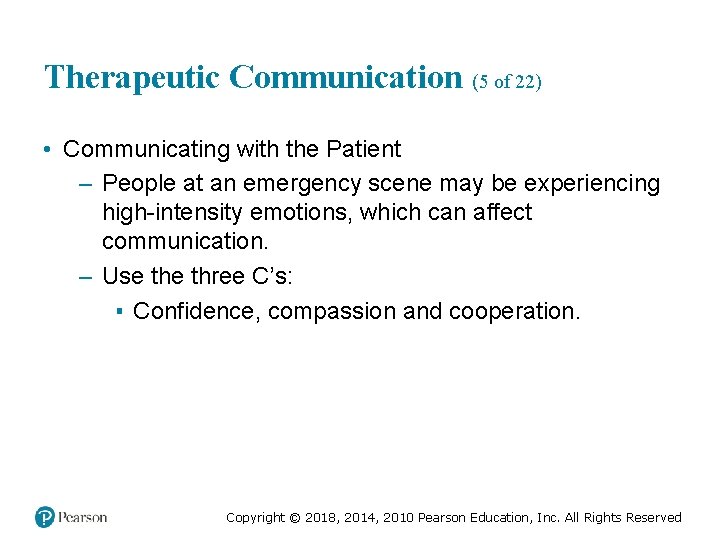

![Therapeutic Communication (5 of 22) • Communicating with the Patient – People at an Therapeutic Communication (5 of 22) • Communicating with the Patient – People at an](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-63.jpg)

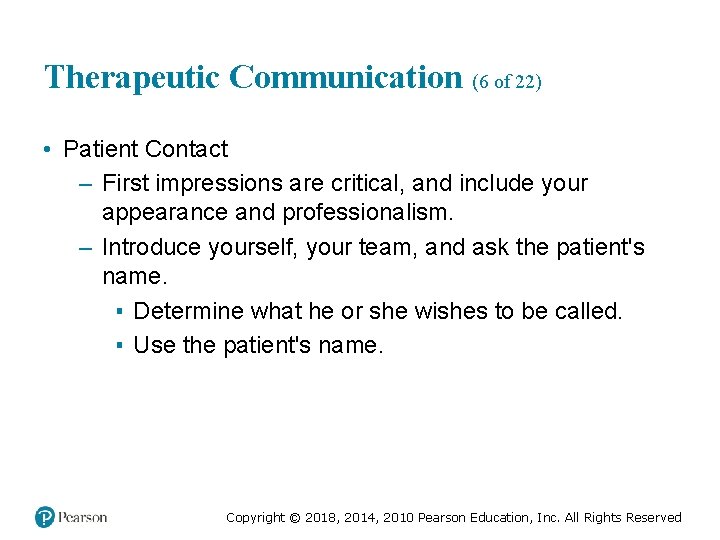

![Therapeutic Communication (6 of 22) • Patient Contact – First impressions are critical, and Therapeutic Communication (6 of 22) • Patient Contact – First impressions are critical, and](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-64.jpg)

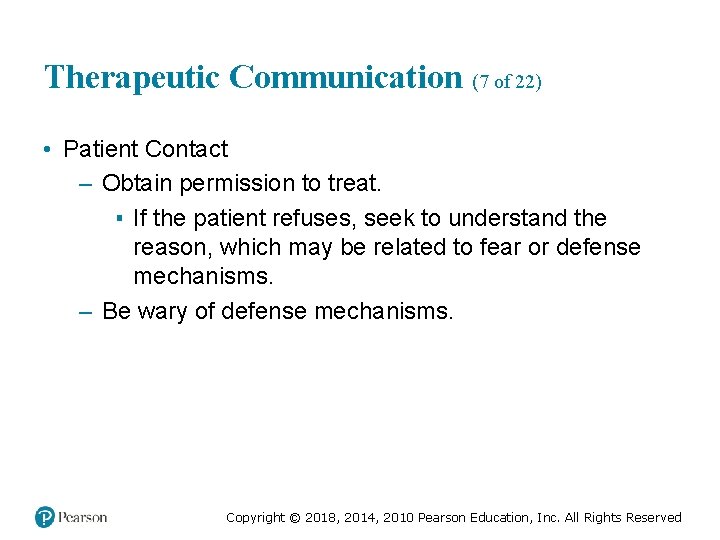

![Therapeutic Communication (7 of 22) • Patient Contact – Obtain permission to treat. ▪ Therapeutic Communication (7 of 22) • Patient Contact – Obtain permission to treat. ▪](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-65.jpg)

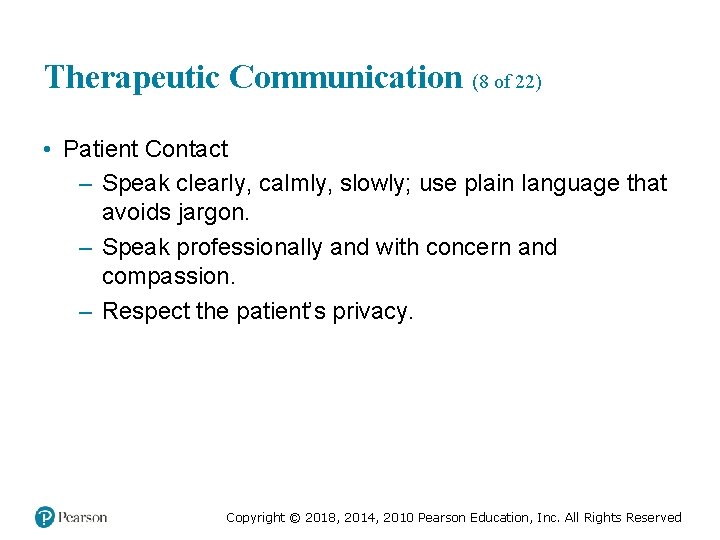

![Therapeutic Communication (8 of 22) • Patient Contact – Speak clearly, calmly, slowly; use Therapeutic Communication (8 of 22) • Patient Contact – Speak clearly, calmly, slowly; use](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-66.jpg)

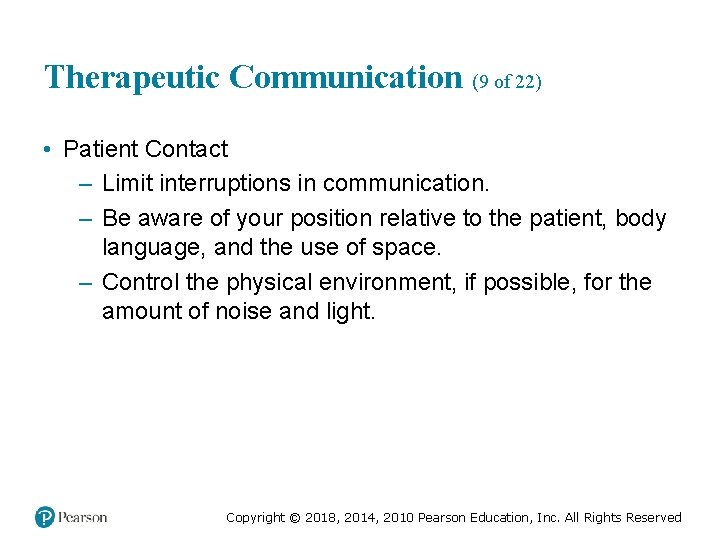

![Therapeutic Communication (9 of 22) • Patient Contact – Limit interruptions in communication. – Therapeutic Communication (9 of 22) • Patient Contact – Limit interruptions in communication. –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-67.jpg)
![Therapeutic Communication (10 of 22) • Patient Contact – Be courteous, give choices when Therapeutic Communication (10 of 22) • Patient Contact – Be courteous, give choices when](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-68.jpg)

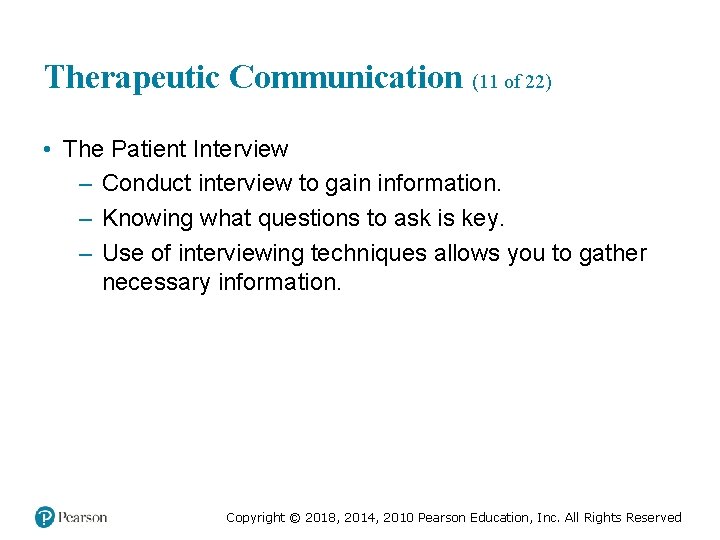

![Therapeutic Communication (11 of 22) • The Patient Interview – Conduct interview to gain Therapeutic Communication (11 of 22) • The Patient Interview – Conduct interview to gain](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-69.jpg)

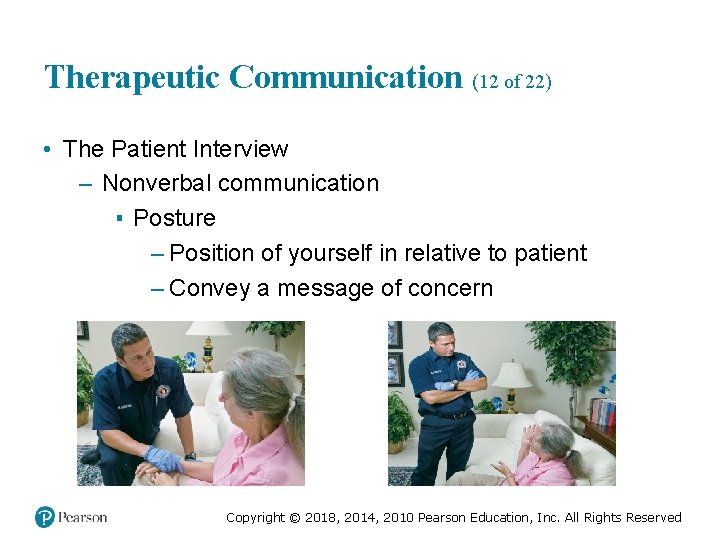

![Therapeutic Communication (12 of 22) • The Patient Interview – Nonverbal communication ▪ Posture Therapeutic Communication (12 of 22) • The Patient Interview – Nonverbal communication ▪ Posture](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-70.jpg)

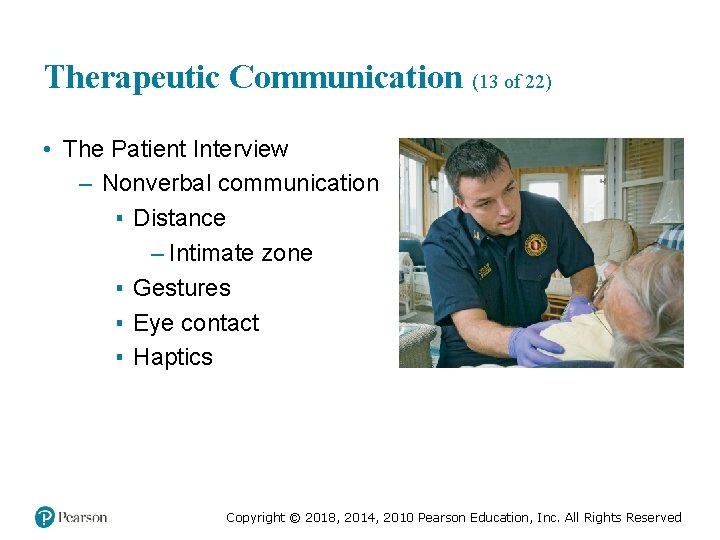

![Therapeutic Communication (13 of 22) • The Patient Interview – Nonverbal communication ▪ Distance Therapeutic Communication (13 of 22) • The Patient Interview – Nonverbal communication ▪ Distance](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-71.jpg)

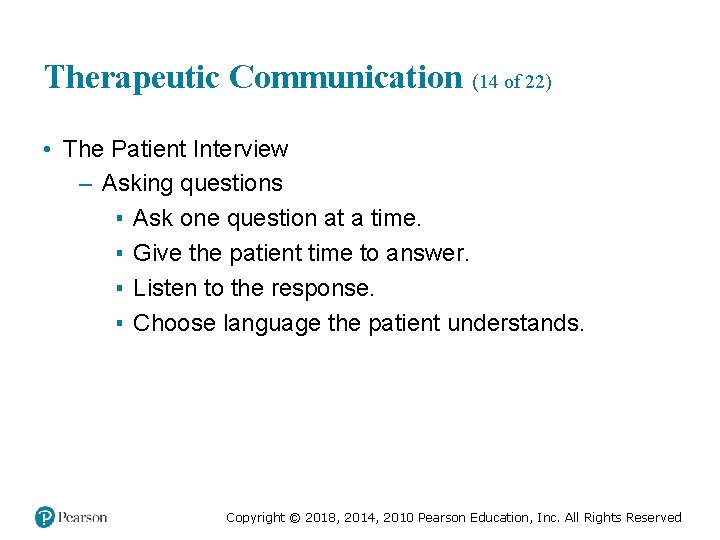

![Therapeutic Communication (14 of 22) • The Patient Interview – Asking questions ▪ Ask Therapeutic Communication (14 of 22) • The Patient Interview – Asking questions ▪ Ask](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-72.jpg)

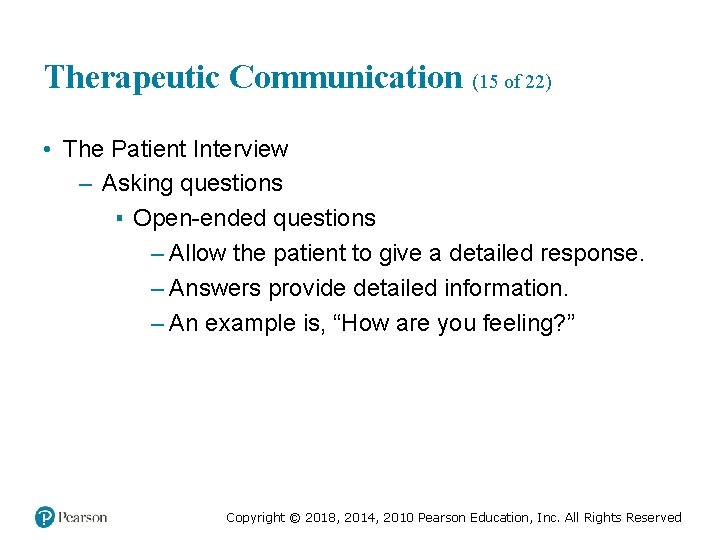

![Therapeutic Communication (15 of 22) • The Patient Interview – Asking questions ▪ Open-ended Therapeutic Communication (15 of 22) • The Patient Interview – Asking questions ▪ Open-ended](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-73.jpg)

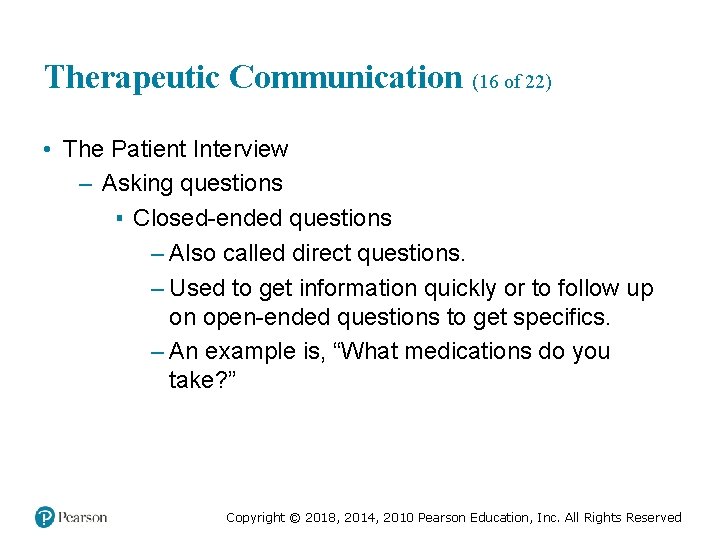

![Therapeutic Communication (16 of 22) • The Patient Interview – Asking questions ▪ Closed-ended Therapeutic Communication (16 of 22) • The Patient Interview – Asking questions ▪ Closed-ended](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-74.jpg)

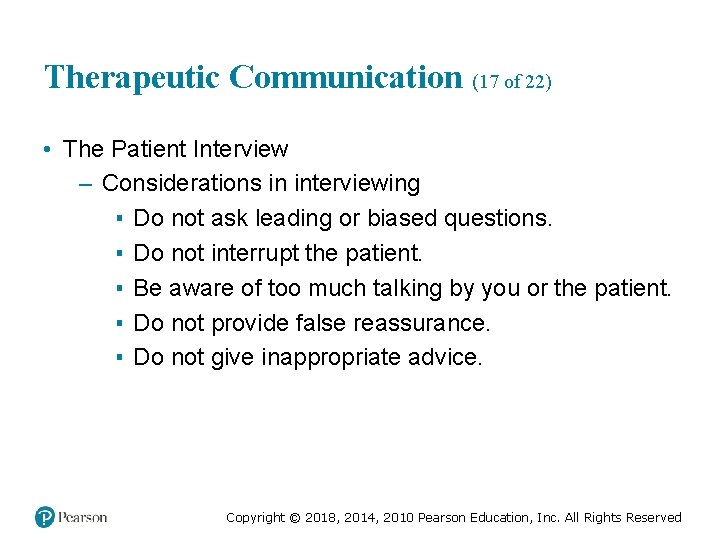

![Therapeutic Communication (17 of 22) • The Patient Interview – Considerations in interviewing ▪ Therapeutic Communication (17 of 22) • The Patient Interview – Considerations in interviewing ▪](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-75.jpg)

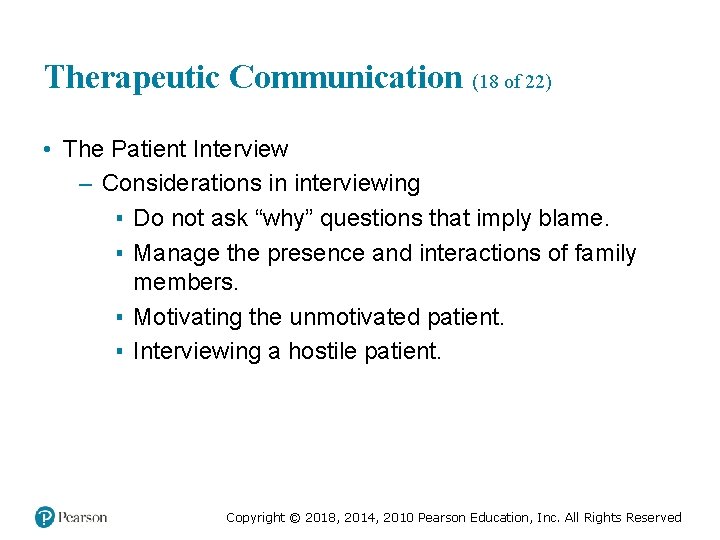

![Therapeutic Communication (18 of 22) • The Patient Interview – Considerations in interviewing ▪ Therapeutic Communication (18 of 22) • The Patient Interview – Considerations in interviewing ▪](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-76.jpg)

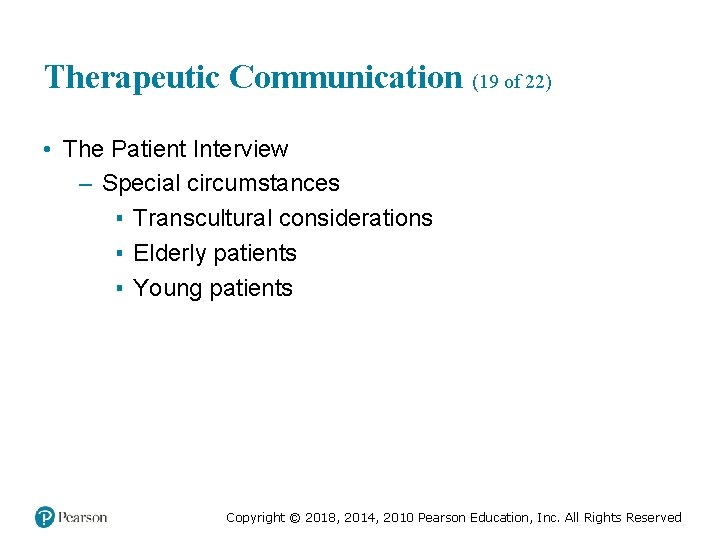

![Therapeutic Communication (19 of 22) • The Patient Interview – Special circumstances ▪ Transcultural Therapeutic Communication (19 of 22) • The Patient Interview – Special circumstances ▪ Transcultural](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-77.jpg)

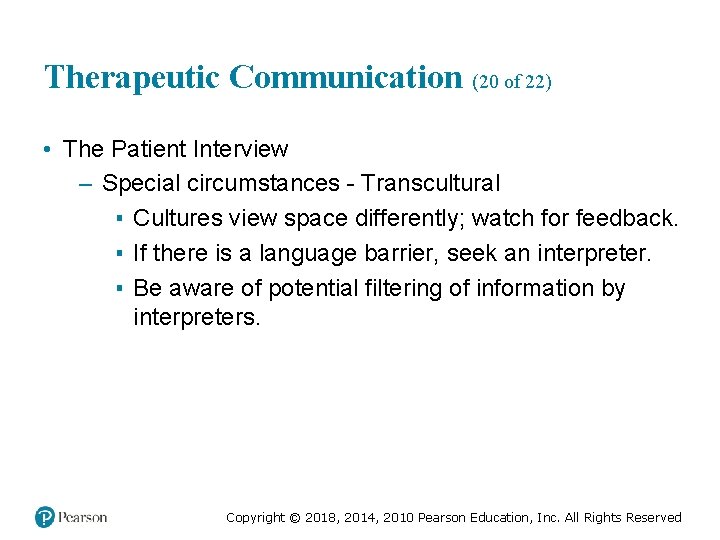

![Therapeutic Communication (20 of 22) • The Patient Interview – Special circumstances - Transcultural Therapeutic Communication (20 of 22) • The Patient Interview – Special circumstances - Transcultural](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-78.jpg)

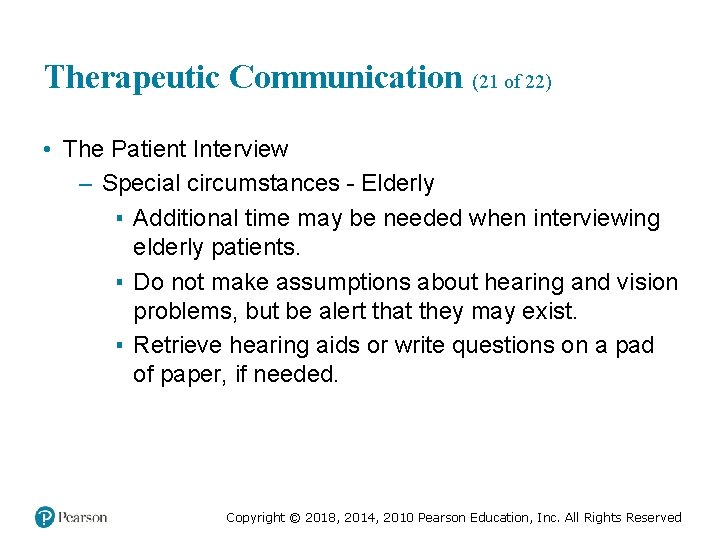

![Therapeutic Communication (21 of 22) • The Patient Interview – Special circumstances - Elderly Therapeutic Communication (21 of 22) • The Patient Interview – Special circumstances - Elderly](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-79.jpg)

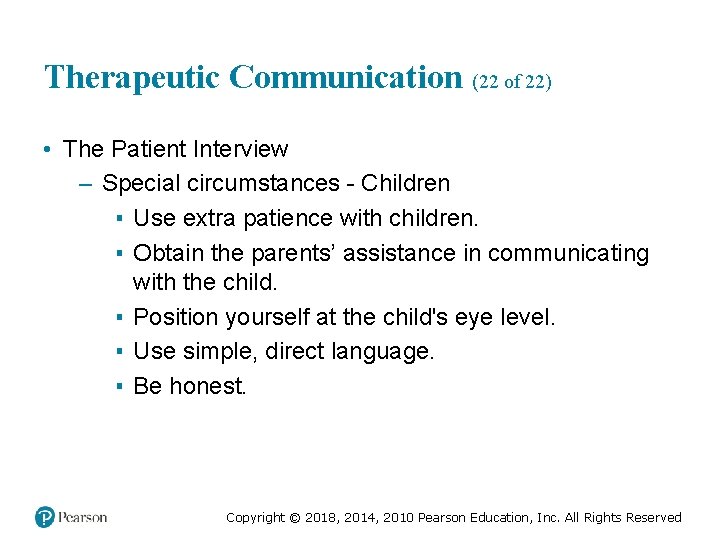

![Therapeutic Communication (22 of 22) • The Patient Interview – Special circumstances - Children Therapeutic Communication (22 of 22) • The Patient Interview – Special circumstances - Children](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-80.jpg)

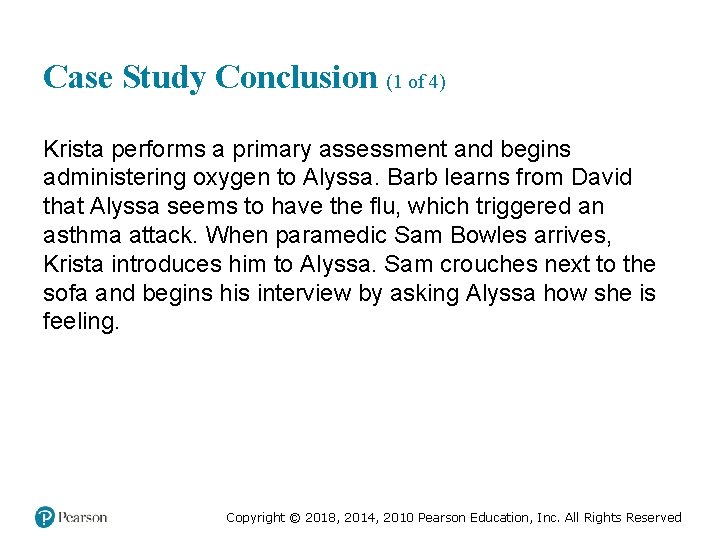

![Case Study Conclusion (1 of 4) Krista performs a primary assessment and begins administering Case Study Conclusion (1 of 4) Krista performs a primary assessment and begins administering](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-81.jpg)

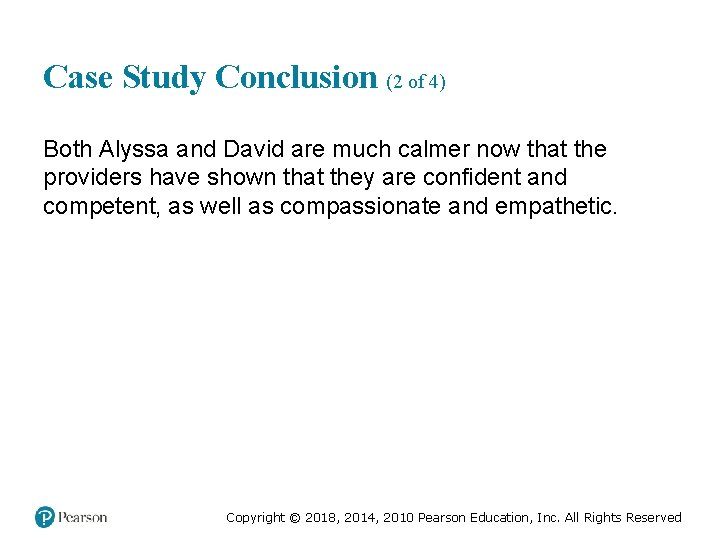

![Case Study Conclusion (2 of 4) Both Alyssa and David are much calmer now Case Study Conclusion (2 of 4) Both Alyssa and David are much calmer now](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-82.jpg)
![Case Study Conclusion (3 of 4) After beginning treatment at the scene, the providers Case Study Conclusion (3 of 4) After beginning treatment at the scene, the providers](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-83.jpg)

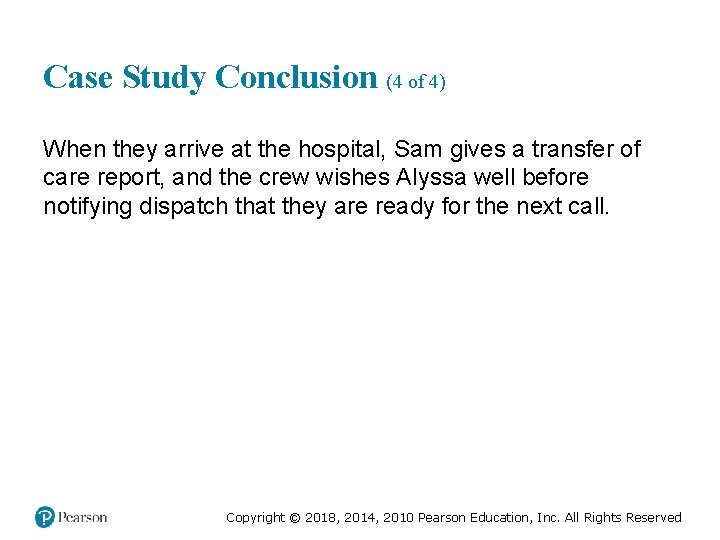

![Case Study Conclusion (4 of 4) When they arrive at the hospital, Sam gives Case Study Conclusion (4 of 4) When they arrive at the hospital, Sam gives](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-84.jpg)

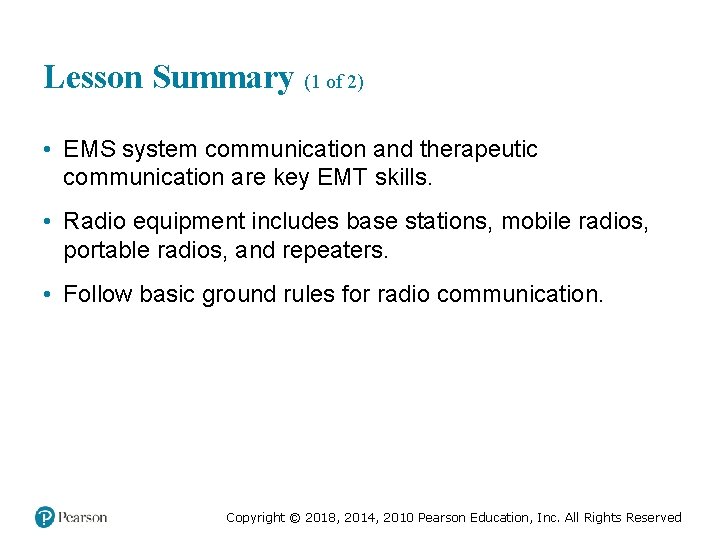

![Lesson Summary (1 of 2) • EMS system communication and therapeutic communication are key Lesson Summary (1 of 2) • EMS system communication and therapeutic communication are key](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-85.jpg)

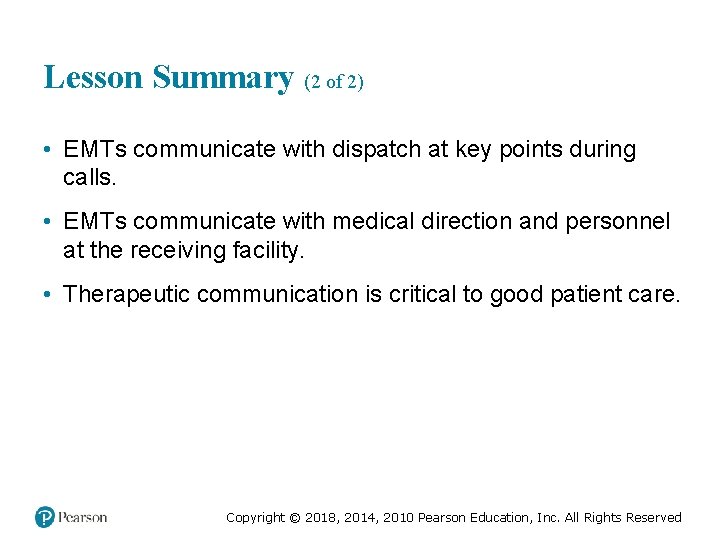

![Lesson Summary (2 of 2) • EMTs communicate with dispatch at key points during Lesson Summary (2 of 2) • EMTs communicate with dispatch at key points during](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-86.jpg)

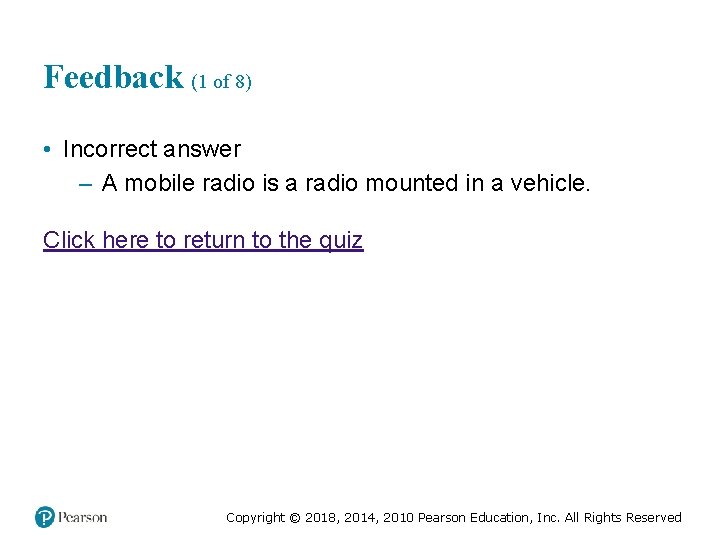

![Feedback (1 of 8) • Incorrect answer – A mobile radio is a radio Feedback (1 of 8) • Incorrect answer – A mobile radio is a radio](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-87.jpg)

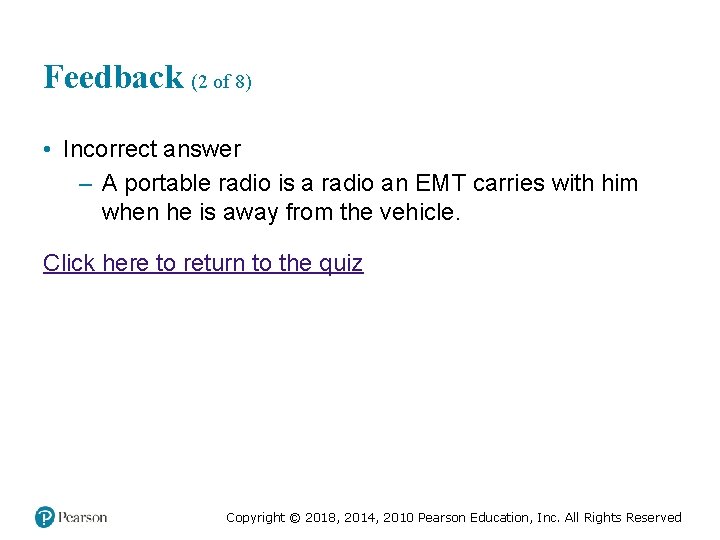

![Feedback (2 of 8) • Incorrect answer – A portable radio is a radio Feedback (2 of 8) • Incorrect answer – A portable radio is a radio](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-88.jpg)

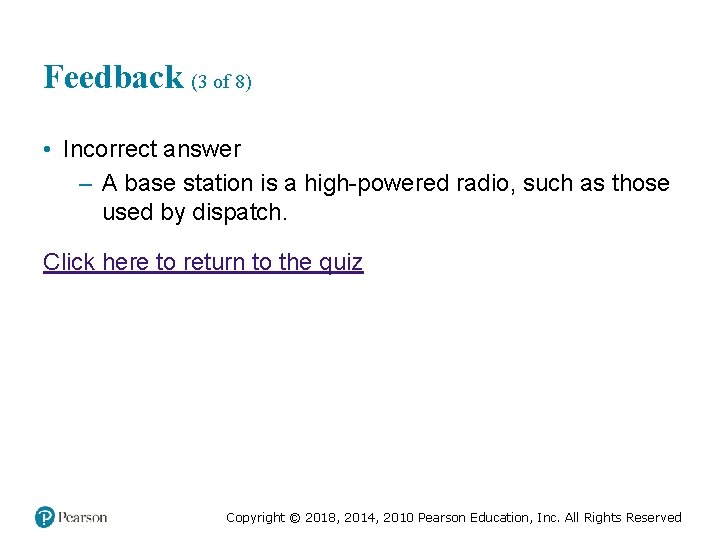

![Feedback (3 of 8) • Incorrect answer – A base station is a high-powered Feedback (3 of 8) • Incorrect answer – A base station is a high-powered](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-89.jpg)

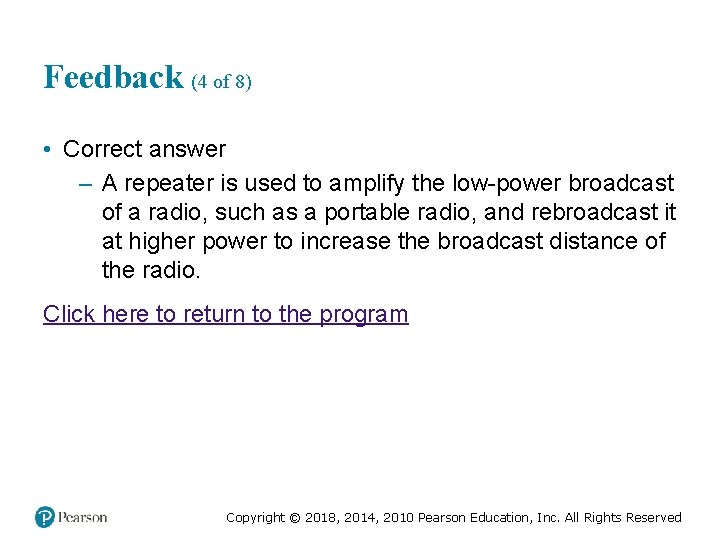

![Feedback (4 of 8) • Correct answer – A repeater is used to amplify Feedback (4 of 8) • Correct answer – A repeater is used to amplify](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-90.jpg)

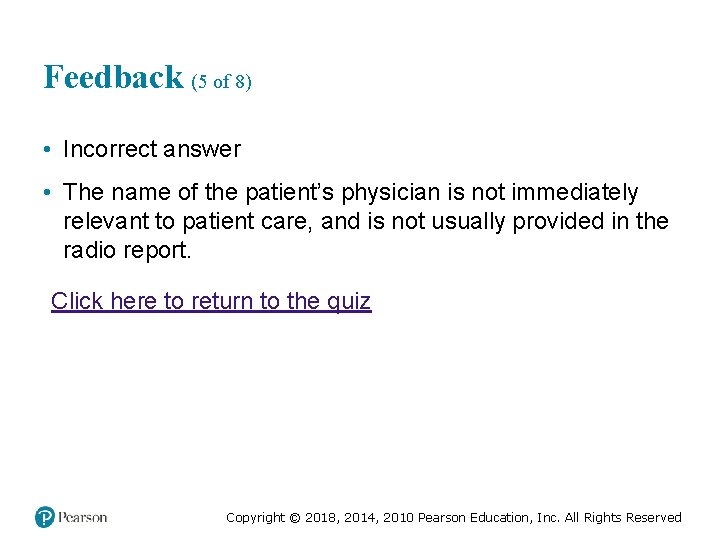

![Feedback (5 of 8) • Incorrect answer • The name of the patient’s physician Feedback (5 of 8) • Incorrect answer • The name of the patient’s physician](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-91.jpg)

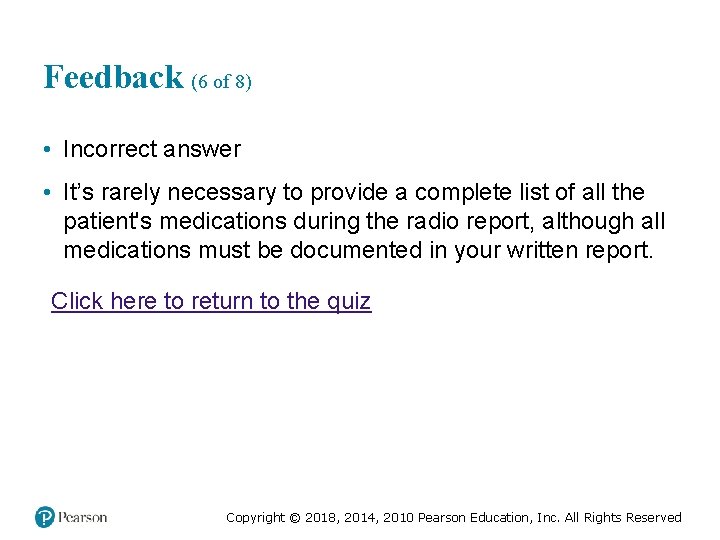

![Feedback (6 of 8) • Incorrect answer • It’s rarely necessary to provide a Feedback (6 of 8) • Incorrect answer • It’s rarely necessary to provide a](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-92.jpg)

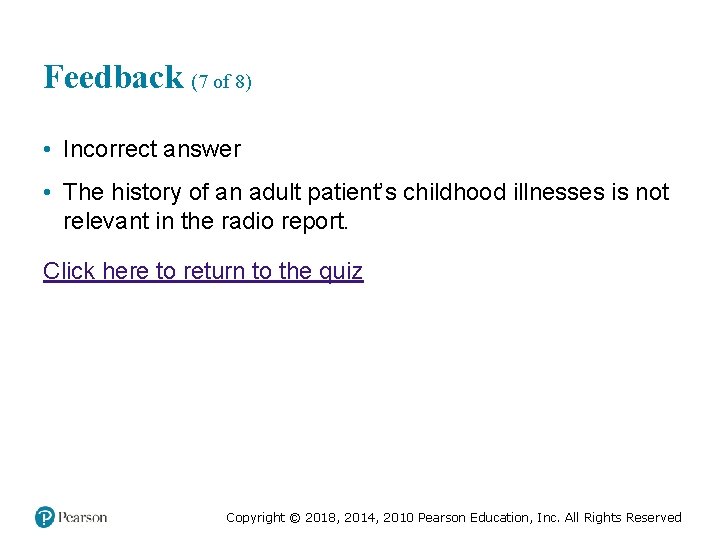

![Feedback (7 of 8) • Incorrect answer • The history of an adult patient’s Feedback (7 of 8) • Incorrect answer • The history of an adult patient’s](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-93.jpg)

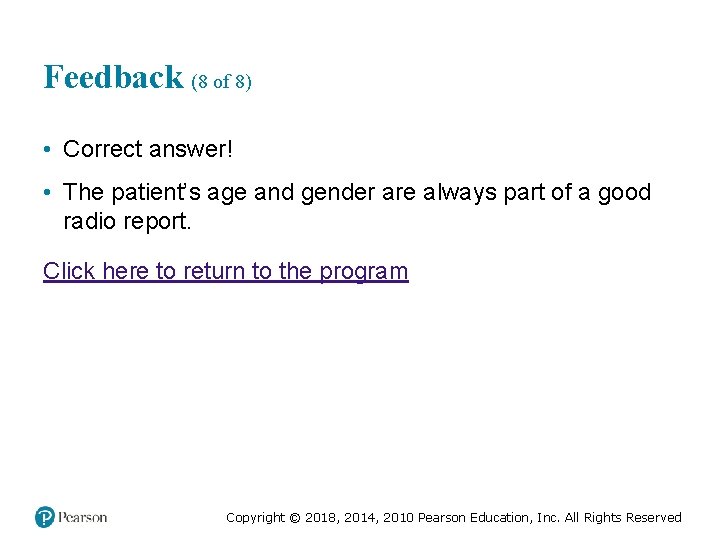

![Feedback (8 of 8) • Correct answer! • The patient’s age and gender are Feedback (8 of 8) • Correct answer! • The patient’s age and gender are](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-94.jpg)
![Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-95.jpg)
- Slides: 95
![Prehospital Emergency Care Eleventh Edition Chapter 5 Communication Slides in this presentation contain hyperlinks Prehospital: Emergency Care Eleventh Edition Chapter 5 Communication Slides in this presentation contain hyperlinks.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-1.jpg)
Prehospital: Emergency Care Eleventh Edition Chapter 5 Communication Slides in this presentation contain hyperlinks. JAWS users should be able to get a list of links by using INSERT+F 7 Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Learning Readiness EMS Education Standards text p 81 Chapter Objectives text p Learning Readiness • EMS Education Standards, text p. 81. • Chapter Objectives, text p.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-2.jpg)
Learning Readiness • EMS Education Standards, text p. 81. • Chapter Objectives, text p. 81. • Key Terms, text p. 81. • Purpose of lecture presentation versus textbook reading assignments. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

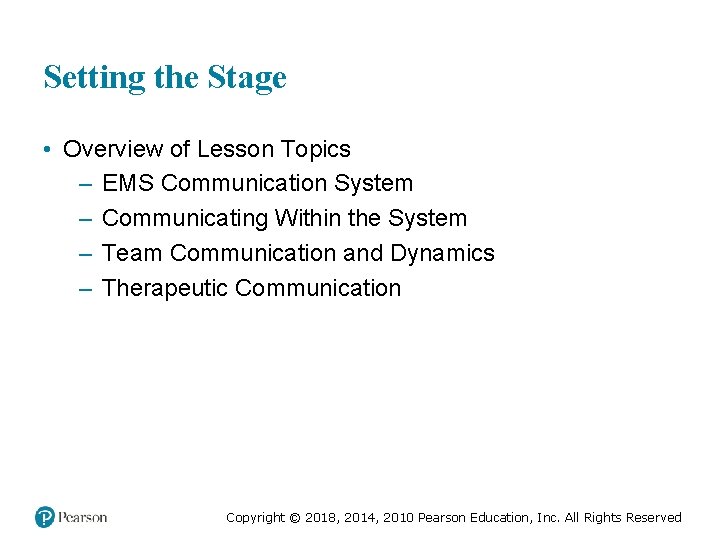

![Setting the Stage Overview of Lesson Topics EMS Communication System Communicating Setting the Stage • Overview of Lesson Topics – EMS Communication System – Communicating](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-3.jpg)
Setting the Stage • Overview of Lesson Topics – EMS Communication System – Communicating Within the System – Team Communication and Dynamics – Therapeutic Communication Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

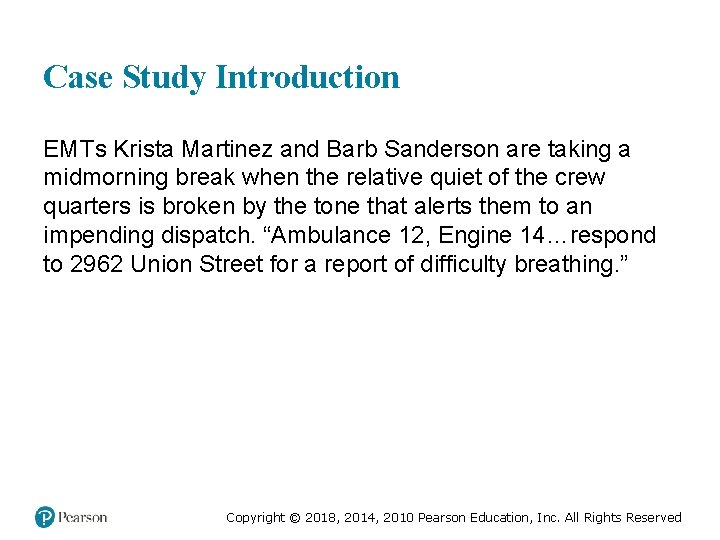

![Case Study Introduction EMTs Krista Martinez and Barb Sanderson are taking a midmorning break Case Study Introduction EMTs Krista Martinez and Barb Sanderson are taking a midmorning break](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-4.jpg)
Case Study Introduction EMTs Krista Martinez and Barb Sanderson are taking a midmorning break when the relative quiet of the crew quarters is broken by the tone that alerts them to an impending dispatch. “Ambulance 12, Engine 14…respond to 2962 Union Street for a report of difficulty breathing. ” Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Case Study 1 of 5 What information do the EMTs need to relay Case Study (1 of 5) • What information do the EMTs need to relay](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-5.jpg)
Case Study (1 of 5) • What information do the EMTs need to relay back to dispatch? • What types of equipment will the EMTs use to communicate with dispatch and with the hospital? Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

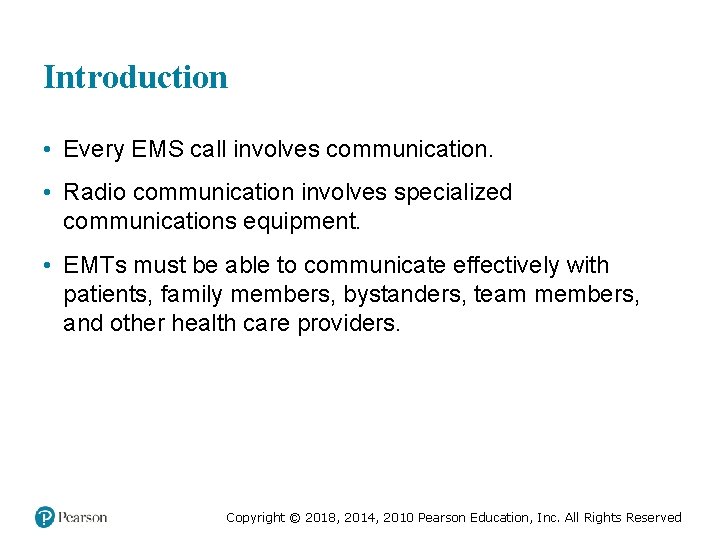

![Introduction Every EMS call involves communication Radio communication involves specialized communications equipment Introduction • Every EMS call involves communication. • Radio communication involves specialized communications equipment.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-6.jpg)
Introduction • Every EMS call involves communication. • Radio communication involves specialized communications equipment. • EMTs must be able to communicate effectively with patients, family members, bystanders, team members, and other health care providers. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![EMS Communications System 1 of 10 Components of an Emergency Communication System EMS Communications System (1 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-7.jpg)
EMS Communications System (1 of 10) • Components of an Emergency Communication System – Base station ▪ Serves as a dispatch and coordination center ▪ High power output (80 -150 watts) Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

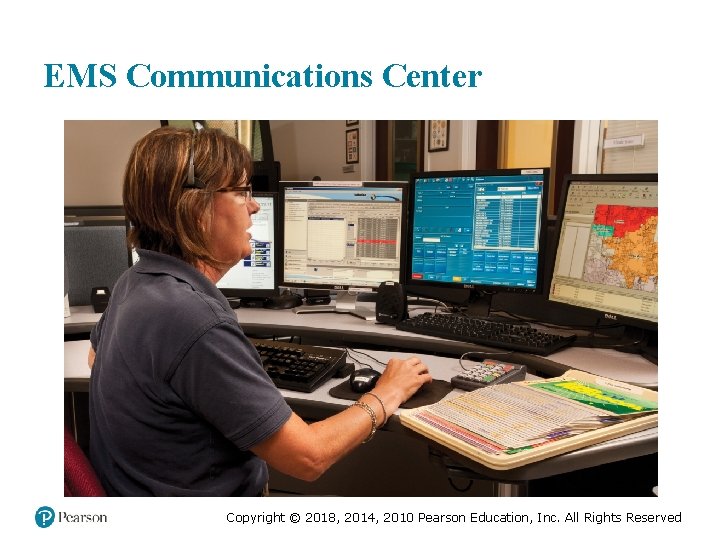

![EMS Communications Center Copyright 2018 2014 2010 Pearson Education Inc All Rights Reserved EMS Communications Center Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-8.jpg)
EMS Communications Center Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![EMS Communications System 2 of 10 Components of an Emergency Communication System EMS Communications System (2 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-9.jpg)
EMS Communications System (2 of 10) • Components of an Emergency Communication System – Land mobile radio systems ▪ Vehicle-mounted transmitter/receivers ▪ Lower power than base stations ▪ 10 - to 15 -mile range Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

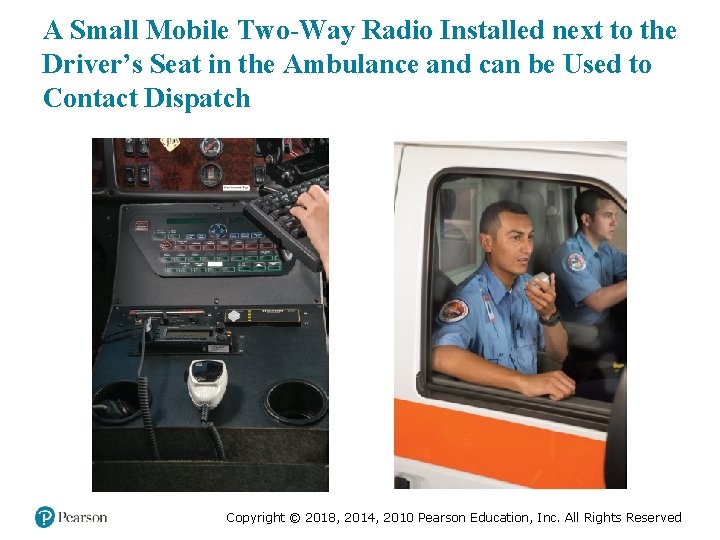

![A Small Mobile TwoWay Radio Installed next to the Drivers Seat in the Ambulance A Small Mobile Two-Way Radio Installed next to the Driver’s Seat in the Ambulance](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-10.jpg)
A Small Mobile Two-Way Radio Installed next to the Driver’s Seat in the Ambulance and can be Used to Contact Dispatch Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![An EMT Using the TwoWay Radio in the Ambulance Patient Compartment to Contact Medical An EMT Using the Two-Way Radio in the Ambulance Patient Compartment to Contact Medical](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-11.jpg)
An EMT Using the Two-Way Radio in the Ambulance Patient Compartment to Contact Medical Direction Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![EMS Communications System 3 of 10 Components of an Emergency Communication System EMS Communications System (3 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-12.jpg)
EMS Communications System (3 of 10) • Components of an Emergency Communication System – Portable radio ▪ Handheld transmitter/receiver ▪ Used when EMTs are out of the vehicle ▪ Limited transmission range ▪ Transmission can be boosted by use of a repeater Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![A Portable HandHeld Radio Copyright 2018 2014 2010 Pearson Education Inc All Rights A Portable Hand-Held Radio Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-13.jpg)
A Portable Hand-Held Radio Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![EMS Communications System 4 of 10 Components of an Emergency Communication System EMS Communications System (4 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-14.jpg)

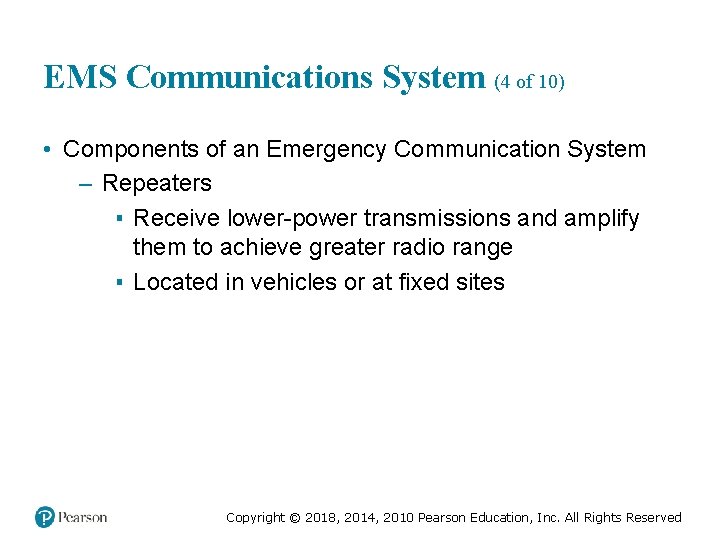

EMS Communications System (4 of 10) • Components of an Emergency Communication System – Repeaters ▪ Receive lower-power transmissions and amplify them to achieve greater radio range ▪ Located in vehicles or at fixed sites Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

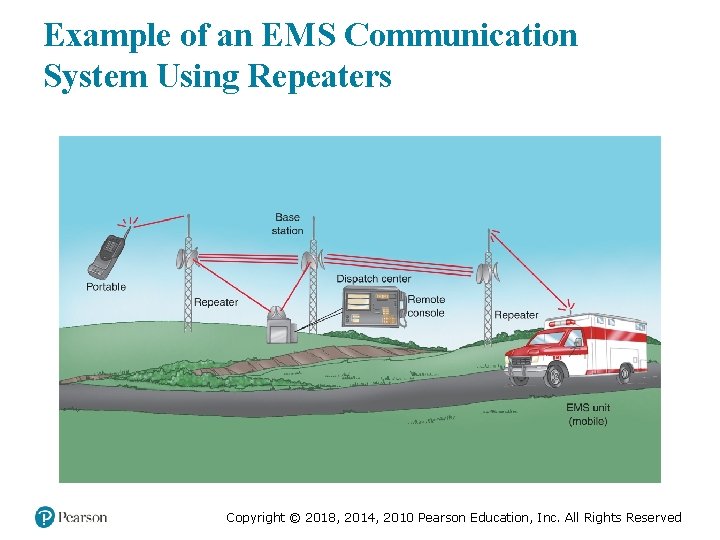

![Example of an EMS Communication System Using Repeaters Copyright 2018 2014 2010 Pearson Example of an EMS Communication System Using Repeaters Copyright © 2018, 2014, 2010 Pearson](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-15.jpg)
Example of an EMS Communication System Using Repeaters Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![EMS Communications System 5 of 10 Components of an Emergency Communication System EMS Communications System (5 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-16.jpg)
EMS Communications System (5 of 10) • Components of an Emergency Communication System – Digital equipment ▪ Allows more radios to operate on crowded frequencies ▪ Utilizes encoders and decoders ▪ Includes mobile data terminals that can transmit messages at the push of a button Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

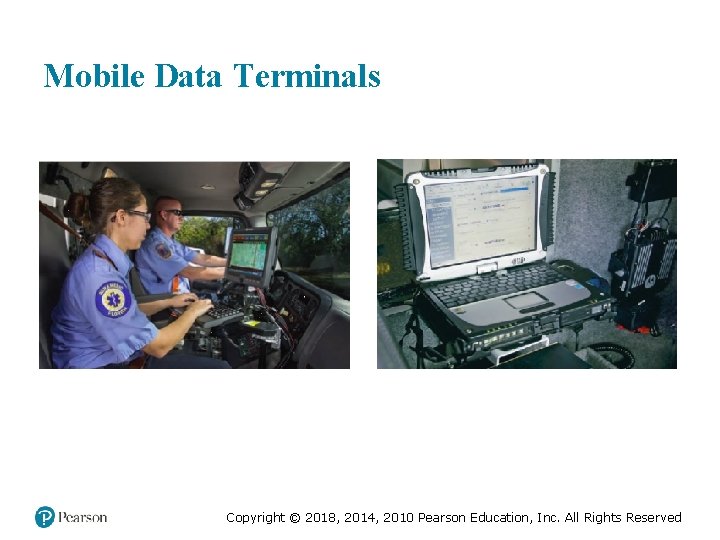

![Mobile Data Terminals Copyright 2018 2014 2010 Pearson Education Inc All Rights Reserved Mobile Data Terminals Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-17.jpg)
Mobile Data Terminals Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![EMS Communications System 6 of 10 Components of an Emergency Communication System EMS Communications System (6 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-18.jpg)

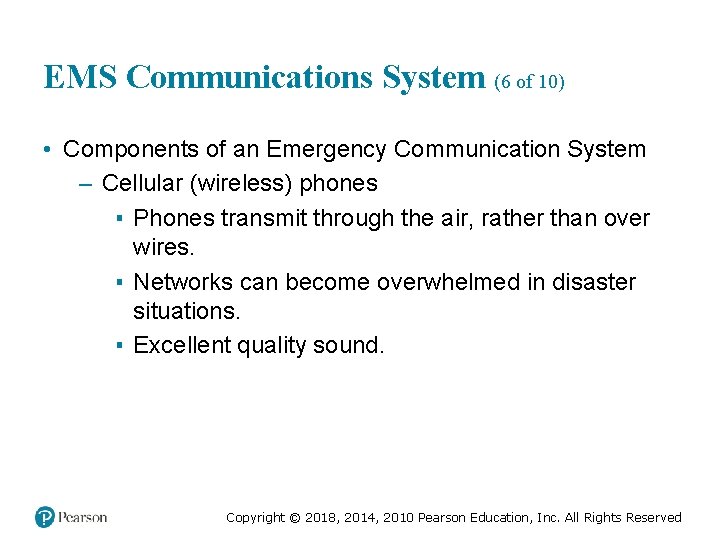

EMS Communications System (6 of 10) • Components of an Emergency Communication System – Cellular (wireless) phones ▪ Phones transmit through the air, rather than over wires. ▪ Networks can become overwhelmed in disaster situations. ▪ Excellent quality sound. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Use of Cellular Wireless Phone is Very Common in EMS Copyright 2018 2014 Use of Cellular (Wireless) Phone is Very Common in EMS Copyright © 2018, 2014,](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-19.jpg)
Use of Cellular (Wireless) Phone is Very Common in EMS Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![EMS Communications System 7 of 10 Components of an Emergency Communication System EMS Communications System (7 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-20.jpg)
EMS Communications System (7 of 10) • Components of an Emergency Communication System – Telemetry ▪ Transmission of patient data ▪ ECGs, vital signs, etc. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

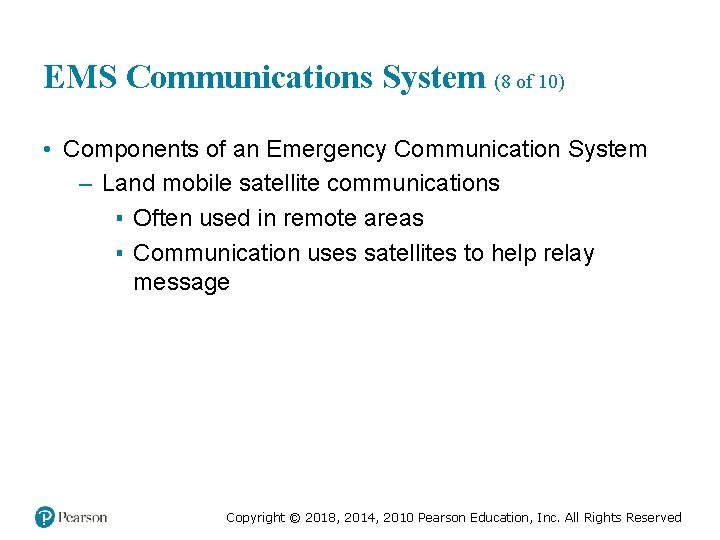

![EMS Communications System 8 of 10 Components of an Emergency Communication System EMS Communications System (8 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-21.jpg)
EMS Communications System (8 of 10) • Components of an Emergency Communication System – Land mobile satellite communications ▪ Often used in remote areas ▪ Communication uses satellites to help relay message Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

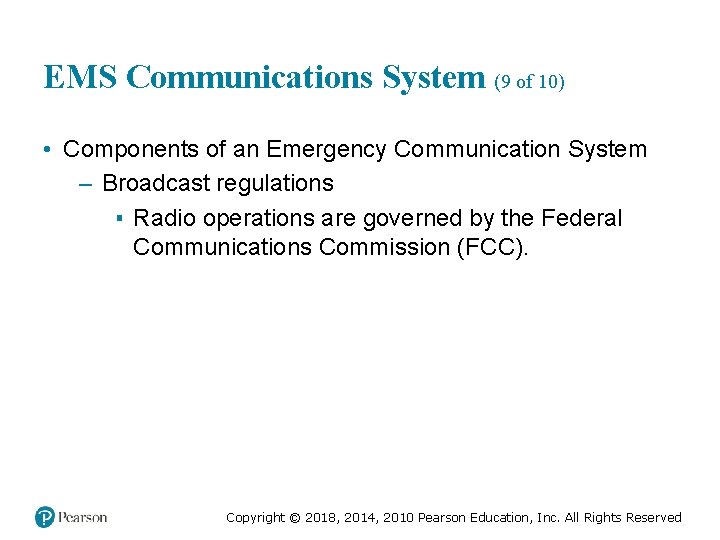

![EMS Communications System 9 of 10 Components of an Emergency Communication System EMS Communications System (9 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-22.jpg)
EMS Communications System (9 of 10) • Components of an Emergency Communication System – Broadcast regulations ▪ Radio operations are governed by the Federal Communications Commission (FCC). Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![EMS Communications System 10 of 10 Components of an Emergency Communication System EMS Communications System (10 of 10) • Components of an Emergency Communication System –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-23.jpg)

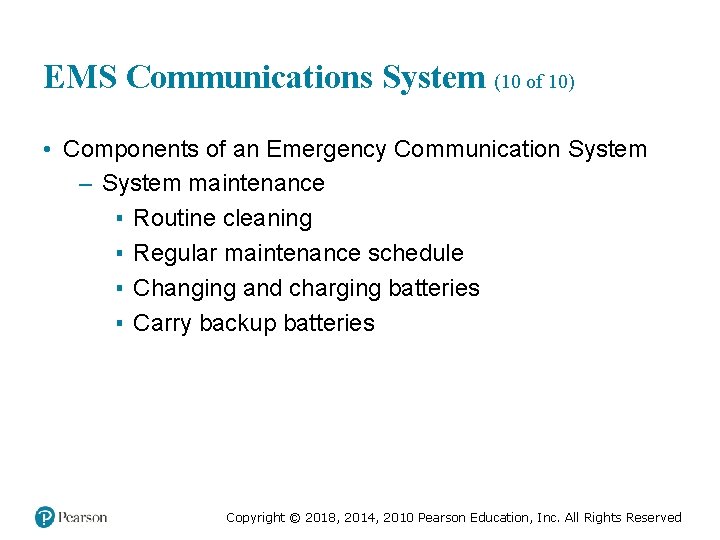

EMS Communications System (10 of 10) • Components of an Emergency Communication System – System maintenance ▪ Routine cleaning ▪ Regular maintenance schedule ▪ Changing and charging batteries ▪ Carry backup batteries Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

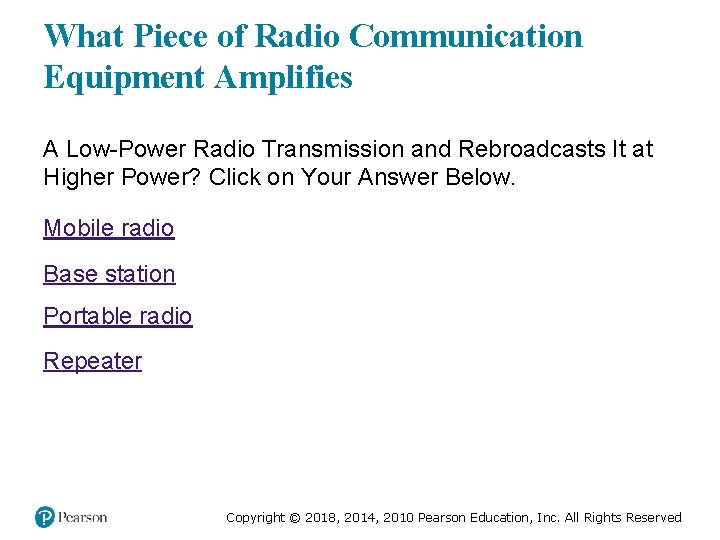

![What Piece of Radio Communication Equipment Amplifies A LowPower Radio Transmission and Rebroadcasts It What Piece of Radio Communication Equipment Amplifies A Low-Power Radio Transmission and Rebroadcasts It](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-24.jpg)
What Piece of Radio Communication Equipment Amplifies A Low-Power Radio Transmission and Rebroadcasts It at Higher Power? Click on Your Answer Below. Mobile radio Base station Portable radio Repeater Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Case Study 2 of 5 Krista uses the portable radio to acknowledge the dispatch Case Study (2 of 5) Krista uses the portable radio to acknowledge the dispatch.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-25.jpg)

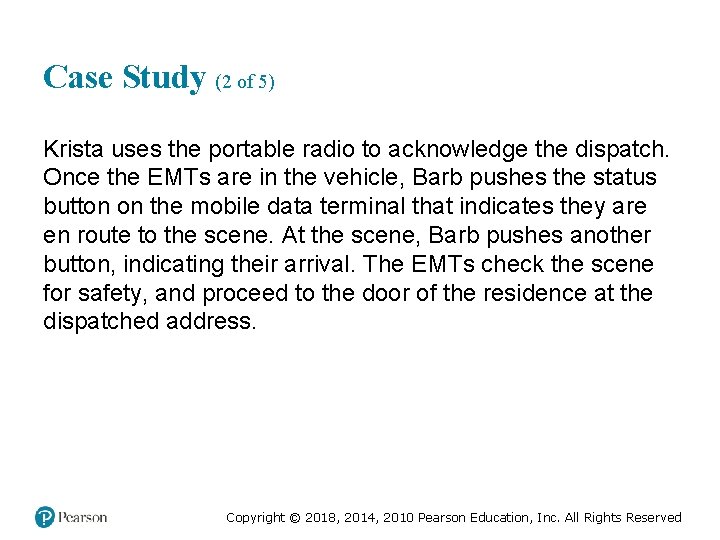

Case Study (2 of 5) Krista uses the portable radio to acknowledge the dispatch. Once the EMTs are in the vehicle, Barb pushes the status button on the mobile data terminal that indicates they are en route to the scene. At the scene, Barb pushes another button, indicating their arrival. The EMTs check the scene for safety, and proceed to the door of the residence at the dispatched address. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

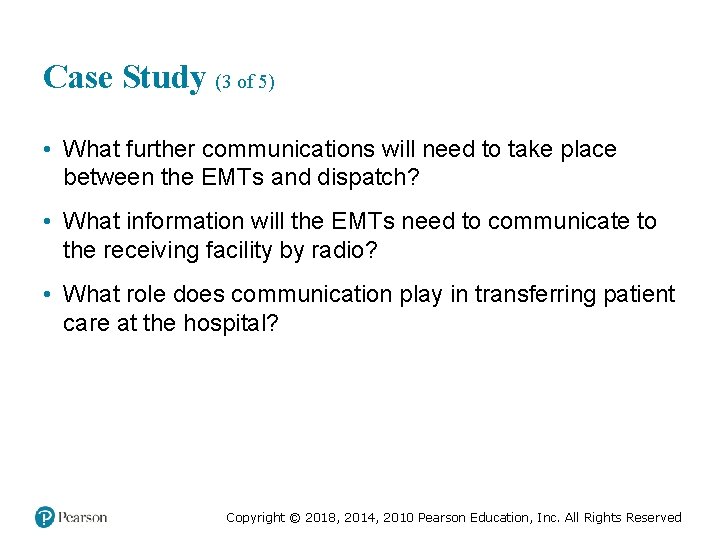

![Case Study 3 of 5 What further communications will need to take place Case Study (3 of 5) • What further communications will need to take place](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-26.jpg)
Case Study (3 of 5) • What further communications will need to take place between the EMTs and dispatch? • What information will the EMTs need to communicate to the receiving facility by radio? • What role does communication play in transferring patient care at the hospital? Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 1 of 22 EMTs communicate with Dispatch Communicating Within the System (1 of 22) • EMTs communicate with: – Dispatch –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-27.jpg)
Communicating Within the System (1 of 22) • EMTs communicate with: – Dispatch – Medical direction – Receiving facility personnel Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Progression of Radio Transmissions Copyright 2018 2014 2010 Pearson Education Inc All Rights Progression of Radio Transmissions Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-28.jpg)
Progression of Radio Transmissions Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 2 of 22 Ground Rules for Radio Communication 1 Communicating Within the System (2 of 22) • Ground Rules for Radio Communication 1.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-29.jpg)
Communicating Within the System (2 of 22) • Ground Rules for Radio Communication 1. Turn on the radio and select the frequency. 2. Listen before transmitting and adjust volume. 3. Press the “push-to-talk” button and wait one second before speaking. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 3 of 22 Ground Rules for Radio Communication 4 Communicating Within the System (3 of 22) • Ground Rules for Radio Communication 4.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-30.jpg)
Communicating Within the System (3 of 22) • Ground Rules for Radio Communication 4. Place the microphone two to three inches from your mouth; speak slowly, clearly, and calmly. 5. The unit you’re calling should respond with “go ahead” or “stand by. ” Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Hold the Microphone About Two Inches from Your Lips as You Speak into It Hold the Microphone About Two Inches from Your Lips as You Speak into It](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-31.jpg)
Hold the Microphone About Two Inches from Your Lips as You Speak into It Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved

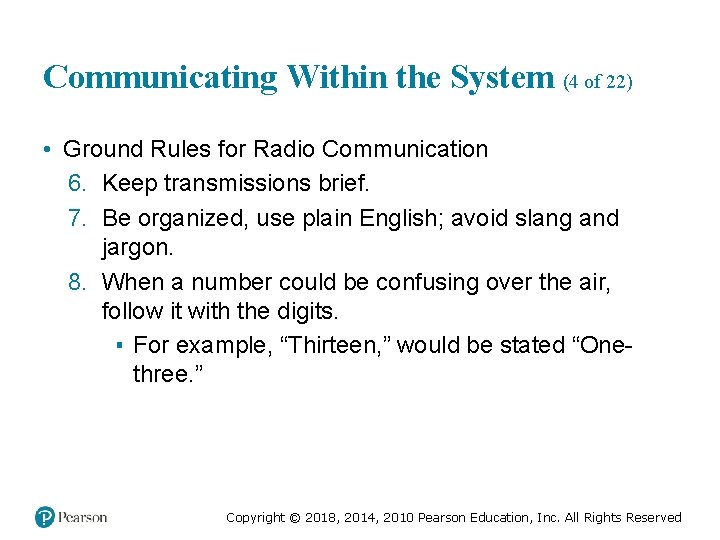

![Communicating Within the System 4 of 22 Ground Rules for Radio Communication 6 Communicating Within the System (4 of 22) • Ground Rules for Radio Communication 6.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-32.jpg)
Communicating Within the System (4 of 22) • Ground Rules for Radio Communication 6. Keep transmissions brief. 7. Be organized, use plain English; avoid slang and jargon. 8. When a number could be confusing over the air, follow it with the digits. ▪ For example, “Thirteen, ” would be stated “Onethree. ” Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 5 of 22 Ground Rules for Radio Communication 9 Communicating Within the System (5 of 22) • Ground Rules for Radio Communication 9.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-33.jpg)
Communicating Within the System (5 of 22) • Ground Rules for Radio Communication 9. Give objective information and selected subjective information from the patient assessment. 10. Echo medical orders. 11. Write down important information, such as addresses and medication orders. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 6 of 22 Ground Rules for Radio Communication 12 Communicating Within the System (6 of 22) • Ground Rules for Radio Communication 12.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-34.jpg)
Communicating Within the System (6 of 22) • Ground Rules for Radio Communication 12. Remember that others can hear what you’re saying. 13. Use “we, ” rather than “I. ” 14. Use “affirmative” for “yes, ” and “negative” for “no. ” 15. When finished, say “over, ” and wait for confirmation from the receiving party. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 7 of 22 PhoneCellular Phone Communication Format of Communicating Within the System (7 of 22) • Phone/Cellular Phone Communication – Format of](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-35.jpg)
Communicating Within the System (7 of 22) • Phone/Cellular Phone Communication – Format of reports is the same. – Be aware of cellular dead spots. – Have a backup plan for communication. – Know important telephone numbers. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 8 of 22 Communicating with Dispatch Dispatch receives Communicating Within the System (8 of 22) • Communicating with Dispatch – Dispatch receives](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-36.jpg)
Communicating Within the System (8 of 22) • Communicating with Dispatch – Dispatch receives information from callers and directs emergency services to the scene. – Emergency medical dispatchers provide instructions to the caller while awaiting EMS arrival. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 9 of 22 Communicating with Dispatch Dispatchers may Communicating Within the System (9 of 22) • Communicating with Dispatch – Dispatchers may](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-37.jpg)
Communicating Within the System (9 of 22) • Communicating with Dispatch – Dispatchers may receive information from the advanced automatic collision notification (AACN) systems in some newer vehicle models. – Information provided can be critical in locating the collision and predicting severity of injury. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 10 of 22 Communicating with Dispatch Typical communication Communicating Within the System (10 of 22) • Communicating with Dispatch – Typical communication](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-38.jpg)
Communicating Within the System (10 of 22) • Communicating with Dispatch – Typical communication points: ▪ To acknowledge that dispatch information was received ▪ To advise dispatch when the unit is en route to a call ▪ To estimate your time of arrival and report any delays Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 11 of 22 Communicating with Dispatch Typical communication Communicating Within the System (11 of 22) • Communicating with Dispatch – Typical communication](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-39.jpg)
Communicating Within the System (11 of 22) • Communicating with Dispatch – Typical communication points: ▪ To announce the unit's arrival on scene and, if needed, request additional resources ▪ To announce the unit's departure from the scene, transport destination, number of patients, and estimated arrival time Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 12 of 22 Communicating with Dispatch Typical communication Communicating Within the System (12 of 22) • Communicating with Dispatch – Typical communication](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-40.jpg)
Communicating Within the System (12 of 22) • Communicating with Dispatch – Typical communication points: ▪ To announce arrival at the receiving facility ▪ To announce when you’re available for another call ▪ To announce when you’re en route back to the station ▪ To announce arrival at your station Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 13 of 22 Communicating with Health Care Professionals Communicating Within the System (13 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-41.jpg)
Communicating Within the System (13 of 22) • Communicating with Health Care Professionals – Medical direction ▪ Medical direction may be located at the receiving facility or elsewhere. ▪ On many calls you will consult with medical direction. ▪ Medical direction may give orders and advice. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 14 of 22 Communicating with Health Care Professionals Communicating Within the System (14 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-42.jpg)
Communicating Within the System (14 of 22) • Communicating with Health Care Professionals – Medical direction ▪ Be clear. ▪ Echo orders. ▪ Ask for clarification of orders, if needed. ▪ If the order seems inappropriate, ask questions. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 15 of 22 Communicating with Health Care Professionals Communicating Within the System (15 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-43.jpg)
Communicating Within the System (15 of 22) • Communicating with Health Care Professionals – Communicate this information to medical direction: ▪ Your unit's identification number and level of care ▪ The patient's age and sex ▪ The patient's chief complaint ▪ History of the present illness Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 16 of 22 Communicating with Health Care Professionals Communicating Within the System (16 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-44.jpg)
Communicating Within the System (16 of 22) • Communicating with Health Care Professionals – Communicate this information to medical direction: ▪ Patient's past medical history ▪ Patient's mental status ▪ Patient's baseline vital signs ▪ Physical exam findings Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 17 of 22 Communicating with Health Care Professionals Communicating Within the System (17 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-45.jpg)
Communicating Within the System (17 of 22) • Communicating with Health Care Professionals – Communicate this information to medical direction: ▪ Emergency care provided ▪ Patient's response to emergency care ▪ Patient's current condition ▪ Request for further interventions ▪ Estimated time of arrival Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 18 of 22 Communicating with Health Care Professionals Communicating Within the System (18 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-46.jpg)
Communicating Within the System (18 of 22) • Communicating with Health Care Professionals – Additional guidelines for communicating with medical direction ▪ Use SBAR to organize information. – Situation – Background – Assessment – Recommendation Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 19 of 22 Communicating with Health Care Professionals Communicating Within the System (19 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-47.jpg)
Communicating Within the System (19 of 22) • Communicating with Health Care Professionals – Receiving facility ▪ Pertinent information allows the facility to prepare for the patient. ▪ The information provided is similar to that provided for medical direction. ▪ Notify the facility of changes that occur after the report is given. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 20 of 22 Communicating with Health Care Professionals Communicating Within the System (20 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-48.jpg)
Communicating Within the System (20 of 22) • Communicating with Health Care Professionals – Provide an oral report on arrival at receiving facility. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 21 of 22 Communicating with Health Care Professionals Communicating Within the System (21 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-49.jpg)
Communicating Within the System (21 of 22) • Communicating with Health Care Professionals – When transferring patient care, the report should include: ▪ The patient's current condition ▪ The patient's age and gender ▪ The patient's chief complaint ▪ A brief, pertinent history ▪ How you found the patient Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Communicating Within the System 22 of 22 Communicating with Health Care Professionals Communicating Within the System (22 of 22) • Communicating with Health Care Professionals –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-50.jpg)
Communicating Within the System (22 of 22) • Communicating with Health Care Professionals – When transferring patient care, the report should include: ▪ Major past illnesses ▪ Vital signs ▪ Pertinent exam findings ▪ Treatment provided ▪ Patient's response to treatment Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Youre Transporting a 30 YearOld Patient Who is Complaining of Left Arm Pain as You’re Transporting a 30 -Year-Old Patient Who is Complaining of Left Arm Pain as](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-51.jpg)
You’re Transporting a 30 -Year-Old Patient Who is Complaining of Left Arm Pain as a Result of a Motor Vehicle Collision Which piece of information is MOST relevant during your radio report to the receiving facility? Click on your answer. A. The name of the patient’s primary care physician B. All of the medications the patient takes, including vitamins and over-the-counter medications C. The patient’s age and gender D. A history of the patient’s childhood illnesses Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Case Study 4 of 5 Krista and Barb arrive at the patients residence just Case Study (4 of 5) Krista and Barb arrive at the patient's residence just](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-52.jpg)
Case Study (4 of 5) Krista and Barb arrive at the patient's residence just prior to the engine. Upon entering the residence, Krista approaches the patient, 32 -year-old Alyssa Tandy, while Barb takes a moment to speak with Alyssa's husband, David. A few minutes into the assessment, the engine arrives and paramedic Sam Bowles enters the scene. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Case Study 5 of 5 What skills are needed to establish rapport with Case Study (5 of 5) • What skills are needed to establish rapport with](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-53.jpg)
Case Study (5 of 5) • What skills are needed to establish rapport with the patient at the scene and obtain the necessary information? • How should the crew interact with each other, and with other responders and medical personnel, to facilitate good patient care? Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Team Communication and Dynamics 1 of 5 Taking Charge EMTs must be Team Communication and Dynamics (1 of 5) • Taking Charge – EMTs must be](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-54.jpg)
Team Communication and Dynamics (1 of 5) • Taking Charge – EMTs must be able to confidently take charge. – EMTs interact with fire, rescue, law enforcement, and other health care professionals. – The EMT must be the advocate for good and proper patient care. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Team Communication and Dynamics 2 of 5 Radio codes Advantages Can Team Communication and Dynamics (2 of 5) • Radio codes – Advantages ▪ Can](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-55.jpg)
Team Communication and Dynamics (2 of 5) • Radio codes – Advantages ▪ Can shorten radio air time ▪ Can provide information clearly and concisely ▪ Can allow for privacy by transmitting information not easily understood by bystanders Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Team Communication and Dynamics 3 of 5 Radio codes Disadvantages Useless Team Communication and Dynamics (3 of 5) • Radio codes – Disadvantages ▪ Useless](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-56.jpg)
Team Communication and Dynamics (3 of 5) • Radio codes – Disadvantages ▪ Useless unless they are understood by all in the system ▪ Medical communication may be too complex to be conveyed in codes ▪ Some codes are used infrequently and must be looked up Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Team Communication and Dynamics 4 of 5 Times Clocks must be accurate Team Communication and Dynamics (4 of 5) • Times – Clocks must be accurate](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-57.jpg)
Team Communication and Dynamics (4 of 5) • Times – Clocks must be accurate and synchronous. – Military time system is generally used. ▪ 1427 hours is 2: 27 p. m. ▪ 0030 hours is 30 minutes after midnight Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Team Communication and Dynamics 5 of 5 Radio Terms Frequently used words Team Communication and Dynamics (5 of 5) • Radio Terms – Frequently used words](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-58.jpg)
Team Communication and Dynamics (5 of 5) • Radio Terms – Frequently used words or short phrases are used to concisely convey meaning. – Examples include: ▪ Break, clear, copy, ETA, and 10 -4, landline, stand by, over Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 1 of 22 Principles of Patient Communication Therapeutic communication fosters Therapeutic Communication (1 of 22) • Principles of Patient Communication – Therapeutic communication fosters](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-59.jpg)
Therapeutic Communication (1 of 22) • Principles of Patient Communication – Therapeutic communication fosters a positive patient relationship. – Messages composed of thoughts, ideas, information, emotion. – Many factors can influence how a person interprets these messages. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 2 of 22 The Communication Process Sender encodes a message Therapeutic Communication (2 of 22) • The Communication Process – Sender encodes a message.](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-60.jpg)
Therapeutic Communication (2 of 22) • The Communication Process – Sender encodes a message. – Receiver decodes the message. – Feedback received by sender helps to determine if the message was received as desired. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 3 of 22 Communication Responses Techniques to improve provider and Therapeutic Communication (3 of 22) • Communication Responses – Techniques to improve provider and](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-61.jpg)
Therapeutic Communication (3 of 22) • Communication Responses – Techniques to improve provider and patient communication ▪ Facilitation ▪ Clarification ▪ Summary ▪ Explanation Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 4 of 22 Communication Responses Techniques to improve provider and Therapeutic Communication (4 of 22) • Communication Responses – Techniques to improve provider and](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-62.jpg)
Therapeutic Communication (4 of 22) • Communication Responses – Techniques to improve provider and patient communication ▪ Silence ▪ Empathy ▪ Confrontation ▪ Facilitated communication Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 5 of 22 Communicating with the Patient People at an Therapeutic Communication (5 of 22) • Communicating with the Patient – People at an](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-63.jpg)
Therapeutic Communication (5 of 22) • Communicating with the Patient – People at an emergency scene may be experiencing high-intensity emotions, which can affect communication. – Use three C’s: ▪ Confidence, compassion and cooperation. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 6 of 22 Patient Contact First impressions are critical and Therapeutic Communication (6 of 22) • Patient Contact – First impressions are critical, and](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-64.jpg)
Therapeutic Communication (6 of 22) • Patient Contact – First impressions are critical, and include your appearance and professionalism. – Introduce yourself, your team, and ask the patient's name. ▪ Determine what he or she wishes to be called. ▪ Use the patient's name. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 7 of 22 Patient Contact Obtain permission to treat Therapeutic Communication (7 of 22) • Patient Contact – Obtain permission to treat. ▪](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-65.jpg)
Therapeutic Communication (7 of 22) • Patient Contact – Obtain permission to treat. ▪ If the patient refuses, seek to understand the reason, which may be related to fear or defense mechanisms. – Be wary of defense mechanisms. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 8 of 22 Patient Contact Speak clearly calmly slowly use Therapeutic Communication (8 of 22) • Patient Contact – Speak clearly, calmly, slowly; use](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-66.jpg)
Therapeutic Communication (8 of 22) • Patient Contact – Speak clearly, calmly, slowly; use plain language that avoids jargon. – Speak professionally and with concern and compassion. – Respect the patient’s privacy. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 9 of 22 Patient Contact Limit interruptions in communication Therapeutic Communication (9 of 22) • Patient Contact – Limit interruptions in communication. –](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-67.jpg)
Therapeutic Communication (9 of 22) • Patient Contact – Limit interruptions in communication. – Be aware of your position relative to the patient, body language, and the use of space. – Control the physical environment, if possible, for the amount of noise and light. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 10 of 22 Patient Contact Be courteous give choices when Therapeutic Communication (10 of 22) • Patient Contact – Be courteous, give choices when](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-68.jpg)
Therapeutic Communication (10 of 22) • Patient Contact – Be courteous, give choices when possible. – Actively listen to your patient. – Be honest with your answers and statements made to the patient. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 11 of 22 The Patient Interview Conduct interview to gain Therapeutic Communication (11 of 22) • The Patient Interview – Conduct interview to gain](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-69.jpg)
Therapeutic Communication (11 of 22) • The Patient Interview – Conduct interview to gain information. – Knowing what questions to ask is key. – Use of interviewing techniques allows you to gather necessary information. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 12 of 22 The Patient Interview Nonverbal communication Posture Therapeutic Communication (12 of 22) • The Patient Interview – Nonverbal communication ▪ Posture](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-70.jpg)
Therapeutic Communication (12 of 22) • The Patient Interview – Nonverbal communication ▪ Posture – Position of yourself in relative to patient – Convey a message of concern Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 13 of 22 The Patient Interview Nonverbal communication Distance Therapeutic Communication (13 of 22) • The Patient Interview – Nonverbal communication ▪ Distance](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-71.jpg)
Therapeutic Communication (13 of 22) • The Patient Interview – Nonverbal communication ▪ Distance – Intimate zone ▪ Gestures ▪ Eye contact ▪ Haptics Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 14 of 22 The Patient Interview Asking questions Ask Therapeutic Communication (14 of 22) • The Patient Interview – Asking questions ▪ Ask](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-72.jpg)
Therapeutic Communication (14 of 22) • The Patient Interview – Asking questions ▪ Ask one question at a time. ▪ Give the patient time to answer. ▪ Listen to the response. ▪ Choose language the patient understands. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 15 of 22 The Patient Interview Asking questions Openended Therapeutic Communication (15 of 22) • The Patient Interview – Asking questions ▪ Open-ended](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-73.jpg)
Therapeutic Communication (15 of 22) • The Patient Interview – Asking questions ▪ Open-ended questions – Allow the patient to give a detailed response. – Answers provide detailed information. – An example is, “How are you feeling? ” Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 16 of 22 The Patient Interview Asking questions Closedended Therapeutic Communication (16 of 22) • The Patient Interview – Asking questions ▪ Closed-ended](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-74.jpg)
Therapeutic Communication (16 of 22) • The Patient Interview – Asking questions ▪ Closed-ended questions – Also called direct questions. – Used to get information quickly or to follow up on open-ended questions to get specifics. – An example is, “What medications do you take? ” Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 17 of 22 The Patient Interview Considerations in interviewing Therapeutic Communication (17 of 22) • The Patient Interview – Considerations in interviewing ▪](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-75.jpg)
Therapeutic Communication (17 of 22) • The Patient Interview – Considerations in interviewing ▪ Do not ask leading or biased questions. ▪ Do not interrupt the patient. ▪ Be aware of too much talking by you or the patient. ▪ Do not provide false reassurance. ▪ Do not give inappropriate advice. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 18 of 22 The Patient Interview Considerations in interviewing Therapeutic Communication (18 of 22) • The Patient Interview – Considerations in interviewing ▪](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-76.jpg)
Therapeutic Communication (18 of 22) • The Patient Interview – Considerations in interviewing ▪ Do not ask “why” questions that imply blame. ▪ Manage the presence and interactions of family members. ▪ Motivating the unmotivated patient. ▪ Interviewing a hostile patient. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 19 of 22 The Patient Interview Special circumstances Transcultural Therapeutic Communication (19 of 22) • The Patient Interview – Special circumstances ▪ Transcultural](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-77.jpg)
Therapeutic Communication (19 of 22) • The Patient Interview – Special circumstances ▪ Transcultural considerations ▪ Elderly patients ▪ Young patients Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 20 of 22 The Patient Interview Special circumstances Transcultural Therapeutic Communication (20 of 22) • The Patient Interview – Special circumstances - Transcultural](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-78.jpg)
Therapeutic Communication (20 of 22) • The Patient Interview – Special circumstances - Transcultural ▪ Cultures view space differently; watch for feedback. ▪ If there is a language barrier, seek an interpreter. ▪ Be aware of potential filtering of information by interpreters. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 21 of 22 The Patient Interview Special circumstances Elderly Therapeutic Communication (21 of 22) • The Patient Interview – Special circumstances - Elderly](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-79.jpg)
Therapeutic Communication (21 of 22) • The Patient Interview – Special circumstances - Elderly ▪ Additional time may be needed when interviewing elderly patients. ▪ Do not make assumptions about hearing and vision problems, but be alert that they may exist. ▪ Retrieve hearing aids or write questions on a pad of paper, if needed. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Therapeutic Communication 22 of 22 The Patient Interview Special circumstances Children Therapeutic Communication (22 of 22) • The Patient Interview – Special circumstances - Children](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-80.jpg)
Therapeutic Communication (22 of 22) • The Patient Interview – Special circumstances - Children ▪ Use extra patience with children. ▪ Obtain the parents’ assistance in communicating with the child. ▪ Position yourself at the child's eye level. ▪ Use simple, direct language. ▪ Be honest. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Case Study Conclusion 1 of 4 Krista performs a primary assessment and begins administering Case Study Conclusion (1 of 4) Krista performs a primary assessment and begins administering](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-81.jpg)
Case Study Conclusion (1 of 4) Krista performs a primary assessment and begins administering oxygen to Alyssa. Barb learns from David that Alyssa seems to have the flu, which triggered an asthma attack. When paramedic Sam Bowles arrives, Krista introduces him to Alyssa. Sam crouches next to the sofa and begins his interview by asking Alyssa how she is feeling. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Case Study Conclusion 2 of 4 Both Alyssa and David are much calmer now Case Study Conclusion (2 of 4) Both Alyssa and David are much calmer now](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-82.jpg)
Case Study Conclusion (2 of 4) Both Alyssa and David are much calmer now that the providers have shown that they are confident and competent, as well as compassionate and empathetic. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Case Study Conclusion 3 of 4 After beginning treatment at the scene the providers Case Study Conclusion (3 of 4) After beginning treatment at the scene, the providers](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-83.jpg)
Case Study Conclusion (3 of 4) After beginning treatment at the scene, the providers place Alyssa in the ambulance, and notify dispatch that they are en route to Brown County Hospital. Sam gives an organized radio report, telling the receiving facility that they have an ETA of 15 minutes. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Case Study Conclusion 4 of 4 When they arrive at the hospital Sam gives Case Study Conclusion (4 of 4) When they arrive at the hospital, Sam gives](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-84.jpg)
Case Study Conclusion (4 of 4) When they arrive at the hospital, Sam gives a transfer of care report, and the crew wishes Alyssa well before notifying dispatch that they are ready for the next call. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Lesson Summary 1 of 2 EMS system communication and therapeutic communication are key Lesson Summary (1 of 2) • EMS system communication and therapeutic communication are key](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-85.jpg)
Lesson Summary (1 of 2) • EMS system communication and therapeutic communication are key EMT skills. • Radio equipment includes base stations, mobile radios, portable radios, and repeaters. • Follow basic ground rules for radio communication. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Lesson Summary 2 of 2 EMTs communicate with dispatch at key points during Lesson Summary (2 of 2) • EMTs communicate with dispatch at key points during](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-86.jpg)
Lesson Summary (2 of 2) • EMTs communicate with dispatch at key points during calls. • EMTs communicate with medical direction and personnel at the receiving facility. • Therapeutic communication is critical to good patient care. Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Feedback 1 of 8 Incorrect answer A mobile radio is a radio Feedback (1 of 8) • Incorrect answer – A mobile radio is a radio](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-87.jpg)
Feedback (1 of 8) • Incorrect answer – A mobile radio is a radio mounted in a vehicle. Click here to return to the quiz Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Feedback 2 of 8 Incorrect answer A portable radio is a radio Feedback (2 of 8) • Incorrect answer – A portable radio is a radio](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-88.jpg)
Feedback (2 of 8) • Incorrect answer – A portable radio is a radio an EMT carries with him when he is away from the vehicle. Click here to return to the quiz Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Feedback 3 of 8 Incorrect answer A base station is a highpowered Feedback (3 of 8) • Incorrect answer – A base station is a high-powered](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-89.jpg)
Feedback (3 of 8) • Incorrect answer – A base station is a high-powered radio, such as those used by dispatch. Click here to return to the quiz Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Feedback 4 of 8 Correct answer A repeater is used to amplify Feedback (4 of 8) • Correct answer – A repeater is used to amplify](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-90.jpg)
Feedback (4 of 8) • Correct answer – A repeater is used to amplify the low-power broadcast of a radio, such as a portable radio, and rebroadcast it at higher power to increase the broadcast distance of the radio. Click here to return to the program Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Feedback 5 of 8 Incorrect answer The name of the patients physician Feedback (5 of 8) • Incorrect answer • The name of the patient’s physician](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-91.jpg)
Feedback (5 of 8) • Incorrect answer • The name of the patient’s physician is not immediately relevant to patient care, and is not usually provided in the radio report. Click here to return to the quiz Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Feedback 6 of 8 Incorrect answer Its rarely necessary to provide a Feedback (6 of 8) • Incorrect answer • It’s rarely necessary to provide a](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-92.jpg)
Feedback (6 of 8) • Incorrect answer • It’s rarely necessary to provide a complete list of all the patient's medications during the radio report, although all medications must be documented in your written report. Click here to return to the quiz Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Feedback 7 of 8 Incorrect answer The history of an adult patients Feedback (7 of 8) • Incorrect answer • The history of an adult patient’s](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-93.jpg)
Feedback (7 of 8) • Incorrect answer • The history of an adult patient’s childhood illnesses is not relevant in the radio report. Click here to return to the quiz Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Feedback 8 of 8 Correct answer The patients age and gender are Feedback (8 of 8) • Correct answer! • The patient’s age and gender are](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-94.jpg)
Feedback (8 of 8) • Correct answer! • The patient’s age and gender are always part of a good radio report. Click here to return to the program Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
![Copyright 2018 2014 2010 Pearson Education Inc All Rights Reserved Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved](https://slidetodoc.com/presentation_image_h/1187905331f92a918317144dcf77b0df/image-95.jpg)
Copyright © 2018, 2014, 2010 Pearson Education, Inc. All Rights Reserved
Prehospital care 11th edition
The standards of prehospital emergency care
Therapeutic communication techniques
Prehospital emergency care 11th edition
Prehospital emergency care 11th edition
Prehospital emergency care 11th edition
Eleventh edition management
Management eleventh edition stephen p robbins
Management eleventh edition
Management eleventh edition stephen p robbins
Emergency care 13th edition chapter 1
Outdoor emergency care 6th edition
Bhore committee
Eleventh 5 year plan
11th five year plan
For his eleventh birthday elvis presley
Cincinnati prehospital stroke scale
Befast stroke scale
Cincinnati prehospital stroke scale
Peter bonadonna
Chapter 7 emergency care and disaster preparation
Chapter 54 basic emergency care
Chapter 8 emergency care first aid and disasters
Chapter 7 emergency care and disaster preparation
Level of care primary secondary tertiary
Emergency medical responder first on scene 10th edition
Cardiopulmonary
Ac vein
Emergency medical responder first on scene 11th edition
Understanding human communication 14th edition chapter 1
Using mis (10th edition) 10th edition
Report
Who emergency care system framework
Emergency care and first aid ppt
Emergency care enfield
Care for a victim of an immunologic emergency
Nhs 7 pillars
Golden rules of emergency care
Introduction to emergency medical care
Northwick park emergency department
Emergency care system framework
Tdh ems
Medical
The goal of modern emergency care includes
Emergency care limmer
Introduction to emergency medical care
Emergency communication trailer
Communication coordination cooperation during the emergency
Crisis and emergency risk communication
Principles of electronic communication systems 3rd edition
Business communication today chapter 1
Fundamentals of organizational communication 9th edition
Fundamentals of organizational communication 9th edition
Understanding human communication 14th edition
Family communication cohesion and change 10th edition
Principles of electronic communication systems 3rd edition
Linear vs relational worldview
Chapter 5 emergency preparedness injury game plan
Chapter 36 emergency preparedness and protective practices
Chapter 31 assisting in a medical emergency
Chapter 36 emergency preparedness and protective practices
Define medical emergency chapter 31
Duty of care certificate
Magnetul atrage
Palliative care versus hospice care
Mamifere care se inmultesc prin oua
Care sunt simturile prin care sunt evocate
Care certificate standard 1
Hip fracture care clinical care standard
Care value base health and social care
Organizational behavior 18th edition chapter 1
Organic chemistry (3rd) edition chapter 1 problem 16s
Mechanics of materials chapter 10 solutions pdf
Mechanics of materials 7th edition solutions chapter 7
Mechanics of materials 7th edition solutions chapter 6
Mechanics of materials chapter 5 solutions
Mechanics of materials chapter 10 solutions
Everything's an argument chapter 1 summary
Chapter 6 portable fire extinguishers
Engineering economy 16th edition chapter 5 solutions
Deffered annuity
Business essentials 12th edition
Lazarus appraisal theory
Do role requirements change in different situations
Acid chloride + grignard reagent
Landmarks in humanities 5th edition chapter 1
Infants, children and adolescents 8th edition
Beer johnston
Beer and johnston
Business essentials 12th edition answer key
Security in computing 5th edition ppt
Financial accounting ifrs 4th edition chapter 12
Management robbins coulter 14th edition chapter 1
Mechanics
Engineering economy 16th edition solution manual chapter 5
Engineering economy 16th edition solution
