Predictive Suite Overview Contents Predictive Suite Ebiz Cloud
Predictive Suite Overview

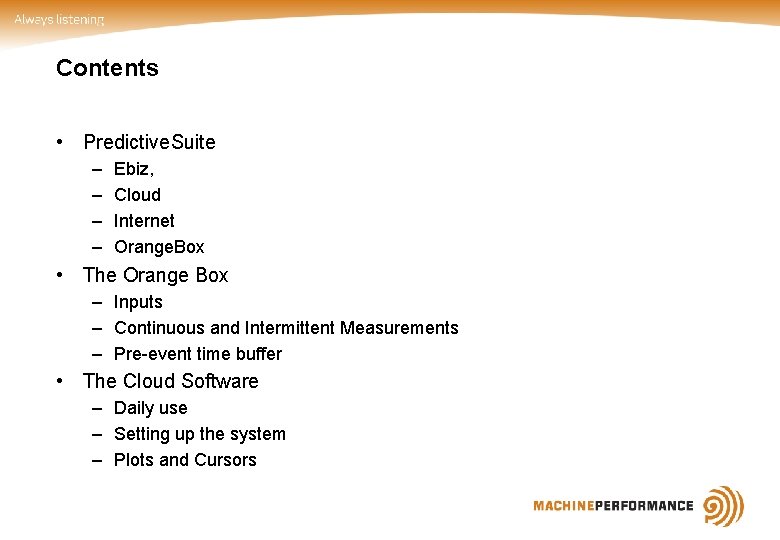

Contents • Predictive. Suite – – Ebiz, Cloud Internet Orange. Box • The Orange Box – Inputs – Continuous and Intermittent Measurements – Pre-event time buffer • The Cloud Software – Daily use – Setting up the system – Plots and Cursors
How it works Surveillance Sensor signals Diagnostics Modbus (TCPIP), DC-out Orange. Box cloud
The Cloud cloud. machineperformance. net ebiz. machineperformance. net cloud: For monitoring ebiz: For buying licenses & hardware www. machineperformance. net Common passwords www: Information - Advertizing
Ordering – installing Predictive. Suite DSM – Doctor Suite Monitor Back office Provisions box Install box Partner place order in ebiz DSDS Diagnostic Studio Doctor Suite Setup system in the cloud
Benefits of the cloud approach • No local server necessary – Just connect to the internet • Leasing of software and Orange. Box – Lower initial cost – Pay – as – you - go • Remote support – No training of operators – We do the monitoring • Continuous business potential • We do the monitoring – We learn what is good for you • Working together – Synergi
The Orange. Box™ 3 * Relays 6 Channel Analogue Output 0 -10 V or 4 -20 m. A ”API compatible” Dual Throw-Dual Poll 24 Bit A/D 102, 4 k. Hz Galvanically isolated 6 Channel Analogue front end ”Blue” ”Yellow” ”Red” RS 485 TCP/IP FPGA CPU Embedded LINUX SD Card Modbus Internet SD-Card for data storage (4 - 32 Gbyte or larger) 3*LED Green-Blue Green-Yellow Green-Red 2 Tacho input 4 Digital input 24 V Power Supply
The Orange Box Reset function (1 V-20 V) 2 min pre-event buffer trigger 6 * Analogue output 10 V or 4 – 20 m. A 3 * Relay output Dual throw dual poll Thermal conductor 2*6 * V<->m. A jumpers 6 analogue input RS 485 Modbus out 6 * V<->m. A jumpers Thermal conductor 3 V backup Battery USB-port 2 Tacho input 4* Digital input (on/off) 2* TCP/IP Standard SD memory 4 GB – 32 Gbyte (or more) 24 V Power supply (Pls. Remember grounding)
Dual Throw - Dual poll
6 * Front end Analogue input +12 V • Velocity probe • Current measurement V PWR+ +14 V 4 m. A V ~10 M Ω Hi 0 V 500 Ω • IPC Accelerometer • Proximitor probe • Positive power suppply LO V ~10 M Ω • 2* Tacho channel Other Input PWR(COM) GND -14 V
CCLD - Constant Current Line Drive Pietzoelectric Sensor also called ICP - Integrated Circuit Accelerometer +12 V V +14 V PWR+ 4 m. A HI V ~10 M Ω 500 Ω 0 V V LO ~10 M Ω PWR- (COM) Cable shield GND -14 V
Proximity probe – Displacement Sensor – Eddy current probe COM Measurement Out (Sig) Supply Voltage (-24 V) VT (-DC) 3 wire Applications: Orbit, Shaft Centerline Vibration, Tacho
Proximity Probe DCS Positive power supply standard +12 V V VT (+DC) 4 m. A Out (Sig) ~10 M Ω 4 m. A V Out (Sig) Hi 0 V 500 Ω COM +14 V PWR+ Hi V COM V LO ~10 M Ω V 0 V 500 Ω +12 V V LO ~10 M Ω VT (-DC) ~10 M Ω PWR- (COM) GND -14 V
When no voltage offset +12 V V PWR+ Signal Generator Velocity Probe Current. . . 4 m. A V ~10 M Ω Hi 0 V 500 Ω • • +14 V LO V ~10 M Ω PWR(COM) GND -14 V
Grounding is used for • Protective grounding – Avoiding power shock accidents. • Removing of low frequency ”hum” – 50 Hz noise • In some countries 60 Hz – Ground loops • Removing high frequency noise – Introduced into the power network by variable speed motors etc. – Transmitter and radio noise • Anchoring a floating system – ”Floating systems” have a tendecny to float on AC voltage corresponding to half the power supply – Due to high frequency filter
Ground loops Monitor Coax Cable Sensor ~ EG ES EI ~ EG
Hig frequency filters on input may give half the suply voltage High frequency filter 230 V AC + 115 V AC if not grounded - Warning: • Orange box is only designed for ~28 V input • We often see that ICP get saturated by noise 23 V across input instead of 12 V -15 V
Orange. Box™ Measurements X 2 0, 15 Hz X 4 X 3 1 Hz X 5 -X 6 10 Hz X 1: DC DC X 2: 0, 15 Hz-10 Hz Acc. PP BP 01510 X 3: 1 Hz – 1 k. Hz Vel. RMS BP 11000 ( ISO ) X 4: 10 Hz – 1 k. Hz Vel. RMS BP 101000 ( ISO ) X 5: 1 k. Hz – 10 k. Hz Acc. RMS BP 10000 X 6: 1 k. Hz – 10 k. Hz Acc. PP/RMS CBP 10000 X 7: 10 k. Hz Acc. RMS HP 10 Tacho: RPM measurement Regular array (spectrum 500 Hz 1, 2, 5, 10 k. Hz) Zoom spectrum 200 Hz with variable center frequency Order spectrum X 7 100 Hz 1 k Hz 1 X 2 X 10 k Hz 1 X 1 PH 2 X 2 PH Residue (BP 101000 – 1 X –X 2) N 1/M 1 X N 2/M 2 X (where N 1, M 1, N 2 M 2 are integeres)
Pre-event buffer • Can trigger on any continuous measurement – Upper / Lower trigger level Indemendent on alarm Continuous buffer • 2 Minute buffer on all 6 analogue channels + 2 tacho – 4 minute pre event – 4 minute post event – MID: 2 minute before event 2 minute after event • 100 k. Hz sampling possible (present setting: 25 k. Hz) • All 8 channels simultaneously – Filesize Raw: 70 Mbyte, UFF: 600 MByte Post Mid 240 seconds Pre Up to 10 stored In Cloud Analysis done On local computer
The Cloud software • DSDS – Diagnostic Studio Doctor Suite • Cloud = Browser based software • Allows people working together
DSDS Menu structure Default plots User settings Definition of Default plots groups Setup and raw data plot Definition of Kinemeatic cursor System Log See also Alarm setup Device View and alarm list Measurement ressource list Occational user defined ”advanced” plots
”Home” user interface • Default user interface – For measurement ressources • Set up via the Group concept • Double click to open group
Checking the Monitoring function
Setting up the system • Select / create ”ressource” (I. E. Measurement) from a list of pre-selected measurements • Setup the right parameters for data capture and spectrum frequency range (very few parameters) • Upload the new settings to the DSM • Create a group – Populate the group with measurement ”ressources” • Setup alarm limits • Setup kinematic cursors 1.
Device menu 10 clip or continouos MAC Address Given Name View config View Time captures Loop test function Edit Global Params Push config to DSM Channel setup Measurement setup Is Online? Raw Oscillosope plot
Channel setup – Measurement setup Device Configure Channel setup X 2 X 3 X 4 X 5 -X 6 X 7 0, 15 Hz 100 Hz 1 k Hz 10 k Hz Spectrum Zoom Spectrum Order spectrum
For units click on i
Building groups Building the HOME menu 2. Click on Edit 1. Select group 3. Select measurement ressource into group 4. Double click in Home tab To open group
Loop test function Simultaneous values on all channels A very strong function, and of course: Download in Excel format
Building Machines Symptom cursor • At the moment The Orange box device assign machines – Only one machine per DSM (this will be changed) – Machine info can be re-used • Create new machine – Assign to DSM • Define Tachos (Edit machine) – Give name – Fixed speed – Zero speed!! • Add symptoms to machine
Adding symptoms • • • Select machine Click on (+) Select component Fill in parameters Double click on machine to open components From Edit machine
Use of symptoms • On spectrum select Kinematic cursor • Select frequency • See frequencies on plot
Alarm setup • Ech alarm has a name
New alamrs must be pushed to DSM
Alarm System
Other measurements • • Scalar vs Scalar Trend plot Multiscalar vs trend Array plot comparison
The Orange. Box™ and Predictive. Studio™ A Strong Concept
