Predicting Execution Bottlenecks in MapReduce Clusters Edward Bortnikov

Predicting Execution Bottlenecks in Map-Reduce Clusters Edward Bortnikov, Ari Frank, Eshcar Hillel, Sriram Rao Presenting: Alex Shraer Yahoo! Labs

The Map Reduce (MR) Paradigm § Architecture for scalable information processing § Simple API § Computation scales to Web-scale data collections § Google MR § Pioneered the technology in early 2000’s § Hadoop: open-source implementation § In use at Amazon, e. Bay, Facebook, Yahoo!, … § Scales to 10 K’s nodes (Hadoop 2. 0) § Many proprietary implementations § MR technologies at Microsoft, Yandex, … -2 - Yahoo! Confidential

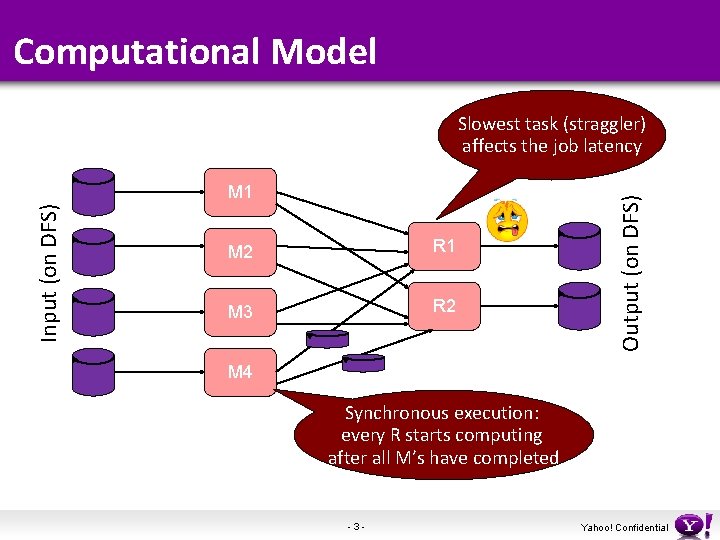

Computational Model Input (on DFS) M 1 M 2 R 1 M 3 R 2 Output (on DFS) Slowest task (straggler) affects the job latency M 4 Synchronous execution: every R starts computing after all M’s have completed -3 - Yahoo! Confidential

Predicting Straggler Tasks § Straggler tasks are an inherent bottleneck § Affect job latency, and to some extend throughput § Two approaches to tackle stragglers § Avoidance – reduce the probability of straggler emergence § Detection – once a task goes astray, speculatively fire a duplicate task somewhere else § This work – straggler prediction § Fits with both avoidance and detection scenarios -4 - Yahoo! Confidential

Background § Detection, Speculative Execution § First implemented in Google MR (OSDI ’ 04) § Hadoop employs a crude detection heuristic § LATE scheduler (OSDI ‘ 08) addresses the issues of heterogeneous hardware. Evaluated on small scale. § Microsoft MR (Mantri project, OSDI ‘ 10) § Avoidance § Local/rack-local data access is preferred for mappers § … Network less likely to become the bottleneck § All optimizations are heuristic -5 - Yahoo! Confidential

Machine-Learned vs Heuristic Prediction § Heuristics are hard to … § Tune for real workloads § Catch transient bottlenecks § Some evidence from Hadoop grids at Yahoo! § Speculative scheduling is non-timely and wasteful § 90% of the fired duplicates are eventually killed § Data-local computation amplifies contention § Can we use the wealth of historical grid performance data to train a machine-learned bottleneck classifier? -6 - Yahoo! Confidential

Why Should Machine Learning Work? Huge recurrence of large jobs in production grids Recurrence Fraction of jobs Fraction of maps Fraction of reduces 1 3. 3% 0. 1% <0. 1% 2 2% 0. 1% 3 -5 11. 4% 0. 3% 0. 5% 6 -10 6. 2% 0. 8% 0. 5% 11 -20 7. 9% 1. 1% 1. 0% 21 -50 10. 9% 2. 6% 2. 7% 51 -100 11% 2. 9% 7. 2% 101 -200 32. 9% 6. 2% 9. 2% 201 -500 4. 5% 9. 8% 5. 2% 501 -1000 1. 3% 5. 6% 2. 0% 1001+ 8. 6% 68. 5% 71. 5% (over 5 months) -7 - Target workload 95% of mappers and reducers belong to jobs that ran 50+ times in a 5 -month sample Yahoo! Confidential

The Slowdown Metric § Task slowdown factor § Ratio between the task’s running time and the median running time among the sibling tasks in the same job. § Root causes § Data skew – input or output significantly exceeds the median for the job § Tasks with skew > 4 x happen really seldom. § Hotspots – all the other reasons § Congested/misconfigured/degraded nodes, disks, or network. § Typically transient. The resulting slow can be very high. -8 - Yahoo! Confidential

Jobs with Mapper Slowdown > 5 x Sample of ~50 K jobs § 1% among all jobs § 5% among jobs with 1000 mappers or more § 40% due to data skew (2 x or above), 60% due to hotspots -9 - Yahoo! Confidential

Jobs with Reducer Slowdown > 5 x Sample of ~60 K jobs § 5% among all jobs § 50% among jobs with 1000 reducers or more § 10% due to data skew (2 x or above), 90% due to hotspots - 10 - Yahoo! Confidential

Locality is No Silver Bullet Top contributor of straggler tasks over 6 hours §The same nodes are constantly lagging behind § Weaker CPUs (grid HW is heterogeneous), data hotspots, etc. § Pushing for locality too hard amplifies the problem! - 11 - Yahoo! Confidential

Slowdown Predictor § An oracle plugin into a Map Reduce system § Input: node features + task features § Output: slowdown estimate § Features § § M/R metrics (job- and task-level) DFS metrics (datanode-level) System metrics (host-level: CPU, RAM, disk I/O, JVM, …) Network traffic (host-, rack- and cross-rack-level) - 12 - Yahoo! Confidential

Slowdown Prediction - Mappers Mis-predicted, need improvement - 13 - Yahoo! Confidential

Slowdown Prediction - Reducers More dispersed than the mappers - 14 - Yahoo! Confidential

Some Conclusions § Data skew is the most important signal, but there are many more that are important § Node HW generation is a very significant signal for both mappers and reducers § Large grids undergo continuous HW upgrades § Network traffic features (intra-rack and cross-rack) is much more important for reducers than for mappers § How to collect efficiently in a real-time setting? § Need to enhance data sampling/weighting to capture outliers better - 15 - Yahoo! Confidential

Takeaways § Slowdown prediction § ML approach to straggler avoidance and detection § Initial evaluation showed viability § Need to enhance training to capture outliers better § Challenge: runtime implementation § A good blend with the modern MR system architecture? - 16 - Yahoo! Confidential

Thank you - 17 - Yahoo! Confidential

Machine Learning Technique Gradient Boosted Decision Trees (GBDT) § Additive regression model § Based on ensemble of binary decision trees § 100 trees, 10 leaf nodes each … - 18 - Yahoo! Confidential

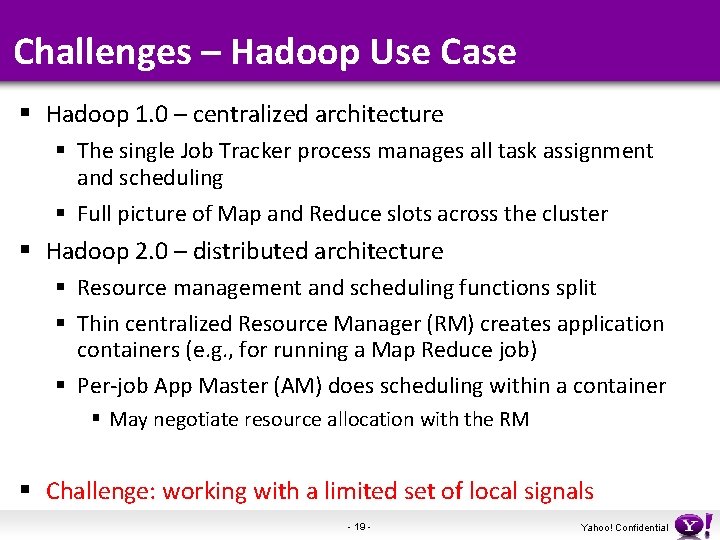

Challenges – Hadoop Use Case § Hadoop 1. 0 – centralized architecture § The single Job Tracker process manages all task assignment and scheduling § Full picture of Map and Reduce slots across the cluster § Hadoop 2. 0 – distributed architecture § Resource management and scheduling functions split § Thin centralized Resource Manager (RM) creates application containers (e. g. , for running a Map Reduce job) § Per-job App Master (AM) does scheduling within a container § May negotiate resource allocation with the RM § Challenge: working with a limited set of local signals - 19 - Yahoo! Confidential

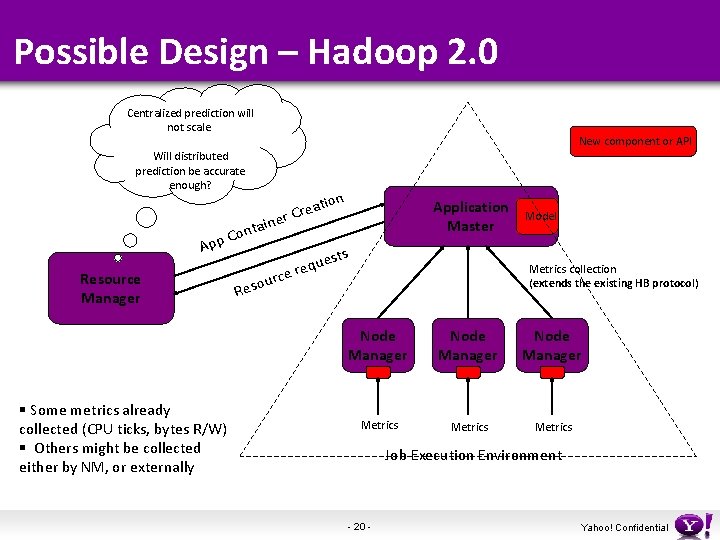

Possible Design – Hadoop 2. 0 Centralized prediction will not scale. New component or API Will distributed prediction be accurate enough? ion t a e r Cr Application Master e tain n o pp C A Resource Manager § Some metrics already collected (CPU ticks, bytes R/W) § Others might be collected either by NM, or externally R rce u o s e sts e requ Model Metrics collection (extends the existing HB protocol) Node Manager Metrics Job Execution Environment - 20 - Yahoo! Confidential
