PRECIPITATION • Any moisture that falls from the sky

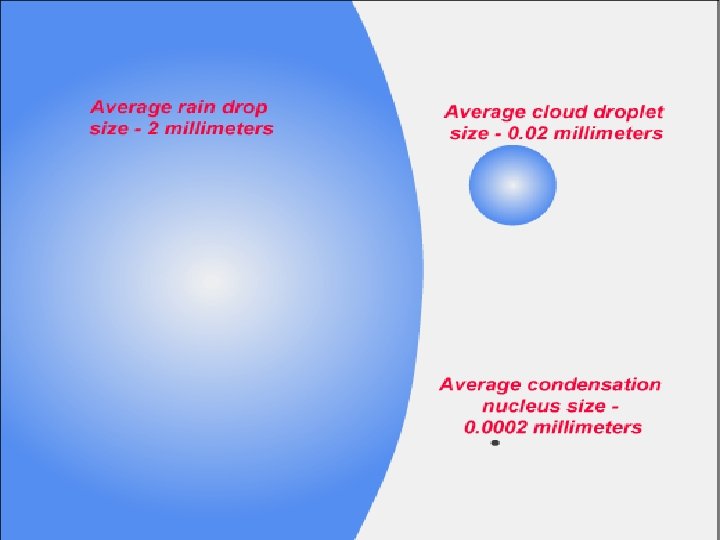

DEVELOPMENT OF PRECIPITATION • Water Vapor(condenses)→ cloud droplet → coalescence → too heavy→FALL → precipitation • Coalescence- drop collides with smaller drops and they combine
Title this diagram
Rain drop shapes X
Forms of precipitation • Rain –Liquid –. 5 -5 mm –Drizzle • ≤. 5 mm

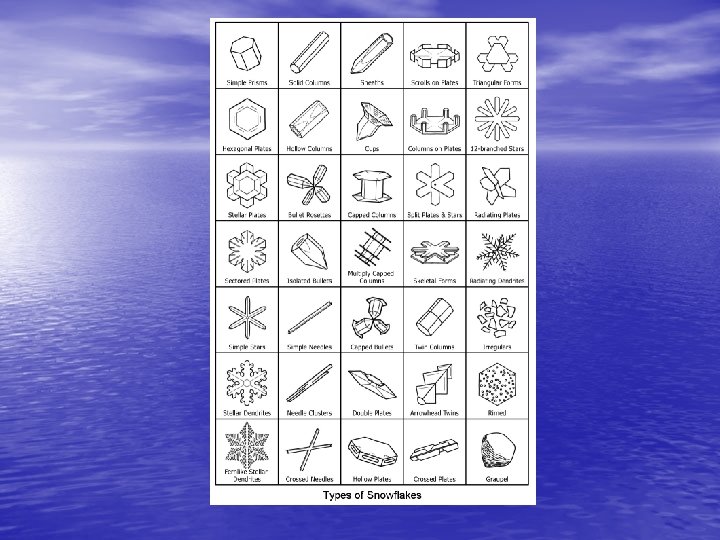

FORMS OF PRECIPITAION • SNOW – Solid • Plates or columns • Six sided flakes • 1”rain=10”snow (generally)
FORMS OF PRECIPITAION • Sleet – Ice pellets snow melts Above 32 F Below 32 F ground sleet – Melting layer wedged between 2 freezing layers
sleet
Sleet- season?
Sleet pictures
FORMS OF PRECIPIATION • GLAZE (freezing rain) – Rain freezes when it hits cold surfaces
FORMS OF PRECIPIATION • HAIL • Forms in • • • cumulonimbus clouds Gets “stuck” in cloud Every trip up the cloud adds a layer of ice Season?
Hail pictures
RADAR • Sends signal out (microwaves) and bounces off precipitation
Radar towers

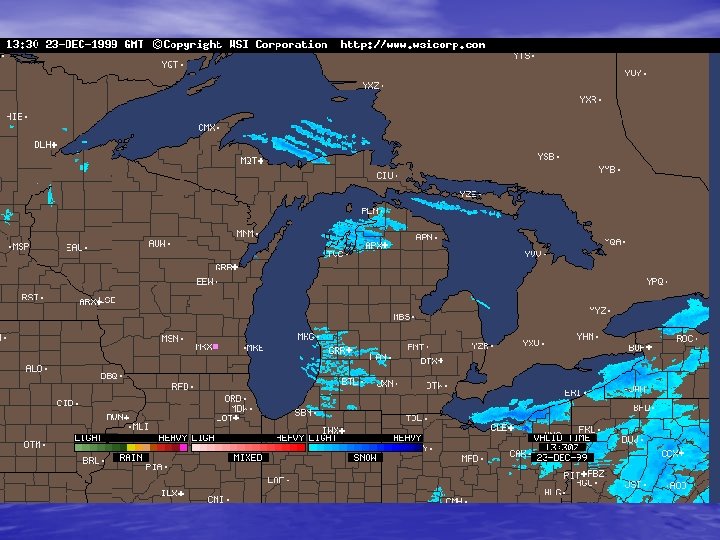

Radar maps
Radar maps 6: 32 PM GMT on November 27, 2011
GMT (Greenwich mean time) • - 5 hours for EST • Uses military time • Example- 2: 00 GMT MI time?
FOG • Not precip • “Ground clouds” – Need same conditions • Usually forms from warm ground and colder air

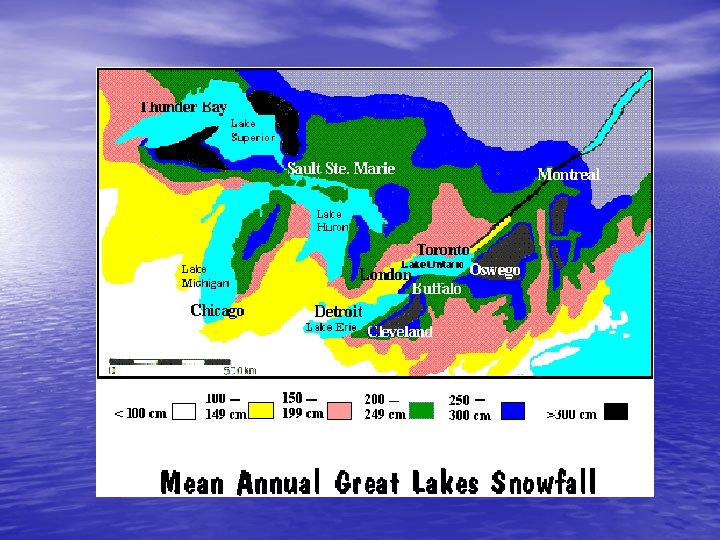

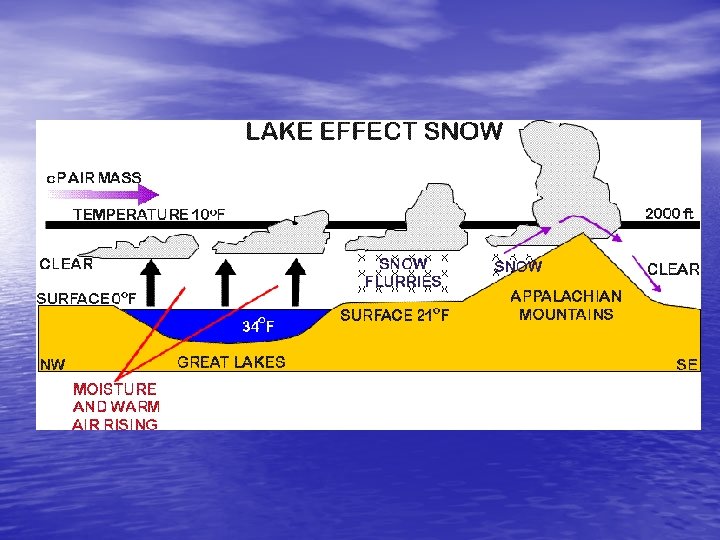

Lake Effect Snow • When cold air travels • over warm water Snow falls on downwind shore
