Praesideo Configuration details CST vs CST kit CST

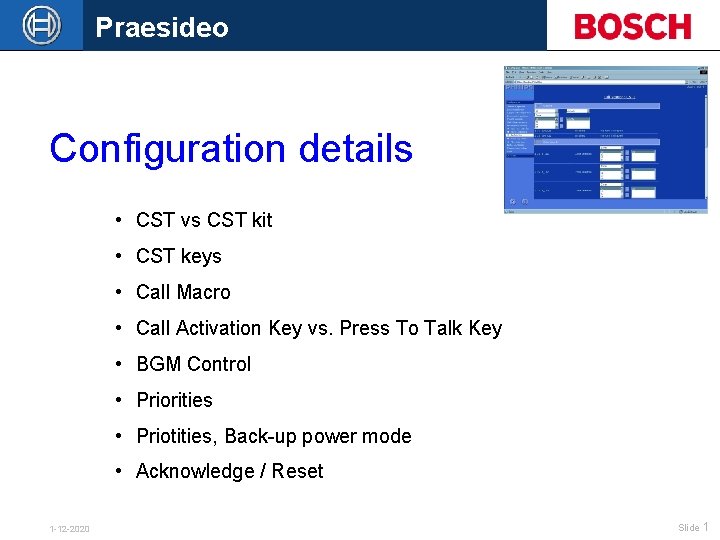

Praesideo Configuration details • CST vs CST kit • CST keys • Call Macro • Call Activation Key vs. Press To Talk Key • BGM Control • Priorities • Priotities, Back-up power mode • Acknowledge / Reset 1 -12 -2020 Slide 1

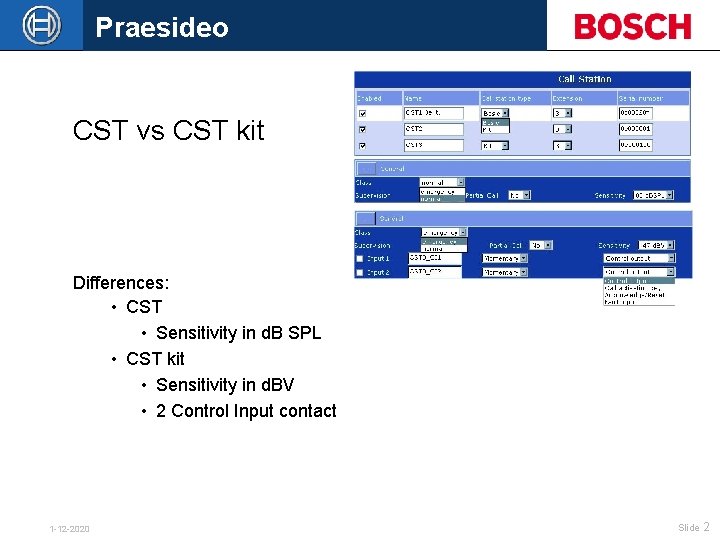

Praesideo CST vs CST kit Differences: • CST • Sensitivity in d. B SPL • CST kit • Sensitivity in d. BV • 2 Control Input contact 1 -12 -2020 Slide 2

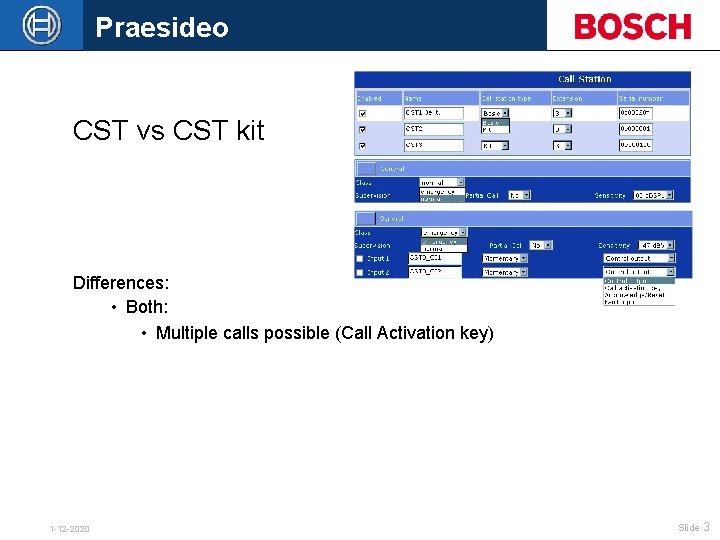

Praesideo CST vs CST kit Differences: • Both: • Multiple calls possible (Call Activation key) 1 -12 -2020 Slide 3

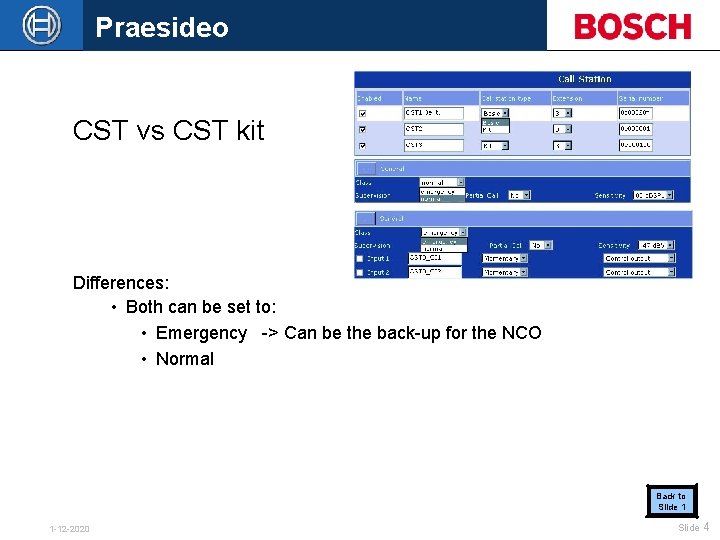

Praesideo CST vs CST kit Differences: • Both can be set to: • Emergency -> Can be the back-up for the NCO • Normal Back to Slide 1 1 -12 -2020 Slide 4

Praesideo 1 -12 -2020 Slide 5

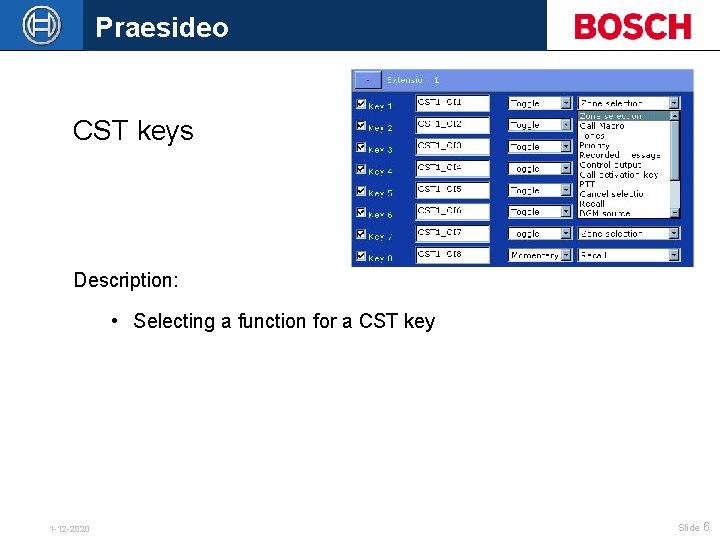

Praesideo CST keys Description: • Selecting a function for a CST key 1 -12 -2020 Slide 6

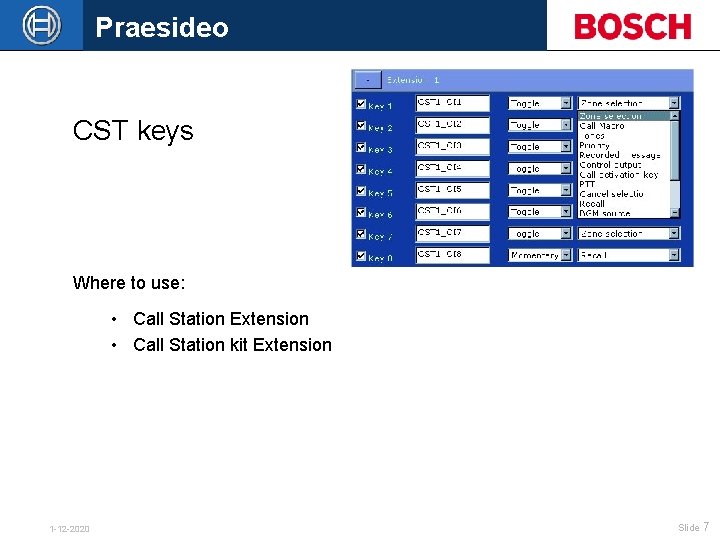

Praesideo CST keys Where to use: • Call Station Extension • Call Station kit Extension 1 -12 -2020 Slide 7

Praesideo CST keys Options: • Zone selection • Call Macro • Tone • Priority • Recorded Message • Control Output (V 2. 0) 1 -12 -2020 • • • Call Activation Key PTT Cancel Selection Recall BGM Source BGM Volume Control • • • BGM Off BGM On Acknowledge/Reset Fault input Zone emergency status • Zone priority status Slide 8

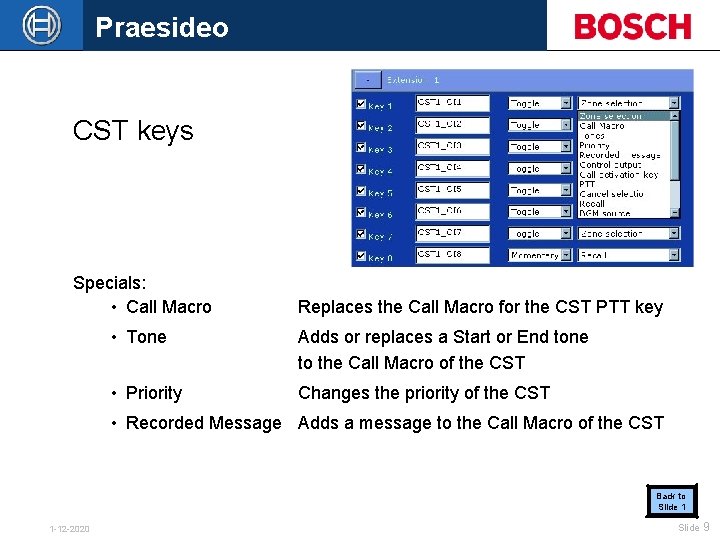

Praesideo CST keys Specials: • Call Macro Replaces the Call Macro for the CST PTT key • Tone Adds or replaces a Start or End tone to the Call Macro of the CST • Priority Changes the priority of the CST • Recorded Message Adds a message to the Call Macro of the CST Back to Slide 1 1 -12 -2020 Slide 9

Praesideo 1 -12 -2020 Slide 10

Praesideo Call Macro Description: Pre-programmed sequence of actions 1 -12 -2020 Slide 11

Praesideo Call Macro When to use: • To activate any audio input in the system for calls • To activate the microphone on a Call station (kit) • • 1 -12 -2020 To select the default Start chime, Alarm signal or End chime To select Messages + number of repetitions To select Live speech Yes / No To select an audio input Slide 12

Praesideo Call Macro Settings: • Add name • Select Start chime • Select Message + number of repetitions • Select Live speech Yes / No • Select End chime • Select Audio input (“Default” for CST and CST kit only) 1 -12 -2020 Slide 13

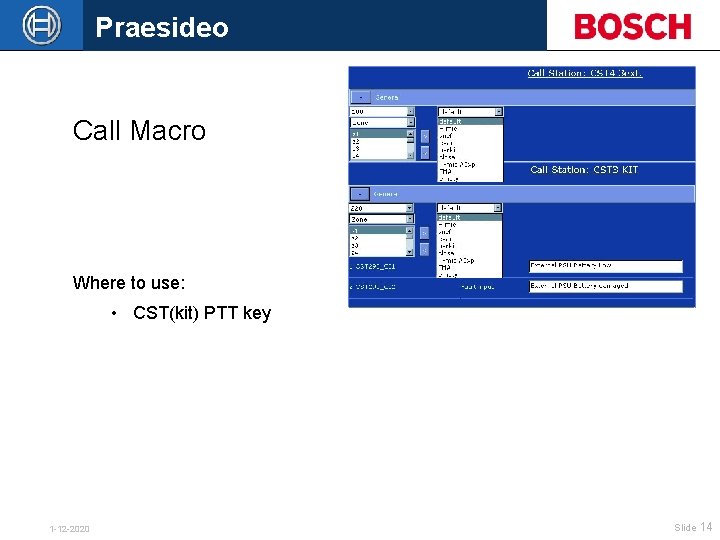

Praesideo Call Macro Where to use: • CST(kit) PTT key 1 -12 -2020 Slide 14

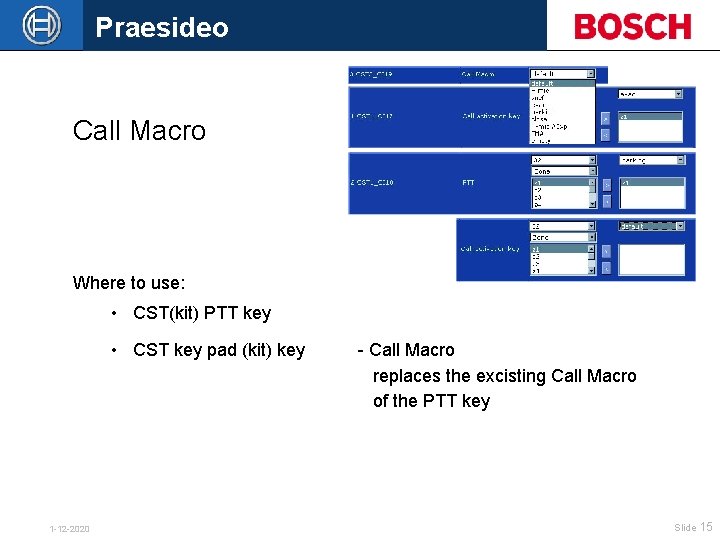

Praesideo Call Macro Where to use: • CST(kit) PTT key • CST key pad (kit) key 1 -12 -2020 - Call Macro replaces the excisting Call Macro of the PTT key Slide 15

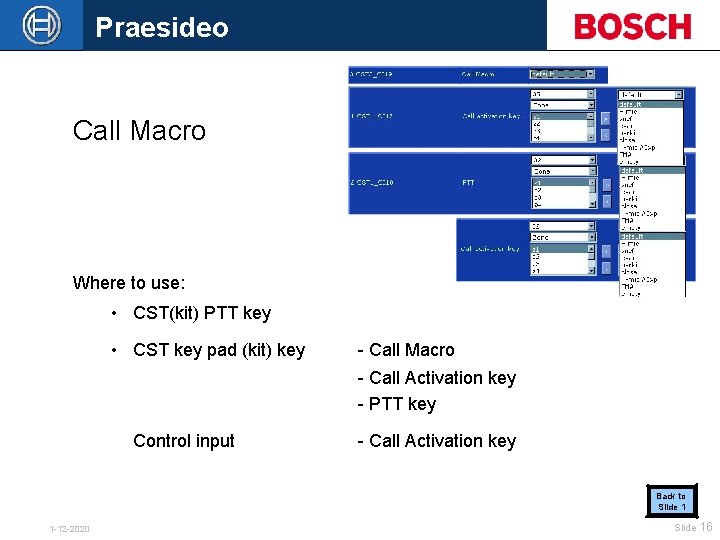

Praesideo Call Macro Where to use: • CST(kit) PTT key • CST key pad (kit) key - Call Macro - Call Activation key - PTT key Control input - Call Activation key Back to Slide 1 1 -12 -2020 Slide 16

Praesideo 1 -12 -2020 Slide 17

Praesideo Call Activation Key vs. Press To Talk Key Description: • Pre-programmed key or control input • Start chime, End chime and/or Message determined by Call Macro • Audio input/microphone input determined by Call Macro 1 -12 -2020 Slide 18

Praesideo Call Activation Key vs. Press To Talk Key Description: 1 -12 -2020 • Call Activation Key : CST key Control input • PTT : CST key Slide 19

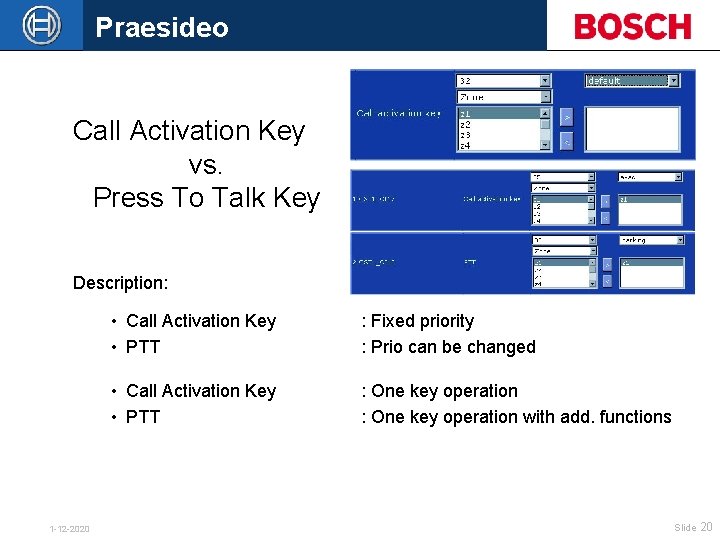

Praesideo Call Activation Key vs. Press To Talk Key Description: 1 -12 -2020 • Call Activation Key • PTT : Fixed priority : Prio can be changed • Call Activation Key • PTT : One key operation with add. functions Slide 20

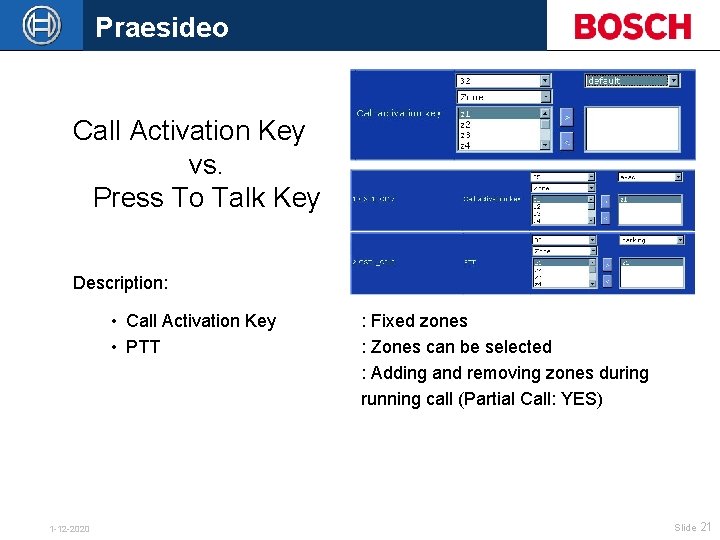

Praesideo Call Activation Key vs. Press To Talk Key Description: • Call Activation Key • PTT 1 -12 -2020 : Fixed zones : Zones can be selected : Adding and removing zones during running call (Partial Call: YES) Slide 21

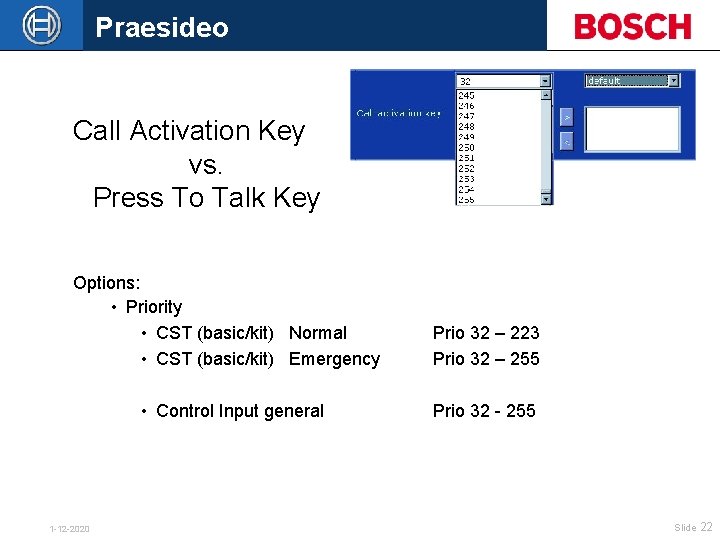

Praesideo Call Activation Key vs. Press To Talk Key Options: • Priority • CST (basic/kit) Normal • CST (basic/kit) Emergency • Control Input general 1 -12 -2020 Prio 32 – 223 Prio 32 – 255 Prio 32 - 255 Slide 22

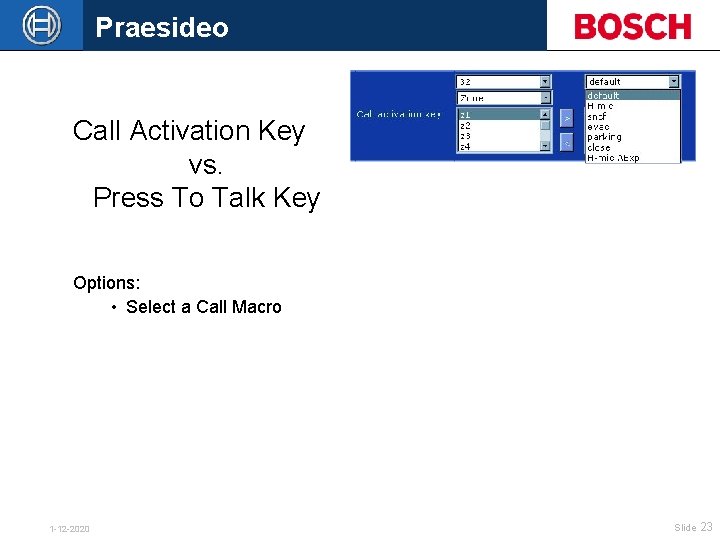

Praesideo Call Activation Key vs. Press To Talk Key Options: • Select a Call Macro 1 -12 -2020 Slide 23

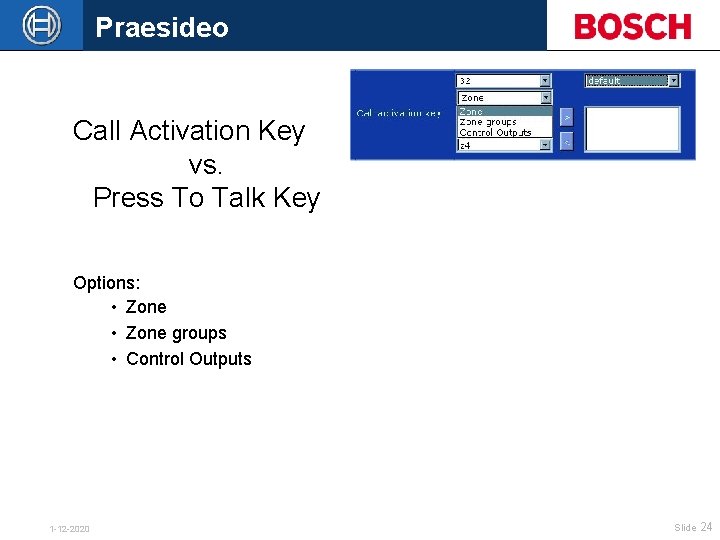

Praesideo Call Activation Key vs. Press To Talk Key Options: • Zone groups • Control Outputs 1 -12 -2020 Slide 24

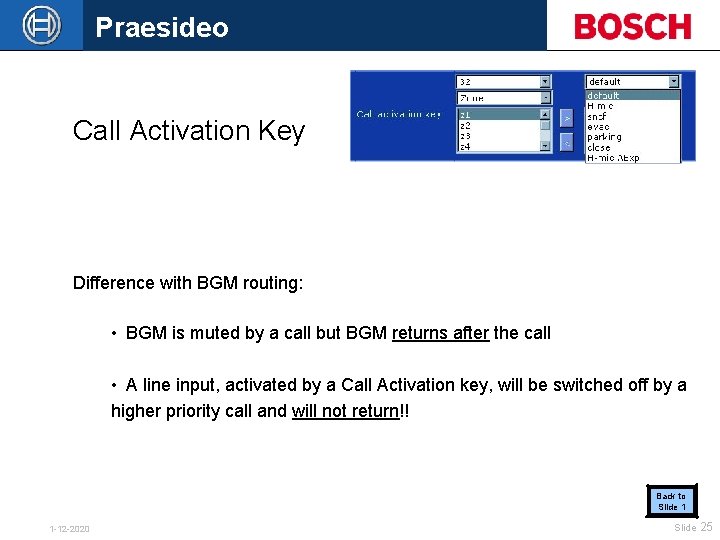

Praesideo Call Activation Key Difference with BGM routing: • BGM is muted by a call but BGM returns after the call • A line input, activated by a Call Activation key, will be switched off by a higher priority call and will not return!! Back to Slide 1 1 -12 -2020 Slide 25

Praesideo 1 -12 -2020 Slide 26

Praesideo BGM Control 1 -12 -2020 Slide 27

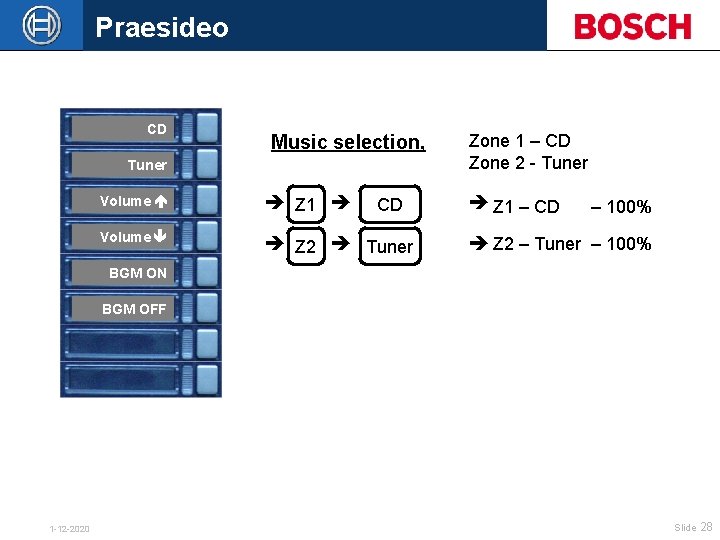

Praesideo CD Music selection, Tuner Volume Z 1 Volume Z 2 Tuner CD Zone 1 – CD Zone 2 - Tuner Z 1 – CD – 100% Z 2 – Tuner – 100% BGM ON BGM OFF 1 -12 -2020 Slide 28

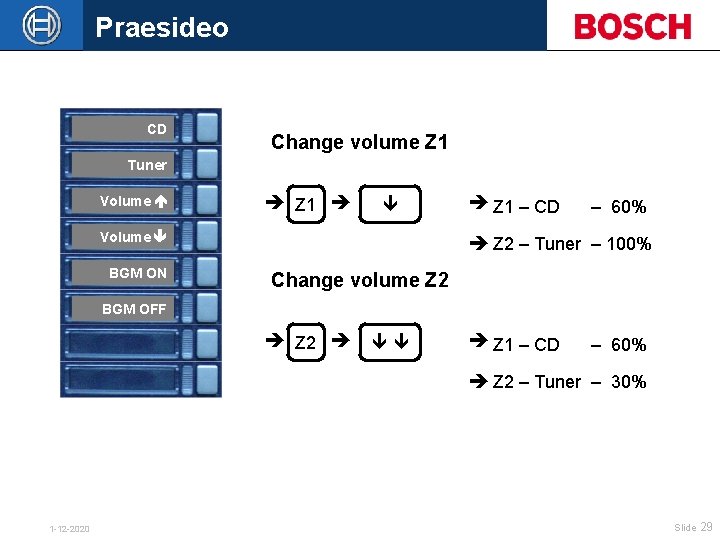

Praesideo CD Change volume Z 1 Tuner Volume Z 1 Volume BGM ON Z 1 – CD – 60% Z 2 – Tuner – 100% Change volume Z 2 BGM OFF Z 2 Z 1 – CD – 60% Z 2 – Tuner – 30% 1 -12 -2020 Slide 29

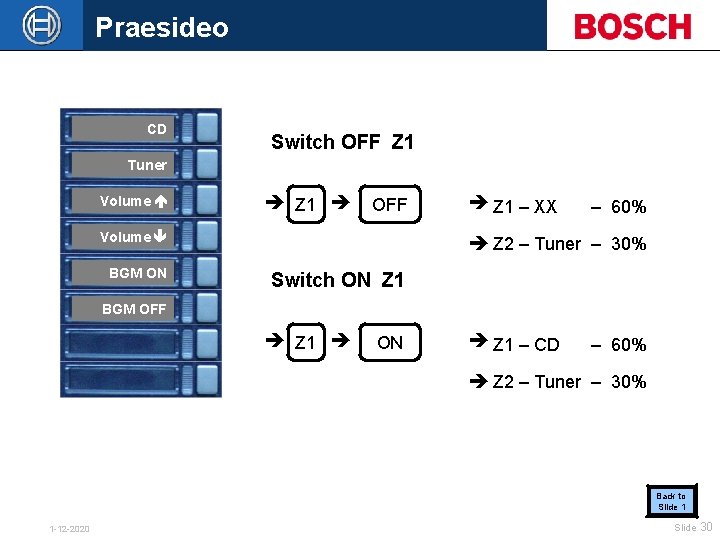

Praesideo CD Switch OFF Z 1 Tuner Volume Z 1 OFF Volume BGM ON Z 1 – XX – 60% Z 2 – Tuner – 30% Switch ON Z 1 BGM OFF Z 1 ON Z 1 – CD – 60% Z 2 – Tuner – 30% Back to Slide 1 1 -12 -2020 Slide 30

Praesideo 1 -12 -2020 Slide 31

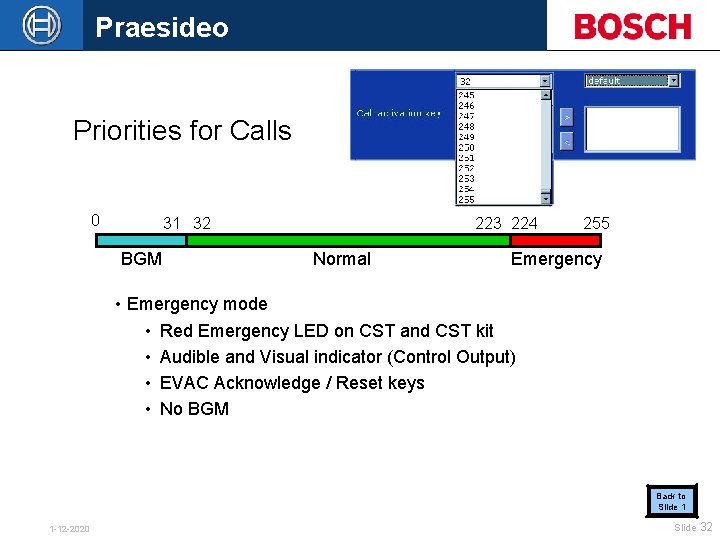

Praesideo Priorities for Calls 0 31 32 BGM 223 224 Normal 255 Emergency • Emergency mode • Red Emergency LED on CST and CST kit • Audible and Visual indicator (Control Output) • EVAC Acknowledge / Reset keys • No BGM Back to Slide 1 1 -12 -2020 Slide 32

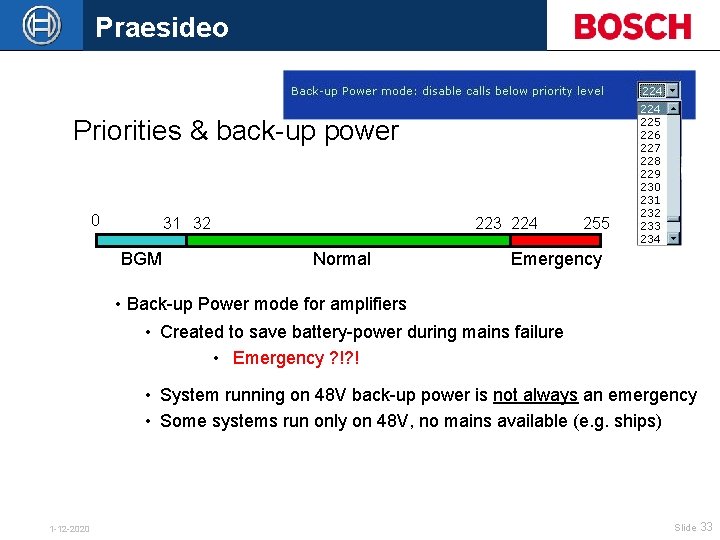

Praesideo Priorities & back-up power 0 31 32 BGM 223 224 Normal 255 Emergency • Back-up Power mode for amplifiers • Created to save battery-power during mains failure • Emergency ? !? ! • System running on 48 V back-up power is not always an emergency • Some systems run only on 48 V, no mains available (e. g. ships) 1 -12 -2020 Slide 33

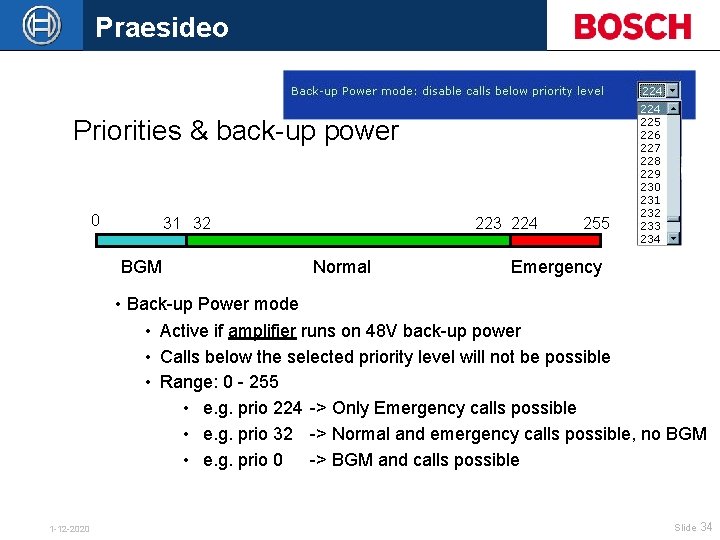

Praesideo Priorities & back-up power 0 31 32 BGM 223 224 Normal 255 Emergency • Back-up Power mode • Active if amplifier runs on 48 V back-up power • Calls below the selected priority level will not be possible • Range: 0 - 255 • e. g. prio 224 -> Only Emergency calls possible • e. g. prio 32 -> Normal and emergency calls possible, no BGM • e. g. prio 0 -> BGM and calls possible 1 -12 -2020 Slide 34

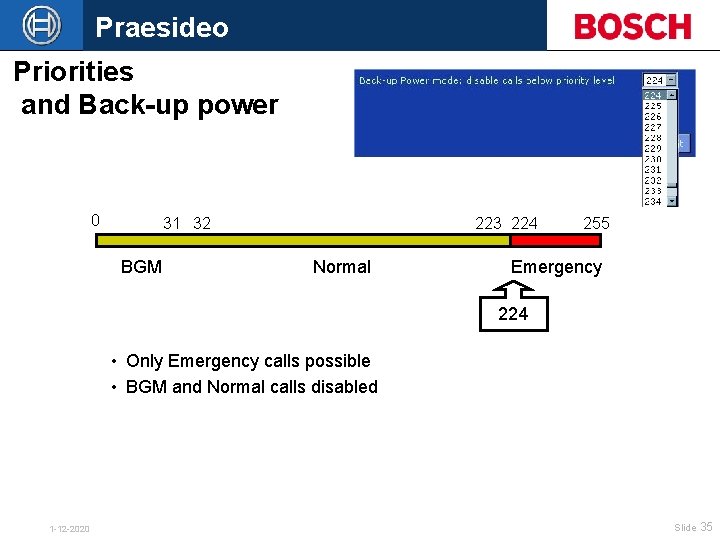

Praesideo Priorities and Back-up power 0 31 32 BGM 223 224 Normal 255 Emergency 224 • Only Emergency calls possible • BGM and Normal calls disabled 1 -12 -2020 Slide 35

Praesideo Priorities and Back-up power 0 31 32 BGM 223 224 Normal 255 Emergency 125 • Emergency calls and high prio Normal calls possible • BGM and low prio Normal calls disabled 1 -12 -2020 Slide 36

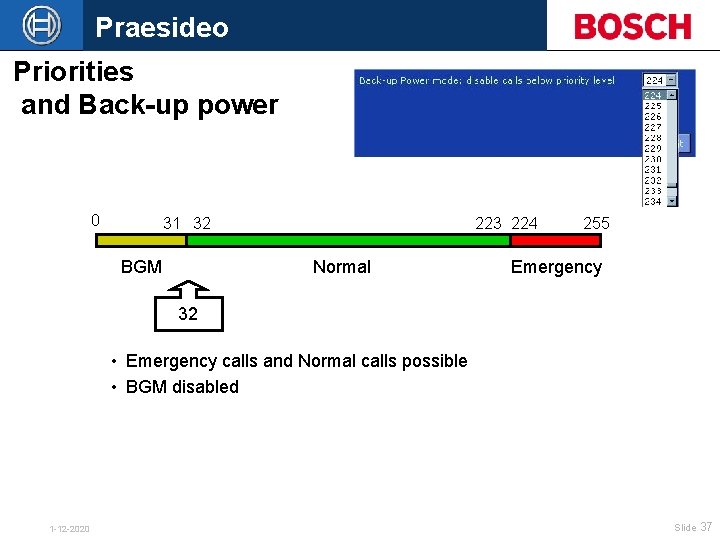

Praesideo Priorities and Back-up power 0 31 32 BGM 223 224 Normal 255 Emergency 32 • Emergency calls and Normal calls possible • BGM disabled 1 -12 -2020 Slide 37

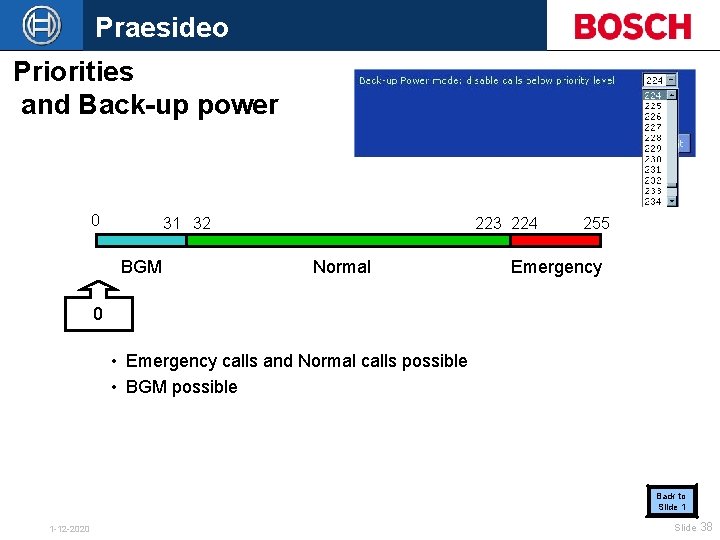

Praesideo Priorities and Back-up power 0 31 32 BGM 223 224 Normal 255 Emergency 0 • Emergency calls and Normal calls possible • BGM possible Back to Slide 1 1 -12 -2020 Slide 38

Praesideo 1 -12 -2020 Slide 39

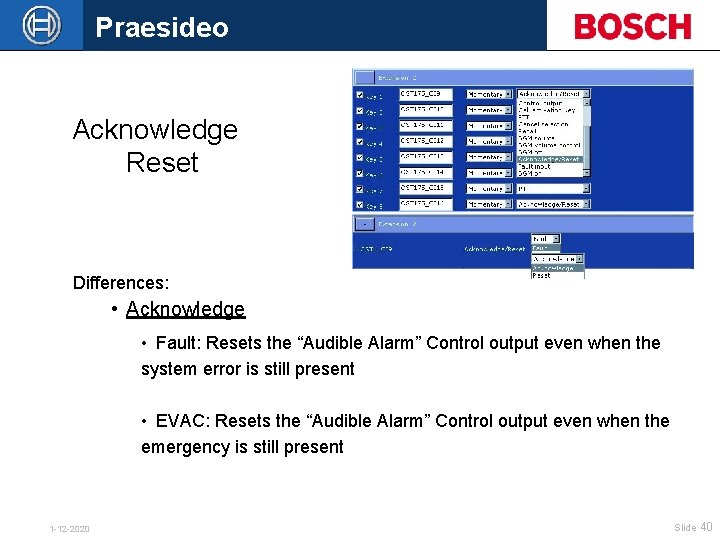

Praesideo Acknowledge Reset Differences: • Acknowledge • Fault: Resets the “Audible Alarm” Control output even when the system error is still present • EVAC: Resets the “Audible Alarm” Control output even when the emergency is still present 1 -12 -2020 Slide 40

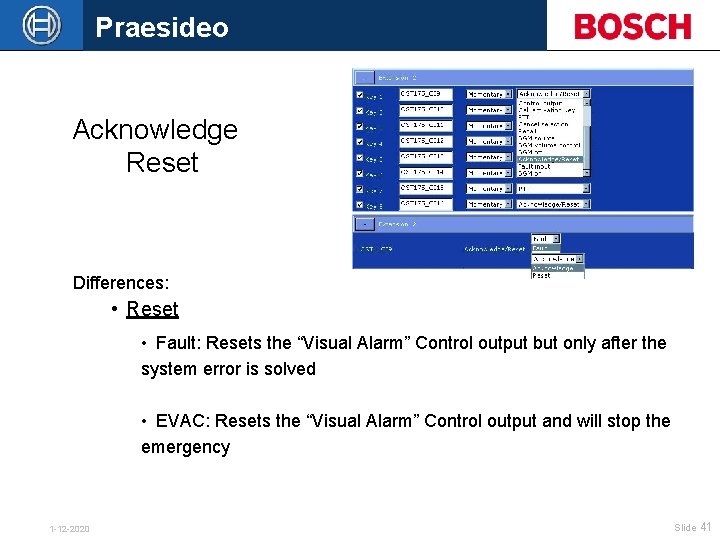

Praesideo Acknowledge Reset Differences: • Reset • Fault: Resets the “Visual Alarm” Control output but only after the system error is solved • EVAC: Resets the “Visual Alarm” Control output and will stop the emergency 1 -12 -2020 Slide 41

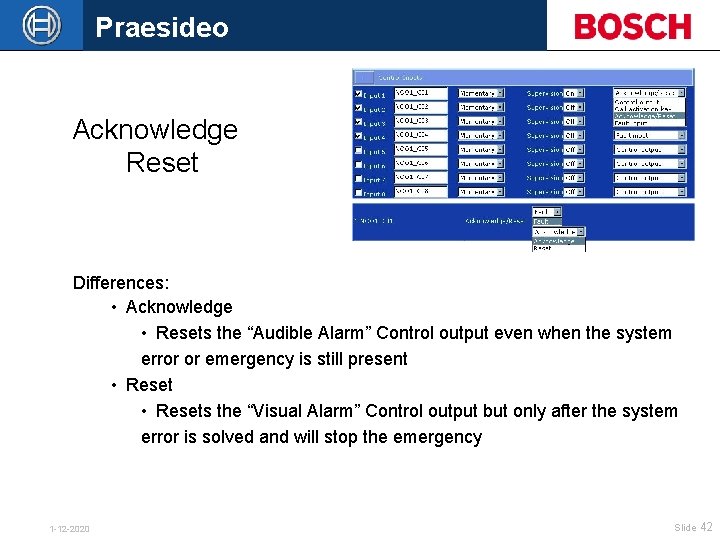

Praesideo Acknowledge Reset Differences: • Acknowledge • Resets the “Audible Alarm” Control output even when the system error or emergency is still present • Resets the “Visual Alarm” Control output but only after the system error is solved and will stop the emergency 1 -12 -2020 Slide 42

Praesideo Control output: Audible and visual indicators Audible indicator Visual indicator 1 -12 -2020 Slide 43

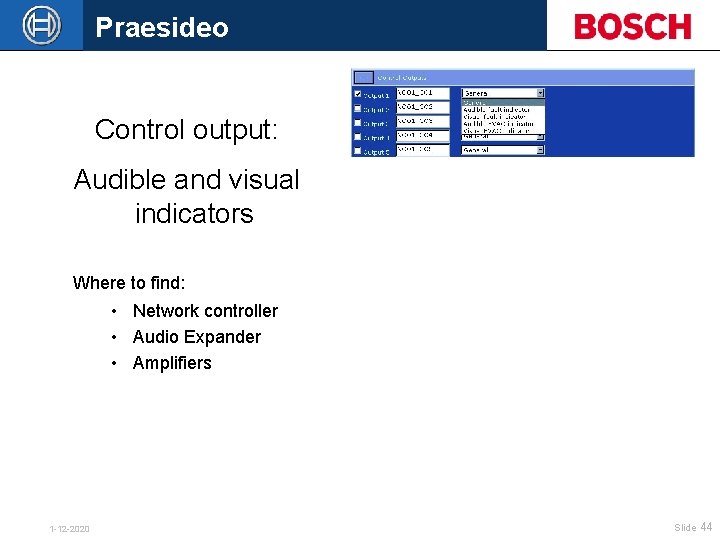

Praesideo Control output: Audible and visual indicators Where to find: • Network controller • Audio Expander • Amplifiers 1 -12 -2020 Slide 44

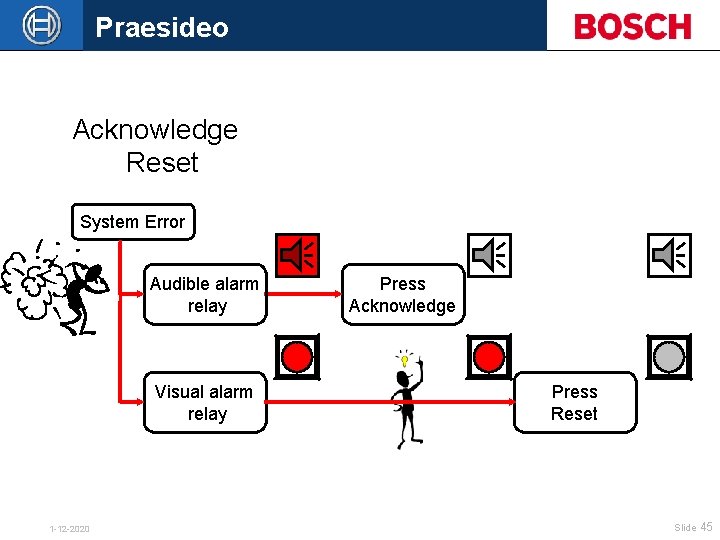

Praesideo Acknowledge Reset System Error Audible alarm relay Visual alarm relay 1 -12 -2020 Press Acknowledge Press Reset Slide 45

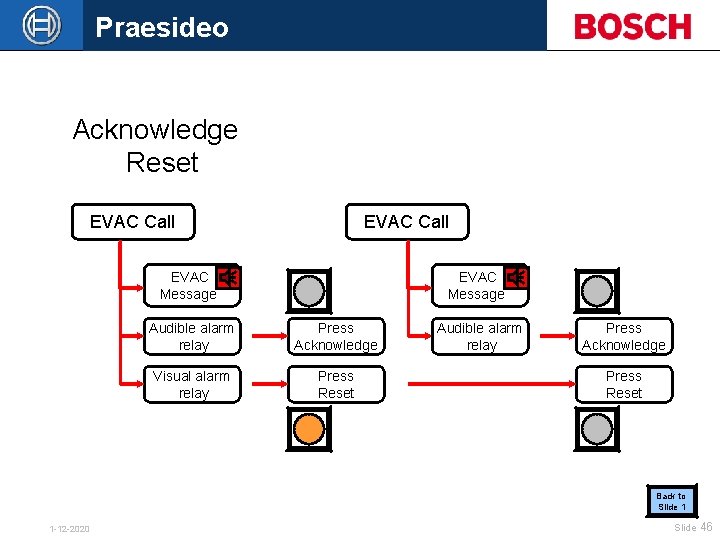

Praesideo Acknowledge Reset EVAC Call EVAC Message Audible alarm relay Press Acknowledge Visual alarm relay Press Reset Audible alarm relay Press Acknowledge Press Reset Back to Slide 1 1 -12 -2020 Slide 46
