PRACTICAL 02 Verification of Current Divider Rule By

PRACTICAL # 02 Verification of Current Divider Rule By: Engr. Irshad Raheem Memon

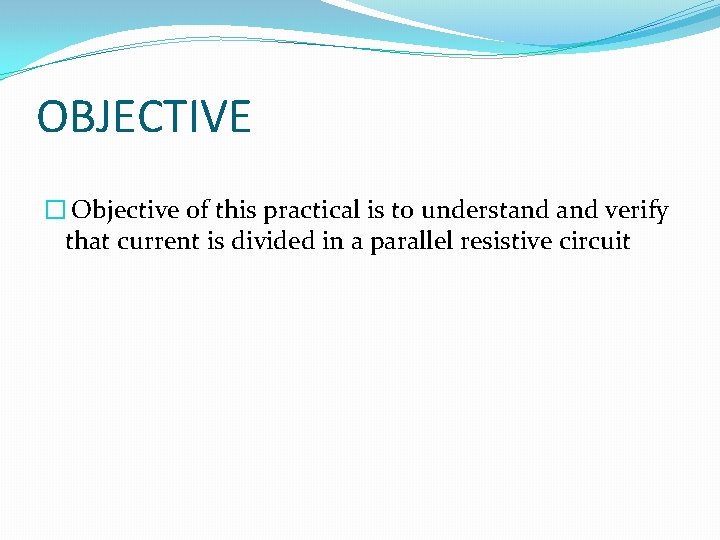

OBJECTIVE � Objective of this practical is to understand verify that current is divided in a parallel resistive circuit

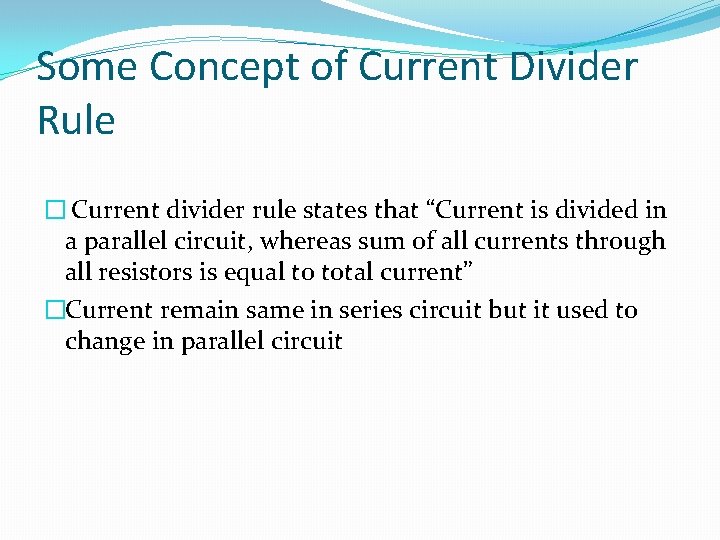

Some Concept of Current Divider Rule � Current divider rule states that “Current is divided in a parallel circuit, whereas sum of all currents through all resistors is equal to total current” �Current remain same in series circuit but it used to change in parallel circuit

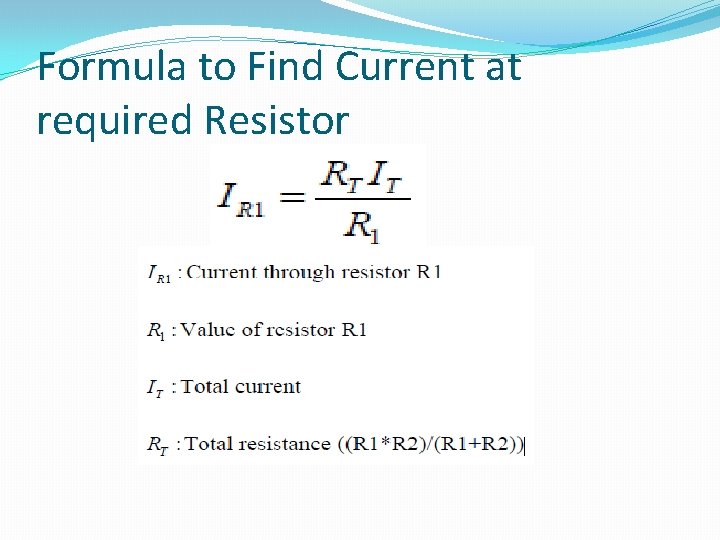

Formula to Find Current at required Resistor

Coming Towards Objective Now

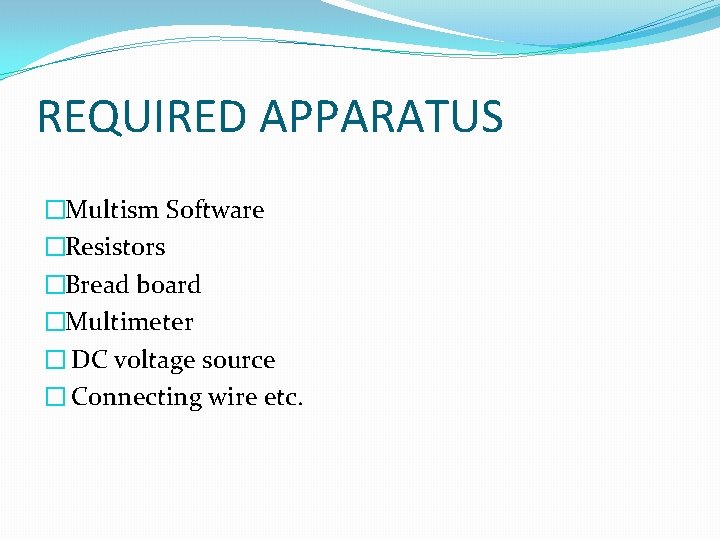

REQUIRED APPARATUS �Multism Software �Resistors �Bread board �Multimeter � DC voltage source � Connecting wire etc.

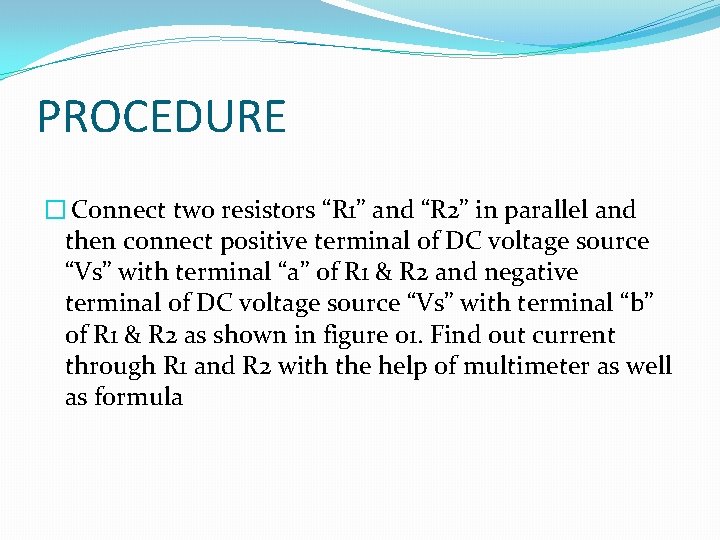

PROCEDURE � Connect two resistors “R 1” and “R 2” in parallel and then connect positive terminal of DC voltage source “Vs” with terminal “a” of R 1 & R 2 and negative terminal of DC voltage source “Vs” with terminal “b” of R 1 & R 2 as shown in figure 01. Find out current through R 1 and R 2 with the help of multimeter as well as formula

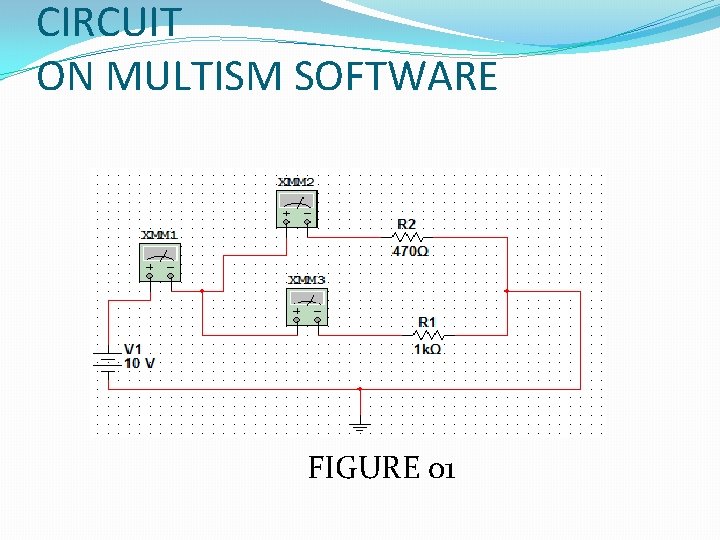

CIRCUIT ON MULTISM SOFTWARE FIGURE 01

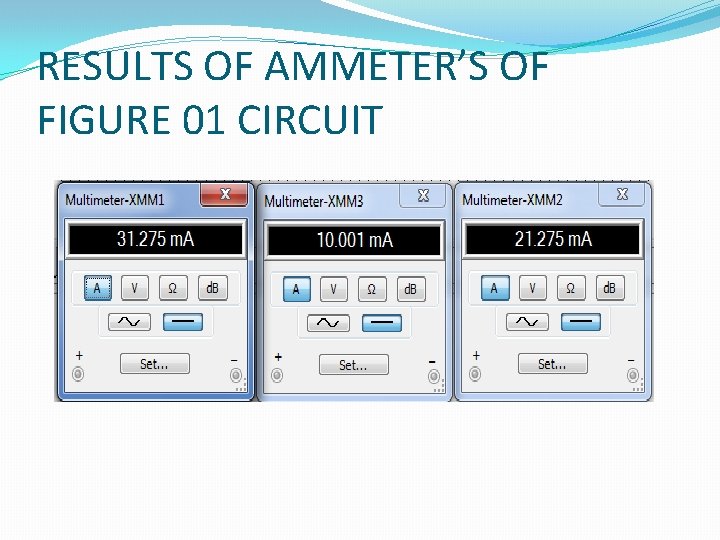

RESULTS OF AMMETER’S OF FIGURE 01 CIRCUIT

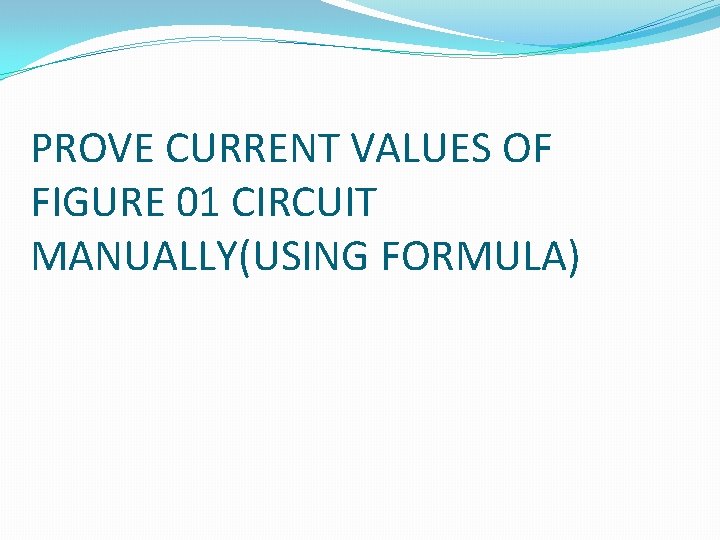

PROVE CURRENT VALUES OF FIGURE 01 CIRCUIT MANUALLY(USING FORMULA)

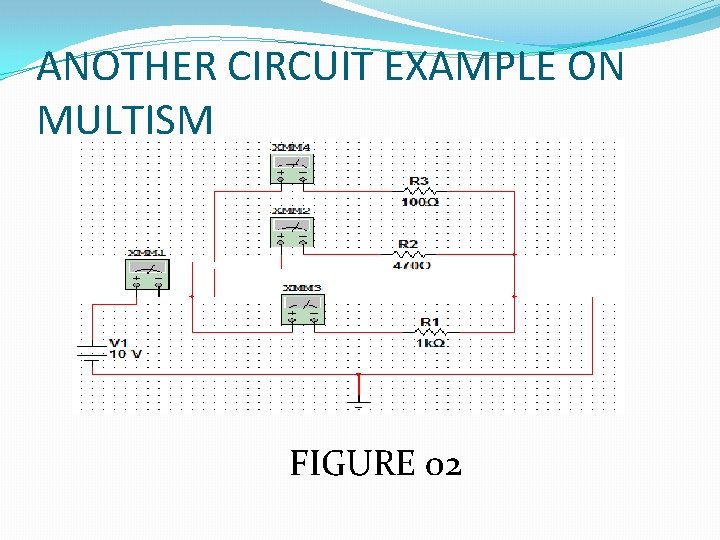

ANOTHER CIRCUIT EXAMPLE ON MULTISM FIGURE 02

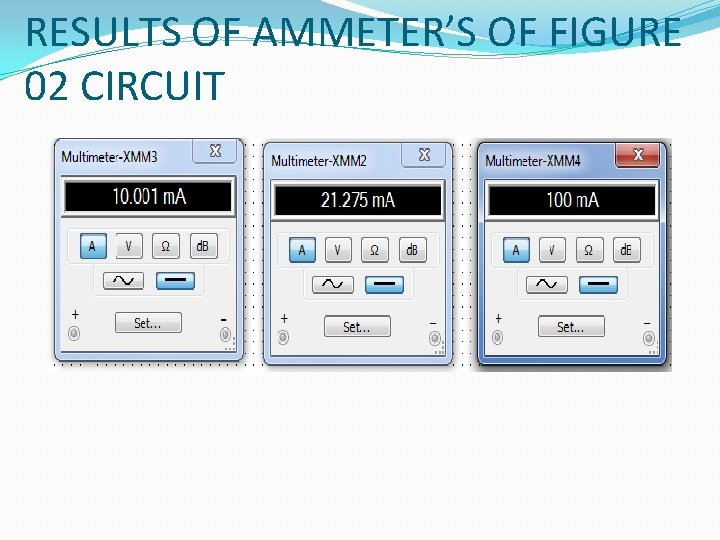

RESULTS OF AMMETER’S OF FIGURE 02 CIRCUIT

PROVE CURRENT VALUES OF FIGURE 02 CIRCUIT MANUALLY(USING FORMULA)
