PQube Travel PQube Travel What A portable version

PQube Travel

PQube Travel – What ? • A portable version of the famous and powerful PQube – Why ? • Because customers were asking for it so many times… – PQube (Fixed installation) is easy to use – People also want an easy-to-use portable instrument

PQube Travel – Who needs it ? • Installation/maintenance companies – Traditional PQ analysers often to complex • Large (industrial) sites – Multiple Fixed installed PQ devices (PQubes) – Central storage (DSS Platform) – Similar portable PQube analyser • Utility and distribution companies – PQ Analysers in substations and bigger customers – Sometimes have temporary PQ jobs • And more…

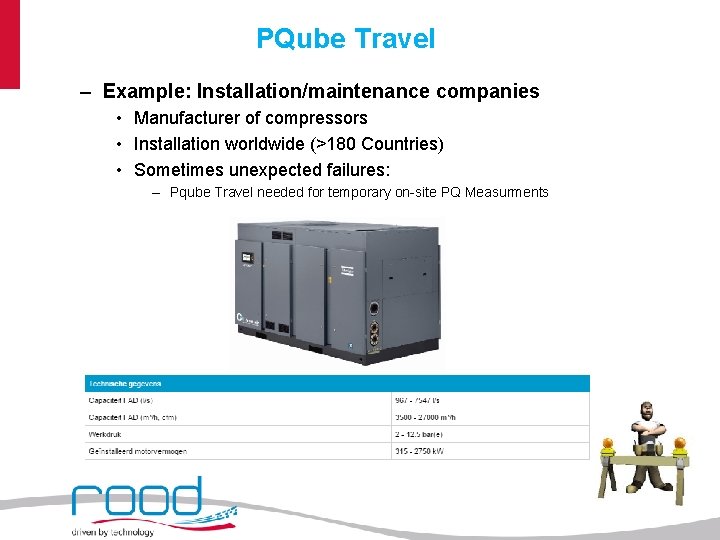

PQube Travel – Example: Installation/maintenance companies • Manufacturer of compressors • Installation worldwide (>180 Countries) • Sometimes unexpected failures: – Pqube Travel needed for temporary on-site PQ Measurments

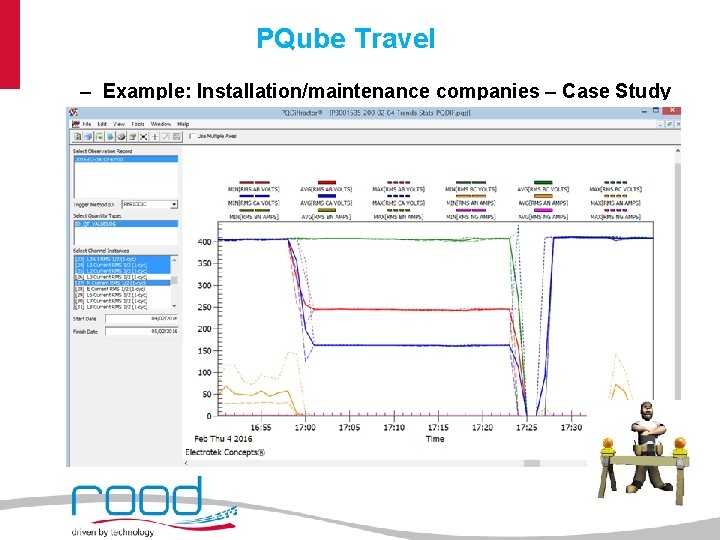

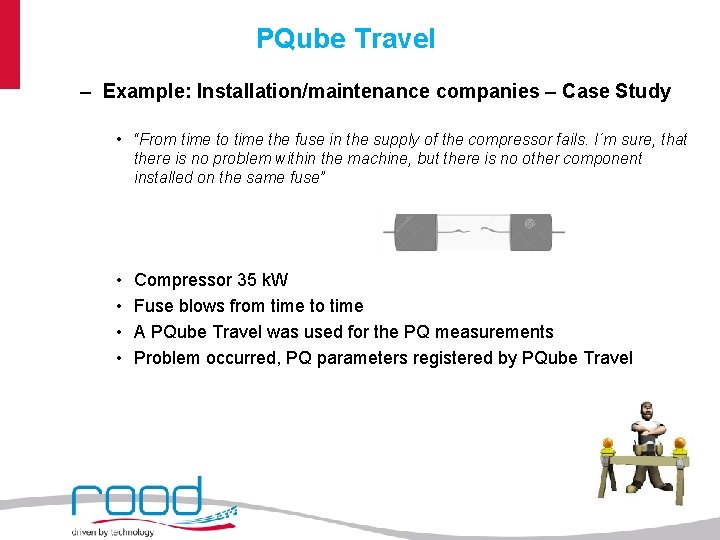

PQube Travel – Example: Installation/maintenance companies – Case Study • “From time to time the fuse in the supply of the compressor fails. I´m sure, that there is no problem within the machine, but there is no other component installed on the same fuse” • • Compressor 35 k. W Fuse blows from time to time A PQube Travel was used for the PQ measurements Problem occurred, PQ parameters registered by PQube Travel

PQube Travel – Example: Installation/maintenance companies – Case Study

$PQube Travel – Example: Installation/maintenance companies – Case Study • PQDiffractor was used for$

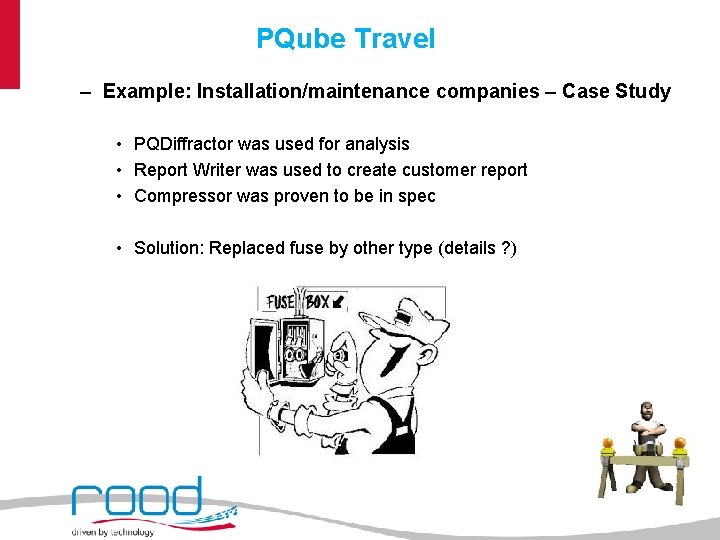

PQube Travel – Example: Installation/maintenance companies – Case Study • PQDiffractor was used for analysis • Report Writer was used to create customer report • Compressor was proven to be in spec • Solution: Replaced fuse by other type (details ? )

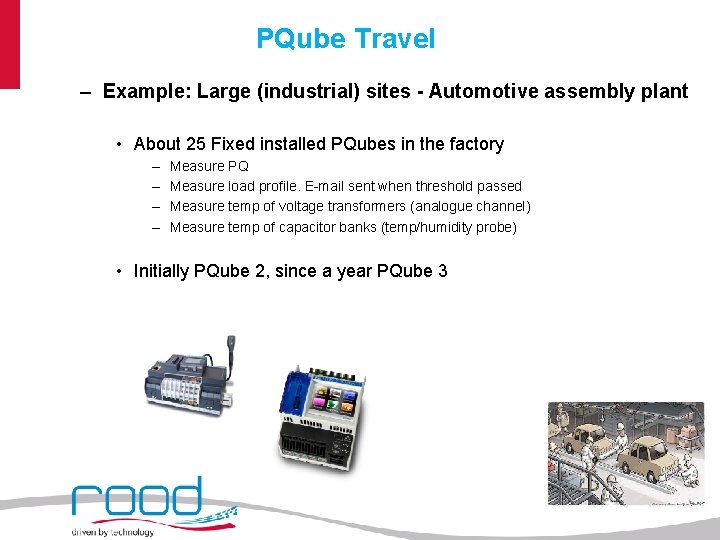

PQube Travel – Example: Large (industrial) sites - Automotive assembly plant • About 25 Fixed installed PQubes in the factory – – Measure PQ Measure load profile. E-mail sent when threshold passed Measure temp of voltage transformers (analogue channel) Measure temp of capacitor banks (temp/humidity probe) • Initially PQube 2, since a year PQube 3

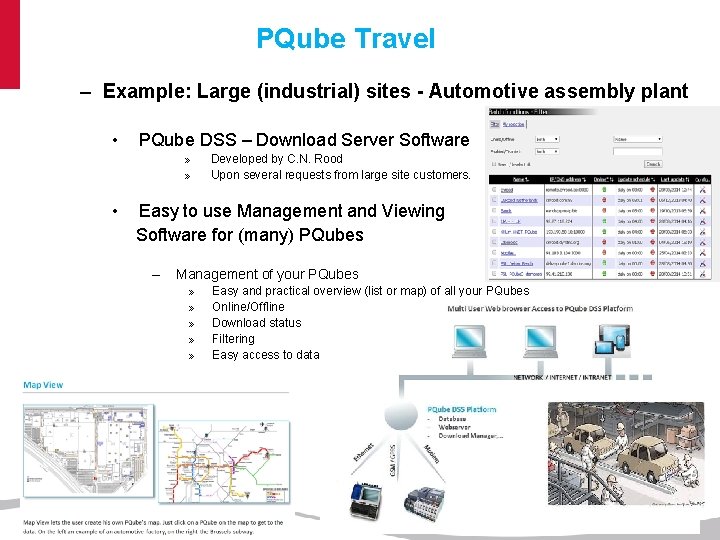

PQube Travel – Example: Large (industrial) sites - Automotive assembly plant • PQube DSS – Download Server Software » » • Developed by C. N. Rood Upon several requests from large site customers. Easy to use Management and Viewing Software for (many) PQubes – Management of your PQubes » » » Easy and practical overview (list or map) of all your PQubes Online/Offline Download status Filtering Easy access to data, …

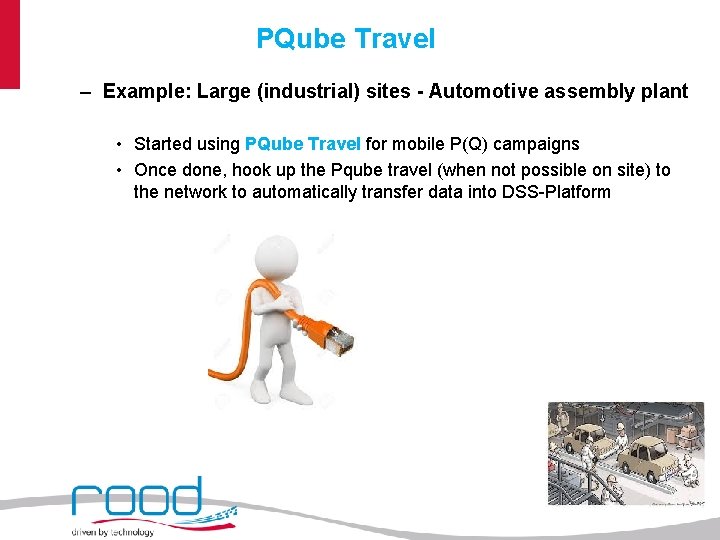

PQube Travel – Example: Large (industrial) sites - Automotive assembly plant • Started using PQube Travel for mobile P(Q) campaigns • Once done, hook up the Pqube travel (when not possible on site) to the network to automatically transfer data into DSS-Platform

PQube Travel – Example: LV/MV Distribution company • On-site PQ Survey when customer complaint received • EN 50160, …. • Some more exotic application with PQube Portable:

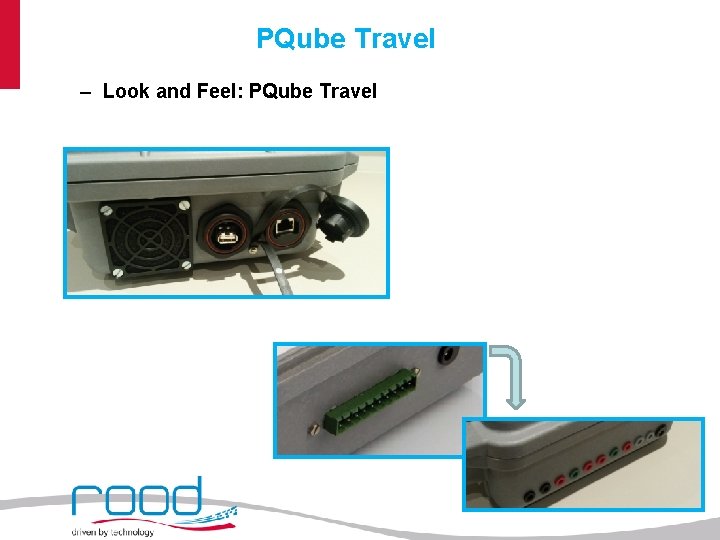

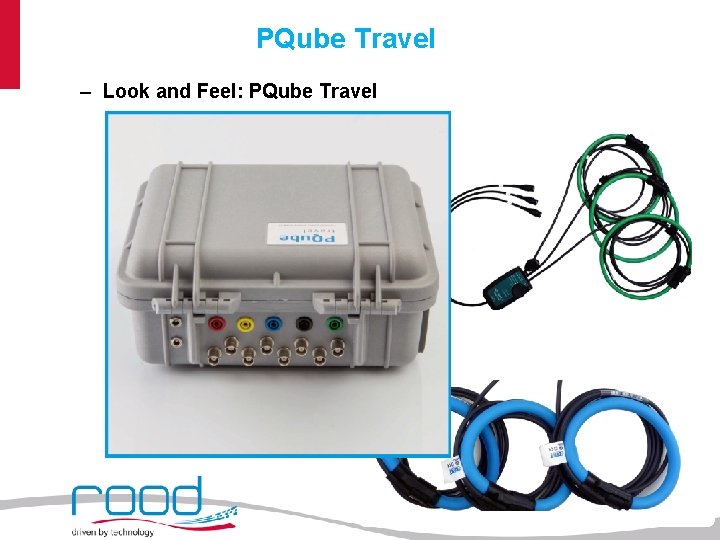

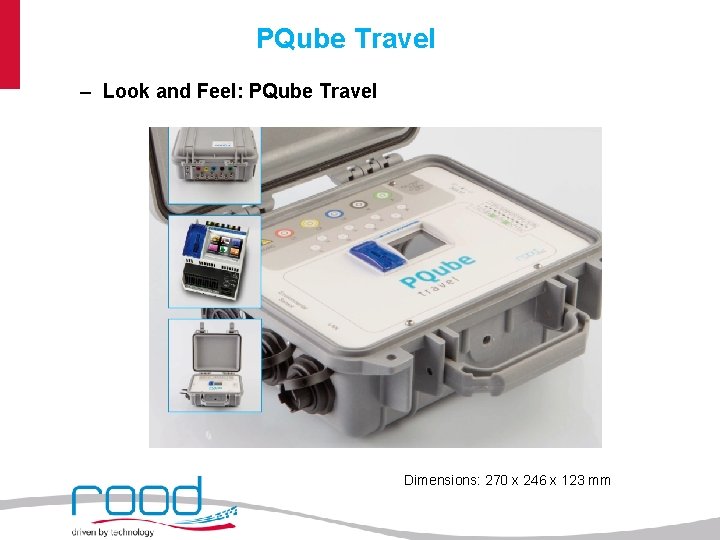

PQube Travel – Look and Feel: PQube Travel Dimensions: 270 x 246 x 123 mm

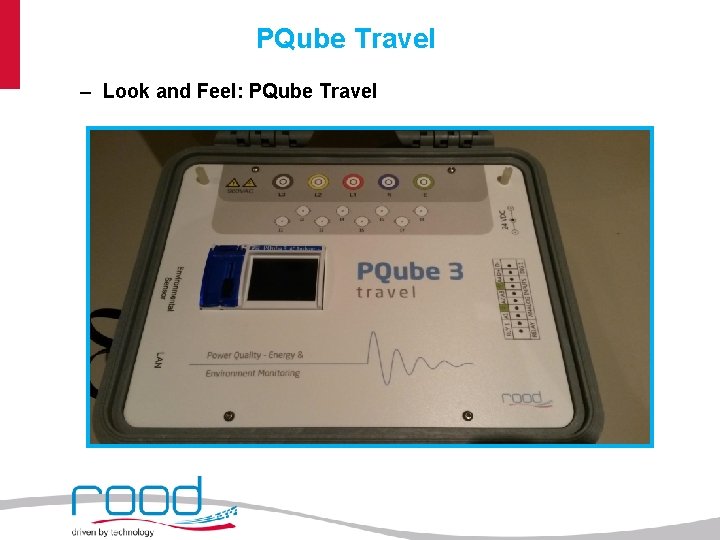

PQube Travel – Look and Feel: PQube Travel

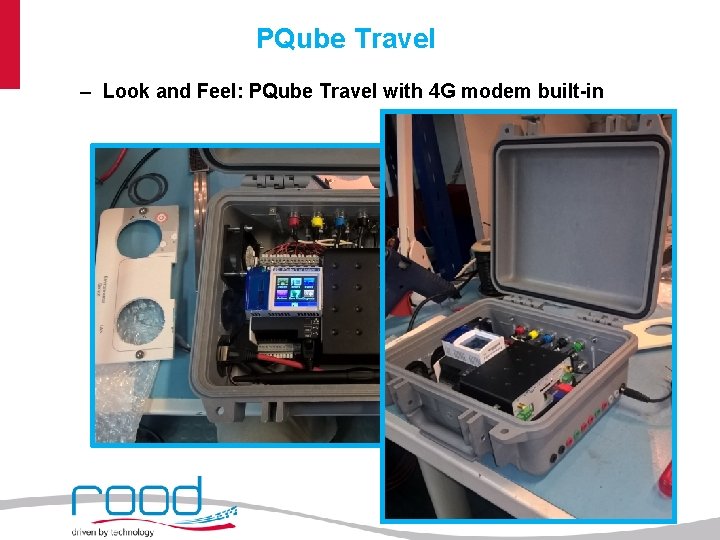

PQube Travel – Look and Feel: PQube Travel with 4 G modem built-in

I’m really sorry to say I have some bad news for you Andreas – What ? – It will happen on July 10 - 2016 • Final of the European Championship – I can already tell you who will play the final • Belgium – Germany – Now comes the bad news for you: • The end score of the final will be 3 -1 • Belgium will be European Champion

PQube Travel Rudy De Winter C. N. Rood – Belgium RDe. Winter@cnrood. com
