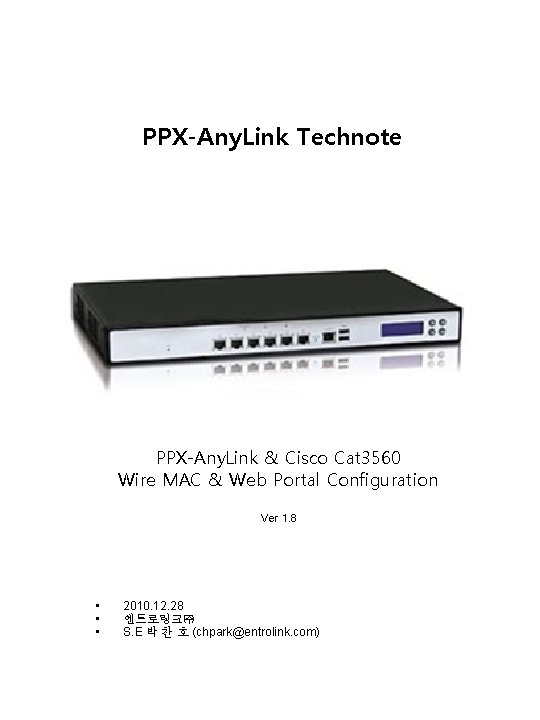

PPX-Any. Link Technote PPX-Any. Link & Cisco Cat 3560 Wire MAC & Web Portal Configuration Ver 1. 8 • • • 2010. 12. 28 엔트로링크㈜ S. E 박 찬 호 (chpark@entrolink. com)

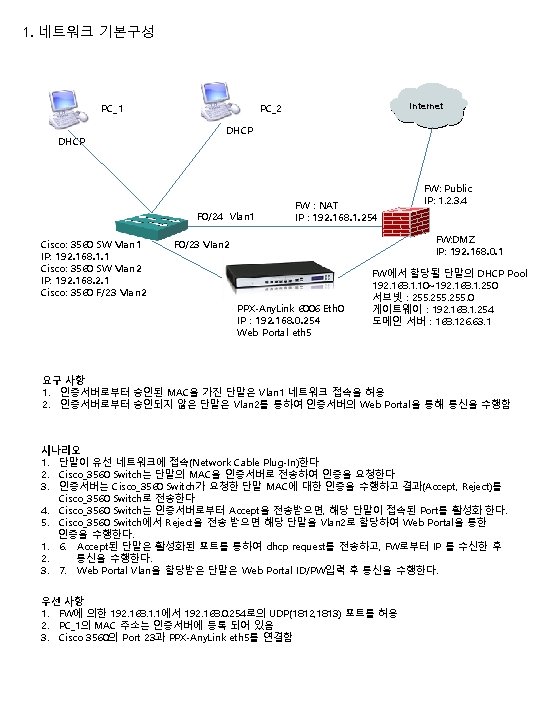

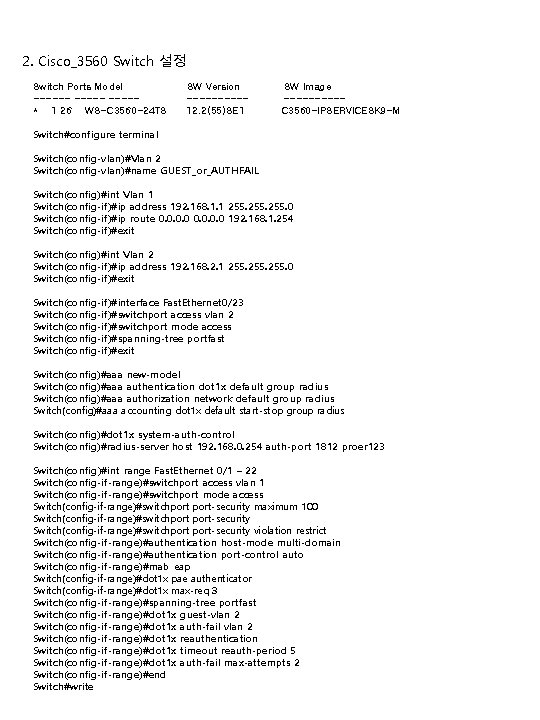

2. Cisco_3560 Switch 설정 Switch Ports Model ------* 1 26 WS-C 3560 -24 TS SW Version -----12. 2(55)SE 1 SW Image -----C 3560 -IPSERVICESK 9 -M Switch#configure terminal Switch(config-vlan)#Vlan 2 Switch(config-vlan)#name GUEST_or_AUTHFAIL Switch(config)#int Vlan 1 Switch(config-if)#ip address 192. 168. 1. 1 255. 0 Switch(config-if)#ip route 0. 0 192. 168. 1. 254 Switch(config-if)#exit Switch(config)#int Vlan 2 Switch(config-if)#ip address 192. 168. 2. 1 255. 0 Switch(config-if)#exit Switch(config-if)#interface Fast. Ethernet 0/23 Switch(config-if)#switchport access vlan 2 Switch(config-if)#switchport mode access Switch(config-if)#spanning-tree portfast Switch(config-if)#exit Switch(config)#aaa new-model Switch(config)#aaa authentication dot 1 x default group radius Switch(config)#aaa authorization network default group radius Switch(config)#aaa accounting dot 1 x default start-stop group radius Switch(config)#dot 1 x system-auth-control Switch(config)#radius-server host 192. 168. 0. 254 auth-port 1812 proer 123 Switch(config)#int range Fast. Ethernet 0/1 – 22 Switch(config-if-range)#switchport access vlan 1 Switch(config-if-range)#switchport mode access Switch(config-if-range)#switchport-security maximum 100 Switch(config-if-range)#switchport-security violation restrict Switch(config-if-range)#authentication host-mode multi-domain Switch(config-if-range)#authentication port-control auto Switch(config-if-range)#mab eap Switch(config-if-range)#dot 1 x pae authenticator Switch(config-if-range)#dot 1 x max-req 3 Switch(config-if-range)#spanning-tree portfast Switch(config-if-range)#dot 1 x guest-vlan 2 Switch(config-if-range)#dot 1 x auth-fail vlan 2 Switch(config-if-range)#dot 1 x reauthentication Switch(config-if-range)#dot 1 x timeout reauth-period 5 Switch(config-if-range)#dot 1 x auth-fail max-attempts 2 Switch(config-if-range)#end Switch#write

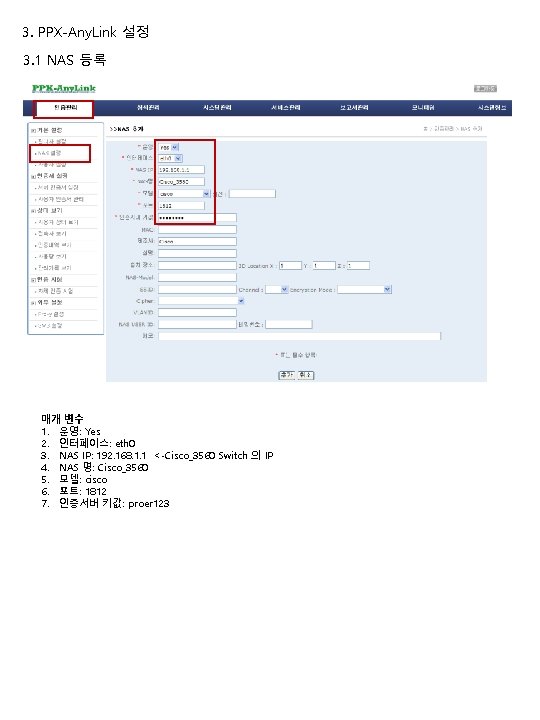

3. PPX-Any. Link 설정 3. 1 NAS 등록 매개 변수 1. 운영: Yes 2. 인터페이스: eth 0 3. NAS IP: 192. 168. 1. 1 <-Cisco_3560 Switch 의 IP 4. NAS 명: Cisco_3560 5. 모델: cisco 6. 포트: 1812 7. 인증서버 키값: proer 123

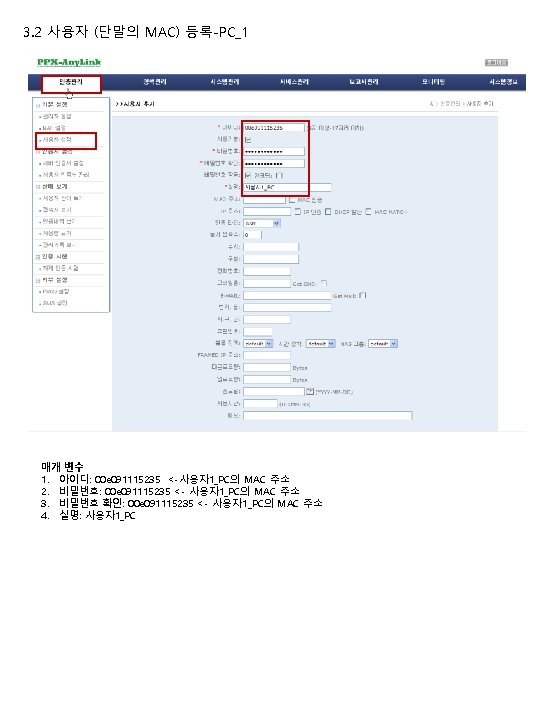

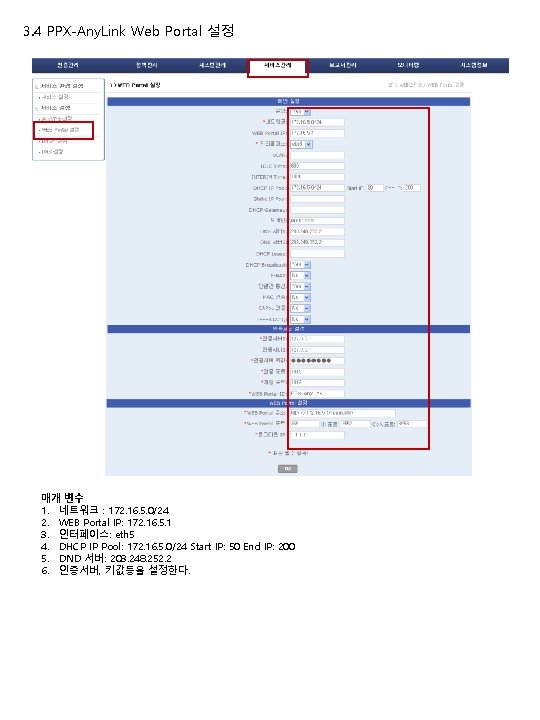

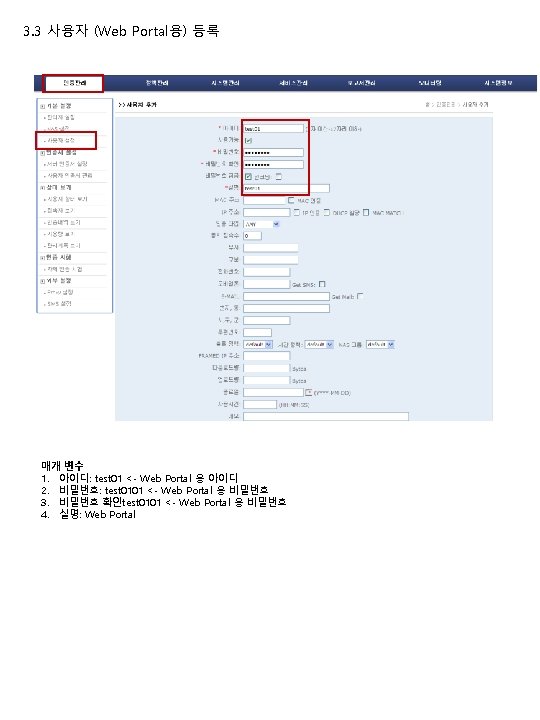

3. 4 PPX-Any. Link Web Portal 설정 매개 변수 1. 네트워크 : 172. 16. 5. 0/24 2. WEB Portal IP: 172. 16. 5. 1 3. 인터페이스: eth 5 4. DHCP IP Pool: 172. 16. 5. 0/24 Start IP: 50 End IP: 200 5. DND 서버: 203. 248. 252. 2 6. 인증서버, 키값등을 설정한다.
