PPP Security Features Ariel Eizenberg arielez@cs. huji. ac. il
Contents • Introduction • Authentication • Encryption 2
Introduction • PPP provides two means for establishing security – Authentication – Encryption • Both methods are not mandatory 3
Authentication • PPP support several authentication protocols. • The authentication is asymmetric – In each authentication “transaction”, one peer is master and the other is the slave – To authentication both sides, the authentication algorithm is ran twice, once in each direction. – The authentication algorithm may differ between the two directions. 4

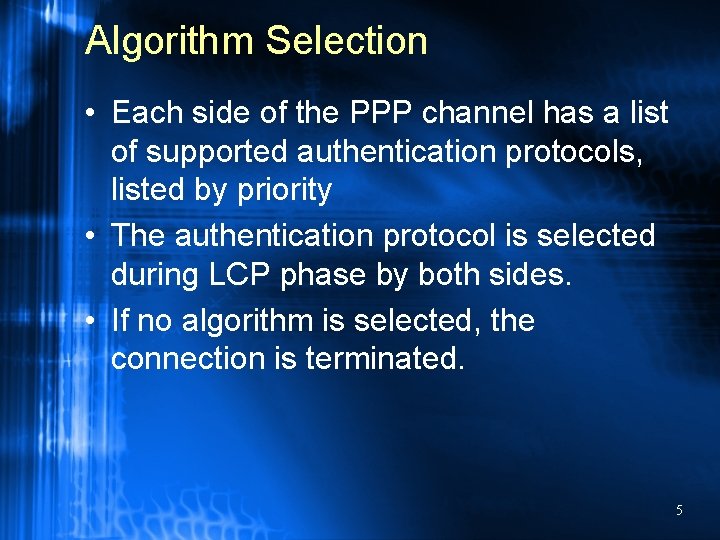

Algorithm Selection • Each side of the PPP channel has a list of supported authentication protocols, listed by priority • The authentication protocol is selected during LCP phase by both sides. • If no algorithm is selected, the connection is terminated. 5

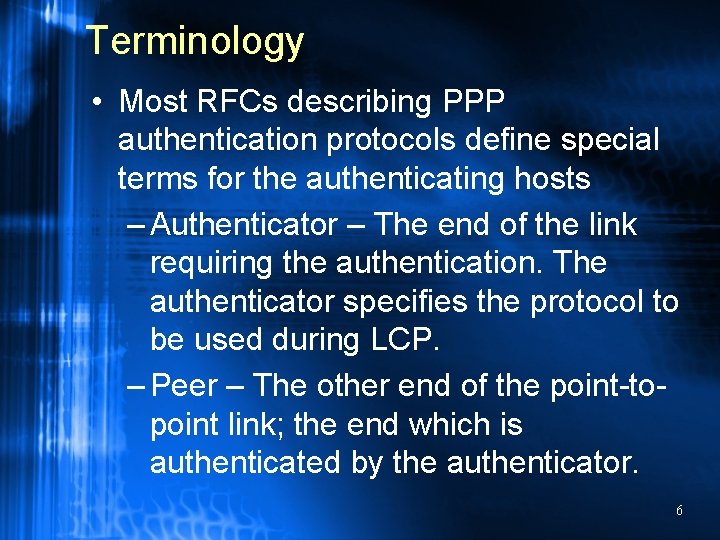

Terminology • Most RFCs describing PPP authentication protocols define special terms for the authenticating hosts – Authenticator – The end of the link requiring the authentication. The authenticator specifies the protocol to be used during LCP. – Peer – The other end of the point-topoint link; the end which is authenticated by the authenticator. 6

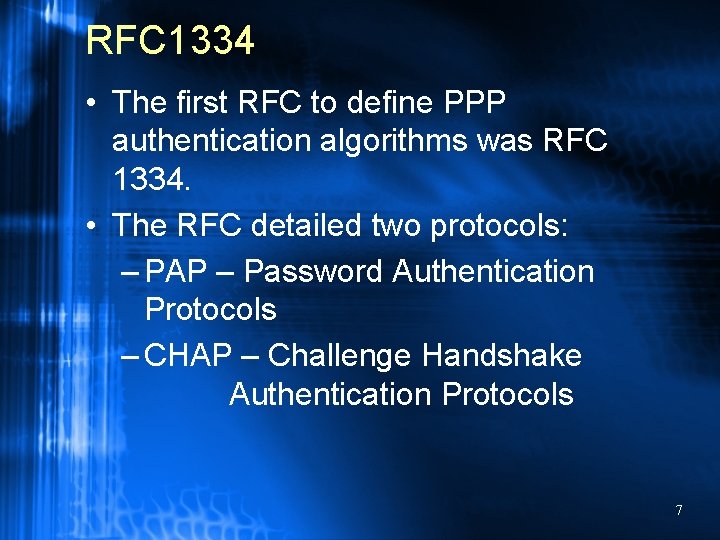

RFC 1334 • The first RFC to define PPP authentication algorithms was RFC 1334. • The RFC detailed two protocols: – PAP – Password Authentication Protocols – CHAP – Challenge Handshake Authentication Protocols 7
PAP – Password Authentication Protocol • A simple two-way handshake protocol for establishing peer identity • The protocol: – At LCP phase, the authenticator requests PAP authentication. – At authentication phase, the peer transmits, in plain text, a username and password. – The authenticator responds with a configure-ack or configure-nak. 8
PAP Authentication 9

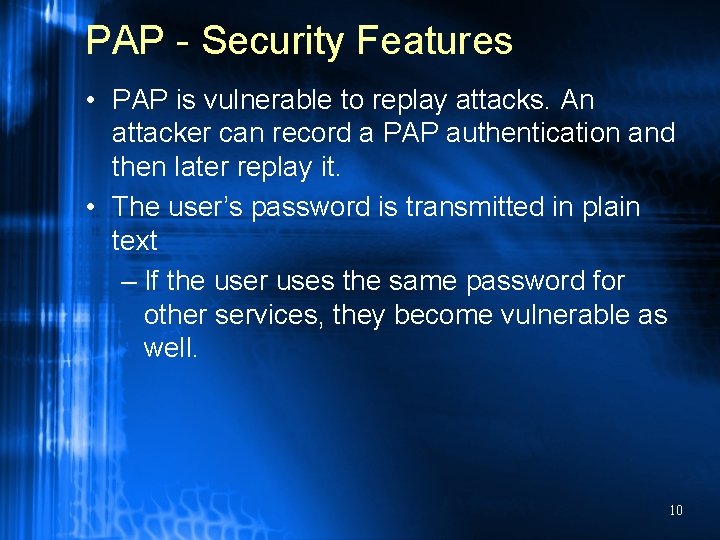

PAP - Security Features • PAP is vulnerable to replay attacks. An attacker can record a PAP authentication and then later replay it. • The user’s password is transmitted in plain text – If the user uses the same password for other services, they become vulnerable as well. 10
PAP - Extensions • The PAP RFC does not state that the password must be fixed or must come from the user: – The password can be hashed before being transmitted (does not solve replay) – PAP can be used with a token card 11
CHAP – Challenge Handshake Authentication Protocol • A 3 -way handshake protocol for establishing peer identity. • CHAP was first described in RFC 1334, and later amended in RFC 1994. • CHAP uses a challenge/response scheme for authentication 12
CHAP – The Protocol • At LCP phase, the authenticator specifies CHAP as the authentication protocol. • At authentication phase, the authenticator sends the peer a string containing its ID and a random value. • The peer concatenates the user’s password to this strings, and performs a one way hash of it. The hash is then sent back to the authenticator. • The authenticator responds with a configureack or configure-nak. 13
CHAP Authentication 14
Challenge/Response • The one way hash function can be arbitrary, but both authenticator and peer must agree on it. – To be RFC 1994 complaint, both sides must at least support MD 5. • The RFC states that the random challenge value must exhibit global and temporal uniqueness. • If the protocol is used twice, to authenticate both sides, the same challenge value must not be used! – Otherwise, the second authentication might be a replay of the first! 15

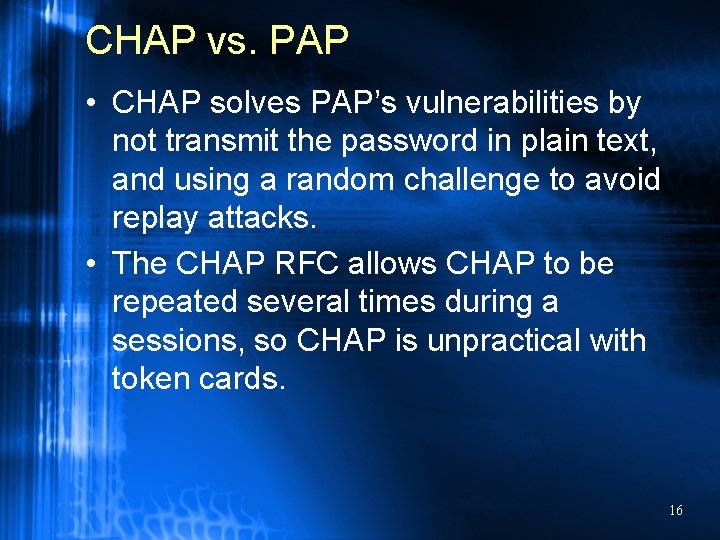

CHAP vs. PAP • CHAP solves PAP’s vulnerabilities by not transmit the password in plain text, and using a random challenge to avoid replay attacks. • The CHAP RFC allows CHAP to be repeated several times during a sessions, so CHAP is unpractical with token cards. 16

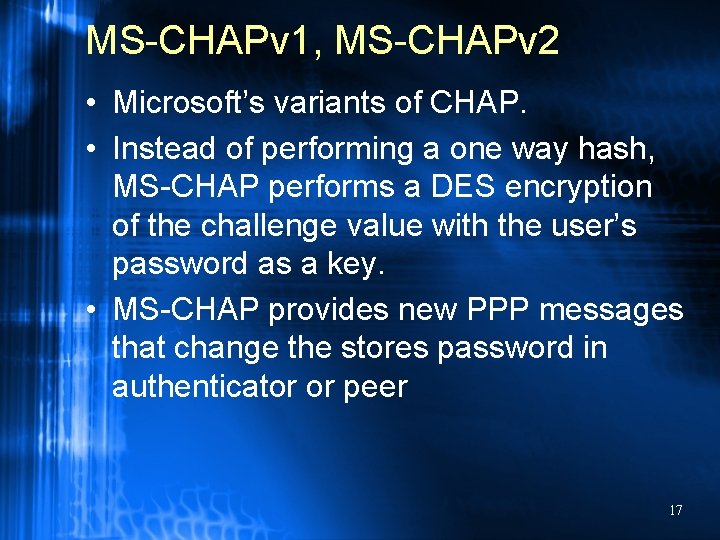

MS-CHAPv 1, MS-CHAPv 2 • Microsoft’s variants of CHAP. • Instead of performing a one way hash, MS-CHAP performs a DES encryption of the challenge value with the user’s password as a key. • MS-CHAP provides new PPP messages that change the stores password in authenticator or peer 17
CHAP vs. MS-CHAP • Using DES to encrypt the challenge does not increase the algorithm’s safety – The keys strength is still the same – most user’s passwords contain much less then 56 -bits of entropy • The password changing mechanism can allow an intruder with a one-time access windows to change the password to his heart’s desire. 18

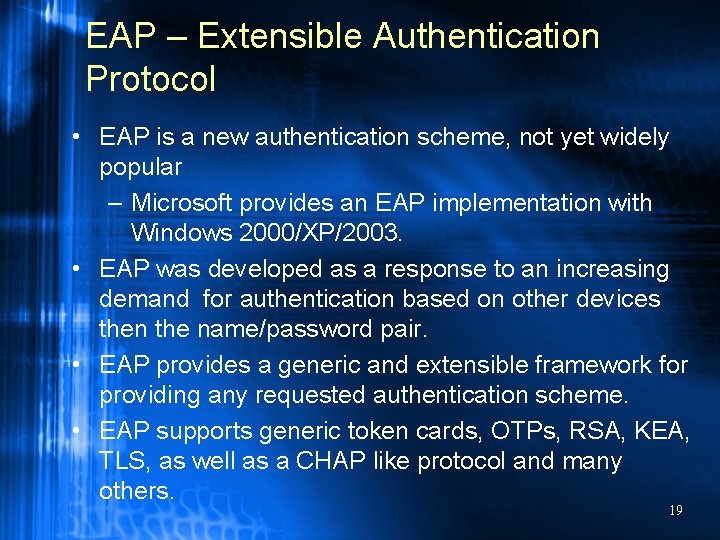

EAP – Extensible Authentication Protocol • EAP is a new authentication scheme, not yet widely popular – Microsoft provides an EAP implementation with Windows 2000/XP/2003. • EAP was developed as a response to an increasing demand for authentication based on other devices then the name/password pair. • EAP provides a generic and extensible framework for providing any requested authentication scheme. • EAP supports generic token cards, OTPs, RSA, KEA, TLS, as well as a CHAP like protocol and many others. 19

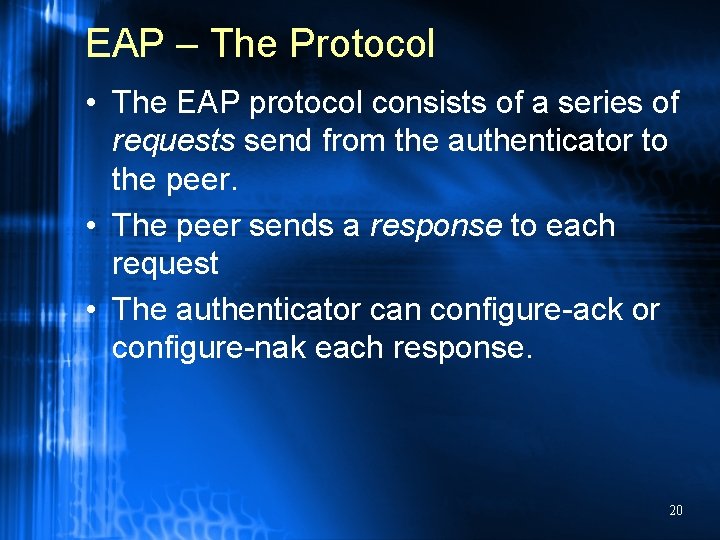

EAP – The Protocol • The EAP protocol consists of a series of requests send from the authenticator to the peer. • The peer sends a response to each request • The authenticator can configure-ack or configure-nak each response. 20

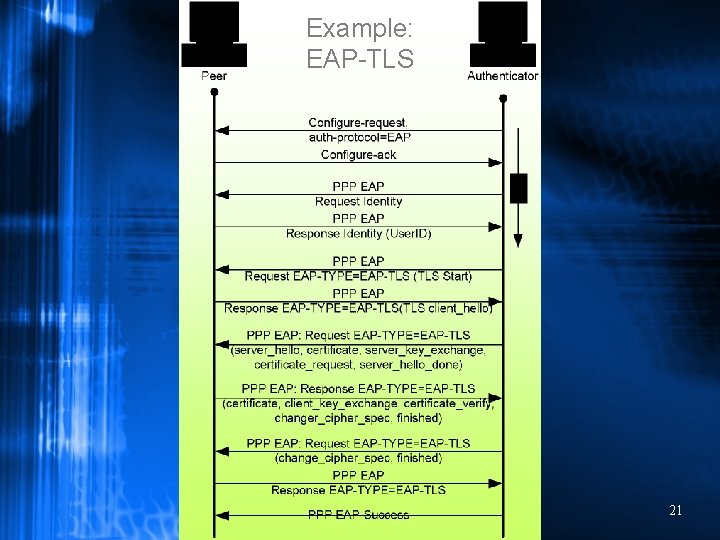

Example: EAP-TLS 21
Encryption • PPP provides a data encryption layer, called ECP (described in RFC 1968). • ECP is negotiated like any NCP, but unlike a standard NCP, all further communication, except the negotiation itself, is passed through the ECP layer. • ECP provides only data confidentiality: – It does not provide any authentication mechanism – It does not provide any key 22 distribution mechanism.

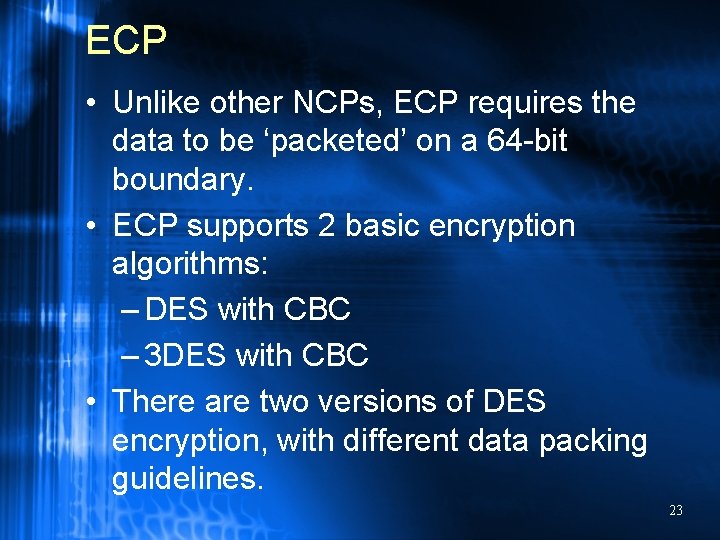

ECP • Unlike other NCPs, ECP requires the data to be ‘packeted’ on a 64 -bit boundary. • ECP supports 2 basic encryption algorithms: – DES with CBC – 3 DES with CBC • There are two versions of DES encryption, with different data packing guidelines. 23

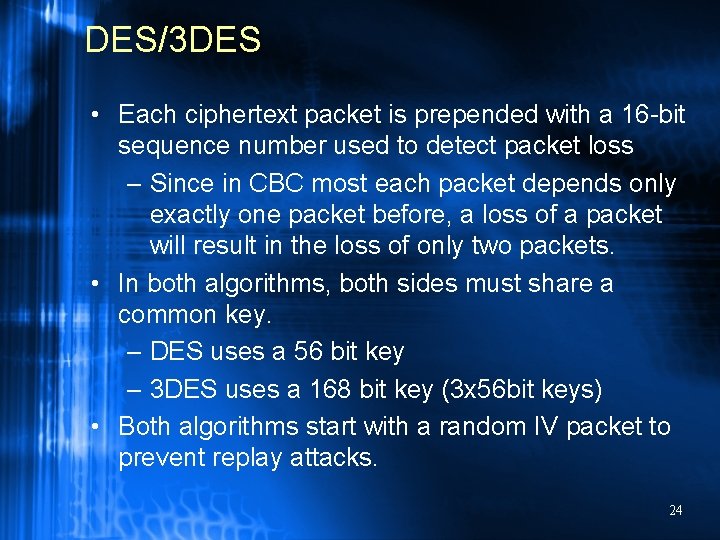

DES/3 DES • Each ciphertext packet is prepended with a 16 -bit sequence number used to detect packet loss – Since in CBC most each packet depends only exactly one packet before, a loss of a packet will result in the loss of only two packets. • In both algorithms, both sides must share a common key. – DES uses a 56 bit key – 3 DES uses a 168 bit key (3 x 56 bit keys) • Both algorithms start with a random IV packet to prevent replay attacks. 24
MPPE • Microsoft implemented its own encryption scheme, MPPE. • MPPE uses RC 4 for encryption, with a 40/128 bit key for security. • MPPE is closely integrated with MSCHAP, and obtains a RC 4 key from the MS-CHAP key. – Since the MS-CHAP key is usually much less stronger then 40/128 bits, encryption security is lessened. 25
Summary • PPP provides mechanisms for implementing two security features: – Authenticity – using authentication – Confidentiality – using encryption • PPP does not provide – Non-repudiation – can be implemented by using IPSEC over PPP – Message Integrity – PPP provides a CRC for each packet, but there is no mechanism for signing packets. 26
The End 27
