Power Xpert Gateway Family PXG 400 PXG 600

Power Xpert Gateway Family PXG 400 PXG 600 a PXG 600 b 1

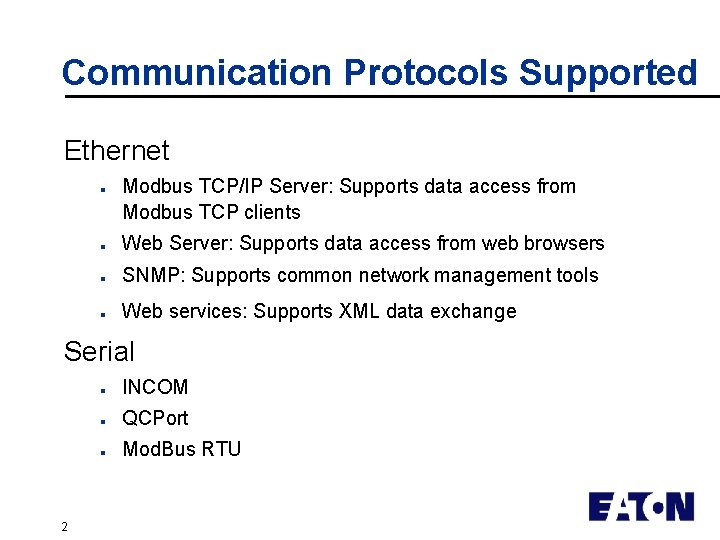

Communication Protocols Supported Ethernet n Modbus TCP/IP Server: Supports data access from Modbus TCP clients n Web Server: Supports data access from web browsers n SNMP: Supports common network management tools n Web services: Supports XML data exchange Serial 2 n INCOM n QCPort n Mod. Bus RTU

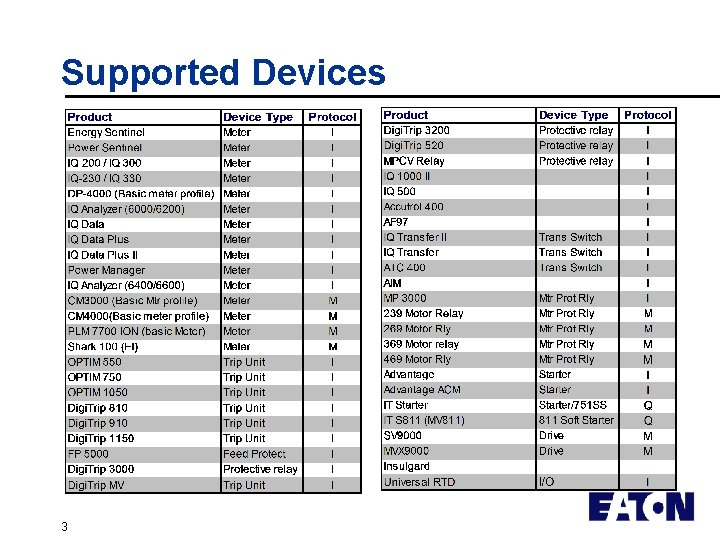

Supported Devices 3

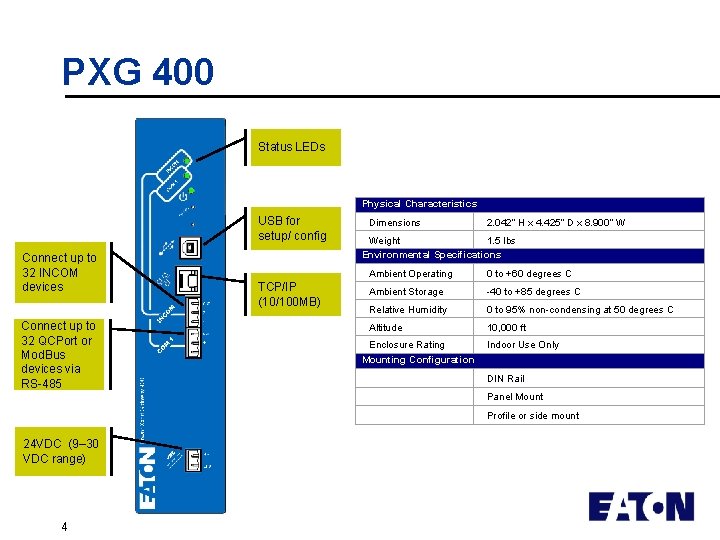

PXG 400 Status LEDs Physical Characteristics USB for setup/ config Connect up to 32 INCOM devices Connect up to 32 QCPort or Mod. Bus devices via RS-485 TCP/IP (10/100 MB) Dimensions 2. 042” H x 4. 425” D x 8. 900” W Weight 1. 5 lbs Environmental Specifications Ambient Operating 0 to +60 degrees C Ambient Storage -40 to +85 degrees C Relative Humidity 0 to 95% non-condensing at 50 degrees C Altitude 10, 000 ft Enclosure Rating Mounting Configuration Indoor Use Only DIN Rail Panel Mount Profile or side mount 24 VDC (9– 30 VDC range) 4

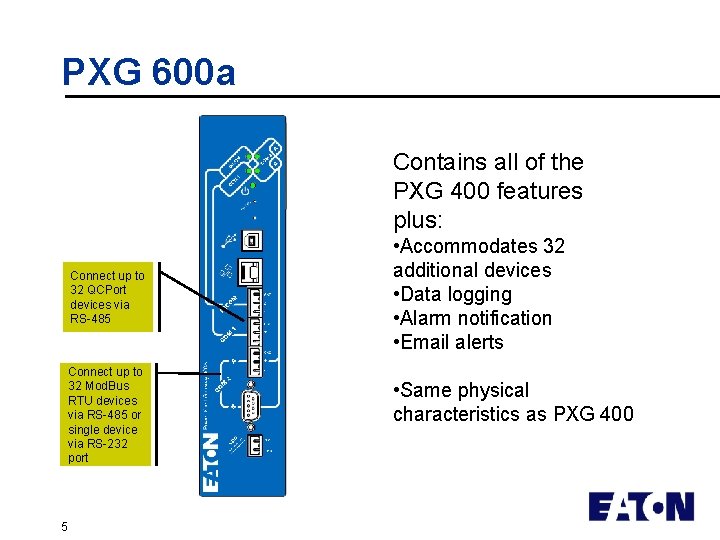

PXG 600 a Contains all of the PXG 400 features plus: Connect up to 32 QCPort devices via RS-485 Connect up to 32 Mod. Bus RTU devices via RS-485 or single device via RS-232 port 5 • Accommodates 32 additional devices • Data logging • Alarm notification • Email alerts • Same physical characteristics as PXG 400

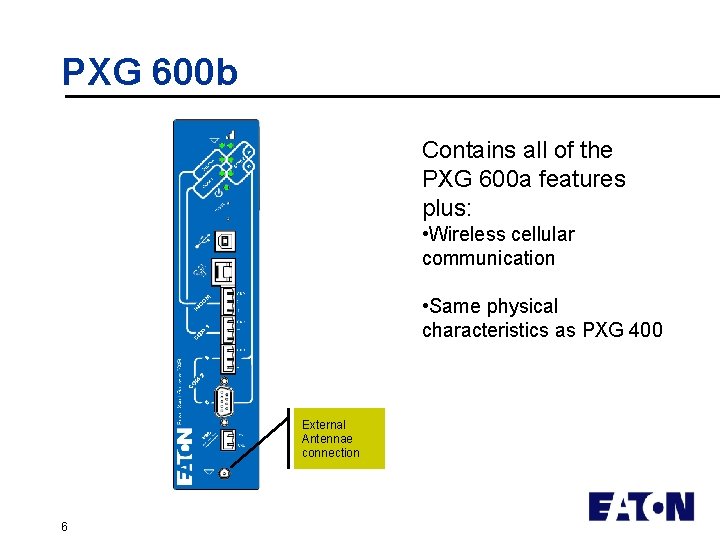

PXG 600 b Contains all of the PXG 600 a features plus: • Wireless cellular communication • Same physical characteristics as PXG 400 External Antennae connection 6

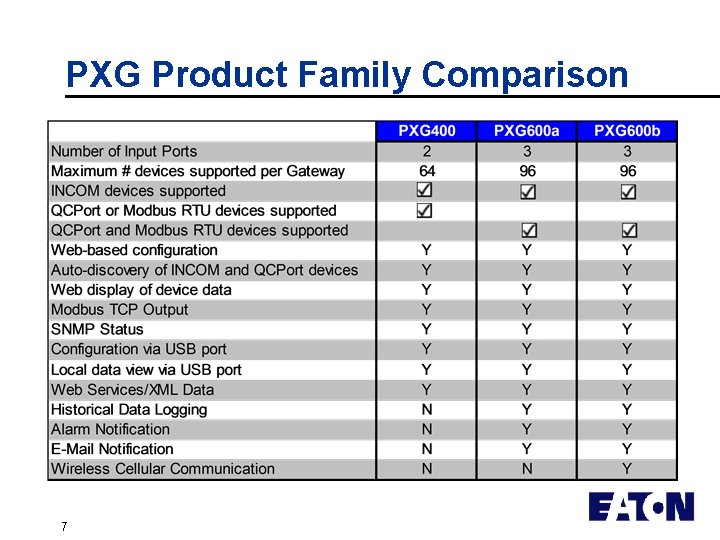

PXG Product Family Comparison 7

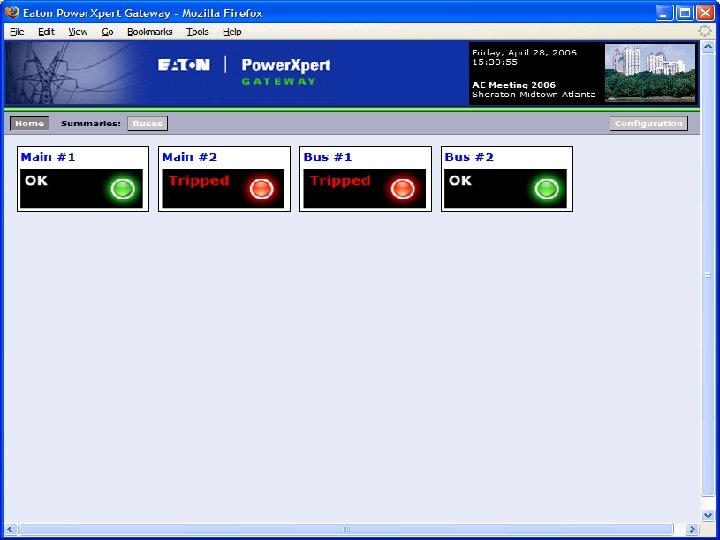

© 2002 Eaton Corporation. All rights reserved.

9

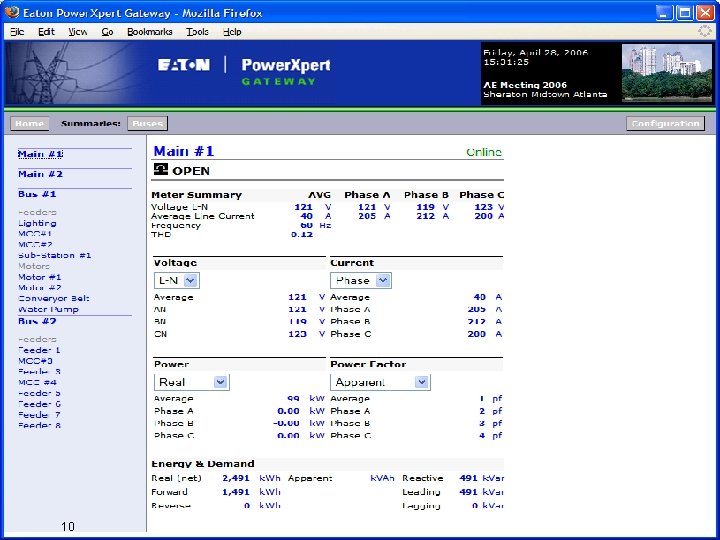

10

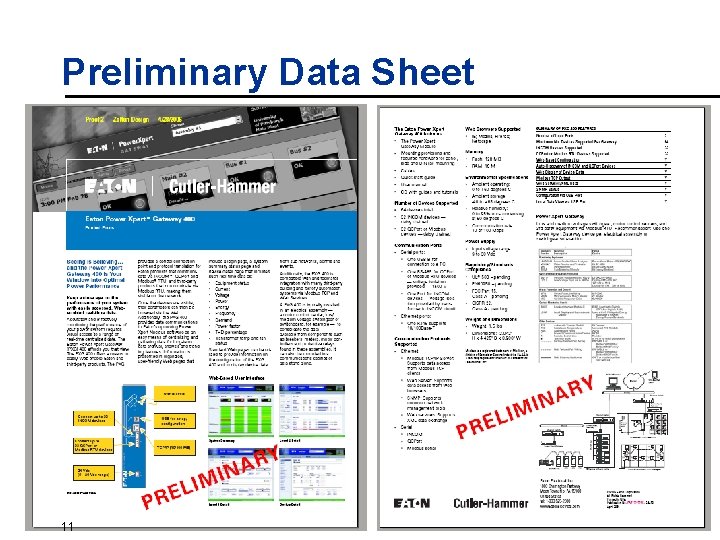

Preliminary Data Sheet 11
