POWER SERIES BASIC PROGRAMMING NTS 08 2441 Agenda

POWER SERIES BASIC PROGRAMMING NTS# 08 -2441

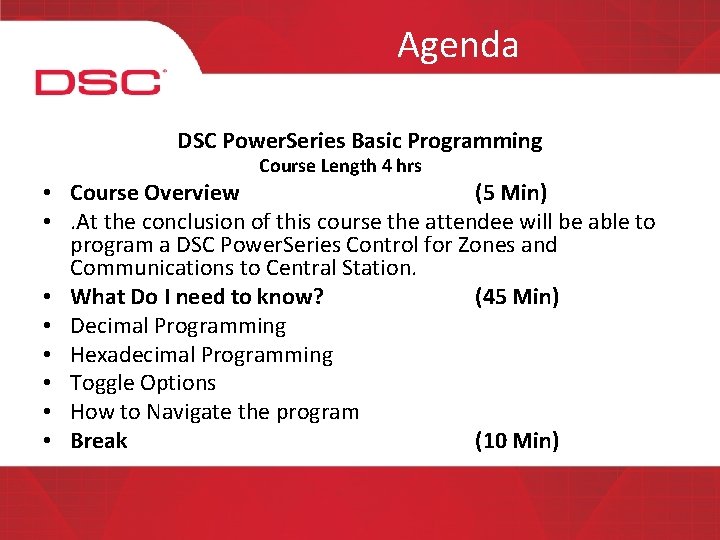

Agenda DSC Power. Series Basic Programming Course Length 4 hrs • Course Overview (5 Min) • . At the conclusion of this course the attendee will be able to program a DSC Power. Series Control for Zones and Communications to Central Station. • What Do I need to know? (45 Min) • Decimal Programming • Hexadecimal Programming • Toggle Options • How to Navigate the program • Break (10 Min)

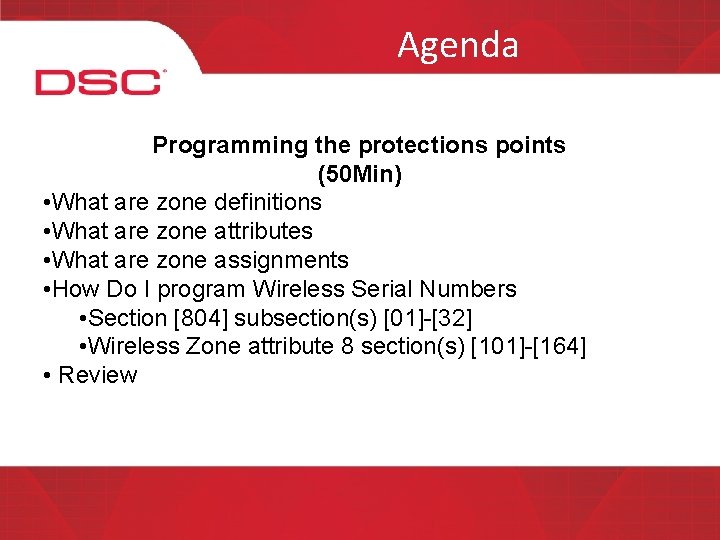

Agenda Programming the protections points (50 Min) • What are zone definitions • What are zone attributes • What are zone assignments • How Do I program Wireless Serial Numbers • Section [804] subsection(s) [01]-[32] • Wireless Zone attribute 8 section(s) [101]-[164] • Review

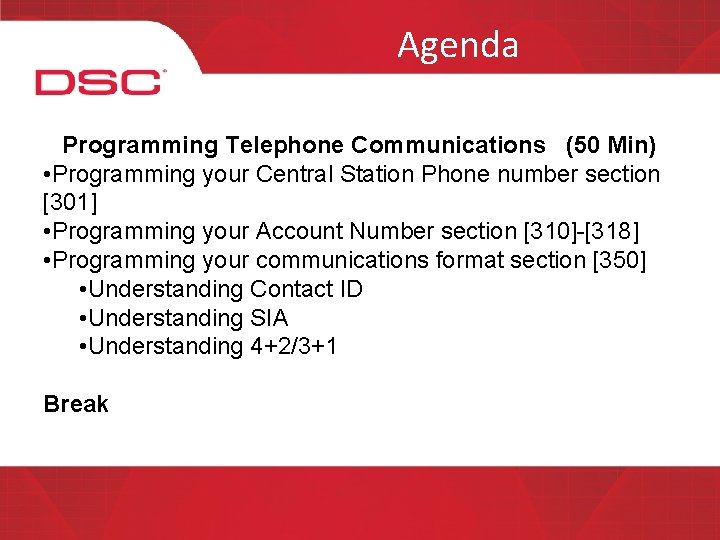

Agenda Programming Telephone Communications (50 Min) • Programming your Central Station Phone number section [301] • Programming your Account Number section [310]-[318] • Programming your communications format section [350] • Understanding Contact ID • Understanding SIA • Understanding 4+2/3+1 Break

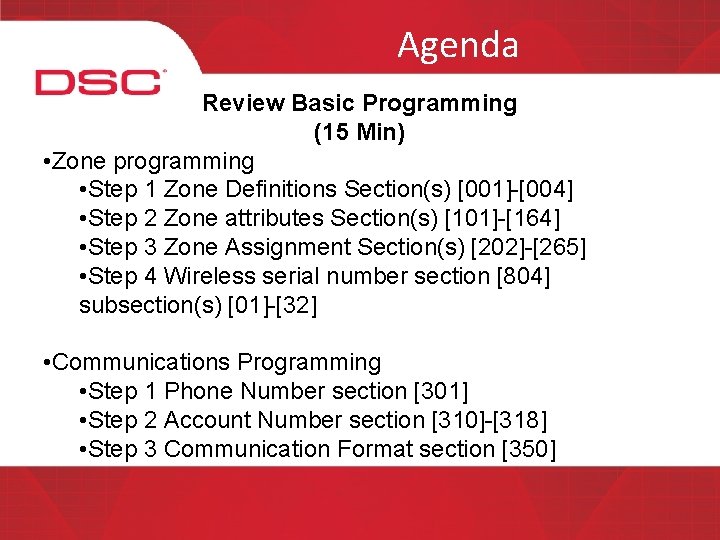

Agenda Review Basic Programming (15 Min) • Zone programming • Step 1 Zone Definitions Section(s) [001]-[004] • Step 2 Zone attributes Section(s) [101]-[164] • Step 3 Zone Assignment Section(s) [202]-[265] • Step 4 Wireless serial number section [804] subsection(s) [01]-[32] • Communications Programming • Step 1 Phone Number section [301] • Step 2 Account Number section [310]-[318] • Step 3 Communication Format section [350]

Agenda Case 1 – Class participation programming exercise (35 Min)

Installer Programming

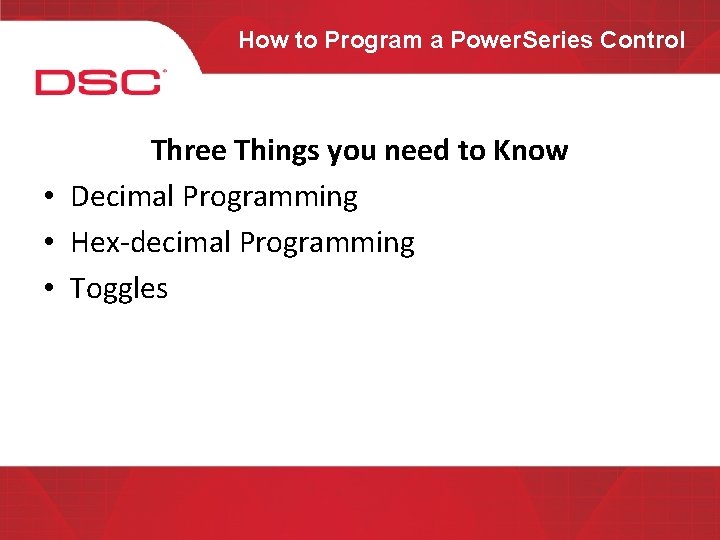

How to Program a Power. Series Control Three Things you need to Know • Decimal Programming • Hex-decimal Programming • Toggles

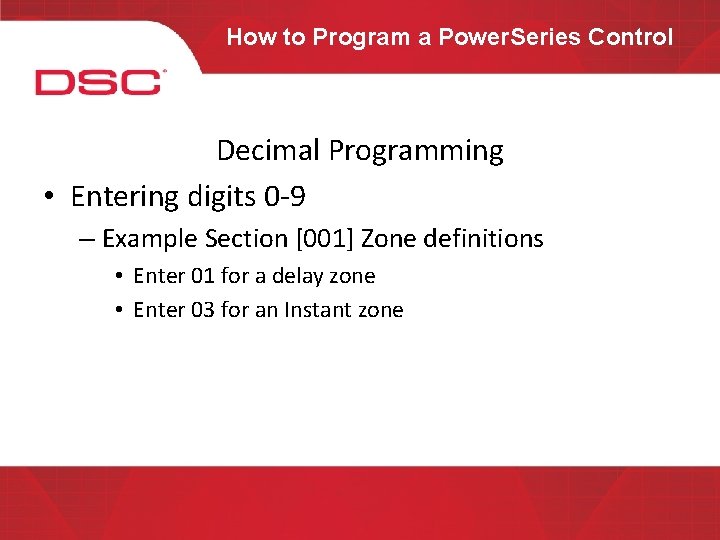

How to Program a Power. Series Control Decimal Programming • Entering digits 0 -9 – Example Section [001] Zone definitions • Enter 01 for a delay zone • Enter 03 for an Instant zone

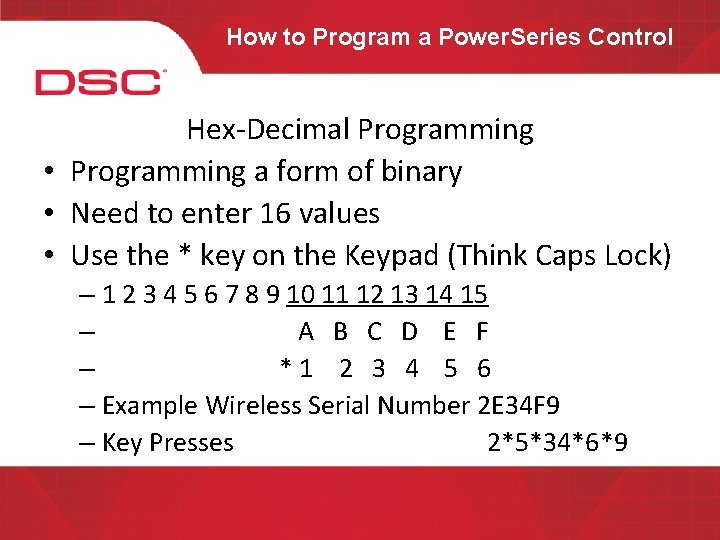

How to Program a Power. Series Control Hex-Decimal Programming • Programming a form of binary • Need to enter 16 values • Use the * key on the Keypad (Think Caps Lock) – 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 – A B C D E F – *1 2 3 4 5 6 – Example Wireless Serial Number 2 E 34 F 9 – Key Presses 2*5*34*6*9

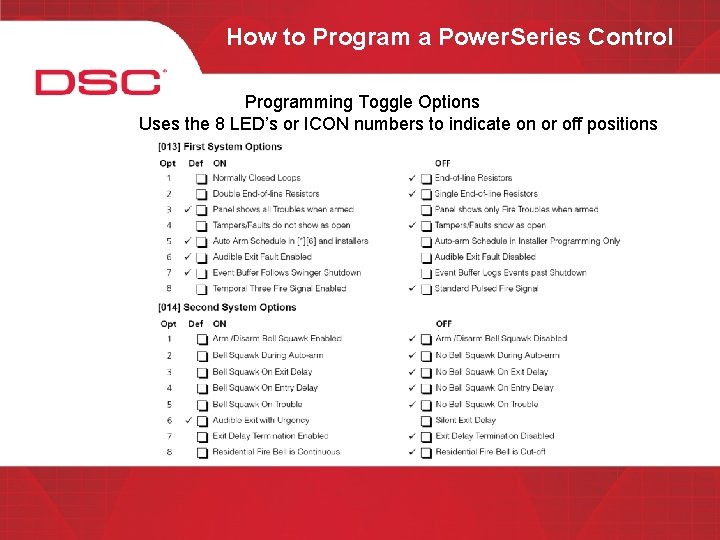

How to Program a Power. Series Control Programming Toggle Options Uses the 8 LED’s or ICON numbers to indicate on or off positions

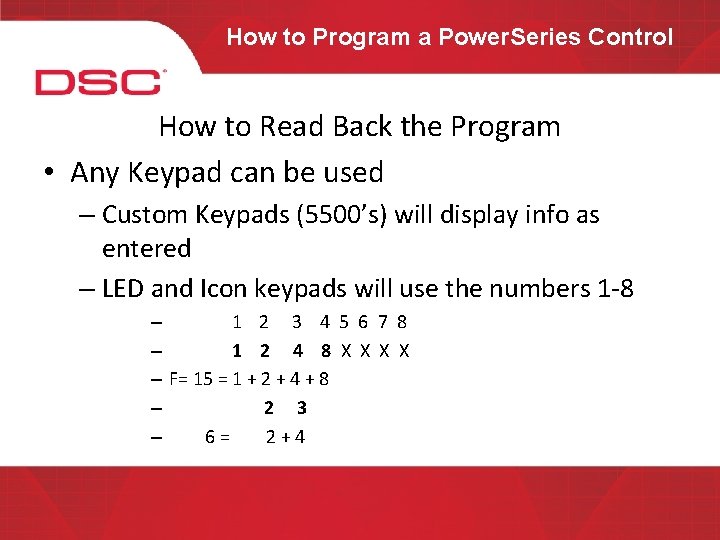

How to Program a Power. Series Control How to Read Back the Program • Any Keypad can be used – Custom Keypads (5500’s) will display info as entered – LED and Icon keypads will use the numbers 1 -8 – 1 2 3 4 5 6 7 8 – 1 2 4 8 X X – F= 15 = 1 + 2 + 4 + 8 – 2 3 – 6= 2+4

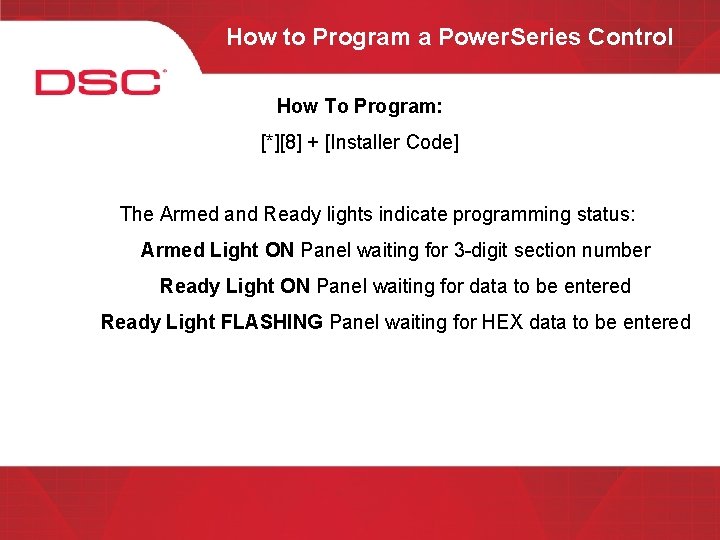

How to Program a Power. Series Control How To Program: [*][8] + [Installer Code] The Armed and Ready lights indicate programming status: Armed Light ON Panel waiting for 3 -digit section number Ready Light ON Panel waiting for data to be entered Ready Light FLASHING Panel waiting for HEX data to be entered

BREAK

Zone Programming …Step 1

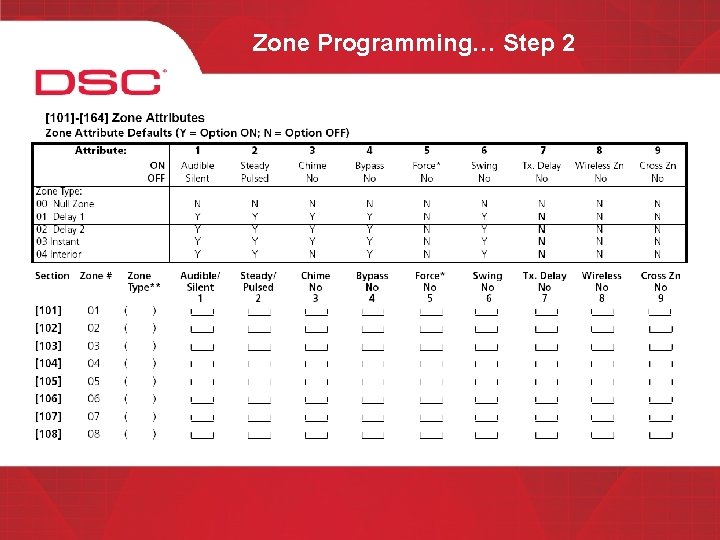

Zone Programming… Step 2

Zone Programming… Step 3

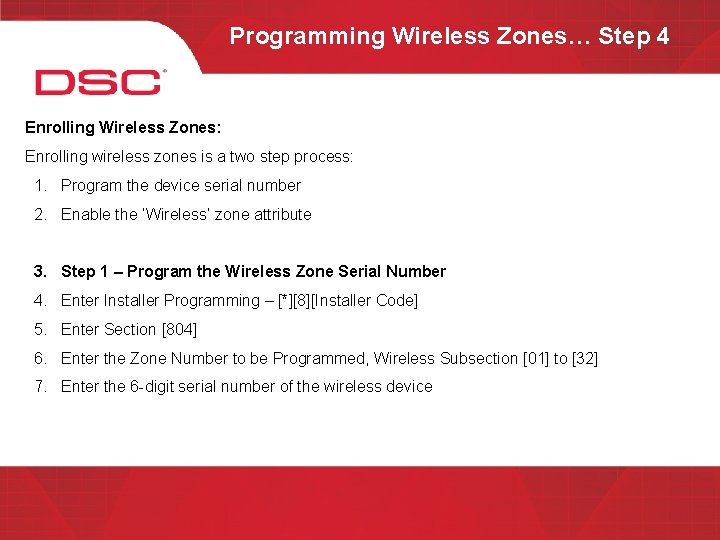

Programming Wireless Zones… Step 4 Enrolling Wireless Zones: Enrolling wireless zones is a two step process: 1. Program the device serial number 2. Enable the ‘Wireless’ zone attribute 3. Step 1 – Program the Wireless Zone Serial Number 4. Enter Installer Programming – [*][8][Installer Code] 5. Enter Section [804] 6. Enter the Zone Number to be Programmed, Wireless Subsection [01] to [32] 7. Enter the 6 -digit serial number of the wireless device

BREAK

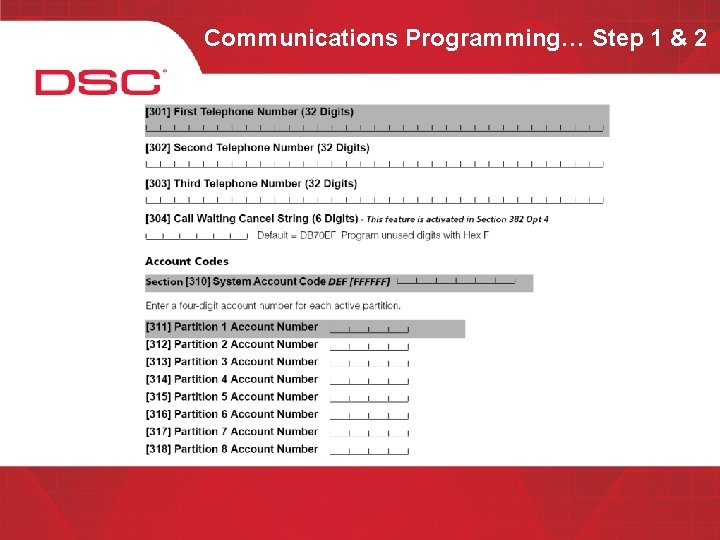

Communications Programming… Step 1 & 2

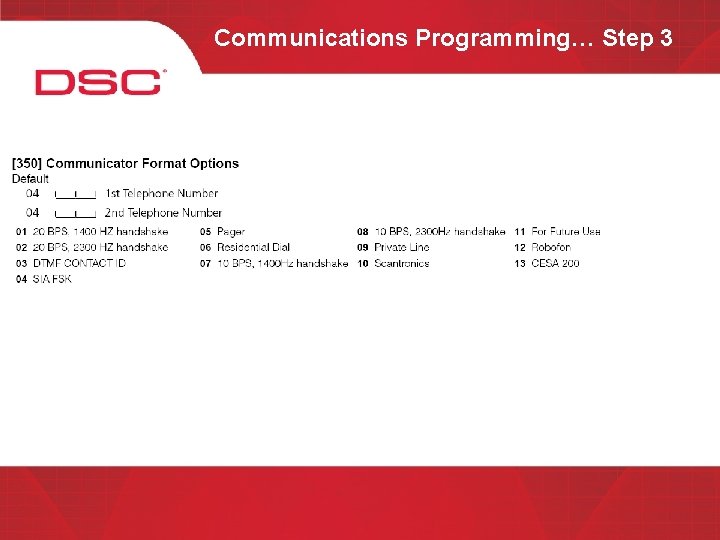

Communications Programming… Step 3

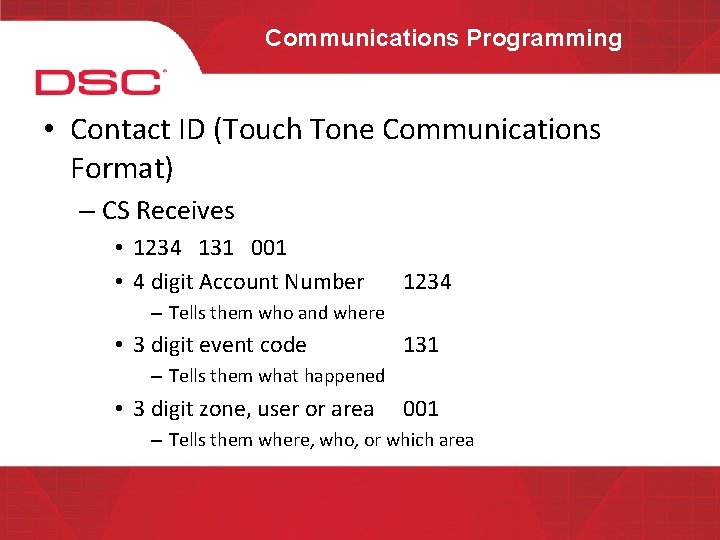

Communications Programming • Contact ID (Touch Tone Communications Format) – CS Receives • 1234 131 001 • 4 digit Account Number 1234 – Tells them who and where • 3 digit event code 131 – Tells them what happened • 3 digit zone, user or area 001 – Tells them where, who, or which area

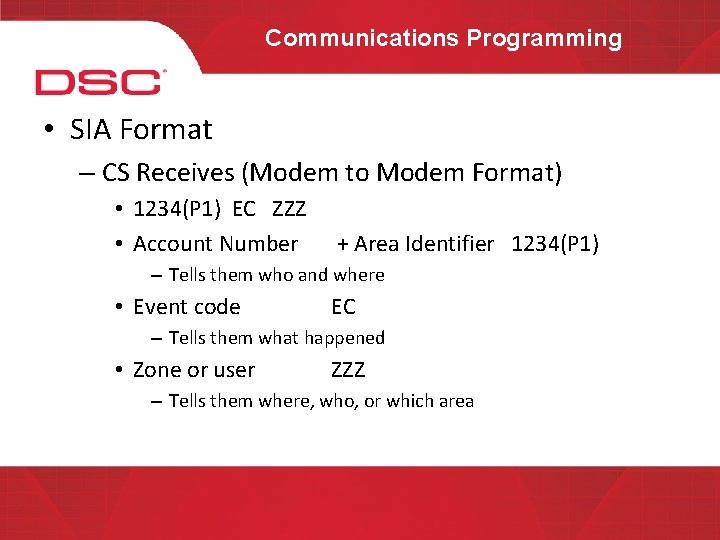

Communications Programming • SIA Format – CS Receives (Modem to Modem Format) • 1234(P 1) EC ZZZ • Account Number + Area Identifier 1234(P 1) – Tells them who and where • Event code EC – Tells them what happened • Zone or user ZZZ – Tells them where, who, or which area

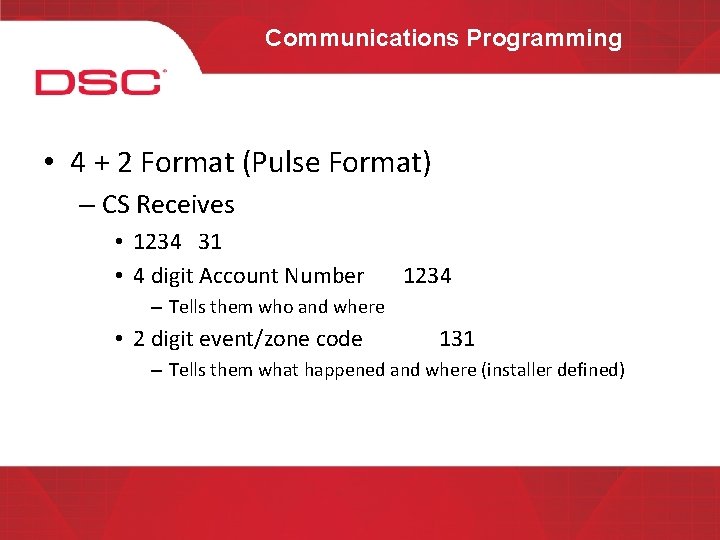

Communications Programming • 4 + 2 Format (Pulse Format) – CS Receives • 1234 31 • 4 digit Account Number 1234 – Tells them who and where • 2 digit event/zone code 131 – Tells them what happened and where (installer defined)

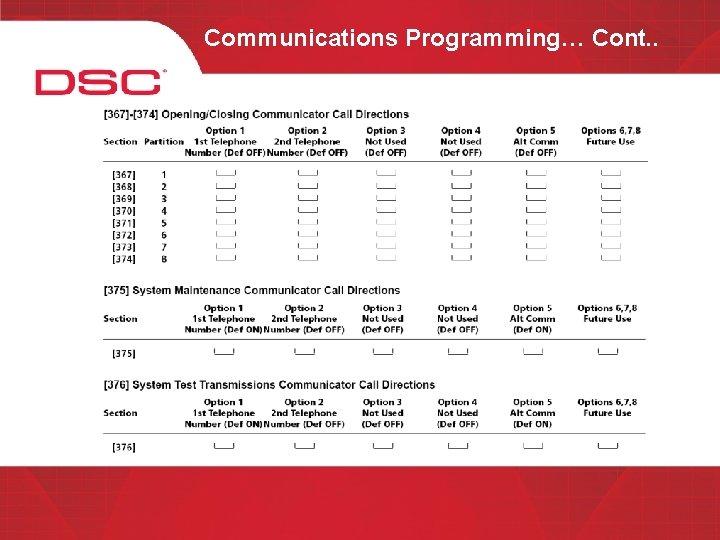

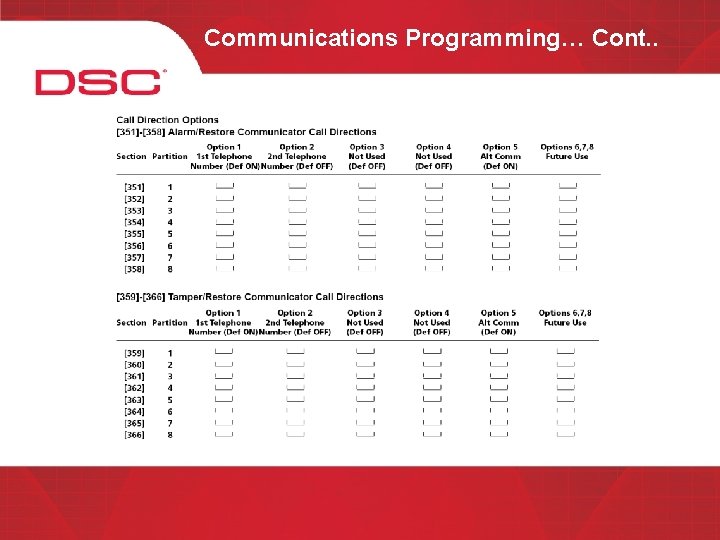

Communications Programming… Cont. .

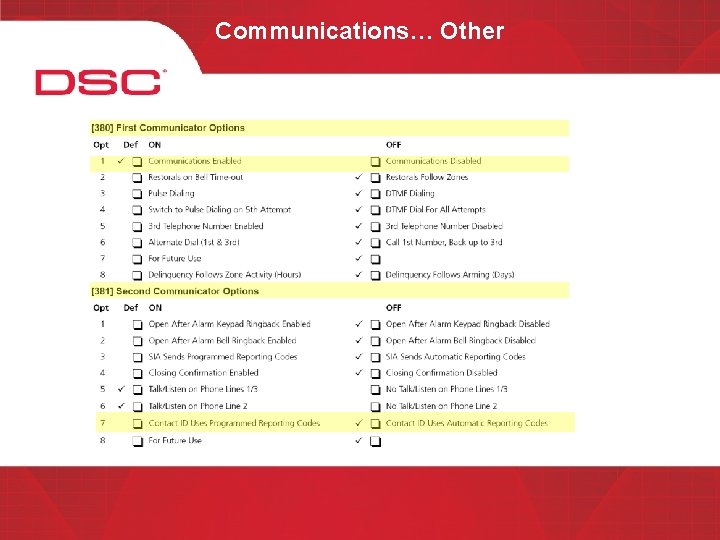

Communications… Other

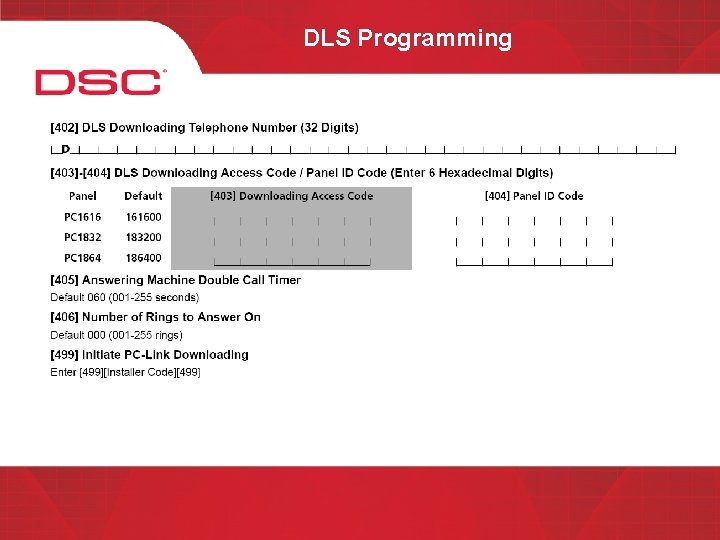

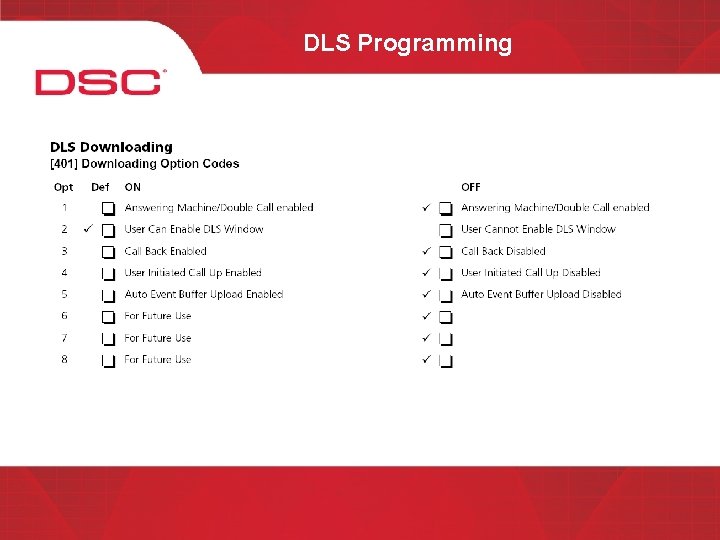

DLS Programming

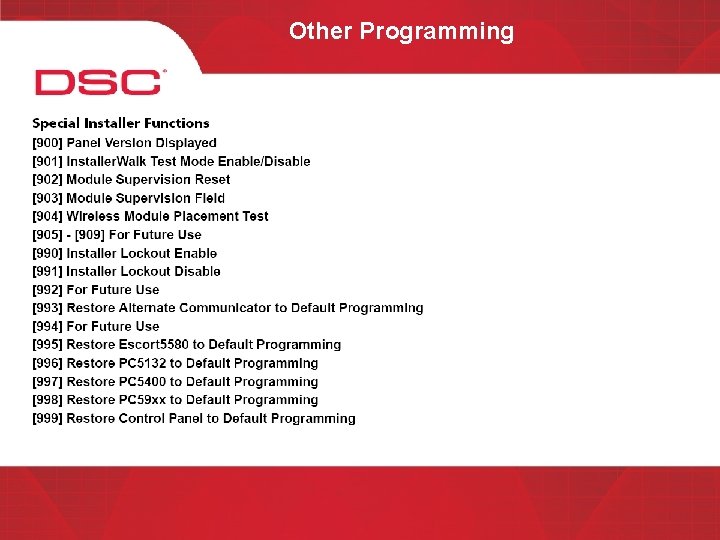

Other Programming

BREAK

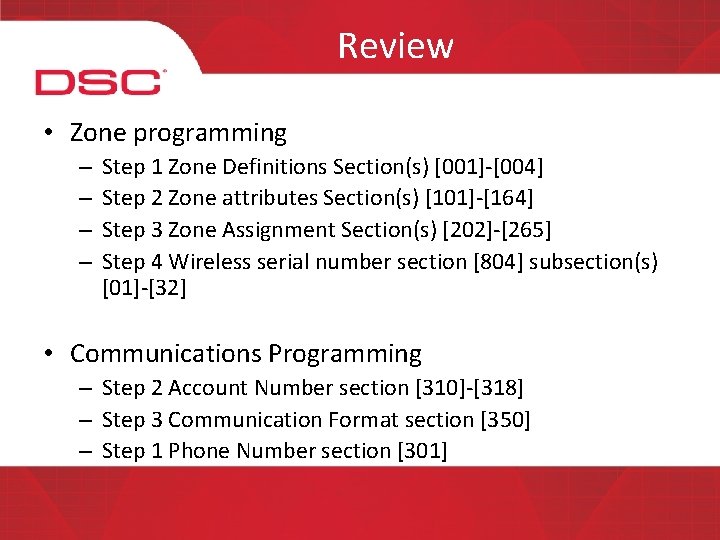

Review • Zone programming – – Step 1 Zone Definitions Section(s) [001]-[004] Step 2 Zone attributes Section(s) [101]-[164] Step 3 Zone Assignment Section(s) [202]-[265] Step 4 Wireless serial number section [804] subsection(s) [01]-[32] • Communications Programming – Step 2 Account Number section [310]-[318] – Step 3 Communication Format section [350] – Step 1 Phone Number section [301]

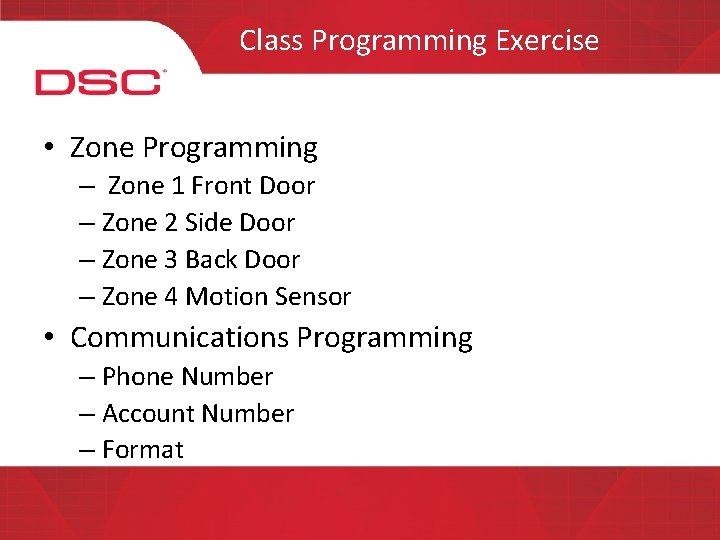

Class Programming Exercise • Zone Programming – Zone 1 Front Door – Zone 2 Side Door – Zone 3 Back Door – Zone 4 Motion Sensor • Communications Programming – Phone Number – Account Number – Format

Questions?
