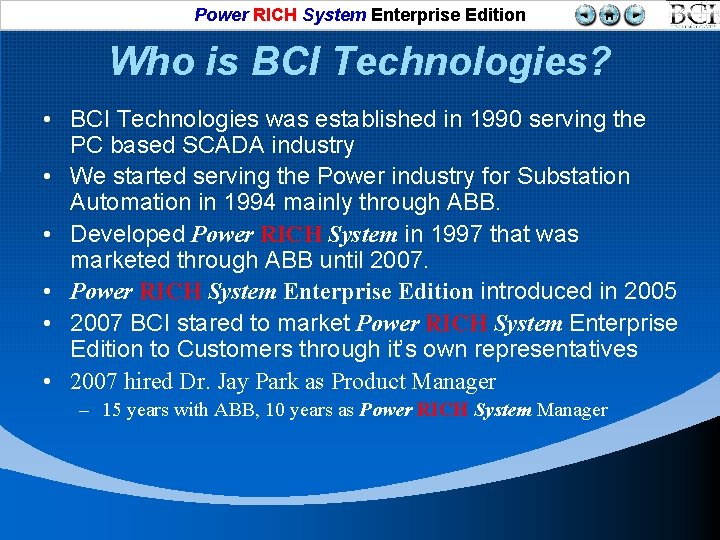

Power RICH System Enterprise Edition Who is BCI Technologies? • BCI Technologies was established in 1990 serving the PC based SCADA industry • We started serving the Power industry for Substation Automation in 1994 mainly through ABB. • Developed Power RICH System in 1997 that was marketed through ABB until 2007. • Power RICH System Enterprise Edition introduced in 2005 • 2007 BCI stared to market Power RICH System Enterprise Edition to Customers through it’s own representatives • 2007 hired Dr. Jay Park as Product Manager – 15 years with ABB, 10 years as Power RICH System Manager

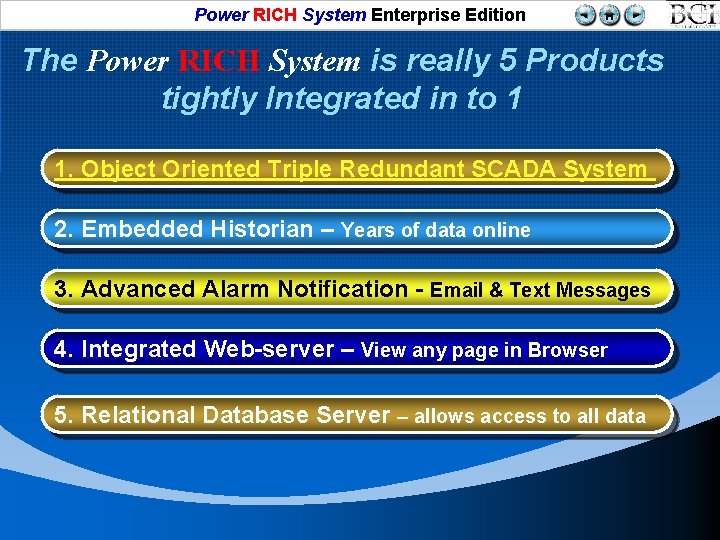

Power RICH System Enterprise Edition The Power RICH System is really 5 Products tightly Integrated in to 1 1. Object Oriented Triple Redundant SCADA System 2. Embedded Historian – Years of data online 3. Advanced Alarm Notification - Email & Text Messages 4. Integrated Web-server – View any page in Browser 5. Relational Database Server – allows access to all data

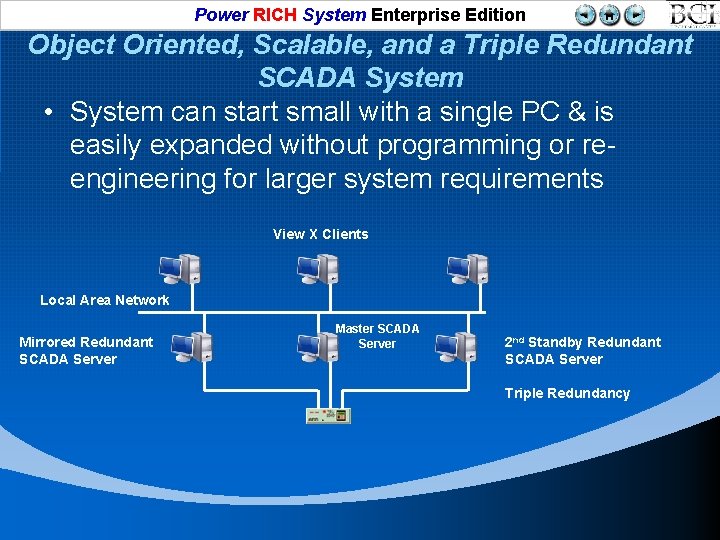

Power RICH System Enterprise Edition Object Oriented, Scalable, and a Triple Redundant SCADA System • System can start small with a single PC & is easily expanded without programming or reengineering for larger system requirements View X Clients Local Area Network Mirrored Redundant SCADA Server Master SCADA Server 2 nd Standby Redundant SCADA Server Triple Redundancy

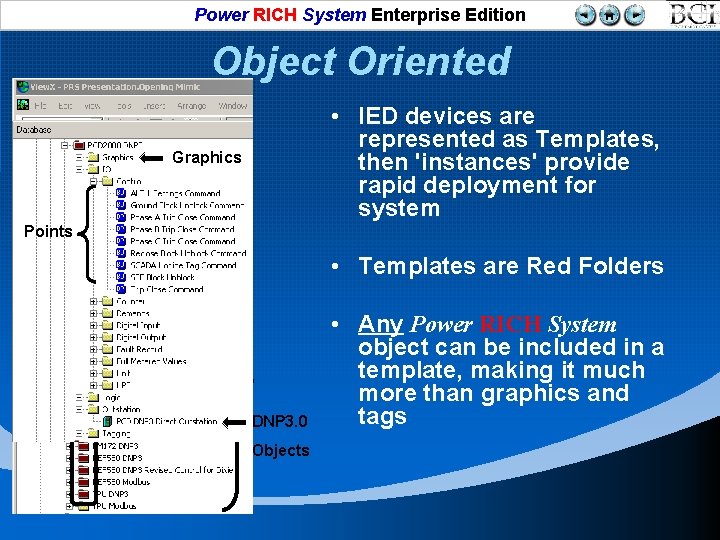

Power RICH System Enterprise Edition Object Oriented • IED devices are represented as Templates, then 'instances' provide rapid deployment for system Graphics Points • Templates are Red Folders DNP 3. 0 Objects • Any Power RICH System object can be included in a template, making it much more than graphics and tags

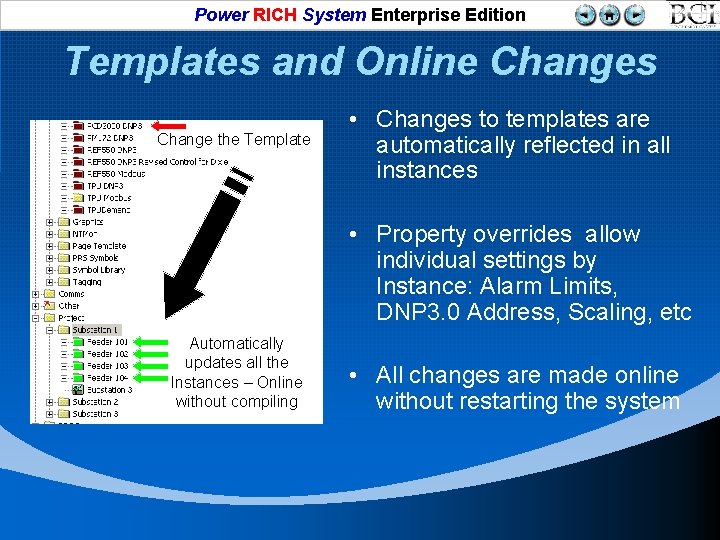

Power RICH System Enterprise Edition Templates and Online Changes Change the Template • Changes to templates are automatically reflected in all instances • Property overrides allow individual settings by Instance: Alarm Limits, DNP 3. 0 Address, Scaling, etc Automatically updates all the Instances – Online without compiling • All changes are made online without restarting the system

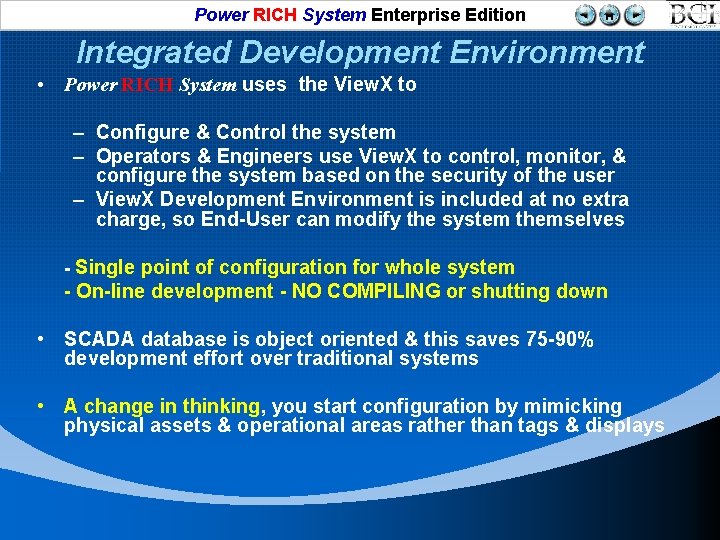

Power RICH System Enterprise Edition Integrated Development Environment • Power RICH System uses the View. X to – Configure & Control the system – Operators & Engineers use View. X to control, monitor, & configure the system based on the security of the user – View. X Development Environment is included at no extra charge, so End-User can modify the system themselves - Single point of configuration for whole system - On-line development - NO COMPILING or shutting down • SCADA database is object oriented & this saves 75 -90% development effort over traditional systems • A change in thinking, you start configuration by mimicking physical assets & operational areas rather than tags & displays

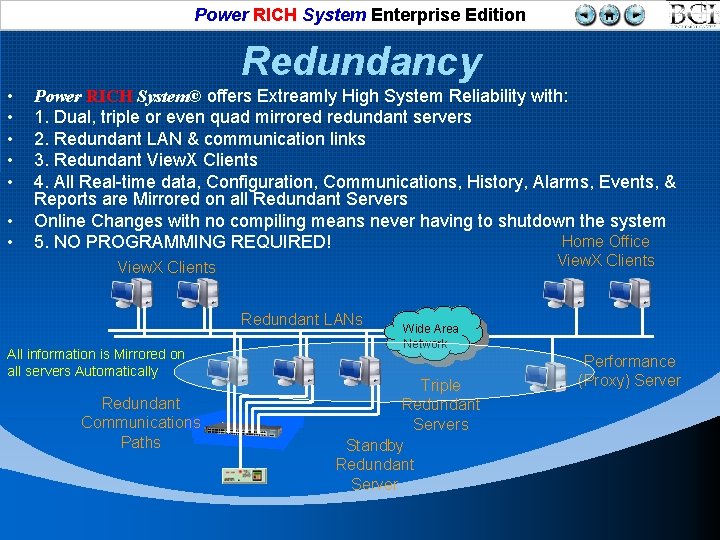

Power RICH System Enterprise Edition Redundancy • • Power RICH System© offers Extreamly High System Reliability with: 1. Dual, triple or even quad mirrored redundant servers 2. Redundant LAN & communication links 3. Redundant View. X Clients 4. All Real-time data, Configuration, Communications, History, Alarms, Events, & Reports are Mirrored on all Redundant Servers Online Changes with no compiling means never having to shutdown the system Home Office 5. NO PROGRAMMING REQUIRED! View. X Clients Redundant LANs All information is Mirrored on all servers Automatically Redundant Communications Paths Wide Area Network Triple Redundant Servers Standby Redundant Server Performance (Proxy) Server

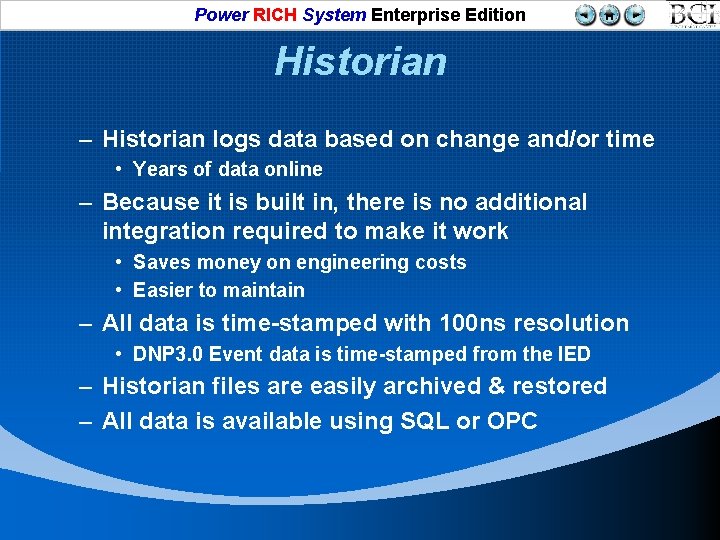

Power RICH System Enterprise Edition Historian – Historian logs data based on change and/or time • Years of data online – Because it is built in, there is no additional integration required to make it work • Saves money on engineering costs • Easier to maintain – All data is time-stamped with 100 ns resolution • DNP 3. 0 Event data is time-stamped from the IED – Historian files are easily archived & restored – All data is available using SQL or OPC

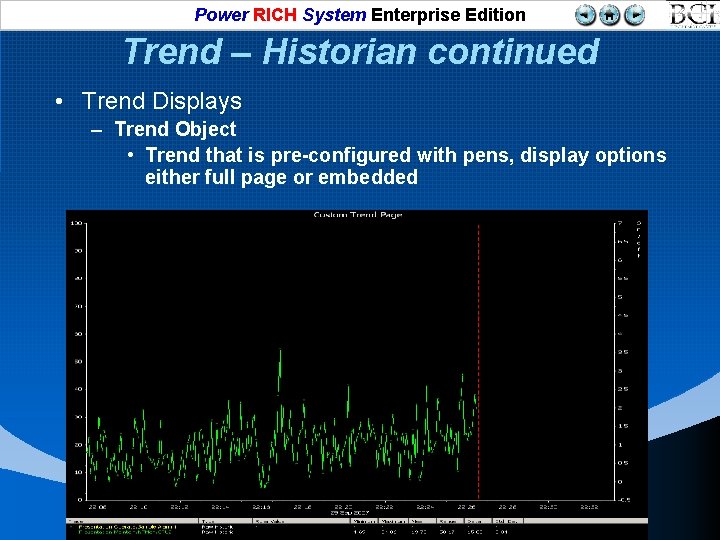

Power RICH System Enterprise Edition Trend – Historian continued • Trend Displays – Trend Object • Trend that is pre-configured with pens, display options either full page or embedded

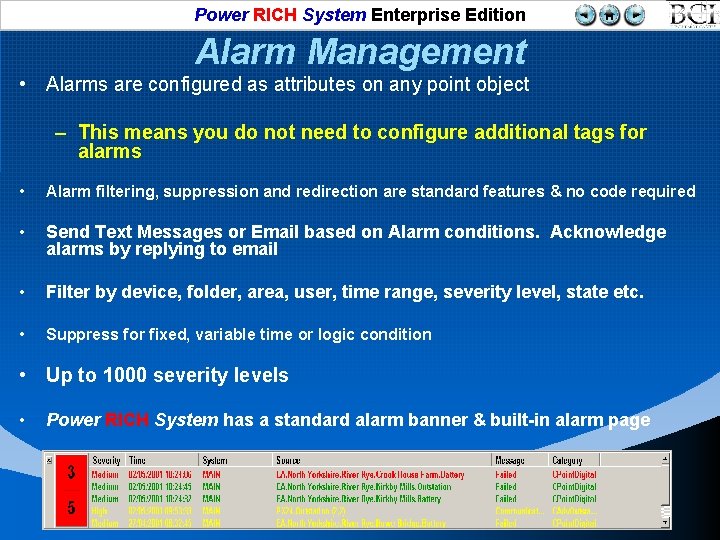

Power RICH System Enterprise Edition Alarm Management • Alarms are configured as attributes on any point object – This means you do not need to configure additional tags for alarms • Alarm filtering, suppression and redirection are standard features & no code required • Send Text Messages or Email based on Alarm conditions. Acknowledge alarms by replying to email • Filter by device, folder, area, user, time range, severity level, state etc. • Suppress for fixed, variable time or logic condition • Up to 1000 severity levels • Power RICH System has a standard alarm banner & built-in alarm page

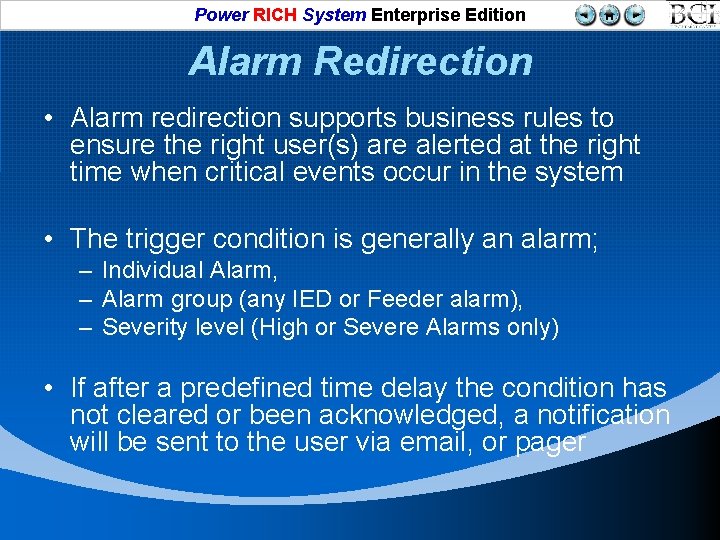

Power RICH System Enterprise Edition Alarm Redirection • Alarm redirection supports business rules to ensure the right user(s) are alerted at the right time when critical events occur in the system • The trigger condition is generally an alarm; – Individual Alarm, – Alarm group (any IED or Feeder alarm), – Severity level (High or Severe Alarms only) • If after a predefined time delay the condition has not cleared or been acknowledged, a notification will be sent to the user via email, or pager

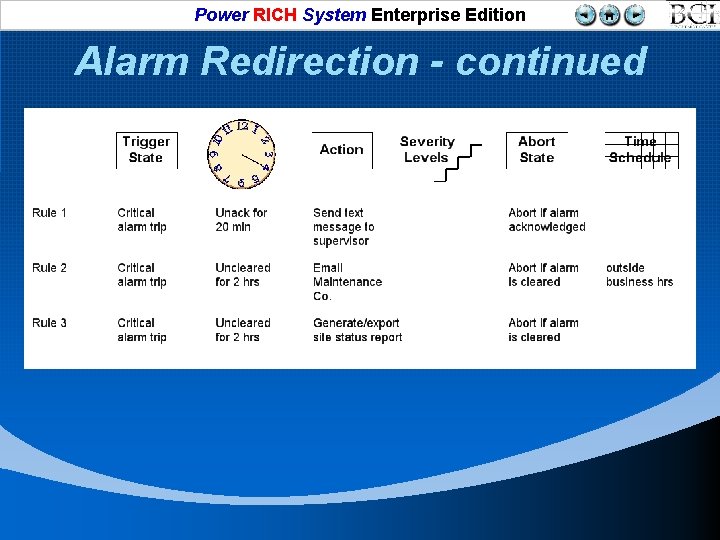

Power RICH System Enterprise Edition Alarm Redirection - continued

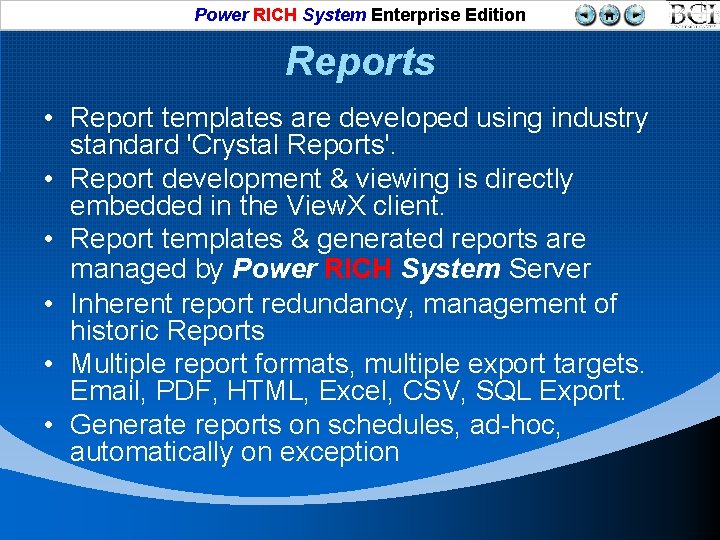

Power RICH System Enterprise Edition Reports • Report templates are developed using industry standard 'Crystal Reports'. • Report development & viewing is directly embedded in the View. X client. • Report templates & generated reports are managed by Power RICH System Server • Inherent report redundancy, management of historic Reports • Multiple report formats, multiple export targets. Email, PDF, HTML, Excel, CSV, SQL Export. • Generate reports on schedules, ad-hoc, automatically on exception

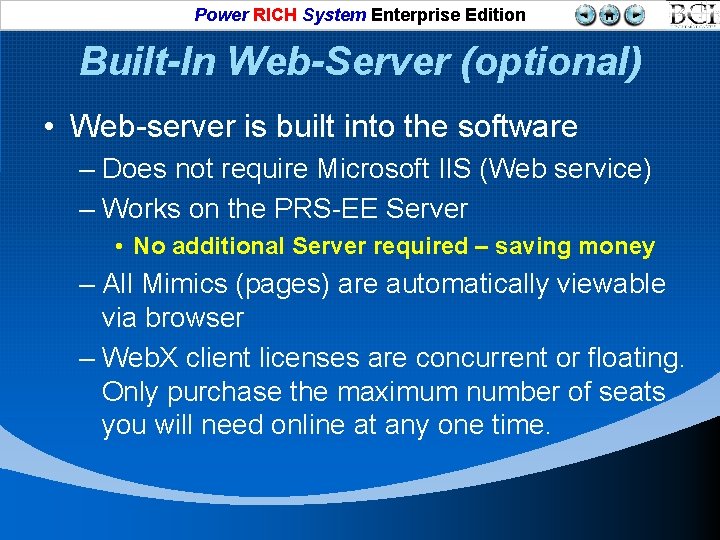

Power RICH System Enterprise Edition Built-In Web-Server (optional) • Web-server is built into the software – Does not require Microsoft IIS (Web service) – Works on the PRS-EE Server • No additional Server required – saving money – All Mimics (pages) are automatically viewable via browser – Web. X client licenses are concurrent or floating. Only purchase the maximum number of seats you will need online at any one time.

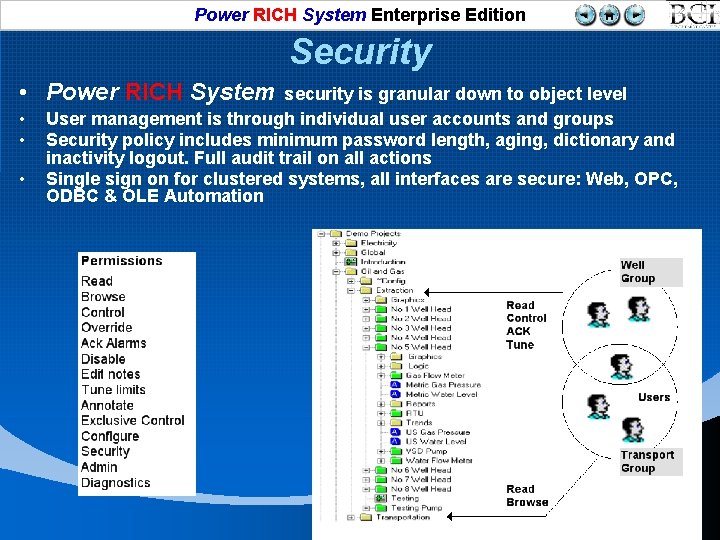

Power RICH System Enterprise Edition Security • Power RICH System • • • security is granular down to object level User management is through individual user accounts and groups Security policy includes minimum password length, aging, dictionary and inactivity logout. Full audit trail on all actions Single sign on for clustered systems, all interfaces are secure: Web, OPC, ODBC & OLE Automation

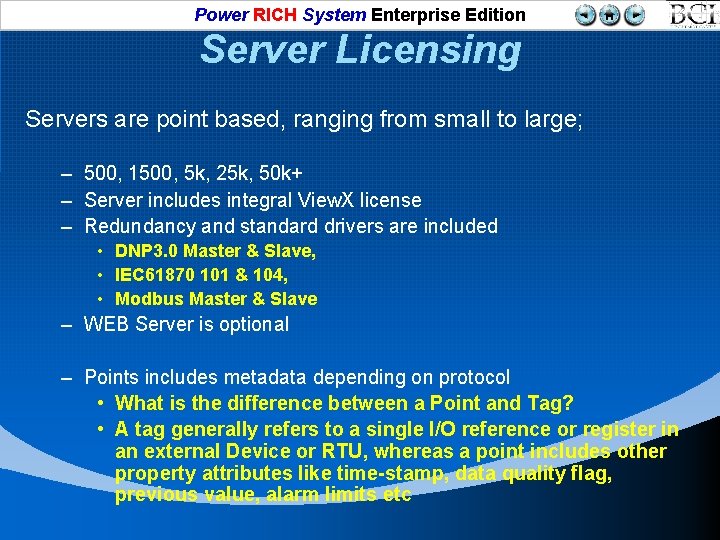

Power RICH System Enterprise Edition Server Licensing Servers are point based, ranging from small to large; – 500, 1500, 5 k, 25 k, 50 k+ – Server includes integral View. X license – Redundancy and standard drivers are included • DNP 3. 0 Master & Slave, • IEC 61870 101 & 104, • Modbus Master & Slave – WEB Server is optional – Points includes metadata depending on protocol • What is the difference between a Point and Tag? • A tag generally refers to a single I/O reference or register in an external Device or RTU, whereas a point includes other property attributes like time-stamp, data quality flag, previous value, alarm limits etc

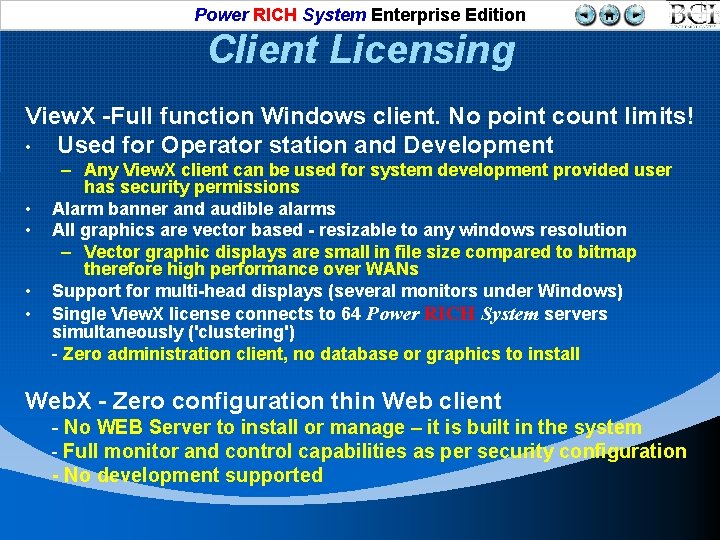

Power RICH System Enterprise Edition Client Licensing View. X -Full function Windows client. No point count limits! • Used for Operator station and Development • • – Any View. X client can be used for system development provided user has security permissions Alarm banner and audible alarms All graphics are vector based - resizable to any windows resolution – Vector graphic displays are small in file size compared to bitmap therefore high performance over WANs Support for multi-head displays (several monitors under Windows) Single View. X license connects to 64 Power RICH System servers simultaneously ('clustering') - Zero administration client, no database or graphics to install Web. X - Zero configuration thin Web client - No WEB Server to install or manage – it is built in the system - Full monitor and control capabilities as per security configuration - No development supported

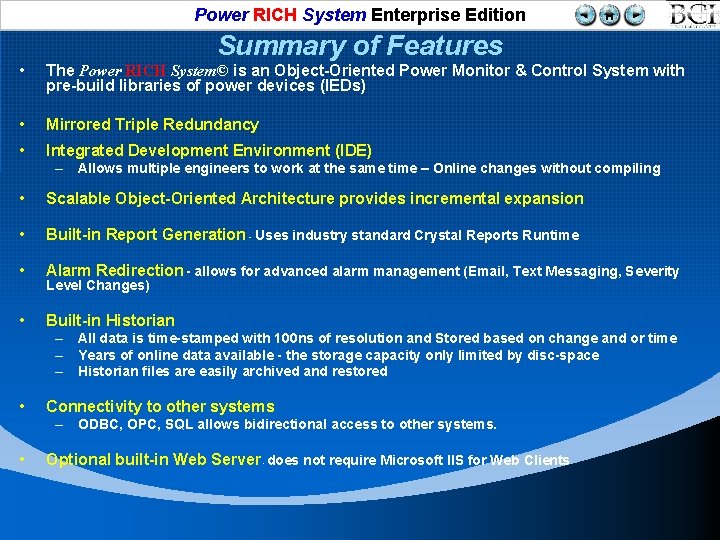

Power RICH System Enterprise Edition Summary of Features • The Power RICH System© is an Object-Oriented Power Monitor & Control System with pre-build libraries of power devices (IEDs) • Mirrored Triple Redundancy • Integrated Development Environment (IDE) – Allows multiple engineers to work at the same time – Online changes without compiling • Scalable Object-Oriented Architecture provides incremental expansion • Built-in Report Generation - Uses industry standard Crystal Reports Runtime • Alarm Redirection - allows for advanced alarm management (Email, Text Messaging, Severity • Built-in Historian Level Changes) – All data is time-stamped with 100 ns of resolution and Stored based on change and or time – Years of online data available - the storage capacity only limited by disc-space – Historian files are easily archived and restored • Connectivity to other systems – ODBC, OPC, SQL allows bidirectional access to other systems. • Optional built-in Web Server does not require Microsoft IIS for Web Clients -

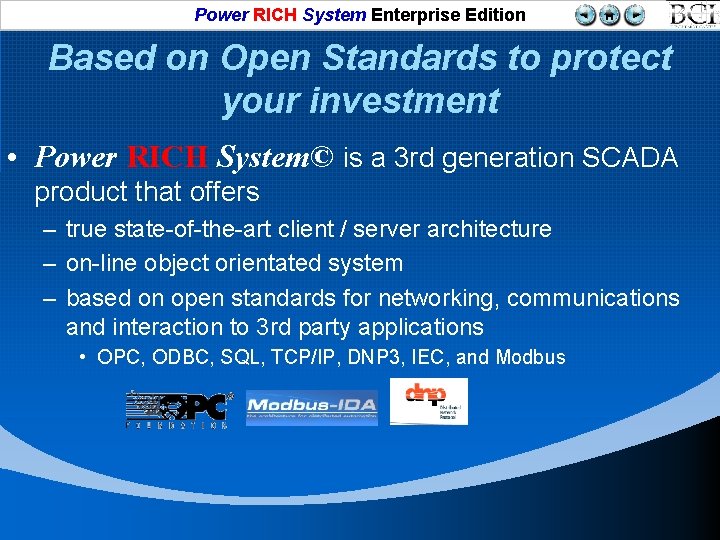

Power RICH System Enterprise Edition Based on Open Standards to protect your investment • Power RICH System© is a 3 rd generation SCADA product that offers – true state-of-the-art client / server architecture – on-line object orientated system – based on open standards for networking, communications and interaction to 3 rd party applications • OPC, ODBC, SQL, TCP/IP, DNP 3, IEC, and Modbus

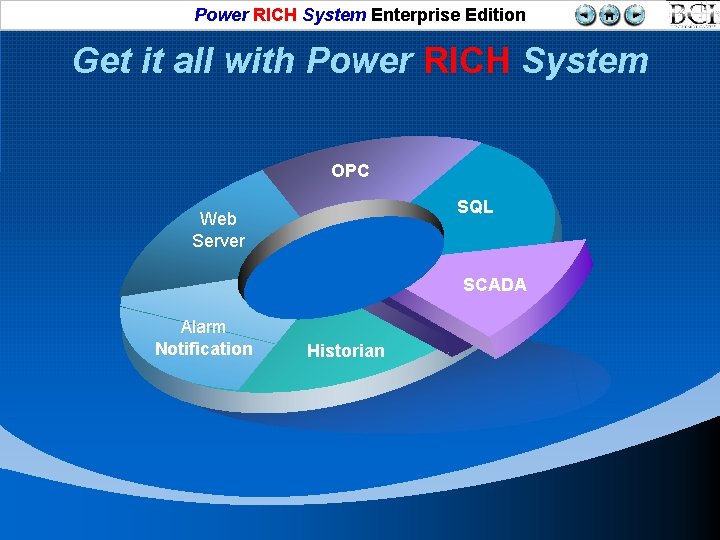

Power RICH System Enterprise Edition Get it all with Power RICH System OPC SQL Web Server SCADA Alarm Notification Historian
