Power Point Presentation to Accompany 2010 Delmar Cengage

Power. Point Presentation to Accompany © 2010 Delmar, Cengage Learning

Chapter 11 The Nervous System The Brain, Cranial Nerves, Autonomic Nervous System and the Special Senses © 2010 Delmar, Cengage Learning 2

Introduction • Brain is divided into four main parts – Brainstem: controls breathing, heartbeat rates and reactions to auditory and visual stimuli – Diencephalon: controls homeostasis – Cerebrum: controls intellectual processes and emotions – Cerebellum: maintains body posture and balance © 2010 Delmar, Cengage Learning 3

The Principal Parts of the Brain © 2010 Delmar, Cengage Learning 4

The Principal Parts of the Brain (cont’d. ) • Main parts: brainstem, diencephalon, cerebrum and cerebellum • Protection – Cranial bones – Meninges – Cerebrospinal fluid • Ventricles – Interventricular foramen © 2010 Delmar, Cengage Learning 5

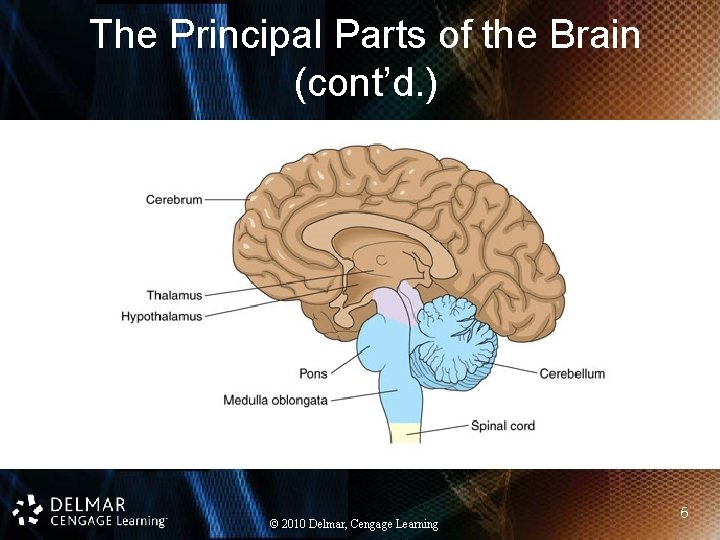

The Principal Parts of the Brain (cont’d. ) © 2010 Delmar, Cengage Learning 6

The Anatomy and Functions of the Brainstem © 2010 Delmar, Cengage Learning 7

The Anatomy and Functions of the Brainstem (cont’d. ) • Medulla oblongata – Ascending and descending tracts – Connect spinal cord with the brain – Some tracts cross over in medulla – Reticular formation: controls consciousness – Reflex centers © 2010 Delmar, Cengage Learning 8

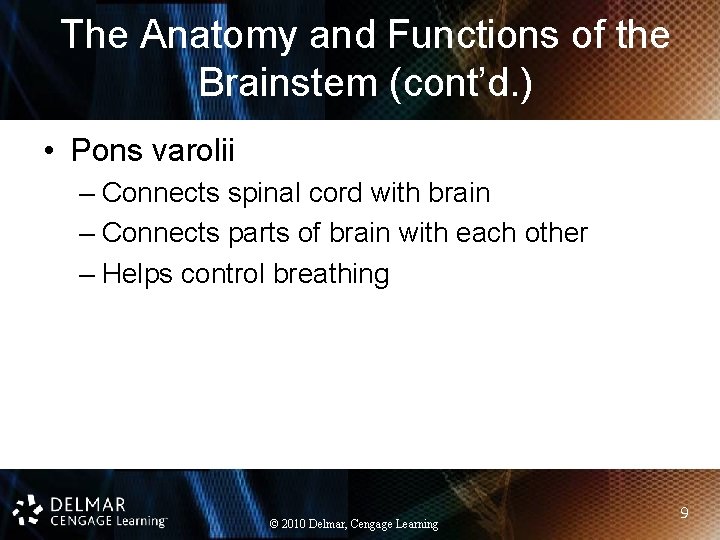

The Anatomy and Functions of the Brainstem (cont’d. ) • Pons varolii – Connects spinal cord with brain – Connects parts of brain with each other – Helps control breathing © 2010 Delmar, Cengage Learning 9

The Anatomy and Functions of the Brainstem (cont’d. ) • Midbrain – Ventral cerebral peduncles: convey impulses from cortex to pons and spinal cord – Dorsal tectum: reflex center – Controls movement of head and eyeball (visual stimuli) – Controls movement of head and trunk (auditory stimuli) © 2010 Delmar, Cengage Learning 10

The Anatomy and Functions of the Diencephalon © 2010 Delmar, Cengage Learning 11

The Anatomy and Functions of the Diencephalon (cont’d. ) • Optic tracts • Mamillary bodies: memory and emotional responses • Thalamus – Relay station for sensory impulses – Interpretation center for pain, temperature and touch • Epithalamus: contains pineal gland © 2010 Delmar, Cengage Learning 12

The Anatomy and Functions of the Diencephalon (cont’d. ) • Hypothalamus: homeostasis – Controls and integrates autonomic nervous system – Receives sensory impulses from internal organs – Controls pituitary gland links endocrine and nervous systems © 2010 Delmar, Cengage Learning 13

The Cerebrum: Structure and Function © 2010 Delmar, Cengage Learning 14

The Cerebrum: Structure and Function (cont’d. ) © 2010 Delmar, Cengage Learning 15

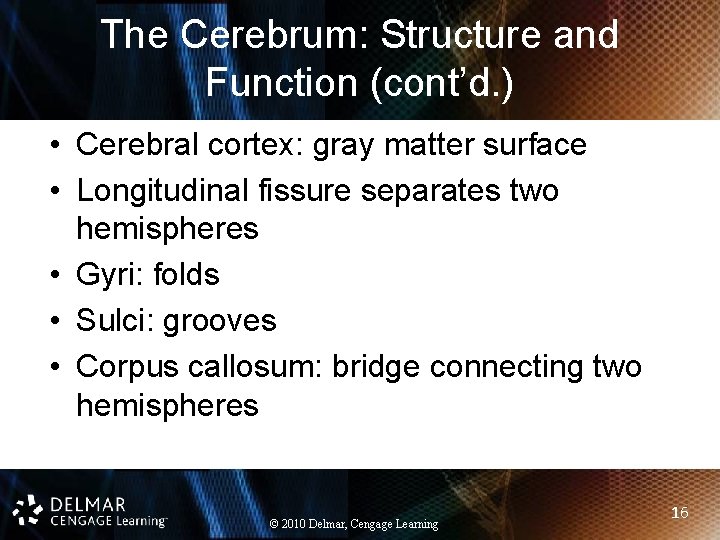

The Cerebrum: Structure and Function (cont’d. ) • Cerebral cortex: gray matter surface • Longitudinal fissure separates two hemispheres • Gyri: folds • Sulci: grooves • Corpus callosum: bridge connecting two hemispheres © 2010 Delmar, Cengage Learning 16

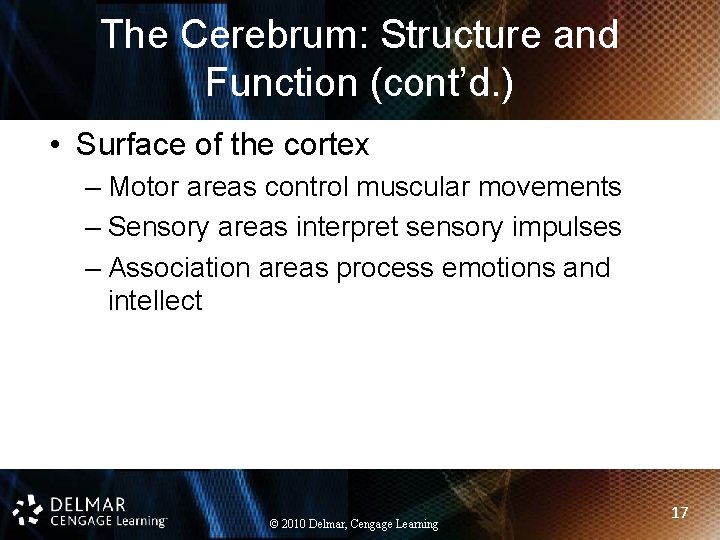

The Cerebrum: Structure and Function (cont’d. ) • Surface of the cortex – Motor areas control muscular movements – Sensory areas interpret sensory impulses – Association areas process emotions and intellect © 2010 Delmar, Cengage Learning 17

The Cerebrum: Structure and Function (cont’d. ) • Cerebral hemispheres – Frontal lobe: muscle movement, moods, aggression, smell, motivation – Parietal lobe: touch, pain, balance, taste, temperature – Temporal lobe: hearing, smell, memory, abstract thought, judgment – Occipital lobe: vision © 2010 Delmar, Cengage Learning 18

The Cerebellum: Structure and Function © 2010 Delmar, Cengage Learning 19

The Cerebellum: Structure and Function (cont’d. ) • Butterfly-shaped • Two partially separated hemispheres connected by vermis • Functions – Coordinating muscular movements – Maintaining posture – Maintaining balance © 2010 Delmar, Cengage Learning 20

The Autonomic Nervous System © 2010 Delmar, Cengage Learning 21

The Autonomic Nervous System (cont’d. ) • • • Subdivision of efferent PNS Functions without conscious effort Regulates functions of internal organs Assists in maintaining homeostasis Helps deal with emergency situations © 2010 Delmar, Cengage Learning 22

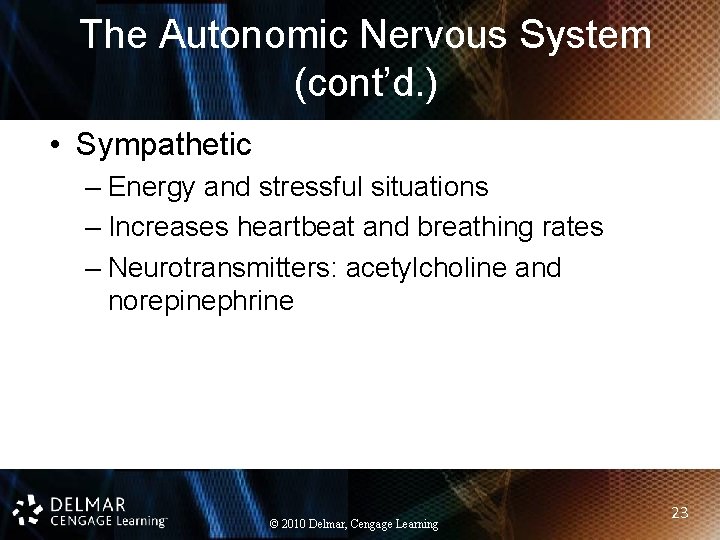

The Autonomic Nervous System (cont’d. ) • Sympathetic – Energy and stressful situations – Increases heartbeat and breathing rates – Neurotransmitters: acetylcholine and norepinephrine © 2010 Delmar, Cengage Learning 23

The Autonomic Nervous System (cont’d. ) • Parasympathetic – Restores body to nonstressful state – Neurotransmitter: acetylcholine – Stimulates digestion, urination and defecation © 2010 Delmar, Cengage Learning 24

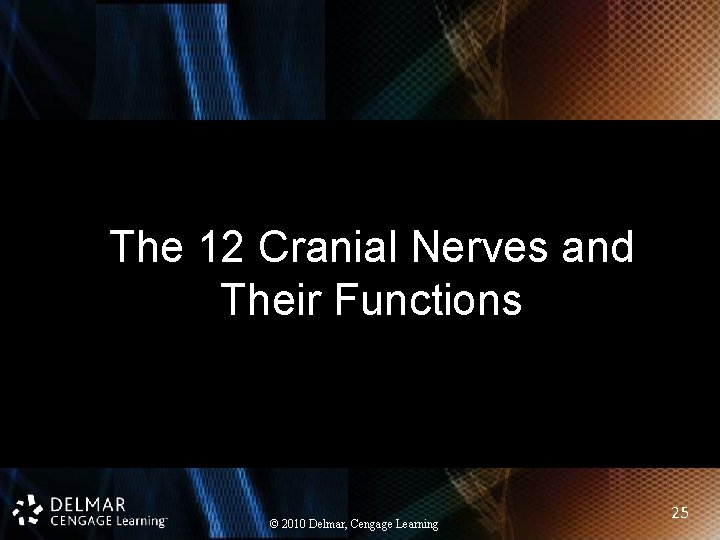

The 12 Cranial Nerves and Their Functions © 2010 Delmar, Cengage Learning 25

The 12 Cranial Nerves and Their Functions (cont’d. ) • (I) Olfactory: smell • (II) Optic: sight • (III) Oculomotor: movement of eyeball, constriction of pupil • (IV) Trochlear: movement of eyeball © 2010 Delmar, Cengage Learning 26

The 12 Cranial Nerves and Their Functions (cont’d. ) • (V) Trigeminal: chewing, sensations in teeth • (VI) Abducens: movement of eyeball • (VII) Facial: facial expression, taste, tear and salivary glands • (VIII) Vestibulocochlear: equilibrium, hearing © 2010 Delmar, Cengage Learning 27

The 12 Cranial Nerves and Their Functions (cont’d. ) • (IX) Glossopharyngeal: swallowing, taste, salivary glands • (X) Vagus: certain muscle movements, sensory impulses • (XI) Accessory: swallowing, head movement • (XII) Hypoglossal: swallowing, speech © 2010 Delmar, Cengage Learning 28

The Special Senses © 2010 Delmar, Cengage Learning 29

The Sense of Smell • Molecules in air dissolve in nasal mucus • Bipolar sensory neurons transfer chemical impulse • Olfactory bulbs receive impulse • Impulse sent to olfactory cortex • Odor variety dependent on brain interpretation © 2010 Delmar, Cengage Learning 30

The Sense of Taste • Taste buds on tongue, palate and pharynx • Taste bud cell types – Exterior capsule: epithelial cells – Interior: taste cells • Taste depends on chemicals dissolved in saliva • Taste influenced by olfactory sensations © 2010 Delmar, Cengage Learning 31

The Sense of Sight • Eyes protected by eyelids and eyelashes • Tears – Lubricate the eyes – Contain bacteriolytic lysozyme enzyme – Contain salt and gamma globulin © 2010 Delmar, Cengage Learning 32

The Sense of Sight (cont’d. ) © 2010 Delmar, Cengage Learning 33

Animation - Vision • [Insert Vision_SWF folder] © 2010 Delmar, Cengage Learning 34

The Sense of Hearing and Equilibrium • Outer ear – Auricle: external, visible, flexible part – External auditory meatus • Lined with hair and ceruminous glands – Tympanic membrane: vibrates in response to sound © 2010 Delmar, Cengage Learning 35

The Sense of Hearing and Equilibrium (cont’d. ) • Middle ear – Auditory ossicles: malleus, incus and stapes – Openings: oval and round windows – Eustachian tube: equalizes pressure © 2010 Delmar, Cengage Learning 36

The Sense of Hearing and Equilibrium (cont’d. ) • Inner ear – Cochlea: hearing – Equilibrium • Static: vestibule • Kinetic: semicircular canals © 2010 Delmar, Cengage Learning 37

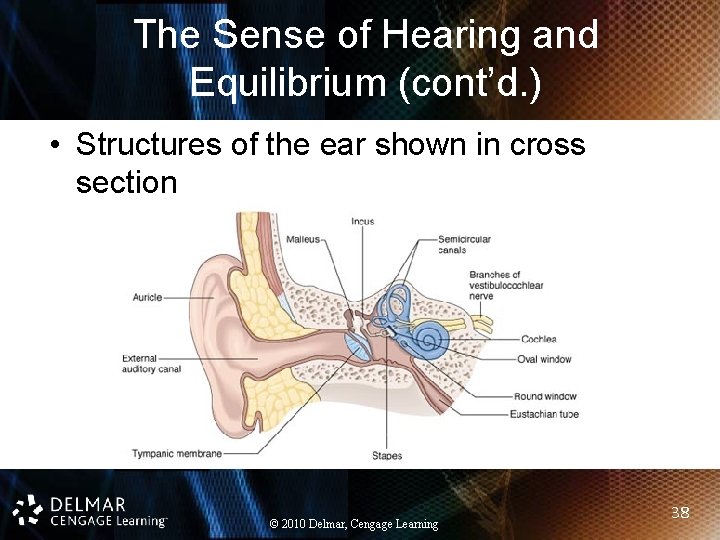

The Sense of Hearing and Equilibrium (cont’d. ) • Structures of the ear shown in cross section © 2010 Delmar, Cengage Learning 38

Animation - Hearing • Insert Hearing_SWF folder] © 2010 Delmar, Cengage Learning 39

Summary • Named the principal parts of the brain • Discussed the functions of the major parts of the brain • Named the 12 cranial nerves • Discussed the role of the autonomic nervous system and its divisions • Described the special senses and the organs involved © 2010 Delmar, Cengage Learning 40
