Chapter 12 The Foundation Plan 2 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Chapter 12 Overview • Introduction • Preliminary Steps to Drawing a Foundation Plan • The Basement/Foundation Plan • Procedure for Drawing a Basement Plan Manually • Drawing a Foundation/Basement Plan Using CADD 3 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Learning Objectives • Identify the primary features included in a foundation plan. • Discuss the difference between a foundation plan and a basement plan. • Design and draw a foundation plan for a typical residential structure using traditional or CADD methods. 4 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
The Foundation Plan • The foundation plan is a plan view drawing in section. – Shows the location and size of footings, piers, columns, foundation walls, and supporting beams. – Usually drawn after the floor plan and elevations have been roughed out. 5 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only

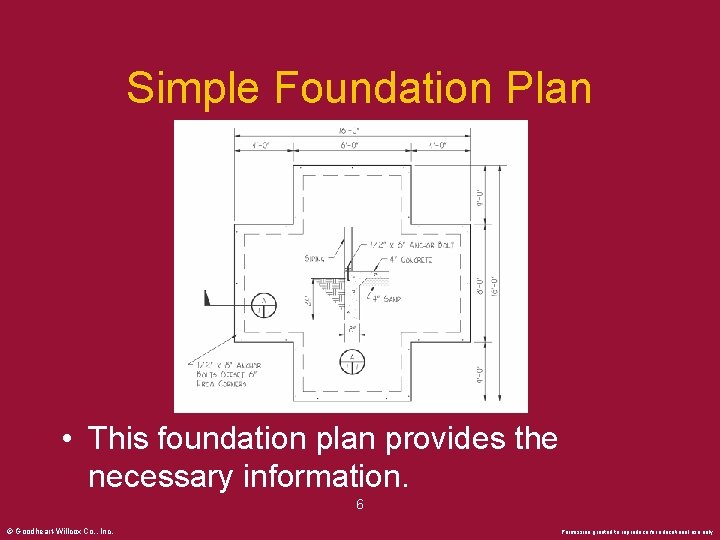

Simple Foundation Plan • This foundation plan provides the necessary information. 6 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Foundation Plan Features • The following features are shown on a foundation plan: – Footings for walls, piers, and columns. – Foundation walls. – Piers and columns (posts). – Dwarf walls. – Partial walls, doors, and bath fixtures (basement). – Openings in foundation wall. (continued) 7 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Foundation Plan Features – Beams and pilasters. – Direction, size, and spacing of floor joists or trusses. – Drains and sump (if required). – Details of foundation and footing construction. – Complete dimensions and notes. – Scale of drawing. 8 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only

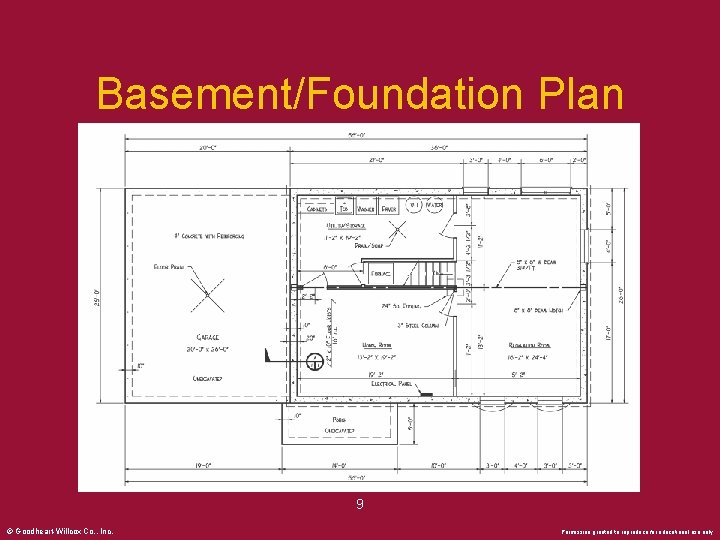

Basement/Foundation Plan 9 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Foundation Plan Symbols 10 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Preliminary Steps • Study information presented on the preliminary floor plan, plot plan, and elevation. • Use the floor plan as an underlay. – Reduces time and errors. 11 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Preliminary Steps • Determine the type of exterior wall specified. – Foundation size depends on wall type. – 4" brick ledge required for brick veneer house. • Plot plan information. – Stepped footings, retaining walls, and grade problems. • Refer to building code. 12 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Foundation Wall Types 13 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Existing Grade 14 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Soil Test (K&S Testing and Engineering, Inc ) © Goodheart-Willcox Co. , Inc. 15 Permission granted to reproduce for educational use only

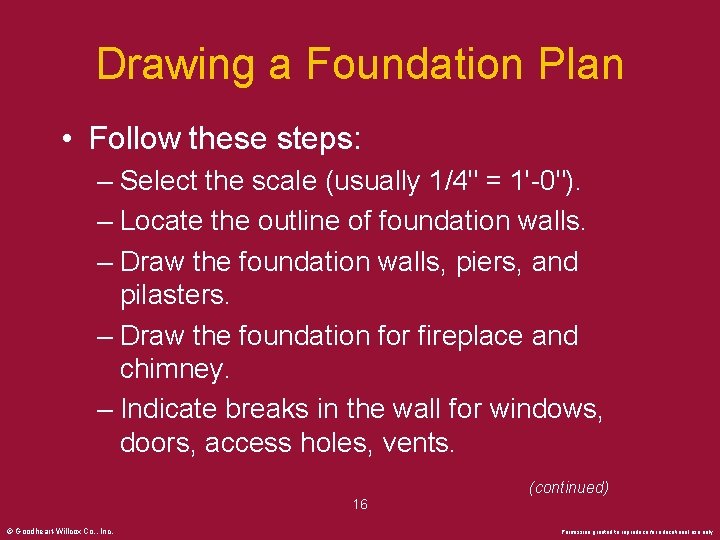

Drawing a Foundation Plan • Follow these steps: – Select the scale (usually 1/4" = 1'-0"). – Locate the outline of foundation walls. – Draw the foundation walls, piers, and pilasters. – Draw the foundation for fireplace and chimney. – Indicate breaks in the wall for windows, doors, access holes, vents. (continued) 16 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Foundation Plan 17 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Foundation Plan – Lay out and draw wall footings. – Draw footings for piers and columns. – Draw footings for fireplace and chimney. – Locate and draw the supporting beam. – Show size, spacing, and direction of joists or trusses. – Identify location of sections. (continued) 18 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Foundation Plan 19 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Foundation Plan • Draw and dimension the necessary sections. 20 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Foundation Plan – Identify dimensions needed to show size and location. – Draw the dimension lines. – Add necessary notes. – Shade the foundation walls with material symbols or hatch patterns. – Add title block, scale, and drawing name. – Check over the drawing. 21 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Foundation Plan • Completed foundation plan. 22 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only

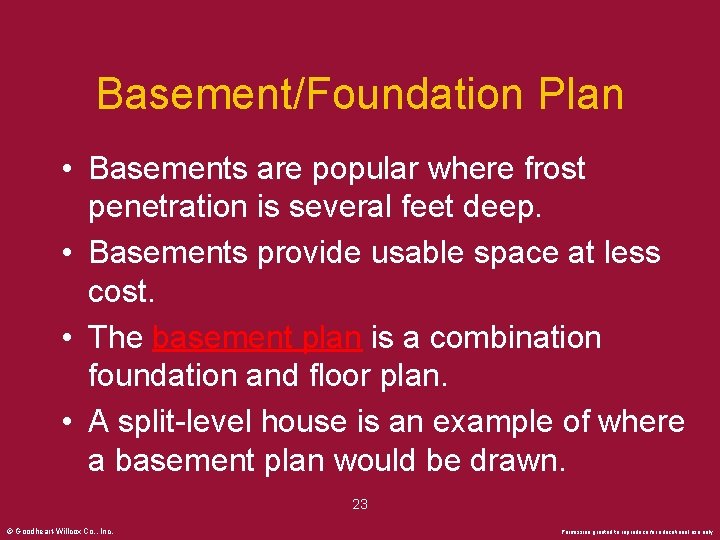

Basement/Foundation Plan • Basements are popular where frost penetration is several feet deep. • Basements provide usable space at less cost. • The basement plan is a combination foundation and floor plan. • A split-level house is an example of where a basement plan would be drawn. 23 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only

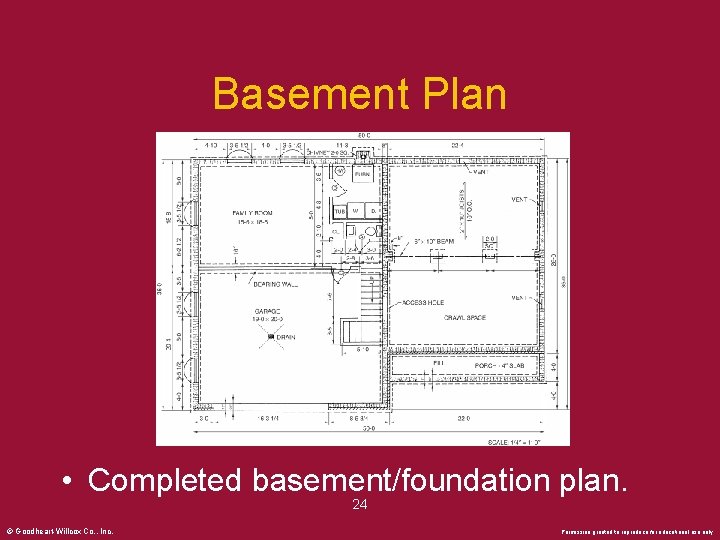

Basement Plan • Completed basement/foundation plan. 24 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Basement Plan • Follow these steps: – Similar to drawing a foundation plan. – Select the scale (usually 1/4" = 1'-0"). – Draw exterior foundation walls using the floor plan as an underlay. – Draw the footings for walls, fireplace, and columns. – Locate and draw the beam and supports or bearing wall partitions. 25 © Goodheart-Willcox Co. , Inc. (continued) Permission granted to reproduce for educational use only

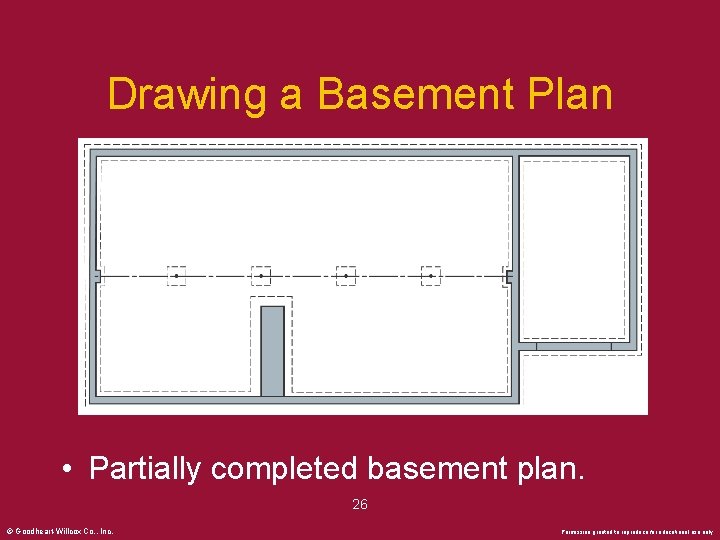

Drawing a Basement Plan • Partially completed basement plan. 26 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only

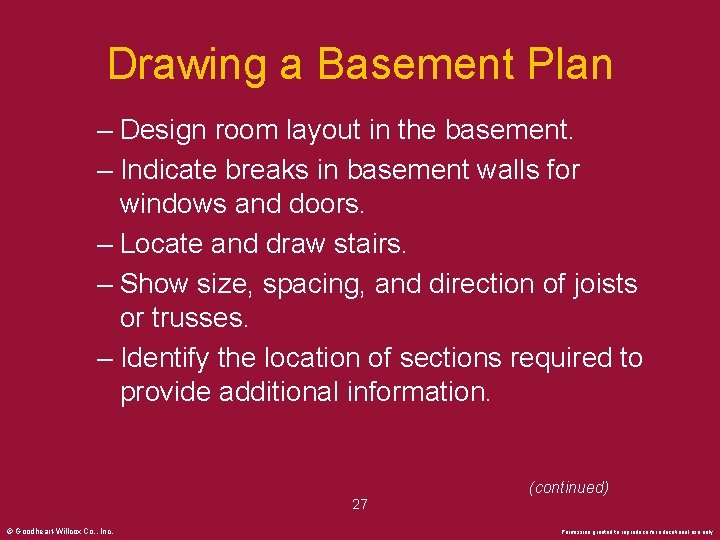

Drawing a Basement Plan – Design room layout in the basement. – Indicate breaks in basement walls for windows and doors. – Locate and draw stairs. – Show size, spacing, and direction of joists or trusses. – Identify the location of sections required to provide additional information. (continued) 27 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Basement Plan • Walls, doors, windows, etc. , are added. 28 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Basement Plan • Draw the necessary sections and dimension them. 29 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Basement Plan – Locate and draw bath fixtures. – Locate furnace, water heater, storage tank, etc. – Determine the location of dimensions to show all features. – Draw the dimension lines with distances. – Letter any notes. 30 © Goodheart-Willcox Co. , Inc. (continued) Permission granted to reproduce for educational use only
Drawing a Basement Plan – Show electrical switches, outlets, and fixtures. – Shade the foundation walls with proper material symbols or hatch patterns. – Add title block, scale, and the name of the drawing. – Check the drawing. 31 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a Basement Plan • The completed basement plan. 32 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
Drawing a CADD Basement Plan • Preliminary Steps – Study the rough floor plan. – Study the site plan. – Study the rough elevation. – Identify special footings. – Identify grade problems. 33 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
CADD Drawing Procedure • Follow these steps: – Call up a copy of the floor plan to use as an underlay. – Locate the outline of the foundation walls, footings, and piers. – Locate chimney and its footing, if applicable. (continued) 34 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
CADD Drawing Procedure • First steps of drawing a basement plan with CADD. 35 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only

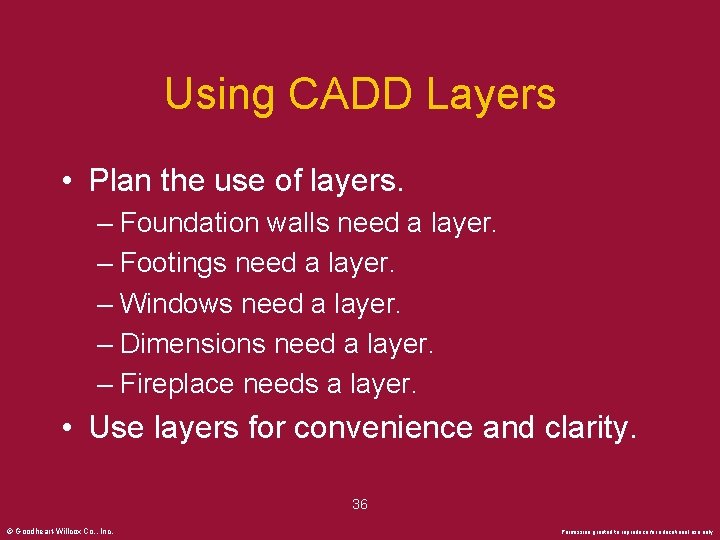

Using CADD Layers • Plan the use of layers. – Foundation walls need a layer. – Footings need a layer. – Windows need a layer. – Dimensions need a layer. – Fireplace needs a layer. • Use layers for convenience and clarity. 36 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
CADD Drawing Procedure – Draw the interior walls with openings for windows, and doors. – Draw the stairs. – Turn off the floor plan underlay. – Draw all interior walls and insert window and door symbols into the plan. – Add joist direction, window wells, etc. (continued) 37 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
CADD Drawing Procedure • Stairs are added. 38 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
CADD Drawing Procedure – Dimension the drawing using the DIMENSION commands. – Add interior features. – Add appliances, fixtures, furnace, and room names and sizes. – Add cutting-plane lines. – Add the scale and title. – Look over the plan. 39 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
CADD Drawing Procedure • Basement plan completed with CADD. 40 © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only
CADD Application • This residential structure has a complex foundation. (Sater Design Collection, Inc. ) © Goodheart-Willcox Co. , Inc. 41 Permission granted to reproduce for educational use only
