Power Point Lecture Slides prepared by Meg Flemming
Power. Point® Lecture Slides prepared by Meg Flemming Austin Community College CHAPTER 20 Development and Inheritance © 2013 Pearson Education, Inc.

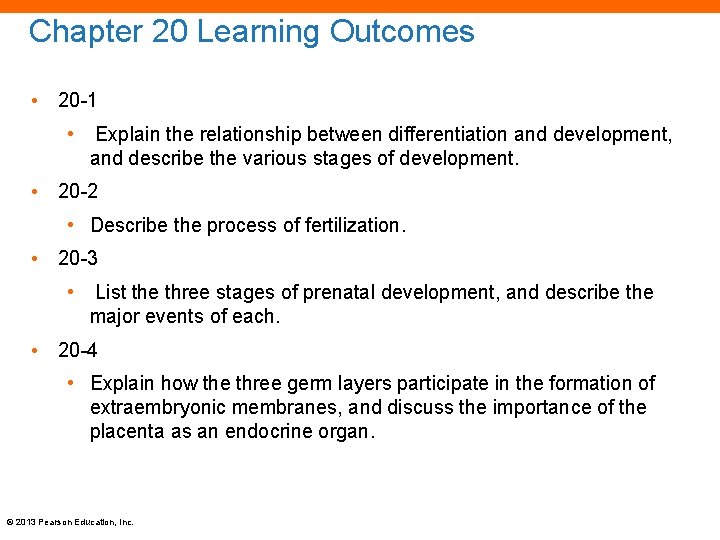

Chapter 20 Learning Outcomes • 20 -1 • Explain the relationship between differentiation and development, and describe the various stages of development. • 20 -2 • Describe the process of fertilization. • 20 -3 • List the three stages of prenatal development, and describe the major events of each. • 20 -4 • Explain how the three germ layers participate in the formation of extraembryonic membranes, and discuss the importance of the placenta as an endocrine organ. © 2013 Pearson Education, Inc.
Chapter 20 Learning Outcomes • 20 -5 • Describe the interplay between maternal organ systems and the developing fetus, and discuss the structural and functional changes in the uterus during gestation. • 20 -6 • List and discuss the events that occur during labor and delivery. • 20 -7 • Identify the features and physiological changes of the postnatal stages of life. • 20 -8 • Relate the basic principles of genetics to the inheritance of human traits. © 2013 Pearson Education, Inc.
Basics of Development (20 -1) • Differentiation is formation of different cell types • Fertilization (or conception) is fusing of gametes • Embryological development is first two months • Fetal development is from the ninth week until birth • Prenatal is both embryological and fetal development • Postnatal continues to maturity • Genetics is the study of mechanisms of inheritance © 2013 Pearson Education, Inc.
Checkpoint (20 -1) 1. Define differentiation. 2. What event marks the beginning of development? 3. Define inheritance. © 2013 Pearson Education, Inc.
Fertilization (20 -2) • Fusion of two haploid gametes each with 23 chromosomes • Produces a zygote with 46 chromosomes • Sperm provides paternal chromosomes • Oocyte provides maternal chromosomes, organelles, and nourishment to support embryo • Occurs in upper third of uterine tube © 2013 Pearson Education, Inc.
Fertilization (20 -2) • Sperm are motile when deposited in vagina • Then must be exposed to peg cells in wall of uterine tube to complete capacitation • Requires dozens of sperm to reach oocyte • Takes more than one to break through corona radiata around oocyte © 2013 Pearson Education, Inc.
Figure 20 -1 a Fertilization. A secondary oocyte and numerous sperm at the time of fertilization. Notice the difference in size between the gametes. © 2013 Pearson Education, Inc.
Figure 20 -1 b Fertilization. Oocyte at Ovulation Corona First polar radiata body Fertilization and Oocyte Activation Fertilizing spermatozoon Second polar body Pronucleus Formation Begins Nucleus of fertilizing spermatozoon Female pronucleus Zona pellucida Cleavage Begins Amphimixis Occurs and Cleavage Begins Metaphase of first cleavage division Blastomeres © 2013 Pearson Education, Inc. Spindle Formation and Cleavage Preparation Male pronucleus Female pronucleus
Ovulation (20 -2) • Results in expulsion of an immature secondary oocyte • Acrosomal caps of spermatozoa • Release hyaluronidase • Penetrate corona radiata, zona pellucida, toward oocyte surface © 2013 Pearson Education, Inc.
Oocyte Activation (20 -2) • Contact and fusion of cell membranes of sperm and oocyte • Oocyte undergoes last stages of meiosis II • Female pronucleus • Nuclear material remaining in ovum after oocyte activation • Male pronucleus • Swollen nucleus of spermatozoon • Migrates to center of cell © 2013 Pearson Education, Inc.
Amphimixis (20 -2) • Female pronucleus and male pronucleus fuse • Moment of conception • Cell becomes a zygote with 46 chromosomes • Fertilization is finalized © 2013 Pearson Education, Inc.
Checkpoint (20 -2) 4. What two important roles do the acrosomal enzymes of spermatozoa play in fertilization? 5. How many chromosomes are contained within a human zygote? © 2013 Pearson Education, Inc.
The Three Stages of Gestation (20 -3) • Also called pregnancy • First trimester • Embryological and early fetal development • Basic components of organ systems appear • Second trimester • Organs and organ systems near completion of development • Third trimester • Rapid fetal growth • Organ systems become fully functional © 2013 Pearson Education, Inc.
Checkpoint (20 -3) 6. Define gestation. 7. Describe the key features of each trimester. © 2013 Pearson Education, Inc.
Cleavage and Blastocyte Formation (20 -4) • Cleavage is a sequence of cell divisions • Begins immediately after fertilization • Daughter cells become smaller blastomeres • Zygote becomes a pre-embryo, a morula • Develops into multicellular blastocyst • Outer layer is trophoblast; inner cell mass is to one side • Ends when blastocyst contacts uterine wall © 2013 Pearson Education, Inc.
Figure 20 -2 Cleavage and Blastocyst Formation. Blastomeres Polar bodies 2 -cell stage DAY 1 4 -cell stage DAY 2 DAY 3 Early morula Advanced morula DAY 4 First cleavage division Hatching Inner cell mass DAY 0: Fertilization DAY 6 Days 7– 10: Implantation in uterine wall (See Figure 20 -3) © 2013 Pearson Education, Inc. Blastocoele Trophoblast Blastocyst
Implantation (20 -4) • Begins as blastocyst adheres to endometrium of uterus • Occurs in day 6– 9 • Inner cell mass develops into syncytial trophoblast • Sets stage formation of vital embryonic structures • Ectopic pregnancy • Implantation occurs in site other than uterus © 2013 Pearson Education, Inc.
Formation of the Amniotic Cavity (20 -4) • Fluid-filled cavity • Inner cell mass separates from trophoblast • Cavity develops by day 9 • Yolk sac forms by day 10 © 2013 Pearson Education, Inc.
Figure 20 -3 Events in Implantation. DAY 6 UTERINE CAVITY FUNCTIONAL ZONE OF ENDOMETRIUM Uterine glands Blastocyst DAY 7 Trophoblast Blastocoele Inner cell mass DAY 8 Syncytial trophoblast Cellular trophoblast DAY 9 Developing villi Endometrial capillary © 2013 Pearson Education, Inc. Amniotic cavity Lacuna
Gastrulation and Germ Layer Formation (20 -4) • By day 12 • Inner cell mass develops into germ layers • Ectoderm • Endoderm • Mesoderm © 2013 Pearson Education, Inc.
Figure 20 -4 The Inner Cell Mass and Gastrulation. Day 10: Yolk Sac Formation Syncytial trophoblast Cellular trophoblast Amniotic cavity Yolk sac Blastocoele Lacuna Superficial layer Deep layer Day 12: Gastrulation Yolk sac Amnion Ectoderm Mesoderm Primitive streak Endoderm Blastodisc Embryonic disc © 2013 Pearson Education, Inc.
Table 20 -1 The Fates of the Germ Layers © 2013 Pearson Education, Inc.
Four Extraembryonic Membranes (20 -4) 1. Yolk sac • Site of early nutrients and blood cell formation 2. Amnion • Contains amnionic fluid 3. Allantois • Gives rise to urinary bladder 4. Chorion • Provides rapid transit pathway for nutrients to embryo © 2013 Pearson Education, Inc.
Figure 20 -5 Extraembryonic Membranes and Placenta Formation. Week 2 Week 3 Amniotic cavity (containing amniotic fluid) Amnion Allantois Syncytial trophoblast Yolk sac Cellular trophoblast Chorion Mesoderm Yolk sac Chorion Syncytial trophoblast Chorionic villi of placenta Blastocoele Week 5 Head fold of embryo Week 4 Tail fold Uterus Myometrium Body stalk Yolk sac Umbilical stalk Placenta Yolk sac Embryonic gut Embryonic head fold Chorionic villi of placenta Uterine cavity Umbilical cord Placenta Amniotic cavity Week 10 Amnion Chorion © 2013 Pearson Education, Inc.
Placentation (20 -4) • Occurs as blood vessels form in chorion around periphery of blastocyst • Chorionic villi form in contact with maternal tissue • By week 4 embryo, amnion, and yolk sac are within fluid-filled chamber • By week 10 fetus floats in amniotic cavity • Connected by umbilical cord © 2013 Pearson Education, Inc.
Placental Circulation (20 -4) • By end of the first trimester circulation is developed • Umbilical arteries • Take deoxygenated blood to placenta • Umbilical vein • Returns oxygenated blood from placenta to fetus © 2013 Pearson Education, Inc.
First Trimester Endocrine Secretions of the Placenta (20 -4) • Human chorionic gonadotropin (h. CG) • Maintains corpus luteum • Results in maintenance of endometrial lining • Presence in urine used as indicator of pregnancy • Progesterone and estrogens • Secreted by corpus luteum until placenta takes over • Prevents menses © 2013 Pearson Education, Inc.
Third Trimester Endocrine Secretions of Placenta (20 -4) • Human placental lactogen and placental prolactin • Rise at end of third trimester • Prepare mammary glands for milk production • Relaxin • Increases flexibility of pubis symphysis • Causes dilation of cervix • Suppresses secretion of oxytocin, delaying onset of labor contractions © 2013 Pearson Education, Inc.
Figure 20 -6 The Placenta and Placental Circulation. Amnion Umbilical cord (cut) Placenta Yolk sac Chorion Umbilical vein Umbilical arteries Chorionic villi Area filled with maternal blood Endometrium Myometrium Uterine cavity Cervical (mucous) plug in cervical canal External os Maternal blood vessels Cervix Vagina © 2013 Pearson Education, Inc. Amnion Syncytial trophoblast
Embryogenesis (20 -4) • Formation of viable embryo • Folding and differential growth • By week 4 dorsal and ventral surfaces are apparent • Organogenesis • Organ formation in first trimester © 2013 Pearson Education, Inc.
Figure 20 -7 a Development during the First Trimester. Future head of embryo Thickened neural plate (will form brain) Axis of future spinal cord Somites Neural folds Cut wall of amniotic cavity Future tail of embryo. © 2013 Pearson Education, Inc. Week 2. An SEM of the superior surface of a monkey embryo at 2 weeks of development. A human embryo at this stage would look essentially the same.
Figure 20 -7 b Development during the First Trimester. Medulla oblongata Ear Forebrain Pharyngeal arches Eye Heart Body stalk Tail Somites Arm bud Leg bud Week 4. Fiberoptic view of human development at week 4. © 2013 Pearson Education, Inc.
Figure 20 -7 c Development during the First Trimester. Chorionic villi Amnion Umbilical cord Placenta © 2013 Pearson Education, Inc. Week 8. Fiberoptic view of human development at week 8.
Figure 20 -7 d Development during the First Trimester. Amnion Umbilical cord © 2013 Pearson Education, Inc. Week 12. Fiberoptic view of human development at week 12.
Checkpoint (20 -4) 8. What is the developmental fate of the inner cell mass of the blastocyst? 9. Sue's pregnancy test indicates elevated levels of the hormone h. CG (human chorionic gonadotropin). Is she pregnant? 10. What are two important functions of the placenta? © 2013 Pearson Education, Inc.
Second and Third Trimester Development (20 -5) • Second trimester • Fetus grows faster than placenta • Third trimester • Basic components of organ systems appear • Most are ready to perform functions • Largest fetal weight gain occurs © 2013 Pearson Education, Inc.
Figure 20 -8 The Fetus during the Second and Third Trimesters. A four-month-old fetus, seen through a fiberoptic endoscope © 2013 Pearson Education, Inc. Head of a six-month-old fetus, revealed through ultrasound
Table 20 -2 An Overview of Prenatal and Early Postnatal Development* (1 of 4) © 2013 Pearson Education, Inc.
Table 20 -2 An Overview of Prenatal and Early Postnatal Development* (2 of 4) © 2013 Pearson Education, Inc.
Table 20 -2 An Overview of Prenatal and Early Postnatal Development* (3 of 4) © 2013 Pearson Education, Inc.
Table 20 -2 An Overview of Prenatal and Early Postnatal Development* (4 of 4) © 2013 Pearson Education, Inc.
Figure 20 -9 Changes in Body Form and Proportion during Development. Prenatal Development Embryological Development Fetal Development 4 weeks 8 weeks 16 weeks Postnatal Development Neonatal Infancy Childhood Adolescence Maturity 5 ft 4 ft 3 ft 2 ft 1 ft 0 © 2013 Pearson Education, Inc. 1 month 2 years Puberty (between 9– 14 years) 18 years
Changes in Maternal Systems (20 -5) • Respiratory rate and tidal volume increase • Blood volume increases • Nutrient requirements increase • GFR increases • Uterus increases in size • Mammary glands increase in size and activity © 2013 Pearson Education, Inc.
Structural and Functional Uterine Changes (20 -5) • At end of gestation the uterus: • Has grown from 3 to 12 inches in length • Contains 2 liters of fluid, fetus, and placenta • Labor contractions • Fetal oxytocin triggers positive feedback mechanism • Increases myometrial contractions © 2013 Pearson Education, Inc.
Checkpoint (20 -5) 11. List the major changes that occur in maternal systems during pregnancy. 12. Why does a woman's blood volume increase during pregnancy? 13. By what means does the uterus greatly increase in size and weight during pregnancy? 14. Identify three major factors opposing the calming action of progesterone on the uterus. © 2013 Pearson Education, Inc.
The Three Stages of Labor (20 -6) • Also called parturition 1. Dilation stage 2. Expulsion stage 3. Placental stage © 2013 Pearson Education, Inc.
The Dilation Stage (20 -6) • Fetus shifts toward cervix • This stage is highly variable in length, but typically lasts 8 or more hours • Amnion ruptures, "water breaks" © 2013 Pearson Education, Inc.
The Expulsion Stage (20 -6) • Fetus pushed through cervix and vagina • Referred to as delivery • Episiotomy • Incision in perineal musculature to enlarge birth canal • Cesarean section • Incision in abdominal wall to deliver fetus if vaginal delivery not possible © 2013 Pearson Education, Inc.
The Placental Stage (20 -6) • Uterine contractions tear connections between endometrium and placenta • Placenta is ejected from body as "afterbirth" • Retained placenta can result in infection © 2013 Pearson Education, Inc.
Figure 20 -10 Factors Involved in Initiating and Sustaining Labor and Delivery. Placental Factors Fetal Factors Placental estrogens increase the sensitivity of the smooth muscle cells of the myometrium and make contractions more likely. As delivery approaches, the production of estrogens accelerates. Estrogens also increase the sensitivity of smooth muscle fibers to oxytocin. Relaxin produced by the placenta relaxes the pelvic articulations and dilates the cervix. Growth and the increase in fetal weight stretch and distort the myometrium. Fetal pituitary releases oxytocin in response to estrogens. Distortion of Myometrium Distortion of the myometrium increases the sensitivity of the smooth muscle layers, promoting spontaneous contractions that get stronger and more frequent as the pregnancy advances. Maternal Oxytocin Release Maternal oxytocin release is stimulated by high estrogen levels and by distortion of the cervix. Prostaglandin Production Estrogens and oxytocin stimulate the production of prostaglandins in the endometrium. These local hormones further stimulate smooth muscle contractions. Increased Excitability of the Myometrium Oxytocin and prostaglandins both stimulate the myometrium. In addition, the sensitivity of the uterus to oxytocin increases dramatically; the smooth muscle in a late-term uterus is 100 times more sensitive to oxytocin than the smooth muscle in a nonpregnant uterus. LABOR CONTRACTIONS OCCUR © 2013 Pearson Education, Inc. Labor contractions move the fetus and further distort the myometrium. This distortion stimulates additional oxytocin and prostaglandin release. This positive feedback continues until delivery is completed.

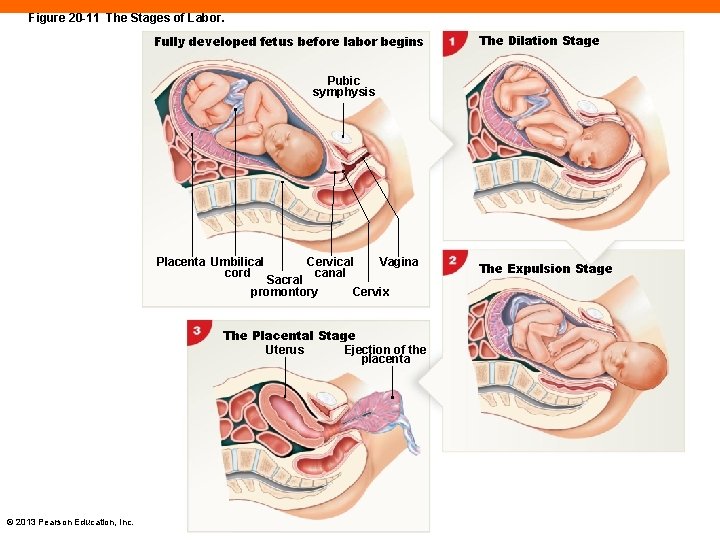

Figure 20 -11 The Stages of Labor. Fully developed fetus before labor begins The Dilation Stage Pubic symphysis Placenta Umbilical cord Cervical canal Sacral promontory Vagina Cervix The Placental Stage Ejection of the Uterus placenta © 2013 Pearson Education, Inc. The Expulsion Stage
Premature Labor (20 -6) • Contractions occur before fetus completes development • Miscarriage or spontaneous abortion • Prior to end of second trimester, fetal weight under 500 g • Immature delivery • Fetal weight above 500 g • Most born at 25– 27 weeks of gestation die or have complications • Premature delivery • Birth at 28– 36 weeks requires extra care, infants usually survive © 2013 Pearson Education, Inc.
Multiple Births (20 -6) • "Fraternal" or dizygotic • Two separate oocytes are fertilized at same time • "Identical" or monozygotic • Blastomeres separate early in cleavage • Conjoined twins • When splitting of blastomeres is incomplete • Shared skin and organs © 2013 Pearson Education, Inc.
Checkpoint (20 -6) 15. Name three stages of labor. 16. What is the difference between immature delivery and premature delivery? 17. What are the biological terms for fraternal twins and identical twins? © 2013 Pearson Education, Inc.
Postnatal Stages (20 -7) • Life stages • Neonatal period • Infancy • Childhood • Adolescence • Maturity © 2013 Pearson Education, Inc.
The Neonatal Period (20 -7) • Newborn is also called a neonate 1. Filling collapsed lungs with powerful inhalation 2. Changes in blood pressure and flow rates • Triggers separation of systemic and pulmonary circuits 3. Heart rate slows from 150 bpm to 120– 140 bpm 4. Digestive system becomes active with nursing © 2013 Pearson Education, Inc.
The Neonatal Period (20 -7) 5. Kidneys eliminate urine • Lack ability to concentrate urine • Neonates require high fluid intake 6. Mechanisms for controlling body temperature • Develops subcutaneous fat layer • Increases metabolic activity © 2013 Pearson Education, Inc.
Lactation and the Mammary Glands (20 -7) • By month 6 of gestation, mammary glands fully developed • Colostrum • Early secretion includes: • Higher proteins, lower fat than breast milk • Proteins are mostly antibodies for short-term immunity • Milk let-down reflex • Initiated by suckling • Functions until weaning © 2013 Pearson Education, Inc.
Figure 20 -12 The Milk Let-Down Reflex. Stimulation of hypothalamic nuclei Posterior lobe of the pituitary gland Oxytocin Release Milk Ejected Start Tactile receptors in nipples stimulated © 2013 Pearson Education, Inc. Neural impulses are propagated to the spinal cord.
Infancy and Childhood (20 -7) • Growth • Directed by circulating hormones • GH, adrenal steroids, TH • Specific effects • Are unique from organ to organ • Results in nonuniformity of growth patterns © 2013 Pearson Education, Inc.
Adolescence (20 -7) • Begins at onset of puberty • Increase in Gn. RH • Increase in LH and FSH • Gamete formation • Secretion of sex hormones • Development of secondary sex characteristics • Rapid growth spurt © 2013 Pearson Education, Inc.
Maturity (20 -7) • Often identified as starting when growth stops • Physiological changes continue • Menopause and male climacteric • Senescence • The aging process • Ultimately leads to death © 2013 Pearson Education, Inc.
Checkpoint (20 -7) 18. Name the postnatal stages of development. 19. What is the difference between colostrum and breast milk? 20. Increases in the blood levels of Gn. RH, FSH, LH, and sex hormones mark the onset of which stage of development? © 2013 Pearson Education, Inc.
Genes and Chromosomes (20 -8) • DNA • Contains chromosomes, which contain genes • Segments of DNA with peptide synthesis information • Genotype • Original 46 chromosomes formed in zygote retained in every cell • Determine unique characteristics of your phenotype © 2013 Pearson Education, Inc.
Patterns of Inheritance (20 -8) • Homologous chromosomes • Members of each pair of chromosomes • One member contributed by sperm, other by ovum • Autosomal chromosomes • 22 pairs of homologous chromosomes • Affect somatic characteristics like hair color © 2013 Pearson Education, Inc.
Patterns of Inheritance (20 -8) • Sex chromosomes • 23 rd pair of homologous chromosomes • Determine genetic male or genetic female • Karyotype • Entire set of chromosomes © 2013 Pearson Education, Inc.
Patterns of Inheritance (20 -8) • Alleles are forms of a particular gene • Homozygous • When both alleles are the same for a specific trait • Heterozygous • Alleles are not identical • Dominant will be expressed phenotypically • Recessive will not be expressed unless on both chromosomes of pair © 2013 Pearson Education, Inc.
Figure 20 -13 A Human Karyotype. © 2013 Pearson Education, Inc.
Predicting Inheritance (20 -8) • Simple inheritance • Phenotypes determined by interactions of single pair of alleles • Fairly easy to predict • Polygenic inheritance • Phenotypes determined by interaction of multiple alleles • Difficult to predict © 2013 Pearson Education, Inc.
Table 20 -3 The Inheritance of Selected Phenotypic Characteristics © 2013 Pearson Education, Inc.
Predicting Inheritance (20 -8) • Genotype for specific trait indicated by letters • Dominant trait uses capital letter • Recessive trait uses lowercase letter • Example: AA is homozygous dominant, Aa is heterozygous, aa is homozygous recessive • Combinations of parental alleles determine outcome • Can be predicted using Punnett square © 2013 Pearson Education, Inc.
Figure 20 -14 a Predicting Genotypes and Phenotypes with Punnett Squares. Maternal alleles (contributed by the ovum). Every ovum will carry the recessive gene a. a Paternal alleles (contributed by the spermatozoon). Every sperm produced by a homozygous dominant (AA) father will carry the A allele. A Aa a Aa All have normal skin pigmentation A Aa Aa If the father is homozygous for normal pigmentation, all of the children will have the genotype Aa, and all will have normal skin pigmentation. © 2013 Pearson Education, Inc.
Figure 20 -14 b Predicting Genotypes and Phenotypes with Punnett Squares. a Half of the sperm produced by a heterozygous A (Aa) father will carry the dominant allele A, and the other half will carry the recessive allele a. a Maternal alleles a Aa Aa 50% of the children are heterozygous and have normal pigmentation aa aa 50% of the children are homozygous recessive and exhibit albinism. If the father is heterozygous for normal skin pigmentation, the probability that a child will have normal pigmentation is reduced to 50%. © 2013 Pearson Education, Inc.
Table 20 -4 Fairly Common Inherited Disorders © 2013 Pearson Education, Inc.
Sex-Linked Inheritance (20 -8) • X chromosome • Larger with more genes • Carried by all oocytes • Y chromosome • Includes dominant alleles for male genotype • X-linked traits • Alleles for somatic traits on the X chromosome © 2013 Pearson Education, Inc.
Figure 20 -15 Inheritance of an X-Linked Trait. A woman—who has two X chromosomes—can be either homozygous dominant (XCXC) or heterozygous (XC Xc) and still have normal color vision. She will be unable to distinguish reds from greens only if she carries two recessive alleles, Xc. A man has only one X chromo. XC some, so whichever allele that chromosome carries determines whether he has normal color vision or is red– green color-blind. Y XC Xc XC XC XC Xc Normal female (carrier) XC Y Normal male © 2013 Pearson Education, Inc. Color-blind male
Human Genome Project (20 -8) • Genome is the full set of DNA in chromosomes mapped through karyotyping • All human chromosomes have been sequenced • Total number of genes estimated at 20, 000– 25, 000 • 99 percent of all nucleotide bases same in all people • Single nucleotide polymorphisms locate disease sequences on chromosomes • 10, 000 single-gene disorders have been described © 2013 Pearson Education, Inc.
Figure 20 -16 A Map of Human Chromosomes. Color Blindness (multiple forms) Prostate Cancer p. 324 Muscular Dystrophy p. 667 p. 236 Hemophilia p. 399 Down Syndrome p. 700 Huntington’s Disease p. 295 Familial Polyposis of the Colon Abnormal tissue growths that commonly lead to colon cancer Familial Hypercholesterolemia Extremely high cholesterol Spinocerebellar Ataxia Destroys neurons in the brain and spinal cord, resulting in loss of muscle control Y 1 2 3 22 X 4 21 5 20 19 6 CHROMOSOME 18 7 PAIRS 17 8 16 9 10 15 14 13 12 11 Breast Cancer (one form) p. 658 Cystic Fibrosis p. 506 Malignant Melanoma p. 125 Multiple Endocrine Neoplasia, Type 2 Tumors in endocrine glands and other tissues Marfan Syndrome p. 103 Alzheimer’s Disease (one form) p. 294 Sickle Cell Anemia p. 385 PKU (phenylketonuria) p. 587 Retinoblastoma A relatively common tumor of the eye, accounting for 2% of childhood malignancies © 2013 Pearson Education, Inc.
Checkpoint (20 -8) 21. Describe the relationship between genotype and phenotype. 22. Curly hair is an autosomal dominant trait. What would be the phenotype of a person who is heterozygous for this trait? 23. Joe has three daughters and complains that it's his wife's "fault" that he has no sons. What would you tell him? © 2013 Pearson Education, Inc.
Checkpoint (20 -8) 24. The human genome consists of approximately 3200 Mb. What is a genome, and how many nucleotide base pairs does 3200 Mb represent? © 2013 Pearson Education, Inc.
