Power over Ethernet Po E Solution 1 Full

Power over Ethernet (Po. E) Solution 1

Full Range of Po. E Products u Power Sourcing Equipment 15 W → 30 W → 60 W u Powered Device 2

Intelligent Po. E Management 802. 3 af 15. 4 -watt Standard Power u Po. E System Management ü ü u 802. 3 at 30 -watt / 60 -watt High Power Po. E Budget Overloading Protection Po. E Temperature Threshold Po. E Power Usage Threshold Power Feeding Status Monitoring Po. E Port Configuration ü ü ü 802. 3 af mode control Power feeding On/Off/schedulable and priority configuration Power Limit function for Po. E power management Auto detect powered device and consumption levels Classify connected powered devices u PD (Powered Device) Alive Check u Schedule Po. E Power Recycle 3

Po. E Schedule u Per Port / Per Profile / Per day, Schedulable Po. E ON/OFF Control Per Hour & Min Setting Daily Work 4 Profiles Off-Business Hours Per Week Day Setting Daily Work Power Consumption Off-Business Power Saving 4

Po. E PD Alive Check …… PD Status Good !! Po. E Switch Alarm Notification PD Alive !! 5

Schedule Po. E Power Recycle Allows each of the connected Po. E powered device to reboot at a specified time each week 0: 00 ~ 24: 00 Sun Mon Tue Wed 0: 00 ~ 24: 000: 00 Thu ~ 24: 00 0: 00 ~ 24: 00 Fri Sat Po. E On 24: 00 Po. E On ~ Po. E On 0: 00 Reduce the chance of powered device crash resulting from buffer overflow Po. E Off ü Po. E On u Buffer Utilization: Buffer Utilization: Po. E Power Recycles 30% 45% 60% 75% 10% 15% 90% each Friday at midnight 6

Product Features Po. E+ Switch 7

Po. E+ Switch Overview u IEEE 802. 3 at/af compliant u Full Po. E port: 8, 16, 24, 48 u Po. E budget from 55 W to 600 W u Intelligent Po. E Management u 1 G / 10 Gbps Fiber-Optical Link Capability u Home, SOHO, SMB, Enterprise to Industrial grade applications 48 -Port Po. E+ (Total 600 W) 24 -Port Po. E+ 16 -Port Po. E+ 8

Managed Po. E+ 10 G Switch u 30 W IEEE 802. 3 at Po. E support u Total 440 W Po. E budget u Hardware-based IPv 6/IPv 4 Layer 3 Static Routing XGSW-28040 HP u Layer 2 /4 IPv 6 Managed Gigabit Switch u 4 10 GBase-SR/LR SFP+ slots, compatible with 1000 Base-SX/LX/BX SFP u Supports ITU-G. 8032 Ethernet Ring Protection Switching (E. R. P. S. ) u SSH / SSL Secure Management u Integrate Security and Qo. S for Po. E PD operating u Po. E Schedule / Schedule Power Recycle / PD Alive Check 9

48 -Port Managed Po. E+ Switch u 30 W IEEE 802. 3 at Po. E support u Total 600 W Po. E budget u Hardware-based IPv 6/IPv 4 Layer 3 Static Routing u Layer 2 /4 IPv 6 Managed Gigabit Switch u 4 SFP slots, flexible for Gigabit Fiber-Optic network extension u SSH / SSL Secure Management u Integrate Security and Qo. S for Po. E PD operating u Po. E Power management ü ü WGSW-48040 HP Po. E Port power limit / Total limit to ensure stable system operating Monitor power usage, current usage, power consumption on Powered Devices 10

24 -Port Managed Po. E+ Switch u 24 -Port Gigabit 802. 3 at/af Po. E u 4 -Port Gigabit TP/SFP combo Managed GS-4210 -24 PL 4 C (440 -watt Po. E Budget) u 440 -watt Po. E Budget (GS-4210 -24 PL 4 C) u IPv 6/IPv 4 Web / Telnet / SNMP v 1, v 2 c / SSH / SSL Management u IEEE 802. 1 Q VLAN / Voice VLAN / 802. 1 w Spanning Tree Protocol u Bandwidth Control / Storm Control u Layer 3 / 4 Access Control List / Port Security / 802. 1 x u Po. E Schedule / Schedule Power Recycle / PD Alive Check GS-4210 -24 P 4 C (220 -watt Po. E Budget) 11

24 -Port Stackable Po. E+ Switch u 30 W IEEE 802. 3 at Po. E support u Total 440 -watt Po. E budget u Layer 2 /4 IPv 6 Stackable / Gigabit Switch u Hardware-based IPv 4 / IPv 6 Layer 3 Static Routing u 4 SFP slots, flexible for Gigabit Fiber-Optic network extension u 2 10 Gbps SFP+ Stacking interfaces ü ü u SGS-5220 -24 P 2 X Up to 40 Gbps stacking bus, Full-duplex Ring topology Single IP management ü Up to 384 Gigabit PDs managed via one IP address u Integrate Security and Qo. S for Po. E PD operating u SSH / SSL Secure Management u Po. E Power management ü ü Po. E Port power limit / Total limit to ensure stable system operating Monitor power usage, current usage, power consumption on Powered Devices 12

GS-5220 -24 P 2 X Application Gigabit Data speed + Power Single IP Management 13

Layer 2+ Managed Gigabit Po. E+ Switch Family Model RJ 45 Port Po. E+ Port Po. E Power Output 1 G SFP Port 10 G SFP+ Port 8 x 10/1000 8 150 watts 2 0 20 x 10/1000 16 230 watts 4 Combo 0 24 x 10/1000 24 HP: 220 watts HP 4: 440 watts 4 Combo 0 24 x 10/1000 24 440 watts 4 Combo 2 for uplink 2 for stacking 24 x 10/1000 24 440 watts 4 Combo 4 48 x 10/1000 48 600 watts 4 Combo 0 WGSD-10020 HP WGSW-20160 HP WGSW-24040 HP/HP 4 SGS-5220 -24 P 2 X XGSW-28040 HP WGSW-48040 HP 14

Layer 2/4 Managed Gigabit Po. E+ Switch Family Model RJ 45 Port Po. E+ Port Po. E Power Output 1 G SFP Port 8 8 120 watts 2 10 8 240 watts 2 24 24 330 watts 2 28 24 220 watts 4 28 24 440 watts 4 48 48 440 watts 4 GS-4210 -8 P 2 S GS-4210 -8 P 2 T 2 S GS-4210 -24 P 4 C GS-4210 -24 PL 4 C GS-4210 -48 P 4 S 15

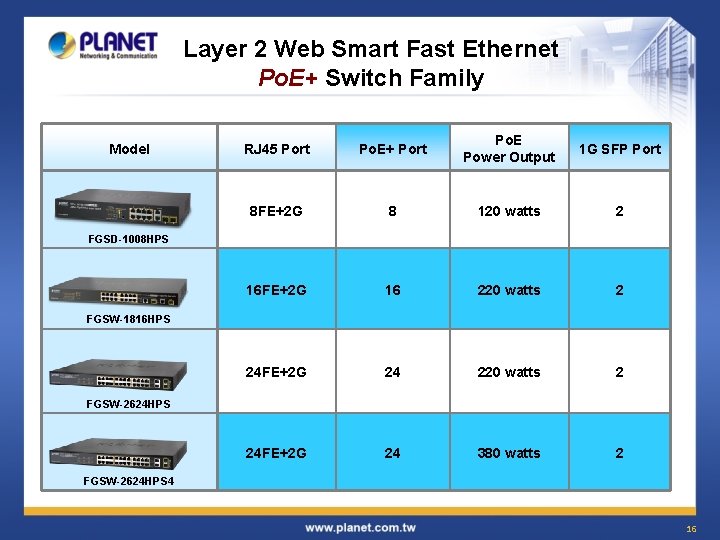

Layer 2 Web Smart Fast Ethernet Po. E+ Switch Family Model RJ 45 Port Po. E+ Port Po. E Power Output 1 G SFP Port 8 FE+2 G 8 120 watts 2 16 FE+2 G 16 220 watts 2 24 FE+2 G 24 380 watts 2 FGSD-1008 HPS FGSW-1816 HPS FGSW-2624 HPS 4 16

Product Features Po. E Switch for Home / Building Automation 17

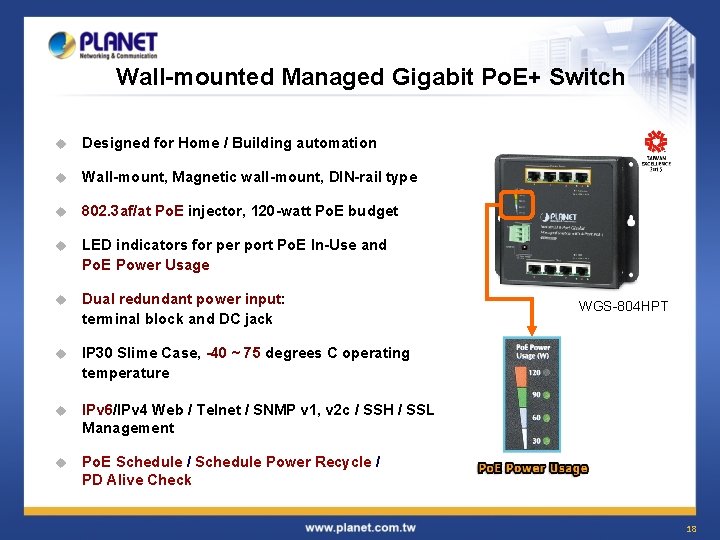

Wall-mounted Managed Gigabit Po. E+ Switch u Designed for Home / Building automation u Wall-mount, Magnetic wall-mount, DIN-rail type u 802. 3 af/at Po. E injector, 120 -watt Po. E budget u LED indicators for per port Po. E In-Use and Po. E Power Usage u Dual redundant power input: terminal block and DC jack u IP 30 Slime Case, -40 ~ 75 degrees C operating temperature u IPv 6/IPv 4 Web / Telnet / SNMP v 1, v 2 c / SSH / SSL Management u Po. E Schedule / Schedule Power Recycle / PD Alive Check WGS-804 HPT 18

Wall-mounted Po. E+ Switch Application 19

Product Features Industrial Po. E 20

Industrial High Power Po. E Switch IGS-10020 HPT u IPv 6 IP Address / NTP / DNS management u Po. E Power up to 30. 8 watts for each Po. E ports u Auto detect powered device (PD) u VLAN, Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u IEEE 802. 1 x Port-Based / MAC-Based network access authentication 21

Industrial Po. E Fiber Switch IGS-624 HPT u Fiber-Optical Link Capability u 802. 3 af/at Po. E injector u 48 V DC to 52 V DC Po. E+ power boost u High Power Budget for Po. E Extension u Intelligent LED Indicator for Real-time Po. E Usage u Redundant power system u -40~75 o. C Operating Temperature u IP 30 Rugged Case IGS-624 HPT 22

Industrial Po. E Fiber Switch Application 240 km 23

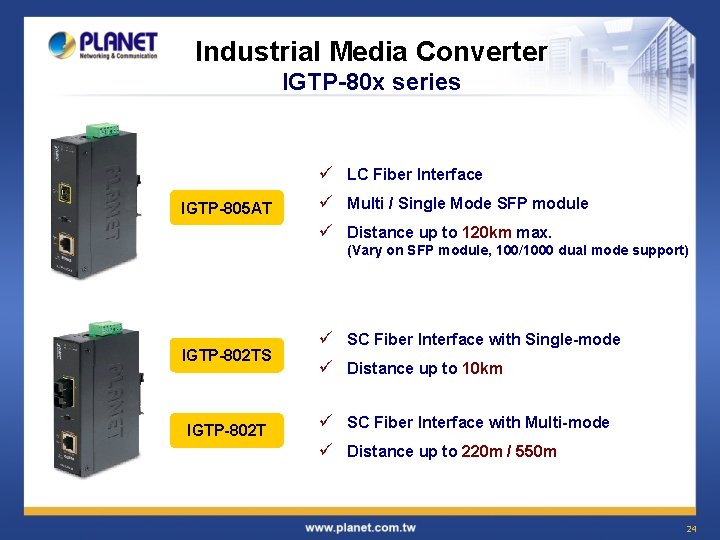

Industrial Media Converter IGTP-80 x series ü LC Fiber Interface IGTP-805 AT ü Multi / Single Mode SFP module ü Distance up to 120 km max. (Vary on SFP module, 100/1000 dual mode support) IGTP-802 TS IGTP-802 T ü SC Fiber Interface with Single-mode ü Distance up to 10 km ü SC Fiber Interface with Multi-mode ü Distance up to 220 m / 550 m 24

Industrial Media Converter IGTP-80 x series u IEEE 802. 3 at / 802. 3 af standard u Po. E Power up to 30 Watts for Po. E port u 24 V / 48 V DC redundant power u DC 52 V power over RJ-45 Ethernet Cable to devices with Ethernet port u Real-Time Power Fault Relay Alarm u -40 to 75 o. C operating temperature u IP 30 metal case / DIN-Rail and Wall-mountable design u 6 KV DC EFT protection for power line / 6 KV DC Ethernet ESD protection 25

Product Features Solar Po. E Switch 26

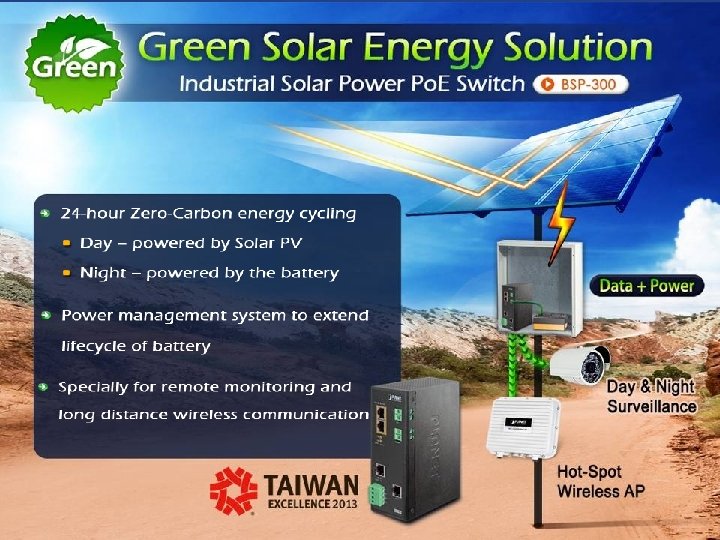

27

Features BSP-300 u Battery charging and discharging The BSP-300 empowers the connected Po. E devices in the day and night time from charging and discharging. Charging Discharging 28

BSP-300 Application BSP-300 Site: Desert in Chile 29

BSP-300 Application 30

Product Features Po. E Injector Hub 31

Po. E Injector Hub Family IEEE 802. 3 at (Up to 60 W) Gigabit Ethernet Fast Ethernet IEEE 802. 3 af (Up to 15. 4 W) HPOE-2400 G HPOE-800 G POE-2400 G (24 -Port Gigabit Po. E) (8 -Port Gigabit Po. E) (24 -Port Gigabit Po. E) HPOE-1200 G HPOE-460 POE-1200 G (12 -Port Gigabit Po. E) (4 -Port Gigabit Po. E) (12 -Port Gigabit Po. E) POE-2400 (24 -Port Po. E) POE-2400 P 4 (24 -Port Po. E, 400 Watts full power) POE-400 (4 -Port Po. E) POE-1200 (12 -Port Po. E) POE-1200 P 2 (12 -Port Po. E, 200 Watts full power) 32

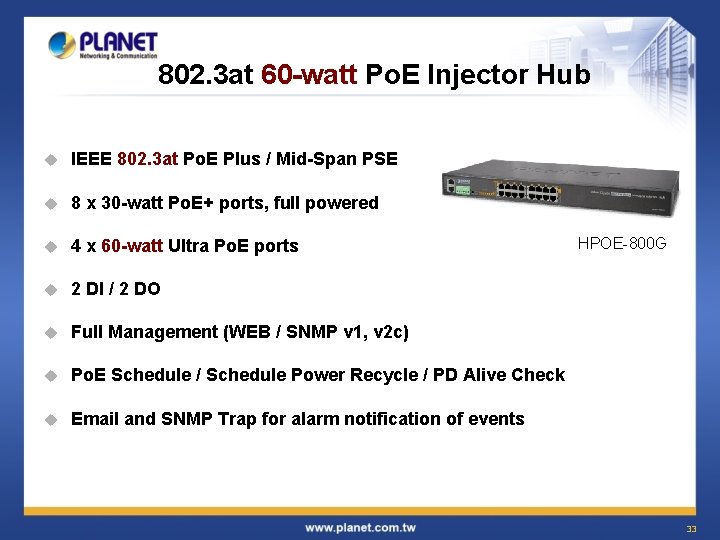

802. 3 at 60 -watt Po. E Injector Hub u IEEE 802. 3 at Po. E Plus / Mid-Span PSE u 8 x 30 -watt Po. E+ ports, full powered u 4 x 60 -watt Ultra Po. E ports u 2 DI / 2 DO u Full Management (WEB / SNMP v 1, v 2 c) u Po. E Schedule / Schedule Power Recycle / PD Alive Check u Email and SNMP Trap for alarm notification of events HPOE-800 G 33

802. 3 at Po. E Injector Hub u Gigabit Mid-Span Power over Ethernet Injector Hub ü ü ü 24 ports on the upper stack are data and power ports 24 ports on the lower stack are data ports 1 -Port 10/100 Mbps management port u Complies with IEEE 802. 3 at 52 V DC per port maximum 30. 8 watts u 720 -watt Po. E power budget u Po. E Power Schedule to save power u Automatically detects powered device and consumption level u Remote Po. E Power management by WEB u Po. E per port power feeding limit and priority u Temperature over protection to prevent device damage u SNMP and SNMP trap u 19 -inch rack mountable; 1 U height HPOE-2400 G 34

HPOE-2400 G Application IEEE 802. 3 at 30 watts IEEE 802. 3 af 15. 4 watts 35

Product Features Po. E Injector / Splitter 36

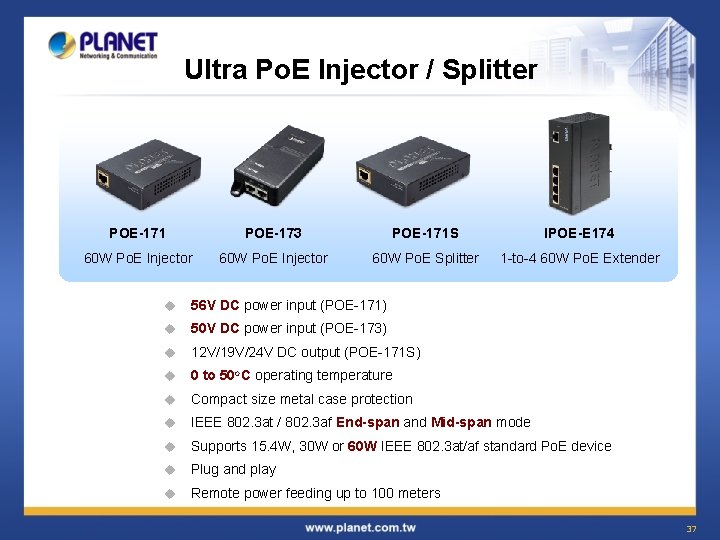

Ultra Po. E Injector / Splitter POE-171 POE-173 POE-171 S IPOE-E 174 60 W Po. E Injector 60 W Po. E Splitter 1 -to-4 60 W Po. E Extender u 56 V DC power input (POE-171) u 50 V DC power input (POE-173) u 12 V/19 V/24 V DC output (POE-171 S) u 0 to 50 o. C operating temperature u Compact size metal case protection u IEEE 802. 3 at / 802. 3 af End-span and Mid-span mode u Supports 15. 4 W, 30 W or 60 W IEEE 802. 3 at/af standard Po. E device u Plug and play u Remote power feeding up to 100 meters 37

Ultra Po. E Injector / Splitter Ultra Po. E provides Double Power, better , than conventional 802. 3 at Po. E 38

30 W Po. E Injector POE-163 POE-164 Gigabit 30 W Po. E Injector u IEEE 802. 3 at / 802. 3 af Mid-span PSE u Supports 15. 4 W or 30 W IEEE 802. 3 at/af standard Po. E device u 100~240 V AC power input, 53 V DC Po. E output u 0 to 50 o. C operating temperature u Compact size metal case protection u 1 Ethernet copper port with built-in Po. E injector u Plug and play u Remote power feeding up to 100 meters 39

Product Features Po. E Converter / Extender 40

Passive Po. E Converter u IEEE 802. 3 af/at Po. E compliant u Passive Po. E Output u 1 DC 12 V/19 V/24 V DIP switch u -40 ~ 75 o. C operating temperature POE-165 S 12/19/24 V DC 41

Po. E over Coaxial Extender Model VC-203 PT VC-203 PR VC-205 PT VC-205 PR Transmitter Receiver 1 x 10/100 Base-TX (Po. E IN) 1 x 10/100 Base-TX (Po. E OUT) Power/Data Transmitter Power/Data Receiver -- -- -40 to 75 o. C Item Po. E over Coax. Extender Ethernet Port BNC Connector DIP Switch 2 -Position DIP Switch • CO or CPE mode • Band plan: Asymmetric or Symmetric (Default: CPE, Asymmetric) 2 -Position DIP Switch (Rear) -- • Po. E out or DC out • 12 V DC / 24 V DC output voltage (Default: Po. E Out, 12 V DC) Operating Temperature -40 to 75 o. C 42

Po. E Extender u Complies with IEEE 802. 3 at / 802. 3 af Po. E u Extends the range of Po. E an additional 100 meters (328 ft. ) u Automatically detects and protects Po. E equipments from being damaged by incorrect installation u 4 units, daisy-chain installation with 500 meters distance support u Plug and Play u Operating temperature ü IPOE-E 202 : -40~75 o. C IPOE-E 202 (weather-proof) POE-E 201 ü POE-E 201 : 10~60 o. C 43

POE-E 201 Multi-unit Installation 500 m 44

Product Features Long Reach Po. E Solution 45

Long Reach Po. E over Coaxial u Advantages of Po. E over Coaxial ü Provides power to the receiver up to 1000 m in distance ü No need to find power outlet in every location ü Saves time and money LRP-101 CE Long Reach Po. E Extender LRP-101 CH Long Reach Po. E Injector Po. E over Coaxial RG 6 Coaxial Cable 46

Long Reach Po. E Solution l Extend IP Ethernet transmission and inject power for distance up to 1 km (3280 ft) üBenefits of LRP • Central Power Management • IEEE 802. 3 af / 802. 3 at Po. E compliant • Supports Po. E Power up to 25 watts • Remote PD alive check and reboot Long Reach Po. E Extender • Schedule power reboot • Data Link redundant • Plug and Play Long Reach Po. E over Coaxial Managed Switch 47

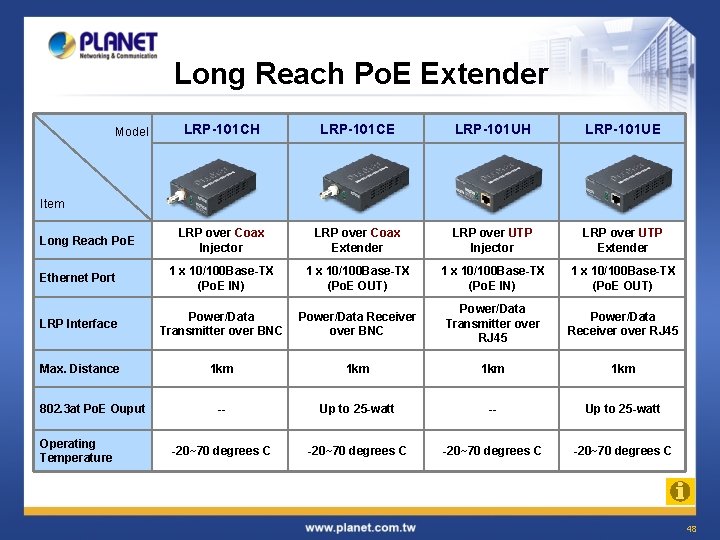

Long Reach Po. E Extender LRP-101 CH LRP-101 CE LRP-101 UH LRP-101 UE LRP over Coax Injector LRP over Coax Extender LRP over UTP Injector LRP over UTP Extender Ethernet Port 1 x 10/100 Base-TX (Po. E IN) 1 x 10/100 Base-TX (Po. E OUT) LRP Interface Power/Data Transmitter over BNC Power/Data Receiver over BNC Power/Data Transmitter over RJ 45 Power/Data Receiver over RJ 45 Max. Distance 1 km 1 km -- Up to 25 -watt -20~70 degrees C Model Item Long Reach Po. E 802. 3 at Po. E Ouput Operating Temperature 48

POE Tester u Quickly tests RJ-45 outlet for Power over Ethernet existence u Two LEDs indicate the types of PSE (power source equipment) ü ü ü End-span Po. E switch Mid-span Po. E injector / injector hub 4 -pair, 60 -watt ultra Po. E injector u IEEE 802. 3 at/af Po. E compliant u Compact size, Plug and Play design 49

u View PLANET Po. E solution online 50
