Power Optimization Chapter 9 Contributed by Alex Turek

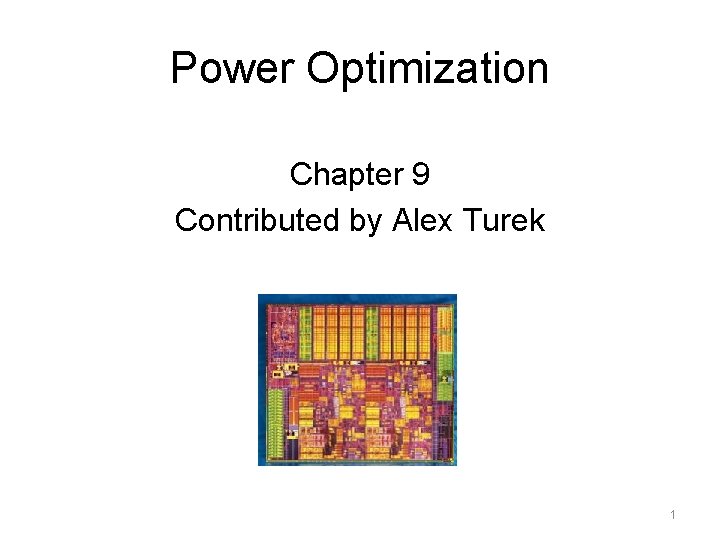

Power Optimization Chapter 9 Contributed by Alex Turek 1

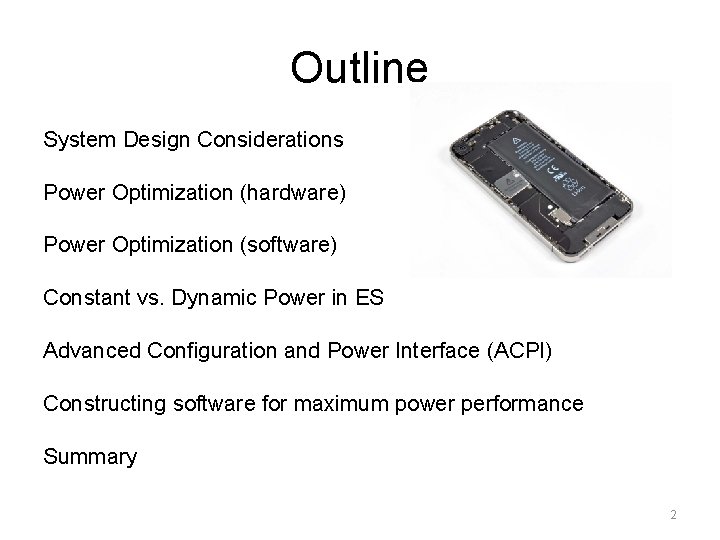

Outline System Design Considerations Power Optimization (hardware) Power Optimization (software) Constant vs. Dynamic Power in ES Advanced Configuration and Power Interface (ACPI) Constructing software for maximum power performance Summary 2

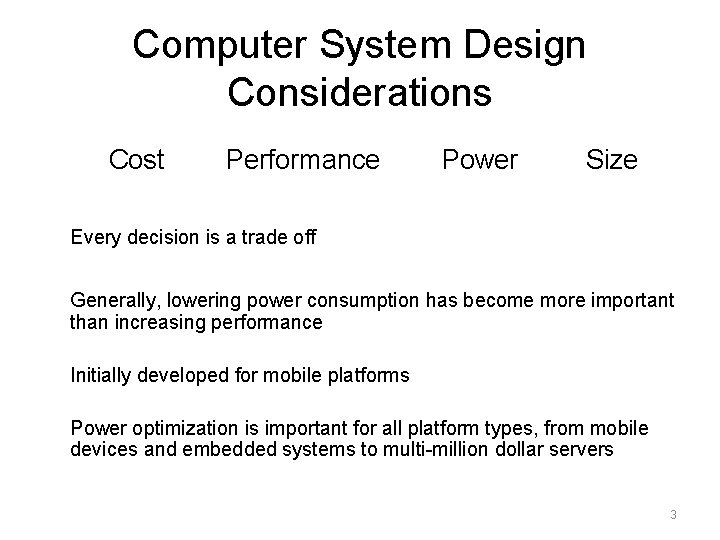

Computer System Design Considerations Cost Performance Power Size Every decision is a trade off Generally, lowering power consumption has become more important than increasing performance Initially developed for mobile platforms Power optimization is important for all platform types, from mobile devices and embedded systems to multi-million dollar servers 3

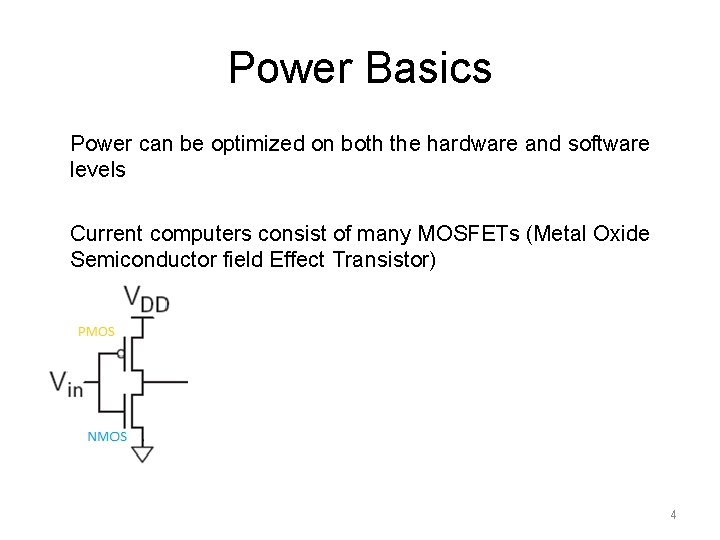

Power Basics Power can be optimized on both the hardware and software levels Current computers consist of many MOSFETs (Metal Oxide Semiconductor field Effect Transistor) 4

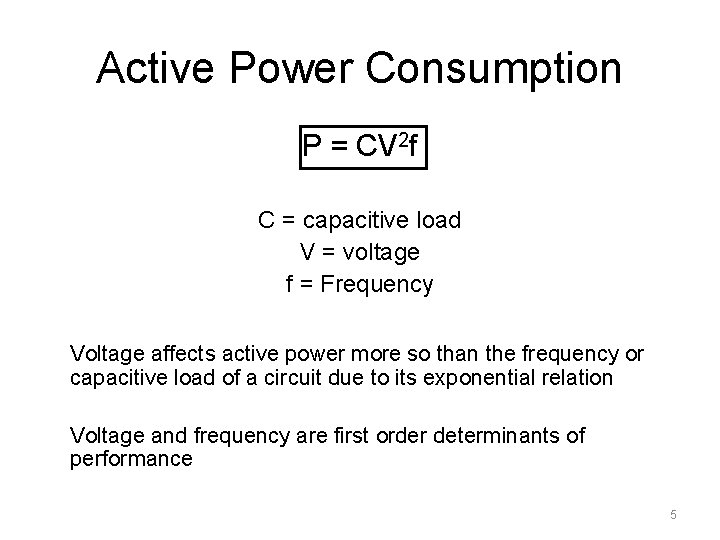

Active Power Consumption P = CV 2 f C = capacitive load V = voltage f = Frequency Voltage affects active power more so than the frequency or capacitive load of a circuit due to its exponential relation Voltage and frequency are first order determinants of performance 5

Power Consumption in CMOS Charging and discharging capacitors Voltage and frequency are first order determinants of performance Short circuit currents: Short circuit between supply rails during switching Leakage (static power consumption) Leaking diodes and transistors Minimizing leakage is extremely important for low-power systems, which are not active most of the time 6

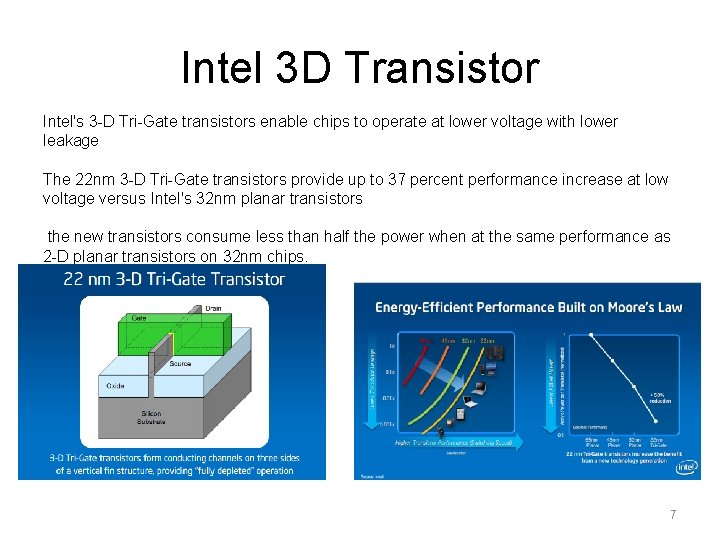

Intel 3 D Transistor Intel's 3 -D Tri-Gate transistors enable chips to operate at lower voltage with lower leakage The 22 nm 3 -D Tri-Gate transistors provide up to 37 percent performance increase at low voltage versus Intel's 32 nm planar transistors the new transistors consume less than half the power when at the same performance as 2 -D planar transistors on 32 nm chips. 7

Intel 3 D Transistor 8

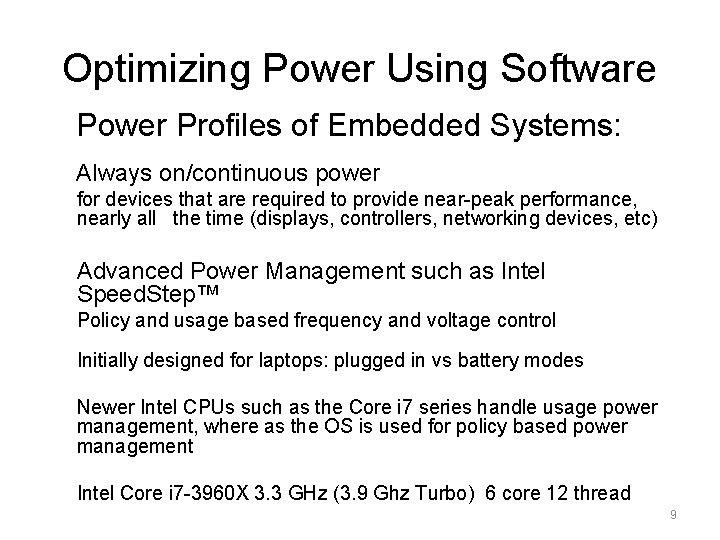

Optimizing Power Using Software Power Profiles of Embedded Systems: Always on/continuous power for devices that are required to provide near-peak performance, nearly all the time (displays, controllers, networking devices, etc) Advanced Power Management such as Intel Speed. Step™ Policy and usage based frequency and voltage control Initially designed for laptops: plugged in vs battery modes Newer Intel CPUs such as the Core i 7 series handle usage power management, where as the OS is used for policy based power management Intel Core i 7 -3960 X 3. 3 GHz (3. 9 Ghz Turbo) 6 core 12 thread 9

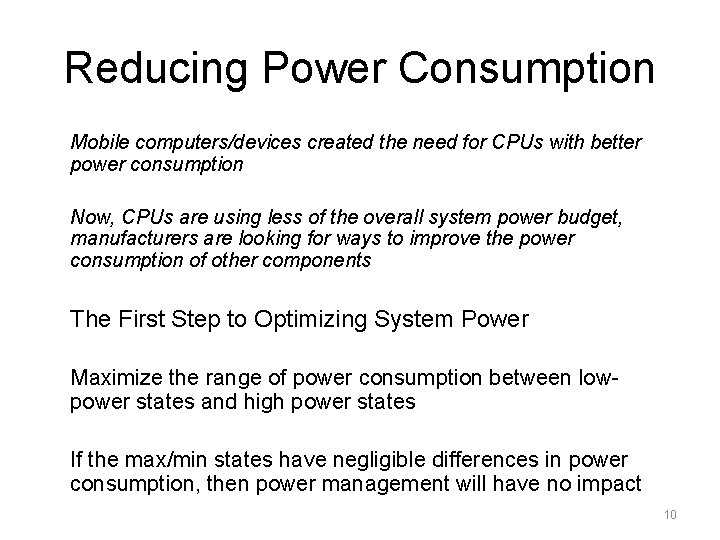

Reducing Power Consumption Mobile computers/devices created the need for CPUs with better power consumption Now, CPUs are using less of the overall system power budget, manufacturers are looking for ways to improve the power consumption of other components The First Step to Optimizing System Power Maximize the range of power consumption between lowpower states and high power states If the max/min states have negligible differences in power consumption, then power management will have no impact 10

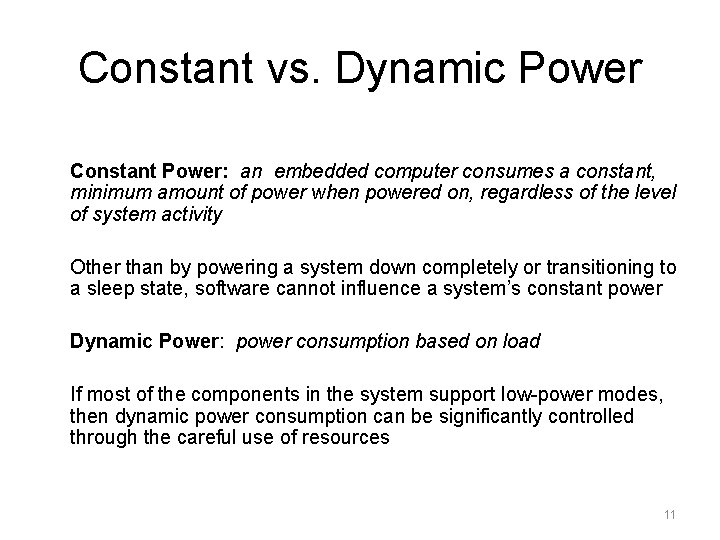

Constant vs. Dynamic Power Constant Power: an embedded computer consumes a constant, minimum amount of power when powered on, regardless of the level of system activity Other than by powering a system down completely or transitioning to a sleep state, software cannot influence a system’s constant power Dynamic Power: power consumption based on load If most of the components in the system support low-power modes, then dynamic power consumption can be significantly controlled through the careful use of resources 11

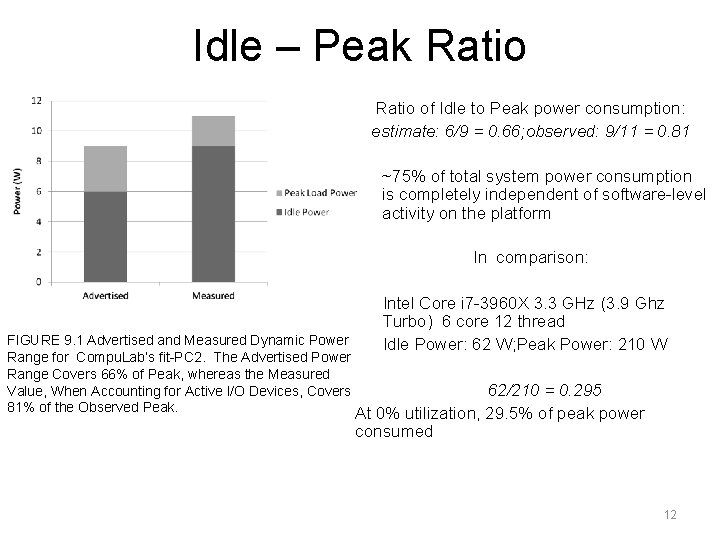

Idle – Peak Ratio of Idle to Peak power consumption: estimate: 6/9 = 0. 66; observed: 9/11 = 0. 81 ~75% of total system power consumption is completely independent of software-level activity on the platform In comparison: Intel Core i 7 -3960 X 3. 3 GHz (3. 9 Ghz Turbo) 6 core 12 thread Idle Power: 62 W; Peak Power: 210 W FIGURE 9. 1 Advertised and Measured Dynamic Power Range for Compu. Lab’s fit-PC 2. The Advertised Power Range Covers 66% of Peak, whereas the Measured Value, When Accounting for Active I/O Devices, Covers 62/210 = 0. 295 81% of the Observed Peak. At 0% utilization, 29. 5% of peak power consumed 12

FIGURE Top: Power Consumption and Efficiency for a System With a Dynamic Power Range Down to 50% of Peak Performance. Power is Normalized to Peak Consumption. Efficiency is Calculated by Dividing Utilization by Normalized Power. FIGURE Bottom: Power Consumption and Efficiency for a System With a Dynamic Power Range Down to 10% of Peak Performance. Goal of Power Efficiency: high efficiency over entire operating range 13

ACPI ACPI: (Advanced Configuration and Power Interface): platform specific industry standard that defines the roles, responsibilities, and specific mechanisms provided to achieve reliable power management and system configuration Developed through the cooperation of HP, Intel, Microsoft, Phoenix Technologies, and Toshiba Previous interfaces replaced by ACPI such as plug-and-play BIOS and Advanced Power Management (APM) were platform and operating system specific If most of the components in the system support low-power modes, then dynamic power consumption can be significantly controlled through the careful use of resources 14

ACPI continued… The operating system is granted exclusive control over all system-level management tasks, including the boot sequence, device configuration, power management, and external event handling (such as thermal monitoring or power button presses) ACPI Registers: well defined locations that can be read and written to monitor and change the status of hardware resources ACPI BIOS: This firmware manages system boot and transitions between sleep and active states. ACPI Tables: describe the interfaces to the underlying hardware and represent the system description. Written in a domain specific language, ACPI Machine Language (AML). The operating system's ACPI driver includes an interpreter for AML. These tables are provided by the ACPI BIOS 15

Idle vs. Sleep Two dominant forms of user-facing power management Sleep States: system appears to be powered off completely, while in fact some software may periodically execute to service external events, such as network packet arrivals. First introduced with laptop use in mind Idle Modes: take advantage of the variation in system utilization when the system is powered up Transitions between idle modes are made in milliseconds to reduce active power consumption, without the involvement or awareness of the user 16

ACPI System States Global System States (Gx States) Describe the entire system Transitions between these states are typically observed by the user G 0: Working G 1: Sleeping (suspend or “instant boot” mode) G 2 (S 5): Soft Off G 3: Mechanical Off 17

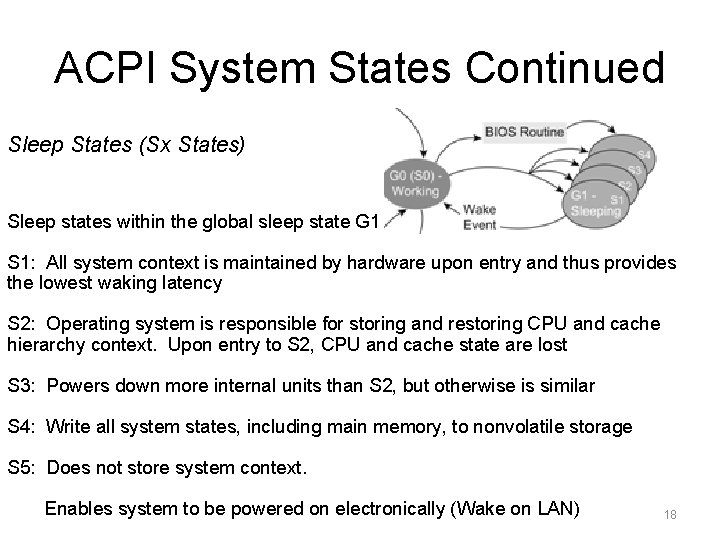

ACPI System States Continued Sleep States (Sx States) Sleep states within the global sleep state G 1 S 1: All system context is maintained by hardware upon entry and thus provides the lowest waking latency S 2: Operating system is responsible for storing and restoring CPU and cache hierarchy context. Upon entry to S 2, CPU and cache state are lost S 3: Powers down more internal units than S 2, but otherwise is similar S 4: Write all system states, including main memory, to nonvolatile storage S 5: Does not store system context. Enables system to be powered on electronically (Wake on LAN) 18

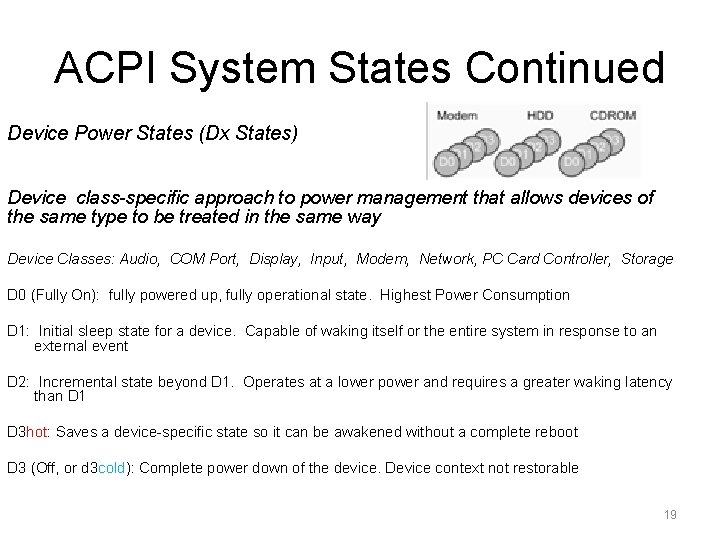

ACPI System States Continued Device Power States (Dx States) Device class-specific approach to power management that allows devices of the same type to be treated in the same way Device Classes: Audio, COM Port, Display, Input, Modem, Network, PC Card Controller, Storage D 0 (Fully On): fully powered up, fully operational state. Highest Power Consumption D 1: Initial sleep state for a device. Capable of waking itself or the entire system in response to an external event D 2: Incremental state beyond D 1. Operates at a lower power and requires a greater waking latency than D 1 D 3 hot: Saves a device-specific state so it can be awakened without a complete reboot D 3 (Off, or d 3 cold): Complete power down of the device. Device context not restorable 19

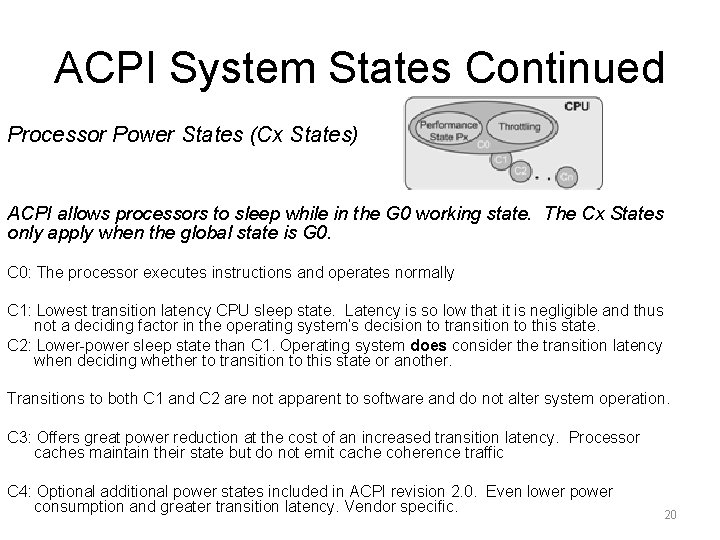

ACPI System States Continued Processor Power States (Cx States) ACPI allows processors to sleep while in the G 0 working state. The Cx States only apply when the global state is G 0. C 0: The processor executes instructions and operates normally C 1: Lowest transition latency CPU sleep state. Latency is so low that it is negligible and thus not a deciding factor in the operating system’s decision to transition to this state. C 2: Lower-power sleep state than C 1. Operating system does consider the transition latency when deciding whether to transition to this state or another. Transitions to both C 1 and C 2 are not apparent to software and do not alter system operation. C 3: Offers great power reduction at the cost of an increased transition latency. Processor caches maintain their state but do not emit cache coherence traffic C 4: Optional additional power states included in ACPI revision 2. 0. Even lower power consumption and greater transition latency. Vendor specific. 20

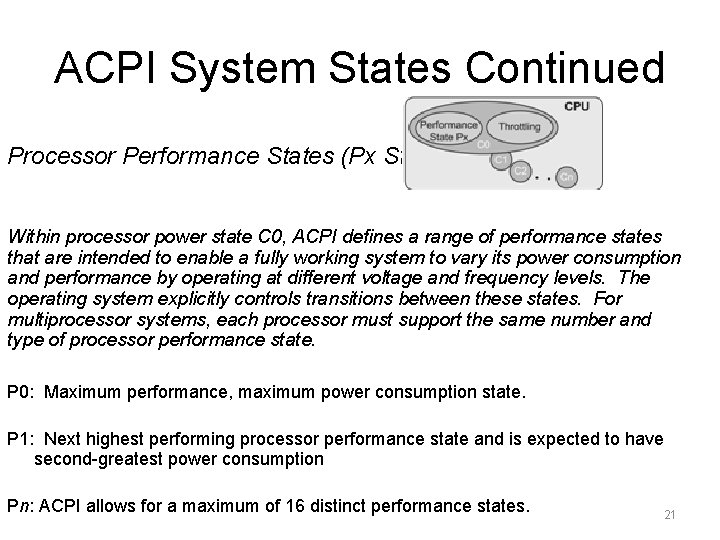

ACPI System States Continued Processor Performance States (Px States) Within processor power state C 0, ACPI defines a range of performance states that are intended to enable a fully working system to vary its power consumption and performance by operating at different voltage and frequency levels. The operating system explicitly controls transitions between these states. For multiprocessor systems, each processor must support the same number and type of processor performance state. P 0: Maximum performance, maximum power consumption state. P 1: Next highest performing processor performance state and is expected to have second-greatest power consumption Pn: ACPI allows for a maximum of 16 distinct performance states. 21

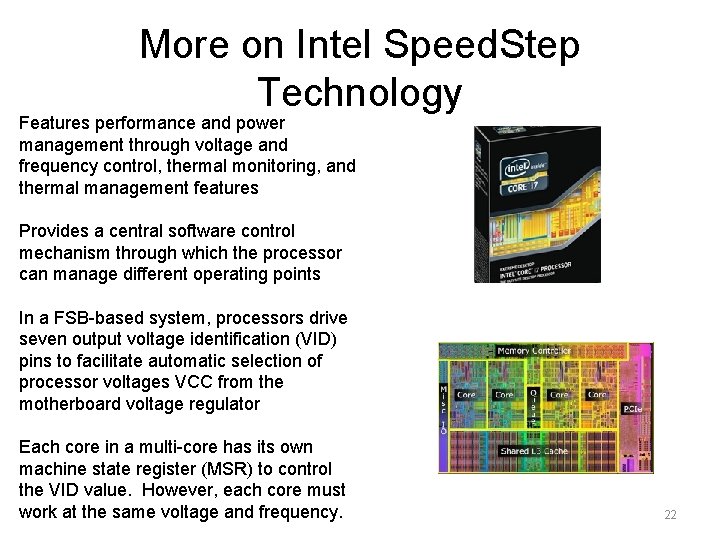

More on Intel Speed. Step Technology Features performance and power management through voltage and frequency control, thermal monitoring, and thermal management features Provides a central software control mechanism through which the processor can manage different operating points In a FSB-based system, processors drive seven output voltage identification (VID) pins to facilitate automatic selection of processor voltages VCC from the motherboard voltage regulator Each core in a multi-core has its own machine state register (MSR) to control the VID value. However, each core must work at the same voltage and frequency. 22

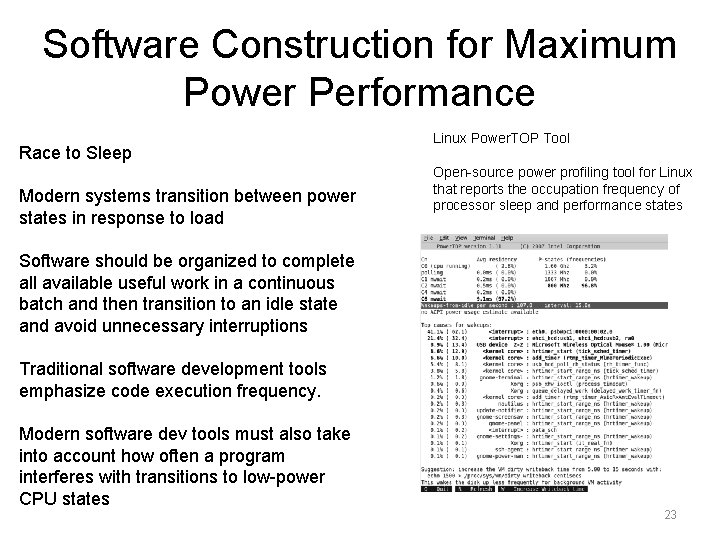

Software Construction for Maximum Power Performance Race to Sleep Modern systems transition between power states in response to load Linux Power. TOP Tool Open-source power profiling tool for Linux that reports the occupation frequency of processor sleep and performance states Software should be organized to complete all available useful work in a continuous batch and then transition to an idle state and avoid unnecessary interruptions Traditional software development tools emphasize code execution frequency. Modern software dev tools must also take into account how often a program interferes with transitions to low-power CPU states 23

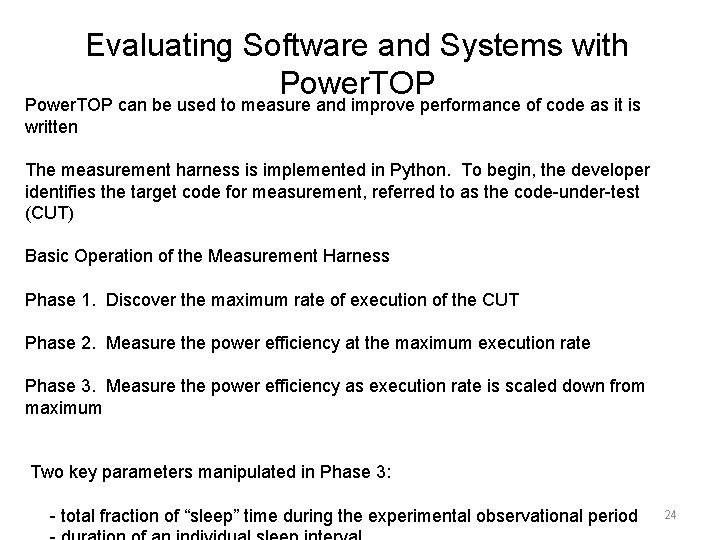

Evaluating Software and Systems with Power. TOP can be used to measure and improve performance of code as it is written The measurement harness is implemented in Python. To begin, the developer identifies the target code for measurement, referred to as the code-under-test (CUT) Basic Operation of the Measurement Harness Phase 1. Discover the maximum rate of execution of the CUT Phase 2. Measure the power efficiency at the maximum execution rate Phase 3. Measure the power efficiency as execution rate is scaled down from maximum Two key parameters manipulated in Phase 3: - total fraction of “sleep” time during the experimental observational period 24

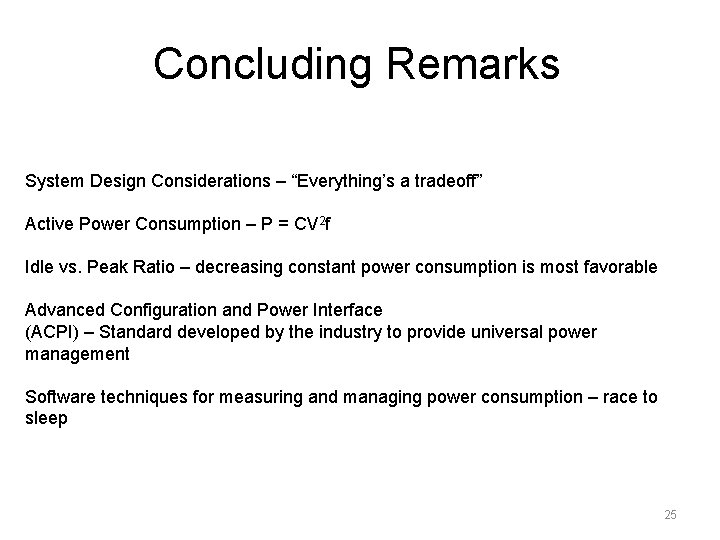

Concluding Remarks System Design Considerations – “Everything’s a tradeoff” Active Power Consumption – P = CV 2 f Idle vs. Peak Ratio – decreasing constant power consumption is most favorable Advanced Configuration and Power Interface (ACPI) – Standard developed by the industry to provide universal power management Software techniques for measuring and managing power consumption – race to sleep 25
