POWER LINE CARRIER COUPLING DEVICE consisting of LMU

POWER LINE CARRIER COUPLING DEVICE consisting of LMU and protective devices to couple the PLCC terminals with the high voltage transmission line. It is designed to provide phase to earth and phase to phase coupling. The coupling device is purely passive and acts as an interface between the HT power line and PLCC terminal. It provides efficient transmission of carrier frequency signals and protection against high voltage power leakage and transient voltages. The coupling device is designed to provide high level of safety and protection of the Power Line Carrier Equipment. It provides optimum impedance matching , frequency separation and safe isolation. It is designed to provide fast and easy installation. PUNCOM make PCD-1400 complies to IEC 60481 and IS 8997 specifications SALIENT FEATURES Ø Acts as an interface between power line and PLCC equipment. ØEfficient transmission of carrier frequency signals. ØProvides optimum impedance matching. ØConfigurable for Phase to Earth and Phase to Phase coupling. ØEfficient protection against HV Power leakage. Ø High level of safety for staff. Ø Provides fast and efficient commissioning. ØType approved to IEC 60481 and IS 8997 specifications. PCD-1400 (P-E/P-P) PUNCOM offers PCD-1400 , a modular coupling device ,

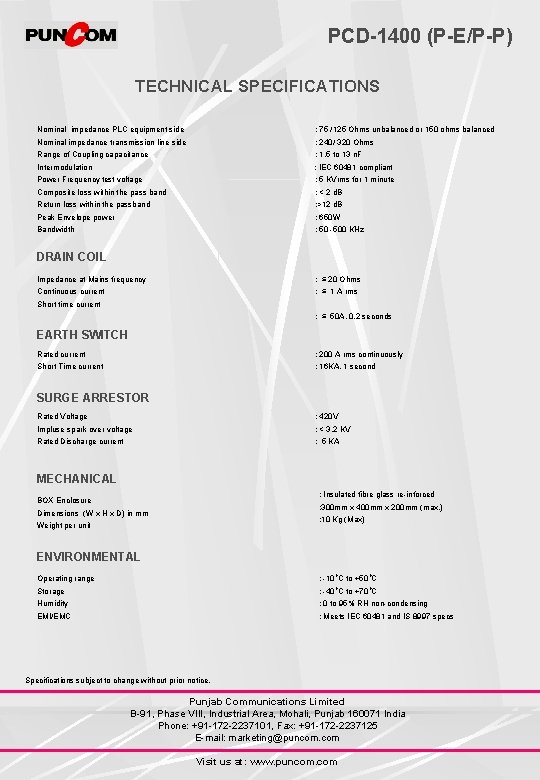

PCD-1400 (P-E/P-P) TECHNICAL SPECIFICATIONS Nominal impedance PLC equipment side : 75 /125 Ohms unbalanced or 150 ohms balanced Nominal impedance transmission line side : 240/ 320 Ohms Range of Coupling capacitance : 1. 5 to 13 n. F Intermodulation : IEC 60481 compliant Power Frequency test voltage : 5 KVrms for 1 minute Composite loss within the pass band : < 2 d. B Return loss within the passband : >12 d. B Peak Envelope power : 650 W Bandwidth : 50 -500 KHz DRAIN COIL Impedance at Mains frequency : ≤ 20 Ohms Continuous current : ≤ 1 A rms Short time current : ≤ 50 A, 0. 2 seconds EARTH SWITCH Rated current : 200 A rms continuously Short Time current : 16 KA, 1 second SURGE ARRESTOR Rated Voltage : 420 V Impluse spark over voltage : < 3. 2 KV Rated Discharge current : 5 KA MECHANICAL : Insulated fibre glass re-inforced BOX Enclosure : 300 mm x 400 mm x 200 mm (max. ) Dimensions (W x H x D) in mm : 10 Kg (Max) Weight per unit ENVIRONMENTAL Operating range : -10 o. C to +50 o. C Storage : -40 o. C to +70 o. C Humidity : 0 to 95% RH non-condensing EMI/EMC : Meets IEC 60481 and IS 8997 specs Specifications subject to change without prior notice. Punjab Communications Limited B-91, Phase VIII, Industrial Area, Mohali, Punjab 160071 India Phone: +91 -172 -2237101, Fax: +91 -172 -2237125 E-mail: marketing@puncom. com Visit us at: www. puncom. com
