POWDER METALLURGY PROCESSES Advantages: Economic: (Near net shape) Unique applications: (filters, sintered bronze bearings, oxide dispersion strengthened alloys, cermets, cutting tools; rapidly solidified alloys, amorphous metals) Captive: (W filaments, ceramic components, electronic porous tantalum capacitors ) Conventional alloys Y T ODS & RSP alloys

APPLICATIONS OF P/M PARTS Abrasives: metal polishing wheels, grinding media Agriculture: seed coatings, lawn & garden equip. Aerospace: jet engines, heat shields, rocket nozzles Ceramics: high temperature components, thermal shields, fuel cells Electronic: capacitors, resistors, contacts Hardware: locks, wrenches, cutting tools Manufacturing: dies, tools, bearing surfaces Ordnance: ammunition, penetrators, fuses Pyrotechnics: explosives, flares

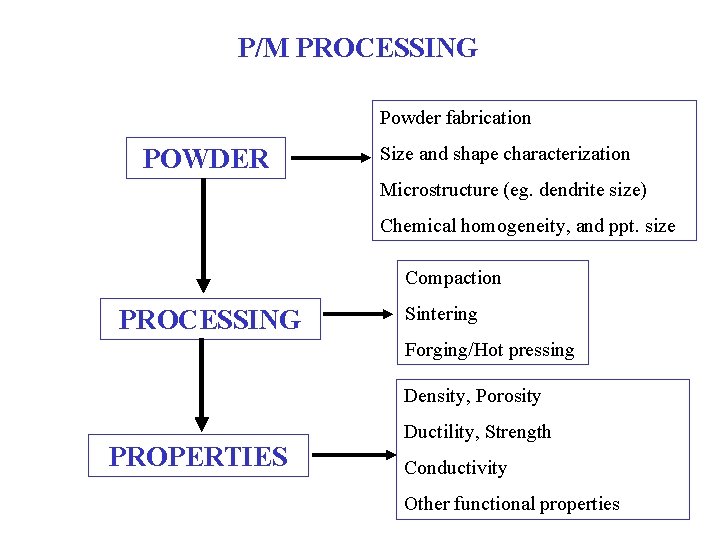

P/M PROCESSING Powder fabrication POWDER Size and shape characterization Microstructure (eg. dendrite size) Chemical homogeneity, and ppt. size Compaction PROCESSING Sintering Forging/Hot pressing Density, Porosity PROPERTIES Ductility, Strength Conductivity Other functional properties

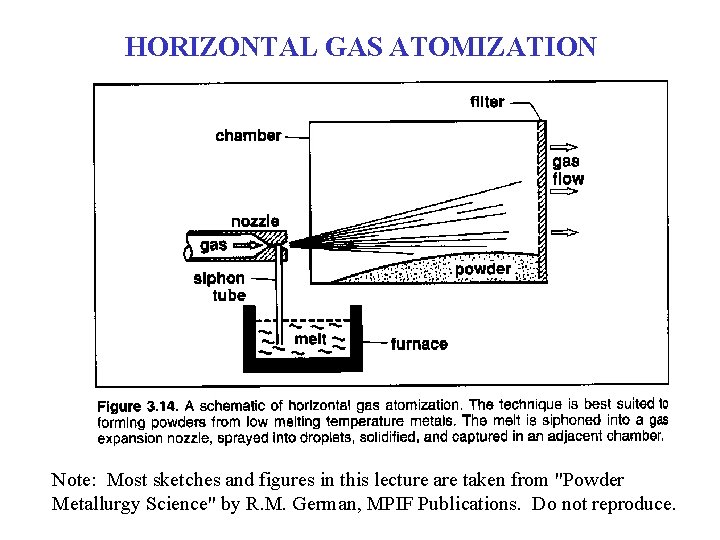

HORIZONTAL GAS ATOMIZATION Note: Most sketches and figures in this lecture are taken from "Powder Metallurgy Science" by R. M. German, MPIF Publications. Do not reproduce.

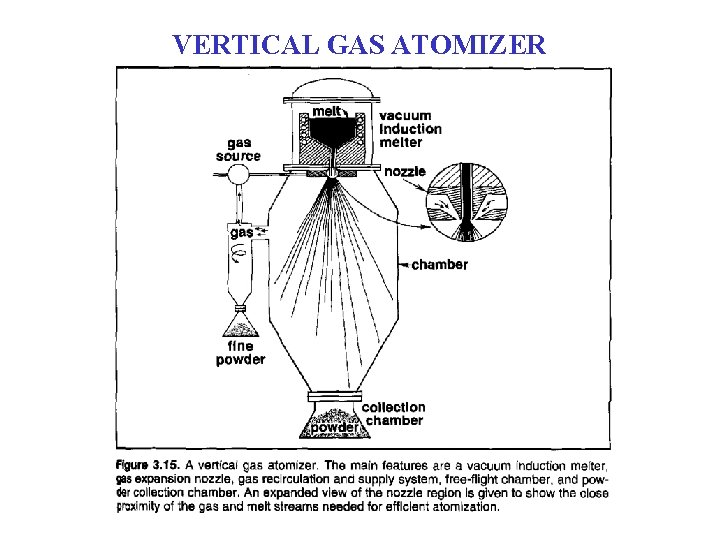

VERTICAL GAS ATOMIZER

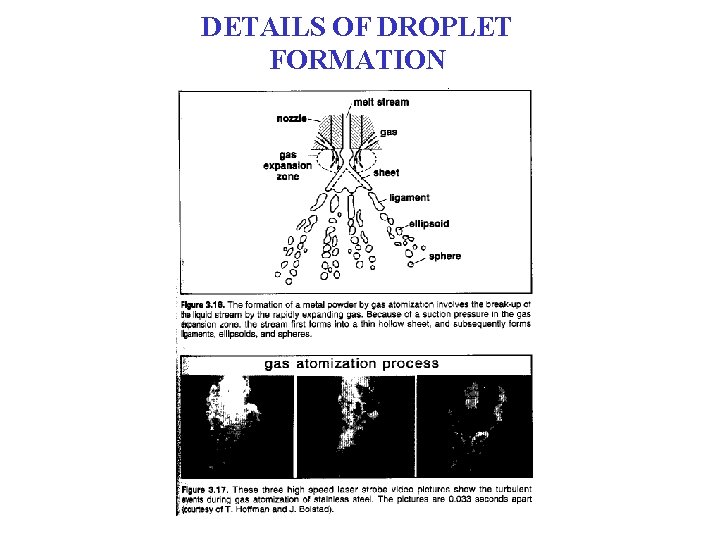

DETAILS OF DROPLET FORMATION

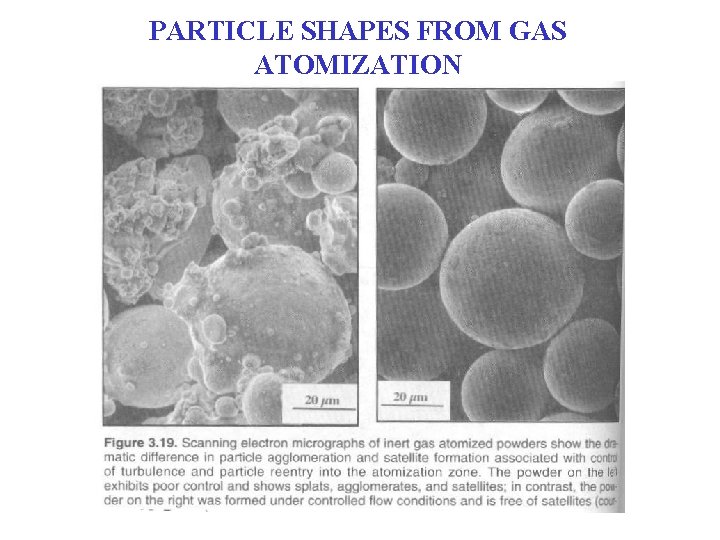

PARTICLE SHAPES FROM GAS ATOMIZATION

EFFECTS OF ATOMIZATION VARIABLES

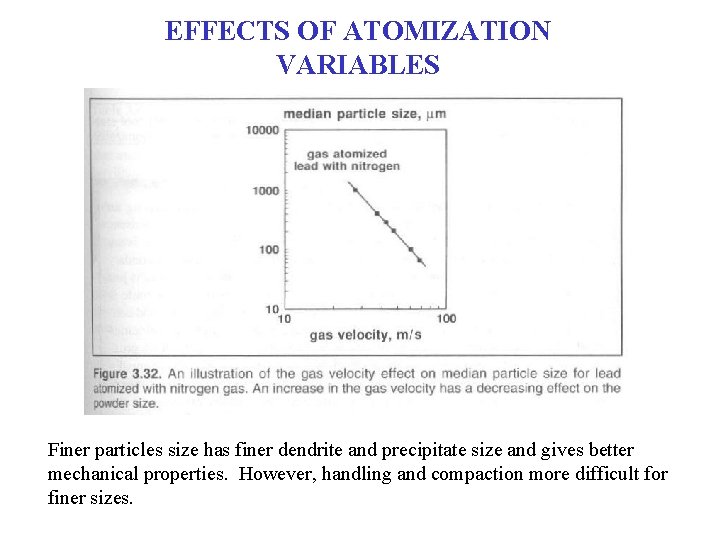

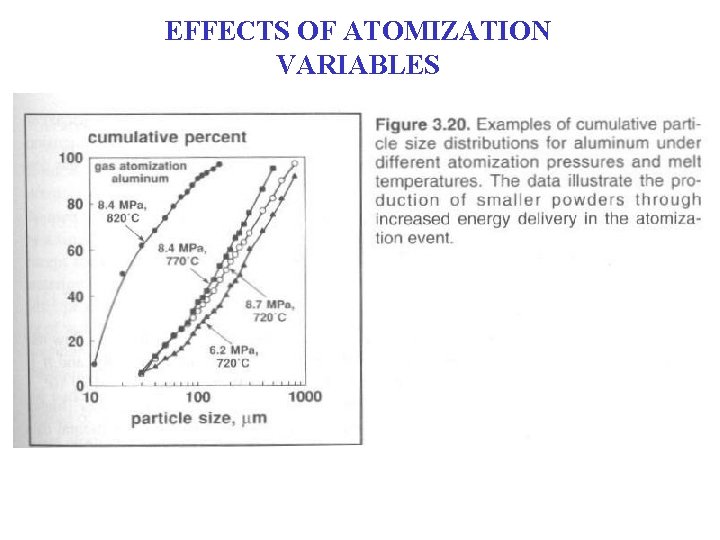

EFFECTS OF ATOMIZATION VARIABLES Finer particles size has finer dendrite and precipitate size and gives better mechanical properties. However, handling and compaction more difficult for finer sizes.

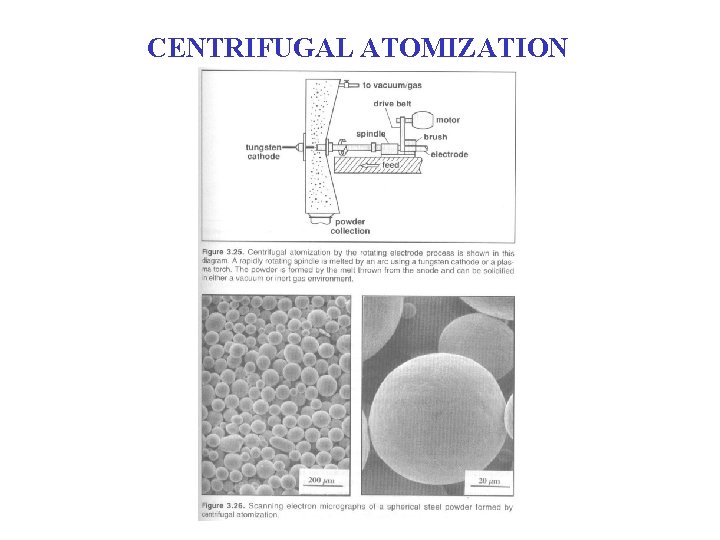

CENTRIFUGAL ATOMIZATION

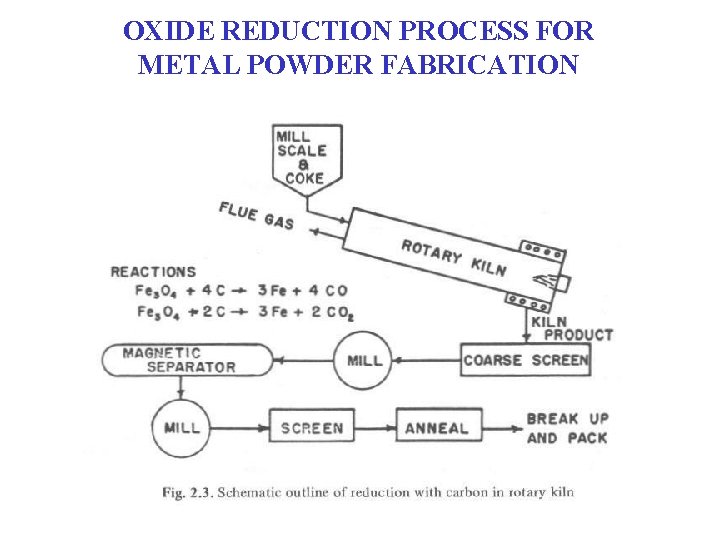

OXIDE REDUCTION PROCESS FOR METAL POWDER FABRICATION

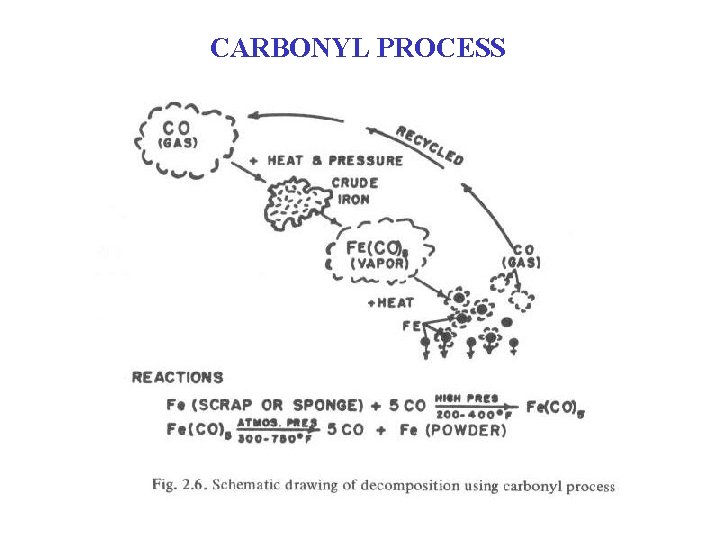

CARBONYL PROCESS

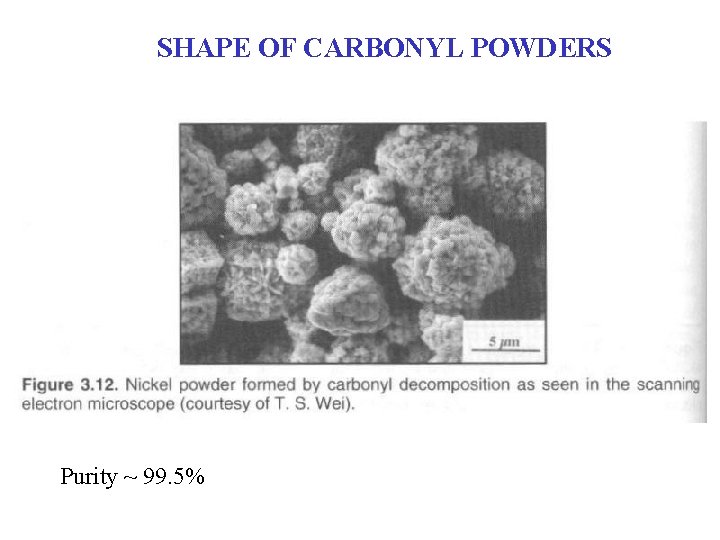

SHAPE OF CARBONYL POWDERS Purity ~ 99. 5%

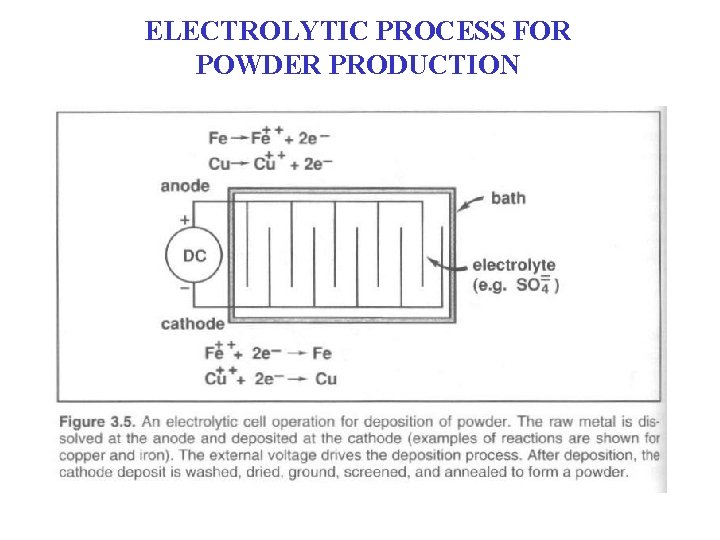

ELECTROLYTIC PROCESS FOR POWDER PRODUCTION

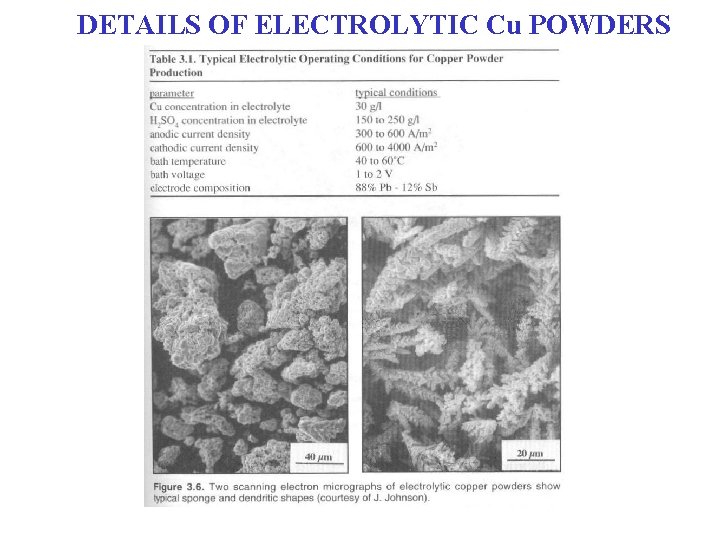

DETAILS OF ELECTROLYTIC Cu POWDERS

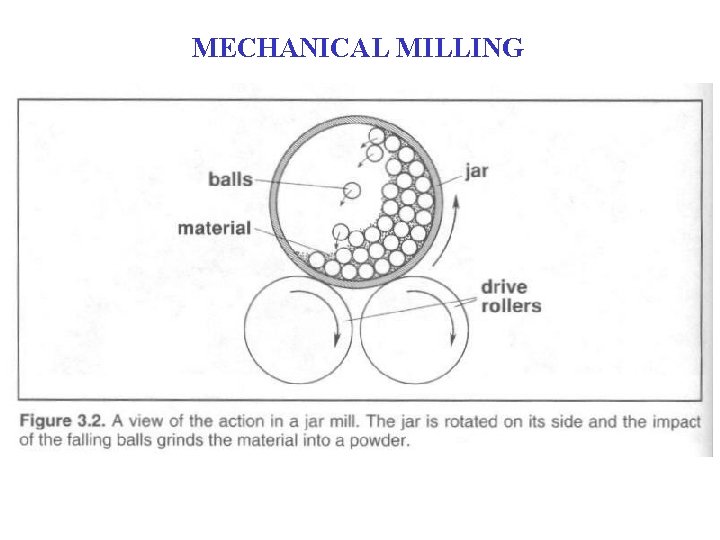

MECHANICAL MILLING

ATTRITION MILLING

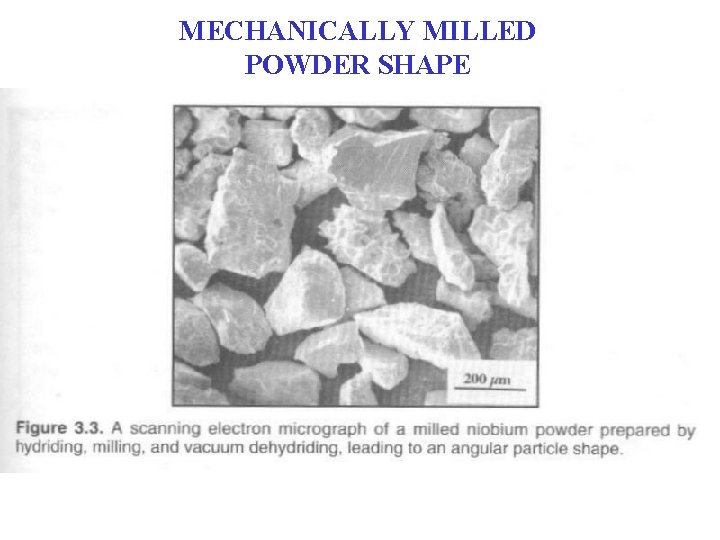

MECHANICALLY MILLED POWDER SHAPE

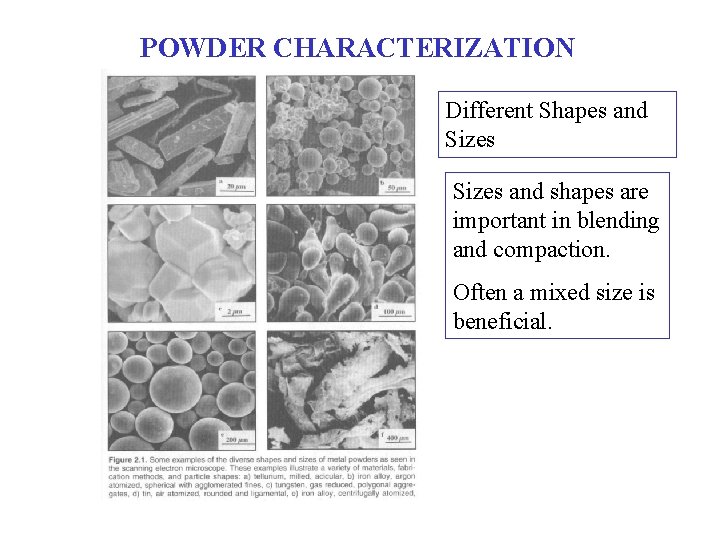

POWDER CHARACTERIZATION Different Shapes and Sizes and shapes are important in blending and compaction. Often a mixed size is beneficial.

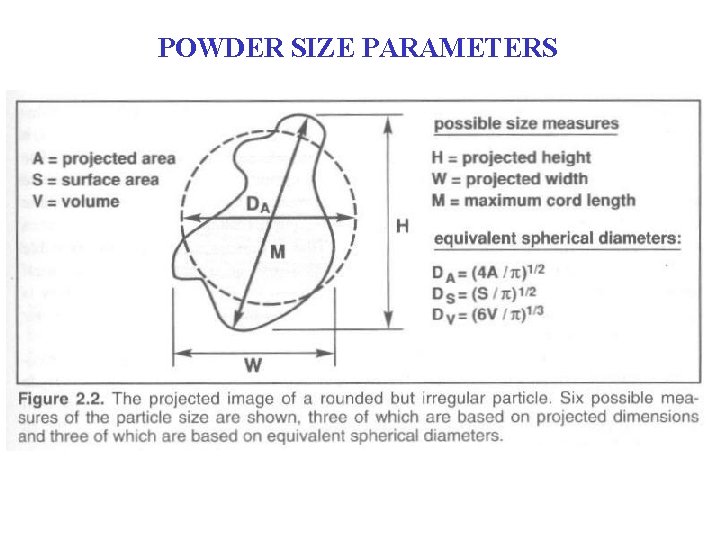

POWDER SIZE PARAMETERS

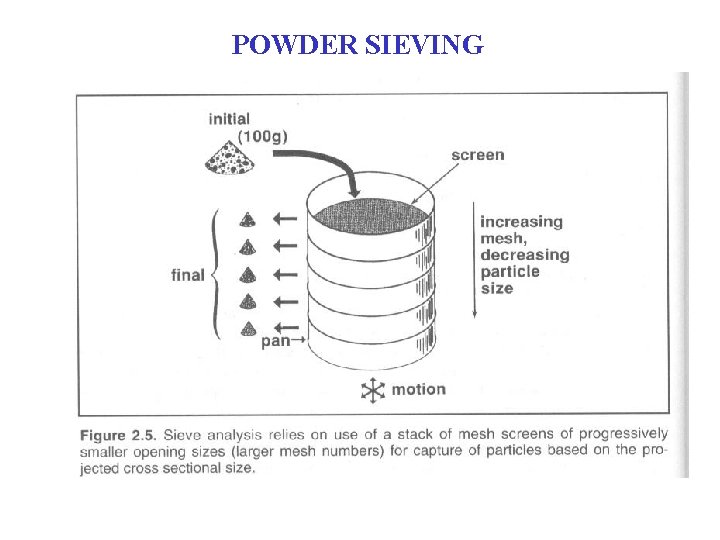

POWDER SIEVING

MESH SIZES -100/+200 mesh: negative means particle goes through, positive means particle does not go through. Thus, this mesh means particle sizes between 75 and 150 microns.

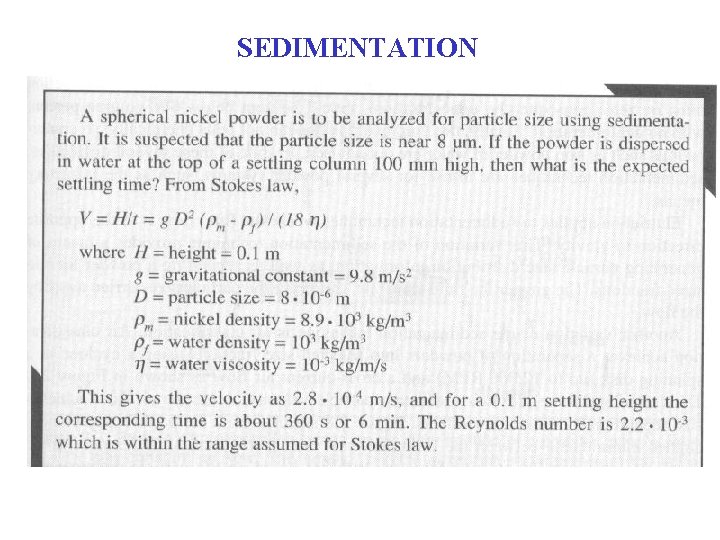

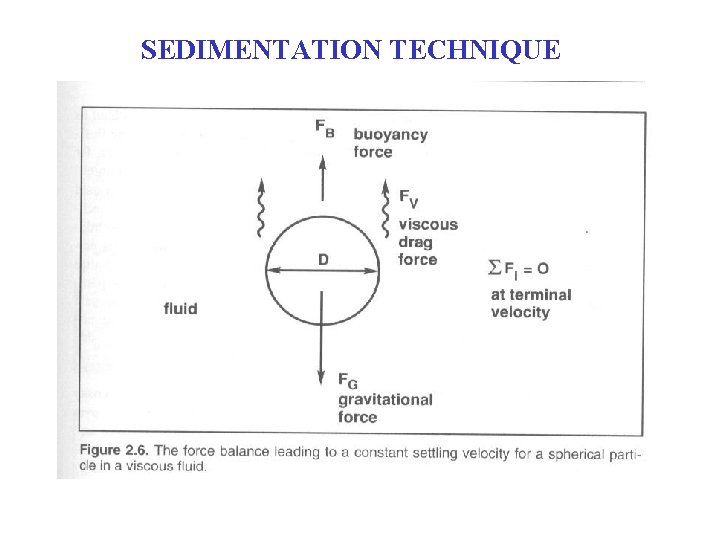

SEDIMENTATION TECHNIQUE

SEDIMENTATION

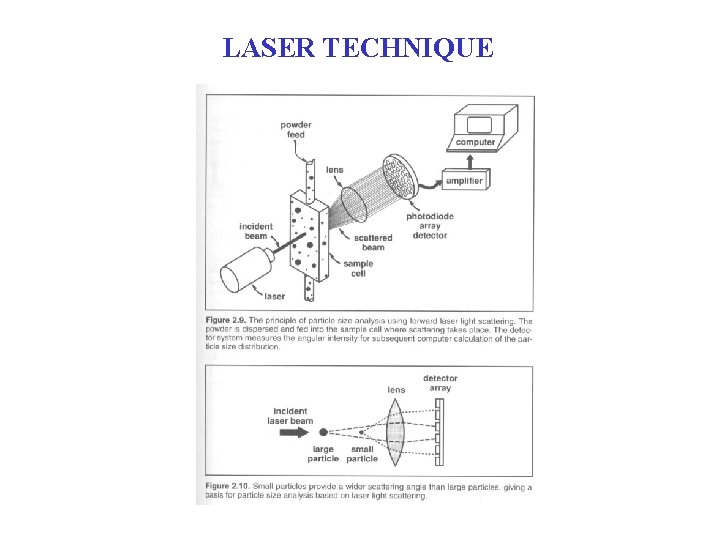

LASER TECHNIQUE

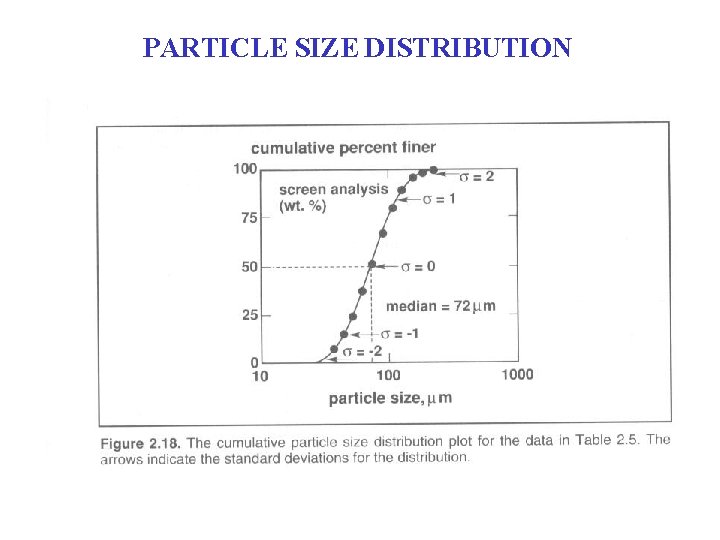

PARTICLE SIZE DISTRIBUTION

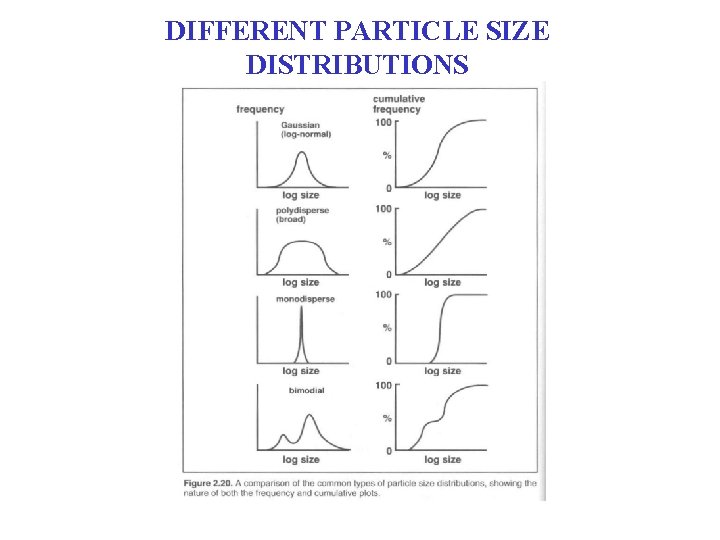

DIFFERENT PARTICLE SIZE DISTRIBUTIONS
