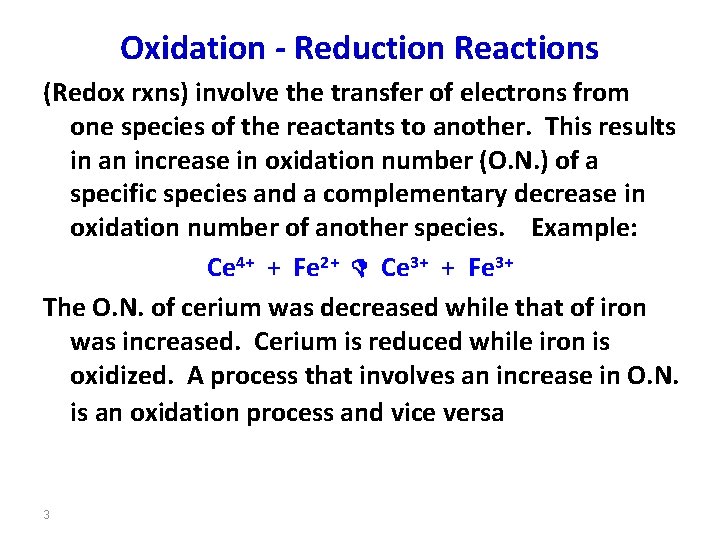

Oxidation - Reduction Reactions (Redox rxns) involve the transfer of electrons from one species of the reactants to another. This results in an increase in oxidation number (O. N. ) of a specific species and a complementary decrease in oxidation number of another species. Example: Ce 4+ + Fe 2+ D Ce 3+ + Fe 3+ The O. N. of cerium was decreased while that of iron was increased. Cerium is reduced while iron is oxidized. A process that involves an increase in O. N. is an oxidation process and vice versa 3

Usually, a redox reaction can be separated into two halves. Ce 4+ + e D Ce 3+ Fe 2+ D Fe 3+ + e Reduction Oxidation Electrons appear in each half reaction while they do not show up in the overall equations. 4

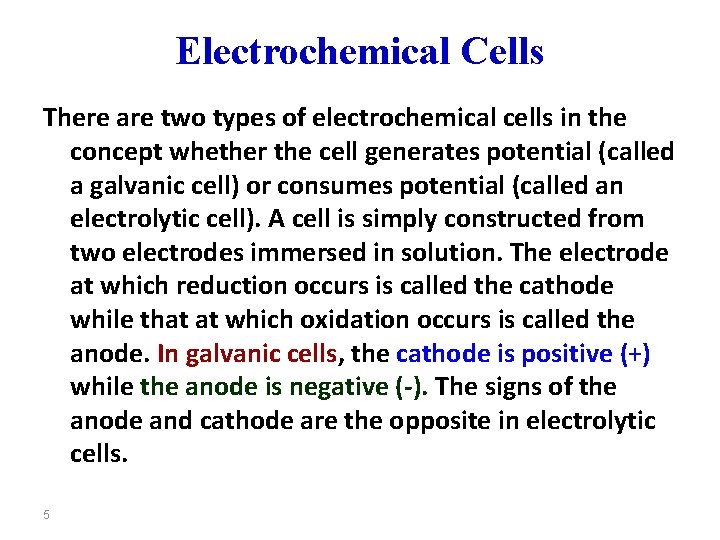

Electrochemical Cells There are two types of electrochemical cells in the concept whether the cell generates potential (called a galvanic cell) or consumes potential (called an electrolytic cell). A cell is simply constructed from two electrodes immersed in solution. The electrode at which reduction occurs is called the cathode while that at which oxidation occurs is called the anode. In galvanic cells, the cathode is positive (+) while the anode is negative (-). The signs of the anode and cathode are the opposite in electrolytic cells. 5

Electrons generated by one half reaction will be consumed by the other half reaction forcing the current to flow. 6

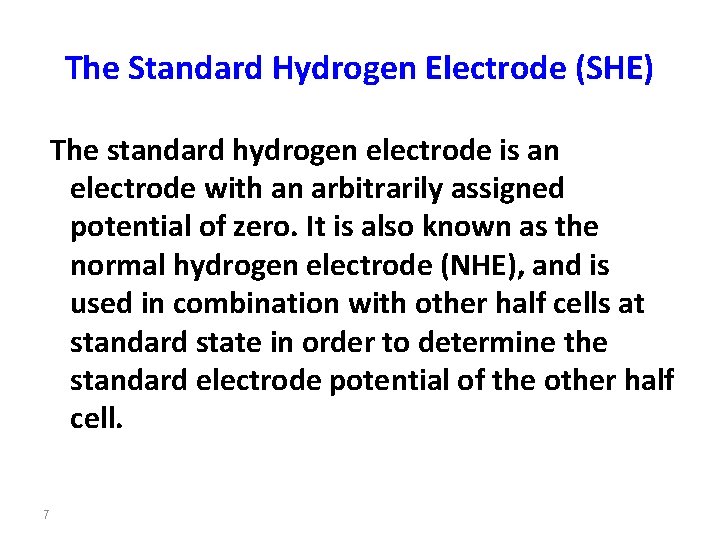

The Standard Hydrogen Electrode (SHE) The standard hydrogen electrode is an electrode with an arbitrarily assigned potential of zero. It is also known as the normal hydrogen electrode (NHE), and is used in combination with other half cells at standard state in order to determine the standard electrode potential of the other half cell. 7

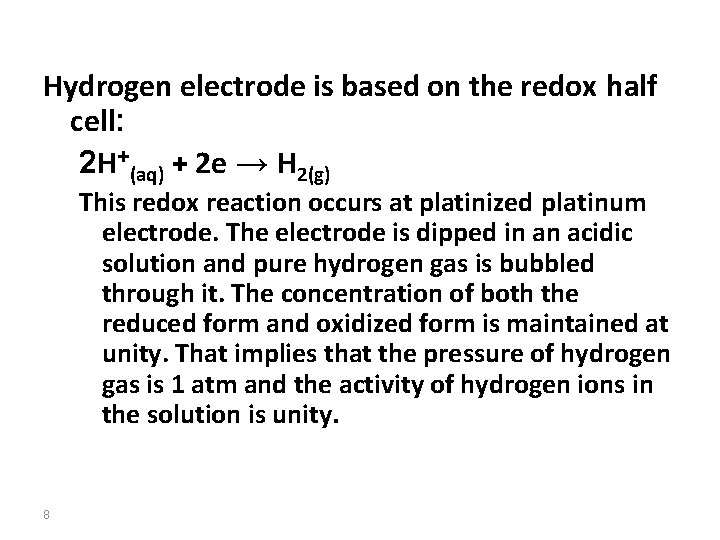

Hydrogen electrode is based on the redox half cell: 2 H+(aq) + 2 e → H 2(g) This redox reaction occurs at platinized platinum electrode. The electrode is dipped in an acidic solution and pure hydrogen gas is bubbled through it. The concentration of both the reduced form and oxidized form is maintained at unity. That implies that the pressure of hydrogen gas is 1 atm and the activity of hydrogen ions in the solution is unity. 8

2 H+ + 2 e- = H 2 Eo = 0. 000 V. when PH 2 = 1 atm, [H+] = 1 M, 298 K Hydrogen electrode 9

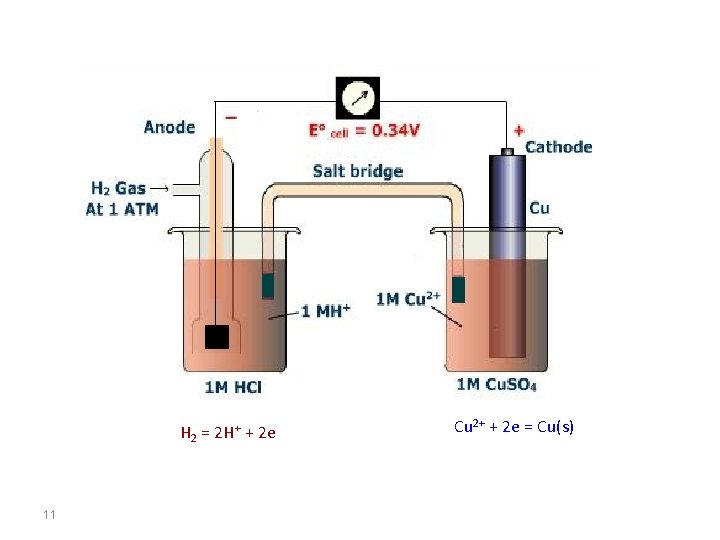

Determination of Standard Electrode Potential The standard electrode potential of a half cell reaction can be determined using a conventional two electrode cell but replacing one electrode with the standard hydrogen electrode (SHE) for which the potential is zero (as arbitrarily assigned). Therefore, the electrode potential is the reading of the voltmeter. For example, when a 1. 00 M Cu 2+ solution is placed in contact with a Cu wire and the cell is completed with a SHE at standard conditions of temperature and pressure, the potential will read 0. 342 V. This is due to reaction: Cu 2+ + 2 e D Cu (s) Eo = 0. 342 V 10

H 2 = 2 H+ + 2 e 11 Cu 2+ + 2 e = Cu(s)

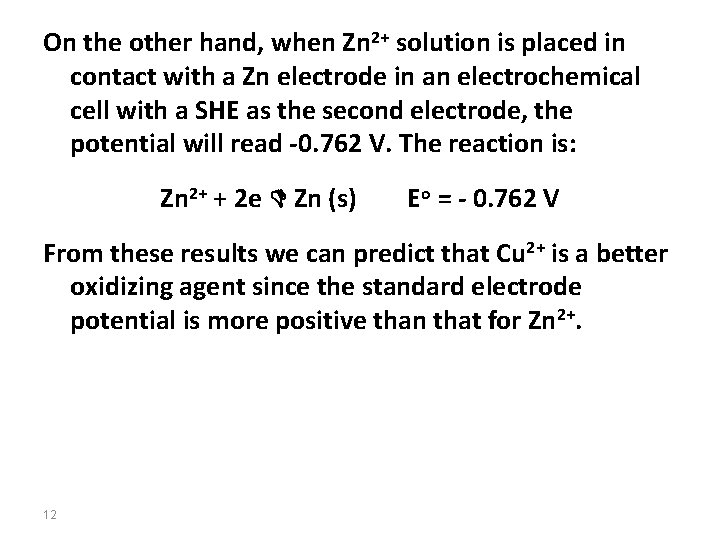

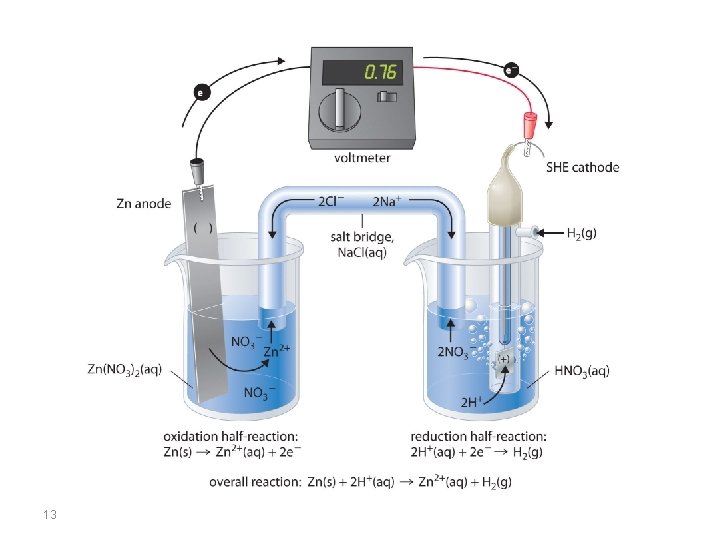

On the other hand, when Zn 2+ solution is placed in contact with a Zn electrode in an electrochemical cell with a SHE as the second electrode, the potential will read -0. 762 V. The reaction is: Zn 2+ + 2 e D Zn (s) Eo = - 0. 762 V From these results we can predict that Cu 2+ is a better oxidizing agent since the standard electrode potential is more positive than that for Zn 2+. 12

13

The more positive the Eo, the better oxidizing agent is the oxidized form. The more negative the Eo, the better reducing agent is the reduced form. 14

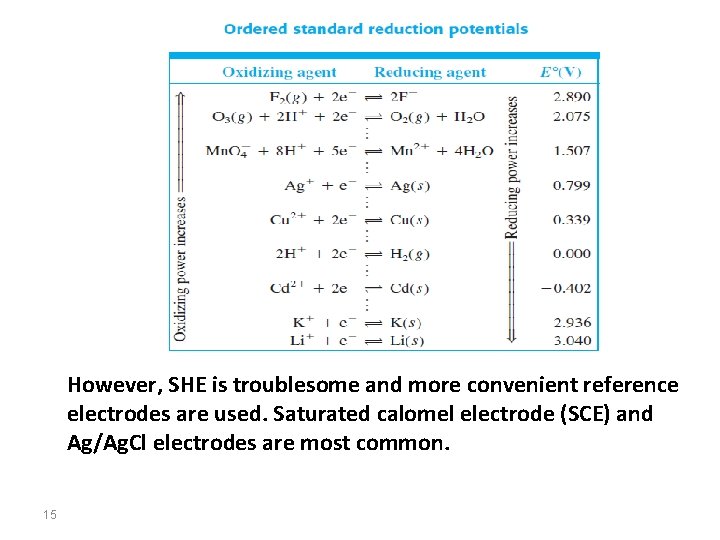

However, SHE is troublesome and more convenient reference electrodes are used. Saturated calomel electrode (SCE) and Ag/Ag. Cl electrodes are most common. 15

SCE and Ag/Ag. Cl Reference Electrodes The cell half-reaction is: Hg 2 Cl 2 + 2 e- D 2 Hg + 2 Cl- E = 0. 242 V for saturated KCl 16 The cell half-reaction is: Ag. Cl + e- D Ag + Cl. E = 0. 197 V for saturated KCl

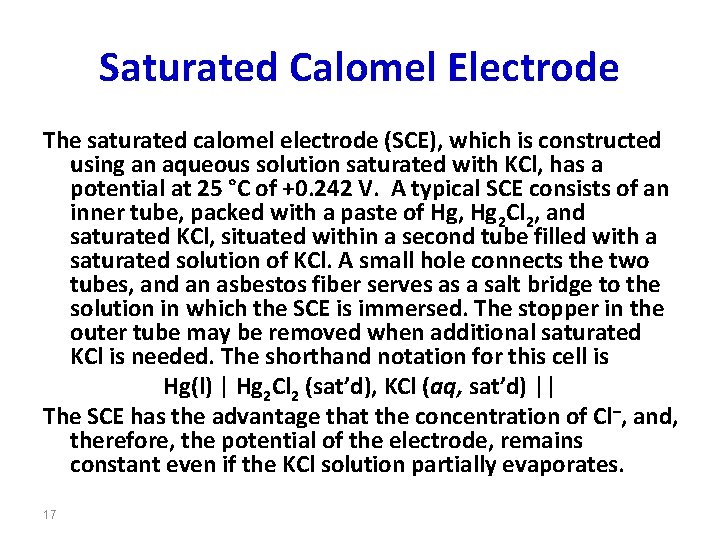

Saturated Calomel Electrode The saturated calomel electrode (SCE), which is constructed using an aqueous solution saturated with KCl, has a potential at 25 °C of +0. 242 V. A typical SCE consists of an inner tube, packed with a paste of Hg, Hg 2 Cl 2, and saturated KCl, situated within a second tube filled with a saturated solution of KCl. A small hole connects the two tubes, and an asbestos fiber serves as a salt bridge to the solution in which the SCE is immersed. The stopper in the outer tube may be removed when additional saturated KCl is needed. The shorthand notation for this cell is Hg(l) | Hg 2 Cl 2 (sat’d), KCl (aq, sat’d) || The SCE has the advantage that the concentration of Cl–, and, therefore, the potential of the electrode, remains constant even if the KCl solution partially evaporates. 17

A significant disadvantage of the SCE is that the solubility of KCl is sensitive to a change in temperature. At higher temperatures the concentration of Cl– increases, and the electrode’s potential decreases. For example, the potential of the SCE at 35 °C is +0. 2376 V. Electrodes containing unsaturated solutions of KCl have potentials that are less temperaturedependent, but experience a change in potential if the concentration of KCl increases due to evaporation. Another disadvantage to calomel electrodes is that they cannot be used at temperatures above 80 °C. 18

Ag/Ag. Cl Reference Electrode Another common reference electrode is the silver/silver chloride electrode, which is based on the redox couple between Ag. Cl and Ag. Cl(s) + e D Ag(s) + Cl–(aq) As with the saturated calomel electrode, the potential of the Ag/Ag. Cl electrode is determined by the concentration of Cl– used in its preparation. E = E°Ag. Cl/Ag – 0. 05916 log [Cl–] 19

A typical Ag/Ag. Cl electrode consists of a silver wire, the end of which is coated with a thin film of Ag. Cl. The wire is immersed in a solution that contains the desired concentration of KCl and that is saturated with Ag. Cl. A porous plug serves as the salt bridge. The shorthand notation for the cell is Ag(s) | Ag. Cl (sat’d), KCl (x M) || where x is the concentration of KCl. 20

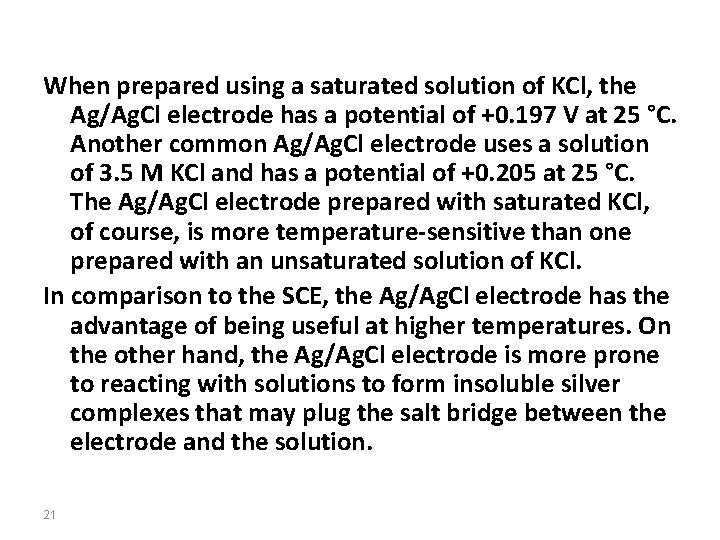

When prepared using a saturated solution of KCl, the Ag/Ag. Cl electrode has a potential of +0. 197 V at 25 °C. Another common Ag/Ag. Cl electrode uses a solution of 3. 5 M KCl and has a potential of +0. 205 at 25 °C. The Ag/Ag. Cl electrode prepared with saturated KCl, of course, is more temperature-sensitive than one prepared with an unsaturated solution of KCl. In comparison to the SCE, the Ag/Ag. Cl electrode has the advantage of being useful at higher temperatures. On the other hand, the Ag/Ag. Cl electrode is more prone to reacting with solutions to form insoluble silver complexes that may plug the salt bridge between the electrode and the solution. 21

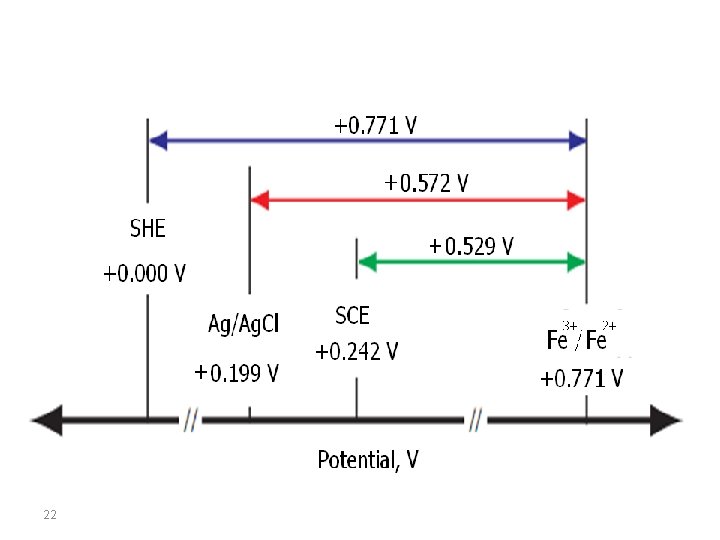

22

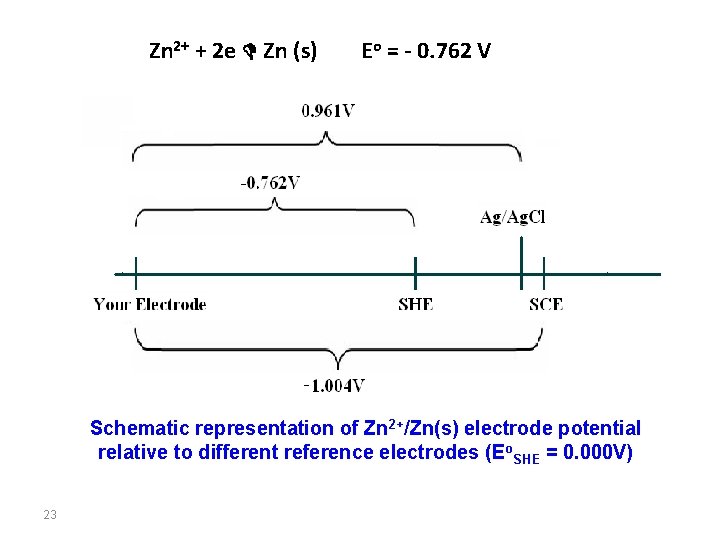

Zn 2+ + 2 e D Zn (s) Eo = - 0. 762 V Schematic representation of Zn 2+/Zn(s) electrode potential relative to different reference electrodes (Eo. SHE = 0. 000 V) 23

The potential of the following half cell reaction at standard state was measured versus SCE giving a value of 0. 529 V. Find Eo of the half cell reaction: Fe 3+ + e D Fe 2+ 24

The potential of the following half cell reaction at standard state was measured versus SCE giving a value of - 0. 103 V. Find Eo of the half cell reaction: Sn 4+ + 2 e D Sn 2+ 25

Shorthand notation For electrochemical cells Although cell drawing provides a useful picture of an electrochemical cell, it is not a convenient representation. A more useful way to describe an electrochemical cell is a shorthand notation that uses symbols to identify different phases and that lists the composition of each phase. We use a vertical slash (|) to identify a boundary between two phases where a potential develops, and a comma (, ) to separate species in the same phase or to identify a boundary between two phases where no potential develops. Shorthand cell notations begin with the anode and continue to the cathode. 26

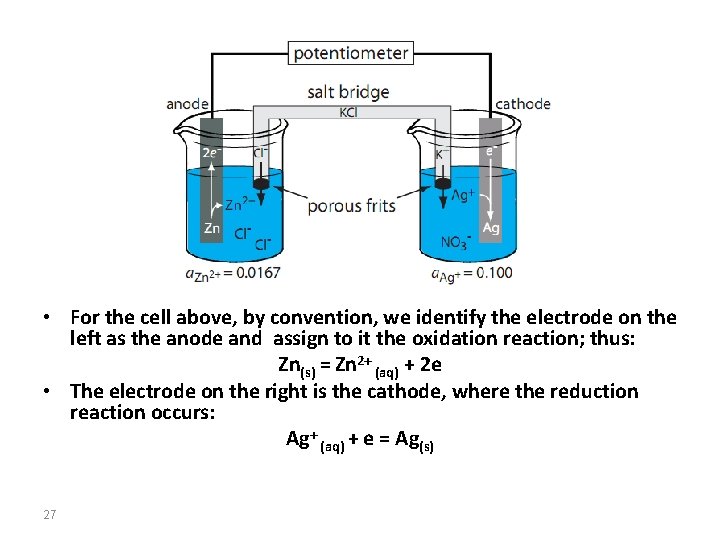

• For the cell above, by convention, we identify the electrode on the left as the anode and assign to it the oxidation reaction; thus: Zn(s) = Zn 2+ (aq) + 2 e • The electrode on the right is the cathode, where the reduction reaction occurs: Ag+ (aq) + e = Ag(s) 27

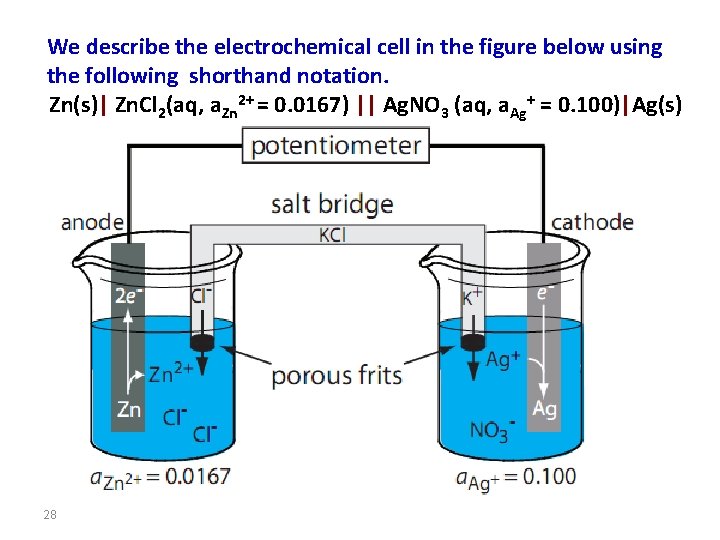

We describe the electrochemical cell in the figure below using the following shorthand notation. Zn(s)| Zn. Cl 2(aq, a. Zn 2+ = 0. 0167) || Ag. NO 3 (aq, a. Ag+ = 0. 100)|Ag(s) 28

Effect of Concentration on Electrode Potential The IUPAC convention for writing half-cell reactions is to represent the process as a reduction. The more positive half-cell reaction is the oxidizing agent, and the less positive half-cell reaction is the reducing agent. The relationship between the concentration and the electrode potential for a half-cell reaction is represented by Nernst equation, where for the halfcell reaction, we have: a. A + b. B + ne D c. C + d. D Eo = x V 29

The Nernst equation can be written as: E = Eo – (RT/n. F) ln {[C]c[D]d/[A]a[B]b} Where, R is the molar gas constant (R = 8. 314 J mol-1 K 1), T is the absolute temperature in Kelvin ( T = o. C + 273) and F is the Faraday constant ( F = 96485 Coulomb. eq-1) and n is the number of electrons per mole. One may write after substitution: E = Eo – (0. 0592/n) log {[C]c[D]d/[A]a[B]b} 30

Example Calculate the electrode potential for the half-cell below if the solution contains 0. 100 M Cu 2+. The half-cell reaction is: Cu 2+ + 2 e D Cu (s) Eo = 0. 342 V Solution E = Eo – (0. 0592/n) log [Cu(s)]/[Cu 2+] E = 0. 342 – (0. 0592/2) log 1/0. 100 E = 0. 312 V 31

Example Calculate the electrode potential of a half-cell containing 0. 100 M KMn. O 4 and 0. 0500 M Mn. Cl 2 at p. H 1. 000. Solution Mn. O 4 - + 8 H+ + 5 e D Mn 2+ + 4 H 2 O Eo = 1. 51 V E = Eo – (0. 0592/n) log [Mn 2+]/[Mn. O 4 -][H+]8 E = 1. 51 – (0. 0592/5) log 0. 0500/0. 100*(0. 100)8 E = 1. 42 V 32

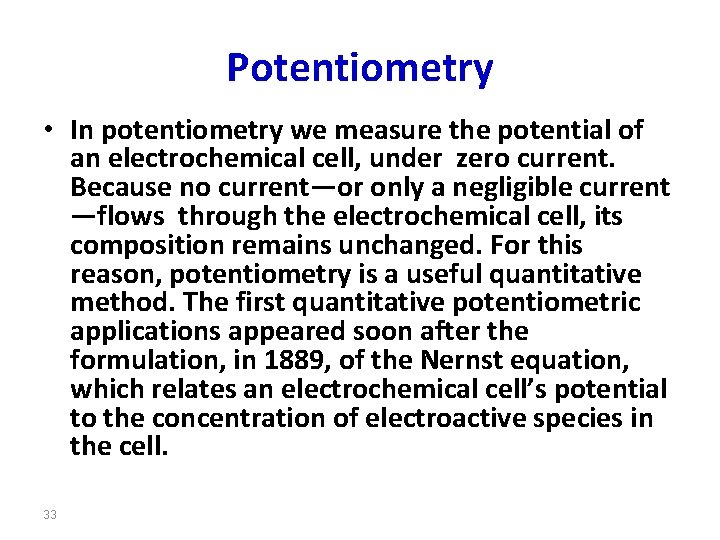

Potentiometry • In potentiometry we measure the potential of an electrochemical cell, under zero current. Because no current—or only a negligible current —flows through the electrochemical cell, its composition remains unchanged. For this reason, potentiometry is a useful quantitative method. The first quantitative potentiometric applications appeared soon after the formulation, in 1889, of the Nernst equation, which relates an electrochemical cell’s potential to the concentration of electroactive species in the cell. 33

potentiometric electrodes are currently widely used in many fields, including clinical diagnostics, industrial process control, environmental monitoring, etc. For example, such devices are used in nearly all hospitals around the globe for assessing several physiologically important blood electrolytes (H+, K+, Cl-, Ca 2+, Na+ , Mg 2+) relevant to various health problems. The speed at which this field has developed is a measure of the degree to which potentiometric measurements meet the needs of the analytical chemist for rapid, lowcost, and accurate analysis. 34

The equipment required for direct potentiometric measurements includes an ion-selective electrode, a reference electrode, and a potential-measuring device (a p. H/millivolt meter that can read 0. 2 m. V or better). The reference electrode should provide a highly stable potential for an extended period of time. The ion-selective electrode is an indicator electrode capable of selectively measuring the activity of a particular ionic species (known as the primary or analyte ion). Such electrodes exhibit a fast response and a wide linear range, are not affected by color or turbidity, are not destructive, and inexpensive. 35

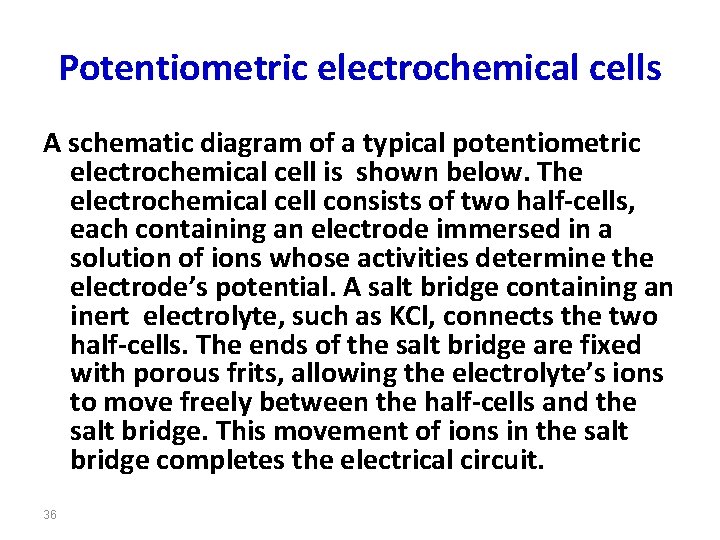

Potentiometric electrochemical cells A schematic diagram of a typical potentiometric electrochemical cell is shown below. The electrochemical cell consists of two half-cells, each containing an electrode immersed in a solution of ions whose activities determine the electrode’s potential. A salt bridge containing an inert electrolyte, such as KCl, connects the two half-cells. The ends of the salt bridge are fixed with porous frits, allowing the electrolyte’s ions to move freely between the half-cells and the salt bridge. This movement of ions in the salt bridge completes the electrical circuit. 36

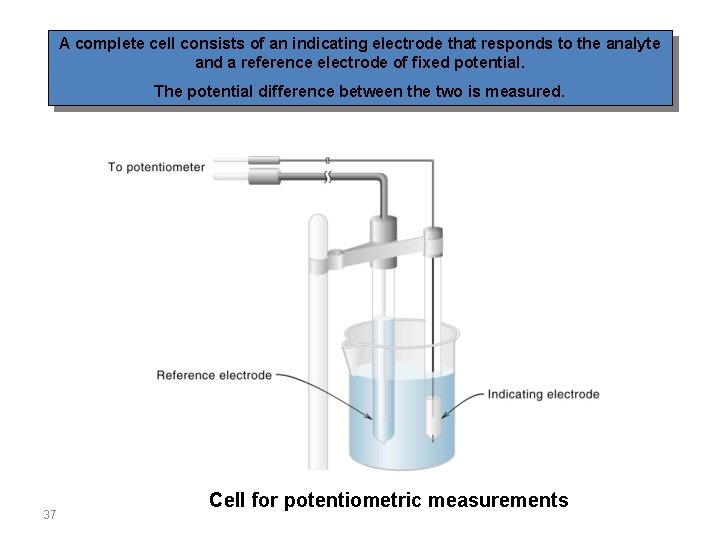

A complete cell consists of an indicating electrode that responds to the analyte and a reference electrode of fixed potential. The potential difference between the two is measured. 37 Cell for potentiometric measurements

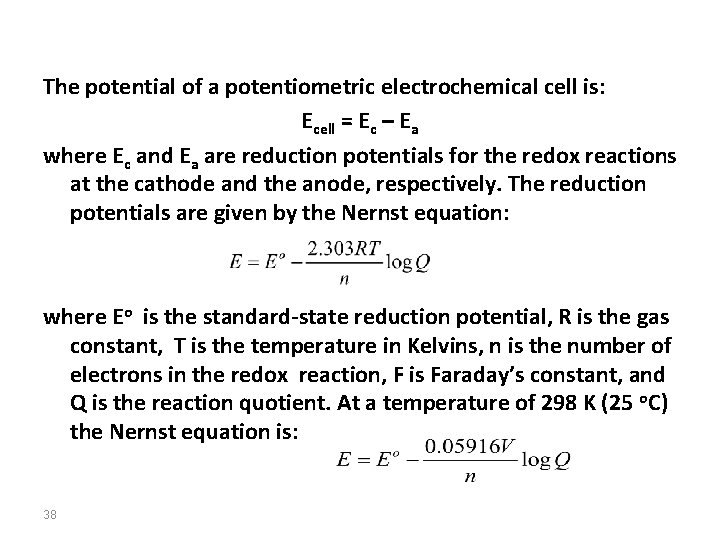

The potential of a potentiometric electrochemical cell is: Ecell = Ec – Ea where Ec and Ea are reduction potentials for the redox reactions at the cathode and the anode, respectively. The reduction potentials are given by the Nernst equation: where Eo is the standard-state reduction potential, R is the gas constant, T is the temperature in Kelvins, n is the number of electrons in the redox reaction, F is Faraday’s constant, and Q is the reaction quotient. At a temperature of 298 K (25 o. C) the Nernst equation is: 38

Junction Potentials A junction potential develops at the interface between two ionic solutions if there exists a difference in the concentration and mobility of the ions. Consider, for example, a porous membrane separating solutions of 0. 1 M HCl and 0. 01 M HCl. Because the concentration of HCl on the membrane’s left side is greater than that on the right side of the membrane, H+ and Cl– diffuse in the direction of the arrows. The mobility of H+, however, is greater than that for Cl–, as shown by the difference in the lengths of their respective arrows. Because of this difference in mobility, the solution on the right side of the membrane has an excess of H+ and a positive charge 39

Origin of the junction potential between a solution of 0. 1 M HCl and a solution of 0. 01 M HCl 40

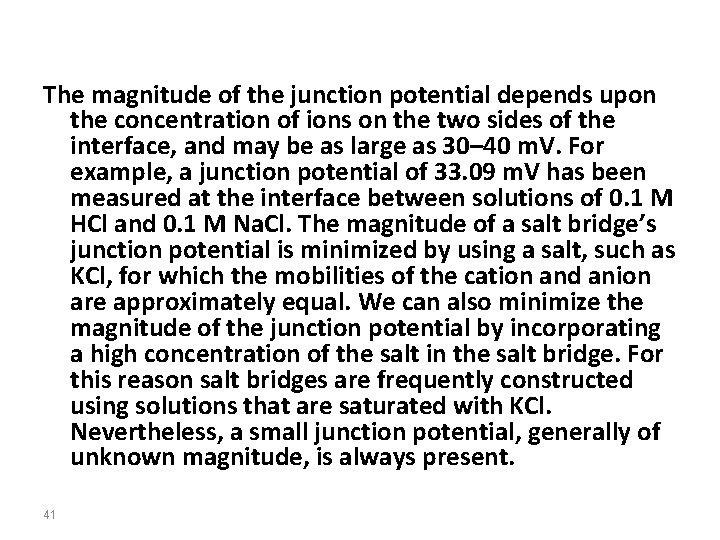

The magnitude of the junction potential depends upon the concentration of ions on the two sides of the interface, and may be as large as 30– 40 m. V. For example, a junction potential of 33. 09 m. V has been measured at the interface between solutions of 0. 1 M HCl and 0. 1 M Na. Cl. The magnitude of a salt bridge’s junction potential is minimized by using a salt, such as KCl, for which the mobilities of the cation and anion are approximately equal. We can also minimize the magnitude of the junction potential by incorporating a high concentration of the salt in the salt bridge. For this reason salt bridges are frequently constructed using solutions that are saturated with KCl. Nevertheless, a small junction potential, generally of unknown magnitude, is always present. 41

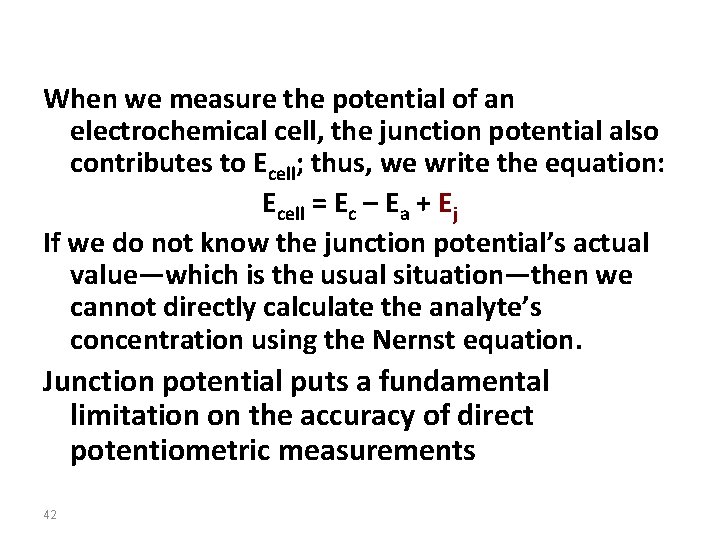

When we measure the potential of an electrochemical cell, the junction potential also contributes to Ecell; thus, we write the equation: Ecell = Ec – Ea + Ej If we do not know the junction potential’s actual value—which is the usual situation—then we cannot directly calculate the analyte’s concentration using the Nernst equation. Junction potential puts a fundamental limitation on the accuracy of direct potentiometric measurements 42

Indicator Electrodes There are to types of electrodes used in potentiometric analysis: 1. Metallic electrodes 2. Ion-selective electrodes Metallic Indicator Electrodes In potentiometry the potential of the indicator electrode is proportional to the analyte's activity. Two classes of indicator electrodes are used in potentiometry: metallic electrodes and ion-selective electrodes. 43

Metallic indicator electrodes 1 - Electrodes of the first kind: An electrode of this type is a metal in contact with a solution containing its cation. The most common ones: a- Silver electrode (dipping in a solution of Ag. NO 3) : Ag+ + e D Ag b- Copper electrode: Cu+2 + 2 e D Cu c- Zn electrode: Zn+2 + 2 e D Zn 2 - Electrode of the second kind: Electrode of this kind is a metal wire that coated with one of its salts precipitate. A common example is silver electrode and Ag. Cl as its salt precipitate. 3 - Redox electrode: An inert electrode that serves as a source of sink for electrons for redox half reaction, or in another words; an inert metal is in contact with a solution containing the soluble oxidized and reduced forms of the redox half-reaction. Platinum (Pt) 44 is usually the inert metal.
