# Potential Energy Problems h Potential Energy Problems ppt

Potential Energy Problems h Potential Energy Problems. ppt

Problem 1 A block of mass m moving across a surface collides with an ideal spring having a force constant k. The spring compresses a distance x as it brings the block to rest. Assume the horizontal surface is frictionless. The speed of the block at the instant it collides with the spring is Potential Energy Problems. ppt

m Problem 2 L A body of mass m slides from rest down a plane inclined at an angle q with the horizontal. q The block slides for a distance L before reaching the bottom of the incline. Assume the surface is frictionless. The speed of the block at the bottom is h Potential Energy Problems. ppt

Problem 3 m h L q m A body of mass m slides from rest down a plane inclined at an angle q with the horizontal. The block slides for a distance L before reaching the bottom of the incline. The coefficient of kinetic friction between all surfaces and the block is m. The distance the block slides on the horizontal surface before coming to rest is Potential Energy Problems. ppt

Problem 4 m d q m KE A block of mass m moving with kinetic energy KE starts up an incline which makes an angle q with the horizontal. The coefficient of kinetic friction between the block and the incline is m. The distance the block slides along the incline before coming to rest is Potential Energy Problems. ppt

Problem 5 F m q A block of mass m is pushed up a frictionless incline by a constant horizontal force F. The incline has a length L and makes an angle q with the horizontal. The speed of the block on the incline is v at the bottom and 2 v at the top. The work done by the force is Potential Energy Problems. ppt

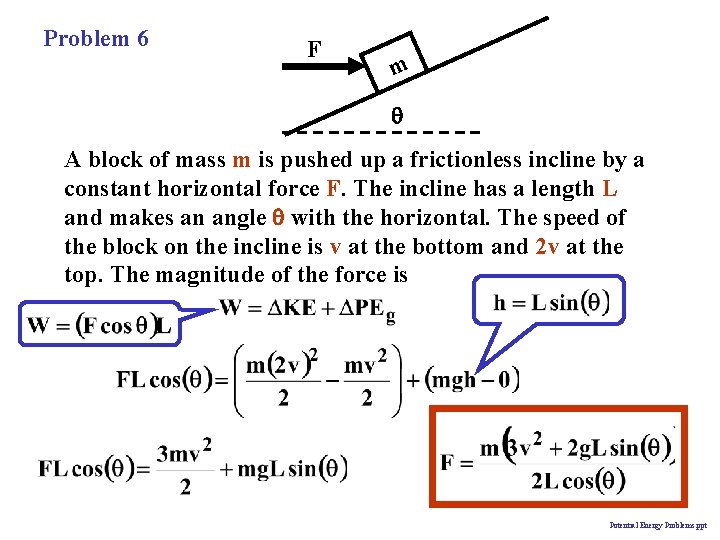

Problem 6 F m q A block of mass m is pushed up a frictionless incline by a constant horizontal force F. The incline has a length L and makes an angle q with the horizontal. The speed of the block on the incline is v at the bottom and 2 v at the top. The magnitude of the force is Potential Energy Problems. ppt

Problem 7 h A small block slides along a curved track from a height h on to a horizontal track. The curved portion of the track has no friction and the coefficient of kinetic friction between the block and the flat portion of the track is m. The distance the block slides on the flat portion of the track before coming to rest is Potential Energy Problems. ppt

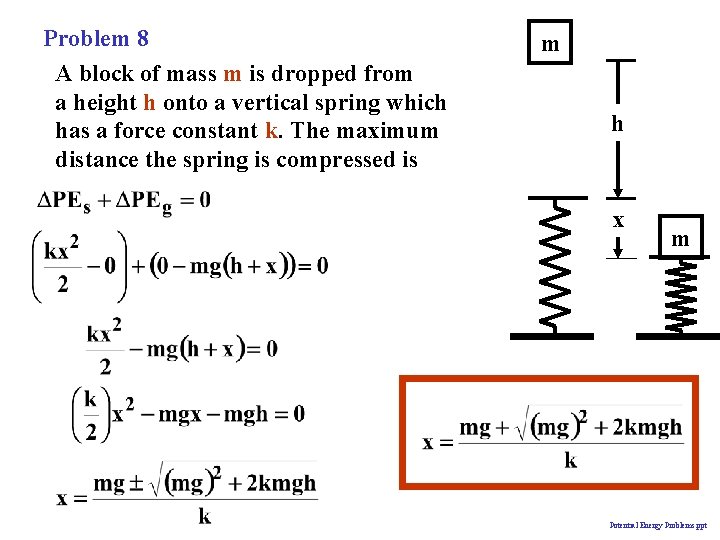

Problem 8 A block of mass m is dropped from a height h onto a vertical spring which has a force constant k. The maximum distance the spring is compressed is m h x m Potential Energy Problems. ppt

Problem 9 Atwood’s machine consists of two masses which are connected by a light string which passes over a frictionless pulley as shown. Mass m lies on the floor when mass 2 m is released from rest. The speed at which the 2 m mass hits the floor is 2 m h m Potential Energy Problems. ppt

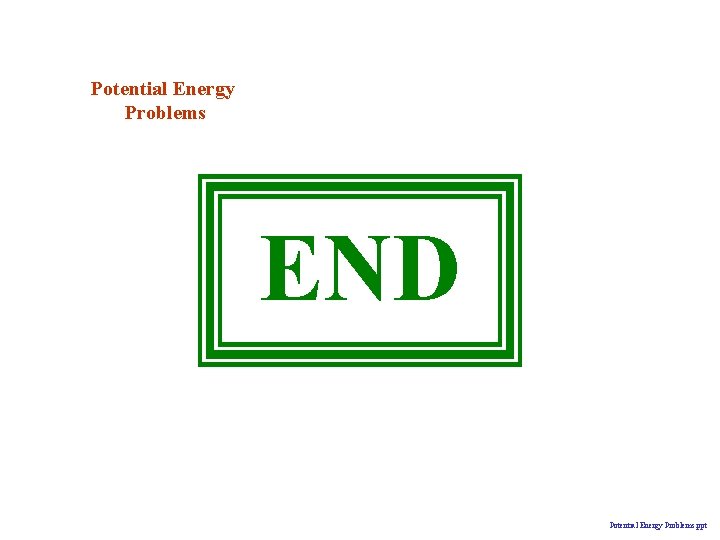

Potential Energy Problems END Potential Energy Problems. ppt

- Slides: 11
