Posting Bridges for Specialized SingleUnit Trucks Bert Hartman

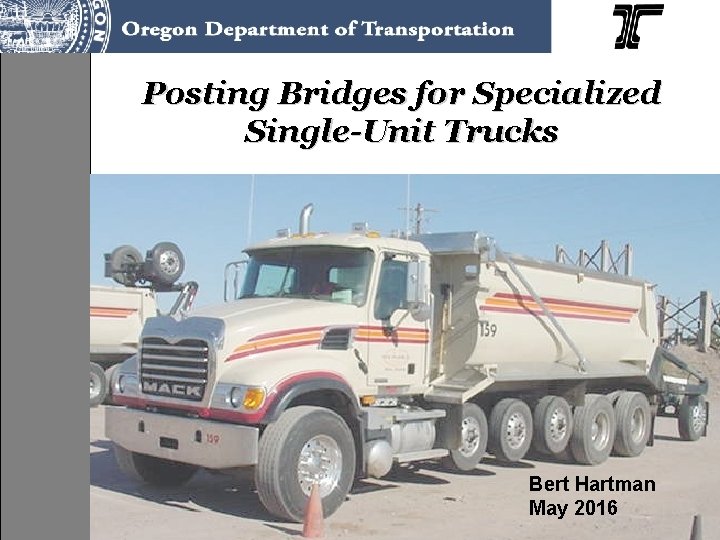

Posting Bridges for Specialized Single-Unit Trucks Bert Hartman May 2016 1

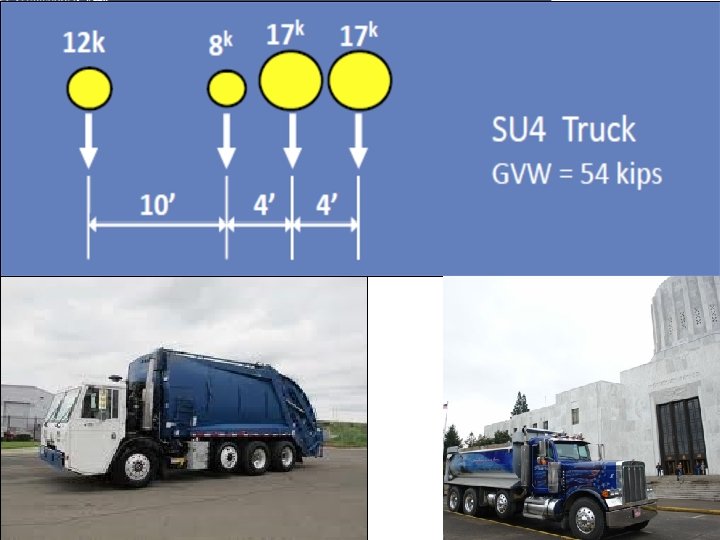

2

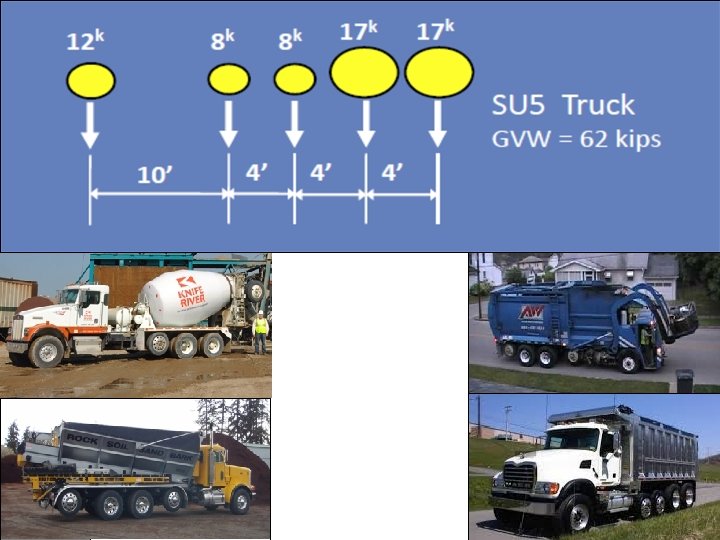

3

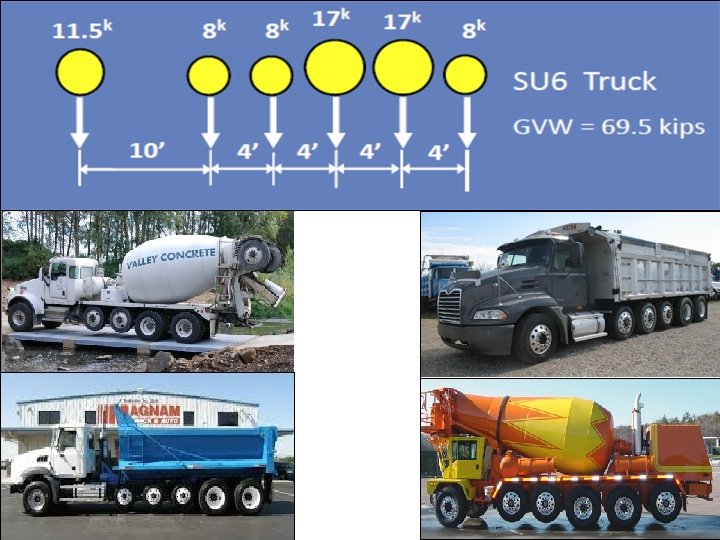

4

5

FHWA Memo on SHV Ratings November 2013 • Category 1 Bridges – Rating factors less than 1. 3 for any of the 3 standard legal vehicles – Must be complete by December 2017 • Category 2 Bridges – All remaining load ratings need to be updated for the SHV’s – Must be complete by December 2022 – 3710 Bridges Total, 2800 Local Agency 6

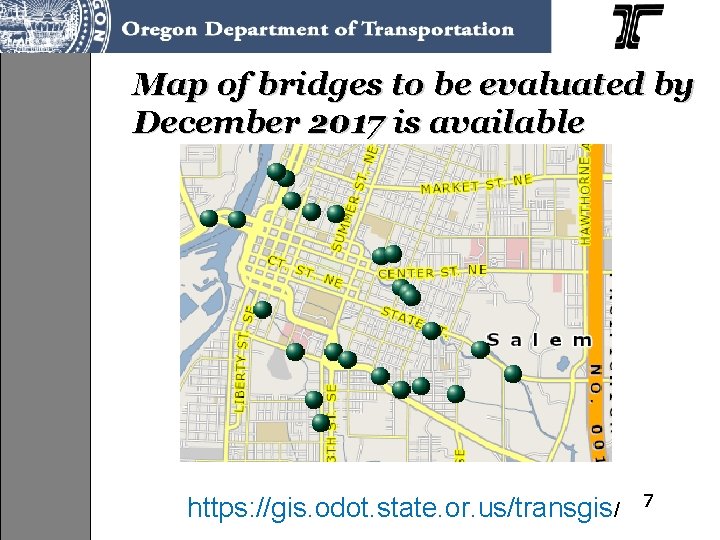

Map of bridges to be evaluated by December 2017 is available https: //gis. odot. state. or. us/transgis/ 7

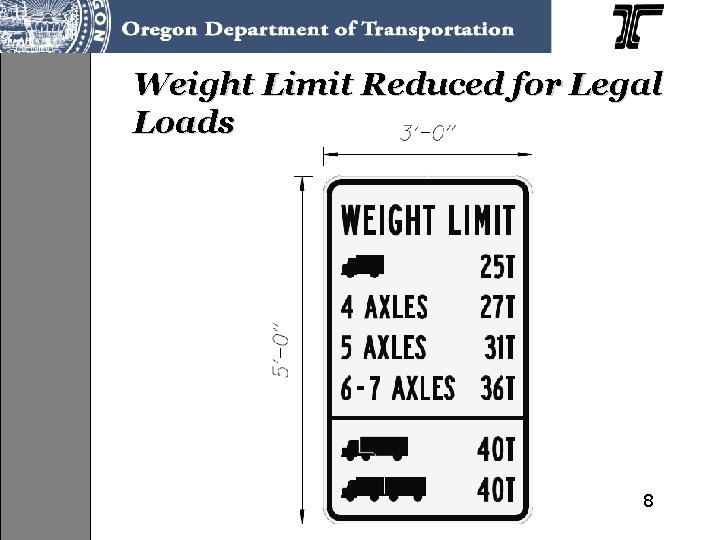

Weight Limit Reduced for Legal Loads 8

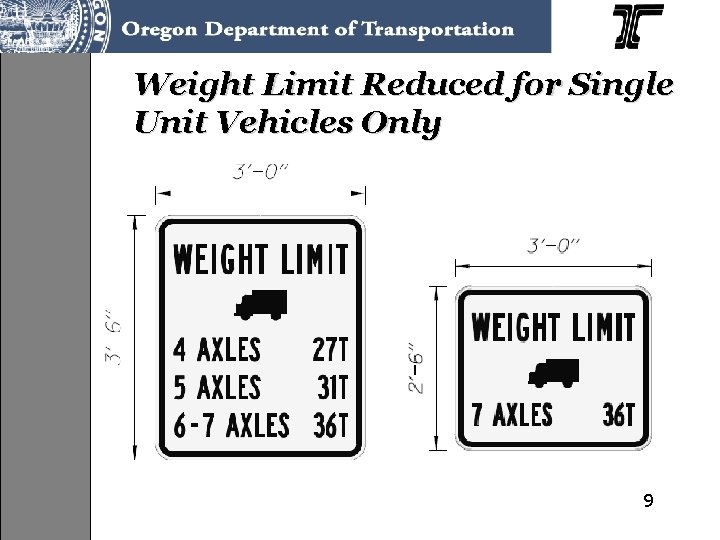

Weight Limit Reduced for Single Unit Vehicles Only 9

Coordination with FHWA on 29 Posted Bridges – 15 Tons or Less 10

Bridge With 15 Foot Spans 11

Concrete Bridges With No Plans (246) • Load capacity cannot be calculated • Judgement is used – Bridges in service more than 20 years with no distress have adequate load capacity for legal loads up to the SU 4 – Concrete bridges without plans that are in fair or better condition will be posted for the SU 5, SU 6, and SU 7 12

Concrete Bridges With No Plans • Reduced capacity based on condition 13

728 Category 1 Bridges To Rate • • • 259 Reinforced Concrete Girder 213 Timber 178 Steel I Girder 43 Steel Truss 15 Arch Bridges 12 Complex Bridges 4 Culverts 2 Post Tensioned Girder 2 Steel Box Girder 14

186 Category 1 Bridges Rated • 59 Reinforced Concrete Girder – 20 Rating Factors Above 1. 0 – 39 Under Review • 126 Steel I Girder – 15 Rating Factors Above 1. 0 – 111 Under Review (Bracing Issues) • 1 Post Tensioned Girder – 1 Rating Factor above 1. 0 15

Category 1 Load Rating Status • Arch Bridges – Procedures under development – 2 bridges to be rated – 13 remaining arch bridges • Timber – Procedures under development – 4 bridges to be rated – 194 remaining timber bridges 16

Load Restriction Letters • There are currently 40 bridges that are in progress for writing load restriction letters on. 17

Steel I-Girder Bridge Under Review 18

Steel I-Girder Bridge Under Review 19

Retrofit of ODOT Bridge 20

Retrofit of ODOT Bridge 96 holes drilled in the deck of a 22 foot by 26 foot bridge Cost $32, 000 21

Steel I-Girder Bridge, Steel Deck 22

Lake Slough – 99 W Built in 1919 23

Poor Reinforcement Details 24

Load Testing 25

Lake Slough • Advanced Analysis to avoid load Posting • Monthly monitoring until replaced • Replacement to be bid in Sept 2016 • Project Estimate- $2. 9 M 26

Ochoco Creek Widened Both Sides – 1954 27

No Plans for the original Bridge Freeze/Thaw Damage Shear and Flexure Cracks 28

Temporary Repair 29

Repair Cost - $55 K Replacement Cost -$2. 9 M 30

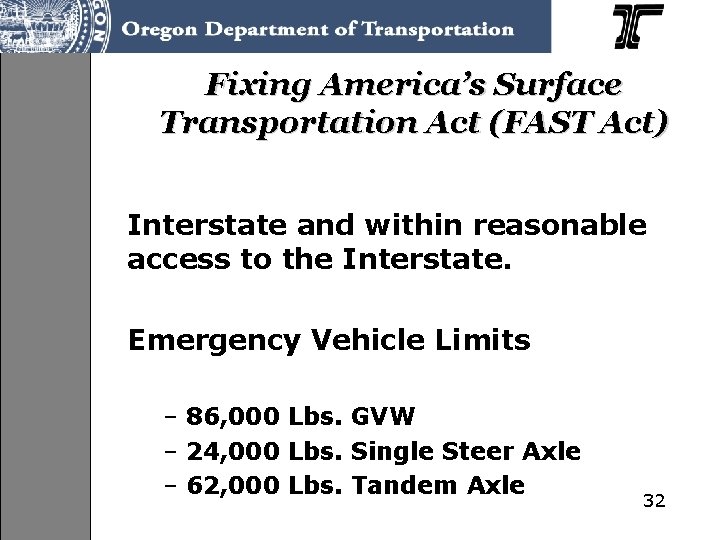

Fixing America’s Surface Transportation Act (FAST Act) 31

Fixing America’s Surface Transportation Act (FAST Act) Interstate and within reasonable access to the Interstate. Emergency Vehicle Limits – 86, 000 Lbs. GVW – 24, 000 Lbs. Single Steer Axle – 62, 000 Lbs. Tandem Axle 32

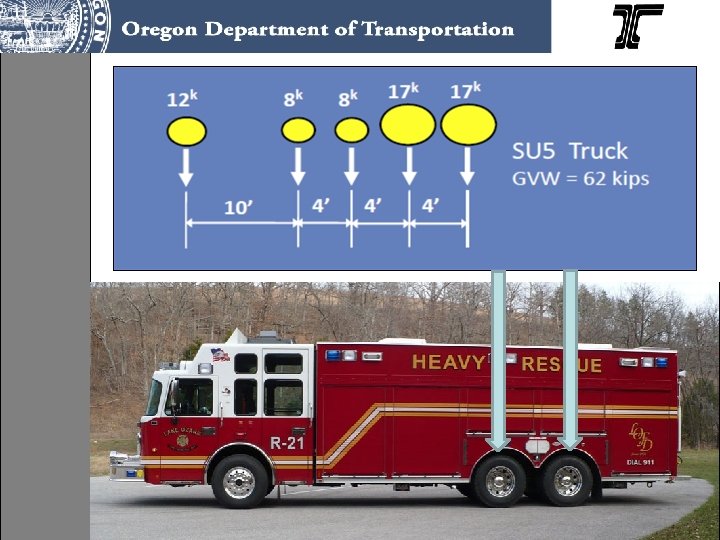

33

FHWA Memo on FAST Act States Must Consider These Vehicle Weight Limits When Load Rating And Posting Highway Bridges To Maintain Compliance 34

Emergency Vehicle Tire Width • OAR 734 -082 -0009 (6/18/2015) • 635 Pounds/Inch of Tire Width • 1950’s and 1960’s bridges with “thin decks” • Pavement fatigue damage increases to the fourth power 35

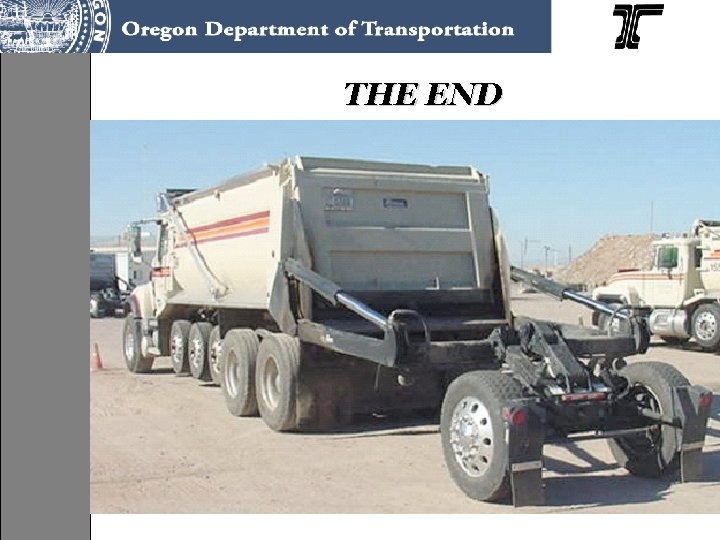

THE END 36
