Position Sizing for Traders Learning from simulations Dr

Position Sizing for Traders Learning from simulations Dr. Bruce Vanstone

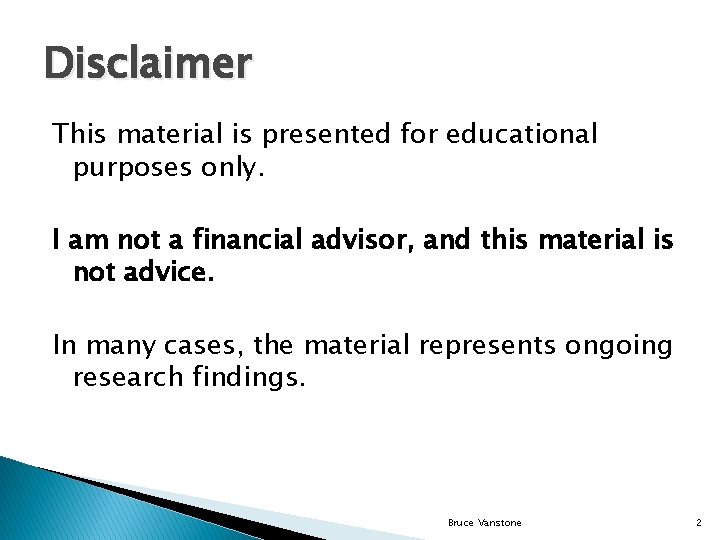

Disclaimer This material is presented for educational purposes only. I am not a financial advisor, and this material is not advice. In many cases, the material represents ongoing research findings. Bruce Vanstone 2

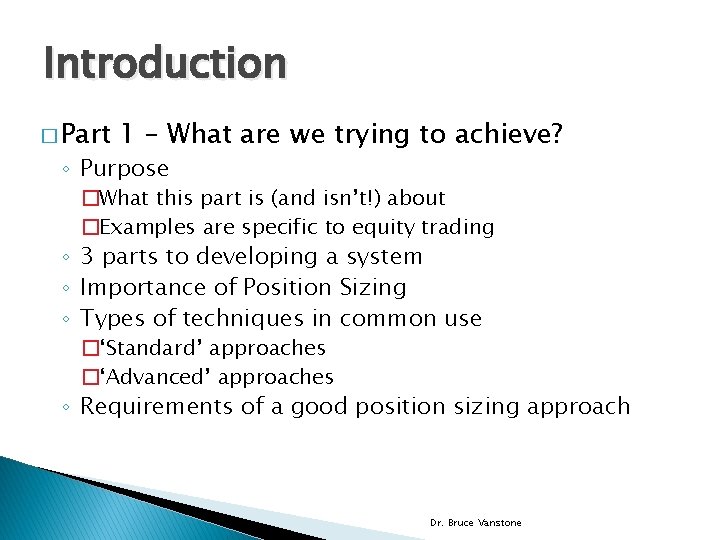

Introduction � Part 1 – What are we trying to achieve? ◦ Purpose �What this part is (and isn’t!) about �Examples are specific to equity trading ◦ 3 parts to developing a system ◦ Importance of Position Sizing ◦ Types of techniques in common use �‘Standard’ approaches �‘Advanced’ approaches ◦ Requirements of a good position sizing approach Dr. Bruce Vanstone

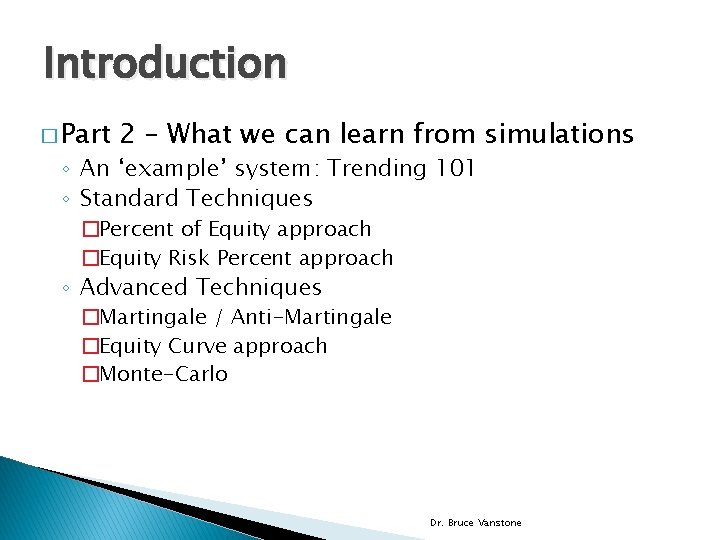

Introduction � Part 2 – What we can learn from simulations ◦ An ‘example’ system: Trending 101 ◦ Standard Techniques �Percent of Equity approach �Equity Risk Percent approach ◦ Advanced Techniques �Martingale / Anti-Martingale �Equity Curve approach �Monte-Carlo Dr. Bruce Vanstone

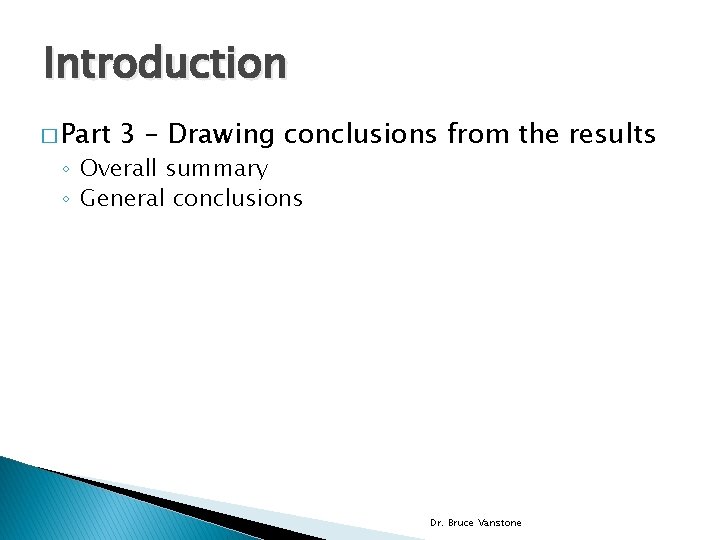

Introduction � Part 3 – Drawing conclusions from the results ◦ Overall summary ◦ General conclusions Dr. Bruce Vanstone

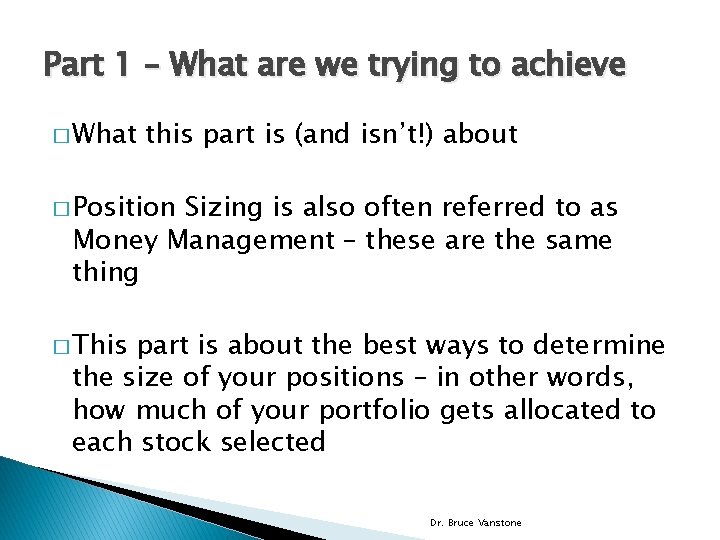

Part 1 – What are we trying to achieve � What this part is (and isn’t!) about � Position Sizing is also often referred to as Money Management – these are the same thing � This part is about the best ways to determine the size of your positions – in other words, how much of your portfolio gets allocated to each stock selected Dr. Bruce Vanstone

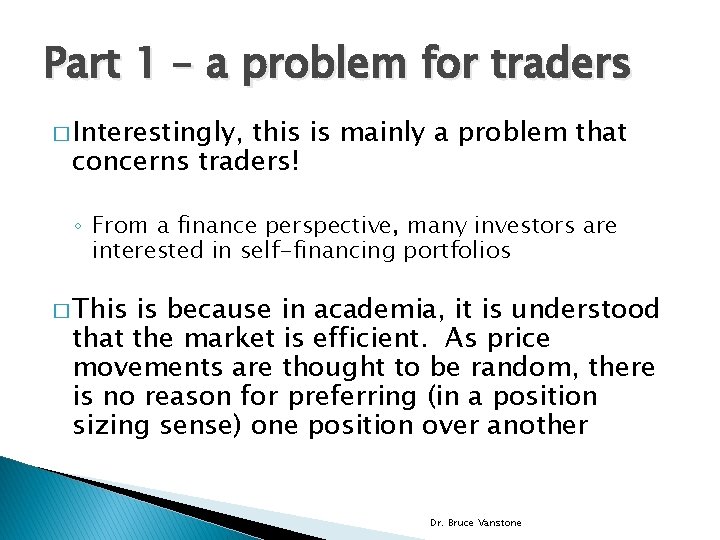

Part 1 – a problem for traders � Interestingly, this is mainly a problem that concerns traders! ◦ From a finance perspective, many investors are interested in self-financing portfolios � This is because in academia, it is understood that the market is efficient. As price movements are thought to be random, there is no reason for preferring (in a position sizing sense) one position over another Dr. Bruce Vanstone

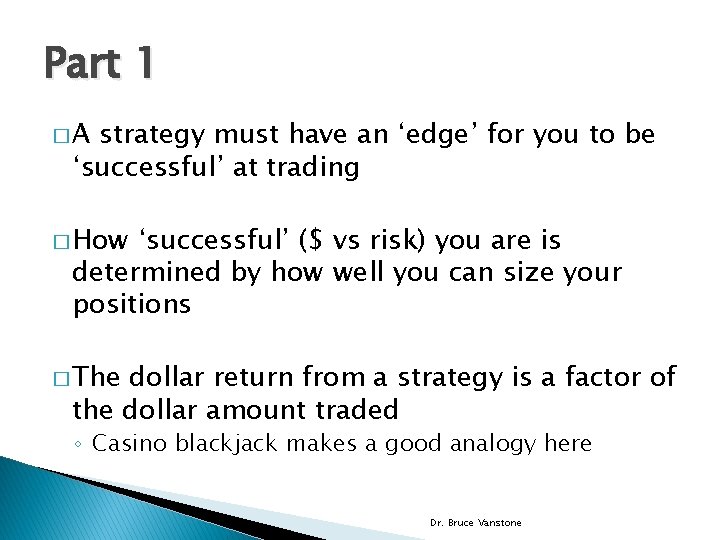

Part 1 �A strategy must have an ‘edge’ for you to be ‘successful’ at trading � How ‘successful’ ($ vs risk) you are is determined by how well you can size your positions � The dollar return from a strategy is a factor of the dollar amount traded ◦ Casino blackjack makes a good analogy here Dr. Bruce Vanstone

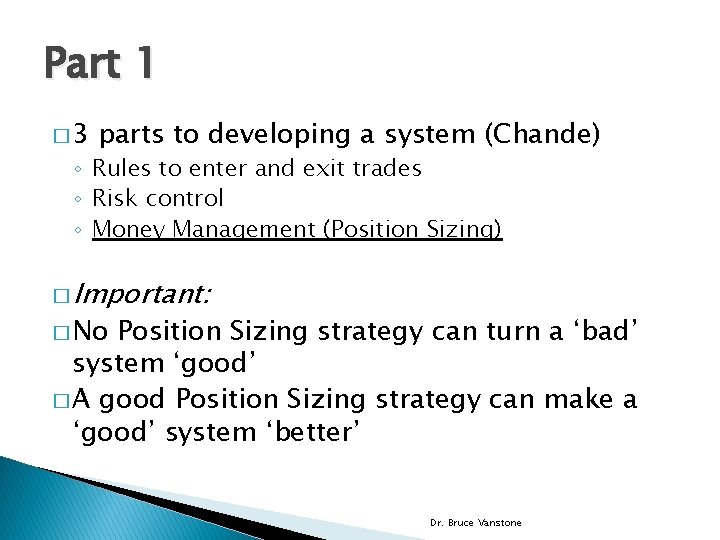

Part 1 � 3 parts to developing a system (Chande) ◦ Rules to enter and exit trades ◦ Risk control ◦ Money Management (Position Sizing) � Important: � No Position Sizing strategy can turn a ‘bad’ system ‘good’ � A good Position Sizing strategy can make a ‘good’ system ‘better’ Dr. Bruce Vanstone

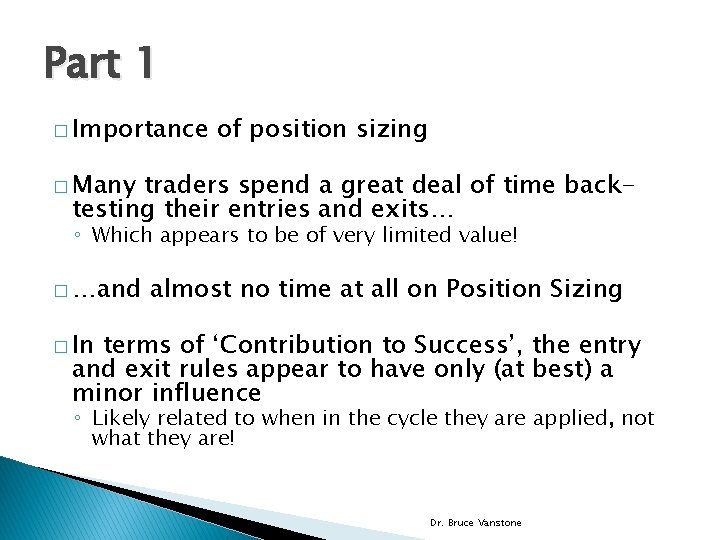

Part 1 � Importance of position sizing � Many traders spend a great deal of time backtesting their entries and exits… ◦ Which appears to be of very limited value! � …and almost no time at all on Position Sizing � In terms of ‘Contribution to Success’, the entry and exit rules appear to have only (at best) a minor influence ◦ Likely related to when in the cycle they are applied, not what they are! Dr. Bruce Vanstone

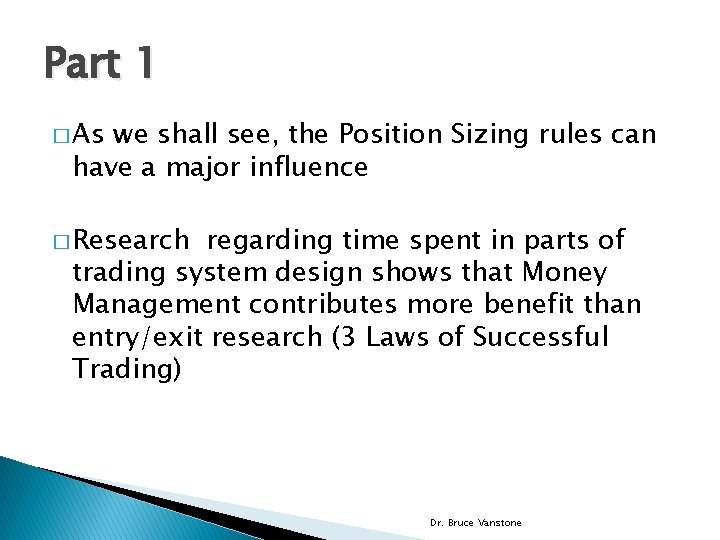

Part 1 � As we shall see, the Position Sizing rules can have a major influence � Research regarding time spent in parts of trading system design shows that Money Management contributes more benefit than entry/exit research (3 Laws of Successful Trading) Dr. Bruce Vanstone

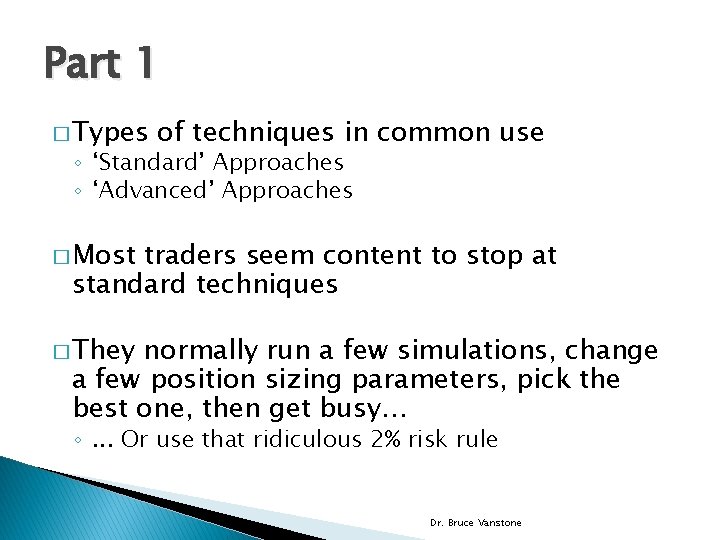

Part 1 � Types of techniques in common use ◦ ‘Standard’ Approaches ◦ ‘Advanced’ Approaches � Most traders seem content to stop at standard techniques � They normally run a few simulations, change a few position sizing parameters, pick the best one, then get busy… ◦. . . Or use that ridiculous 2% risk rule Dr. Bruce Vanstone

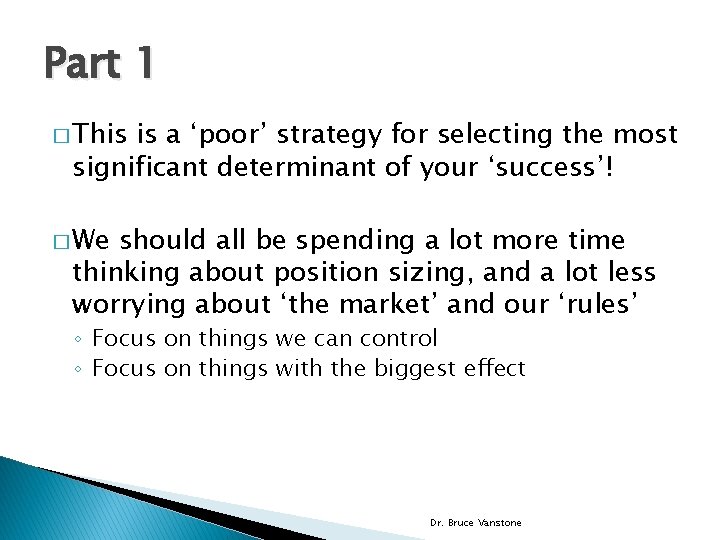

Part 1 � This is a ‘poor’ strategy for selecting the most significant determinant of your ‘success’! � We should all be spending a lot more time thinking about position sizing, and a lot less worrying about ‘the market’ and our ‘rules’ ◦ Focus on things we can control ◦ Focus on things with the biggest effect Dr. Bruce Vanstone

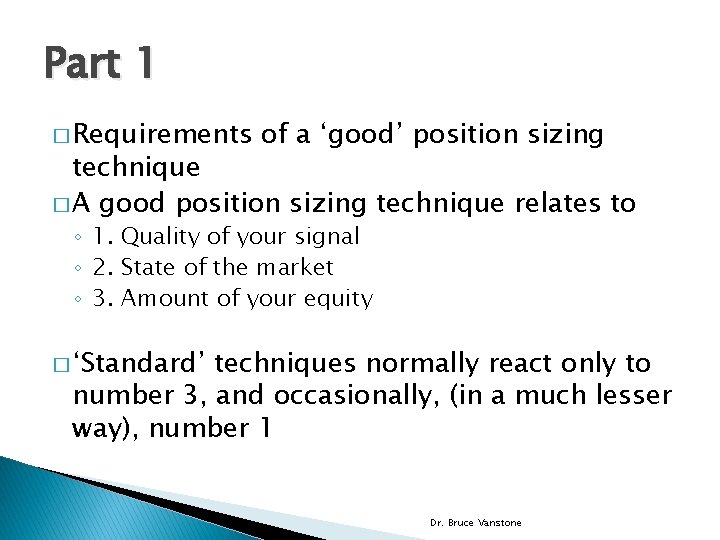

Part 1 � Requirements of a ‘good’ position sizing technique � A good position sizing technique relates to ◦ 1. Quality of your signal ◦ 2. State of the market ◦ 3. Amount of your equity � ‘Standard’ techniques normally react only to number 3, and occasionally, (in a much lesser way), number 1 Dr. Bruce Vanstone

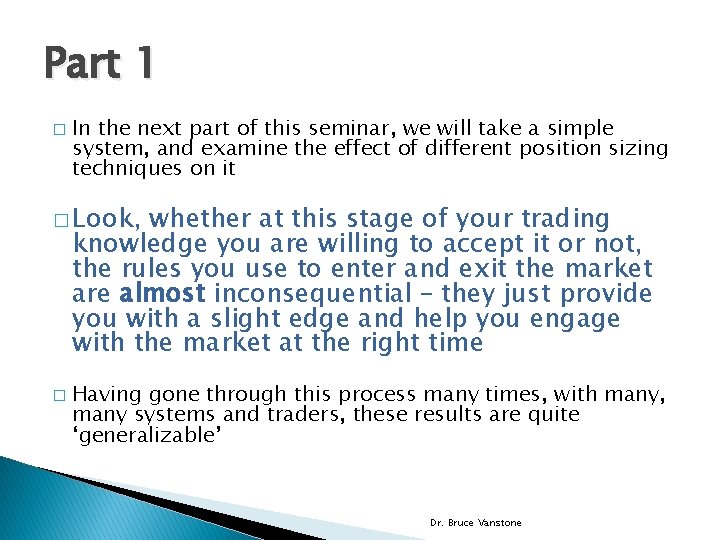

Part 1 � In the next part of this seminar, we will take a simple system, and examine the effect of different position sizing techniques on it � Look, whether at this stage of your trading knowledge you are willing to accept it or not, the rules you use to enter and exit the market are almost inconsequential – they just provide you with a slight edge and help you engage with the market at the right time � Having gone through this process many times, with many, many systems and traders, these results are quite ‘generalizable’ Dr. Bruce Vanstone

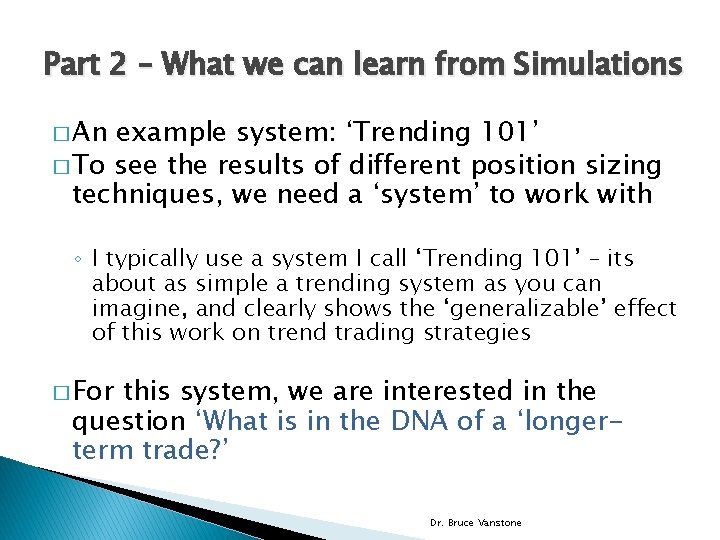

Part 2 – What we can learn from Simulations � An example system: ‘Trending 101’ � To see the results of different position sizing techniques, we need a ‘system’ to work with ◦ I typically use a system I call ‘Trending 101’ – its about as simple a trending system as you can imagine, and clearly shows the ‘generalizable’ effect of this work on trend trading strategies � For this system, we are interested in the question ‘What is in the DNA of a ‘longerterm trade? ’ Dr. Bruce Vanstone

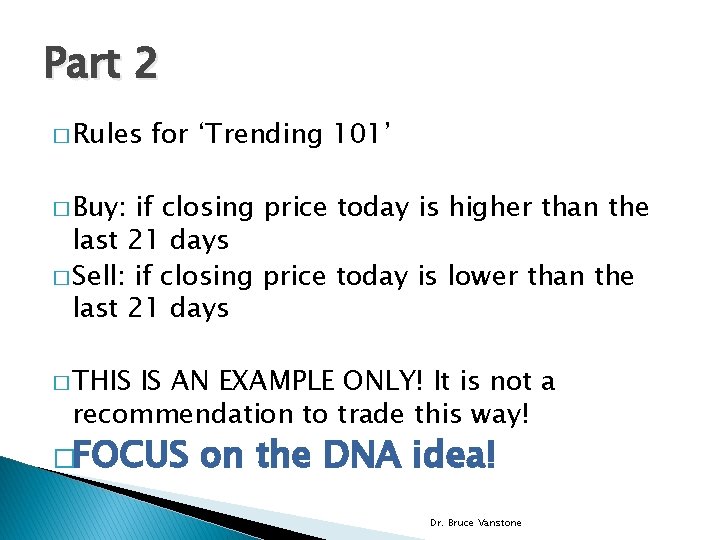

Part 2 � Rules for ‘Trending 101’ � Buy: if closing price today is higher than the last 21 days � Sell: if closing price today is lower than the last 21 days � THIS IS AN EXAMPLE ONLY! It is not a recommendation to trade this way! �FOCUS on the DNA idea! Dr. Bruce Vanstone

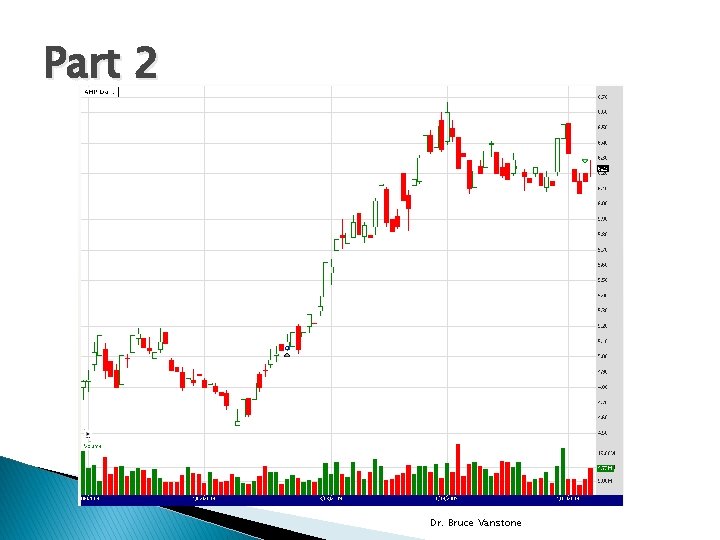

Part 2 Dr. Bruce Vanstone

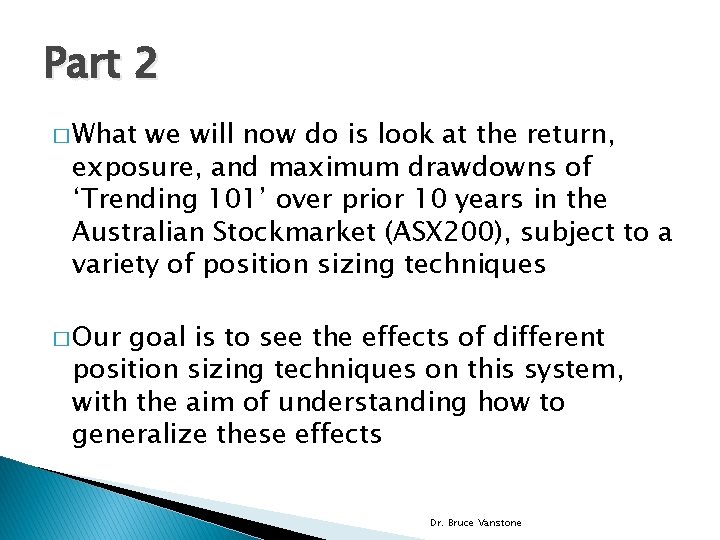

Part 2 � What we will now do is look at the return, exposure, and maximum drawdowns of ‘Trending 101’ over prior 10 years in the Australian Stockmarket (ASX 200), subject to a variety of position sizing techniques � Our goal is to see the effects of different position sizing techniques on this system, with the aim of understanding how to generalize these effects Dr. Bruce Vanstone

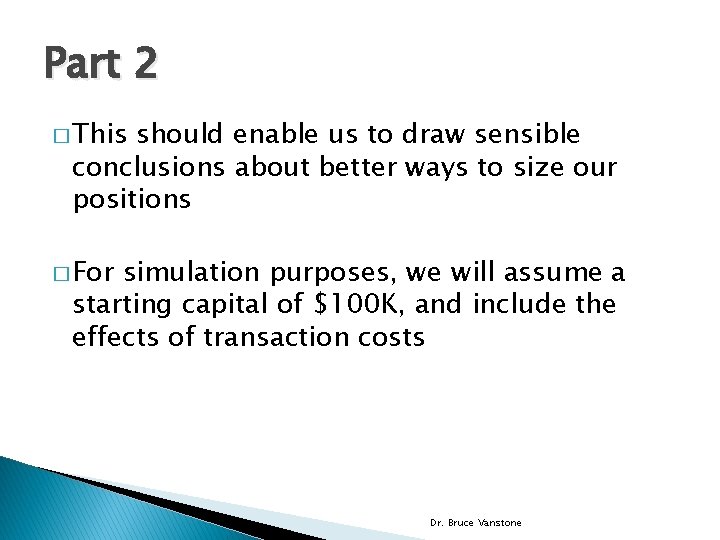

Part 2 � This should enable us to draw sensible conclusions about better ways to size our positions � For simulation purposes, we will assume a starting capital of $100 K, and include the effects of transaction costs Dr. Bruce Vanstone

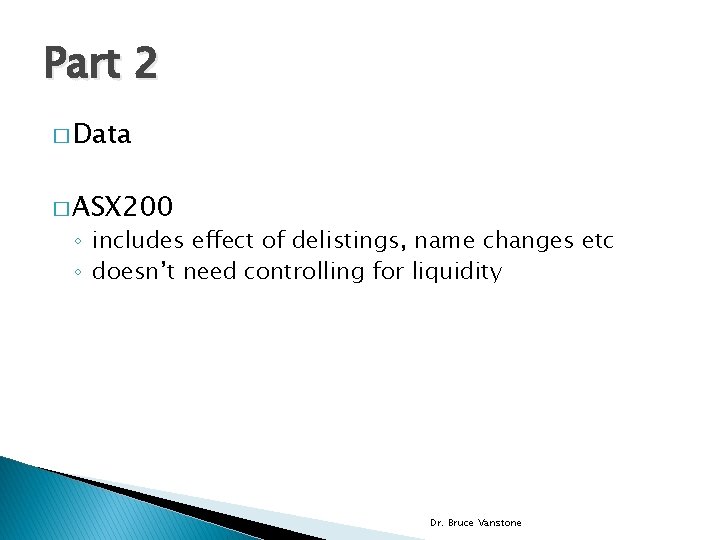

Part 2 � Data � ASX 200 ◦ includes effect of delistings, name changes etc ◦ doesn’t need controlling for liquidity Dr. Bruce Vanstone

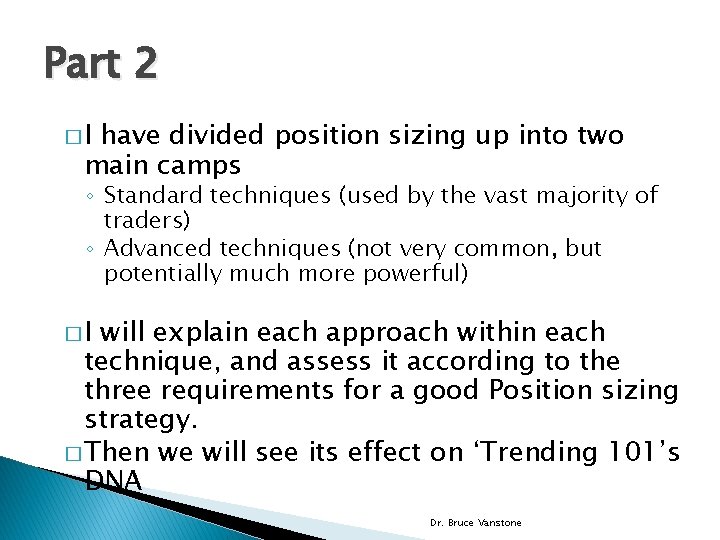

Part 2 �I have divided position sizing up into two main camps ◦ Standard techniques (used by the vast majority of traders) ◦ Advanced techniques (not very common, but potentially much more powerful) �I will explain each approach within each technique, and assess it according to the three requirements for a good Position sizing strategy. � Then we will see its effect on ‘Trending 101’s DNA Dr. Bruce Vanstone

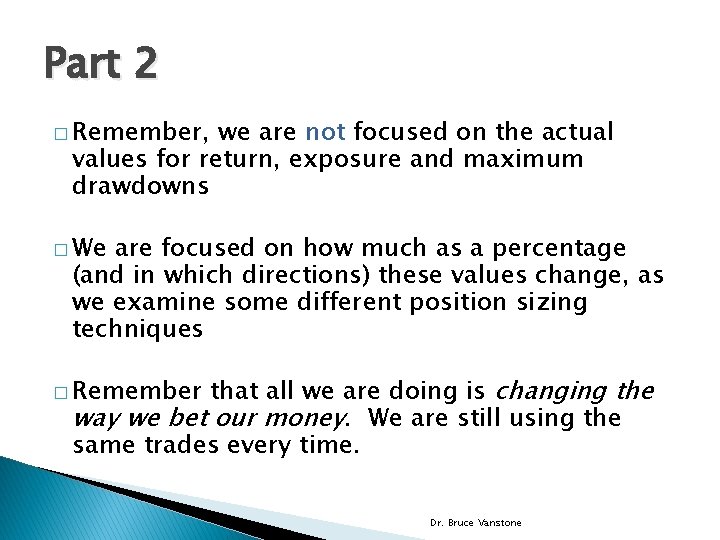

Part 2 � Remember, we are not focused on the actual values for return, exposure and maximum drawdowns � We are focused on how much as a percentage (and in which directions) these values change, as we examine some different position sizing techniques that all we are doing is changing the way we bet our money. We are still using the same trades every time. � Remember Dr. Bruce Vanstone

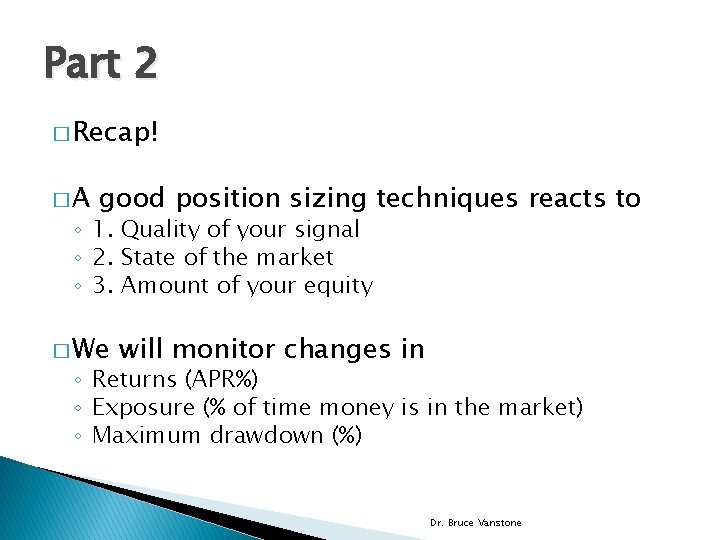

Part 2 � Recap! �A good position sizing techniques reacts to ◦ 1. Quality of your signal ◦ 2. State of the market ◦ 3. Amount of your equity � We will monitor changes in ◦ Returns (APR%) ◦ Exposure (% of time money is in the market) ◦ Maximum drawdown (%) Dr. Bruce Vanstone

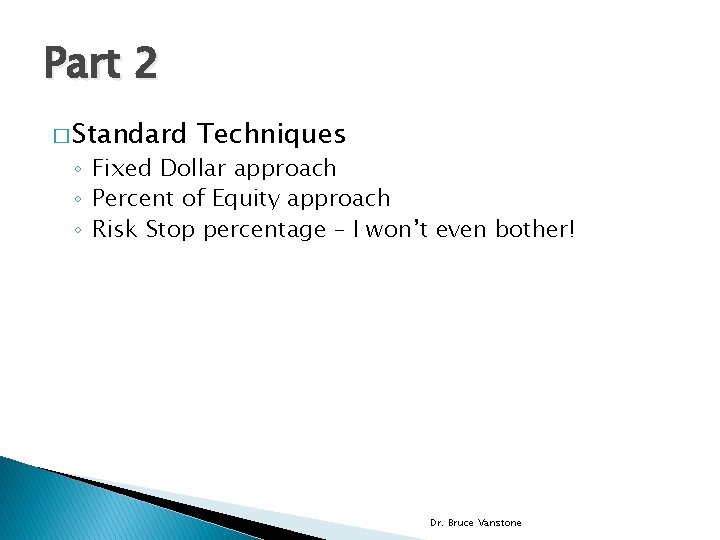

Part 2 � Standard Techniques ◦ Fixed Dollar approach ◦ Percent of Equity approach ◦ Risk Stop percentage – I won’t even bother! Dr. Bruce Vanstone

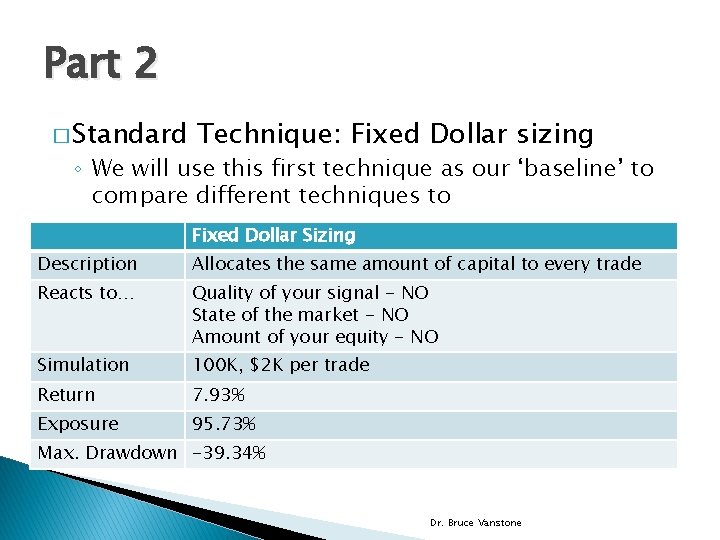

Part 2 � Standard Technique: Fixed Dollar sizing ◦ We will use this first technique as our ‘baseline’ to compare different techniques to Fixed Dollar Sizing Description Allocates the same amount of capital to every trade Reacts to… Quality of your signal - NO State of the market - NO Amount of your equity - NO Simulation 100 K, $2 K per trade Return 7. 93% Exposure 95. 73% Max. Drawdown -39. 34% Dr. Bruce Vanstone

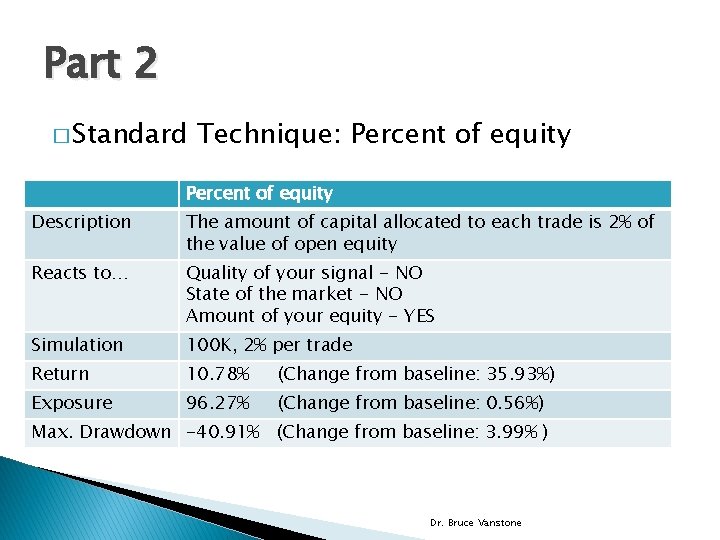

Part 2 � Standard Technique: Percent of equity Description The amount of capital allocated to each trade is 2% of the value of open equity Reacts to… Quality of your signal - NO State of the market - NO Amount of your equity - YES Simulation 100 K, 2% per trade Return 10. 78% (Change from baseline: 35. 93%) Exposure 96. 27% (Change from baseline: 0. 56%) Max. Drawdown -40. 91% (Change from baseline: 3. 99% ) Dr. Bruce Vanstone

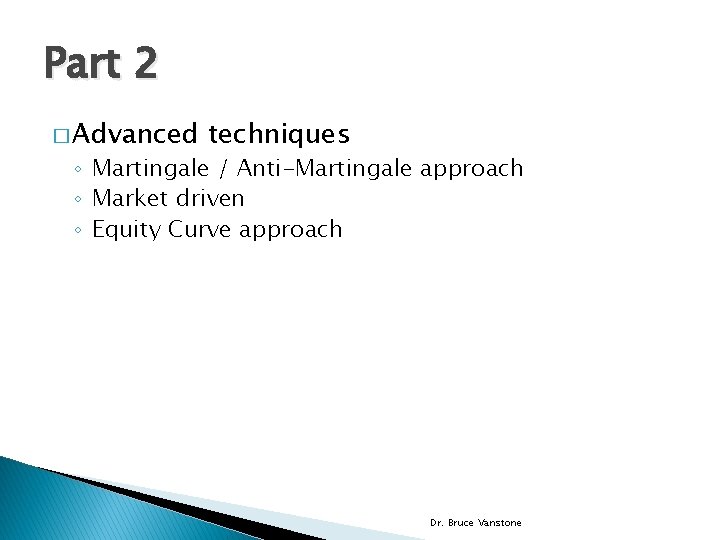

Part 2 � Advanced techniques ◦ Martingale / Anti-Martingale approach ◦ Market driven ◦ Equity Curve approach Dr. Bruce Vanstone

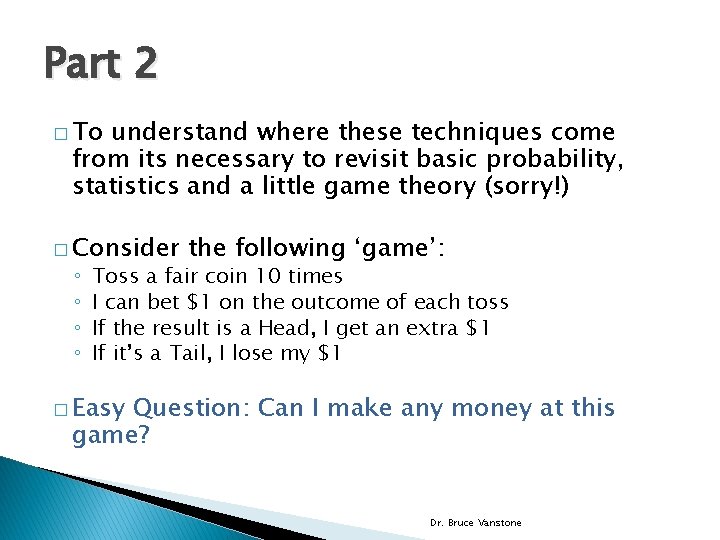

Part 2 � To understand where these techniques come from its necessary to revisit basic probability, statistics and a little game theory (sorry!) � Consider ◦ ◦ the following ‘game’: Toss a fair coin 10 times I can bet $1 on the outcome of each toss If the result is a Head, I get an extra $1 If it’s a Tail, I lose my $1 � Easy Question: Can I make any money at this game? Dr. Bruce Vanstone

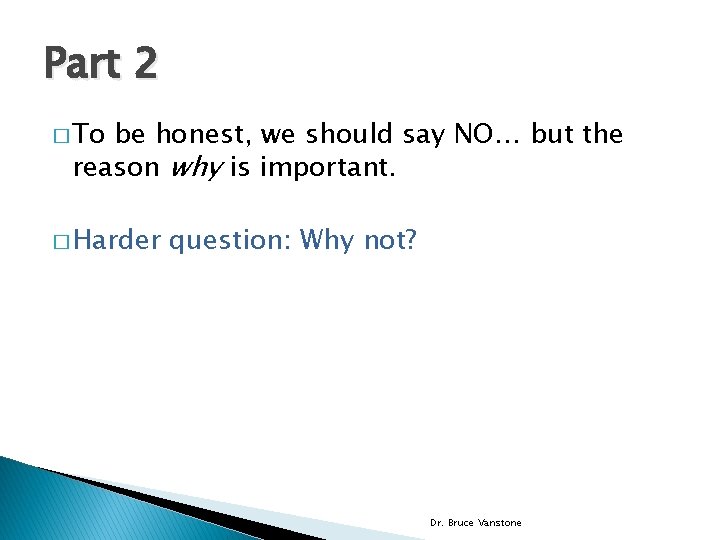

Part 2 � To be honest, we should say NO… but the reason why is important. � Harder question: Why not? Dr. Bruce Vanstone

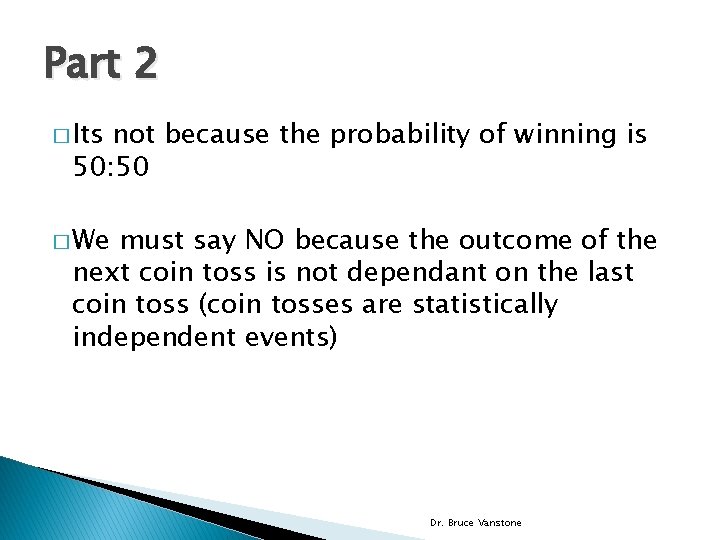

Part 2 � Its not because the probability of winning is 50: 50 � We must say NO because the outcome of the next coin toss is not dependant on the last coin toss (coin tosses are statistically independent events) Dr. Bruce Vanstone

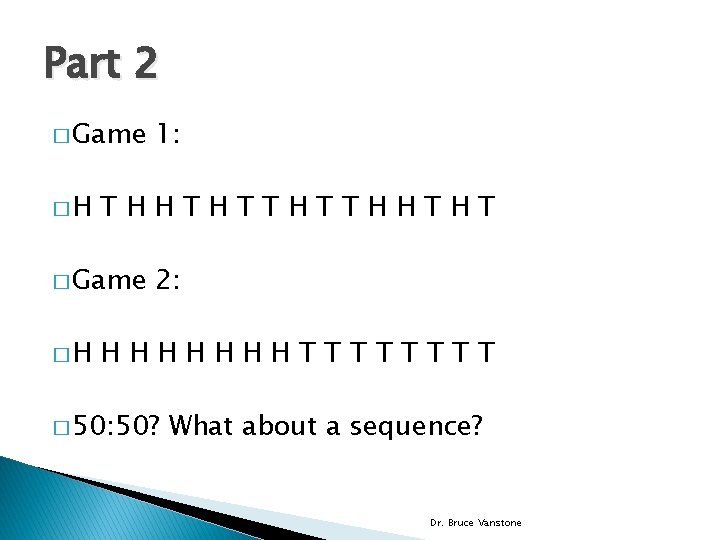

Part 2 � Game �H THHTHTTHTTHHTHT � Game �H 1: 2: HHHHHHHTTTT � 50: 50? What about a sequence? Dr. Bruce Vanstone

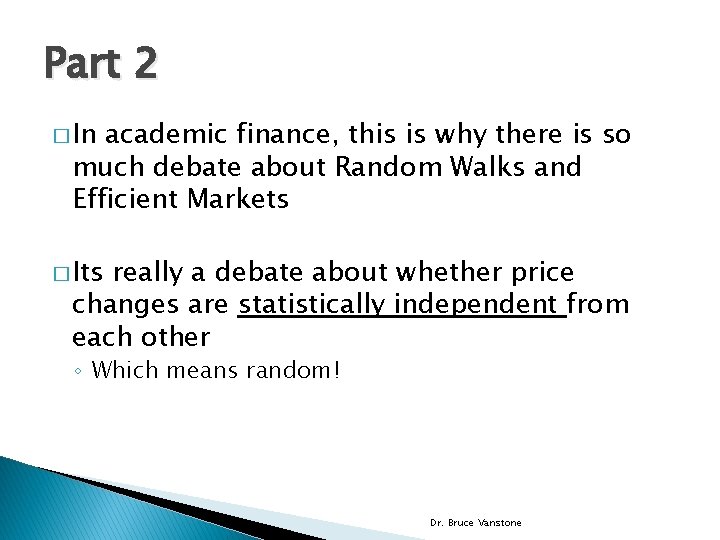

Part 2 � In academic finance, this is why there is so much debate about Random Walks and Efficient Markets � Its really a debate about whether price changes are statistically independent from each other ◦ Which means random! Dr. Bruce Vanstone

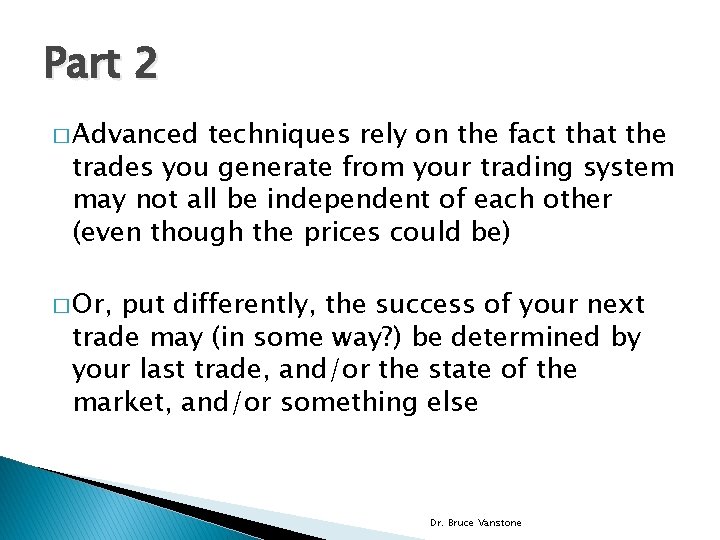

Part 2 � Advanced techniques rely on the fact that the trades you generate from your trading system may not all be independent of each other (even though the prices could be) � Or, put differently, the success of your next trade may (in some way? ) be determined by your last trade, and/or the state of the market, and/or something else Dr. Bruce Vanstone

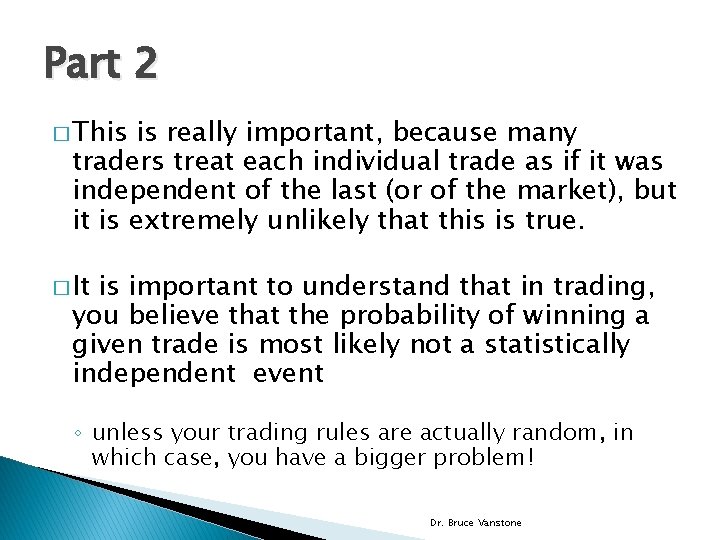

Part 2 � This is really important, because many traders treat each individual trade as if it was independent of the last (or of the market), but it is extremely unlikely that this is true. � It is important to understand that in trading, you believe that the probability of winning a given trade is most likely not a statistically independent event ◦ unless your trading rules are actually random, in which case, you have a bigger problem! Dr. Bruce Vanstone

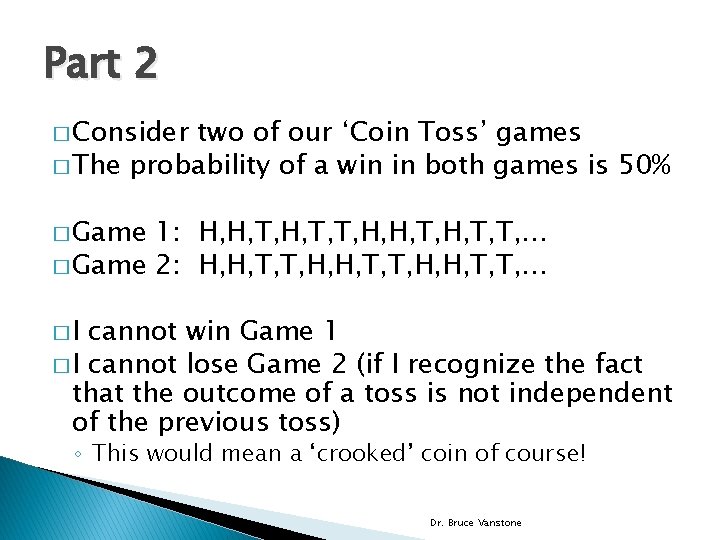

Part 2 � Consider two of our ‘Coin Toss’ games � The probability of a win in both games is 50% � Game 1: H, H, T, T, … � Game 2: H, H, T, T, … �I cannot win Game 1 � I cannot lose Game 2 (if I recognize the fact that the outcome of a toss is not independent of the previous toss) ◦ This would mean a ‘crooked’ coin of course! Dr. Bruce Vanstone

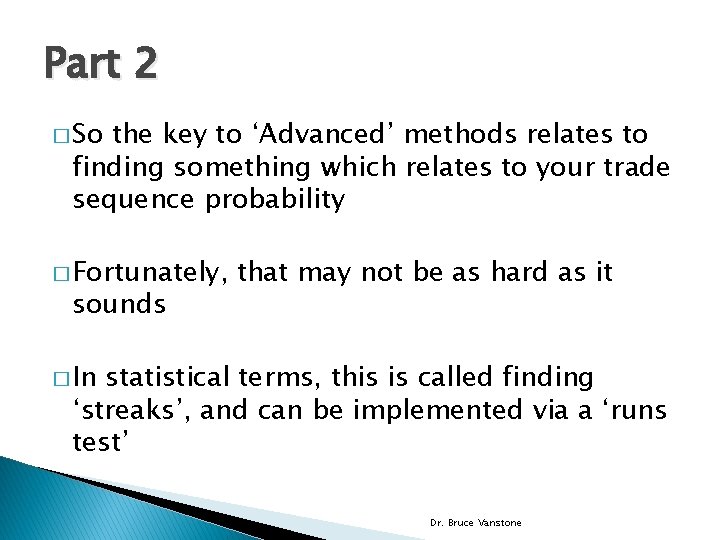

Part 2 � So the key to ‘Advanced’ methods relates to finding something which relates to your trade sequence probability � Fortunately, sounds that may not be as hard as it � In statistical terms, this is called finding ‘streaks’, and can be implemented via a ‘runs test’ Dr. Bruce Vanstone

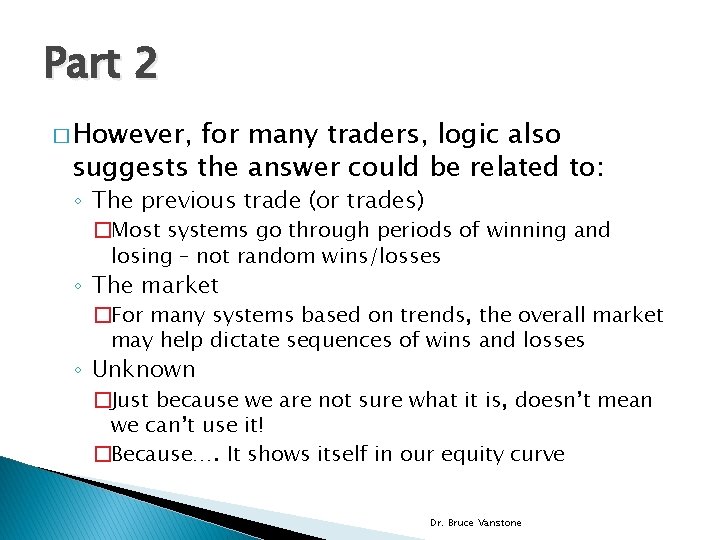

Part 2 � However, for many traders, logic also suggests the answer could be related to: ◦ The previous trade (or trades) �Most systems go through periods of winning and losing – not random wins/losses ◦ The market �For many systems based on trends, the overall market may help dictate sequences of wins and losses ◦ Unknown �Just because we are not sure what it is, doesn’t mean we can’t use it! �Because…. It shows itself in our equity curve Dr. Bruce Vanstone

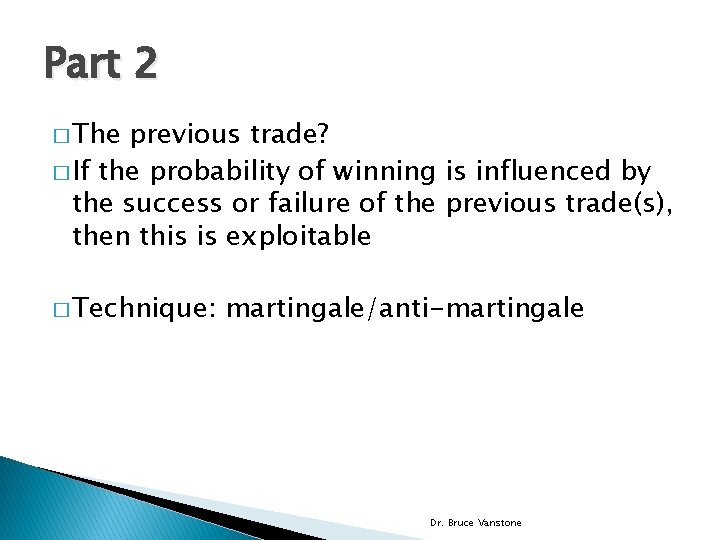

Part 2 � The previous trade? � If the probability of winning is influenced by the success or failure of the previous trade(s), then this is exploitable � Technique: martingale/anti-martingale Dr. Bruce Vanstone

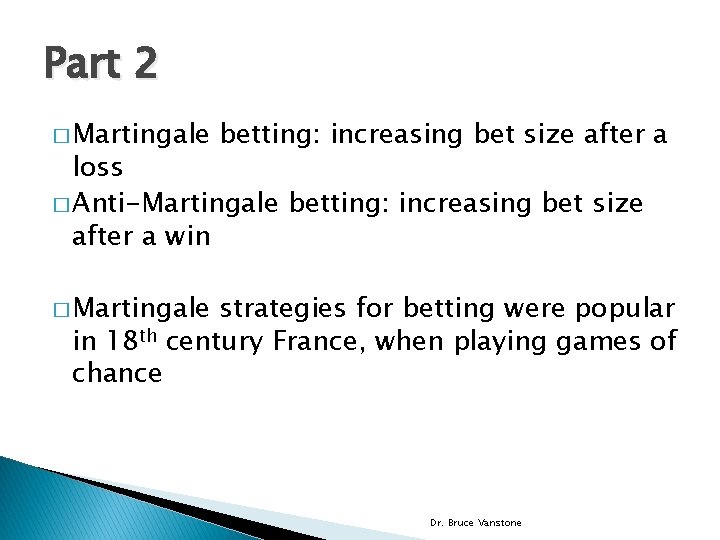

Part 2 � Martingale betting: increasing bet size after a loss � Anti-Martingale betting: increasing bet size after a win � Martingale strategies for betting were popular in 18 th century France, when playing games of chance Dr. Bruce Vanstone

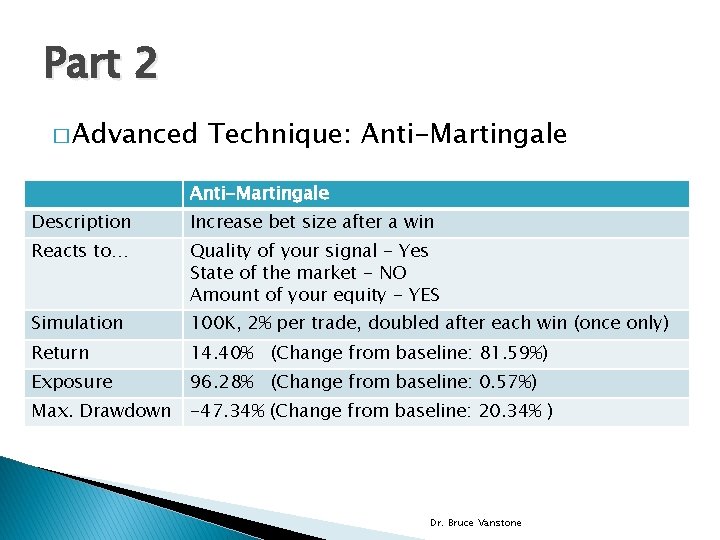

Part 2 � Advanced Technique: Anti-Martingale Description Increase bet size after a win Reacts to… Quality of your signal - Yes State of the market - NO Amount of your equity - YES Simulation 100 K, 2% per trade, doubled after each win (once only) Return 14. 40% (Change from baseline: 81. 59%) Exposure 96. 28% (Change from baseline: 0. 57%) Max. Drawdown -47. 34% (Change from baseline: 20. 34% ) Dr. Bruce Vanstone

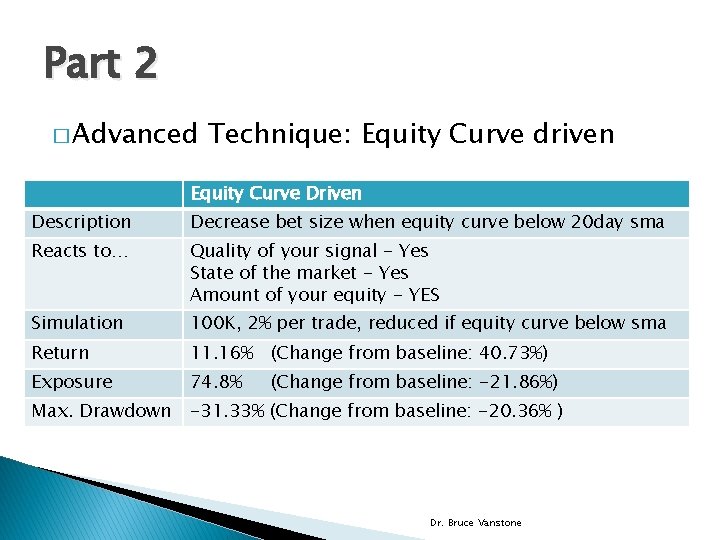

Part 2 � Advanced Technique: Equity Curve driven Equity Curve Driven Description Decrease bet size when equity curve below 20 day sma Reacts to… Quality of your signal - Yes State of the market - Yes Amount of your equity - YES Simulation 100 K, 2% per trade, reduced if equity curve below sma Return 11. 16% (Change from baseline: 40. 73%) Exposure 74. 8% Max. Drawdown -31. 33% (Change from baseline: -20. 36% ) (Change from baseline: -21. 86%) Dr. Bruce Vanstone

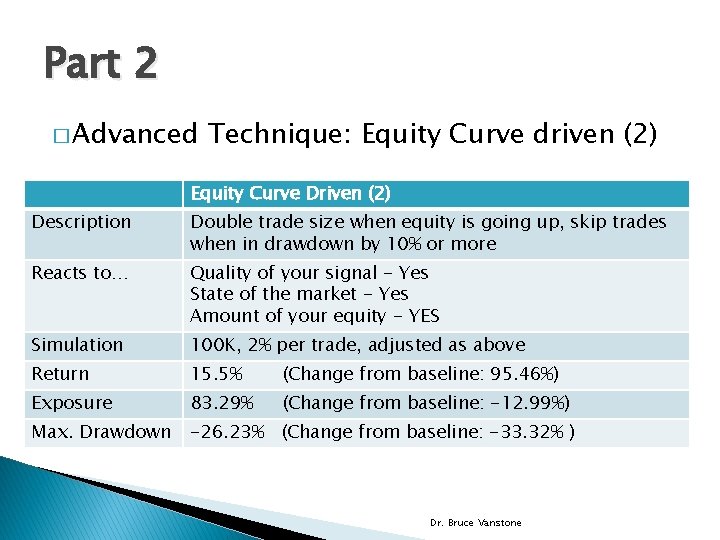

Part 2 � Advanced Technique: Equity Curve driven (2) Equity Curve Driven (2) Description Double trade size when equity is going up, skip trades when in drawdown by 10% or more Reacts to… Quality of your signal - Yes State of the market - Yes Amount of your equity - YES Simulation 100 K, 2% per trade, adjusted as above Return 15. 5% (Change from baseline: 95. 46%) Exposure 83. 29% (Change from baseline: -12. 99%) Max. Drawdown -26. 23% (Change from baseline: -33. 32% ) Dr. Bruce Vanstone

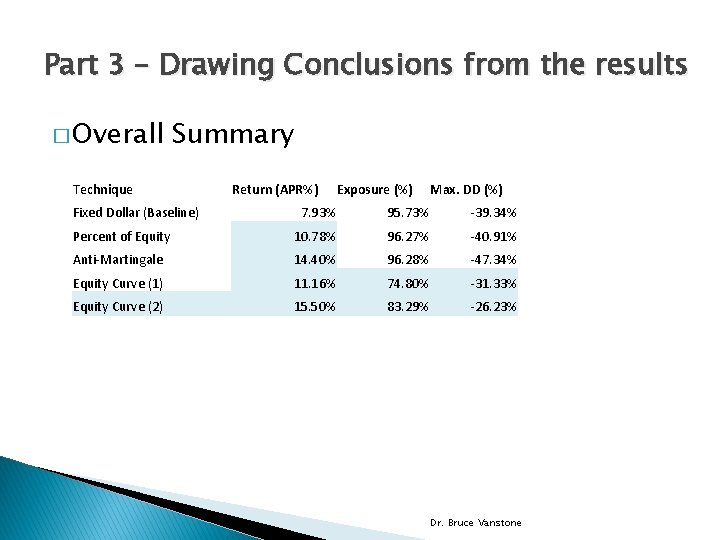

Part 3 – Drawing Conclusions from the results � Overall Summary Technique Fixed Dollar (Baseline) Return (APR%) Exposure (%) Max. DD (%) 7. 93% 95. 73% -39. 34% Percent of Equity 10. 78% 96. 27% -40. 91% Anti-Martingale 14. 40% 96. 28% -47. 34% Equity Curve (1) 11. 16% 74. 80% -31. 33% Equity Curve (2) 15. 50% 83. 29% -26. 23% Dr. Bruce Vanstone

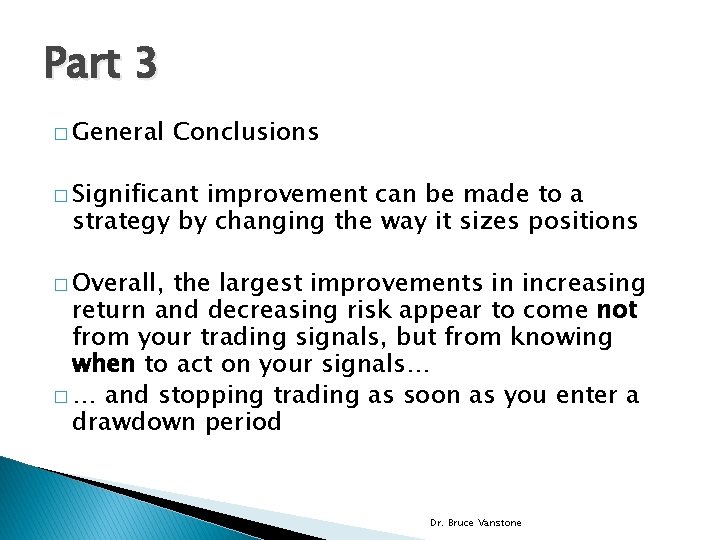

Part 3 � General Conclusions � Significant improvement can be made to a strategy by changing the way it sizes positions � Overall, the largest improvements in increasing return and decreasing risk appear to come not from your trading signals, but from knowing when to act on your signals… � … and stopping trading as soon as you enter a drawdown period Dr. Bruce Vanstone

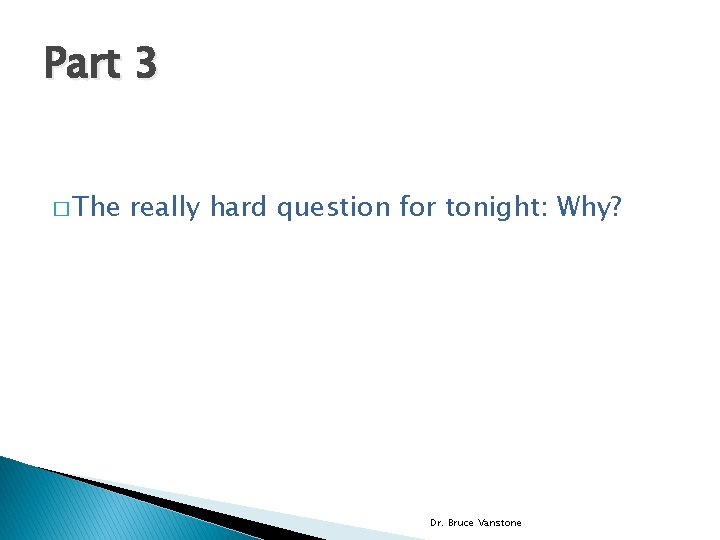

Part 3 � The really hard question for tonight: Why? Dr. Bruce Vanstone

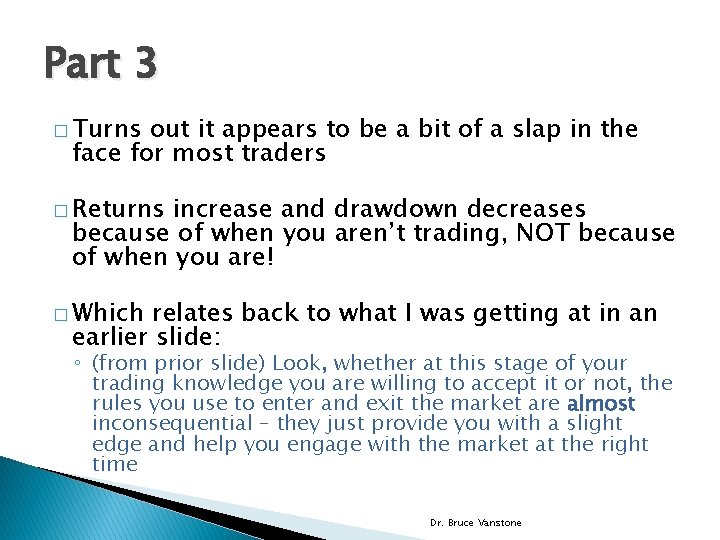

Part 3 � Turns out it appears to be a bit of a slap in the face for most traders � Returns increase and drawdown decreases because of when you aren’t trading, NOT because of when you are! � Which relates back to what I was getting at in an earlier slide: ◦ (from prior slide) Look, whether at this stage of your trading knowledge you are willing to accept it or not, the rules you use to enter and exit the market are almost inconsequential – they just provide you with a slight edge and help you engage with the market at the right time Dr. Bruce Vanstone

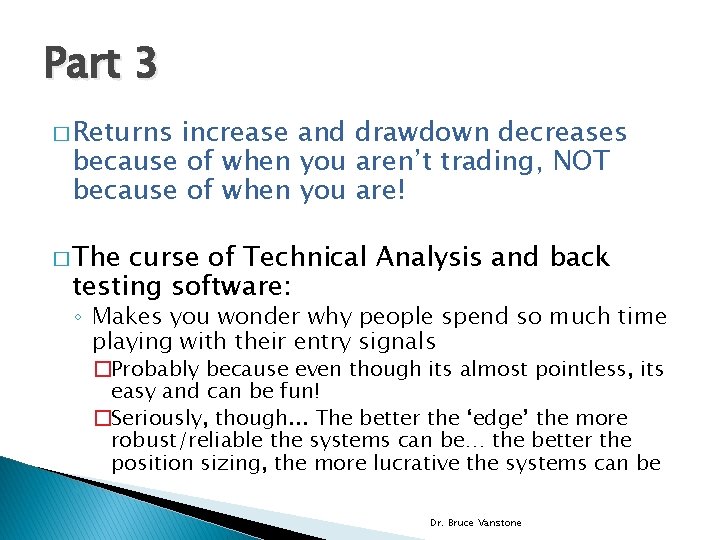

Part 3 � Returns increase and drawdown decreases because of when you aren’t trading, NOT because of when you are! � The curse of Technical Analysis and back testing software: ◦ Makes you wonder why people spend so much time playing with their entry signals ◦ �Probably because even though its almost pointless, its easy and can be fun! �Seriously, though. . . The better the ‘edge’ the more robust/reliable the systems can be… the better the position sizing, the more lucrative the systems can be Dr. Bruce Vanstone
