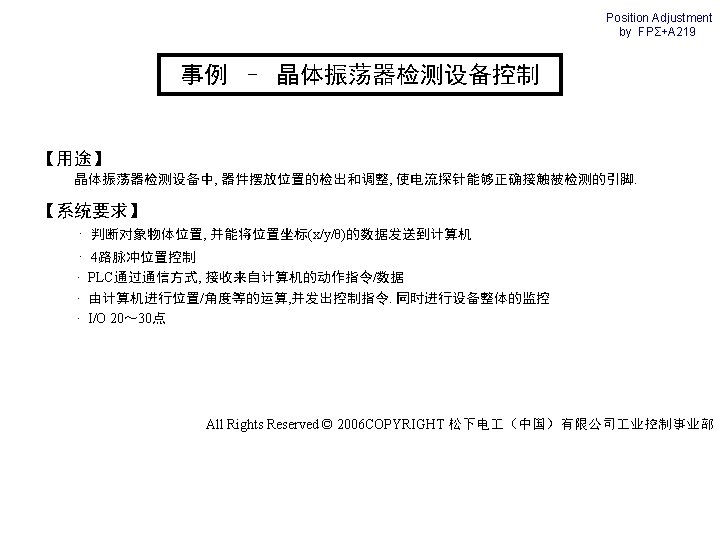

Position Adjustment with FPΣ/A 219 for Crystal Oscillator Detector 晶体振荡器检测设备控制 All Rights Reserved ©

Position Adjustment with FPΣ/A 219 for Crystal Oscillator Detector 晶体振荡器检测设备控制 All Rights Reserved © 2006 COPYRIGHT 松下电 （中国）有限公司 业控制事业部

Position Adjustment by FPΣ+A 219 【系统构成示意图】 Camera A Camera B P P Y轴 A

Position Adjustment by FPΣ+A 219 【系统构成示意图】 Camera A Camera B P P Y轴 A 210 P θ轴 P X轴 X/Y/θ 坐标数据 RS 232 C 一般I/O FPΣ X/Y/θ 移动量 RS 232 C All Rights Reserved © 2006 COPYRIGHT 松下电 （中国）有限公司 业控制事业部
