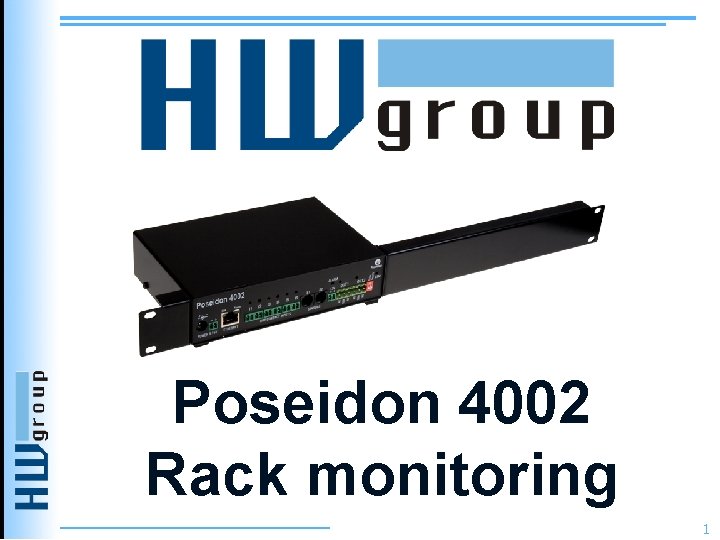

Poseidon 4002 Rack monitoring 1 Poseidon Monitor Control

Poseidon 4002 Rack monitoring 1

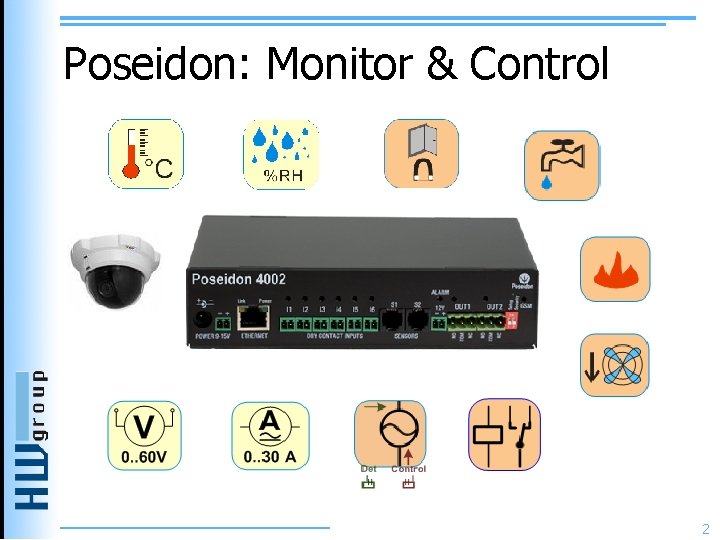

Poseidon: Monitor & Control 2

IT environment threats in DC Poseidon 4002 Poseidon 4001 Based on data from: 1) „Uptime Institute“ & „PROGNOSIS - Integrated Research“ for USA during 99. . 06. 2) American Power Conversion 2006 3

Fast reaction required w For an average data center, the temperature rises from the usual 20°C to 30°C within 8. 6 minutes after A/C failure. w Energy consumption (and thus A/C needs) of data center has risen by 48% from 1999 to 2006. 4

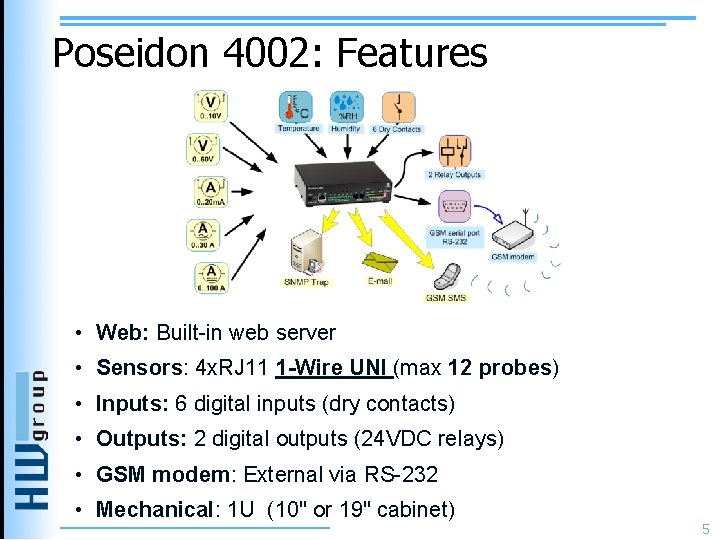

Poseidon 4002: Features • Web: Built-in web server • Sensors: 4 x. RJ 11 1 -Wire UNI (max 12 probes) • Inputs: 6 digital inputs (dry contacts) • Outputs: 2 digital outputs (24 VDC relays) • GSM modem: External via RS-232 • Mechanical: 1 U (10" or 19" cabinet) 5

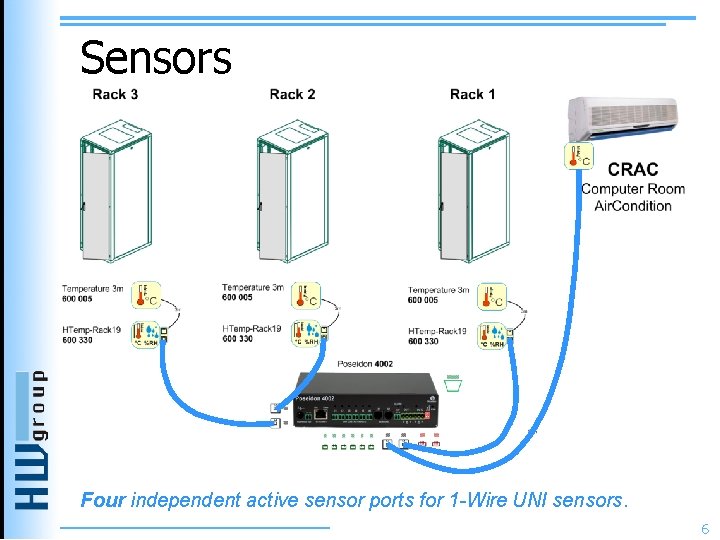

Sensors Four independent active sensor ports for 1 -Wire UNI sensors. 6

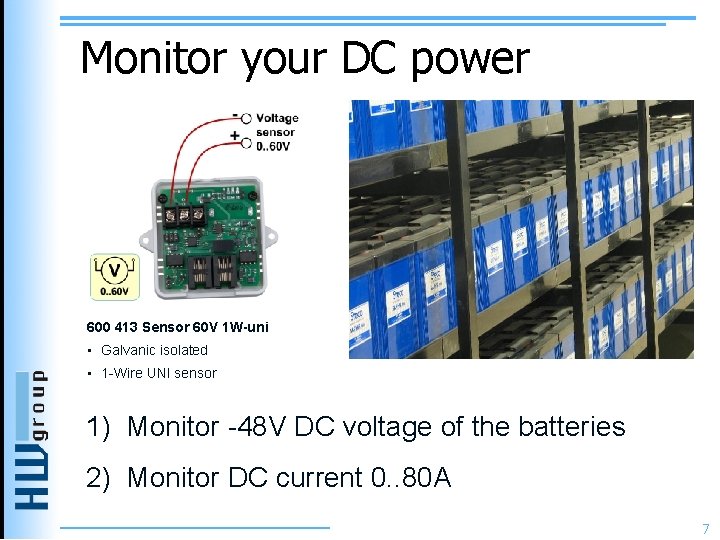

Monitor your DC power 600 413 Sensor 60 V 1 W-uni • Galvanic isolated • 1 -Wire UNI sensor 1) Monitor -48 V DC voltage of the batteries 2) Monitor DC current 0. . 80 A 7

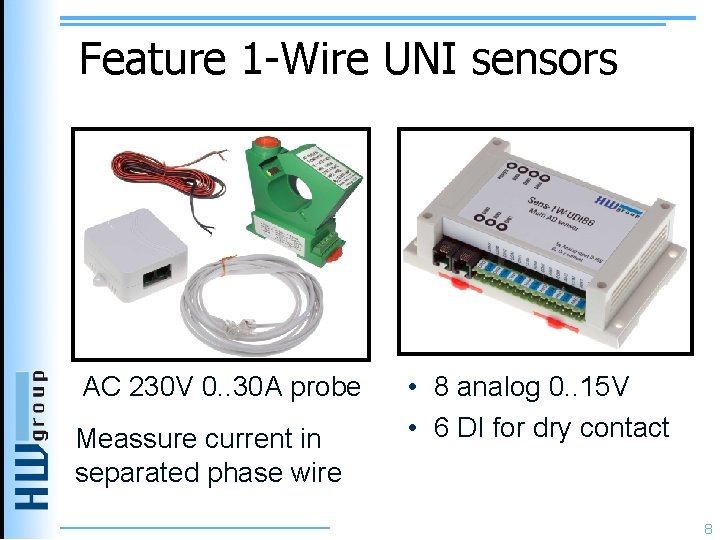

Feature 1 -Wire UNI sensors AC 230 V 0. . 30 A probe Meassure current in separated phase wire • 8 analog 0. . 15 V • 6 DI for dry contact 8

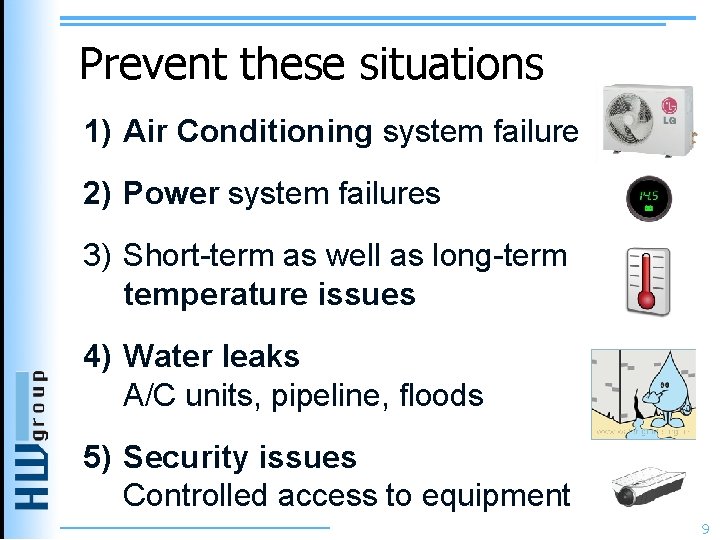

Prevent these situations 1) Air Conditioning system failure 2) Power system failures 3) Short-term as well as long-term temperature issues 4) Water leaks A/C units, pipeline, floods 5) Security issues Controlled access to equipment 9

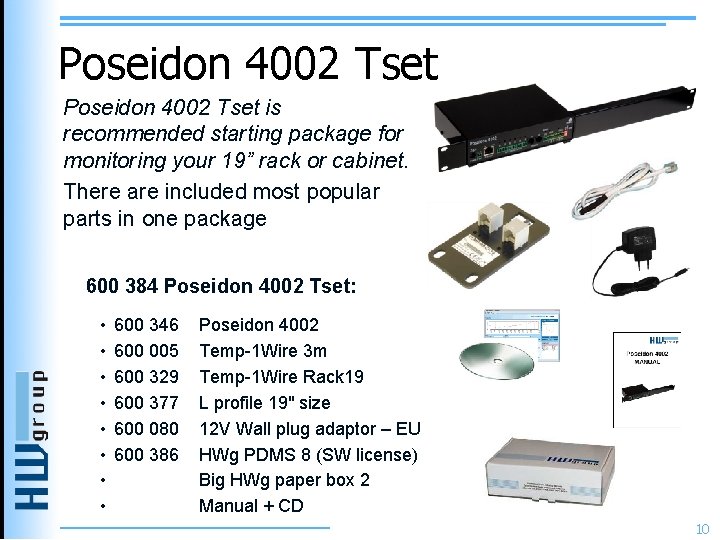

Poseidon 4002 Tset is recommended starting package for monitoring your 19” rack or cabinet. There are included most popular parts in one package 600 384 Poseidon 4002 Tset: • • 600 346 600 005 600 329 600 377 600 080 600 386 Poseidon 4002 Temp-1 Wire 3 m Temp-1 Wire Rack 19 L profile 19" size 12 V Wall plug adaptor – EU HWg PDMS 8 (SW license) Big HWg paper box 2 Manual + CD 10

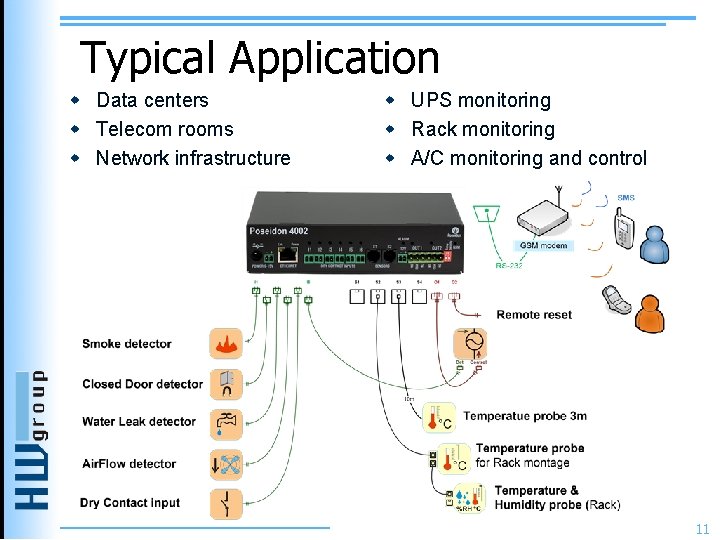

Typical Application w Data centers w Telecom rooms w Network infrastructure w UPS monitoring w Rack monitoring w A/C monitoring and control 11

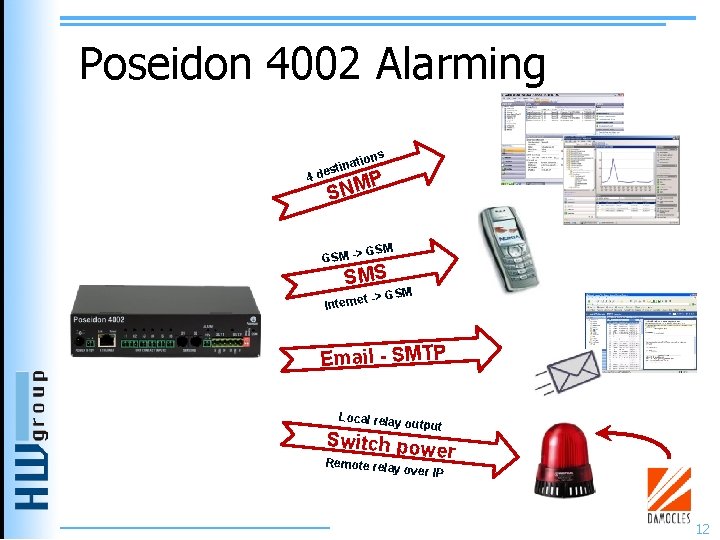

Poseidon 4002 Alarming 4 s tion a n i t des P M N S GSM -> SMS M t -> GS Interne Email - SMTP Local relay output Switch pow Remote rela er y over IP 12

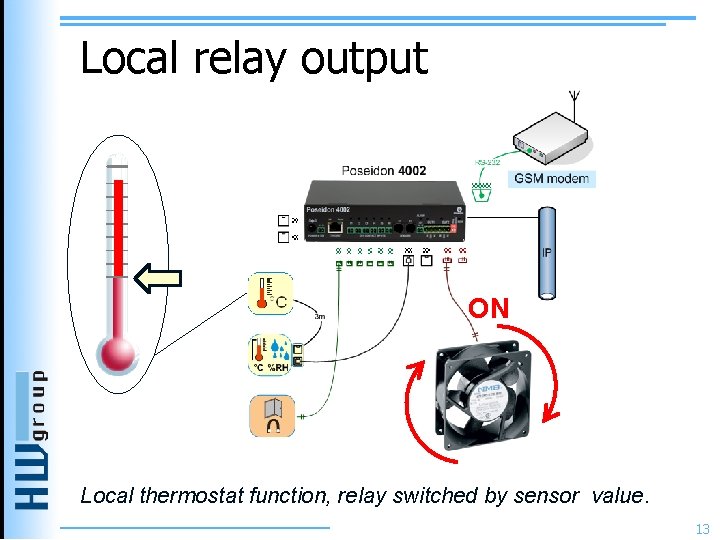

Local relay output ON Local thermostat function, relay switched by sensor value. 13

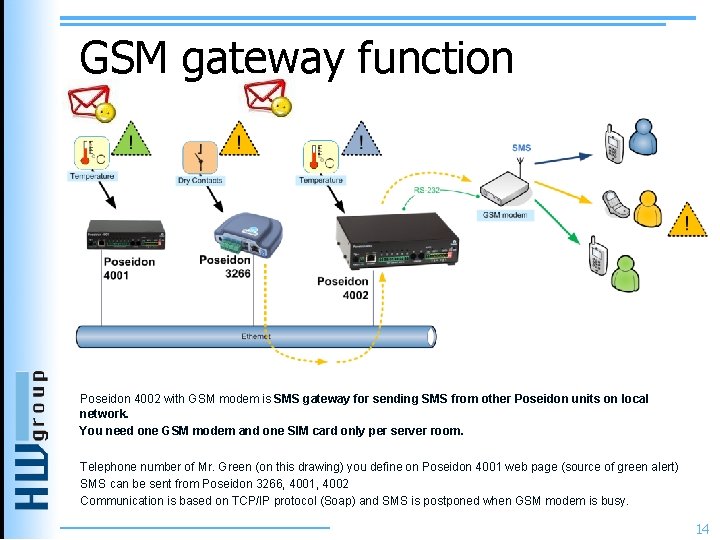

GSM gateway function Poseidon 4002 with GSM modem is SMS gateway for sending SMS from other Poseidon units on local network. You need one GSM modem and one SIM card only per server room. Telephone number of Mr. Green (on this drawing) you define on Poseidon 4001 web page (source of green alert) SMS can be sent from Poseidon 3266, 4001, 4002 Communication is based on TCP/IP protocol (Soap) and SMS is postponed when GSM modem is busy. 14

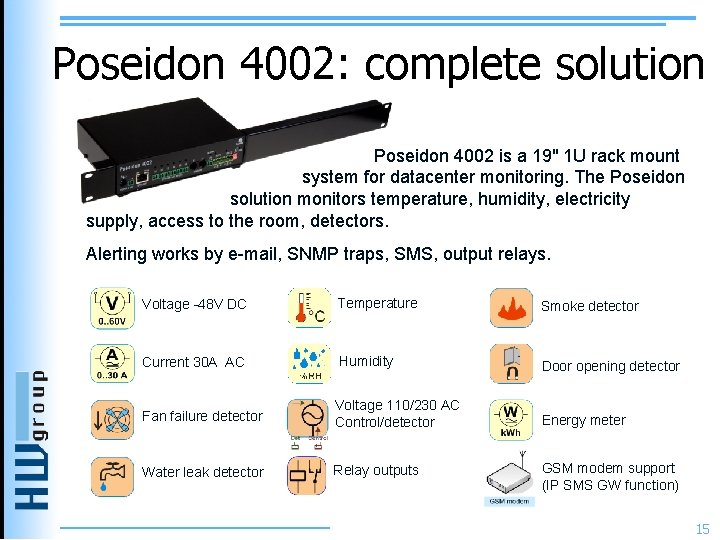

Poseidon 4002: complete solution Poseidon 4002 is a 19" 1 U rack mount system for datacenter monitoring. The Poseidon solution monitors temperature, humidity, electricity supply, access to the room, detectors. Alerting works by e-mail, SNMP traps, SMS, output relays. Voltage -48 V DC Temperature Smoke detector Current 30 A AC Humidity Door opening detector Fan failure detector Voltage 110/230 AC Control/detector Energy meter Water leak detector Relay outputs GSM modem support (IP SMS GW function) 15

Summary 1) Check the Poseidon 4002 online (online demo). 2) Download flyer or manual 3) Order the Poseidon 4002 Tset for your first steps. . 16
