POS Hardware Review Presented by Scott Jerabek CBORD

POS Hardware Review Presented by: Scott Jerabek, CBORD 1 | CBORD 2018 User Group Conference | Presentation

Oracle Hospitality POS Workstation 6 Series Self-Service Kiosks Workstation 3 Series Tablet 721 Maximum throughput Pedestal & Countertop Coffee carts, Gift Shops Special events and line busting Rugged and reliable Workstation 6 touchscreen Food Trucks Mobile 8” Tablet Nationwide service network Concessions Hot swappable battery for all day use 2 | CBORD 2018 User Group Conference | Presentation

Oracle MICROS Workstation 6 Series 15. 6” wide touchscreen display Integrated MSR Windows 10 Versatile mounting system for WS 6 base or wall bracket. VESA 100 compliant for endless mounting options Supports legacy peripherals (for terminal replacements) Ideal for your busiest locations 3 | CBORD 2018 User Group Conference | Presentation

Workstation 6 Series Customer Displays New Low Mount / High Mount Rear and Pole displays Re-use existing LCD pole displays 4 | CBORD 2018 User Group Conference | Presentation

Workstation 6 Series Cash Drawers APG 13” or 18” wide cash drawers with a Series 2 connector Re-use existing APG cash drawers with a Series 2 adapter 5 | CBORD 2018 User Group Conference | Presentation

Workstation 6 Series Receipt Printers TM-T 88 IV and TM-T 88 V TM-T 88 II and III printers are not compatible 6 | CBORD 2018 User Group Conference | Presentation

Workstation 6 Series Mounting Options Counter Stand Wall Mount Bracket Any VESA Mounting Bracket Wall and VESA Mounts require an External Power Supply 7 | CBORD 2018 User Group Conference | Presentation

Version Support Platform Oracle Hospitality Simphony First Edition (1 X) Oracle Hospitality Simphony (2 X) Oracle Hospitality 9700 Workstation 610 Workstation 620 Workstation 650 Windows 8. 1 Windows 10 1. 6 MR 9 and higher 1. 7 MR 1 2. 7 MR 6 and higher 2. 8 MR 2 and higher NOT SUPPORTED 8 | CBORD 2018 User Group Conference | Presentation

Self-Service Kiosks Self Service / Self Checkout configurations for Simphony and RES 3700 Countertop and Pedestal Kiosk Enclosures for Oracle Micros Workstation 6 Series Countertop integrates TM-T 88 Pedestal integrates a Star Micronics presentation printer EMV arm supports Ingenico IPP 320/350 Simphony RES 3700 9 | CBORD 2018 User Group Conference | Presentation

Self-service Kiosk benefits Decrease Costs Lower labor cost / redeploy labor to production tasks Increased order accuracy Simplified operations / order flow with kitchen and POS integration Increase Revenue Increase hours of operation Consistent upselling, increase average check Receive orders faster / lower wait times to order Security and Privacy Customer order and pay privately. 10 | CBORD 2018 User Group Conference | Presentation

Oracle Micros Compact Workstation 310 10 Inch Compact Workstation Rugged (310 R) for concessions indoor/outdoor use Flexible or Basic stands. VESA 100 compatible wall mounts Limited peripheral connectivity Integrated 2 line customer display Full Shift battery option Wi. Fi or Ethernet Connectivity Ideal for concession and locations with small menus Simphony 1. 7 MR 3 Simphony 2. 9 MR 3 RES 5. 5. 4 11 | CBORD 2018 User Group Conference | Presentation

Oracle Micros Compact Workstation 310 Benefits Small Footprint and portable 11. 5” wide Workstation + Flexible Stand = 9 lbs. Full Shift battery mounts under the stand Integrated rear facing customer display Long lifecycle components Security features Tamper detection casework Workstation I/O panel cover with security screws Workstation attaches to the stand with a security screw Stands can be mounted to the countertop 12 | CBORD 2018 User Group Conference | Presentation

Oracle Micros Compact Workstation 310 R Benefits All the benefits of the Compact Workstation 310 and: Bright LCD screen with ambient light sensor full sun operation Extreme temperature operation (14 -140 F) Ingress Protection (IP) 45 Protection from low pressure water jets from any direction & impact of 1 lb steel ball dropped on it from 1. 5’ 13 | CBORD 2018 User Group Conference | Presentation

Oracle Micros Tablet 721 Very Portable (1. 3 LBS, integrated hand strap) Rugged and Reliable Sealed, water resistant casing Commercial Grade Components Long Lifecycle and support for 5 years after last ship date Hot Swappable Battery provides 6 -8 hours of use Gang Chargers for both tablet and/or spare batteries Support for multiple media types Mag Stripe, Barcode, RFID (via integrated, optional reader or external RFIdeas Nano) Simphony 1. 7 MR 1 Simphony 2. 9 RES 5. 5. 2 14 | CBORD 2018 User Group Conference | Presentation

Oracle Micros Tablet 721 Accessories Desktop Cradle 15 | CBORD 2018 User Group Conference | Presentation 4 -bay Charger Carry Pouch

Oracle Micros Kitchen Display Controller 210 1920 x 1080 resolution Intel Atom Processor, 4 GB RAM, Windows 10 IOT Display Port or HDMI connectivity (re-use existing LCDs with converter cable) Wired or Wireless Bump Bars Simphony 1. 7 MR 1 Simphony 2. 9 RES 5. 5. 1 16 | CBORD 2018 User Group Conference | Presentation

2018 EOL Product CE. NET KDS controller (2/28) Series 1 cash drawers (2/28) Tablet 720 (2/28) R-Series Tablet (5/31) https: //client. cbord. com/support/eol/ 17 | CBORD 2018 User Group Conference | Presentation

Oracle MICROS Hardware Maintenance Oracle MICROS hardware warranty 1 Year Parts Only Oracle Premier Hardware Support Parts and Labor Available 5 years after end of sale 18 | CBORD 2018 User Group Conference | Presentation

Appetize POS ELO i-Series Self-Service Kiosks Pay. Point All-in-One Samsung Tablet Maximum throughput Pedestal & Countertop Coffee carts and kiosks Special events and line busting Android OS Food Trucks 10” or 15” screen 19 | CBORD 2018 User Group Conference | Presentation Gift Shops

ELO i-Series 10 or 15 inch LCD Touchscreen 3 -Track MSR 2 Line or 10” LCD customer display Choice of Flip or Printer Stand 20 | CBORD 2018 User Group Conference | Presentation

Self-Service Kiosk Countertop 15 or 22 inch Display Pedestal 22 inch Display Receipt Printer 2 year warranty 21 | CBORD 2018 User Group Conference | Presentation

ELO Pay. Point® All-In-One 13. 3” LED Touch. Screen 3 -track MSR 1 D Scanner Cash Drawer (4 Bill, 5 Coin, Locking Key) 2” (50 mm) Thermal Printer 2 Line X 16 Character Customer Display 3 Year Warranty to ELO 22 | CBORD 2018 User Group Conference | Presentation

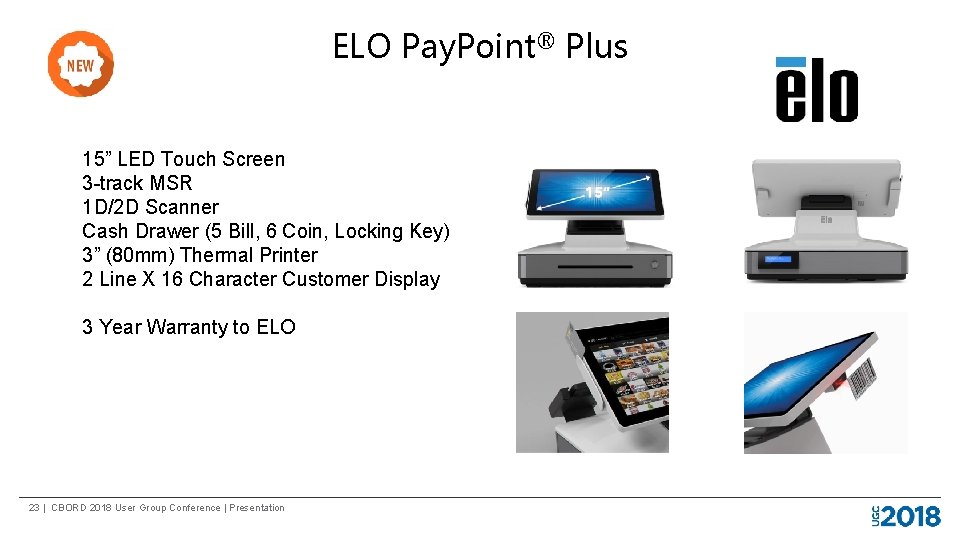

ELO Pay. Point® Plus 15” LED Touch Screen 3 -track MSR 1 D/2 D Scanner Cash Drawer (5 Bill, 6 Coin, Locking Key) 3” (80 mm) Thermal Printer 2 Line X 16 Character Customer Display 3 Year Warranty to ELO 23 | CBORD 2018 User Group Conference | Presentation

Samsung Galaxy Tab Active 2 8 inch touch screen 3 GB RAM, 16 GB Storage Android 7. 1 WIFI or Cellular Battery powers up to 11 hours of use 24 | CBORD 2018 User Group Conference | Presentation

Appetize Hardware Maintenance Manufacturer warranty (no maintenance plan required) ELO: 2 or 3 year Peripherals 1 -2 years RMA direct to manufacturer Recommended spare ratios 25 | CBORD 2018 User Group Conference | Presentation

Thank You Questions and Answers 26 | CBORD 2018 User Group Conference | Presentation
