Ports Energy and Carbon Savings Industry in Ports
Ports Energy and Carbon Savings Industry in Ports: energy efficiency and recuperation Steven Coppens – Indachlor PECS opening conference – Portsmouth – 19/01/2018
Industry in Ports: energy efficiency and recuperation Introduction Indachlor s. a. s. u. The Indachlor Project The Transformation Model Location – Port of Dunkerque The Installations The Process Focus on Recovery Focus on Energy Recovery Focus on the Turbine Conclusion

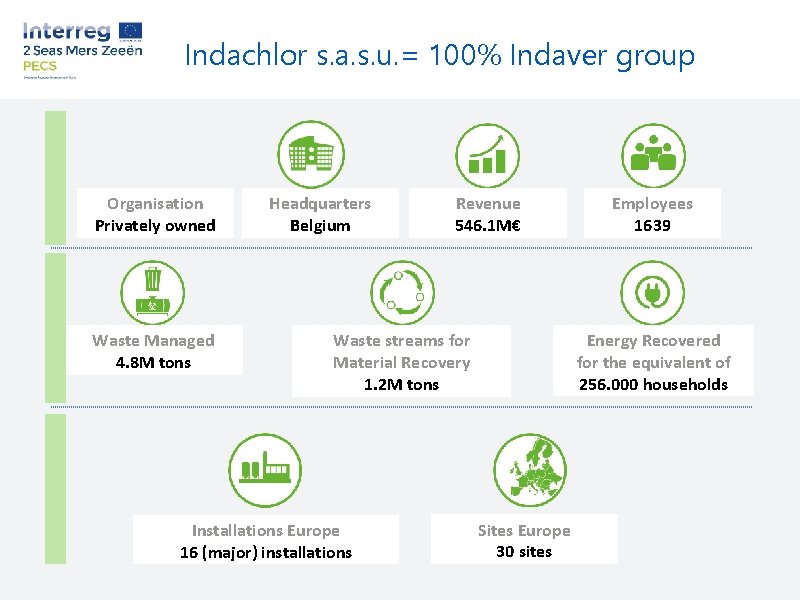

Indachlor s. a. s. u. = 100% Indaver group Organisation Privately owned Waste Managed 4. 8 M tons Belgium Headquarters Belgium Revenue 546. 1 M€ Waste streams for Material Recovery 1. 2 M tons Installations Europe 16 (major) installations Employees 1639 Energy Recovered for the equivalent of 256. 000 households Sites Europe 30 sites

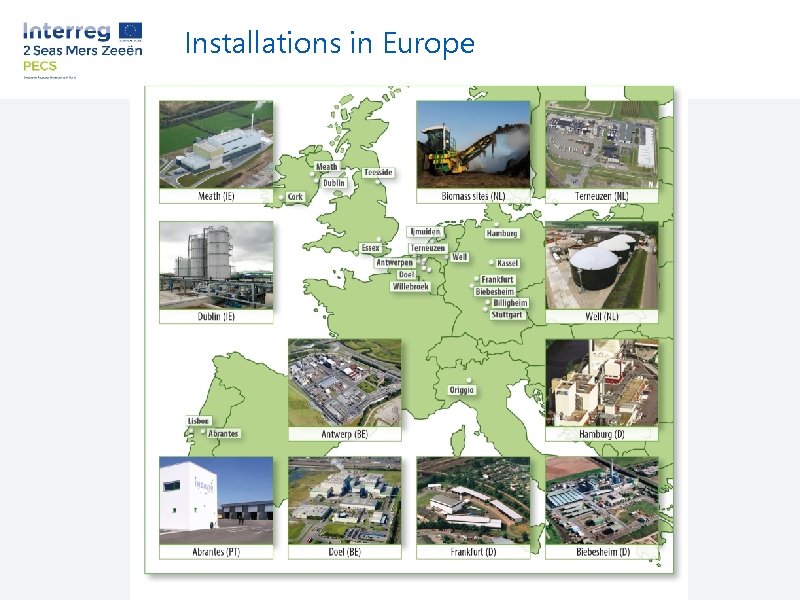

Installations in Europe
The Inda. Chlor® project Inda. Chlor® = Indaver unit for the treatment of chlorinated residues and the recovery of material and energy Recovery of HCl and energy (steam) Focus on chlorinated organic liquid waste
The transformation model Producers of chlorinated residues 40 000 T Alcohol distillery Selfsufficiency Indachlor Steam 16, 5 T/h Electricity Treatment process of residucs Inda. Chlor Hydrochloric Acid HCl ~130 000 T Production of phosphates
Location – Port of Dunkerque Indachlor
Close to our local partners Ecophos Distillery HCl line: 1850 m Railway track Steam line 350 m Inda r Chlo 1 km

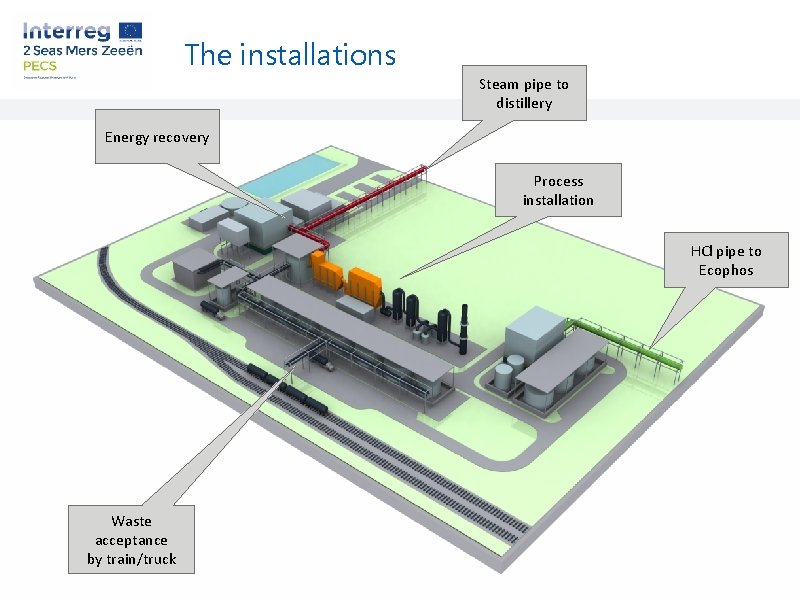

The installations Steam pipe to distillery Energy recovery Process installation HCl pipe to Ecophos Waste acceptance by train/truck
The Inda. Chlor® process Energy OUT Waste IN Material OUT HCl recyclée
Focus on Recovery Waste IN Cl + Cx. Hy Material Recovery Energy Recovery HCl STEAM Natural gas Process steam HCl by truck Ecophos Alcohol distillery Turbine generator Electrical consumption Indachlor
Focus on Energy Recovery 20 MW Waste IN Cl + Cx. Hy Material Recovery 19 MW Energy Recovery HCl STEAM 12, 5 MW Ecophos Process steam Alcohol distillery 0, 8 MWe Turbine generator Electrical consumption Indachlor

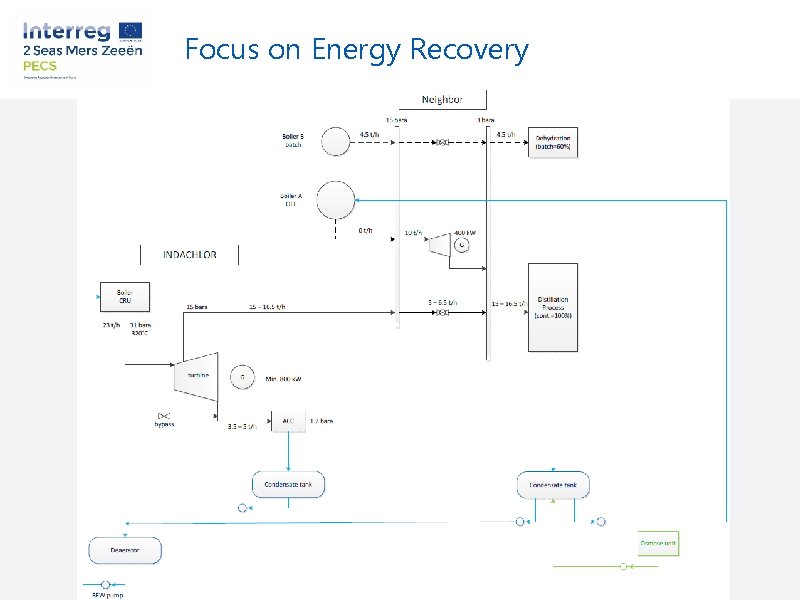

Focus on Energy Recovery
Focus on the turbine G
Conclusion 1 Maximized recovery of material … … plus transport reduction by direct link ! 2 Maximized recovery of energy … … plus fossile fuels avoided ! 3 The synergies with the local partners are a win – win for all … circular economy brought into practice!
Partners Observers With the financial support of
