Portable Power Tools Quiz Hand Drill Power Drill

Portable Power Tools Quiz

Hand Drill Power Drill Pillar Drill Cordless Drill SDS Hammer Drill 1. Name the tool shown below

Cordless Drill ? ? ? 2. Where is the Adjustable Clutch? ? ?

3. When using the Cordless Drill as a screwdriver should you set the drill speed to High or Low? High Low

Cordless Drill ? ? ? 5. Where is the Forward / Reverse Switch? ? ?

6. Name the tool shown below Orbital Sander Belt Sander Delta Sander Disc Sander

? 7. Where is the Variable Speed Control ? ? ?

Wide flat boards 8. Which picture shows the correct use of an Orbital Sander Edges

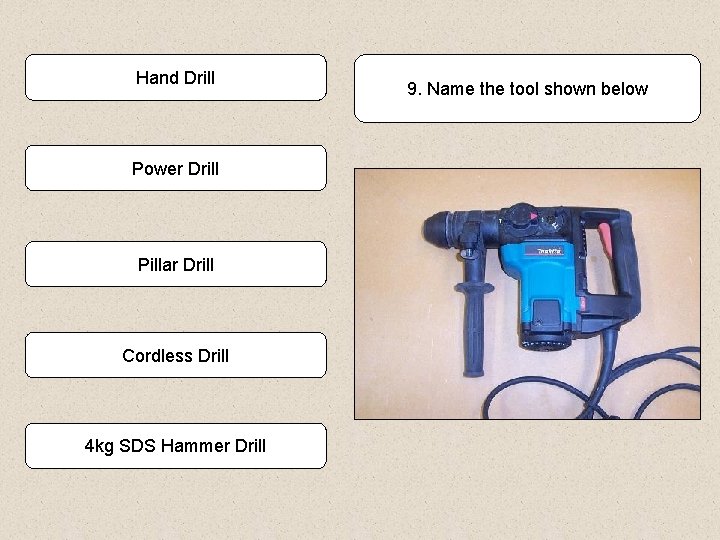

Hand Drill Power Drill Pillar Drill Cordless Drill 4 kg SDS Hammer Drill 9. Name the tool shown below

4 kg SDS Hammer Drill 10. Where is the SDS Chuck? ? ?

11. Name the type of drill bit shown below Twist Drills Forstner Bits Masonary Bits Flat Bits Auger Bits

12. Name the tool shown below Click on the first letter of the answer in the grid above

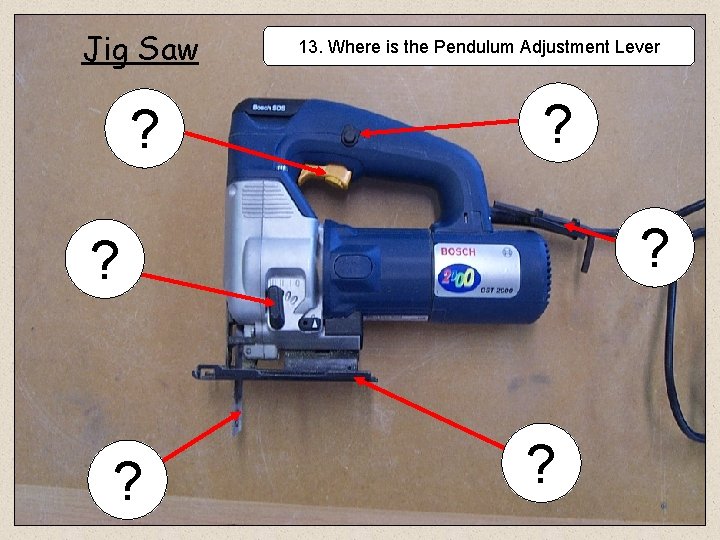

Jig Saw ? 13. Where is the Pendulum Adjustment Lever ? ? ?

Pendulum Adjustment lever It makes the blade move forward and back as well as up and down It allows you to change the blade 14. What does the Pendulum Adjustment Lever do? It makes the blade go faster/slower It allows you to cut a wider range of different materials

Fence Rail Bar Rail Edge 15. What is this part of the Jigsaw called?

16. Name the tool shown below Orbital Sander Delta Sander Belt Sander Disc Sander

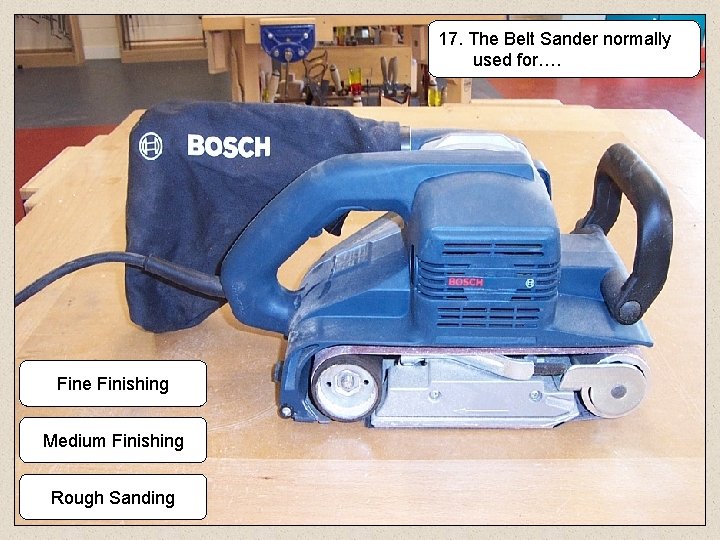

17. The Belt Sander normally used for…. Fine Finishing Medium Finishing Rough Sanding

18. Name the tool shown below Click on the first letter of the answer in the grid above

19. Where is the Dust Extraction Port ? ?

20. Name the tool shown below A Router A Biscuit Jointer An Engraver A Disc Sander

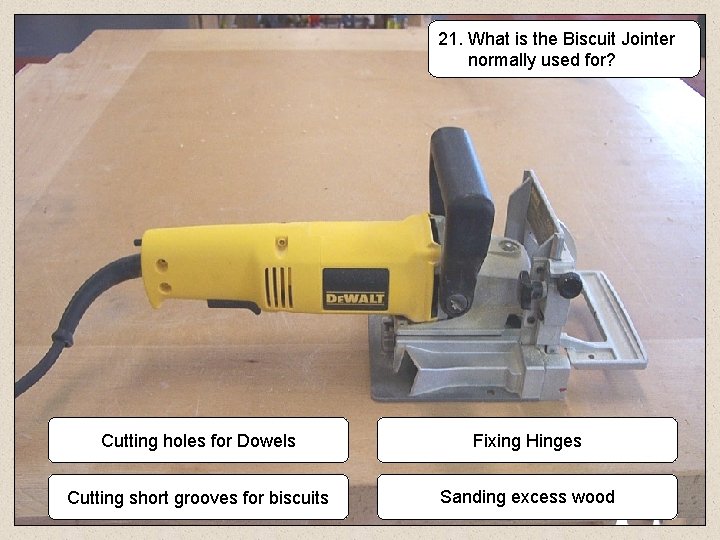

21. What is the Biscuit Jointer normally used for? Cutting holes for Dowels Fixing Hinges Cutting short grooves for biscuits Sanding excess wood

22. Name the tool shown below Orbital Sander Biscuit Jointer Router Angle Grinder Cordless Drill Delta Sander

23. Name the tool shown below Delta Sander Router Orbital Sander Cordless Drill Angle Grinder Biscuit Jointer

24. Which tool could be used to remove fine scratches from the top of this pine table prior to finishing? Orbital Sander Biscuit Jointer Router Angle Grinder Cordless Drill Belt Sander

25. Which tool was used to produce the moulding around the top edge of this table? Orbital Sander Biscuit Jointer Router Angle Grinder Cordless Drill Delta Sander

25. Which tool was used to remove excess metal from this frame after welding? Orbital Sander Biscuit Jointer Router Angle Grinder Cordless Drill Delta Sander

26. Which piece of safety equipment should be used with all power tools?

Quiz Completed Well Done

Wrong Click here to try again
