Portable Batch System Definition and 3 Primary Roles

Portable Batch System – Definition and 3 Primary Roles • Definition: PBS is a distributed workload management system. It handles the management and monitoring of the computational workload on a set of computers • Queuing: Users submit tasks or “jobs” to the resource management system where they are queued up until the system is ready to run them. • Scheduling: The process of selecting which jobs to run, when, and where, according to a predetermined policy. Aimed at balance competing needs and goals on the system(s) to maximize efficient use of resources • Monitoring: Tracking and reserving system resources, enforcing usage policy. This includes both software enforcement of usage limits and user or administrator monitoring of scheduling policies

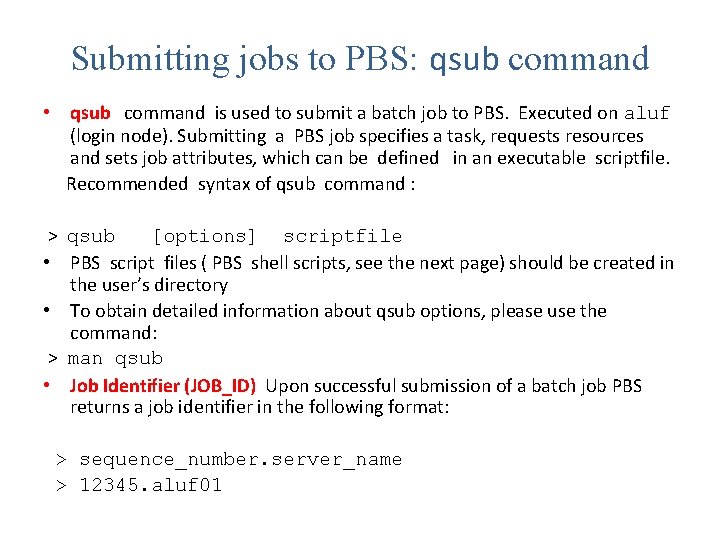

Submitting jobs to PBS: qsub command • qsub command is used to submit a batch job to PBS. Executed on aluf (login node). Submitting a PBS job specifies a task, requests resources and sets job attributes, which can be defined in an executable scriptfile. Recommended syntax of qsub command : > qsub [options] scriptfile • PBS script files ( PBS shell scripts, see the next page) should be created in the user’s directory • To obtain detailed information about qsub options, please use the command: > man qsub • Job Identifier (JOB_ID) Upon successful submission of a batch job PBS returns a job identifier in the following format: > sequence_number. server_name > 12345. aluf 01

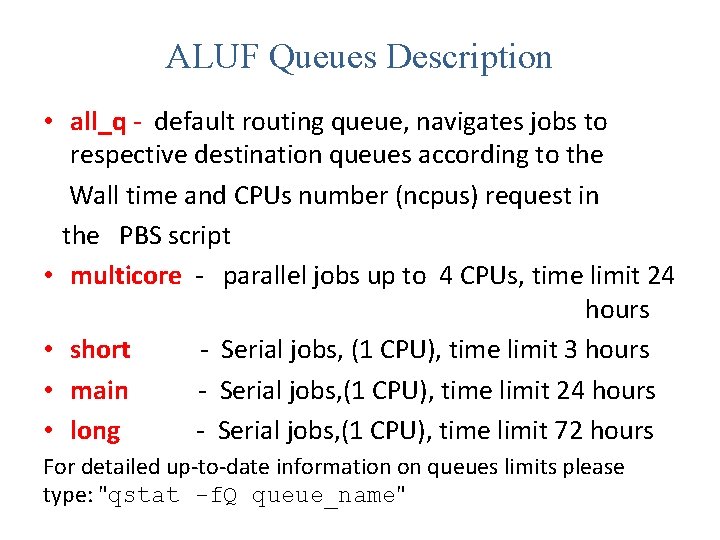

ALUF Queues Description • all_q - default routing queue, navigates jobs to respective destination queues according to the Wall time and CPUs number (ncpus) request in the PBS script • multicore - parallel jobs up to 4 CPUs, time limit 24 hours • short - Serial jobs, (1 CPU), time limit 3 hours • main - Serial jobs, (1 CPU), time limit 24 hours • long - Serial jobs, (1 CPU), time limit 72 hours For detailed up-to-date information on queues limits please type: "qstat -f. Q queue_name"

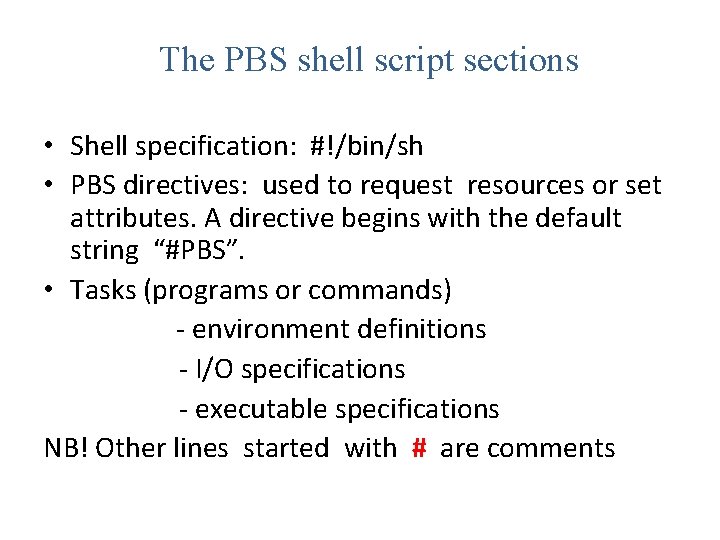

The PBS shell script sections • Shell specification: #!/bin/sh • PBS directives: used to request resources or set attributes. A directive begins with the default string “#PBS”. • Tasks (programs or commands) - environment definitions - I/O specifications - executable specifications NB! Other lines started with # are comments

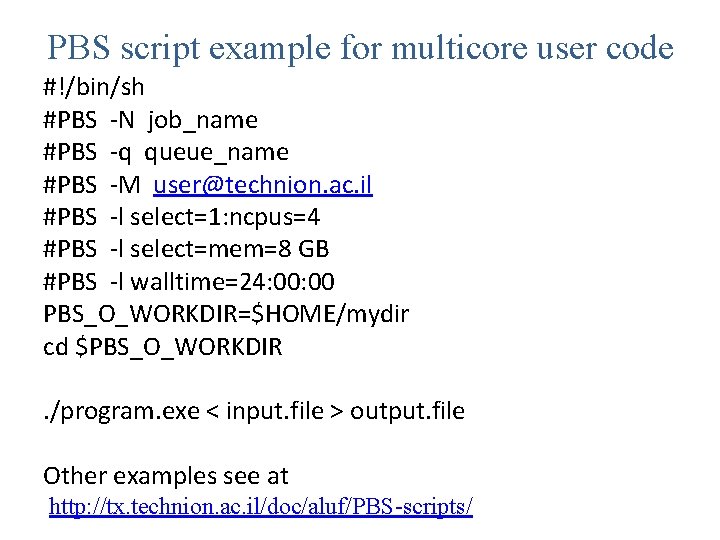

PBS script example for multicore user code #!/bin/sh #PBS -N job_name #PBS -q queue_name #PBS -M user@technion. ac. il #PBS -l select=1: ncpus=4 #PBS -l select=mem=8 GB #PBS -l walltime=24: 00 PBS_O_WORKDIR=$HOME/mydir cd $PBS_O_WORKDIR. /program. exe < input. file > output. file Other examples see at http: //tx. technion. ac. il/doc/aluf/PBS-scripts/

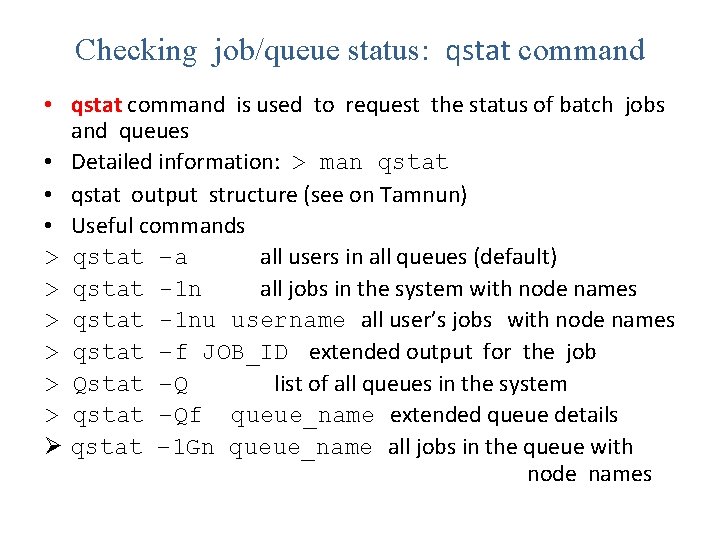

Checking job/queue status: qstat command • qstat command is used to request the status of batch jobs and queues • Detailed information: > man qstat • qstat output structure (see on Tamnun) • Useful commands > qstat –a all users in all queues (default) > qstat -1 n all jobs in the system with node names > qstat -1 nu username all user’s jobs with node names > qstat –f JOB_ID extended output for the job > Qstat –Q list of all queues in the system > qstat –Qf queue_name extended queue details Ø qstat – 1 Gn queue_name all jobs in the queue with node names

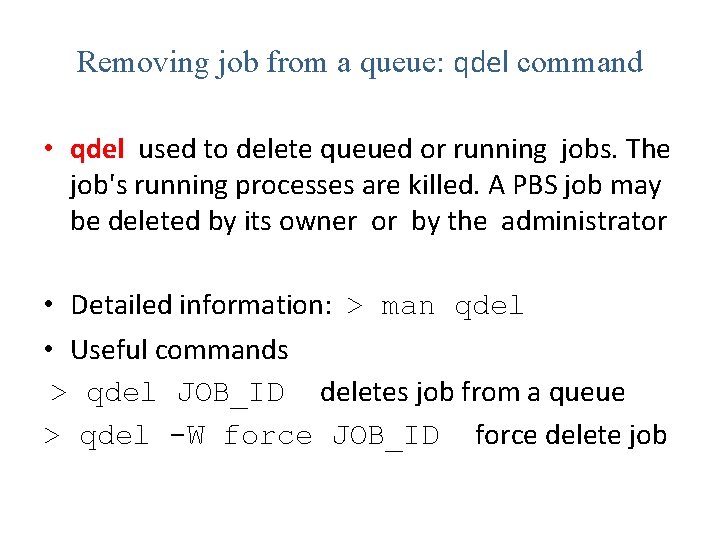

Removing job from a queue: qdel command • qdel used to delete queued or running jobs. The job's running processes are killed. A PBS job may be deleted by its owner or by the administrator • Detailed information: > man qdel • Useful commands > qdel JOB_ID deletes job from a queue > qdel -W force JOB_ID force delete job

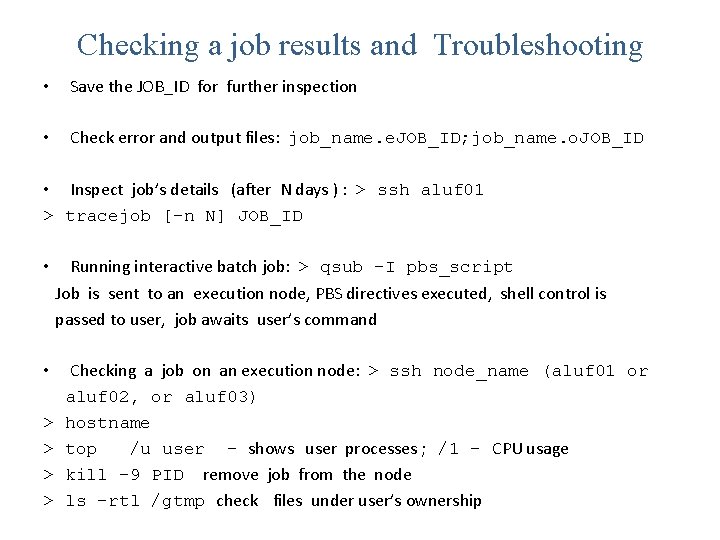

Checking a job results and Troubleshooting • Save the JOB_ID for further inspection • Check error and output files: job_name. e. JOB_ID; job_name. o. JOB_ID • Inspect job’s details (after N days ) : > ssh aluf 01 > tracejob [-n N] JOB_ID • • > > Running interactive batch job: > qsub –I pbs_script Job is sent to an execution node, PBS directives executed, shell control is passed to user, job awaits user’s command Checking a job on an execution node: > ssh node_name (aluf 01 or aluf 02, or aluf 03) hostname top /u user - shows user processes ; /1 – CPU usage kill -9 PID remove job from the node ls –rtl /gtmp check files under user’s ownership
