Port Bulgaria West PB Management Ro Pax DRUJBA
![Port Bulgaria West PB Management Port Bulgaria West PB Management](https://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-1.jpg)
Port Bulgaria West PB Management
![](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-2.jpg)
![Ro Pax DRUJBA Ro Pax DRUJBA](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-3.jpg)
Ro Pax DRUJBA
![Burgas - Batumi Novorossiysk Burgas - Batumi Novorossiysk](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-4.jpg)
Burgas - Batumi Novorossiysk
![Loading area - 1 900 lane meters 110 trucks 88 cars Passenger capacity -396 Loading area - 1 900 lane meters 110 trucks 88 cars Passenger capacity -396](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-5.jpg)
Loading area - 1 900 lane meters 110 trucks 88 cars Passenger capacity -396
![Main characteristics IMO 9237242 GT 25028 LOA 180 m BEAM 24, 3 m DEPT Main characteristics IMO 9237242 GT 25028 LOA 180 m BEAM 24, 3 m DEPT](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-6.jpg)
Main characteristics IMO 9237242 GT 25028 LOA 180 m BEAM 24, 3 m DEPT 9, 6 m DUP Deck 15, 3 m
![Freight Capacity 1900 LM Deck 5 – 1070 m with 8 strips for loading Freight Capacity 1900 LM Deck 5 – 1070 m with 8 strips for loading](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-7.jpg)
Freight Capacity 1900 LM Deck 5 – 1070 m with 8 strips for loading Deck 3 – 830 m with 6 strips for loading Free height – 4, 90 m
![Load Capacity Equably distributed load 3 t/m 2 Axel load – 18 t (2 Load Capacity Equably distributed load 3 t/m 2 Axel load – 18 t (2](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-8.jpg)
Load Capacity Equably distributed load 3 t/m 2 Axel load – 18 t (2 axels with 2 tires and 1, 3 m distance between axels)
![Load Capacity Max weight of trailer – 45 t (with 4 tires) Two mobile Load Capacity Max weight of trailer – 45 t (with 4 tires) Two mobile](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-9.jpg)
Load Capacity Max weight of trailer – 45 t (with 4 tires) Two mobile ramps connecting Deck 3 with Deck 5 5 Length – 52 m Width – 3, 20 m Height – 4, 70 m SWL 170 t
![Car Decks 396 LM (Car deck 1 -216 м/ Car deck 2 -180 м) Car Decks 396 LM (Car deck 1 -216 м/ Car deck 2 -180 м)](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-10.jpg)
Car Decks 396 LM (Car deck 1 -216 м/ Car deck 2 -180 м) Free height – 2, 20 m Average weight of unit– 1 t Maximum weight of unit– 2 t
![Car Decks Axel load – 1 t 2 fixed ramps connecting Deck 1 and Car Decks Axel load – 1 t 2 fixed ramps connecting Deck 1 and](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-11.jpg)
Car Decks Axel load – 1 t 2 fixed ramps connecting Deck 1 and Deck 2 Width 3, 10 m Height 2, 45 m
![Passenger capacity/accommodation Cabins with beds (total beds – 396) 75 х 4 beds (two Passenger capacity/accommodation Cabins with beds (total beds – 396) 75 х 4 beds (two](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-12.jpg)
Passenger capacity/accommodation Cabins with beds (total beds – 396) 75 х 4 beds (two cabins adapted for disabled people) 40 х 2 beds 8 х 2 beds - VIP
![Passenger capacity/accommodation Reception/Information center on Deck 7 Shop on Deck 8 Self service „Los Passenger capacity/accommodation Reception/Information center on Deck 7 Shop on Deck 8 Self service „Los](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-13.jpg)
Passenger capacity/accommodation Reception/Information center on Deck 7 Shop on Deck 8 Self service „Los Patios“ for 148 persons on Deck 8
![Passenger capacity/accommodation Bar lounge „El Corsario“on Deck 8 Lounge with reclining seats for 152 Passenger capacity/accommodation Bar lounge „El Corsario“on Deck 8 Lounge with reclining seats for 152](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-14.jpg)

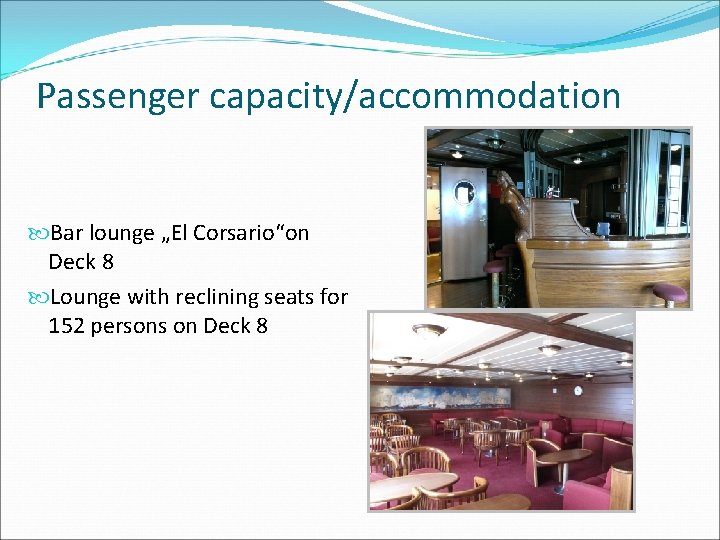

Passenger capacity/accommodation Bar lounge „El Corsario“on Deck 8 Lounge with reclining seats for 152 persons on Deck 8
![Passenger capacity/accommodation Bar Cafeteria „Mediterraneo“ with seats for 96 persons on Deck 8 Bar Passenger capacity/accommodation Bar Cafeteria „Mediterraneo“ with seats for 96 persons on Deck 8 Bar](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-15.jpg)

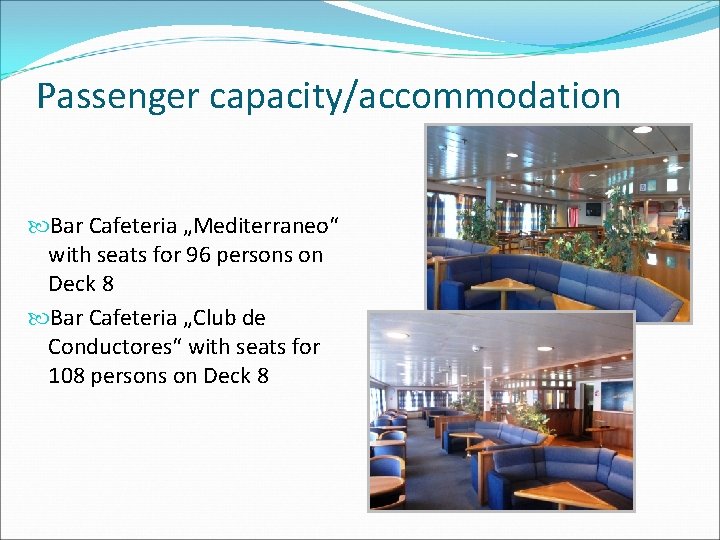

Passenger capacity/accommodation Bar Cafeteria „Mediterraneo“ with seats for 96 persons on Deck 8 Bar Cafeteria „Club de Conductores“ with seats for 108 persons on Deck 8
![Passenger capacity/accommodation Hospital on Deck 9 Passenger lift – 2 (capacity 10 persons/ 75 Passenger capacity/accommodation Hospital on Deck 9 Passenger lift – 2 (capacity 10 persons/ 75](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-16.jpg)
Passenger capacity/accommodation Hospital on Deck 9 Passenger lift – 2 (capacity 10 persons/ 75 kg/750 кг)
![Welcome aboard IMO 9237242 GT 25028 LOA 180 m Beam 24, 3 m Dept Welcome aboard IMO 9237242 GT 25028 LOA 180 m Beam 24, 3 m Dept](http://slidetodoc.com/presentation_image/612103cd16f20731b9c22f8ca4ec5142/image-17.jpg)
Welcome aboard IMO 9237242 GT 25028 LOA 180 m Beam 24, 3 m Dept 9, 6 m DUP deck 15, 3 m
