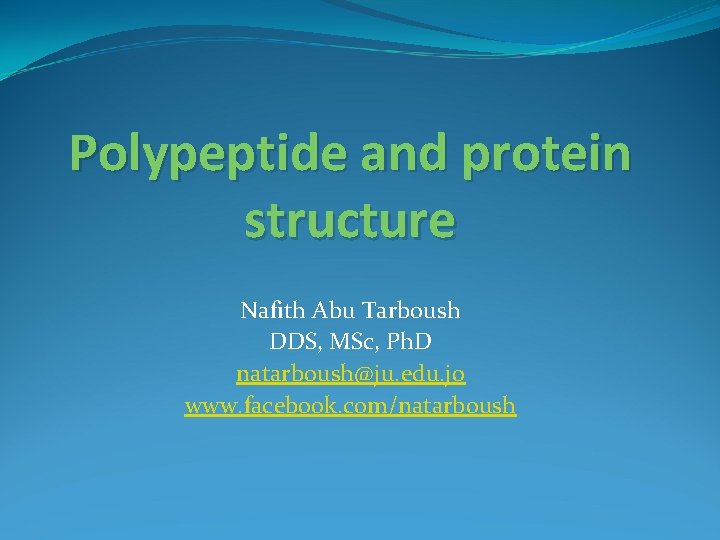

Polypeptide and protein structure Nafith Abu Tarboush DDS

Polypeptide and protein structure Nafith Abu Tarboush DDS, MSc, Ph. D natarboush@ju. edu. jo www. facebook. com/natarboush

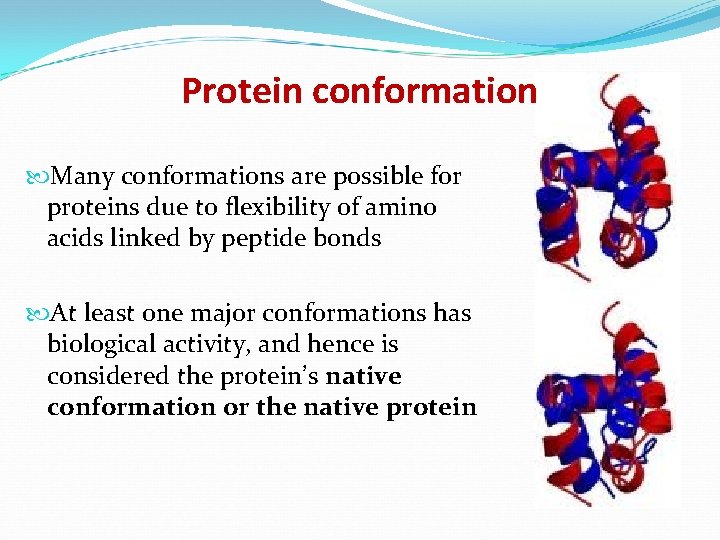

Protein conformation Many conformations are possible for proteins due to flexibility of amino acids linked by peptide bonds At least one major conformations has biological activity, and hence is considered the protein’s native conformation or the native protein

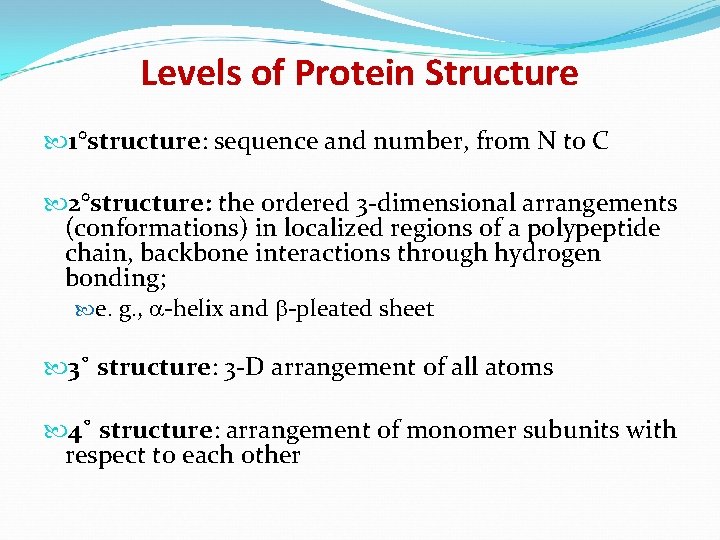

Levels of Protein Structure 1°structure: sequence and number, from N to C 2°structure: the ordered 3 -dimensional arrangements (conformations) in localized regions of a polypeptide chain, backbone interactions through hydrogen bonding; e. g. , -helix and -pleated sheet 3˚ structure: 3 -D arrangement of all atoms 4˚ structure: arrangement of monomer subunits with respect to each other

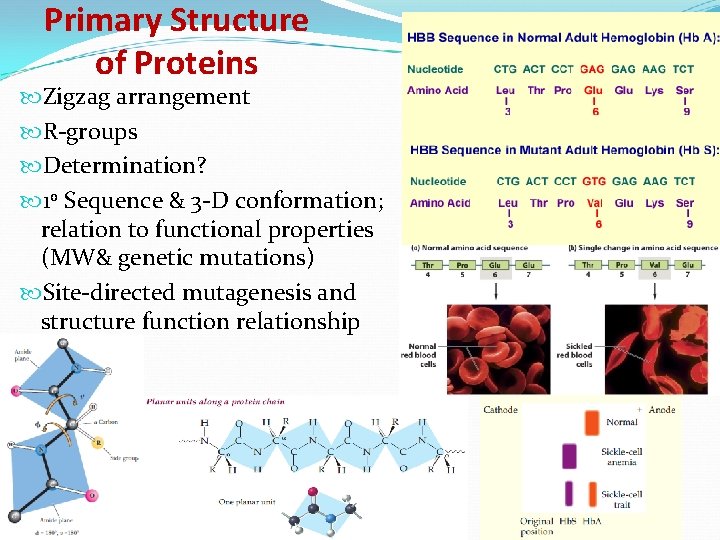

Primary Structure of Proteins Zigzag arrangement R-groups Determination? 1 o Sequence & 3 -D conformation; relation to functional properties (MW& genetic mutations) Site-directed mutagenesis and structure function relationship

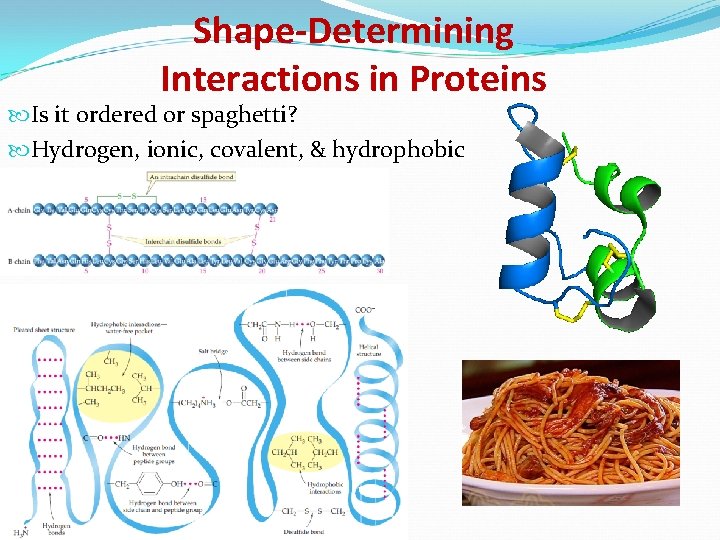

Shape-Determining Interactions in Proteins Is it ordered or spaghetti? Hydrogen, ionic, covalent, & hydrophobic

Secondary Structure of Proteins What is the secondary structure of proteins? “folding of the backbone” What are the bonds that have a free rotation? What is the implication? These angles repeat themselves in regular secondary structures Two main kinds: α-helix and βpleated sheet They are periodic; their features repeat at regular intervals Stability of secondary structure

The α-helix H-bonds are parallel to the helix axis, same segment C=O binds N—H four residues away linear arrangement of H-bonds (maximum strength and stability) Turns occur every 3. 6 residues, right handed, clockwise The pitch (linear distance between corresponding points on successive turns) is 5. 4 Å Proteins have varying amounts of α-helical structures What factors affect the helix (specific amino acids, electrostatic repulsion, steric repulsion)

The β-sheets Backbone is almost completely extended R groups extending above and below the sheet H-bonds are intra-chain or inter-chain bonds Perpendicular to the direction of the protein chain Parallel vs. anti-parallel Zigzag structure

Others regular ones Why do we have them? Loops vs. turns Also known as β-bends Involve 4 amino acids (H -bond: C=O of 1 & N–H of 4) A motif is a repetitive super-secondary structure. Regardless of function Domains; protein conformations with similar functions (leucine zipper)

-Helices and -Sheets Supersecondary structures: a combination of - and -sections unit: (parallel) unit: (helix-turn-helix), anti-parallel -meander: an anti-parallel sheet formed by a series of tight reverse turns connecting stretches of a polypeptide chain Greek key: a repetitive supersecondary structure formed when an anti-parallel sheet doubles back on itself -barrel: created when sheets are extensive enough to fold back on themselves

Fibrous Proteins Contain polypeptide chains organized approximately parallel along a single axis: Consist of long fibers or large sheets Mechanically strong Insoluble play an important structural role Examples are Keratin Collagen fibroin Fibroin, β-sheets, α-keratins, alternating glycine bundles of αand alanine helices

Globular Proteins Folded to, a more or less, spherical shape Soluble Polar vs. non-polar, exterior vs. interior Most of them have substantial sections of -helix and -sheet

3˚ Structure The 3 -dimensional arrangement of all the atoms in the molecule Simple vs. conjugated Backbone hydrogen bonding, side chains hydrogen bonding, hydrophobic interactions, electrostatic attraction, electrostatic repulsion, metal coordination Not every protein have all kinds of interactions (myoglobin & hemoglobin; no disulfides) (trypsin & chymotrypsin, no metal complexes) Interactions between side chains also plays a role

Forces That Stabilize Protein Structure

3°& 4°Structure Tertiary (3°) structure: the arrangement in space of all atoms in a polypeptide chain It is not always possible to draw a clear distinction between 2°and 3°structure Quaternary (4°) structure: the association of polypeptide chains into aggregations (dimers, trimers, tetramers, …etc). Non-covalent interactions. Simple or conjugated

Determination of 3°Structure X-ray crystallography uses a perfect crystal; that is, one in which all individual protein molecules have the same 3 D structure and orientation exposure to a beam of x-rays gives a series diffraction patterns information on molecular coordinates is extracted by a mathematical analysis called a Fourier series 2 -D Nuclear magnetic resonance can be done on protein samples in aqueous solution

X-Ray and NMR Data • High resolution method to determine 3˚ structure of proteins (from crystal) • Determines solution structure • Diffraction pattern produced by electrons scattering X-rays • Structural info. Gained from determining distances between nuclei that aid in structure determination • Series of patterns taken at different angles gives structural information • Results are independent of X-ray crystallography

Complex Protein Structures Covalent conjugation to carbohydrates (glyco-proteins): post -translational, function, N-linked (N of Asn) & O-linked (-OH of Ser or Thr) & occasionally to the –OH of hydroxy-lysine Lipoproteins: Non-covalent, store & transport lipids and cholesterol Extremely important: ex. Erythrocytes & blood groups (glycoshpingolipids) Phosphoproteins: contain phosphate groups esterified to Ser, Thr, or Tyr. ; the phosphate group usually regulates protein function

Chemical Properties of Proteins 1. Protein Hydrolysis The reverse of protein synthesis Digestion of proteins is hydrolyzing peptide bonds Takes place in the stomach and small intestine

2. Protein Denaturation How the protein preserve its shape? What is denaturation? It affects physical, chemical, and biological properties, such as enzymes Solubility decreased, ex. eggs Heat (≈≥ 50 οC) Mechanical agitation Detergents Organic compounds: acetone, ethanol, bacterial proteins p. H change: disrupt salt bridges, milk turns sour because it has become acidic Most denaturation is irreversible

Protein Folding & prediction The integration of biochemistry and computing has led to bioinformatics Predicting the 3˚ structure (limitations) First step is to search for sequence homology

Hydrophobic Interactions & Chaperons Hydrophobic interactions are spontaneous Chaperones aid in correct & timely folding of many proteins hsp 70 were the first chaperone proteins discovered Chaperones exist in organisms from prokaryotes to humans

Structure & diseases (prion, Alzheimer) Mad-cow disease (bovine spongiform encephalopathy), and human spongiform encephalopathy (Creutzfeldt-Jakob disease) The cause is a small (28 -k. Da) protein called a prion (Met 129) Alzheimer's Disease: buildups of plaques and fibers of hard insoluble material Amyloid protein mis-folded and broken down (≈40 a. a, Ab protein) and aggregates
