Polymeric Corrugated Metal Pipe (PCMP) www. Contech. ES. com

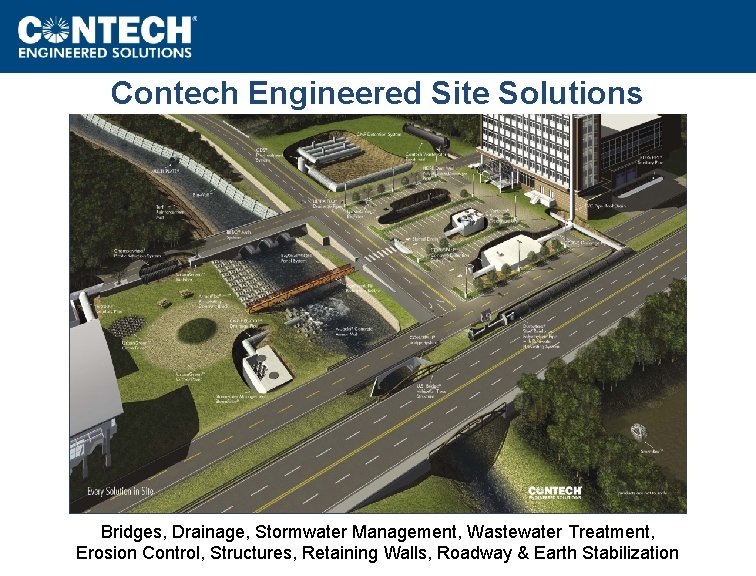

Contech Engineered Site Solutions Bridges, Drainage, Stormwater Management, Wastewater Treatment, www. Contech. ES. com Erosion Control, Structures, Retaining Walls, Roadway & Earth Stabilization

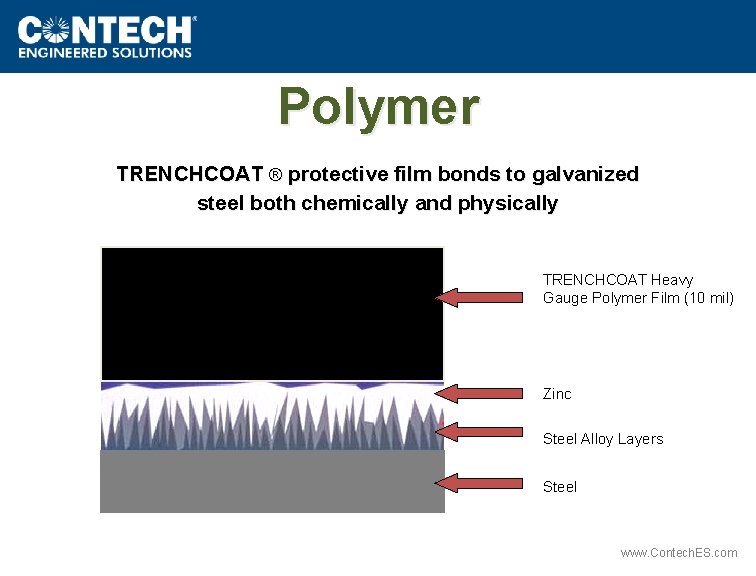

Polymer TRENCHCOAT ® protective film bonds to galvanized steel both chemically and physically TRENCHCOAT Heavy Gauge Polymer Film (10 mil) Zinc Steel Alloy Layers Steel www. Contech. ES. com

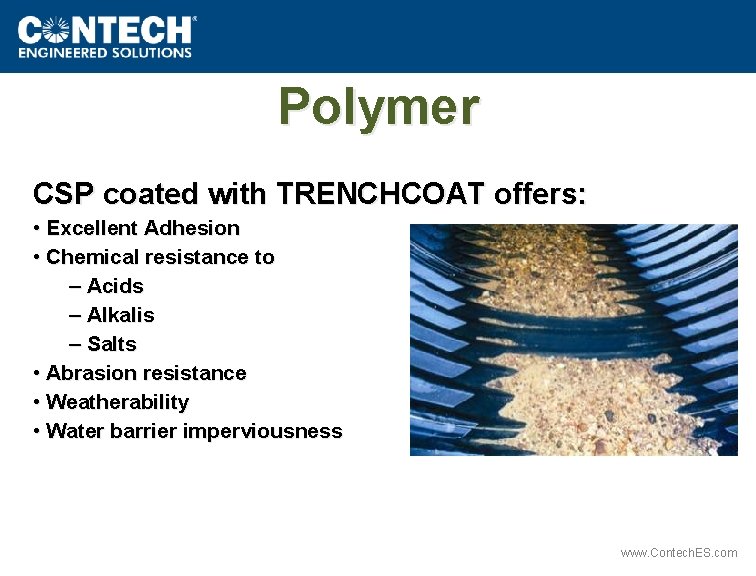

Polymer CSP coated with TRENCHCOAT offers: • Excellent Adhesion • Chemical resistance to – Acids – Alkalis – Salts • Abrasion resistance • Weatherability • Water barrier imperviousness www. Contech. ES. com

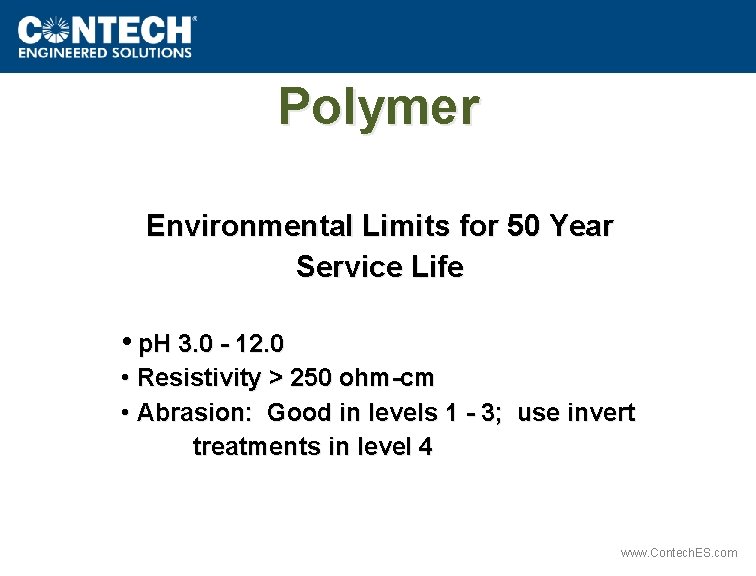

Polymer Environmental Limits for 50 Year Service Life • p. H 3. 0 - 12. 0 • Resistivity > 250 ohm-cm • Abrasion: Good in levels 1 - 3; use invert treatments in level 4 www. Contech. ES. com

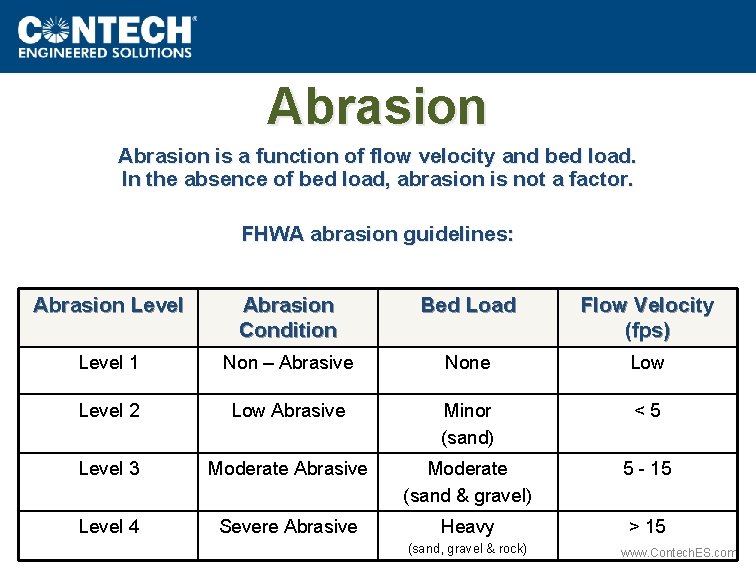

Abrasion is a function of flow velocity and bed load. In the absence of bed load, abrasion is not a factor. FHWA abrasion guidelines: Abrasion Level Abrasion Condition Bed Load Flow Velocity (fps) Level 1 Non – Abrasive None Low Level 2 Low Abrasive Minor (sand) <5 Level 3 Moderate Abrasive Moderate (sand & gravel) 5 - 15 Level 4 Severe Abrasive Heavy > 15 (sand, gravel & rock) www. Contech. ES. com

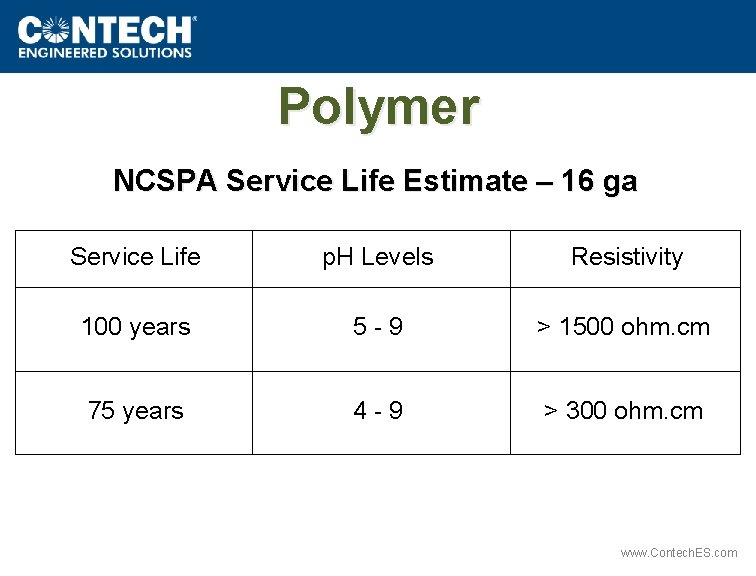

Polymer NCSPA Service Life Estimate – 16 ga Service Life p. H Levels Resistivity 100 years 5 -9 > 1500 ohm. cm 75 years 4 -9 > 300 ohm. cm www. Contech. ES. com

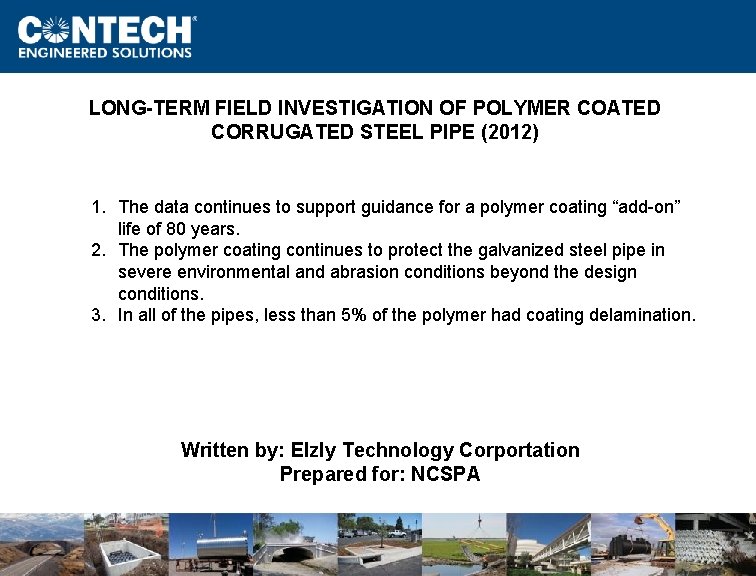

LONG-TERM FIELD INVESTIGATION OF POLYMER COATED CORRUGATED STEEL PIPE (2012) 1. The data continues to support guidance for a polymer coating “add-on” life of 80 years. 2. The polymer coating continues to protect the galvanized steel pipe in severe environmental and abrasion conditions beyond the design conditions. 3. In all of the pipes, less than 5% of the polymer had coating delamination. Written by: Elzly Technology Corportation Prepared for: NCSPA www. Contech. ES. com
• CULVERT Uses: • STORM DRAIN • DETENTION SYSTEM www. Contech. ES. com

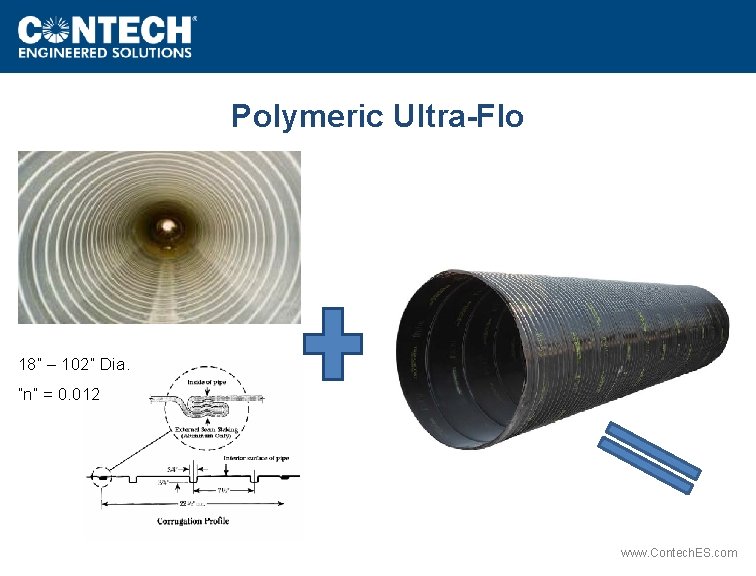

Polymeric Ultra-Flo 18” – 102” Dia. “n” = 0. 012 www. Contech. ES. com

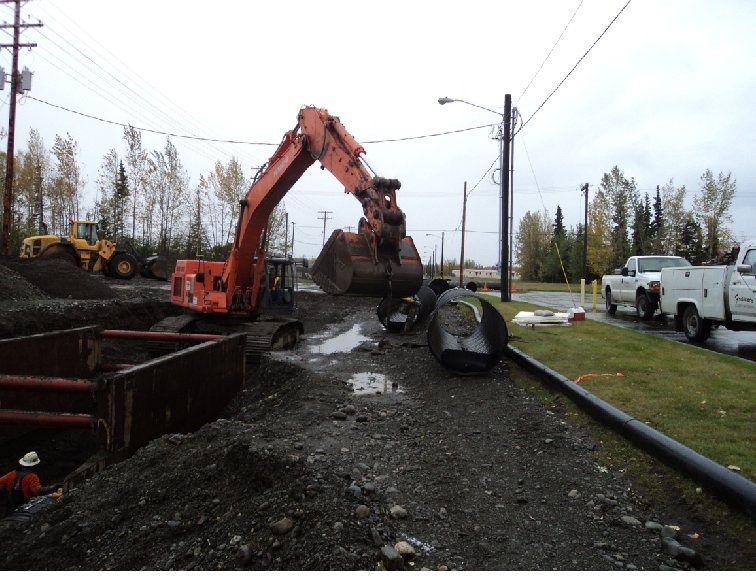

www. Contech. ES. com

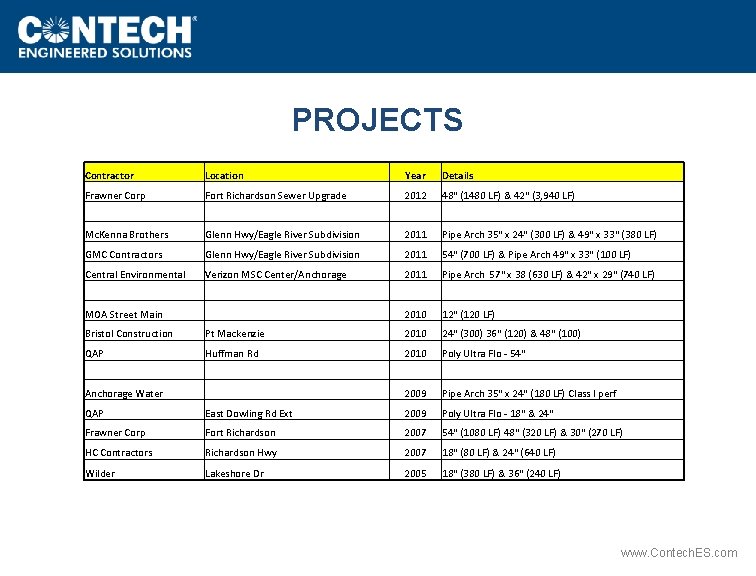

PROJECTS Contractor Location Year Details Frawner Corp Fort Richardson Sewer Upgrade 2012 48" (1480 LF) & 42" (3, 940 LF) Mc. Kenna Brothers Glenn Hwy/Eagle River Subdivision 2011 Pipe Arch 35" x 24" (300 LF) & 49" x 33" (380 LF) GMC Contractors Glenn Hwy/Eagle River Subdivision 2011 54" (700 LF) & Pipe Arch 49" x 33" (100 LF) Central Environmental Verizon MSC Center/Anchorage 2011 Pipe Arch 57" x 38 (630 LF) & 42" x 29" (740 LF) 2010 12" (120 LF) MOA Street Main Bristol Construction Pt Mackenzie 2010 24" (300) 36" (120) & 48" (100) QAP Huffman Rd 2010 Poly Ultra Flo - 54" 2009 Pipe Arch 35" x 24" (180 LF) Class I perf Anchorage Water QAP East Dowling Rd Ext 2009 Poly Ultra Flo - 18" & 24" Frawner Corp Fort Richardson 2007 54" (1080 LF) 48" (320 LF) & 30" (270 LF) HC Contractors Richardson Hwy 2007 18" (80 LF) & 24" (640 LF) Wilder Lakeshore Dr 2005 18" (380 LF) & 36" (240 LF) www. Contech. ES. com

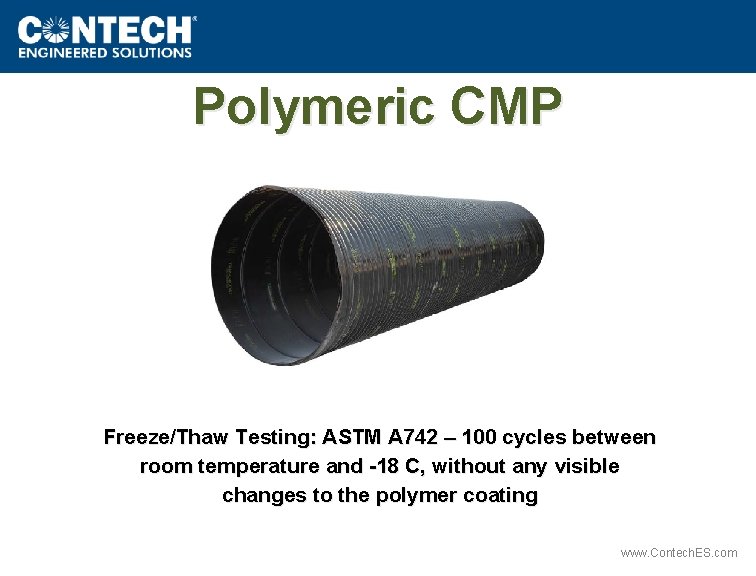

Polymeric CMP Freeze/Thaw Testing: ASTM A 742 – 100 cycles between room temperature and -18 C, without any visible changes to the polymer coating www. Contech. ES. com

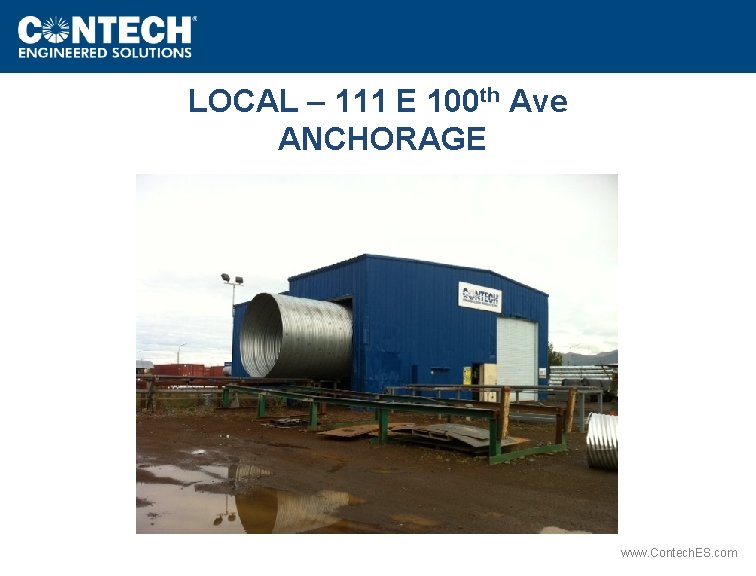

LOCAL – 111 E 100 th Ave ANCHORAGE www. Contech. ES. com
Thank You! Questions? www. Contech. ES. com
