Polyester plinths of THALASSA polyester wallmounting and floor

Polyester plinths of THALASSA polyester wall-mounting and floor -standing enclosures UE_TR_UE 11 MK 15 en

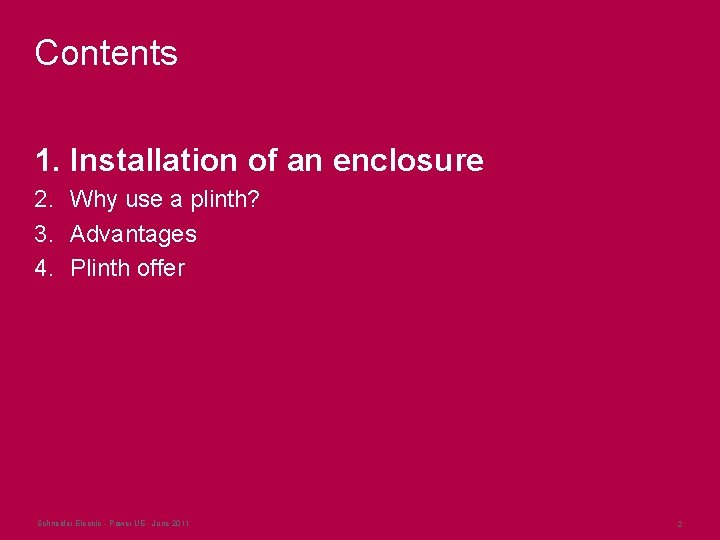

Contents 1. Installation of an enclosure 2. Why use a plinth? 3. Advantages 4. Plinth offer Schneider Electric - Power UE - June 2011 2

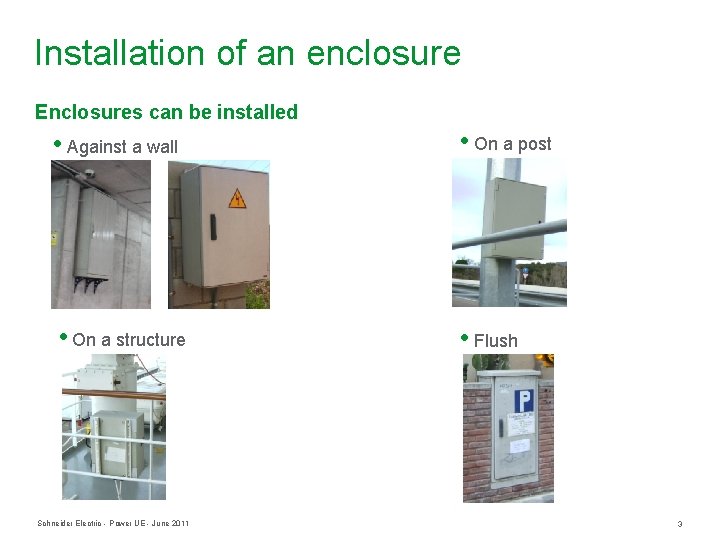

Installation of an enclosure Enclosures can be installed • Against a wall • On a post • On a structure • Flush Schneider Electric - Power UE - June 2011 3

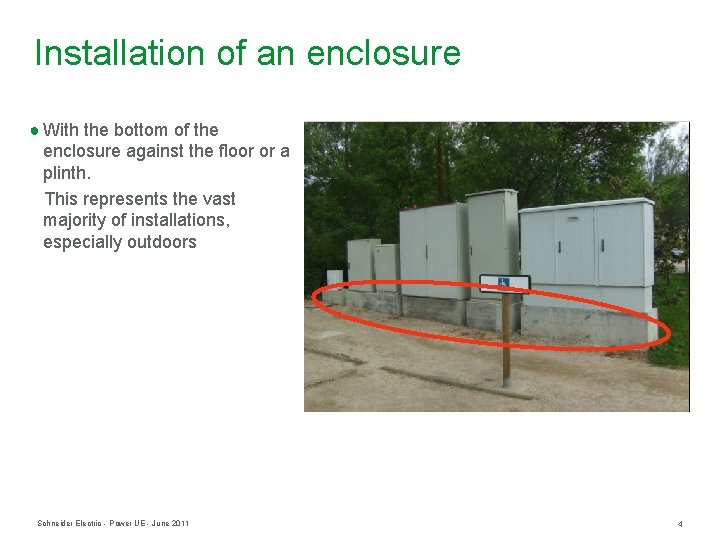

Installation of an enclosure ● With the bottom of the enclosure against the floor or a plinth. This represents the vast majority of installations, especially outdoors Schneider Electric - Power UE - June 2011 4

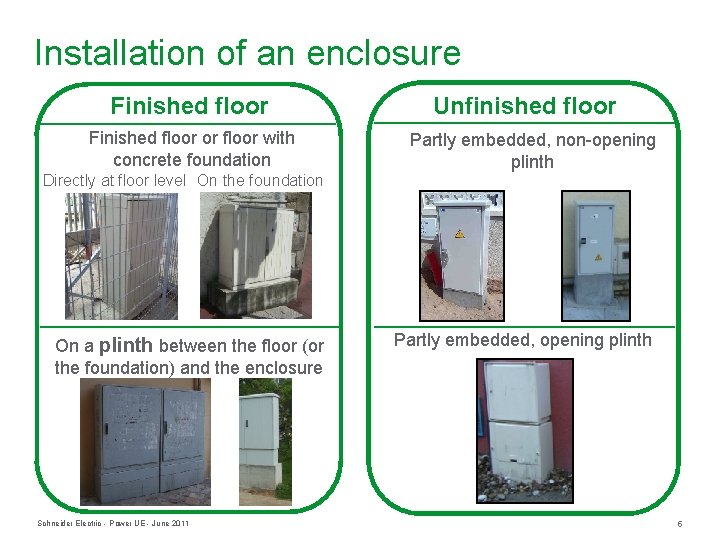

Installation of an enclosure Finished floor or floor with concrete foundation Directly at floor level On the foundation On a plinth between the floor (or the foundation) and the enclosure Schneider Electric - Power UE - June 2011 Unfinished floor Partly embedded, non-opening plinth Partly embedded, opening plinth 5

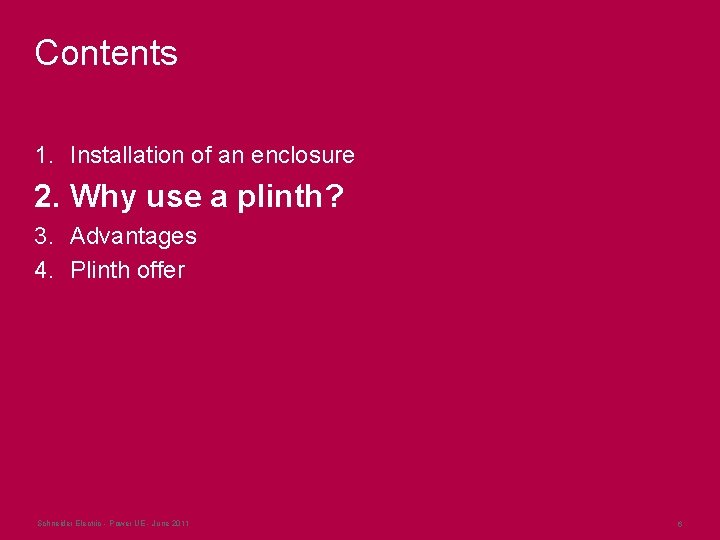

Contents 1. Installation of an enclosure 2. Why use a plinth? 3. Advantages 4. Plinth offer Schneider Electric - Power UE - June 2011 6

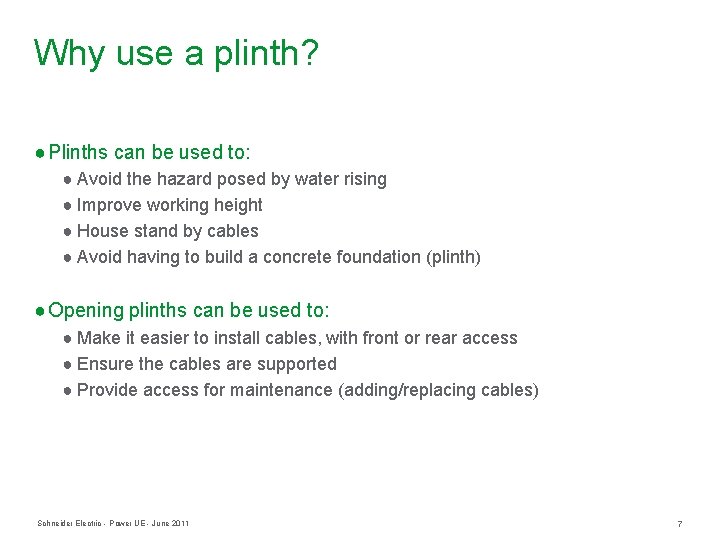

Why use a plinth? ● Plinths can be used to: ● Avoid the hazard posed by water rising ● Improve working height ● House stand by cables ● Avoid having to build a concrete foundation (plinth) ● Opening plinths can be used to: ● Make it easier to install cables, with front or rear access ● Ensure the cables are supported ● Provide access for maintenance (adding/replacing cables) Schneider Electric - Power UE - June 2011 7

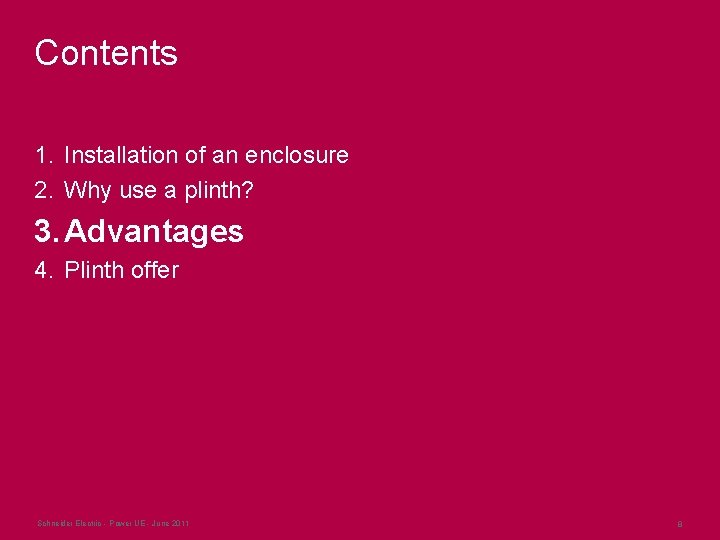

Contents 1. Installation of an enclosure 2. Why use a plinth? 3. Advantages 4. Plinth offer Schneider Electric - Power UE - June 2011 8

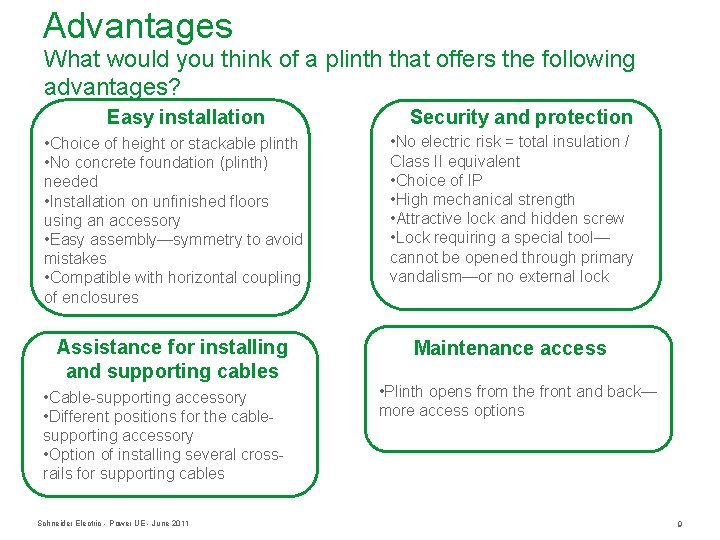

Advantages What would you think of a plinth that offers the following advantages? Easy installation Security and protection • Choice of height or stackable plinth • No concrete foundation (plinth) needed • Installation on unfinished floors using an accessory • Easy assembly—symmetry to avoid mistakes • Compatible with horizontal coupling of enclosures • No electric risk = total insulation / Class II equivalent • Choice of IP • High mechanical strength • Attractive lock and hidden screw • Lock requiring a special tool— cannot be opened through primary vandalism—or no external lock Assistance for installing and supporting cables Maintenance access • Cable-supporting accessory • Different positions for the cablesupporting accessory • Option of installing several crossrails for supporting cables Schneider Electric - Power UE - June 2011 • Plinth opens from the front and back— more access options 9

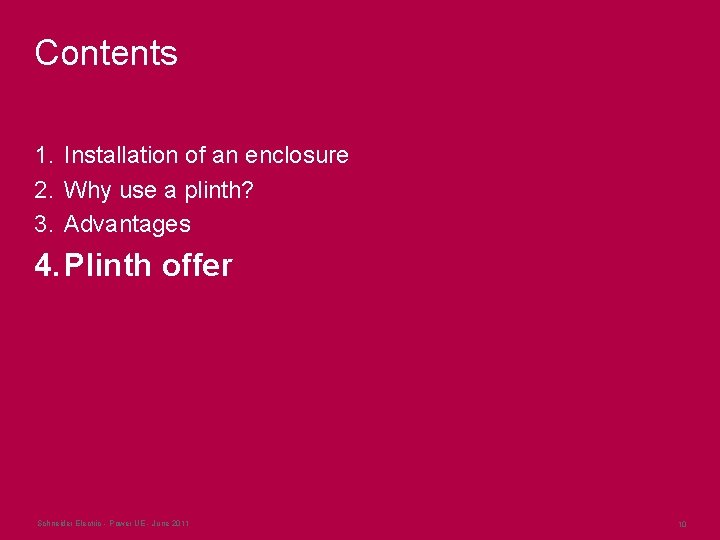

Contents 1. Installation of an enclosure 2. Why use a plinth? 3. Advantages 4. Plinth offer Schneider Electric - Power UE - June 2011 10

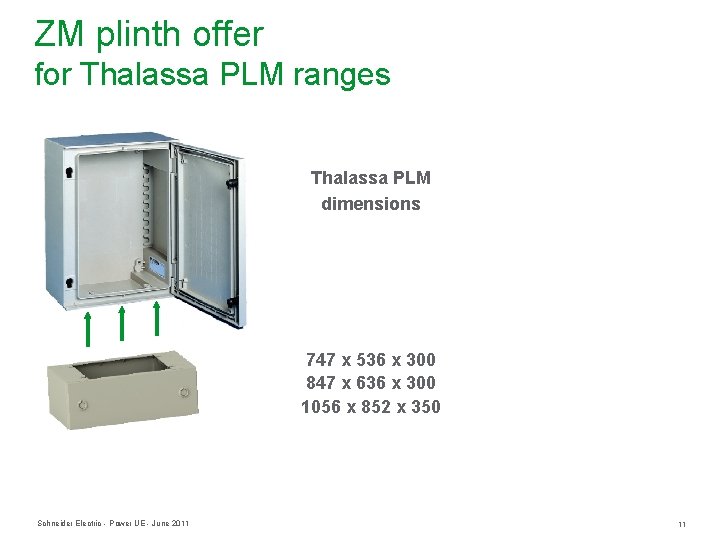

ZM plinth offer for Thalassa PLM ranges Thalassa PLM dimensions 310 x 215 x 160 307 x 255 x 164 430 x 330 x 200 530 x 430 x 200 647 x 436 x 250 747 x 536 x 300 847 x 636 x 300 1056 x 852 x 350 Schneider Electric - Power UE - June 2011 11

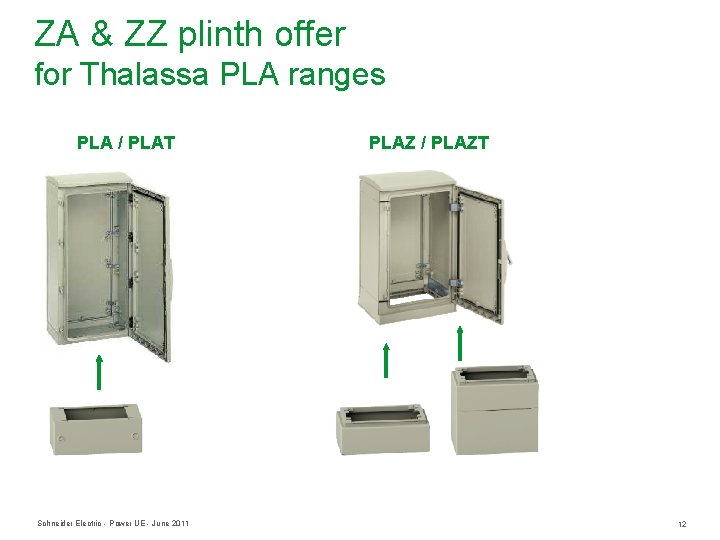

ZA & ZZ plinth offer for Thalassa PLA ranges PLA / PLAT Schneider Electric - Power UE - June 2011 PLAZ / PLAZT 12

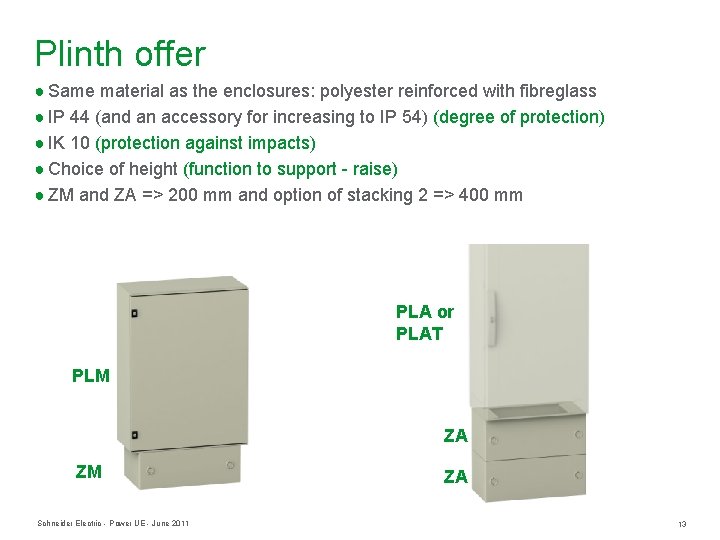

Plinth offer ● Same material as the enclosures: polyester reinforced with fibreglass ● IP 44 (and an accessory for increasing to IP 54) (degree of protection) ● IK 10 (protection against impacts) ● Choice of height (function to support - raise) ● ZM and ZA => 200 mm and option of stacking 2 => 400 mm PLA or PLAT PLM ZA ZM Schneider Electric - Power UE - June 2011 ZA 13

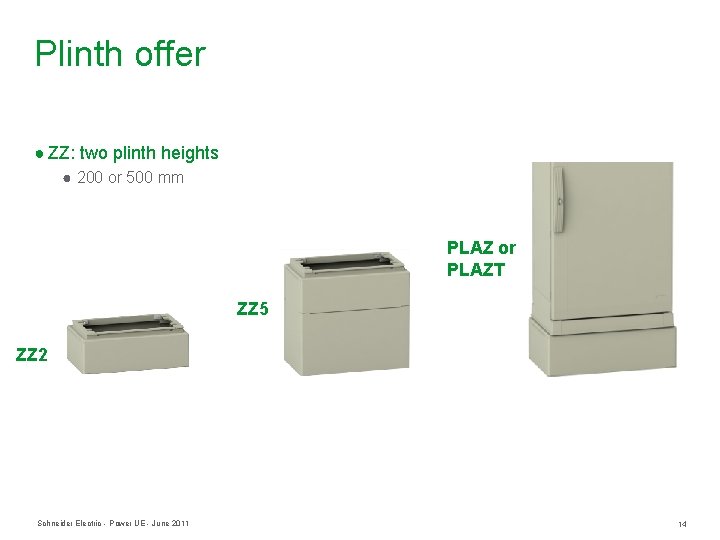

Plinth offer ● ZZ: two plinth heights ● 200 or 500 mm PLAZ or PLAZT ZZ 5 ZZ 2 Schneider Electric - Power UE - June 2011 14

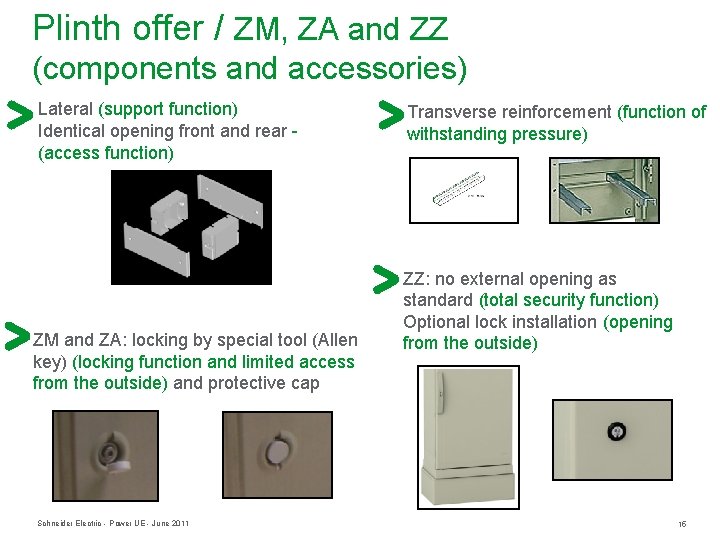

Plinth offer / ZM, ZA and ZZ (components and accessories) Lateral (support function) Identical opening front and rear (access function) ZM and ZA: locking by special tool (Allen key) (locking function and limited access from the outside) and protective cap Schneider Electric - Power UE - June 2011 Transverse reinforcement (function of withstanding pressure) ZZ: no external opening as standard (total security function) Optional lock installation (opening from the outside) 15

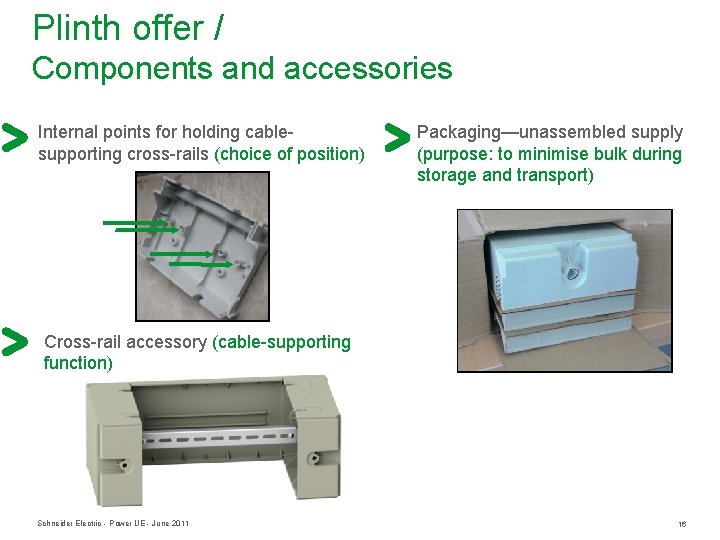

Plinth offer / Components and accessories Internal points for holding cablesupporting cross-rails (choice of position) Packaging—unassembled supply (purpose: to minimise bulk during storage and transport) Cross-rail accessory (cable-supporting function) Schneider Electric - Power UE - June 2011 16

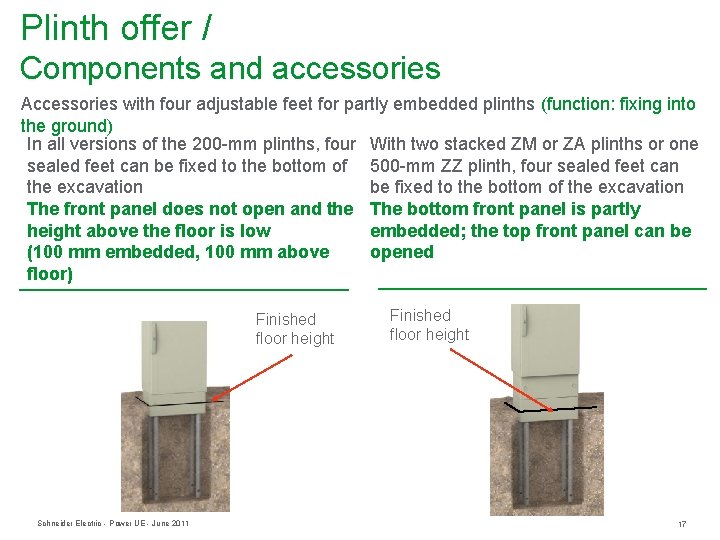

Plinth offer / Components and accessories Accessories with four adjustable feet for partly embedded plinths (function: fixing into the ground) In all versions of the 200 -mm plinths, four With two stacked ZM or ZA plinths or one sealed feet can be fixed to the bottom of 500 -mm ZZ plinth, four sealed feet can the excavation be fixed to the bottom of the excavation The front panel does not open and the The bottom front panel is partly height above the floor is low embedded; the top front panel can be (100 mm embedded, 100 mm above opened floor) Finished floor height Schneider Electric - Power UE - June 2011 Finished floor height 17
