Polarization Electromagnetic Waves February 2005 Electromagnetic Wave EM

Polarization Electromagnetic Waves February 2005

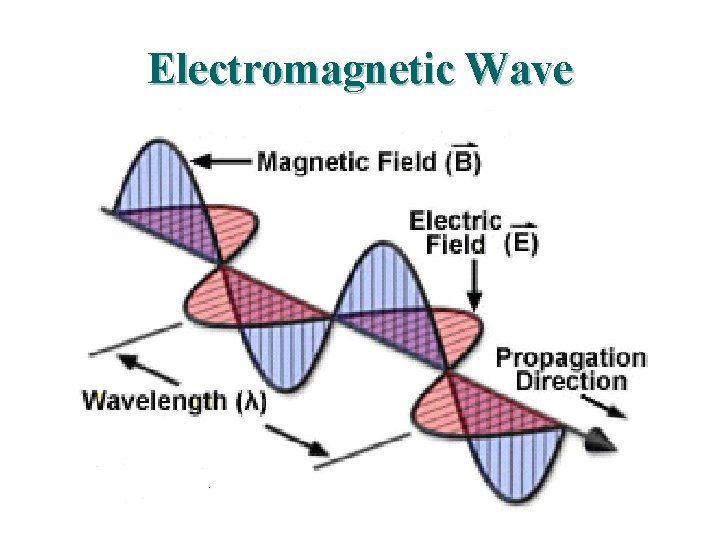

Electromagnetic Wave

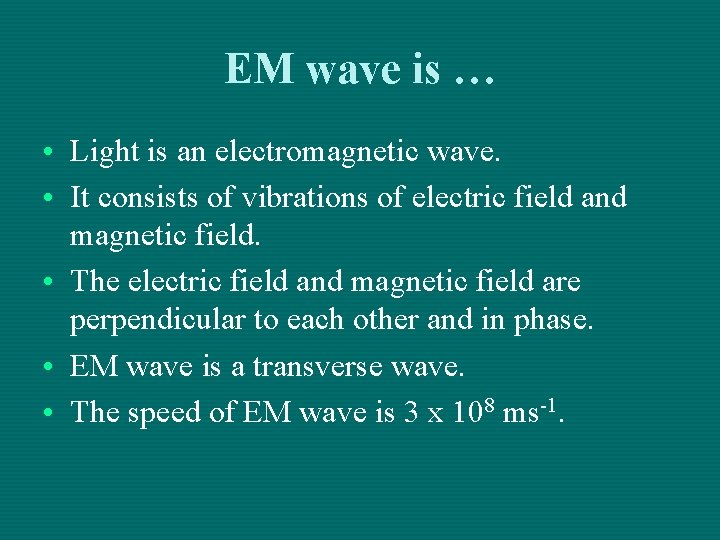

EM wave is … • Light is an electromagnetic wave. • It consists of vibrations of electric field and magnetic field. • The electric field and magnetic field are perpendicular to each other and in phase. • EM wave is a transverse wave. • The speed of EM wave is 3 x 108 ms-1.

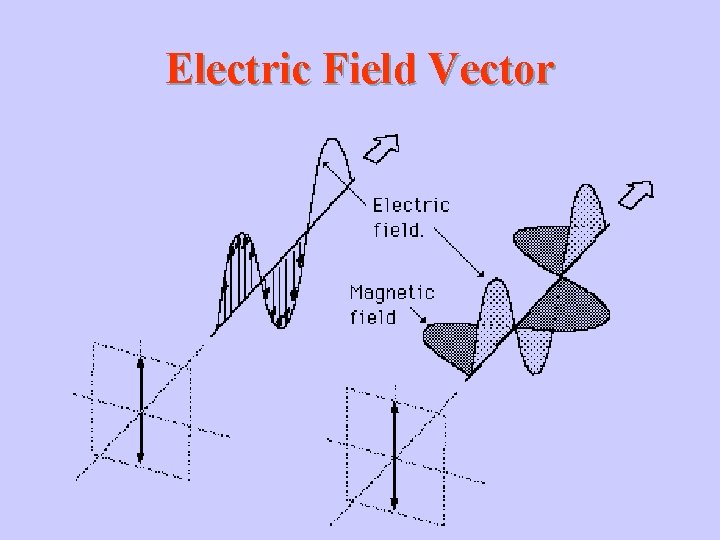

Electric Field Vector

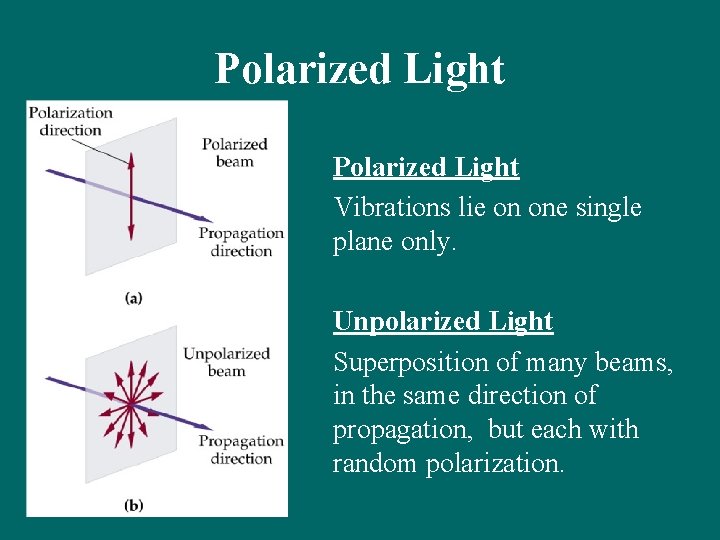

Polarized Light Vibrations lie on one single plane only. Unpolarized Light Superposition of many beams, in the same direction of propagation, but each with random polarization.

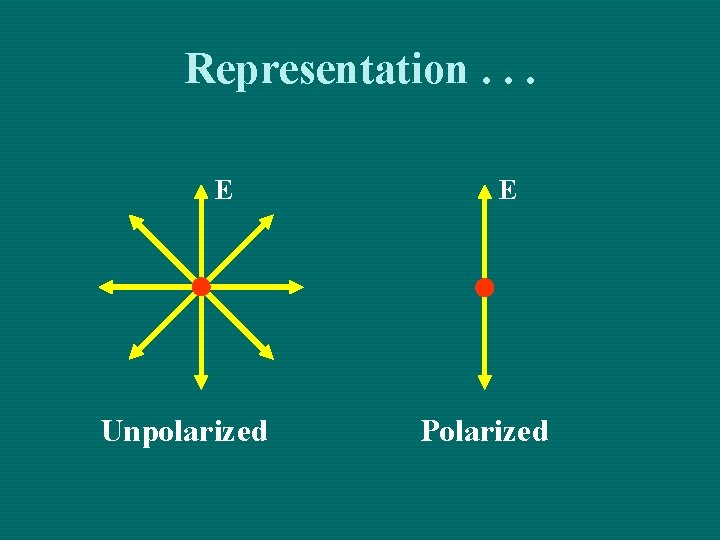

Representation. . . E Unpolarized E Polarized

Representation. . . Unpolarized Polarized

Polarization of Light

Selective Absorption Unpolarized Light Vertical Component being Transmitted Horizontal Component being Absorbed

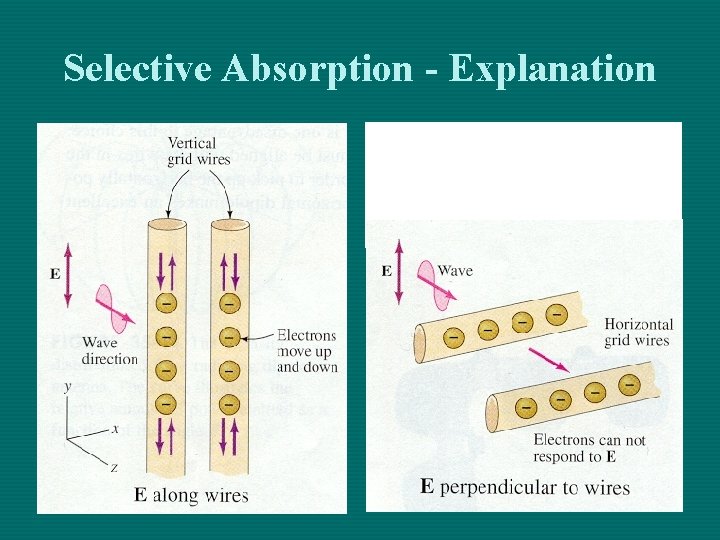

Selective Absorption - Explanation

Polarizing Material A Polarizing material will only allow the passage of that component of the electric field parallel to the polarization direction of the material I = I 0 cos 2 q

Polarizer & Unpolarized Light • Each wave is attenuated by factor cos 2 q. • Average attenuation is < cos 2 q > = 1/2

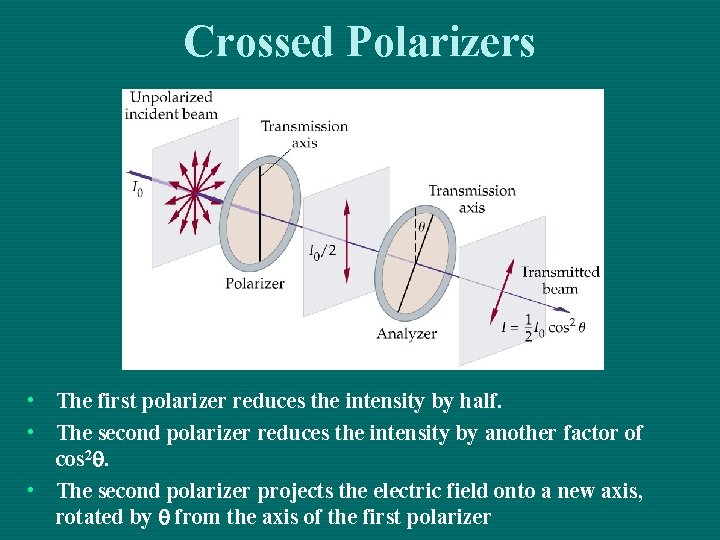

Crossed Polarizers • The first polarizer reduces the intensity by half. • The second polarizer reduces the intensity by another factor of cos 2 q. • The second polarizer projects the electric field onto a new axis, rotated by q from the axis of the first polarizer

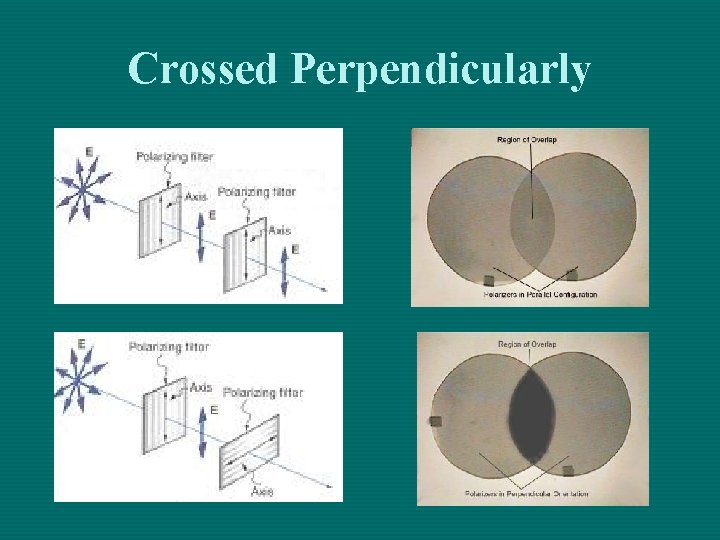

Crossed Perpendicularly

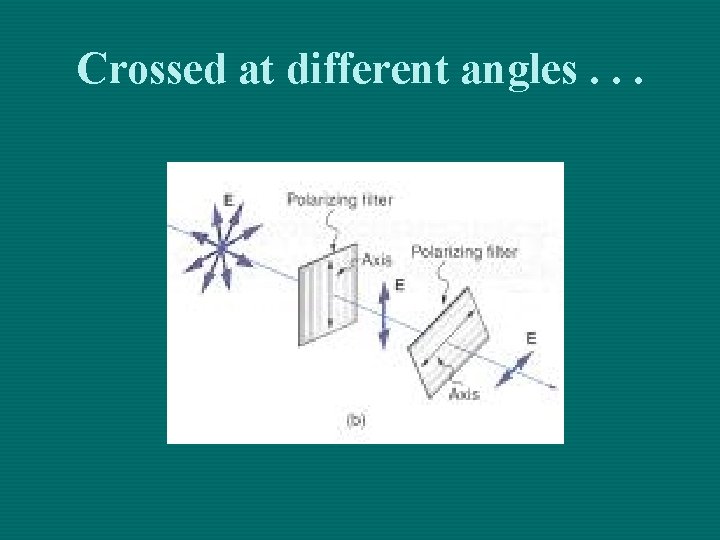

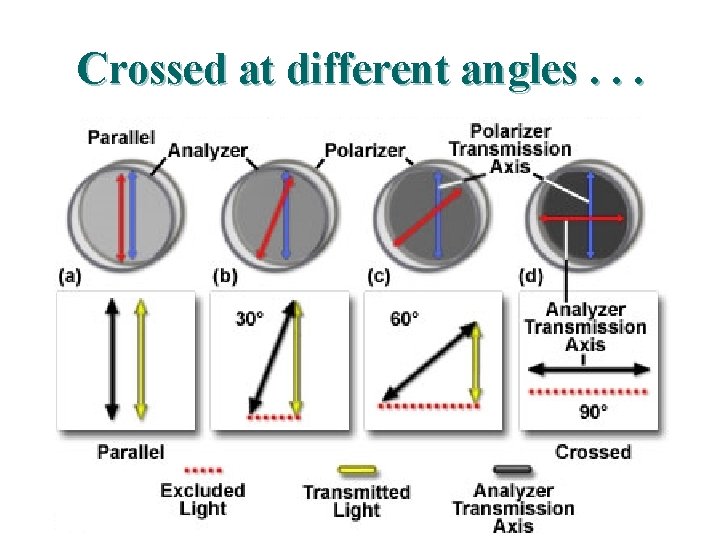

Crossed at different angles. . .

Crossed at different angles. . .

Reflection

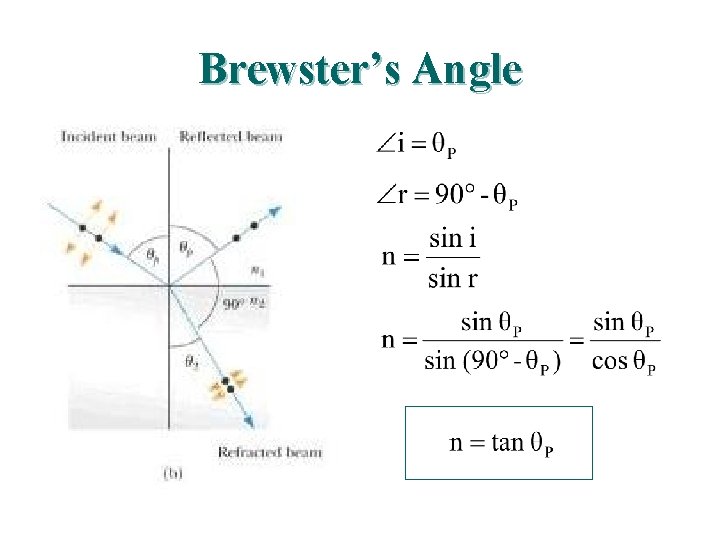

Brewster’s Angle

Glares

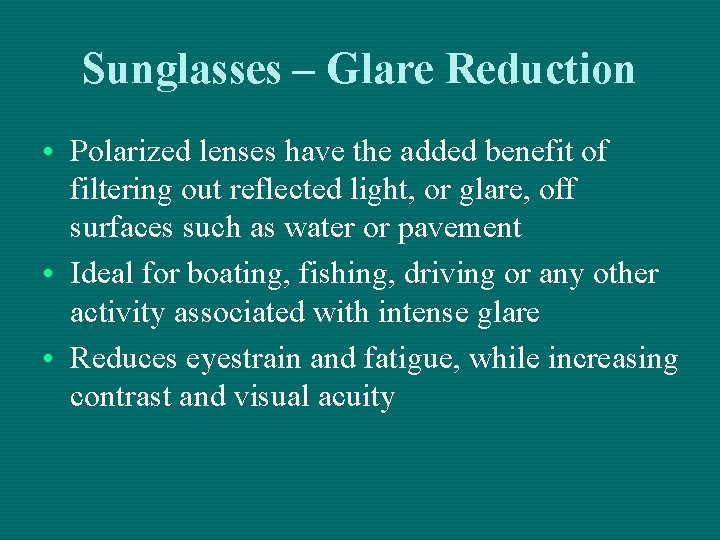

Sunglasses – Glare Reduction • Polarized lenses have the added benefit of filtering out reflected light, or glare, off surfaces such as water or pavement • Ideal for boating, fishing, driving or any other activity associated with intense glare • Reduces eyestrain and fatigue, while increasing contrast and visual acuity

How Do Polarized Lenses Work? • Light reflected from surfaces like a flat road or smooth water is generally horizontally polarized. This horizontally polarized light is blocked by the vertically oriented polarizers in the lenses. • The result: a reduction in annoying and sometimes dangerous glare.

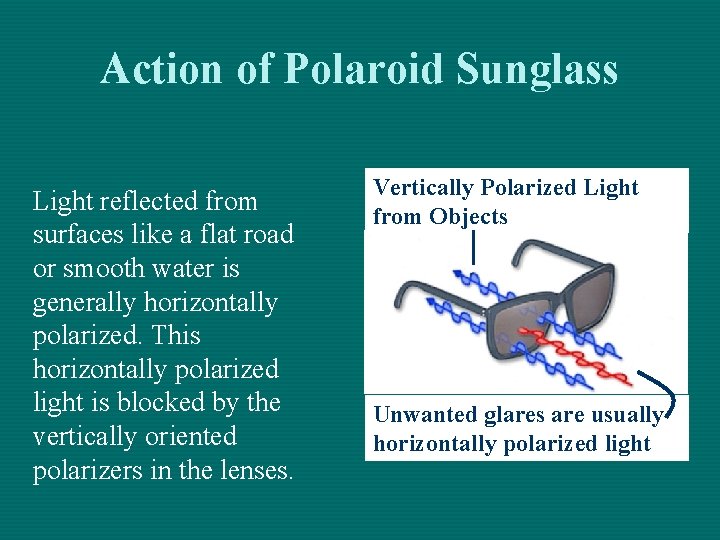

Action of Polaroid Sunglass Light reflected from surfaces like a flat road or smooth water is generally horizontally polarized. This horizontally polarized light is blocked by the vertically oriented polarizers in the lenses. Vertically Polarized Light from Objects Unwanted glares are usually horizontally polarized light

Glare and Polarization http: //regentsprep. org/Regents/physics/phys 04/cpolarize/glare. htm

Glare and Polarization The polaroid absorbs most of the polarized light reflected from the water’surface, allowing the dimmer light from the bottom of the river, and any fish swimming there, to be seen more readily.

Glare and Polarization www. johnsonwindowfilms. com/cutglare. htm

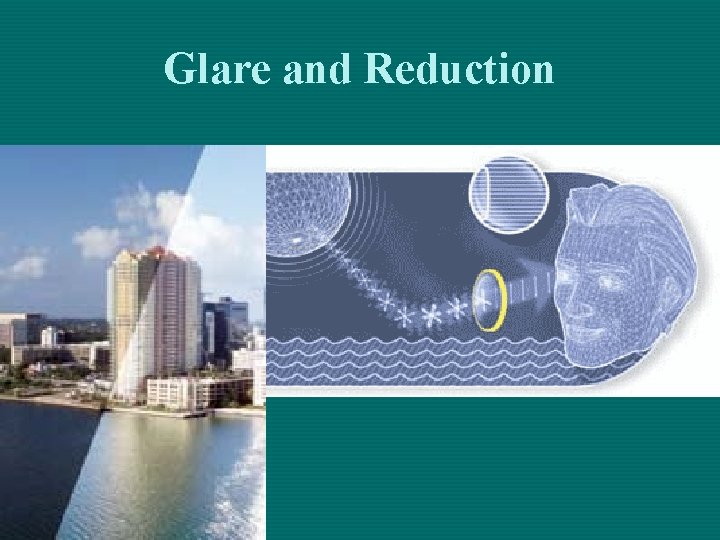

Glare and Reduction

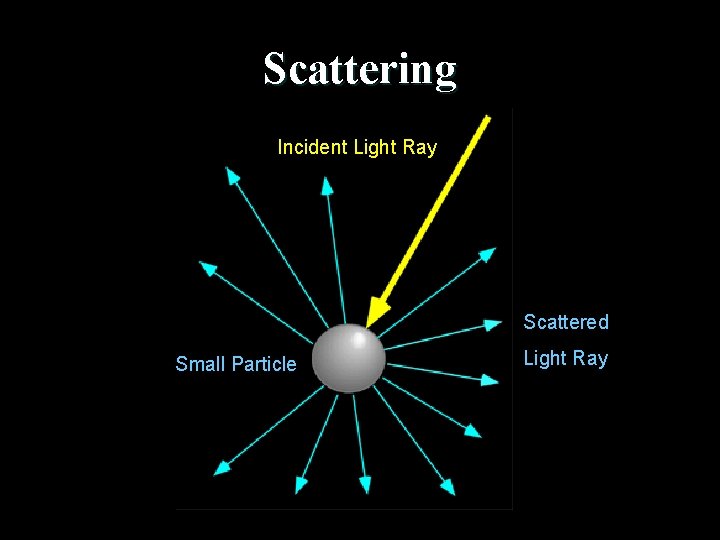

Scattering Incident Light Ray Scattered Small Particle Light Ray

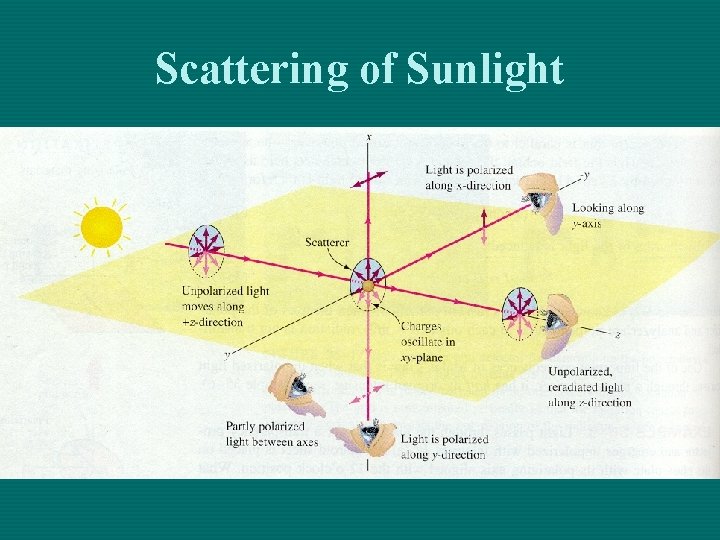

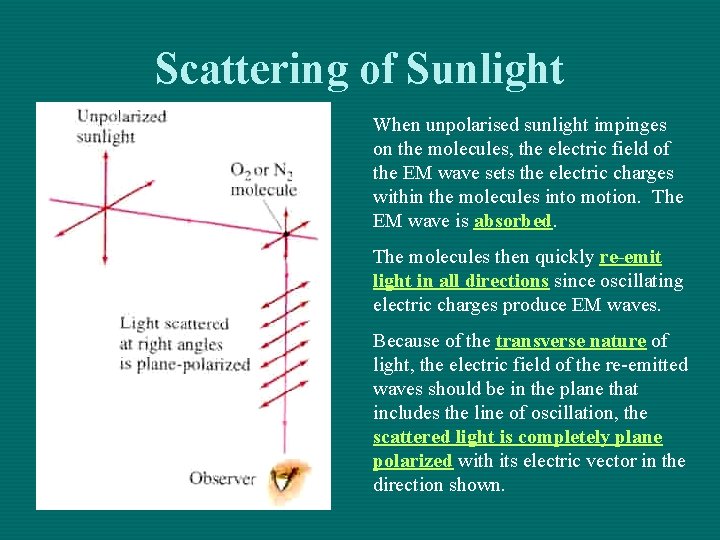

Scattering of Sunlight When unpolarised sunlight impinges on the molecules, the electric field of the EM wave sets the electric charges within the molecules into motion. The EM wave is absorbed. The molecules then quickly re-emit light in all directions since oscillating electric charges produce EM waves. Because of the transverse nature of light, the electric field of the re-emitted waves should be in the plane that includes the line of oscillation, the scattered light is completely plane polarized with its electric vector in the direction shown.

Scattering of Sunlight

Polarization by Scatterings

Polarized Light by Scattering

Question ? • Why is the sky blue in the day and red at sunsets?

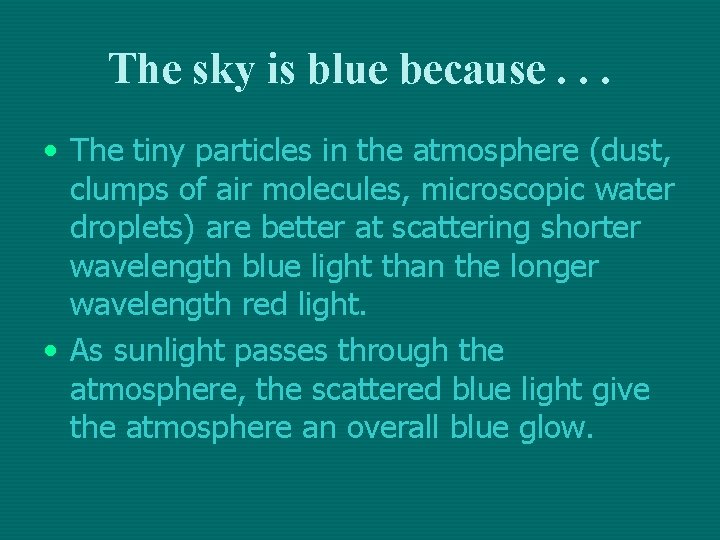

The sky is blue because. . . • The tiny particles in the atmosphere (dust, clumps of air molecules, microscopic water droplets) are better at scattering shorter wavelength blue light than the longer wavelength red light. • As sunlight passes through the atmosphere, the scattered blue light give the atmosphere an overall blue glow.

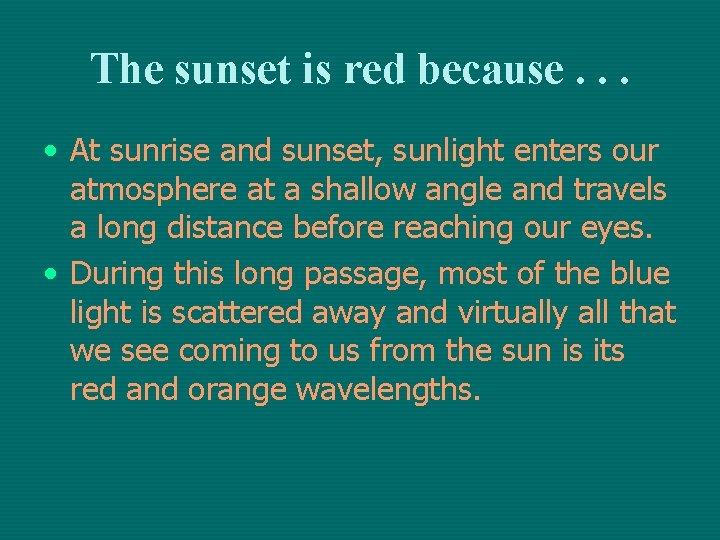

The sunset is red because. . . • At sunrise and sunset, sunlight enters our atmosphere at a shallow angle and travels a long distance before reaching our eyes. • During this long passage, most of the blue light is scattered away and virtually all that we see coming to us from the sun is its red and orange wavelengths.

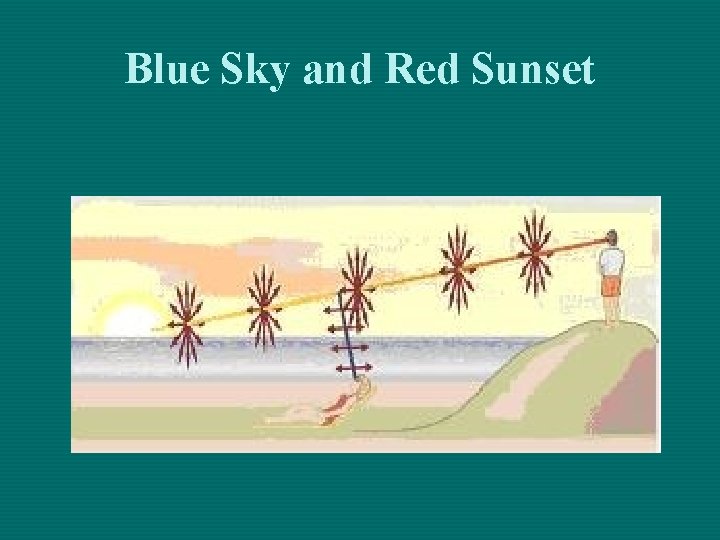

Blue Sky and Red Sunset

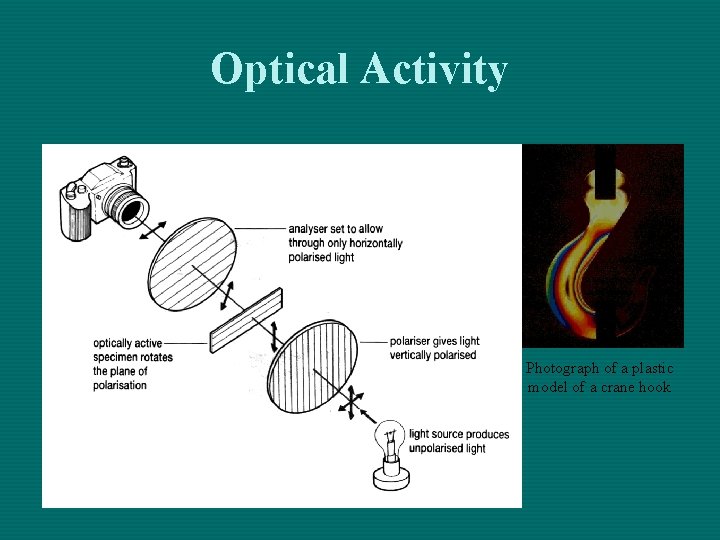

Optical Activity Photograph of a plastic model of a crane hook

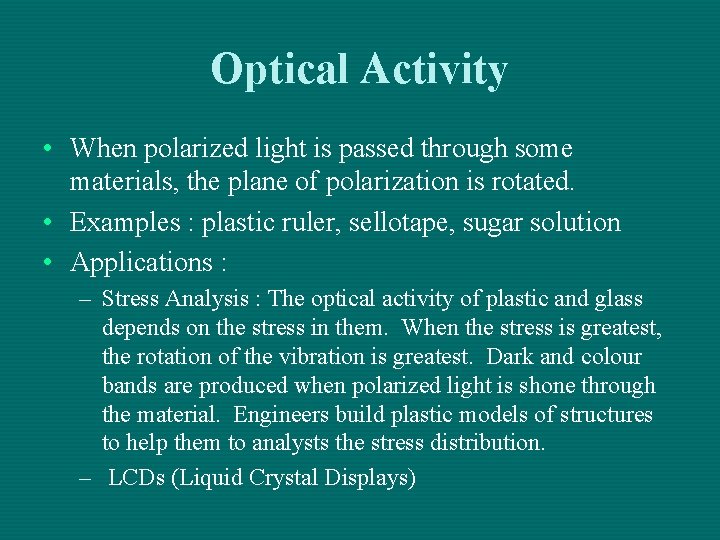

Optical Activity • When polarized light is passed through some materials, the plane of polarization is rotated. • Examples : plastic ruler, sellotape, sugar solution • Applications : – Stress Analysis : The optical activity of plastic and glass depends on the stress in them. When the stress is greatest, the rotation of the vibration is greatest. Dark and colour bands are produced when polarized light is shone through the material. Engineers build plastic models of structures to help them to analysts the stress distribution. – LCDs (Liquid Crystal Displays)

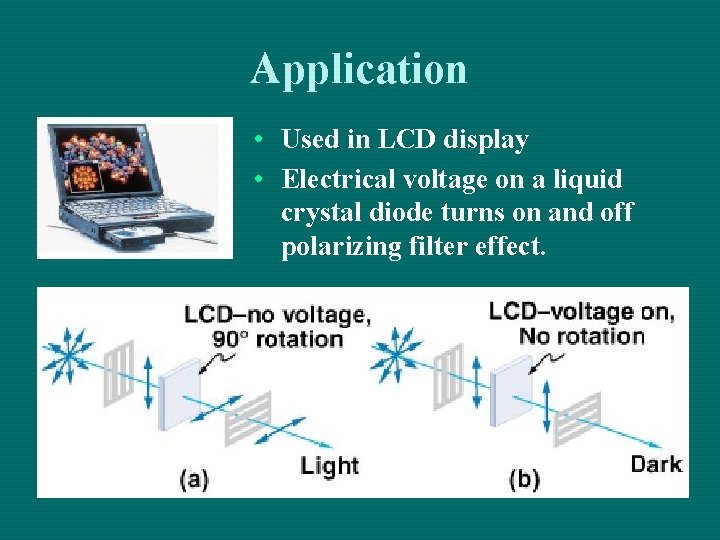

Application • Used in LCD display • Electrical voltage on a liquid crystal diode turns on and off polarizing filter effect.

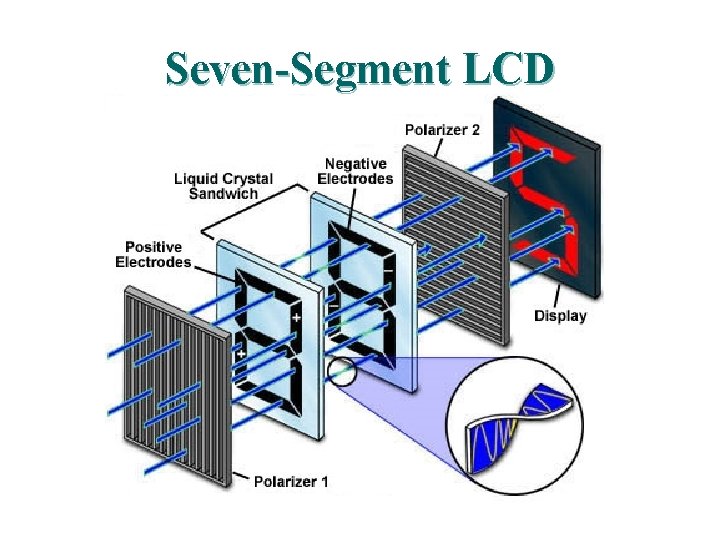

Seven-Segment LCD

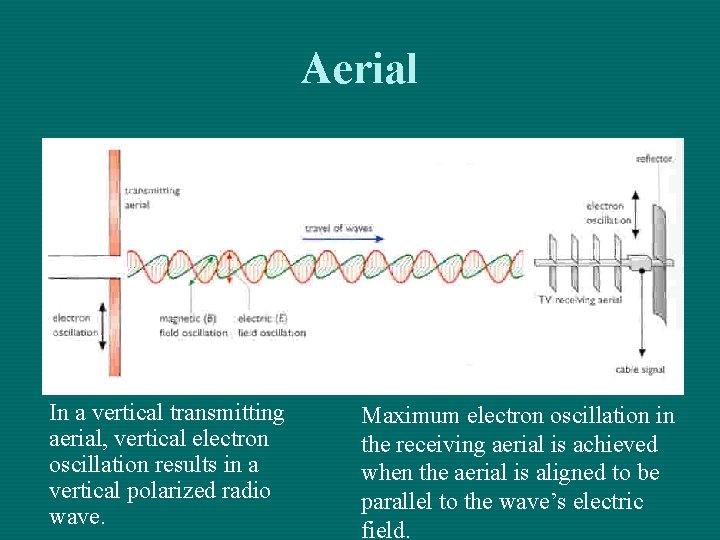

Aerial In a vertical transmitting aerial, vertical electron oscillation results in a vertical polarized radio wave. Maximum electron oscillation in the receiving aerial is achieved when the aerial is aligned to be parallel to the wave’s electric field.

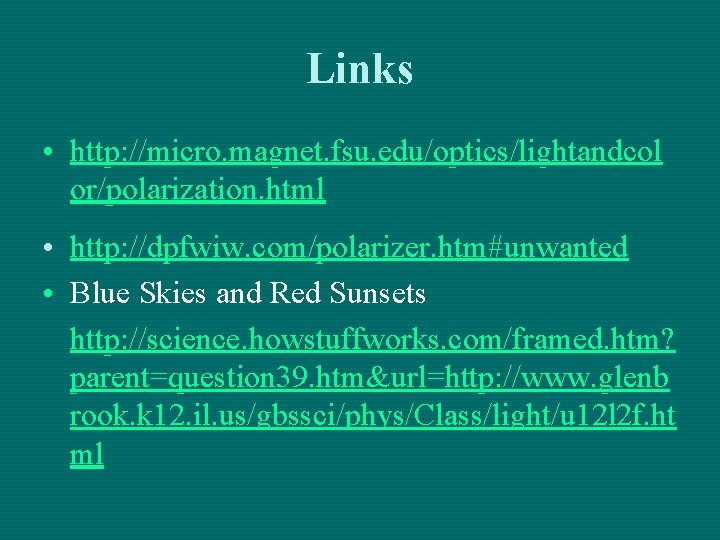

Links • http: //micro. magnet. fsu. edu/optics/lightandcol or/polarization. html • http: //dpfwiw. com/polarizer. htm#unwanted • Blue Skies and Red Sunsets http: //science. howstuffworks. com/framed. htm? parent=question 39. htm&url=http: //www. glenb rook. k 12. il. us/gbssci/phys/Class/light/u 12 l 2 f. ht ml
