Pointers Every Computer has addressable memory locations Identifiers

Pointers Every Computer has addressable memory locations. Identifiers are assigned to data and their contents are manipulated.

Example In a C program, we can have void main() {int a, b; a=3; printf(“%d”, a, &a); a=5; b=a; printf(“%u”, b, &b); } /*variable is assigned a value & manipulated, & is called ampersand */

• A Pointer is a derived datatype • It is a data type built from one of the • • standard types i. e. int, float, char, double Pointer’s value is any of the addresses available in the computer for storing and accessing the data Pointers are built on the concept of pointer constants or addresses

Fig - Character constants & variables

We can have a Character constant i. e any letter of the alphabet that can be drawn from of allcan characters A universe Character constant be a value and stored In a variable say ‘G’ stored in achar, a variable given by the programmer. In 1 MB of computer’s memory, imagine 145600 to be a memory location in which character constant ‘G’ is stored.

A Program define 2 pointers and print their addresses as pointers #include <stdio. h> /*prg to print character */ int main() /*addresses*/ { char a, b; printf(“%p %pn”, &a, &b); return 0; }

To access a variable through a ptr p, code int *p, a; p=&a • *->indirection operator • Indirection is a unary operator • Indirection and address operators are inverse of each other

Initialization Of Pointer Variables • C Language doesn’t initialize variables. • If at all it initializes , it is done by the • • system loader. Hence when we start our program, all of our uninitialized variables have unknown garbage in them. An OS clears the memory when it loads a program which cant be counted especially

Figure-Uninitialized pointers-such errors are difficult to debug because it is delayed till program execution int a; int *p; a p ? ? Some garbage: Unknown value Different garbage: Pointer to unknown value

• To correct the problem, always assign a valid • • address to the pointer. Int a; Int *p=&a; *p=89; Its also possible initialize pointers when they are declared and defined. Dv should be defined before the pointer variable.

Pointers and Functions • C uses Pass by value concept exclusively i. e. • Only direct way to send something back from a • • • udf function is through return value. Pass by address concept is simulated by passing address. When we pass by address, we pass the pointer to the variable. When we use pass by value method, the data is exchanged in the called function, but nothing changes in the calling function. We see

Pass By value a No Change 5 x 7 7 temp 5 b 5 Exchanged y

Rather than pass values of 2 to be exchanged , we could pass pointer to the values 1 To exchange using pointers, create pointers using the address operator in the function call. xchg( &a , &b); 2. To use pass by address, the formal parameters in the called function are passed as pointer to variables void xchg(int *, int *); 3. To assign a value to a, dereference the pointer in xchg. This allows us to access data in the calling program using call by address.

7 8 After Exchange &a temp 5 &b

Functions Returning Pointers • We can have a function from returning a • • pointer to a calling function As an Example , u have a program to find smaller of 2 variables. We pass 2 pointers to the function that uses a conditional expression to determine which value is smaller Return value is the address of smallest no. as a pointer.

Example for Function returning pointers. Prototype declaration int *smaller(int *p 1, int *p 2); int main() int *smaller (int *px, int *py) {int a, b, *p; { Scanf(“%d %d”, &a, &b); return (*px<*py ? Px : py); P=smaller(&a, &b); } /*smaller*/. . }

Pointers to Pointers-All our pointers have been pointing directly to data. With Advanced Data structures • With Advanced Data structures Its often • necessary to use pointers that point to other pointers Eg - We can have a pointer pointing to pointer to an integer.

This 2 -level indirection is shown below and can continue upto many levels of indirection /*local declarations*/ int a, *p, **q; Pointer to integer 234560 397870 Pointer to integer 287650 234560 integer variable a 58 287650

/*statements* ptop 1. c, ptop. c/ a=58; p=&a; q=&p; int **q; Printf(“%3 d”, a); Printf(“%3 d”, *p); Printf(“%3 d”, **q);

int a, *p, **q; 1. Each level of indirection require a separate indirection operator when it is derefenced. 2. To dereference a pointer using a pointer p, we dereference as *p. 3. To refer to a, using the pointer q, we have to dereference it twice to get the integer a because there are 2 levels of indirections (pointers) involved.

int a, *p, **q; • If we dereference it only once, u are • referencing p i. e. pointer to integer i. e. q is a pointer to an integer. Double dereference is shown in previous slide. r q p a Figure-Graphical representation of variables using pointers to pointers

Compatibility - It is important for pointers to have a type associated with them • They are not just pointer types , but are • • pointers to specific type like integer. Each pointer takes on attribute of type to which it refers in addition to its own attributes. Now we will see a program to print the size of the pointer and what it refers to.

Program Description for size of pointer • Note that variables a, c and x are never • • • assigned any values i. e. sizes are independent of the values in a variable. i. e. sizes are dependent on type and not on values. Size of all ptrs – 4 i. e. size of address in program on which it was run. Data Size of the type is the same as size of pointer Check sizeof(px) and sizeof(*px).

Compatibility and Void Pointer • It is invalid to assign a pointer of one type to a • • pointer of another type, even though the value in both cases are memory addresses and would hence seem to be fully compatible. In C, we can’t use assignment operator with pointers to different types, if we try to do we get a compile error. An exception to this is void pointers.

• Void pointer is also known as Universal • • • Pointer / Generic Pointer that can be used with any pointer. A void pointer cannot be dereferenced. It can be created – void *p. Void; We can make explicit assignment between incompatible pointers types by using a cast.

Casting pointer- We can make explicit assignment between incompatible pointers types bycharacter using a pointer cast. p to • Eg- we can make point to an integer(a) as shown belowint a; char *p; p=(char *)&a; unless we cast all operations that use p , u may create greater mounds of garbage. With exception of void pointer, pointers

Following statements are valid, but are extremely dangerous and must be used carefully throughout the design /*local statements*/ Void *pvoid; Char *pchar; Int *pint /*statements */ Pvoid = pchar; Pint = pvoid; Pint = (int *) pchar;

Construct an example where we have 2 variables – 1 int , 1 char. The char has 1 ptr associated with it, the int has 2, one a second level pointer. These vars & their ptrs are shown char c; char *pc; int a; int *ppa; pc=&c; pa=&a; ppa=&pa; /*Good & valid pointers*/

char c; char *pc; int a; pc=&c; int *pa; pa=&a; int *ppa; ppa=&pa; Pc Z 123450 ppa 287650 287870 pa 234560 287650 c a 58 234560

/*Invalid pointers will generate errors*/ pc=&a; /*Different types*/ ppa=&a; /*Different levels*/

Fig- pointer types must match a=4; pa=&a; *pa=4; *ppa=&pa **ppa=4; int int Type: ppaint a=4 *pa=4 **ppa=4 a; Int * *pa; int * **ppa pa; int** *ppa Type: int* pa=&a *ppa=&pa Type: int** ppa=&pa

LVALUE AND RVALUE • In C, an expression is either an l-value or r-value. • 1. 2. Every expression has a value. But value in an expression can be used in 2 different ways. An lvalue expression must be used whenever an object is receiving value i. e. it is being modified. An rvalue expression can be used to supply a value for further use i. e. to examine or copy its value.

Lvalue can be only of 7 types Table for lvalue expressions 1. 2. 3. Expression type Identifier Expression[…] (expression) 4. *expression 5. 6. Expression. name Expression->name Comments Variable identifier Array Indexing Expression must already be a lvalue Dereferenced expression Structure selection Structure indirect selection

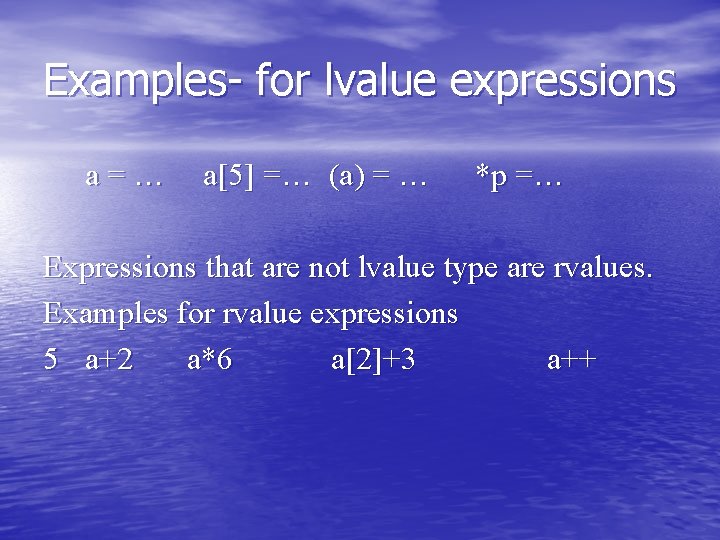

Examples- for lvalue expressions a=… a[5] =… (a) = … *p =… Expressions that are not lvalue type are rvalues. Examples for rvalue expressions 5 a+2 a*6 a[2]+3 a++

Even if an expression is an lvalue, if it is used as part of larger expression in which operators create Only rvalue expressions, then whole expression is an rvalue Example-a[2] is an lvalue. But when it is used in Expression a[2]+3, the whole expression is an rvalue and not an lvalue.

• Similarly in a++, the value of variable a is an lvalue while whole expression (a++) is an rvalue Reason to know l and rvalues 1. Some operators need an lvalue as an operand 2. If we use 1 of these operators and use an rvalue in the place of operand, then we get a compiler error.

Table for Operators that require lvalue expressions Type of Expression Address operator Postfix increment/decrement Prefix increment/decrement Example &score x++; y--; ++X; --y; Assignment(left operand) X=1; y+=3;

Pointer Arithmetic and Arrays • Besides Indexing, Programmers use another powerful method called Pointer Arithmetic to move through an array from element to use in searching an array sequentially.

Pointers and one-dimensional array • If a is an array, • then a is constant pointing to the first element in the array and a+1 is a constant to the second element in the array. If we have a pointer p, pointing to the second element of the array then p-1 is a pointer to the previous (first) element and

Furthermore, given a, a+2 is the address , 2 elements away from a, and a+3 is address , 3 elements from a. General Notation – Given pointer p, p + n is a pointer to the value n elements away When n is added to a pointer value, we will get a Value that correspond to another index location n elements away. n-> offset from original pointer.

Figure for Pointer Arithmetic a 2 a+1 4 a+2 6 p p+1 p+2 a+3 8 p+3

How to determine the new value ? • C must know the size of the element that is identified by the type of pointer. Address Calculation Formula address = pointer + (offset * size of element) address = a + n * sizeof (one element))

Figure shows result of pointer arithmetic on different-sized elements Int a[3] a a+1 a+2 b b+1 c c+1

• • • Char is implemented as 1 byte Int is implemented as 4 bytes Float is implemented as 6 bytes. a+1 mean different things in different situations of data types. We know how to get address of an array element using a pointer and an offset

Todays Topics • 2 prgs demonstrating moving through arrays using pointers • Ptr 7. c - printing array forward and backward using ptrs. • Function to search with ptrs. • binsrch. txt in notepad, ptrs • 2 -d arrays, Passing Array to a fn

Pointers and other operators • Following arithmetic operations are valid • P+5, 5+p, p-5, p 1 -p 2, p++ , --p • p 1+p 2 not allowed. Adding 2 ptrs is not valid • • • in C. 2 prgs demonstrating moving through arrays using pointers Ptr 7. c searching with ptrs. binsrch. txt in notepad, ptrs and 2 -d arrays, Passing Array to a fn

Assignment Questions • Go through the Tips and Programming errors and Summary given in page 461 and page 462. • Maintain a separate Assignment Book. • Submit the assignment questions from Practice set given in Section 9. 15 of the

Assignment Questions • Identify the Elementary and Group data items in atleast 3 real world applications in the form of table example given in next slide for a student studying in a college. Application Examples • Insurance, RTO, Airline Reservation, Railway Reservation, e. t. c

Student studying in a college can have following details. Regno Name Mks 1 Mks 2 Mks 3 1. Regno – 5 digit integer – elementary data item 2. Name – array of 10 characters – Group item divided into Firstname, middlename and Lastname 3. Mks 1, mks 2, mks 3 – integers – elementary data item that cannnot be further subdivided

Pointers & 2 - d arrays • In 1 -d array & 2 -d array, the name of • • array is a pointer constant to the first element of the array. In 2 -d array, the first element is another array Assume a 2 -d array of integers. When u dereference a arrayname, we get an array of integers OR Dereferencing of arrayname of a 2 -d

Fig- Pointers to 2 -d arrays – table[3][4] table[0] or *(table+0) table[1] or *(table+1)

C-code for printing the 2 -d array table for (i=0; i<3; i++) { for (j=0; j<4; j++) printf(“%6 d”, (*(*table+i)+j)); printf(“n”); } /* for i */ *(*(table+i)+j) == table[i][j]

Passing an Array to a functionpsaf. c • Name of an array is a pointer to first element, • We can send arrayname to a function for • processing When we pass an array, we don’t use an address operator. Function Call - do. It(ary); allowed - do. It(&ary)- not allowed Arrayname -> address of first element of the array

2 ways / notations for declaring a function 1. Array Notation Pointer Notation 2. int do. It( int ary[ ]) User can know that he is dealing with array rather Than a single pointer. Advantage from structured Programming point of view. int do. It(int *arysalary) U can also declare array in function header as a simple pointer, but this masks data structure (array).

If u are using multidimensional array, u must use array syntax in the function’s header declaration • The compiler should know the size of the • dimension after the first to calculate the offset for the pointer arithmetic. Hence to receive a 3 -d array, use the following declaration in the function header. float do. It(int bigary[][12][5])

Working of an Array pointer. Example Program ary main multiply 5 pary pwalk p. Last size

Program contains several points of interest-To see how pointer works • passing We have usedarray pointer notation (pary) • In multiply function definition, we use a seperate • • pointer pwalk to walk through the list. When the parameter is a pointer, don’t use formal parameter as a variables unless their intent is to change a value in the calling program We have passed size of array to multiply as parameter, we need to know how much data is to be

• We have passed size of array to multiply as parameter, we need to know how much data is to be processed and use size to calculate address of last element in the list.

Understanding Complex Declarations • Follow right-left-rule to read and understand complex declarations start with the identifier in the centre of declaration and read the declaration by alternatively going right and left until u have read all entities. Figure in the next slide illustrates this

Right – Left rule Concept Identifier 6 4 2 Start 1 3 5

Examples of declaration • Consider a simple declaration int x This is read as x is # an integer since there is nothing on right, we simply go left. int x # 0 2 1

Pointer Declaration Example – read as p is # a pointer # to an integer int * p # # 4 2 0 1 3 Keep going right even when there is nothing there until all entities on the left have been exhausted.

Here we have equal no. of entities on right and left int 2 table 0 [4] 1 This is read as table is an array of 4 integers

Regardless of dimensions in array, it is considered as 1 element in rule for Multi d-array • int 2 table [4][5] 0 1 Table is an array of [4][5] integers

#sign is a place holder to show that there is no entity to be considered. It is ignored when read • Example is difficult and often misread. Here we have an array of pointers to integers. int * ary. Of. Ptrs [5] # 4 2 0 1 3 Read as ary. Of. Ptrs is an array of 5 pointers to # integers diagrammatically shown in next slide.

Fig-a an array of pointers fig-b A Pointer to an array Ptr To Ary ary. Of. Ptrs

Using parentheses, we can change the previous example to a pointer to an array of 5 integers. Here the pointer is to whole array, not just 1 element • int (*ptr. To. Ary #) [5] 4 2 0 1 3

This deal with function declaration. A simple prototype for a function that returns an integer • int do. It(…) 2 0 1 int * do. It (int) # 4 2 0 1 3 Right example shows that do. It is a function that returns a pointer to a # integer

Memory Allocation Functions • Limitations of First HLLs • FORTRAN & COBOL- Data structures are always fully defined at compile time. If programmers do mistake in selecting & deciding the size of the largest arrays. Modern languages like C doesn’t have this limitation as they can allocate the size during the run time/ execution.

There are 2 ways to reserve memory locations for an object. 1. Static Memory Allocation 2. Dynamic Memory Allocation • SMA-require that declaration and definition of • memory be fully specified I the program. Number of bytes required cannot be changed during the run time. SMA works fine as along as u know exactly know your memory requirements

Dynamic Memory Allocation • DMA – uses predefined functions to allocate and release memory for data, while the program is running. - Effectively postpones the data definition to runtime. - To use dynamic memory allocation , programmer must use either standard types or already must have declared any derived data types

Figure showing Memory Allocation Characteristics Memory Allocation Static Using declarations & definitions Dynamic Using Predefined functions

Memory Usage – 4 functions are used with dynamic memory. 3 of them, malloc, calloc and realloc are used for memory allocation. 4 th free is used to return memory when it is no longer needed and all functions are found in (<stdlib. h>) Collection of all these functions are shown in figure for the next slide

Fig- Memory Management Functions Memory Management malloc calloc realloc free

Fig- A Conceptual View of Memory main Called and standard functions PROGRAM MEMORY global Program heap DATA MEMORY System stack

Working of Dynamic Memory Allocation • Conceptually memory is divided into 1. 2. 1. Program Memory Data Memory PM - consists of memory used for main and all called functions. 2. DM – consists of permanent data definitions like global data and constants, local definitions and dynamic data memory

• Main must be in the memory all the times • Each called function must be in the memory only while it or any of its functions are active. • Most systems keep all functions in memory while the program is running. • Local variables are available only when it is active only

• More versions of same function can be active at • • • a time Here multiple copies of local variables are allocated, although only 1 copy of function is present Memory Facilities for these capabilities is known as stack. In addition to stack, a memory allocation called heap is available.

• Heap is unused memory allocated to the program • • • and available to be assigned during execution Heap is memory pool from which memory is allocated when requested by the memory allocation functions. Implementation of memory is upto s/w engineers who design the system. Eg- nothing prevents the stack & heap from sharing the same pool of memory & is a good

Memory Allocation (MALLOC) • Allocates a block of memory that contains no. of bytes specified in its parameter and returns a void pointer to the first byte of the allocated memory i. e not initialized. • Hence u should assume that it contains garbage and initialize as required by your program. • Prototype – void *malloc(size_t size);

Today’s topic Parentheses Matching Algorithm With an Example verification with stack.

7 -(( x*((x+y)/(j-3))+y) / (4 -2. 5)) 0 01 2 2 23 44 4 4 33 44443 2 2 21 1 2 2 ( ( A + B) 1 10 )A+B(-c -1 -1000 A+B( 0001 10

2 conditions to hold for a well formed parenthesised expression in a admissible pattern are 1. Parentheses count at end of expression is 0 / No scopes should be left open / No. of left and right parentheses must be same 2. The parenthesis count at each point in expression is positive / No right parentheses is encountered for which a left parenthesis had not been previously encountered.

A Stack is used to keep track of types of scopes encountered Whenever a scope opener is encountered , it is pushed into stack. Whenever the scope ender is encountered, the stack is examined. If the stack is empty, the scope ender does not have a matching opener and hence the string is invalid. If , however the stack is not empty, we pop the stack and check Whether the Popped item corresponds to the scope ender.

Valid = true; /*assume the string is valid*/ s= the empty stack while ( the entire string is not read) { Read the next symbol (symb) of the string; If ( symb=‘(‘ || symb =‘[’ || symb = ‘{‘) push (s, symb); If ( symb=‘)‘ || symb =‘]’ || symb = ‘}‘ ) if (empty(s)) valid=false; /*string is invalid*/ else { i= pop(s); if I is not the matching opener of symb valid = false; } /*end else*/ } /* end while */ if ( !empty( s ) valid = false; if (valid) printf(“%s”, The string is valid”);

Union in C- permits a variable to be interpreted in several different ways • Union contain 2 parts – fixed part and a variable part • Fp contain all member declarations upto the keyword union • VP contain the remainder of the definition. • A variable declared of union type T always contain all fixed members of T.

Representing Stacks in C Stack - an ordered collection of items: the Array. A stack and an array are entirely different Objects.

Array One end of the array is fixed bottom of the stack Can be declared large enough for the maximum size of the stack Size is generally fixed and not changed Stack Another field is needed to keep track of top of stack Is a dynamic object that constantly changes the size as items are pushed and popped. But changed constantly

Stack in C is declared as a structure containing 2 objects 1) Array 2) An integer to indicate the current top within the array Stack in C is declared as a structure containing objects 1) Array 2) An integer to indicate the current top within the array. #define STACKSIZE 100 Struct stack { int top; int items[STACKSIZE]; }; STACKSIZE is set to 100 i. e. stack can contain 100

Stack can be also declared to contain floating point and character elements Actual stack s may be declared as struct stack s; The empty stack can contain no elements and can be indicated by top=-1. To initialize the stack to empty state, s. top=-1; To determine whether the stack is empty or not If (s. top=-1) /*stack is empty*/ push(

push(s, i); pop(s) push(struct stack *p, item) pop(struct stack *p) *p 4 3 2 1 top

Push logic. 1 0 1. Check for the overflow condition. 2 If stack is filled to max size, full() returns true to main() else signal the user of stack overflow with printf. 3. Increment the pointer to point to the topmost element in stack 4. Place the element

Pop operation 1 0 Steps- Check for underflow 1. If stack is empty with no elements, return true to main(), else do step 2. 2. Remove the top element from the stack then decrement the pointer 3. Return this element to the calling

EXAMPLE – INFIX, POSTFIX & PREFIX In sum A+B, operator + is applied between A and B to write sum as A+B Representation -> Infix Two other alternate notations to express sum A+B are + AB -> PREFIX AB + -> POSTFIX

Prefixes pre, post and In refer to the relative positions w. r. t. operands Notations are easy to use. Eg- a C function to return the sum of 2 arguments In evaluation of expression, A+B*C is invoked by add(A, B). Add operator add precedes the operands A & B.

Additional Egs- A+B*C -> is in standard Infix notation Multiplication is done before addition and interpreted as A+(B*C). Multiplication has higher precedence than Addition Suppose u want to rewrite A+B*C in postfix. Apply rules of precedence and converting this in stages

Conversion of Infix to Postfix A+(B*C) -> parentheses for emphasis A+(BC)* -> convert multiplication A(BC*)+ -> convert the addition ABC*+ -> postfix form The rule to remember during the conversion process are operations with higher Precedence are converted first and that after the portion of expression has been converted to postfix is treated as a single operand.

Rules for conversion from Infix to prefix • Operations with higher precedence are • converted first. After a portion of expression has been converted to postfix, it is to be treated as a single operand.

Consider the same example with precedence of operators reversed by the deliberate insertion of parentheses (A+B)*C Infix form (AB)+*C Convert the addition (AB)+C* Convert the Multiplication AB+C* Postfix Form Addition is converted before multiplication because of parentheses. In going from (A+B)*c to (AB)+*C, A and B are operands & * is operator. Rules for converting from Infix to Postfix are simple Provided u know the order of precedence

Consider 5 binary operations like addition, subtraction, multiplication, division & exponentiation Exponentiation is represented by $. Value of expression a $ b is a raised to the power of b, so that 3 $ 2 is 3 raised to the power of 2, i. e. 9

When unparenthesized operators of the same precedence are scanned, the order is assumed to be from the left to right Except in case of exponentiation , where the order is assumed from right to left. Hence A+B+C means (A+B)+C A$B$C means A$(B$C) By using parentheses, we can override the default precedence.

Convert the following Infix to Postfix expressions 1. A+B 2. A+B-C AB+-C AB+C 3. (A+B)*(C-D) (AB)+*(CD)AB+CD-*

3. A$B*C-D+E/F/(G+H) (AB)$C*-D+E/F/(G+H) AB$C*-D+ (EF)//(GH)+ AB$C*D- + (EF)/(GH)+/ AB$C*D-(EF)(GH)+/+

4. ((A+B)*C-(D-E))$(F+G) ((AB)+*C-(DE)-$(FG)+ (AB+C*)(DE)--$(FG)+ (AB+C*)(DE)—(FG)+$

A-B/(C*D$E) A- B(C*D$E)/ A-B(C*DE$)/* ABCDE$*/-

Note- Prefix form of Complex expression is not the mirror image of the postfix as seen above Convert the postfix to prefix form of Expressions A+(B*C)= A+(BC)*=ABC*+ (A+B)*C=(AB)+*C=AB+C* There are no parentheses in either of 2 Expressions. The order of operators in postfix expressions determine the actual Order of operations in evaluatingexpressions , making use

expressions , making use of parentheses unnecessary. Evaluating a Postfix Expression Each operator in a postfix string refer to previous 2 operands in the string ( one of these operands may itself be the result of applying a previous operator) Suppose that each time read an operand, we push it onto the stack. When we reach an operator, its operands will be the top 2 Elements on the stack. We can then pop These 2 elements , perform the indicated

Operation on them and push the result on the stack so that it will be available for use as an operand of next operator.

Evaluating a postfix expression • Define the format of i/p & o/p • Define routines that depend on main • Assume that i/p consists of strings of characters, one string per i/p line. • End of i/p line is signalled by ‘n’. Assume all operands are single-character letters or digits. O/p is a character string & all single character operands in initial infix string are digits

We use of function called isoperand that returns true if its argument is an operand #define MAXCOLS 80 main() { char infix[MAXCOLS], postfix[MAXCOLS]; While ((infix[pos++] = getchar())!=‘n’) Infix[--pos]=‘’; Printf(“%s”, ”original infix expression is”, infix); Postfix(infix, postr); Printf(“%sn”, postr); } /*end main*/

Opndstk= empty stack /*scan the input string reading one element at a time in symb*/ While (not end of the input) { symb=next input character; If (symb is an operand) push (opndstk, symb); Else {/*symbol is an operator*/ Opnd 2=pop(opndstk); Opnd 1=pop(opndstk); Value=result of applying symb to opnd 1 & opnd 2; Push (opndstk, value); }/*end else*/ Return (pop(opndstk));

Evaluate following postfix expression 623+-382/+*2$3+

Symb Opnd 1 Opnd 2 Value opndstk 6 6 2 6, 2 3 6, 2, 3 + 2 3 5 6, 5

Symb Opnd 1 Opnd 2 Value opndstk - 6 5 1 1 3 6 5 1 1, 3 8 6 5 1 1, 3, 8 2 6 5 1 1, 3, 8, 2

Symb Opnd 1 Opnd 2 Value opndstk / 8 2 4 1, 3, 4 + 3 4 7 1, 7 * 1 7 7 7 2 1 7 7 7, 2

Symb Opnd 1 Opnd 2 Value opndstk $ 7 2 49 49 3 7 2 49 49, 3 + 49 3 52 52 Algorithm to convert an infix string without parentheses into a postfix string. We see for precedence

Converting Infix to Postfix Notation Consider infix Expressions A+B*C & (A+B)*C and their respective expressions ABC*+ and AB+C*. The order of operands is the same as in original expression. In the first case, * precedes the + operator And in second case, closing parentheses + is forced to precede the * operator. Precedence play an important role in transforming infix to postfix expression

We read an Infix expression, evaluate it by first converting it into postfix expression Expressions within the innermost parentheses must be converted to postfix so that they can be treated as single operands. Parentheses can be successively eliminated until the entire expression is converted. The last pair to be opened within a group of parentheses enclose the first expression within that group to be transformed.

Assume the existence of a function prcd(op 1, op 2) where op 1 & op 2 are characters representing operators. This function returns TRUE if op 1 has precedence over op 2 when op 1 appears to the left of op 2 in an infix expression without Parentheses and returns FALSE otherwise. Eg- prcd(‘*’ , ’+’) are TRUE , whereas prcd(‘+’, ’*’) is FALSE.

Portions for I Test Pointers- Unit-1, Stack-Unit-3 Lab Programs 1, 2, 4, 5

Opndstk = the empty stack While (not end of input) { Symb = next input character; if (symb is an operand) add symb to postfix string else { while (!empty(opstk)&&prcd(stacktop(opstk), symb)) { topsymb = pop(opstk); add topsymb to postfix string; }/*while*/ push(opstk, symb); }}

While (!empty(opstk)) { Topsymb= pop(opstk); Add topsymb to postfix string; } /*end while*/

• Pointers unit-1, stack unit-2 • Lab prgms-1, 2, 4, 5
