Pointer Logic Daniel Kroening and Ofer Strichman Decision

Pointer Logic Daniel Kroening and Ofer Strichman Decision Procedure 1/25 Pointer Logic PSWLAB Changki Hong @

Why pointer logic? �A pointer is a program variable whose sole purpose is to refer to some other program construct. � Other program construct - variable, procedures, or another pointer �A Pointer is useful but common source of programming errors. � Aliasing � Null 2/25 pointer dereference error Pointer Logic Changki Hong @ PSWLAB

Table of Contents �Introduction �Pointer logic �Modeling Heap-Allocated Data Structures �A Decision Procedure �Conclusion 3/25 Pointer Logic Changki Hong @ PSWLAB

Memory model � The implementation of pointer relies on the fact that the memory cells of a computer have addresses, i. e. , each cell has a unique number. � Definition � 1. Memory model A memory model describes the assumptions that are made about the way memory cells are addressed. We assume that the architecture provides a continuous, uniform address space. Each address corresponds to a memory cell that is able to store one data word. A memory valuation M: A D is a mapping from a set of address A into the domain D of data words. 4/25 Pointer Logic Changki Hong @ PSWLAB

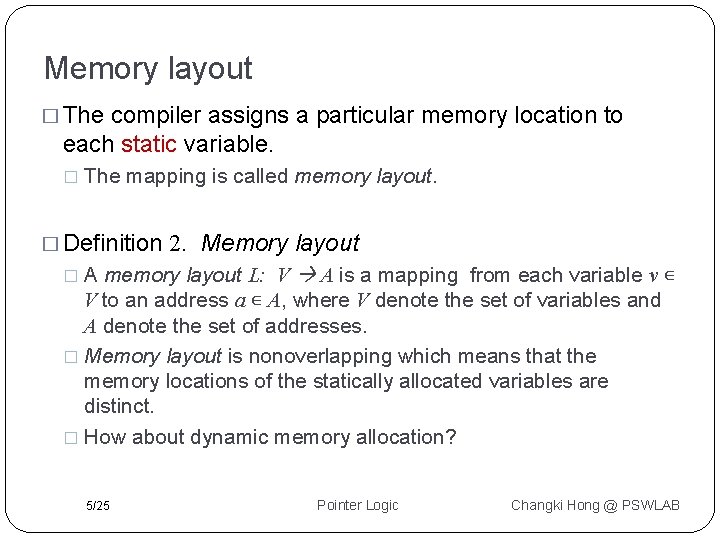

Memory layout � The compiler assigns a particular memory location to each static variable. � The mapping is called memory layout. � Definition 2. Memory layout A memory layout L: V A is a mapping from each variable v ∊ V to an address a ∊ A, where V denote the set of variables and A denote the set of addresses. � Memory layout is nonoverlapping which means that the memory locations of the statically allocated variables are distinct. � How about dynamic memory allocation? � 5/25 Pointer Logic Changki Hong @ PSWLAB

Dynamic memory allocation � Dynamic data structures are created at the run time of the program. A runtime library maintains a list of the memory regions that are unused. � A function, which is part of this library, allocates a region of given size and returns a pointer to the beginning of the region. ( malloc(), …) � The memory layout changes during the runtime of the program. � The lifetime of a dynamic object is the time between its allocation and its deallocation. � 6/25 Pointer Logic Changki Hong @ PSWLAB

Analysis of programs with pointers � Aliasing � a situation in which a data location in memory can be accessed through different symbolic names in the program. � Modifying the data through one name implicitly modifies the values associated to all aliased names, which is not expected by the programmer. � Dereferencing a situation which a pointer doesn’t point to a proper object. � Example � 7/25 Pointer Logic Changki Hong @ PSWLAB

Table of Contents �Introduction �Pointer logic �Modeling Heap-Allocated Data Structures �A Decision Procedure �Conclusion 8/25 Pointer Logic Changki Hong @ PSWLAB

Syntax � The syntax of a formula in pointer logic is defined by the following rules: pointer-identifier is of pointer type � identifier is of integers or an array of integers � 9/25 Pointer Logic Changki Hong @ PSWLAB

Semantics � Define � the semantics by referring to memory layout L � L: � (1/2) V A is a mapping from each variable v ∊ V to an address a ∊ A memory valuation M A D, mapping from a set of address A into the domain D of data words � M: � Pointer logic formulas are predicates on M, L pairs and the definition of semantics uses a reduction to integer arithmetic and array logic. � We treat M and L as array types. 10/25 Pointer Logic Changki Hong @ PSWLAB

Semantics � Definition (2/2) 3. Semantics of pointer logic Let LP denote the set of pointer logic expressions, and let LD denote the set of expressions permitted by the logic for the data words. � The function [⋅] is defined [⋅] : LP LD for e ∊ LP. The function [e] is defined recursively. The expression e∊ LP is valid if and only if [e] is valid. � 11/25 Pointer Logic Changki Hong @ PSWLAB

Example is an array identifier. � The semantic definition of the expression expands as follows: �a � Last equation is obviously valid, and thus so is original expression. 12/25 Pointer Logic Changki Hong @ PSWLAB

Table of Contents �Introduction �Pointer logic �Modeling Heap-Allocated Data Structures �A Decision Procedure �Conclusion 13/25 Pointer Logic Changki Hong @ PSWLAB

Lists (1/2) � The simplest dynamically allocated data structure is the linked list. Structure type � contains fields for a next pointer and the data. � � So, How to model linked list in pointer logic formulas? 14/25 Pointer Logic Changki Hong @ PSWLAB

Lists � We � (2/2) need to model the field for a next pointer. Recursive definition � We need to add the property that the last element of the acyclic list should point a NULL. � Add another definition 15/25 Pointer Logic Changki Hong @ PSWLAB

Table of Contents �Introduction �Pointer logic �Modeling Heap-Allocated Data Structures �A Decision Procedure �Conclusion 16/25 Pointer Logic Changki Hong @ PSWLAB

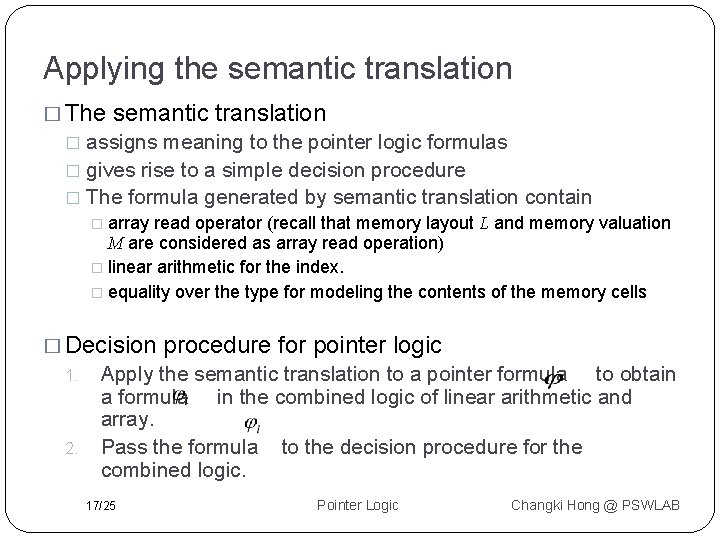

Applying the semantic translation � The semantic translation assigns meaning to the pointer logic formulas � gives rise to a simple decision procedure � The formula generated by semantic translation contain � � array read operator (recall that memory layout L and memory valuation M are considered as array read operation) � linear arithmetic for the index. � equality over the type for modeling the contents of the memory cells � Decision 1. 2. procedure for pointer logic Apply the semantic translation to a pointer formula to obtain a formula in the combined logic of linear arithmetic and array. Pass the formula to the decision procedure for the combined logic. 17/25 Pointer Logic Changki Hong @ PSWLAB

Examples � We want to check validity of following pointer logic formula: � The semantic translation expands as follows: � A decision procedure for array logic and equality logic easily concludes that the formula above is valid. 18/25 Pointer Logic Changki Hong @ PSWLAB

Pure variables (1/2) � Sometimes the semantic translation can place an undue burden on the underlying decision procedure, as illustrated by the following example: A decision procedure for array logic and equality logic is certainly able to deduce that the original formula is valid. � Therefore, the semantic translation process is not required in this kind of situation. � 19/25 Pointer Logic Changki Hong @ PSWLAB

Pure variables � Definition � 4. Pure variables Given a formula with a set of variables V, let denote the subset of ’s variables that are not used within an argument of the “&” operator within. These variables are called pure. � Definition � (2/2) 5. [∙]P A new translation function [e]P is identical to the definition [e] unless e denotes a variable. The new definition is: 20/25 Pointer Logic Changki Hong @ PSWLAB

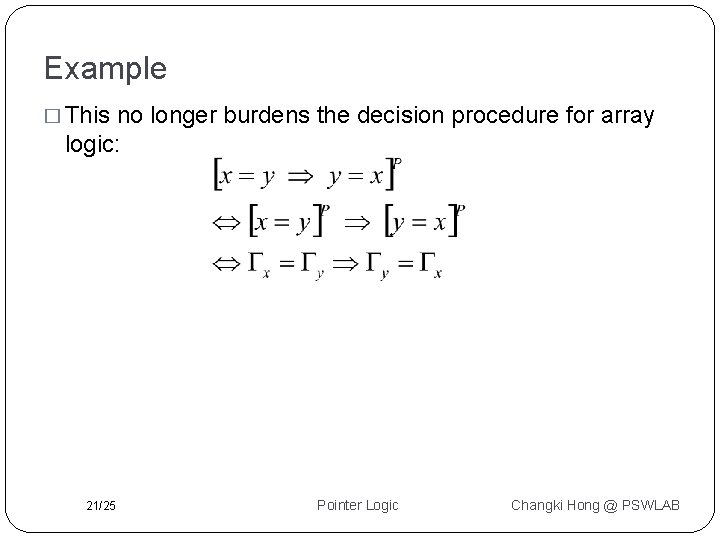

Example � This no longer burdens the decision procedure for array logic: 21/25 Pointer Logic Changki Hong @ PSWLAB

Reachability predicate � Definition � 6. This stands for the pointer that is obtained by starting from q and following the field f, n times: � Definition � (1/2) 7. reachability predicate, We call a predicate as reachability predicate which satisfies following two conditions: � There exists some n such that q is reachable from p by following f for n times. � x is not reachable in fewer than n steps from p following f. � 22/25 Pointer Logic Changki Hong @ PSWLAB

Reachability predicate (2/2) � We say that a formula is a reachability predicate formula if it contains the reachability predicate. Reachability predicate formulas often have quantifiers, which make decision problems much harder. � There is no automatic decision procedure for a logic that includes a reachability predicate. � 23/25 Pointer Logic Changki Hong @ PSWLAB

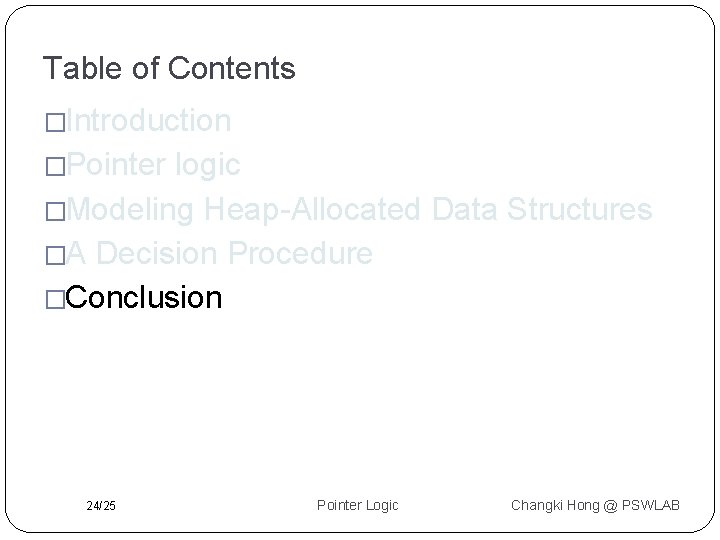

Table of Contents �Introduction �Pointer logic �Modeling Heap-Allocated Data Structures �A Decision Procedure �Conclusion 24/25 Pointer Logic Changki Hong @ PSWLAB

Conclusion � The semantic translation not only assigns meaning to the pointer logic formulas, but also gives rise to a simple decision procedure. � Deciding pointer logic including reachability predicate is still an open problem. 25/25 Pointer Logic Changki Hong @ PSWLAB
