Point Specific Alignment Methods PSI – BLAST & PHI – BLAST

Point Specific Alignment Methods PSI – BLAST & PHI – BLAST

In order to control the quality of the sequence matches in a BLAST search

In order to control the quality of the sequence matches in a BLAST search controls are placed on the E – value of the result. The Expect value (E) is a parameter that describes the number of hits one can "expect" to see just by chance when searching a database of a particular size. It decreases exponentially with the Score (S) that is assigned to a match between two sequences. Essentially, the E value describes the random background noise that exists for matches between sequences. For example, an E value of 1 assigned to a hit can be interpreted as meaning that in a database of the current size one might expect to see 1 match with a similar score simply by chance. This means that the lower the E-value, or the closer it is to "0" the more "significant" the match is. However, keep in mind that searches with short sequences, can be virtually indentical and have relatively high E-value. This is because the calculation of the E-value also takes into account the length of the Query sequence. This is because shorter sequences have a high probability of occurring in the database purely by chance. One criticism of this type of control is that sequences having basically the same functionality may be missed in the search since they score over the threshold value. Here is one possible cure: The Expect value can also be used as a convenient way to create a significance threshold for reporting results. You can change the Expect value threshold on most main BLAST search pages. When the Expect value is increased from the default value of 10, a larger list with more low-scoring hits can be reported.

Another strategy is to change the reward/penalty ratio in the scoring system. Many nucleotide

Another strategy is to change the reward/penalty ratio in the scoring system. Many nucleotide searches use a simple scoring system that consists of a "reward" for a match and a "penalty" for a mismatch. The (absolute) reward/penalty ratio should be increased as one looks at more divergent sequences. A ratio of 0. 33 (1/-3) is appropriate for sequences that are about 99% conserved; a ratio of 0. 5 (1/-2) is best for sequences that are 95% conserved; a ratio of about one (1/-1) is best for sequences that are 75% conserved. On the other hand, if we become too liberal in expanding these parameters, or change ratios without reason, we find that we can find matches for almost any sequence. For example, consider the amino acid sequence (V was used in place of U): CVTTHESTEAKWITHASHARPKNIFEELSESTRINGYMEATWILLRESULT We will use the protien – protein BLAST for short sequences using a non-redundant database, an Expect Value of 20 and the PAM 30 matrix and the Smith-Wateman algorithm. We get 37 matches for this nonsense sequence. The highest scoring match has an E-value of 1. 3 gi|121705510|ref|XP_001271018. 1| C 6 transcription factor, put. . . 34. 6 1. 3 gi|58583535|ref|YP_202551. 1| Hms. F [Xanthomonas oryzae pv. ory. . . 33. 7 2. 3 gi|84625349|ref|YP_452721. 1| Hms. F protein [Xanthomonas oryzae. . . 33. 7 2. 3 gi|123445879|ref|XP_001311695. 1| hypothetical protein TVAG_49. . . 32. 9 4. 2 gi|123469845|ref|XP_001318132. 1| helicase, putative [Trichomo. . . 32. 5 5. 6 gi|118032193|ref|ZP_01503644. 1| conserved hypothetical protei. . . 32. 5 5. 6

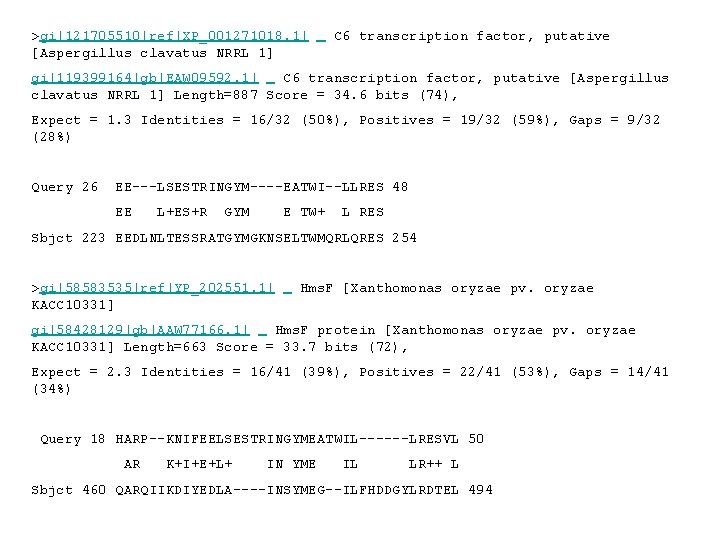

>gi|121705510|ref|XP_001271018. 1| [Aspergillus clavatus NRRL 1] C 6 transcription factor, putative gi|119399164|gb|EAW 09592. 1|

>gi|121705510|ref|XP_001271018. 1| [Aspergillus clavatus NRRL 1] C 6 transcription factor, putative gi|119399164|gb|EAW 09592. 1| C 6 transcription factor, putative [Aspergillus clavatus NRRL 1] Length=887 Score = 34. 6 bits (74), Expect = 1. 3 Identities = 16/32 (50%), Positives = 19/32 (59%), Gaps = 9/32 (28%) Query 26 EE---LSESTRINGYM----EATWI--LLRES 48 EE L+ES+R GYM E TW+ L RES Sbjct 223 EEDLNLTESSRATGYMGKNSELTWMQRLQRES 254 >gi|58583535|ref|YP_202551. 1| KACC 10331] Hms. F [Xanthomonas oryzae pv. oryzae gi|58428129|gb|AAW 77166. 1| Hms. F protein [Xanthomonas oryzae pv. oryzae KACC 10331] Length=663 Score = 33. 7 bits (72), Expect = 2. 3 Identities = 16/41 (39%), Positives = 22/41 (53%), Gaps = 14/41 (34%) Query 18 HARP--KNIFEELSESTRINGYMEATWIL------LRESVL 50 AR K+I+E+L+ IN YME IL LR++ L Sbjct 460 QARQIIKDIYEDLA----INSYMEG--ILFHDDGYLRDTEL 494

Even using Local Sequence Alignment Techniques and Scoring Matrices such as high powers of

Even using Local Sequence Alignment Techniques and Scoring Matrices such as high powers of PAM or low values of BLOSUMn Database Searching may not find what we want. • Many homologous sequences share only limited sequence identity. • While they may adopt the same three-dimensional structure, they may not have apparent similarity in pair wise alignments. • Cases are known where BLAST and FASTA miss 10 – 20% of “meaningful” hits. • Scoring matrices do not accurately portray the similarity that may exist within a particular family of proteins. They are tied to a more general database.

In an attempt to correct this the idea of a Position Specific Scoring Matrix

In an attempt to correct this the idea of a Position Specific Scoring Matrix (PSSM) was developed. In PSI-BLAST the query sequence is subjected to a normal BLAST search. From this a multiple-sequence alignment is made between the query and all “significant” hits. A new scoring matrix of size L rows and 20 columns is derived using the frequency of the proteins within each position of the alignment. (L is the length of the query sequence. )

The previous example was taken from Pevsner, J. , Bioinformatics and Functional Genomics, Wiley-LISS,

The previous example was taken from Pevsner, J. , Bioinformatics and Functional Genomics, Wiley-LISS, 2003, p 139 And involves a search with Query sequence RBP 4 (NP_006735) Here is a portion of the PSSM generated by Pevsner’s Search Note Lines 6, 11, 12, 14, 15, 16, and 42 all of which are scores for A against the 20 proteins.

The PSSM is then used as the query (not your original sequence) to the

The PSSM is then used as the query (not your original sequence) to the database and another search to the database. The statistical significance of each match is estimated and results are reported. These last three steps are repeated iteratively until no new sequences are reported that fall above the given significance level or the user chooses to terminate the search.

A Schemematic of the PSI-Blast Process Note the original query is not included in

A Schemematic of the PSI-Blast Process Note the original query is not included in loop 2.

Pevsner reported the following data concerning his 2002 search with original query NP_006735 At

Pevsner reported the following data concerning his 2002 search with original query NP_006735 At this point we will do an update of these results by going to http: //www. ncbi. nlm. nih. gov/blast and choosing the PSI-BLAST option with the default parameters.

A Dramatic Illustration of the Increased Sensitivity ot PSI -BLAST Searching

A Dramatic Illustration of the Increased Sensitivity ot PSI -BLAST Searching

PHI-BLAST stands for Pattern-Hit Initiated BLAST Often it is the case that a protein

PHI-BLAST stands for Pattern-Hit Initiated BLAST Often it is the case that a protein of interest contains a signature pattern of amino acids and residues that help to define it as part of the family. This “signature” may be rather short in terms of its length within the sequence, but it is important in defining a structural of functional domain. It may even be the characteristic of an unknown function as is the case in the following example:

Care must be taken to choose a pattern that is not common within the

Care must be taken to choose a pattern that is not common within the database. The algorithm only allows patterns that are expected to occur at most once in every 5000 residues. In the previous example the pattern is GXW where the X may be any amino acid. Then we specify candidates for the following amino acids [YF], [EA], or [IVLM]. These choices are based on our observation of the test sequences and our knowledge of the behavior of proteins (common protein substitutions, hydrophobicity, etc. ) The database search is then performed looking for sequences that contain the prescribed pattern. Further iterations may be done based on this output using PSIBLAST which no longer uses the PHI pattern, but the PSSM from the first report.

The output from the PHI-BLAST program is the same as that of the PSI-BLAST

The output from the PHI-BLAST program is the same as that of the PSI-BLAST program except that the position of the pattern is highlighted in each of the alignments.

The following alignment was obtained from an investigation of immunoglobulin C-Region Domains: We will

The following alignment was obtained from an investigation of immunoglobulin C-Region Domains: We will investigate the conserved sequence: LXCLV using PHI -BLAST. Our starting point is with the Ig 2 A C region of the mouse, Swiss. Prot Accession #P 01865 We enter this information into the PHI-BLAST page

The first iteration of this search yields 31 new statistically significant hits. One of

The first iteration of this search yields 31 new statistically significant hits. One of these is given below. Note the *’s over the location of the pattern LXCLV Subsequent iterations are performed by PSI-BLAST independent of the pattern. This search converged after 13 iterations.
