Pocket Radiac AN/UDR-13 Overview • • Program Description Remove and install batteries Self check and turn on Rate and Dose modes Setting alarms Sleep mode Backlight Operator Maintenance

Pocket Radiac AN/UDR-13 System & Components Radiac Set AN/UDR-13 Case TM 11 -6665 -364 -12 Batteries Simplified Operation Card

Pocket Radiac AN/UDR-13 Additional Information n. Capabilities n. Mission • Detect and measure nuclear radiation from fallout and nuclear detonations n. Key Events • Production Contract Award: May 96 • First Delivery • Due April 98 January 99 n. Team • PM NBC Defense SBCCOM, Nuclear Research Corp. , Dover, NJ n. User • U. S. Army • Combined ratemeter and tactical dosimeter • Settable autio and visual rate and dose alarm • Measures doserate from. 1 -999 c. Gy/hr • Measures total dose from. 1 -999 c. Gy n. Improvements over IM-93: • Measures prompt dose including neutrons • Has alarms and also measures rate • Does not require separate charger • Backlit display • Rugged, reliable, and accurate

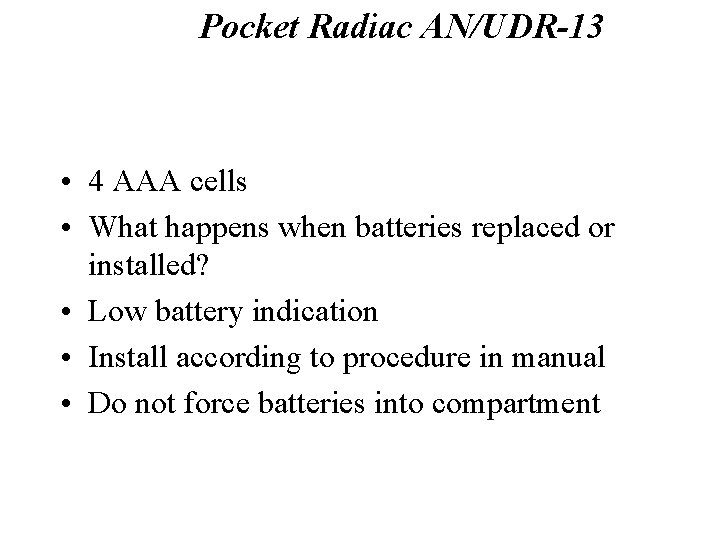

Pocket Radiac AN/UDR-13 Batteries • 4 AAA cells • What happens when batteries replaced or installed? • Low battery indication • Install according to procedure in manual • Do not force batteries into compartment

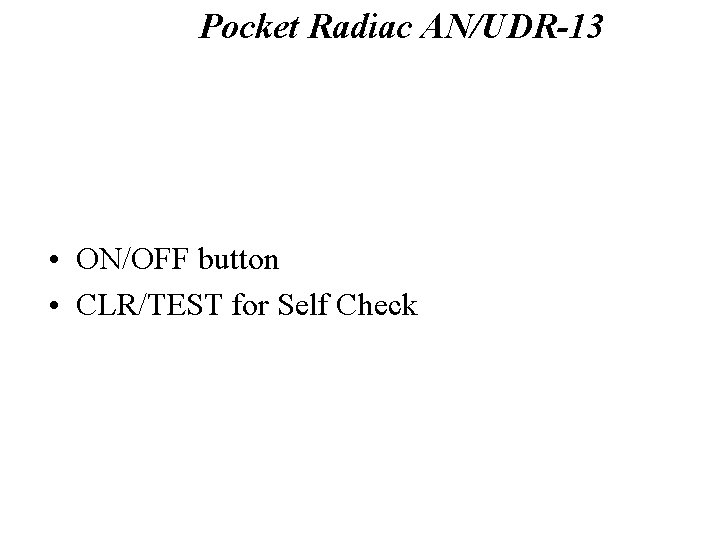

Pocket Radiac AN/UDR-13 Self Check and Turn On • ON/OFF button • CLR/TEST for Self Check

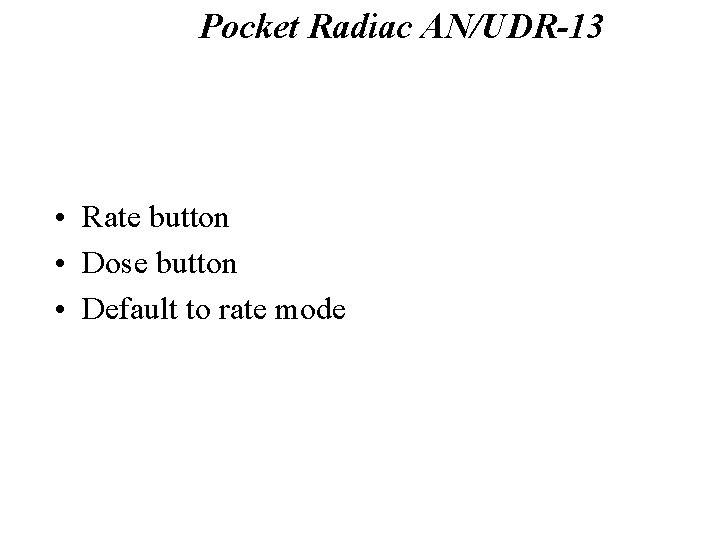

Pocket Radiac AN/UDR-13 Rate and Dose Modes • Rate button • Dose button • Default to rate mode

Pocket Radiac AN/UDR-13 Setting Alarms • • • ALARM + RATE Button ALARM + DOSE Button Set values Set Audible, Visual, Both or none How do I test alarm without radiation source?

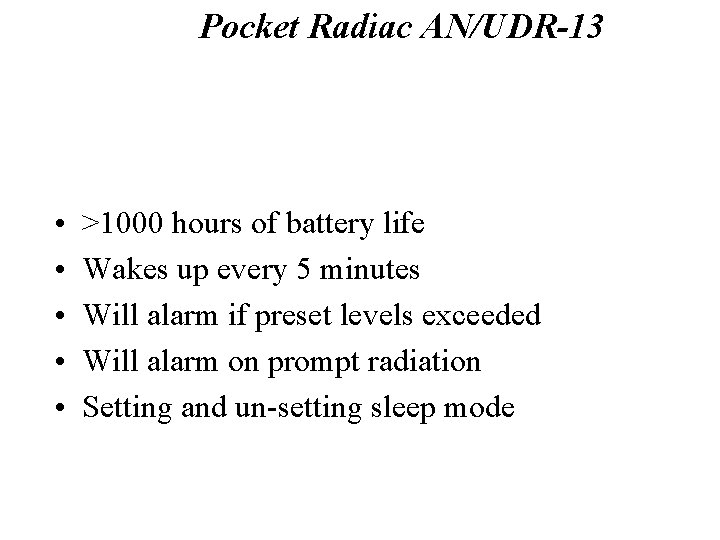

Pocket Radiac AN/UDR-13 Sleep Mode • • • >1000 hours of battery life Wakes up every 5 minutes Will alarm if preset levels exceeded Will alarm on prompt radiation Setting and un-setting sleep mode

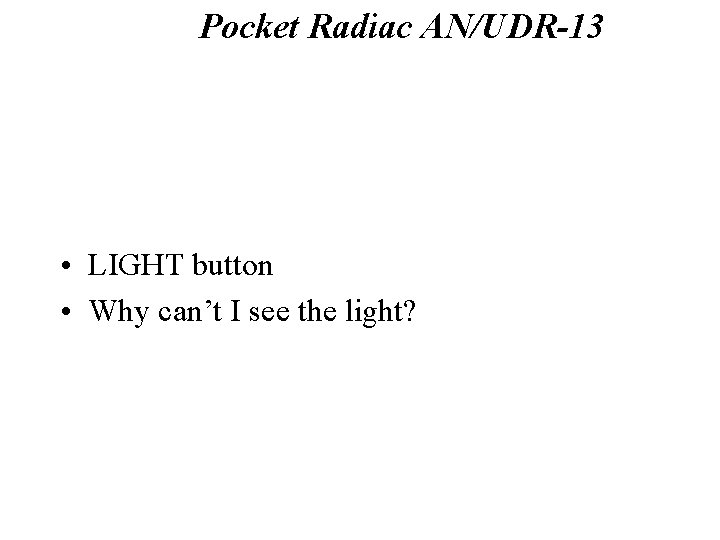

Pocket Radiac AN/UDR-13 Backlight • LIGHT button • Why can’t I see the light?

Pocket Radiac AN/UDR-13 Operator Maintenance • • Cleaning Inspection Battery replacement Replace carrying case
