Pneumatic tools IR Range Overview 011206 Construction pneumatic

Pneumatic tools IR Range Overview 01/12/06

Construction pneumatic tools Paving breakers Pick hammers Vertically down demolition Horizontal and downward demolition Chipping hammers Jackhammers All position demolition + Surface work 2 Hole drilling in rock and concrete

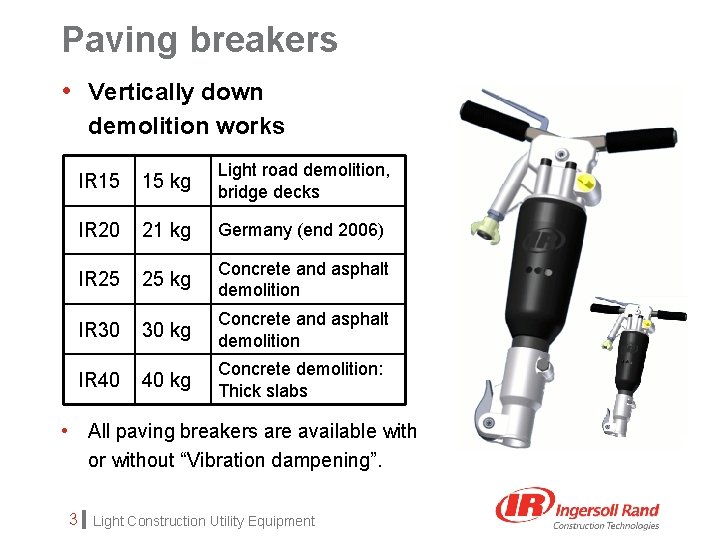

Paving breakers • Vertically down demolition works IR 15 15 kg Light road demolition, bridge decks IR 20 21 kg Germany (end 2006) IR 25 25 kg Concrete and asphalt demolition IR 30 30 kg Concrete and asphalt demolition IR 40 40 kg Concrete demolition: Thick slabs • All paving breakers are available with or without “Vibration dampening”. 3 Light Construction Utility Equipment

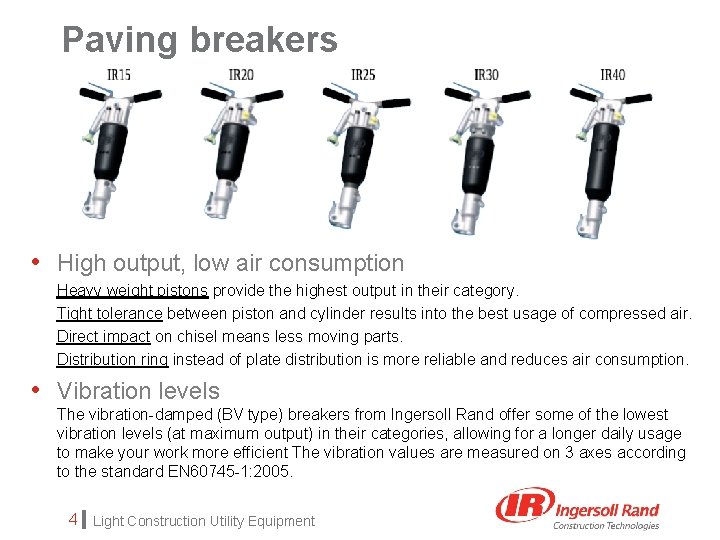

Paving breakers • High output, low air consumption Heavy weight pistons provide the highest output in their category. Tight tolerance between piston and cylinder results into the best usage of compressed air. Direct impact on chisel means less moving parts. Distribution ring instead of plate distribution is more reliable and reduces air consumption. • Vibration levels The vibration-damped (BV type) breakers from Ingersoll Rand offer some of the lowest vibration levels (at maximum output) in their categories, allowing for a longer daily usage to make your work more efficient The vibration values are measured on 3 axes according to the standard EN 60745 -1: 2005. 4 Light Construction Utility Equipment

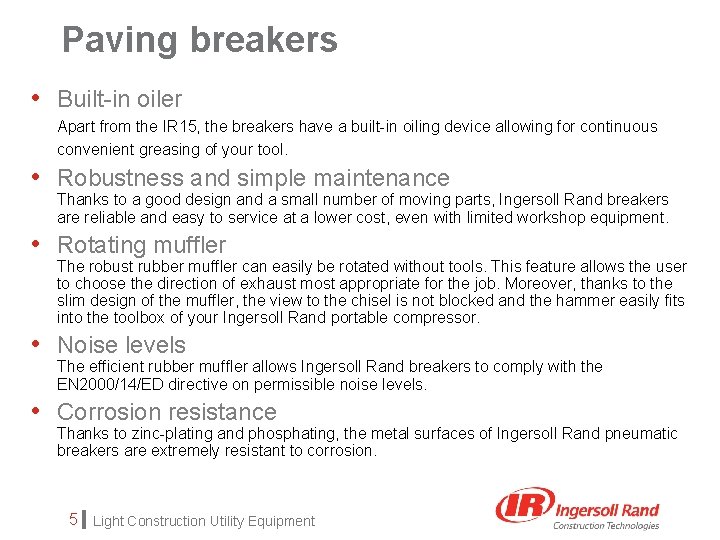

Paving breakers • Built-in oiler Apart from the IR 15, the breakers have a built-in oiling device allowing for continuous convenient greasing of your tool. • Robustness and simple maintenance Thanks to a good design and a small number of moving parts, Ingersoll Rand breakers are reliable and easy to service at a lower cost, even with limited workshop equipment. • Rotating muffler The robust rubber muffler can easily be rotated without tools. This feature allows the user to choose the direction of exhaust most appropriate for the job. Moreover, thanks to the slim design of the muffler, the view to the chisel is not blocked and the hammer easily fits into the toolbox of your Ingersoll Rand portable compressor. • Noise levels The efficient rubber muffler allows Ingersoll Rand breakers to comply with the EN 2000/14/ED directive on permissible noise levels. • Corrosion resistance Thanks to zinc-plating and phosphating, the metal surfaces of Ingersoll Rand pneumatic breakers are extremely resistant to corrosion. 5 Light Construction Utility Equipment

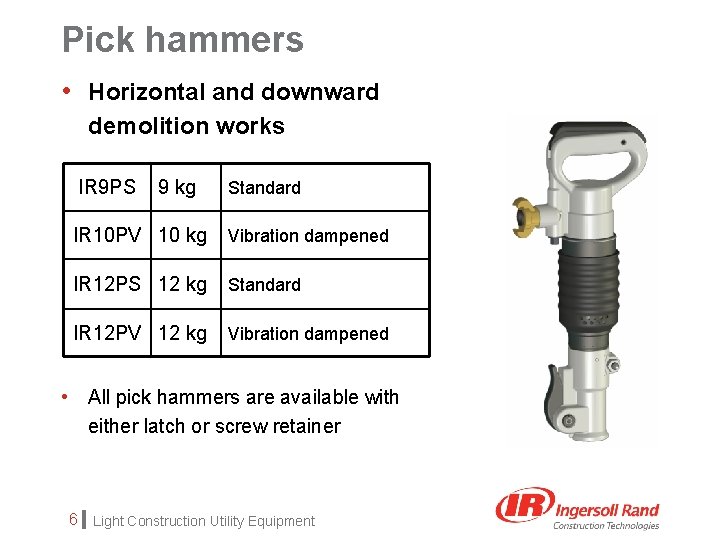

Pick hammers • Horizontal and downward demolition works IR 9 PS 9 kg Standard IR 10 PV 10 kg Vibration dampened IR 12 PS 12 kg Standard IR 12 PV 12 kg Vibration dampened • All pick hammers are available with either latch or screw retainer 6 Light Construction Utility Equipment

Chipping hammers • Light demolition works in all positions • Surface cleaning IR 2 PS 2. 6 kg IR 3 PS 3. 5 kg IR 5 PS 5 kg • All chipping hammers are also available as a kit with chisels. 7 Light Construction Utility Equipment

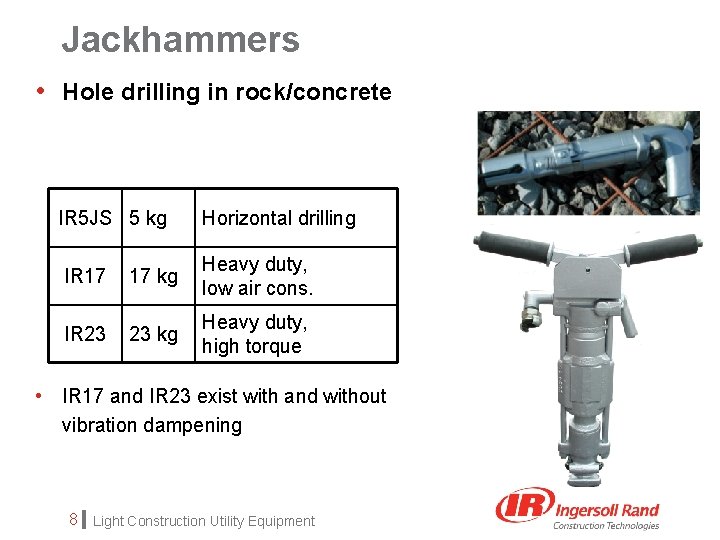

Jackhammers • Hole drilling in rock/concrete IR 5 JS 5 kg Horizontal drilling IR 17 17 kg Heavy duty, low air cons. IR 23 23 kg Heavy duty, high torque • IR 17 and IR 23 exist with and without vibration dampening 8 Light Construction Utility Equipment
