Pneumatic Hand Computer controlled pneumatics n Project components

Pneumatic Hand Computer controlled pneumatics n Project components: n – Solenoid valves – Air-muscles – Air compressor

Solenoid Valves Electromechanical device n Air in n Air out n Purchased from Mead Fluid Components n

Air-muscles n Mc. Kibben Actuator – Inner rubber tube – Outer shell of weave Ends contract when tube is inflated n Cheap, light, and strong n Purchased from Images Company n

Name: AM-01 Length: 150 mm Diameter: 12 mm Airmuscle: Small Load pulled at 3. 5 bars: 3 Kilos Load pulled at 50 PSI: 6. 5 lbs 25% Contraction with load of: 3 lbs

n n n Name: AM-02 Length: 210 mm Diameter: 20 mm Load pulled at 3. 5 bars: 20 Kilos Load pulled at 50 PSI: 45 lbs 25% Contraction with load of: 25 lbs Airmuscle: Medium

Airmuscle: Large Name: AM-04 n Length: 400 mm n Diameter: 50 mm n Load pulled at 3. 5 bars: 160 Kilos n Load pulled at 50 PSI: 300 lbs n 25% Contraction with load of: 150 lbs n

Air Compressor Small one in the lab n 20 gallon tank n Connected via flexible hose n Purchased from Grainger n

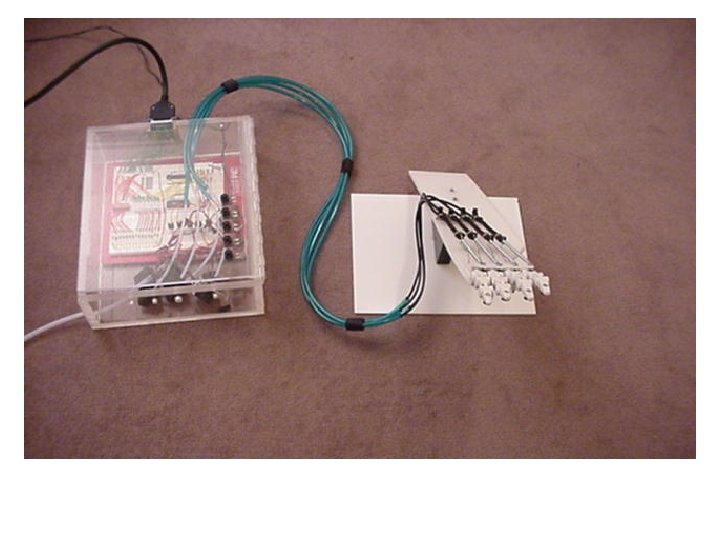

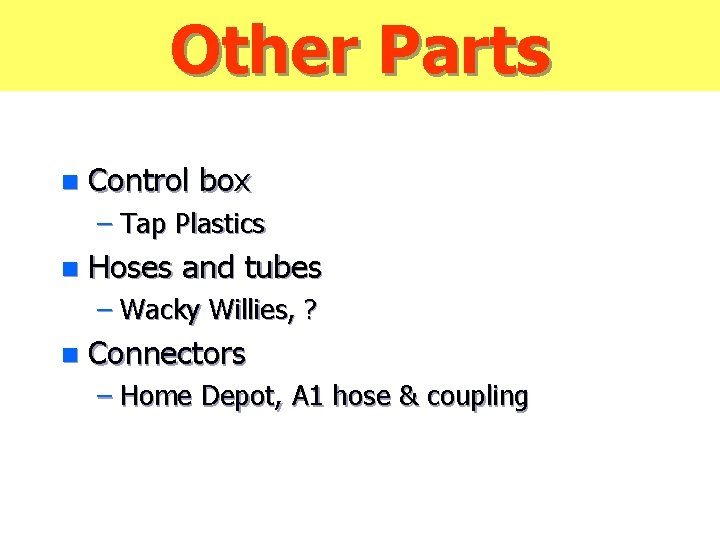

Other Parts n Control box – Tap Plastics n Hoses and tubes – Wacky Willies, ? n Connectors – Home Depot, A 1 hose & coupling

Problems 1. Design a model of human arm and hand using pneumatic technology. n 2. In Wacky Willy and in Boeing Surplus store in Seatlle find pneumatic valves and actuators that you can use in building a big battlebot arm n 3. Experiment with different software strategies to control valves to allow for very fast action with high pressures, this is not trivial. n
