Pneufit pushin fittings For general purpose pneumatic applications
- Slides: 35
Pneufit push-in fittings For general purpose pneumatic applications
Pneufit Push-in fittings l l l General purpose pneumatic fittings providing neat installation and fast tube assembly For use with flexible plastic tubing Easy tube release and remake of the joint Vacuum to 18 bar operating pressure Roll marked collet for easy tube size identification Comprehensive range of fitting forms 6 mm
Pneufit component parts l l l l Collet teeth ‘O’ Ring Body Pre-applied thread sealant Temperature range -200 C to 700 C Corrosion resistant nickel plated body and collet Materials of construction l l l Brass body and collet Medium Nitrile ‘O’ Ring Non PTFE based thread sealant

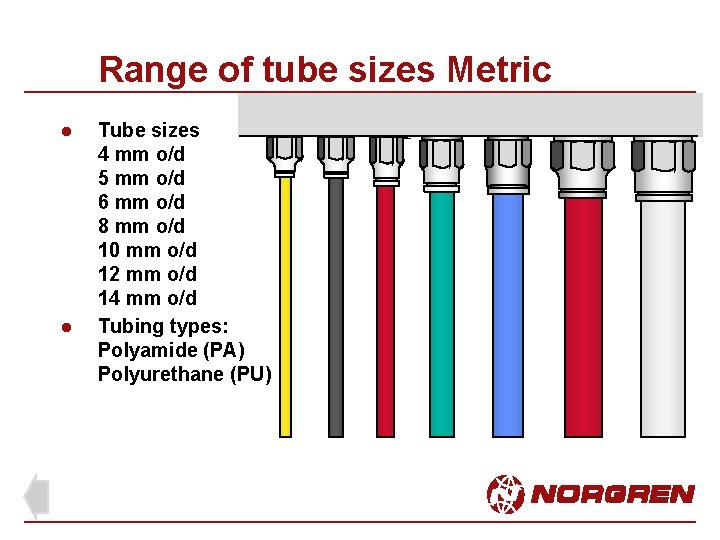

Range of tube sizes Metric l l Tube sizes 4 mm o/d 5 mm o/d 6 mm o/d 8 mm o/d 10 mm o/d 12 mm o/d 14 mm o/d Tubing types: Polyamide (PA) Polyurethane (PU)

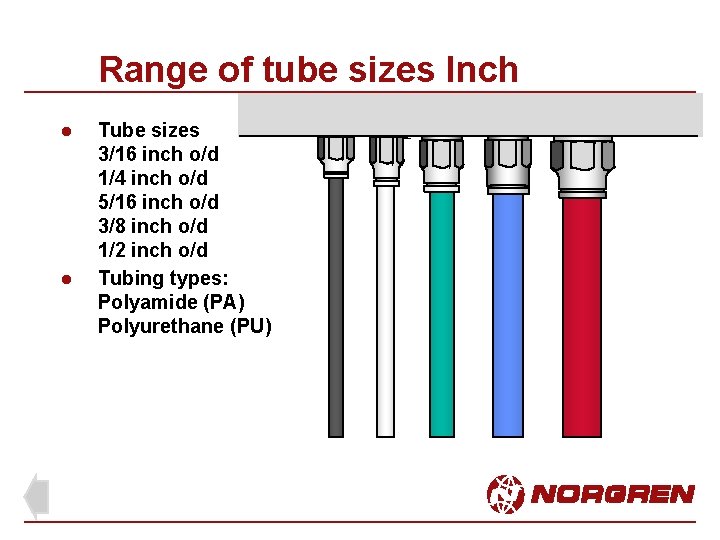

Range of tube sizes Inch l l Tube sizes 3/16 inch o/d 1/4 inch o/d 5/16 inch o/d 3/8 inch o/d 1/2 inch o/d Tubing types: Polyamide (PA) Polyurethane (PU)
Range of thread sizes l l Parallel thread sizes M 5 G 1 /8 G 1 /4 G 3 /8 G 1 /2 Taper thread sizes R 1 /8 R 1 /4 R 3 /8 R 1 /2 m mm mm
Internal Hexagon

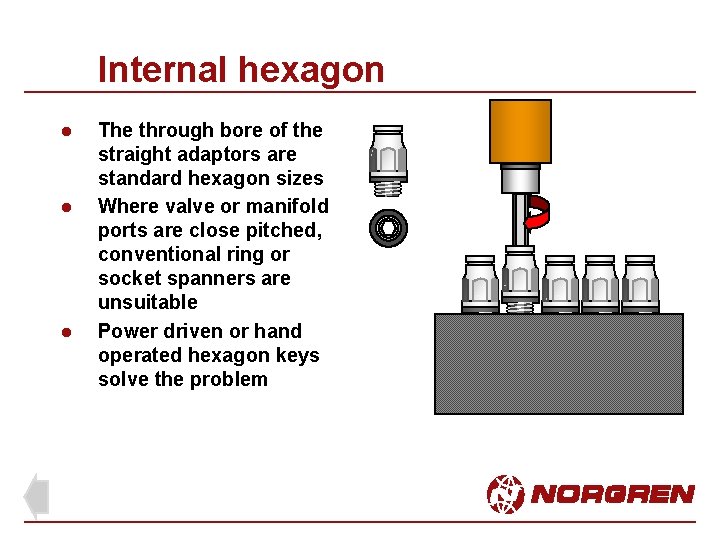

Internal hexagon l l l The through bore of the straight adaptors are standard hexagon sizes Where valve or manifold ports are close pitched, conventional ring or socket spanners are unsuitable Power driven or hand operated hexagon keys solve the problem
Tube and Fitting assembly
Tube preparation l l Use a standard tube cutter to give a square end Ensure that the tube end is clean and free from surface damage 900
Connecting the tube

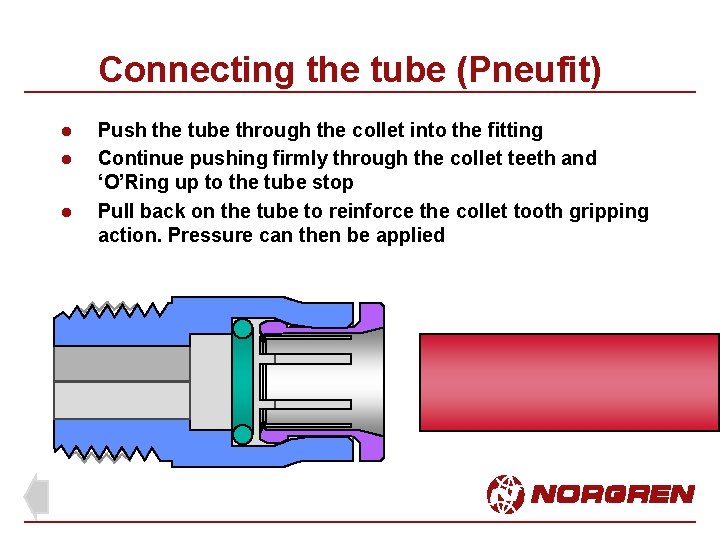

Connecting the tube (Pneufit) l l l Push the tube through the collet into the fitting Continue pushing firmly through the collet teeth and ‘O’Ring up to the tube stop Pull back on the tube to reinforce the collet tooth gripping action. Pressure can then be applied

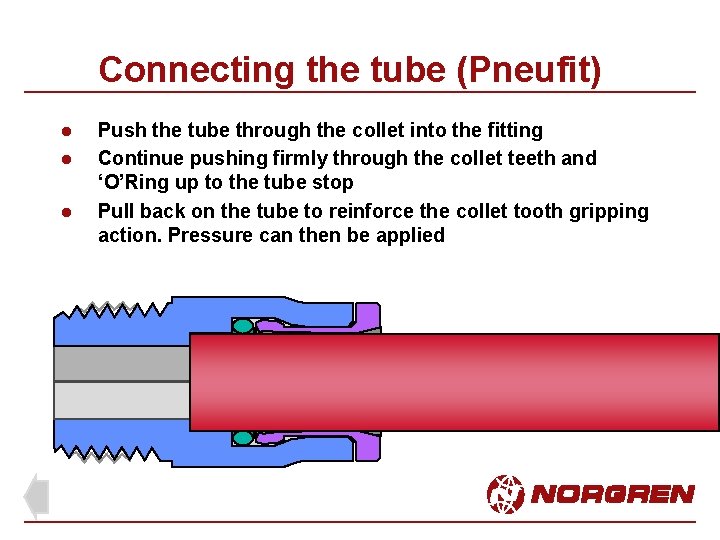

Connecting the tube (Pneufit) l l l Push the tube through the collet into the fitting Continue pushing firmly through the collet teeth and ‘O’Ring up to the tube stop Pull back on the tube to reinforce the collet tooth gripping action. Pressure can then be applied
Connecting the tube (Pneufit) l l l Push the tube through the collet into the fitting Continue pushing firmly through the collet teeth and ‘O’Ring up to the tube stop Pull back on the tube to reinforce the collet tooth gripping action. Pressure can then be applied
Connecting the tube (Pneufit) l l l Push the tube through the collet into the fitting Continue pushing firmly through the collet teeth and ‘O’Ring up to the tube stop Pull back on the tube to reinforce the collet tooth gripping action. Pressure can then be applied
Connecting the tube (Pneufit) l l l Push the tube through the collet into the fitting Continue pushing firmly through the collet teeth and ‘O’Ring up to the tube stop Pull back on the tube to reinforce the collet tooth gripping action. Pressure can then be applied
Disconnecting the tube
Disconnecting the tube (Pneufit) l l l Turn off and exhaust the air pressure Push the tube and collet into the fitting Hold down the collet and pull out the tube
Disconnecting the tube (Pneufit) l l l Turn off and exhaust the air pressure Push the tube and collet into the fitting Hold down the collet and pull out the tube
Disconnecting the tube (Pneufit) l l l Turn off and exhaust the air pressure Push the tube and collet into the fitting Hold down the collet and pull out the tube
Disconnecting the tube (Pneufit) l l l Turn off and exhaust the air pressure Push the tube and collet into the fitting Hold down the collet and pull out the tube
Disconnecting the tube (Pneufit) l l l Turn off and exhaust the air pressure Push the tube and collet into the fitting Hold down the collet and pull out the tube
Pneufit range of fittings forms Series 10 ( Metric tube )
Pneufit parallel adaptors (metric) l l l l Straight adaptors Internal adaptors Straight stem adaptors Swivel elbow adaptors 45 O Swivel elbow adaptors Parallel Y adaptors Swivel side tee adaptors Swivel tee adaptors
Pneufit taper adaptors (metric) l l l l l Straight adaptors Straight stem adaptors Fixed elbow adaptors Swivel elbow adaptors Extended swivel elbows Fixed side tee adaptors Fixed tee adaptors Swivel side tee adaptors Parallel Y adaptors

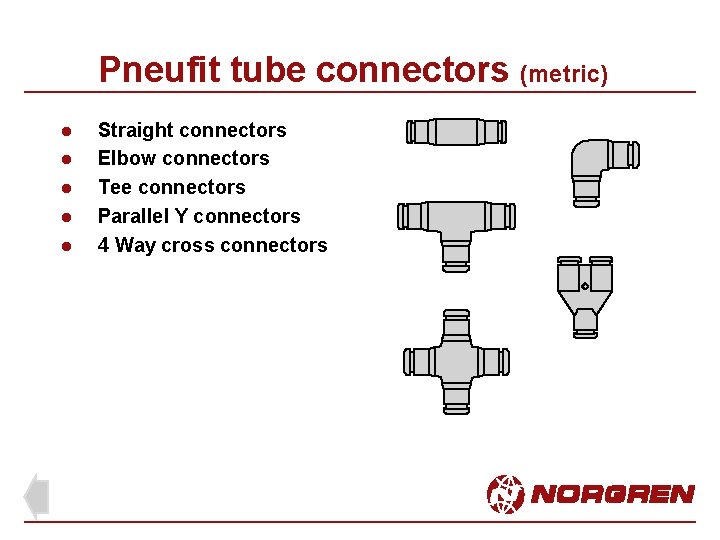

Pneufit tube connectors (metric) l l l Straight connectors Elbow connectors Tee connectors Parallel Y connectors 4 Way cross connectors
Pneufit stem connectors (metric) l l l l Straight stem connectors metal Straight stem connectors plastic Stem tailpiece adaptors Reducing connectors Stem elbow connectors Silencers Pressure indicator ( plug in ) Plugs
Pneufit bulkhead connectors (metric) l l Bulkhead connectors Pressure indicators Swivel bulkhead elbow connectors Mixed bulkhead connectors PIF to compression
Pneufit banjo connectors (metric) l l l l Elbow banjo assemblies Tee banjo assemblies Banjo bolts Elbow banjo bodies Tee banjo bodies Regulating elbow banjo assemblies Regulating banjo bolts
Pneufit banjo connectors (metric) l l l Banjo bolt with top port Banjo bolt with indicator Banjo bolt single stacking Banjo bolt double stacking Banjo bolt triple stacking Stacking banjo bolts can be used with any combination of elbow or tee banjo bodies
Pneufit banjo flow regulators l l Thread sizes taper R 1/8 R 1/4 R 3/8 R 1/2 Tube sizes 4 mm o/d 6 mm o/d 8 mm o/d 10 mm o/d 12 mm o/d
Pneufit push-in manifolds l l Tube inlet type, 8 or 10 mm o/d inlet each end Threaded inlet type, with 8 or 10 mm o/d tube inlet on one end Thread sizes taper R 1/8 R 1/4 R 3/8 R 1/2 Six outlets each 4, 6 or 8 mm o/d
Pneufit range of fittings forms Series 12 ( Inch tube )
Pneufit range (inch tube) l l l l l Straight adaptors M 5 Straight adaptors taper Swivel elbow adaptors Elbow connectors Swivel tee adaptors Swivel side tee adaptors Tee connectors Straight connectors bulkhead connectors
End
