PND Connector Purpose: JST is proud to Introduce the PND disconnectable crimp style connector.

PND Connector Purpose: JST is proud to Introduce the PND disconnectable crimp style connector. Responding to the needs of the ever expanding market, this high-density, wire-to-board, through-hole type connector with positive locks is newly developed enabling the user to achieve excellent results by withstanding unexpected external forces.

PND Connector Problem: Many applications require a disconnectable, double-row crimp style connector designed to

PND Connector Problem: Many applications require a disconnectable, double-row crimp style connector designed to meet the demand for high-density, low insertion force connections that offer engineers design flexibility. Script: The finger-friendly PND series wire-to board connector system, with a current rating of 3 A AC/DC using 22 AWG wire and a voltage rating of 250 V AC/DC, are double-row 2. 0 mm(. 079”) pitch, molded in a 94 V-0 Nylon 66 with an operating temperature range of -25ºC to +85ºC. Designed to consider the risk of solder bridging, this throughhole 2. 0 mm (. 079”) pitch, dual-row {5. 0 mm (. 197”) pitch between rows} construction allows for high-density mounting and is provided Ro. HS compliant.

PND Connector disconnectable crimp style contacts Script: The PND contacts are designed to accommodate

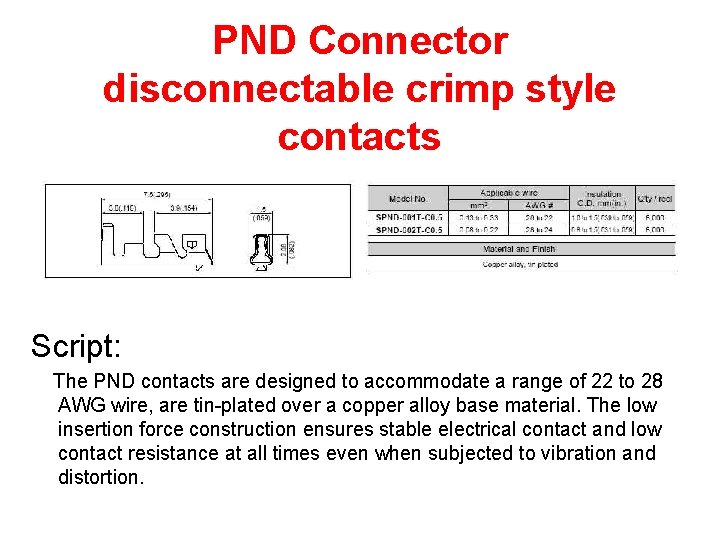

PND Connector disconnectable crimp style contacts Script: The PND contacts are designed to accommodate a range of 22 to 28 AWG wire, are tin-plated over a copper alloy base material. The low insertion force construction ensures stable electrical contact and low contact resistance at all times even when subjected to vibration and distortion.

PND Housing Script: The PND housings are available in even numbered sizes from 8

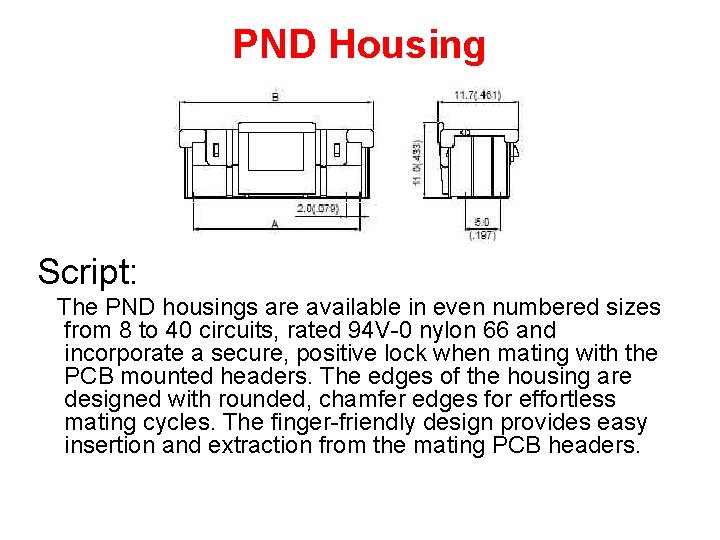

PND Housing Script: The PND housings are available in even numbered sizes from 8 to 40 circuits, rated 94 V-0 nylon 66 and incorporate a secure, positive lock when mating with the PCB mounted headers. The edges of the housing are designed with rounded, chamfer edges for effortless mating cycles. The finger-friendly design provides easy insertion and extraction from the mating PCB headers.

PND Shrouded Header SCRIPT: The through-hole, top-entry (straight), fully-shrouded headers have four high walls

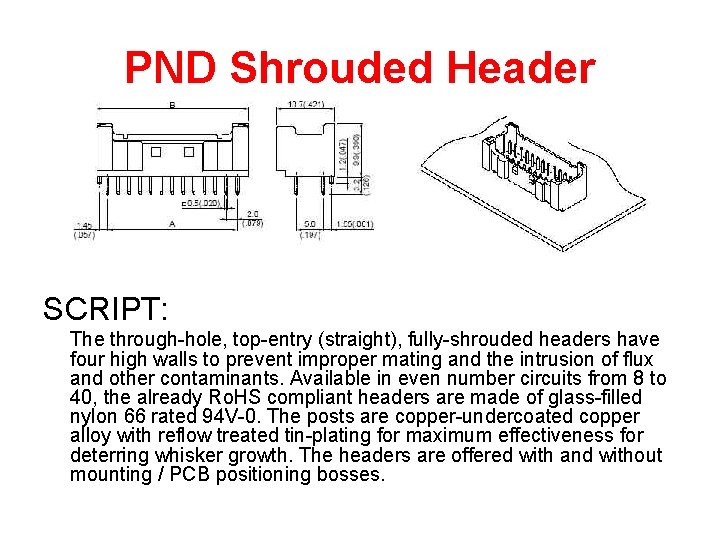

PND Shrouded Header SCRIPT: The through-hole, top-entry (straight), fully-shrouded headers have four high walls to prevent improper mating and the intrusion of flux and other contaminants. Available in even number circuits from 8 to 40, the already Ro. HS compliant headers are made of glass-filled nylon 66 rated 94 V-0. The posts are copper-undercoated copper alloy with reflow treated tin-plating for maximum effectiveness for deterring whisker growth. The headers are offered with and without mounting / PCB positioning bosses.

The PND connectors are engineering & manufacturing friendly Industry standard applicator for the PND

The PND connectors are engineering & manufacturing friendly Industry standard applicator for the PND series Standard Crimp Applicator for the PND series Hand tools for the PND series Script: Applicators are available for the semi-automatic and fully automatic termination equipment normally found in the manufacturing environment as well as standard hand tools for engineering, lab and pre-production requirements.

The PND series summary Script: • Ro. Hs compliant • Excellent workability (Low insertion

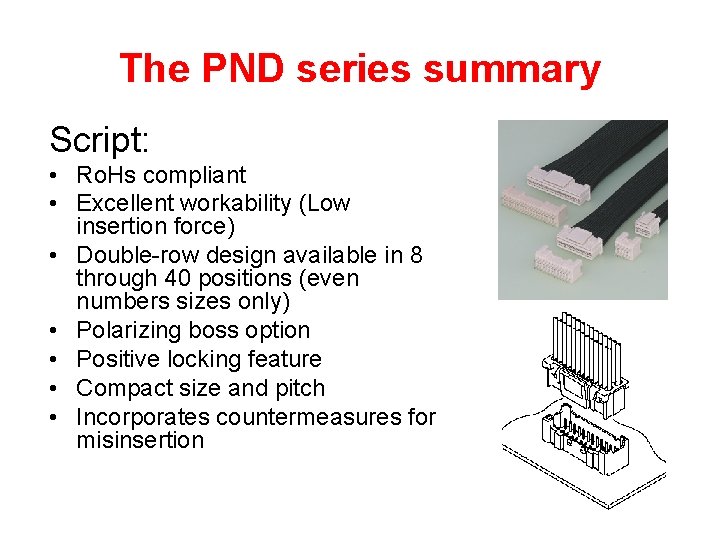

The PND series summary Script: • Ro. Hs compliant • Excellent workability (Low insertion force) • Double-row design available in 8 through 40 positions (even numbers sizes only) • Polarizing boss option • Positive locking feature • Compact size and pitch • Incorporates countermeasures for misinsertion
