PLOTTING PHASE PORTRAITS WITH MATLAB Phase portraits is

PLOTTING PHASE PORTRAITS WITH MATLAB: Phase portraits is a useful graphical tool to understand the stable or unstable behavior of the equilibrium points of a nonlinear systems. Consider the previous example, Matlab code to plot phase portraits range for x 1 range for x 2 [x 1, x 2] = meshgrid(-4: 0. 2: 1, -2: 0. 2: 2); x 1 dot = x 2; x 2 dot = -0. 6*x 2 -3*x 1 -x 1. ^2; quiver(x 1, x 2, x 1 dot, x 2 dot) xlabel('x_1') ylabel('x_2')

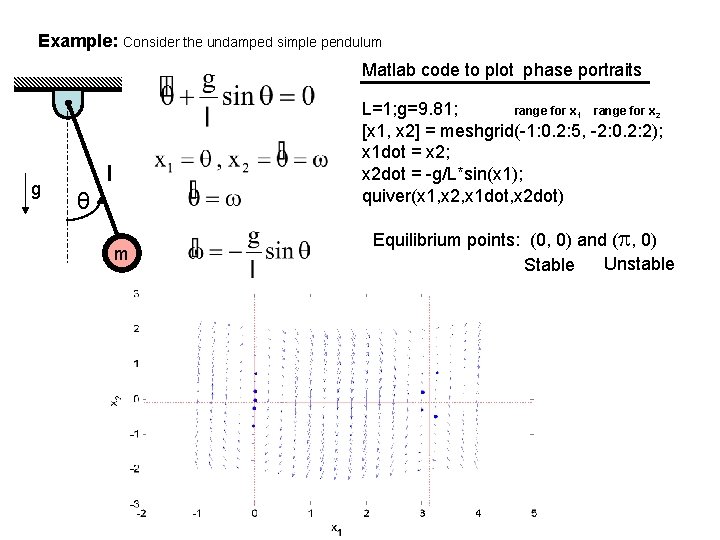

Example: Consider the undamped simple pendulum Matlab code to plot phase portraits g θ range for x 1 range for x 2 L=1; g=9. 81; [x 1, x 2] = meshgrid(-1: 0. 2: 5, -2: 0. 2: 2); x 1 dot = x 2; x 2 dot = -g/L*sin(x 1); quiver(x 1, x 2, x 1 dot, x 2 dot) l m Equilibrium points: (0, 0) and (p, 0) Unstable Stable

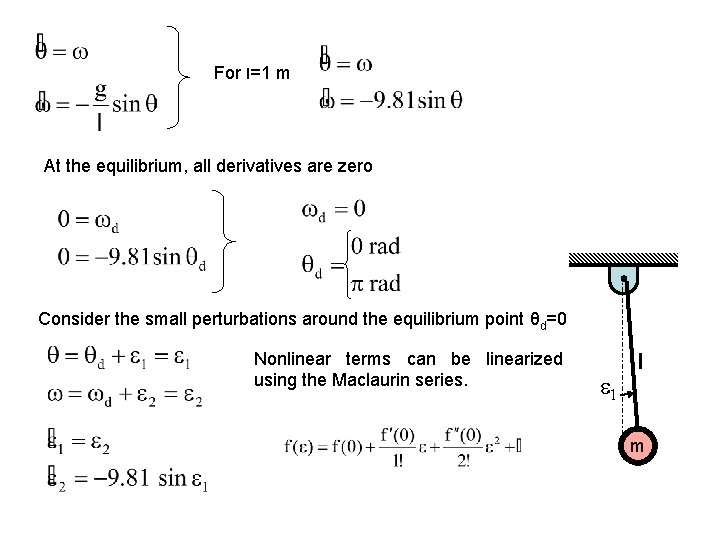

For l=1 m At the equilibrium, all derivatives are zero Consider the small perturbations around the equilibrium point θd=0 Nonlinear terms can be linearized using the Maclaurin series. e 1 l m

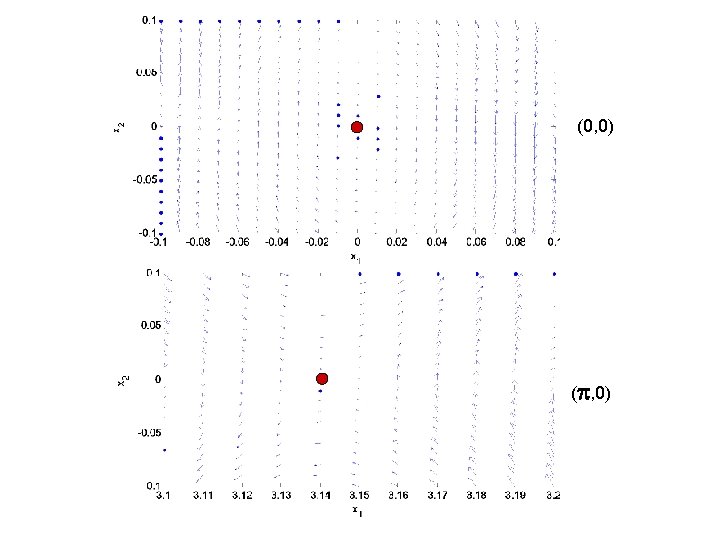

For θd=0 Higher order term clc; clear; A=[0 1; -9. 81 0]; eig(A) ans = A For θd=p 0 + 3. 1321 i 0 - 3. 1321 i Marginally stable m e 1 l clc; clear; A=[0 1; 9. 81 0]; eig(A) ans = 3. 1321 -3. 1321 Unstable

Initial conditions [0. 1; 0]

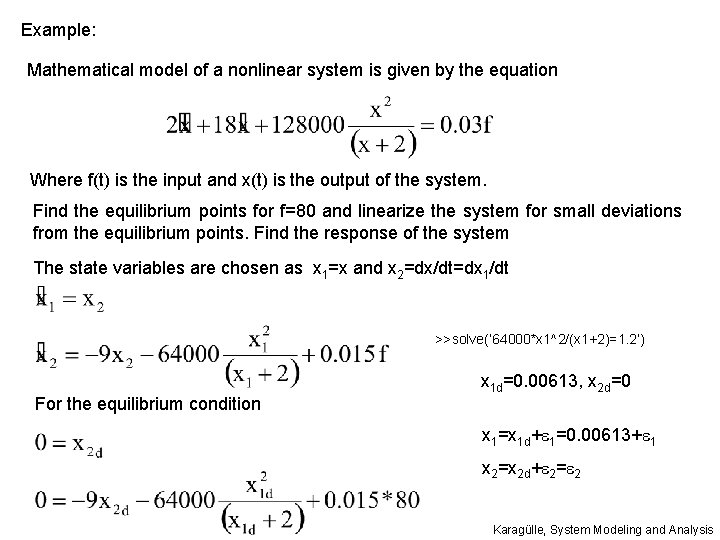

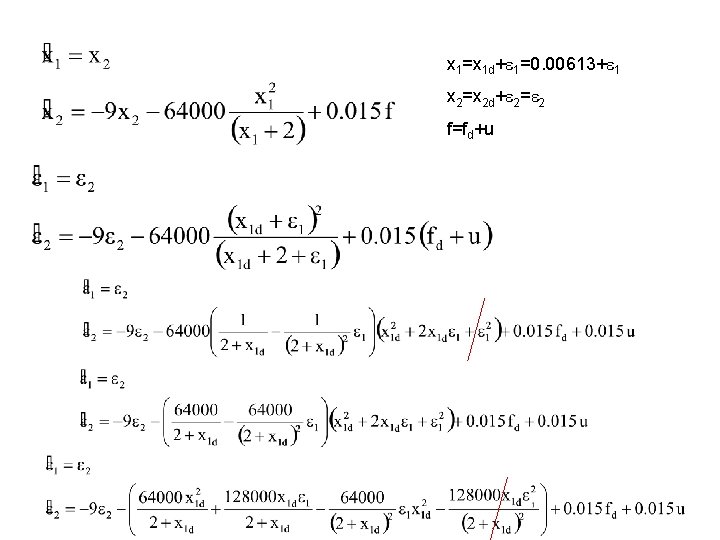

Example: Mathematical model of a nonlinear system is given by the equation Where f(t) is the input and x(t) is the output of the system. Find the equilibrium points for f=80 and linearize the system for small deviations from the equilibrium points. Find the response of the system The state variables are chosen as x 1=x and x 2=dx/dt=dx 1/dt >>solve(‘ 64000*x 1^2/(x 1+2)=1. 2’) For the equilibrium condition x 1 d=0. 00613, x 2 d=0 x 1=x 1 d+e 1=0. 00613+e 1 x 2=x 2 d+e 2=e 2 Karagülle, System Modeling and Analysis

x 1=x 1 d+e 1=0. 00613+e 1 x 2=x 2 d+e 2=e 2 f=fd+u

=0 =0 clc; clear; A=[0 1; -390. 52 -9]; eig(A) ans = -4. 5000 +19. 2424 i -4. 5000 -19. 2424 i Stable system

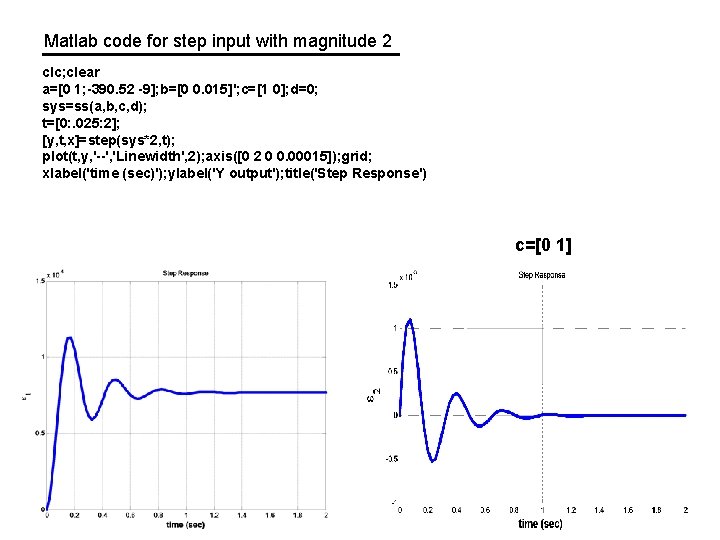

Matlab code for step input with magnitude 2 clc; clear a=[0 1; -390. 52 -9]; b=[0 0. 015]'; c=[1 0]; d=0; sys=ss(a, b, c, d); t=[0: . 025: 2]; [y, t, x]=step(sys*2, t); plot(t, y, '--', 'Linewidth', 2); axis([0 2 0 0. 00015]); grid; xlabel('time (sec)'); ylabel('Y output'); title('Step Response') c=[0 1]

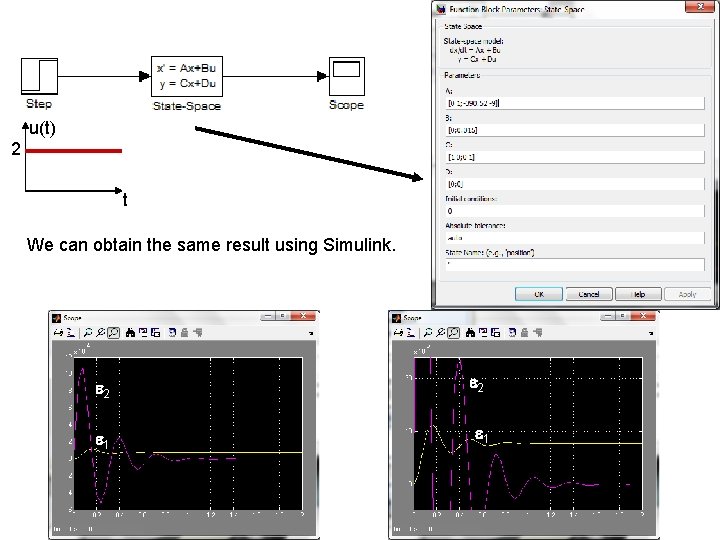

u(t) 2 t We can obtain the same result using Simulink. e 2 e 1

Example: Phase portrait of a linear system. c k R 2 m m x(t) x 1=x x 2=dx/dt=dx 1/dt Initial conditions: x 1(0)=0. 2 (dx/dt)t=0=x 2(0)=1

At equilibrium Matlab Code: m=10; c=2; k=1000; [x 1, x 2] = meshgrid(-0. 5: 0. 1: 0. 5, -2: 0. 2: 2); x 1 dot = x 2; x 2 dot = -c/(2*m)*x 2 -k/(2*m)*x 1; quiver(x 1, x 2, x 1 dot, x 2 dot) Damping ratio meş=2 m Initial Equilibrium

Damping ratio Matlab Code: m=10; c=40; k=1000; [x 1, x 2] = meshgrid(-0. 5: 0. 1: 0. 5, -2: 0. 2: 2); x 1 dot = x 2; x 2 dot = -c/(2*m)*x 2 -k/(2*m)*x 1; quiver(x 1, x 2, x 1 dot, x 2 dot)

Damping ratio Matlab Code: m=10; c=150; k=1000; [x 1, x 2] = meshgrid(-0. 5: 0. 1: 0. 5, -2: 0. 2: 2); x 1 dot = x 2; x 2 dot = -c/(2*m)*x 2 -k/(2*m)*x 1; quiver(x 1, x 2, x 1 dot, x 2 dot)

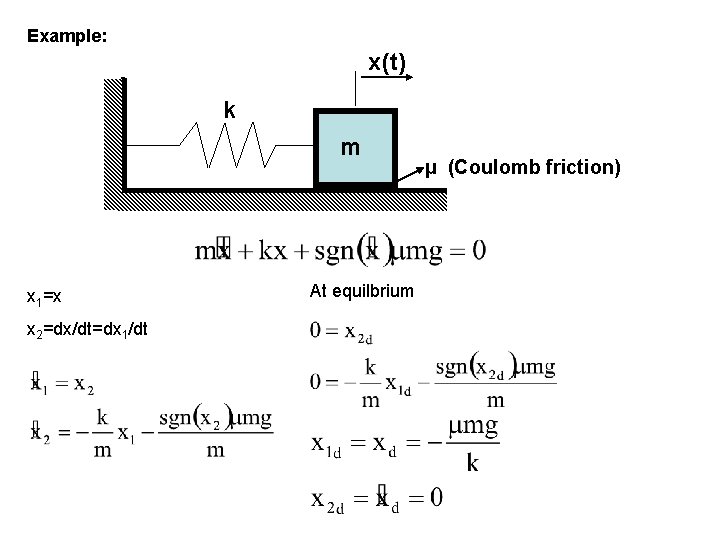

Example: x(t) k m x 1=x x 2=dx/dt=dx 1/dt At equilbrium µ (Coulomb friction)

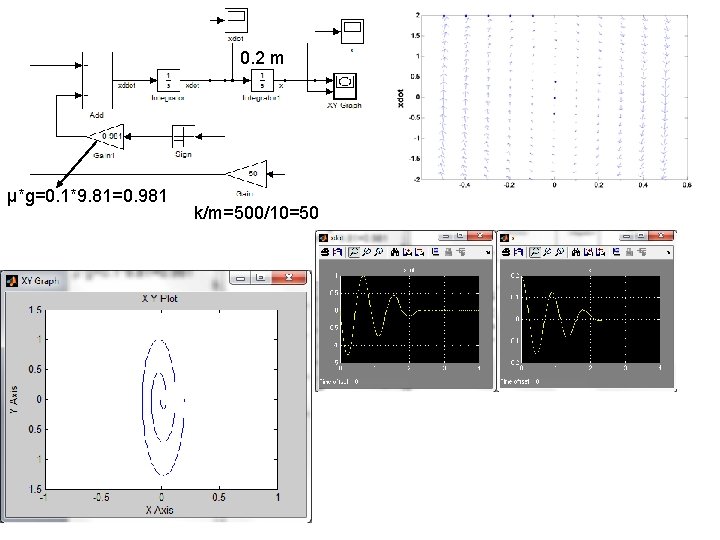

0. 2 m µ*g=0. 1*9. 81=0. 981 k/m=500/10=50

m=60; k=500; mu=0. 3; g=9. 81; [x 1, x 2] = meshgrid(-0. 5: 0. 1: 0. 5, -2: 0. 2: 2); x 1 dot = x 2; x 2 dot = -(k/m)*x 1 -sign(x 2)*mu*g; quiver(x 1, x 2, x 1 dot, x 2 dot)

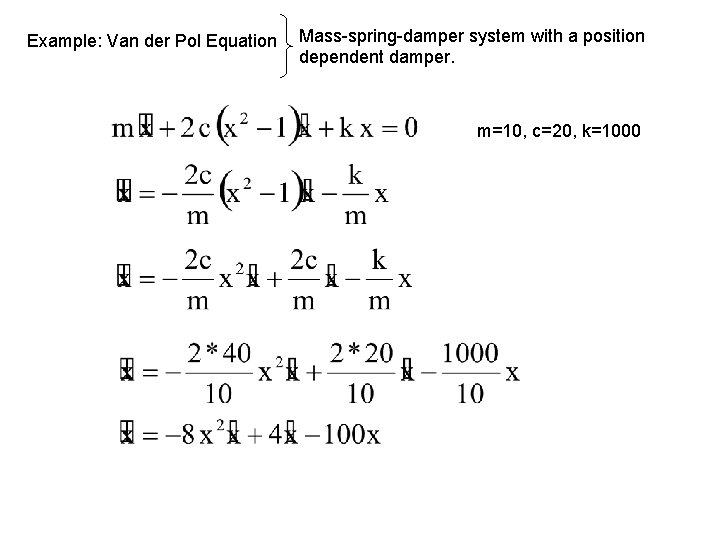

Example: Van der Pol Equation Mass-spring-damper system with a position dependent damper. m=10, c=20, k=1000

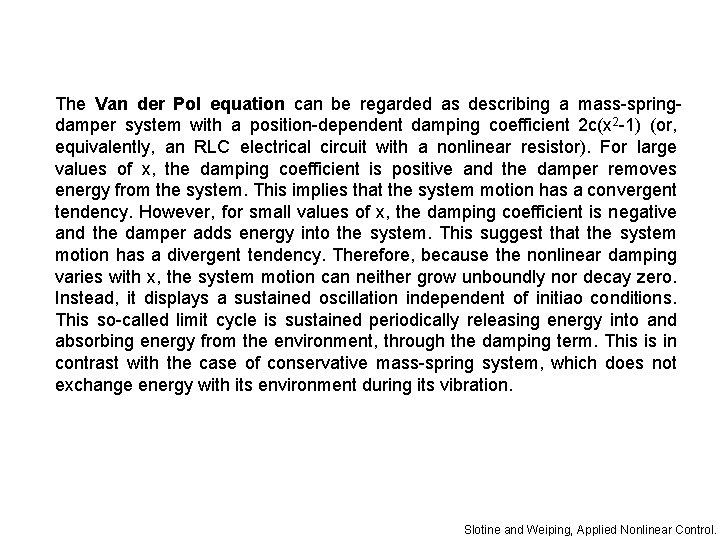

The Van der Pol equation can be regarded as describing a mass-springdamper system with a position-dependent damping coefficient 2 c(x 2 -1) (or, equivalently, an RLC electrical circuit with a nonlinear resistor). For large values of x, the damping coefficient is positive and the damper removes energy from the system. This implies that the system motion has a convergent tendency. However, for small values of x, the damping coefficient is negative and the damper adds energy into the system. This suggest that the system motion has a divergent tendency. Therefore, because the nonlinear damping varies with x, the system motion can neither grow unboundly nor decay zero. Instead, it displays a sustained oscillation independent of initiao conditions. This so-called limit cycle is sustained periodically releasing energy into and absorbing energy from the environment, through the damping term. This is in contrast with the case of conservative mass-spring system, which does not exchange energy with its environment during its vibration. Slotine and Weiping, Applied Nonlinear Control.

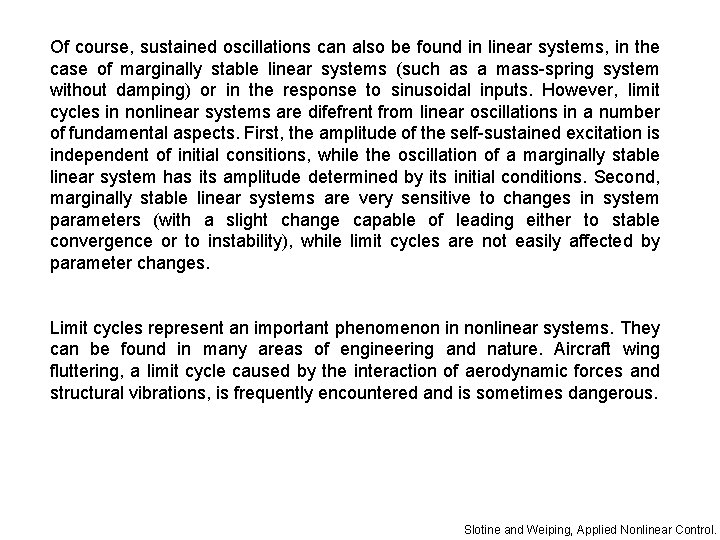

Of course, sustained oscillations can also be found in linear systems, in the case of marginally stable linear systems (such as a mass-spring system without damping) or in the response to sinusoidal inputs. However, limit cycles in nonlinear systems are difefrent from linear oscillations in a number of fundamental aspects. First, the amplitude of the self-sustained excitation is independent of initial consitions, while the oscillation of a marginally stable linear system has its amplitude determined by its initial conditions. Second, marginally stable linear systems are very sensitive to changes in system parameters (with a slight change capable of leading either to stable convergence or to instability), while limit cycles are not easily affected by parameter changes. Limit cycles represent an important phenomenon in nonlinear systems. They can be found in many areas of engineering and nature. Aircraft wing fluttering, a limit cycle caused by the interaction of aerodynamic forces and structural vibrations, is frequently encountered and is sometimes dangerous. Slotine and Weiping, Applied Nonlinear Control.

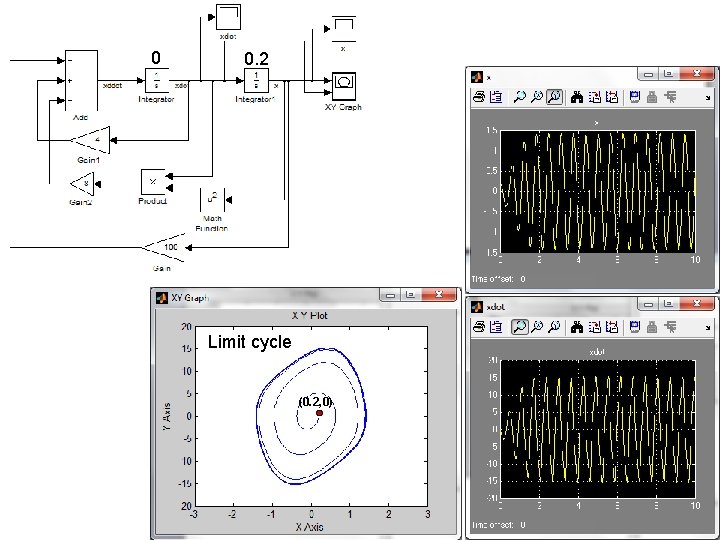

0 0. 2 Limit cycle (0. 2, 0)

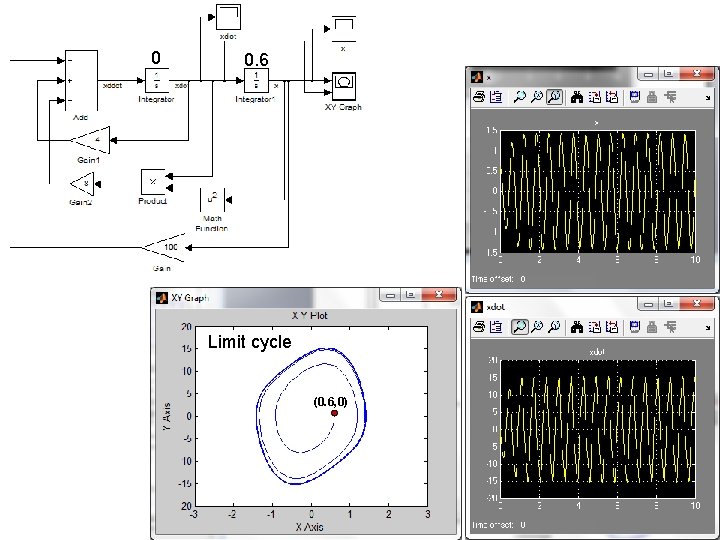

0 0. 6 Limit cycle (0. 6, 0)

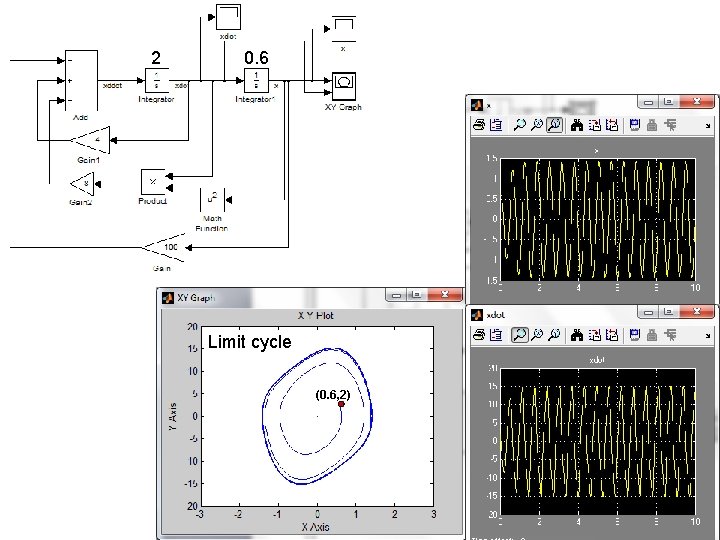

2 0. 6 Limit cycle (0. 6, 2)

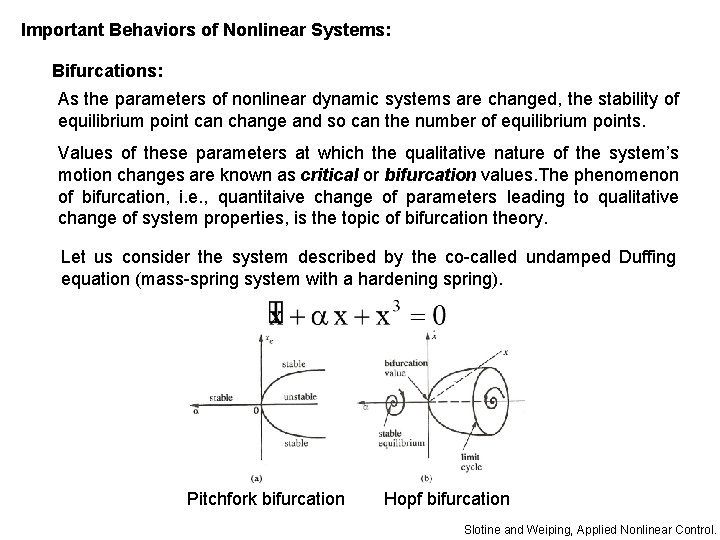

Important Behaviors of Nonlinear Systems: Bifurcations: As the parameters of nonlinear dynamic systems are changed, the stability of equilibrium point can change and so can the number of equilibrium points. Values of these parameters at which the qualitative nature of the system’s motion changes are known as critical or bifurcation values. The phenomenon of bifurcation, i. e. , quantitaive change of parameters leading to qualitative change of system properties, is the topic of bifurcation theory. Let us consider the system described by the co-called undamped Duffing equation (mass-spring system with a hardening spring). Pitchfork bifurcation Hopf bifurcation Slotine and Weiping, Applied Nonlinear Control.

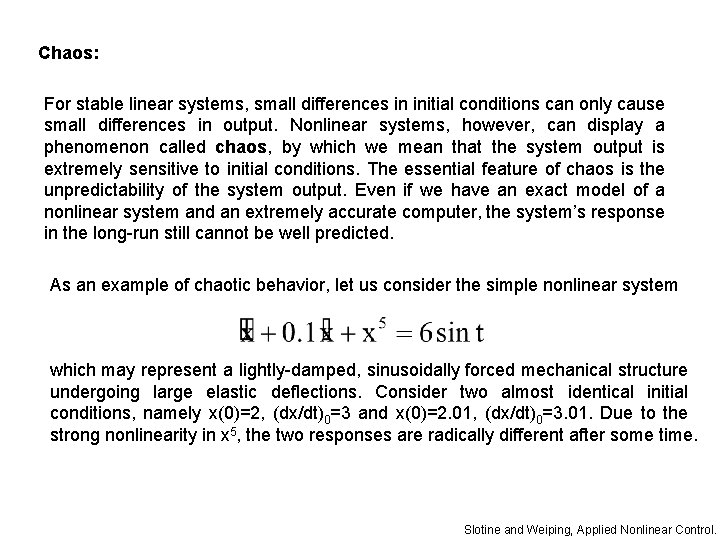

Chaos: For stable linear systems, small differences in initial conditions can only cause small differences in output. Nonlinear systems, however, can display a phenomenon called chaos, by which we mean that the system output is extremely sensitive to initial conditions. The essential feature of chaos is the unpredictability of the system output. Even if we have an exact model of a nonlinear system and an extremely accurate computer, the system’s response in the long-run still cannot be well predicted. As an example of chaotic behavior, let us consider the simple nonlinear system which may represent a lightly-damped, sinusoidally forced mechanical structure undergoing large elastic deflections. Consider two almost identical initial conditions, namely x(0)=2, (dx/dt)0=3 and x(0)=2. 01, (dx/dt)0=3. 01. Due to the strong nonlinearity in x 5, the two responses are radically different after some time. Slotine and Weiping, Applied Nonlinear Control.

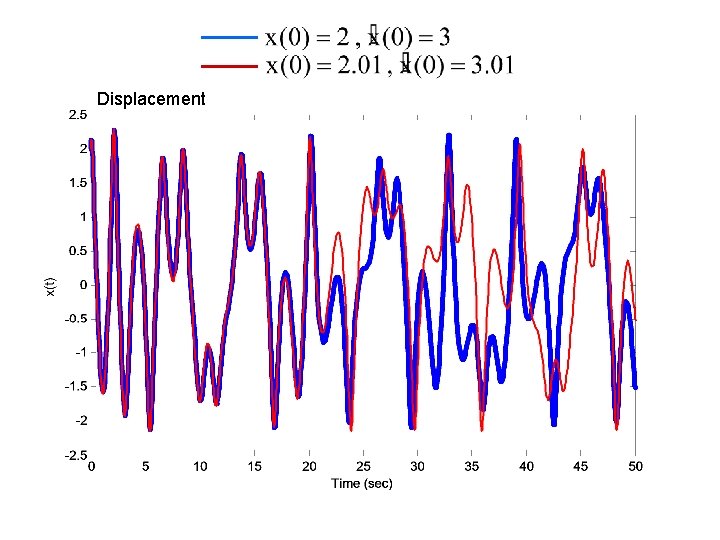

Displacement

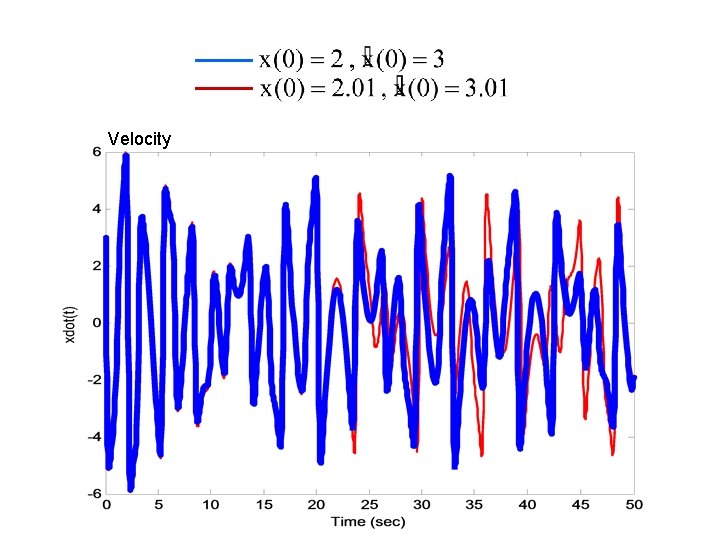

Velocity

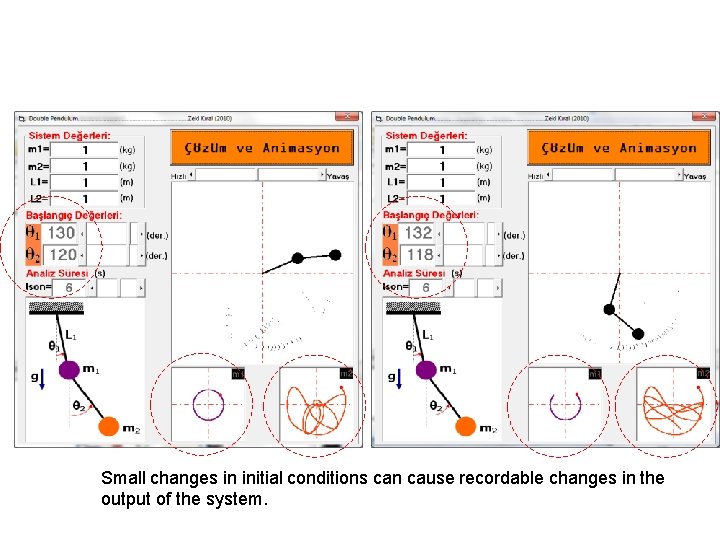

Small changes in initial conditions can cause recordable changes in the output of the system.
