PLM Source Adapted from PTC Inc Streamlining Concept
- Slides: 40
研究领域背景 - 产品全生命周期管理(PLM) 系统 Source: Adapted from PTC, Inc. Streamlining “Concept to Cash”. March 2009 Aerospace/ Defense Automotive High Tech/ Electronics Industrial Equipment Consumer Products Life Sciences

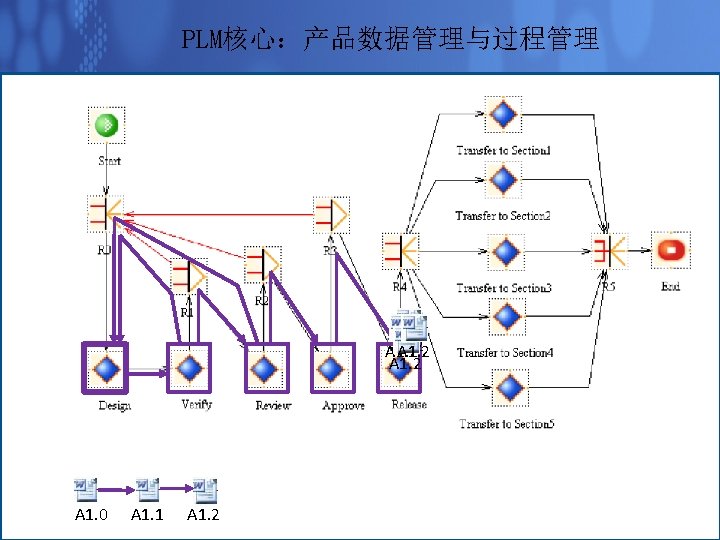

PLM核心:产品数据管理与过程管理 Product versioning management Workflow Prod Plan uct ning ture ufac Man nning Pla Product Definition Product PDM Versioning Pr Control o Re qu d ire uct m en ts Object Version Graph nce a n e int pai r a M Re & Versioning graph

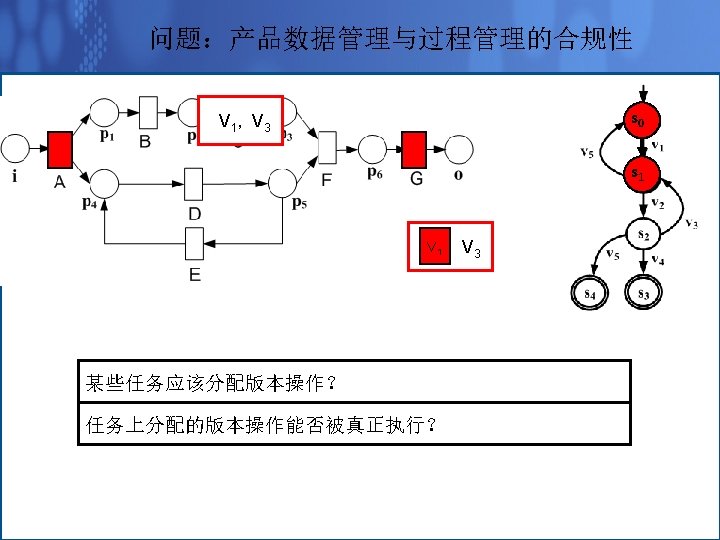

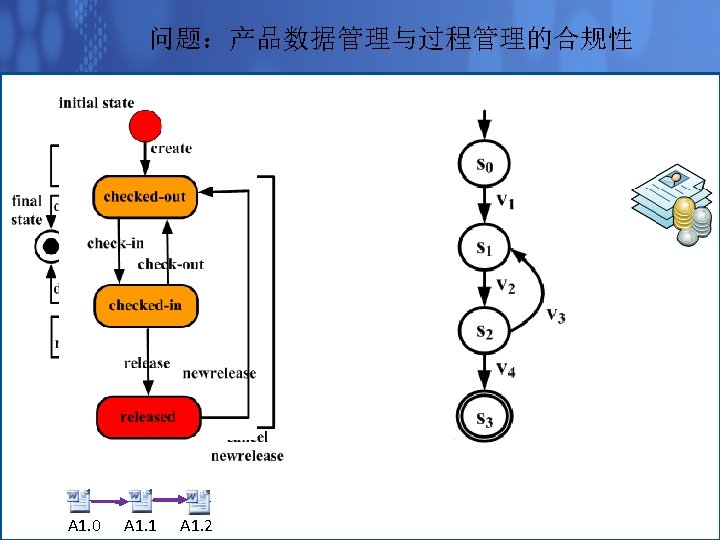

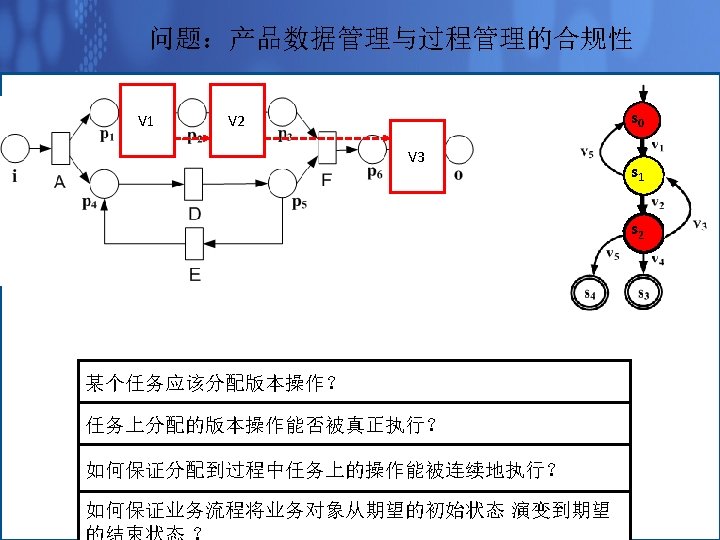

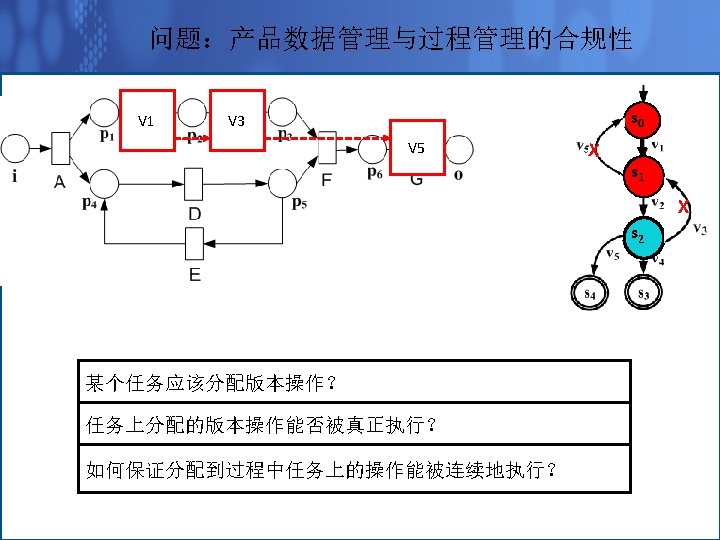

问题:产品数据管理与过程管理的合规性 Anticipated object-state pairs: {initial state, checked-in} Version operation {create, checkin, checkout} Anticipated object-state pairs: {checked-in, released} Version operation release

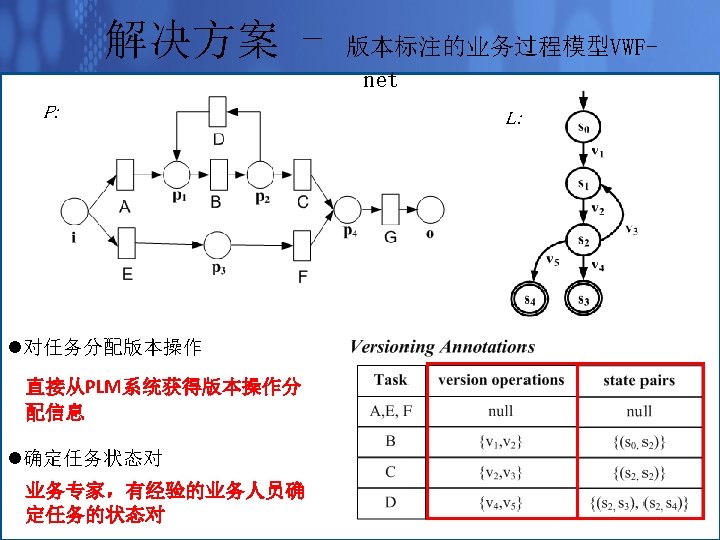

解决方案 P: l. Marking of VWF-net (M, s) l. Initial marking of VWF-net (M 0, s 0) l. Final marking of VWF-net (Mf, sf) 版本标注的业务过程模型 L:

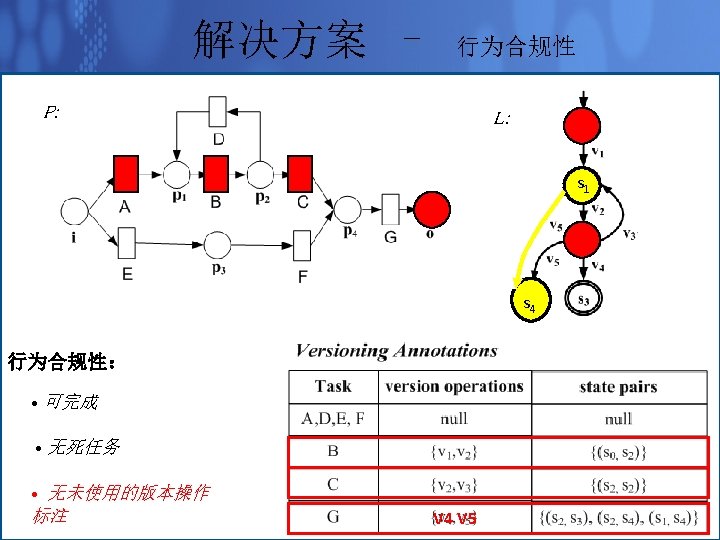

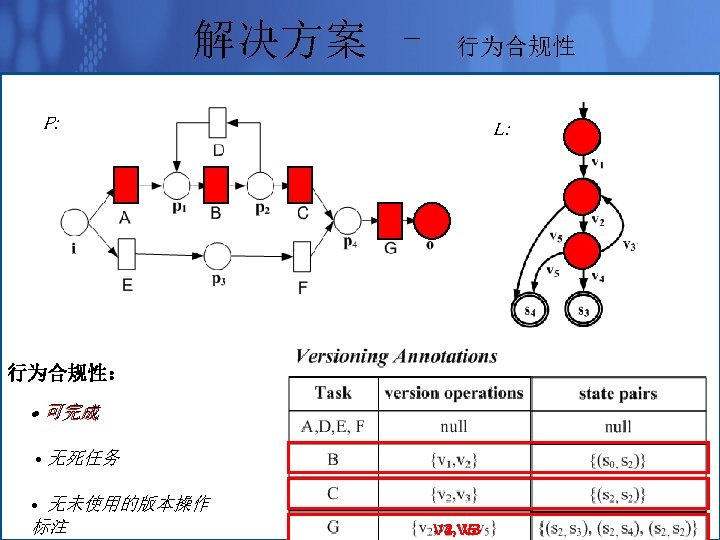

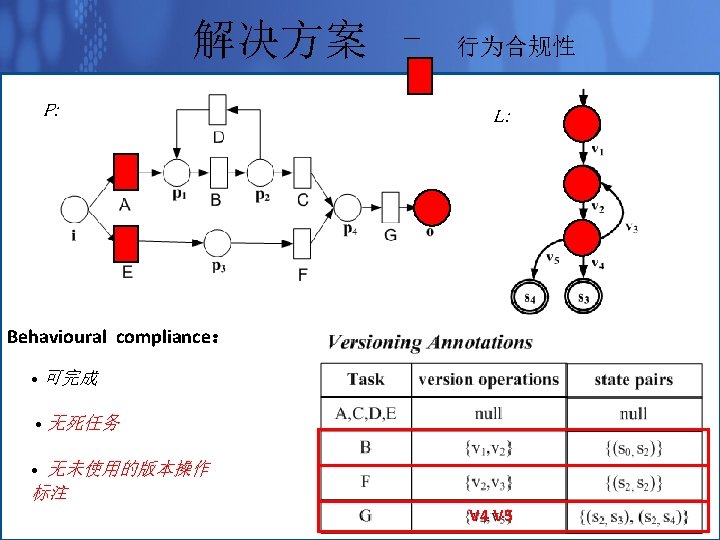

解决方案 – VWF-net: 行为合规性 WF-net: 转换 检查 行为合规性: 可完成 解释 合理性(Soundness) : 二者是否等价? 可完成 无死任务 无未使用的版本操作标 注 无死任务 *Z. Wang, A. H. M. ter Hofstede, C. Ouyang, M. Wynn, J. Wang, and X. Zhu. How to guarantee compliance between workflows and product lifecycles? Technical Report BPM Center BPM-11 -10, BPMcenter. org, 2011.

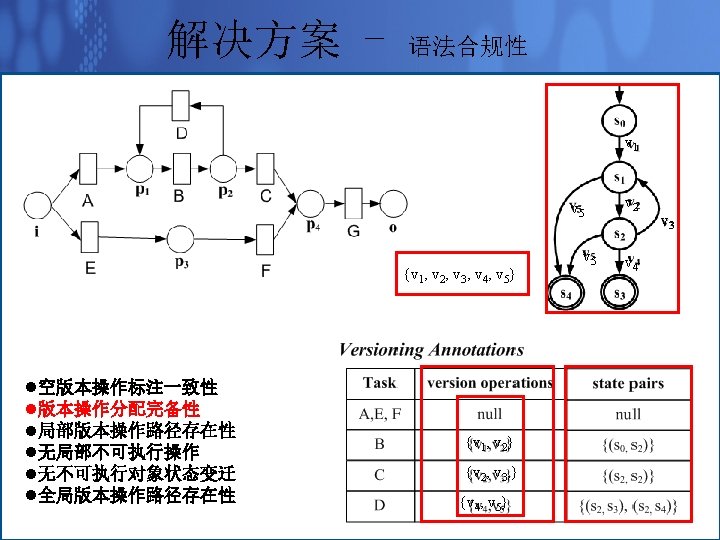

解决方案 - 语法规则 3:局部版本操作路径存在性 s 0 versioning set: {V 1, V 3 } object state pairs: {(s 0, s 2)} X s 2
解决方案 - 语法规则 4:无局部不可执行操作 s 0 versioning set: {V 1, V 2 , V 3 , V 4} object state pairs: {(s 0, s 2)} s 2 V 4
解决方案 - 语法规则 5:无不可执行对象状态变迁 s 0 versioning set: {V 1, V 2 , V 3 } object state pairs: {(s 0, s 2)} s 1 versioning set: {V 4, V 5 } object state pairs: {(s 2, s 3),(s 2, s 4)} s 2 ss 44 s 3
解决方案 - 语法规则 6:全局版本操作路径存在性 s 0 versioning set: {V 1, V 2 , V 3 } object state pairs: {(s 0, s 2)} versioning set: {V 2, V 3 } object state pairs: {(s 2, s 1)} s 1 s 2
