A history of indirect measuring § Step 1: Pythagoras (1995) § with 2 measurements, with three measurements or even partial measurement § Accuracy theoretically very high, in practical use not that much § Always a possibility for a rectangular measuremnt needed § Step 2: Inclination sensor (2006) § Great for height measurements, for vertical objects even one measurement point for laser needed § Only for measurements in one plane § Accuracy good (several mm) 2

A history of indirect measuring § Step 3: Measure with the picture (2014) § Get width, heights and diameter with one laser measurement only § Rectangular measurement required for calculation § Heights only for vertical objects § Accuracy is about 1 -2% of the measured object § Step 4: P 2 P Technology (2015) § Get any distance between 2 measured points, no compromise § Easy and intuitive § Accuracy is up to 2 mm @ 2 m distance 3

The greatest Family of Laser Distance Meter Products launched from 2012 onwards Leica DISTO™ S 910 March 2015 4 Leica DISTO™ D 810 touch November 2013 Leica DISTO™ D 510 March 2013 Leica DISTO™ D 410 November 2014 Leica DISTO™ X 310 March 2012 Leica DISTO™ D 210 March 2012 Leica DISTO™ D 110 June 2014

What’s new? Key elements of Leica DISTO™ S 910 P 2 P Measuring Measure the distance between any two points Ø Measure now easy and fast also widths Ø Measure any dimensions at inaccessible areas Ø Get any dimension from right Smart Area function Measure any area by just measuring its corners Ø Measure anyhow shaped areas Ø Measure walls, ceilings or even inclined areas Ø No need to walk from wall to wall, just measure from one position where you are DXF data capture Create a CAD file right on your DISTO™ (for smaller projects) Ø Create DXF-files on the DISTO™ without bringing your computer to the job-site Ø Add photos for comprehensive documentation as required for BIM 55 Point data transmission Send point data (3 D) right into your CAD system Ø Get data in your CAD or BIM system Ø Add data to existing drawings in CAD Ø Add coordinates and even photos to your files Ø Transfer quickly data now via WLAN to any OS

New: P 2 P Function ? 1. 200 m 6. 500 m 10. 5° 6. 610 m Levelling 6

New: Smart Area Function 12. 500 m 36. 25 m² 7 ?

New: Smart Angle Function 12. 500 m 5. 325 m 4. 998 m 62. 3° 8 ?

New: DXF - Data capture CAD 2 Site_xyz. dxf 4 3 5. 098 m 5. 126 m 4. 820 m 2 DG 2 DW 3 D 9 6 3. 601 m 2. 820 m 1 5. 123 m 5 ? 7 1. 619 m 8 9 1. 203 m 0. 897 m … 2 D DXF file floor plan … 2 D DXF file wall outline (if first 2 points are horizontal apart by more than 10 cm) … 3 D DXF file

New: Point data transmission CAD 2 4 3 5. 098 m 5. 126 m 4. 820 m 6 3. 601 m 2. 820 m 1 5. 123 m 5 ? 7 1. 619 m 8 9 1. 203 m 0. 897 m WLAN 10

Leica DISTO™ S 910 The Revolution in Handheld Laser Measuring Ø P 2 P Measuring (Point to Point) Measure any distance between 2 points. With the Smart base it is now possible to measure any distance in any layer. No matter whether you measure widths, heights, diagonals, gaps, just measure the start and end point and the distance will be displayed. Ø Smart Area Function Measure any area on walls, floors or even inclined areas like on roofs by just simply measure the corner points. The area and the perimeter will be displayed after the measuring has been performed. Ø Smart Angle Function Measure any angle by just measuring three points. No matter how the angle is positioned, by just measuring the points the angle will be calculated and displayed. 11

Leica DISTO™ S 910 The Revolution in Handheld Laser Measuring Ø DXF – Data Capture Create a DXF-file right on a DISTO™ without the need of a computer on the job site. Get the floor plan, the outline of a wall/façade or even the 3 D file including photos to all measured points for later evidence of the data. Ø Point Data transmission Send point data right into an application running on your computer. E. g. with DISTO™ transfer WLAN and the plugin for Auto. CAD you can send the information into the CAD, in real time. Ø New adapter for exact aiming Use the DISTO™ S 910 on the FTA 360 -S adapter with fine adjustment for exact aiming and therefore accurate measuring. Get the DISTO™ with adapter, tripod TRI 70 and target plate GZM 3 nicely in one carrying case. 12

Leica DISTO™ S 910 The Revolution in Handheld Laser Measuring Ø 300 m Range Due to the new X-Range Power Technology the S 910 measures up to 300 m! This not only means measuring far targets but also having shorter measuring time under bright conditions or when measuring on bad targets. 13

Applications & Features 14

User Groups – Sort of Applications § Inspection, as-built documentation Sites need to be checked whether they are built as documented or whether they fulfil certain standards. e. g. Architects, Facility Manager, Appraiser, Insurance, Forensic, Energy consultant, Electrician (power supply) § Planning buildings or sites need to be documented, drawings need to be created. Also it is needed to get information to be added for BIM. e. g. Architects, Real Estate, Pool covering, Joiner, Gardening/Landscaping, Surveyor, Electricians/HVAC, GIS, Forestry, Winter garden, Awnings 15

User Groups – Sort of Applications § Evaluation it is required to do quotes or invoices based on measurement. Also it might be required doing an evaluation of material needed for a job. e. g. Solar, Roofer, Façade construction, Gardening/Landscaping, Flooring/Ceiling, Cleaning companies, Painter, Electricians. HVAC § Building & Construction measurements need to be done for fitting or for assembly. Due to the accuracy class of the S 910 these will be limited to shorter range. e. g. Carpenter, plumber, countertops (stone industry), stair-steps 16

Some important applications in more detail …

Leica DISTO™ S 910 Measures simply all You need to measure inaccessible object, e. g. on or below the roof to quote new tiles, isolation or solar panels (roofer, carpenter, solar installer)? The Leica DISTO™ S 910 benefits: § Measure the starting point and end point of a distance and get the value accurate by 10 mm @ 10 m distance without even touching one single point! Get accurate and reliable results on objects which are out of reach. No risk of health by climbing a ladder or even a roof. Measuring from where you are saves lots of time and money. 18

Leica DISTO™ S 910 Measure more, walk less You need to perform lots of measurements, e. g. on a façade to quote new isolation (façade construction)? The Leica DISTO™ S 910 benefits: § Measure the different values at an accuracy of 10 mm @ 10 m distance without moving around or entering a building to reach the different objects! Get accurate and reliable results on objects without moving around. It is not required to enter apartments and ask for permission. Also in some cases a dog might be the limiting factor of accessing measuring points ; -) The setup of the DISTO™ S 910 for measuring is as easy as you can imagine. Again, this saves lots of time and money. 19

Leica DISTO™ S 910 Measuring complex shapes You need to measure areas of complex shapes, e, g, for material evaluation for a park way (Gardening & Landscaping)? The Leica DISTO™ S 910 benefits: § Measure any shape by just measuring its corner points. Use the value with the calculator to get the volume of material to be ordered. You will also get the perimeter for the bordering. Get accurate and reliable results without complex calculation and estimation. Don’t order too much of heavy material and finally organize a transport back of it. Saves money. 20

Leica DISTO™ S 910 Measuring any corner You need to measure a complex angle e. g. to fit glass or wood into a space? The Leica DISTO™ S 910 benefits: § Measure any angle accurate by 2 mm @ 2 m (0. 1°) by measuring its flanks with three measurements. Get the flanks length and the angle. Get accurate and reliable results without complex measuring and calculating. No need to create templates in many cases. That saves time and money. Also the risk of wrongly prepared material due to wrong calculations is massively reduced. 21

Leica DISTO™ S 910 No templates anymore You need to measure the outline of a shape like e. g. the steps of a stairway to create wooden coverings or of a kitchen to create a countertop made of stone. The Leica DISTO™ S 910 benefits: § Measure points with an accuracy of 2 mm @ 2 m and save them in a DXF-file in the Leica DISTO™ S 910. The data can be used for the production. For further documentation the photos of the measuring points incl. hair cross are saved as well. Get data right for the production without creating the drawings in a CAD system in the office. This saves time and money. Also there is no risk of wrong prepared material because the dataflow goes thru to the production without risk of human error. 22

Leica DISTO™ S 910 Easiest way for documentation You need to create a full documentation of e. g. a property for sale, a crime scene or an object after a natural disaster (police, appraiser, insurance real estate)? The Leica DISTO™ S 910 benefits: § Measure point data and capture them in a DXF-file in the DISTO™ or for larger and more complex objects transfer the point data right into the CAD of a computer using the DISTO™ transfer WLAN plugin. Photos are saved respectively transferred too. Create small or more comprehensive documentations with point data and photos without carrying expensive and complex items with you. No complex setup is needed. The DISTO™ is a perfect solution even if small space is available only. 23

Leica DISTO™ S 910 As built documentation You need to measure dimensions of an old building to plan its renovation (architects, planer, real estate, shop fitters)? The Leica DISTO™ S 910 benefits: § The Leica DISTO™ S 910 is the first handheld 3 D measuring device where you can create plans right in the device itself. For more complex buildings you can also use it together with a computer and send the data right into the CAD system. Start your CAD work at the job site. The documentation will become clearer by having pictures of all measured points. Since no manual noticing is required the threat of writing errors is eliminated. Higher quality of captured data will improve the final work quality and will save time and money. 24

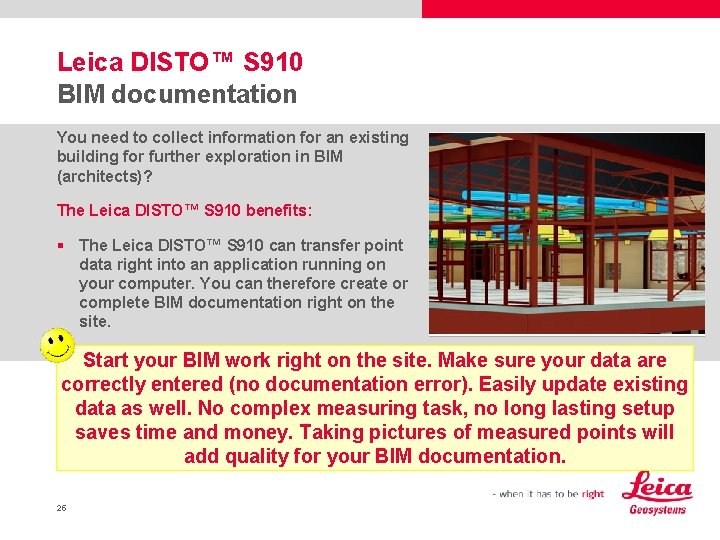

Leica DISTO™ S 910 BIM documentation You need to collect information for an existing building for further exploration in BIM (architects)? The Leica DISTO™ S 910 benefits: § The Leica DISTO™ S 910 can transfer point data right into an application running on your computer. You can therefore create or complete BIM documentation right on the site. Start your BIM work right on the site. Make sure your data are correctly entered (no documentation error). Easily update existing data as well. No complex measuring task, no long lasting setup saves time and money. Taking pictures of measured points will add quality for your BIM documentation. 25

Leica DISTO™ S 910 Manage your facility You need to evaluate space for a new machinery and check size of doors and openings to plan its delivery (facility manager)? The Leica DISTO™ S 910 benefits: § The Leica DISTO™ S 910 measures any width, height, diagonal, gap easily. Measure an area or check angles quite easily with the adequate functions. Data storage and taking pictures is possible as well. No complex operation, no surveying expertise is needed. Just do your measurements as you need. This saves time and money. More measurements are possible from different locations, this improves planning quality. 26

Leica DISTO™ S 910 Professional measuring You need to measure dimensions of a building (any trade)? The Leica DISTO™ S 910 benefits: § The Leica DISTO™ S 910 is the first handheld 3 D measuring engine ever. It combines all advantages of a handheld laser distance meter and a simple total station for measurements. Be prepared for all situations. No matter whether you need only a simple distance or you need point data for more complex geometries including CAD work. Safe time and money and be absolutely professional! 27

New Functions 28

Technical Specifications Highlights § Max. Range 300 m in acc. with ISO 16331 -1 Measuring very long distances or short distances very fast, even in bright conditions or black targets § 360° inclination sensor Measure inclinations, indirect distances, Leveling of product § Smart Base Angle sensor horizontal function: 360° with acc. of +/- 0. 1° *) Angle sensor vertical function: -40° to 80° with acc. of +/- 0. 1° *) Measure a width or any distance between two points. Get height differences, measure areas or angles from one point § Bluetooth® Smart and WLAN Hotspot function since the DISTO™ acts like a WLAN Hotspot it connects to any operating system easily § Large data storage for more photos and DXF files *) 0. 1° deviation means 1 mm per m distance (e. g. 10 mm @ 10 m measuring distance) 29

New Functions Highlights § „Point to Point“ Measure distances, height differences or slope angle between any 2 points, very convinient to get widths § Smart Area Function Measure any area from one central point by just aiming and measuring its corners § Smart Angle Function Measure any angle from one central point by just aiming and measuring three points § DXF data capture (DISTO™ stand alone solution, no computer required on job site) measure and save point coordinates right on the DISTO™ for later export (incl. photos of points) to CAD § Track and transmit Cartesian coordinates (DISTO™ with computer on job site) measure points and directly transmit data to a computer CAD program, Auto. CAD Plugin will be available § 300 m Range with its new X-Range Power Technology™ 30

The Product

Technical Specification Measuring Accuracy (ISO 16331 -1) Range X-Range Power Technology Tilt sensor Smart Base Horizontal Smart Base Vertical Photograph file format / resolution ± 1 mm 0. 05 - 300 m yes 360° ± 0, 1° *) -40° to +80° ± 0, 1° *). jpg Resolution photo / screenshot 800 x 600 / 240 x 400 pixels Dxf-files 20 files with 30 points each Pointfinder Memory Protection class Batteries Data interface 4 x Zoom and overview camera 50 displays IP 54 Li-ion rechargeable Bluetooth® smart, WLAN, USB *) typical deviation in practical use is ± 2 mm @ 2 m, ± 5 mm @ 5 m, ± 10 mm @ 10 m 3232

Leica DISTO™ S 910 Scope of delivery Art. 805080 (WW-Version) Art. 808183 (US-Version) § Holster with bag for Smart Base extension § Handloop § Manual on CD § Quickstart § Safety Instructions, PROTECT by LGS Card § USB charger – including cable and 4 plugs (ww) § Calibration Certificate Silver (with test measurement results) § Recommended list price 1349. - € *) Calibration service available (details see www. disto. com) 3333

Leica DISTO™ S 910 case Scope of delivery Art. 806677 (WW-Version) § Plastic case § Holster § Smart Base extension § Handloop § Target Plate GZM 3 § Adapter FTA 360 -S § Tripod TRI 70 § Manual on CD and Quickstarts § Safety Instructions, PROTECT by LGS Card § USB charger – including cable and 4 plugs (ww) § Calibration Certificate Silver (with test measurement results) § Recommended list price 1529. - € 34

Leica DISTO™ S 910 Accessories Tripod TRI 200 Tripod TRI 100 Tripod TRI 70 FTA 360 -S Adapter Tripod Art. 828 426 Art. 757 938 Art. 794 963 Art. 828 414 Art. 828 416 DISTO Pouch Target Plate Art. 667 169 Art. 723 385 Art. 723 774 Art. 766 560 Art. 820 943 35

Marketing Material § Family Brochure § Internet Homepage § Press release § Image video § Application videos § “How to …” videos § Word Flyer § PPT-Presentation, FAQ § Poster (data on media source) § POS (cover for tripod) § POS (pop-up wall) § Roll-up banner … data available at Leica Media Source 36

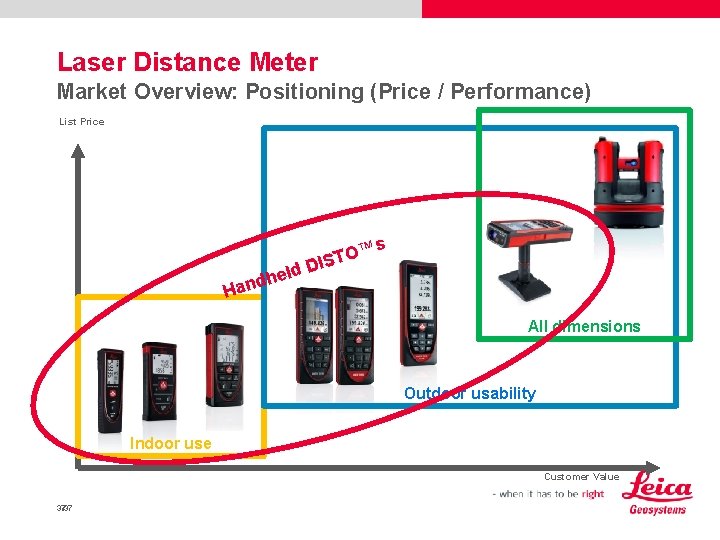

Laser Distance Meter Market Overview: Positioning (Price / Performance) List Price held d n Ha ™s O T DIS All dimensions Outdoor usability Indoor use Customer Value 3737

Upselling Leica DISTO™ Top Models 3 D Disto DISTO™ S 910 DISTO™ D 810 touch • Pointfinder with 4 x Zoom • Measure with the picture • Camera with USB download • 250 m Range • Touchscreen 38 • Motorization • P 2 P Technology • Stake-out, Projector • Smart Area and Angle function • Scan • 50 m Range • 1 mm @ 10 m accuracy • Application software for Windows • Dxf- data capturing • Point data transmission • 300 m Range

Product selector DISTO™ S 910 and 3 D Disto Task Leica DISTO™ S 910 Leica 3 D Disto Instrument setup Fast and flexible Depending on equipment (60 sec for Windows) Levelling Semi-automated Automated Precise aiming Manually Motorized, higher magnification Accuracy of measurements 10 mm @ 10 m, 5 mm @ 5 m 1 mm @ 10 m and below P 2 P Measuring Easy to use, no setup time Made for larger projects and not single measurements Stake-out, projection No support Full support incl. DXF upload Scanning Manually, single points Automated line and surface scans Creating plans 20 DXF files with 30 points each Unlimited points and CSV export Smart Area Possible to the measured area Horizontal and tilted areas 39

X-Range Power Technology Latest Edge technology in a new developed integrated circuit allows the best measuring performance of all handheld laser distance meter! 40 Accuracy of 1 mm! No compromise on quality and reliability. We keep our promise. The best Leica DISTO™ ever. Measuring distances no other laser distance meter can measure with such accuracy

The Interface - Compatibility

Software Interfaces Bluetooth® Smart *) *) compatible to Computer, Smartphones or tablets with Bluetooth® 4. 0 Measurement data and results from any function (no 3 D data). Incl. Keypad Mode, for Android from version 4. 4 42 Leica DISTO™ transfer 4. 0 Leica DISTO™ sketch Leica DISTO™ Plugin for Auto. CAD and Bricscad Leica DISTO™ transfer BLE API Available

Software Interfaces WLAN Hotspot *) *) The Leica DISTO™ acts by default as Hotspot but for some specific applications it can be set to access existing networks (Client mode). Login is not supported. WLAN function for data transmission Measurement and 3 D data with Photo Leica DISTO™ transfer WLAN Leica DISTO™ Plugin for Auto. CAD and Bricscad API Available 43 API in progress

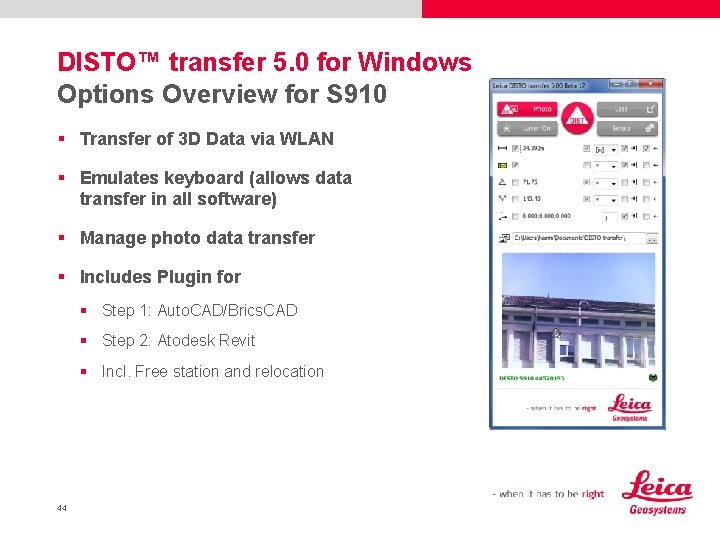

DISTO™ transfer 5. 0 for Windows Options Overview for S 910 § Transfer of 3 D Data via WLAN § Emulates keyboard (allows data transfer in all software) § Manage photo data transfer § Includes Plugin for § Step 1: Auto. CAD/Brics. CAD § Step 2: Atodesk Revit § Incl. Free station and relocation 44
