Topics: Nuclear structure Nuclear reactors Nuclear radiation Useful radiation effects
Nu-cle-ar good Nu-cu-lar not so good
The Electromagnetic Spectrum “Waves” “Photons” c = f λ E = h f c = the speed of light f = frequency λ = wavelength E = photon energy h = Planck’s constant f = frequency
Infrared Visible light Ultraviolet

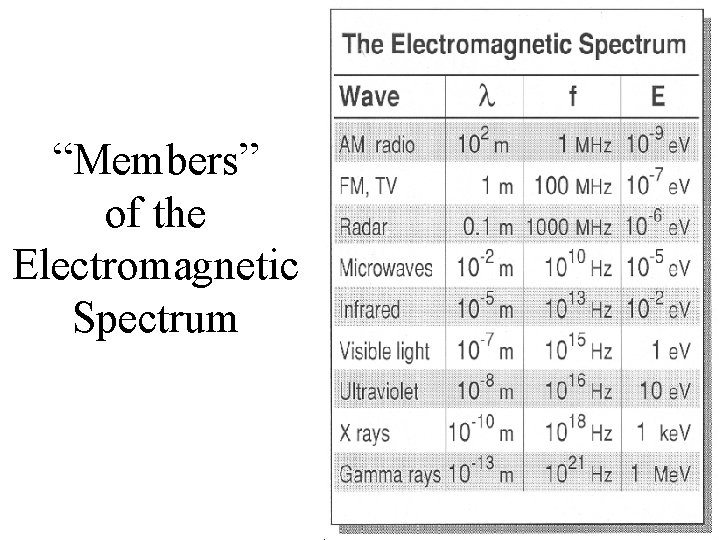

“Members” of the Electromagnetic Spectrum
Atomic models: 1. the “plum-pudding” model 2. the “nuclear” model (tiny nucleus with electrons in much larger orbits) Beryllium atom (without neutrons!!)
The Hydrogen Balmer Series
The Nucleus 1. Protons (positive charge) 2. Neutrons (neutral charge) -15 3. Nuclear Diameter ~10 m -10 (atomic diameter ~10 m) The term “nucleon” refers to either a proton or a neutron in the nucleus. The term “nuclide” refers to a nucleus with a specific number of protons and neutrons.
The Chart of Nuclides
Stable Nuclides All Known Nuclides
Nuclear models: 1. the “water-drop” model 2. the “shell” model Models describe aspects of the structure of nuclei and how they behave.
The water-drop model all nucleons “undifferentiated” binding energy is equally distributed
Binding Energy BE = M(Z protons) + M(N neutrons) – M(Nucleus) Atomic Number: A = Z + N BE is the energy required to separate the full nucleus into its individual protons and neutrons 2 E = mc

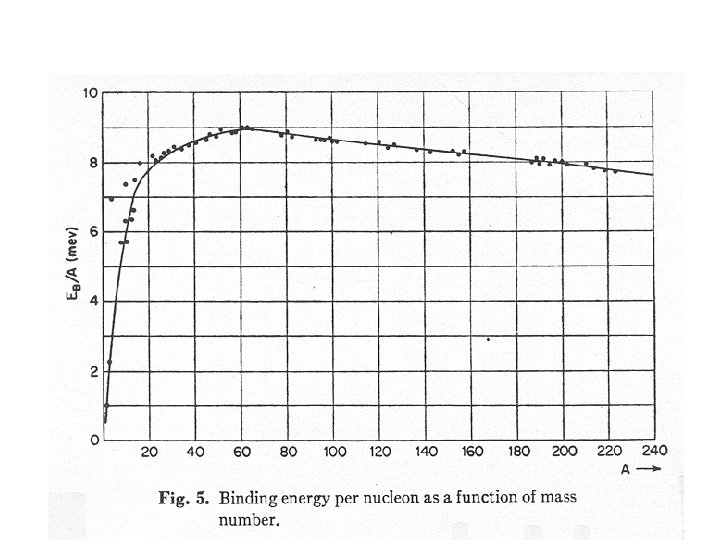

Average Binding energy per nucleon
Applications of the water-drop model 1. Nuclear fission (very large nuclei break up) 2. Nuclear fusion (very small nuclei fuse together)
Nuclear fission 235 U + n –—> small nuclei + neutrons + ENERGY!! n + 235 U –—> another fission creating a “chain reaction”
Vibrating water drop Click title above to see video

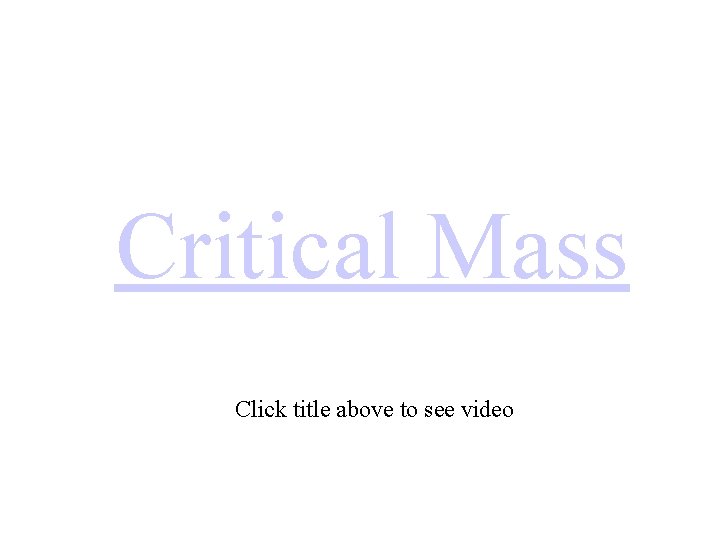

Critical Mass Click title above to see video
Nuclear Chain Reaction Mousetrap Model Click title above to see video
Uncontrolled fission: Atomic bomb (235 U or 239 Pu bomb) Controlled fission: Nuclear reactor
Pressurized Water Reactor From: Joseph Gonyeau, P. E. , Virtual Nuclear Tourist http: //www. nucleartourist. com/
Advantages of Nuclear Power: 1. Clean (no air pollution, including greenhouse gases) 2. Safe compared with other fuels 3. Price competitive with fossil fuels 4. 100 year supply of 235 U 5. Infinite supply (>10, 000 years) of 238 U (if we use breeder reactors)
Patrick Moore*: Going Nuclear A Green Makes the Case (for Nuclear Power) OUTLOOK, Washington Post, April 16, 2006 *Co-founder of Greenpeace (ca. 1970)
In the early 1970 s when I helped found Greenpeace, I believed that nuclear energy was synonymous with nuclear holocaust, as did most of my compatriots. ….
…. Thirty years on, my views have changed, and the rest of the environmental movement needs to update its views, too, because nuclear energy may just be the energy source that can save our planet from another possible disaster: climate change.
"It doesn’t matter what is true; what matters is what people think is true. " Founder, Greenpeace (2000)
UM Reactor Core Blue Cerenkov radiation
UM Reactor Core Blue Cerenkov radiation Not green, Homer!
Nuclear fusion 2 D + 2 D –—> larger nuclei + LOTS OF ENERGY !!
Average Binding energy per nucleon
“Theta Pinch” electromagnetic squeezing to produce fusion
Nuclear Shell Model Discrete energy levels for protons and neutrons and discrete energies for radiation when energy levels change or following radioactive decay
Radiation types: Alpha particle (2 Ps + 2 Ns: 4 He nucleus) Beta particle (- or + electron) Gamma ray (photon energy packet) Neutrons Cosmic Rays
Radiation Exposure
Sources of radiation exposure: 1. Natural Exposure 2. Man-made Exposure
Natural Exposure: 1. Radon gas 2. Cosmic Rays 3. External Environment 4. Internal: The Body

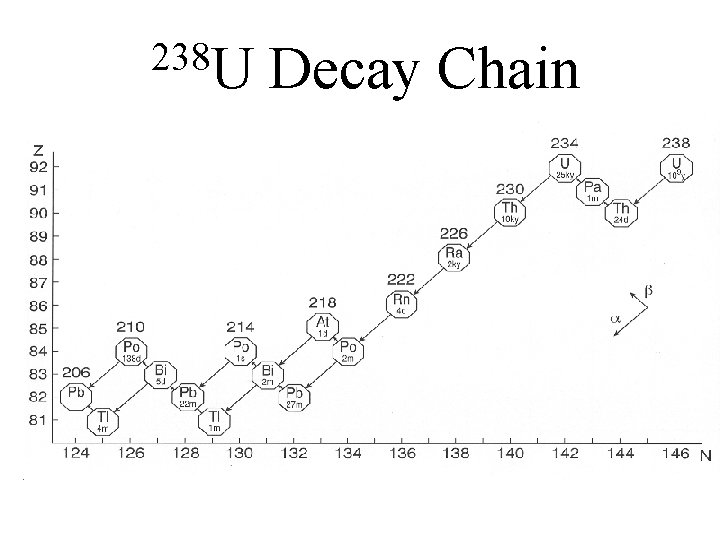

238 U Decay Chain
Cosmic Rays: 1. Cosmic ray muons 2. Other particles
Cosmic Radiation

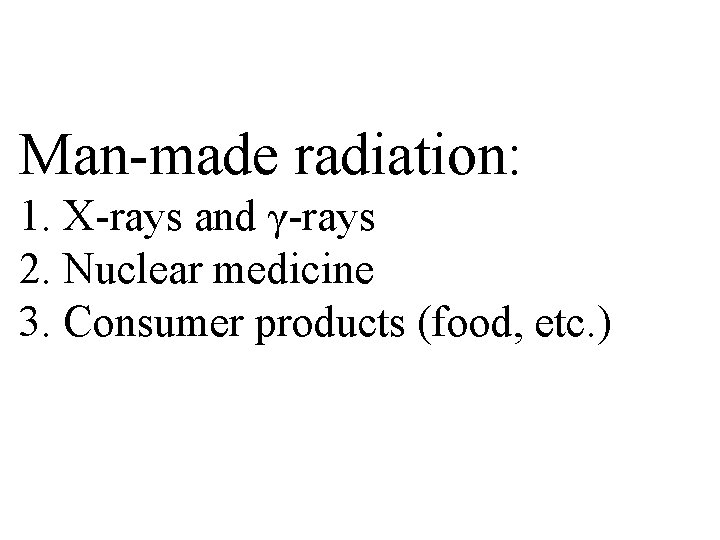

Man-made radiation: 1. X-rays and γ-rays 2. Nuclear medicine 3. Consumer products (food, etc. )
Sources of Radiation Exposure From: National Institutes of Health

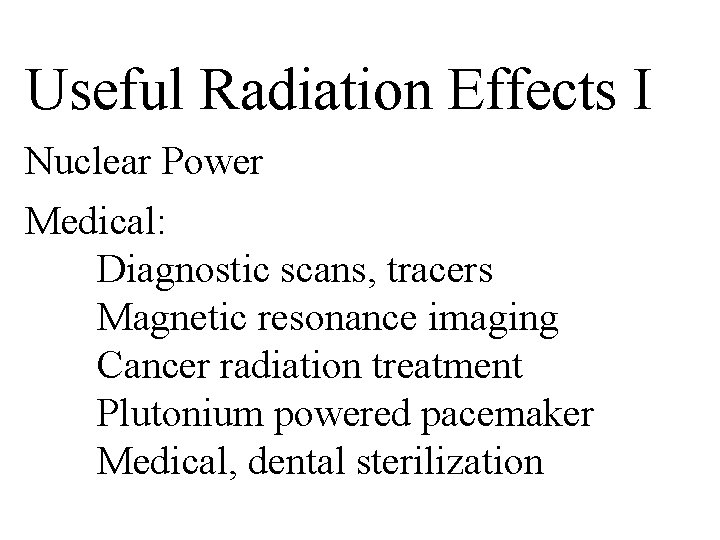

Useful Radiation Effects I Nuclear Power Medical: Diagnostic scans, tracers Magnetic resonance imaging Cancer radiation treatment Plutonium powered pacemaker Medical, dental sterilization
Useful Radiation Effects II Polymer cross-linking Shrink tubing (eg. , turkey wrapping) Ultra-strong materials (eg Kevlar) Tires (replaces vulcanization) Flooring Food irradiation Sterilization of meat Disinfestation of grain and spices Increase shelf life (eg, fruits, veggies)
The “radura. ”
Useful Radiation Effects III Absolute sterilization of food: hospitals and space travel Radioactive dating Insect control Semiconductor doping Testing of space computer technology Environmental studies: air purity, global warming, ozone
The Nuclear Waste Test
Test Question #1 Suppose that all of the electrical energy for the world for the next 500 years were obtained from nuclear reactors. Further suppose that all of the nuclear waste from these reactors were dissolved and spread uniformly throughout the oceans of the world.
Which statement is true: 1. The oceans would be a vast wasteland, unable to support life. 2. Much death and damage to ocean life would be caused. 3. Any effect would be so small that it would be virtually impossible to see
Which statement is true: 1. The oceans would be a vast wasteland, unable to support life. 2. Much death and damage to ocean life would be caused. 3. Any effect would be so small that it would be virtually impossible to see
Test Question #2 Consider all of the people throughout history who have been exposed to man-made nuclear radiation, such as Hiroshima and Nagasaki, Chernobyl, Three Mile Island, nuclear bomb tests, accidental spills, etc.
Which number most nearly approximates how many children conceived and born later to these people suffered genetic damage due to a parent’s exposure, excluding exposure during pregnancy? 1. ~ millions 2. ~ thousands 3. zero
Which number most nearly approximates how many children conceived and born later to these people suffered genetic damage due to a parent’s exposure, excluding exposure during pregnancy? 1. ~ millions 2. ~ thousands 3. zero
