PLC AND ITS APPLICATION Prepared By 1 Introduction
![“PLC AND ITS APPLICATION” Prepared By : [1]](https://slidetodoc.com/presentation_image_h/e78e32062bcce35ad2ada5012d8817b8/image-1.jpg "“PLC AND ITS APPLICATION” Prepared By : [1]")
“PLC AND ITS APPLICATION” Prepared By : [1]
Introduction • PLC(Programmable Logic Controller) • Advantages of PLC • Programming--- Ladder diagram • PLC in batch processing & others • Current trends in the industry [2 ]
PLC(PROGRAMMABLE LOGIC CONTROLLERS) 1. Replaces relays as logic elements. 2. Software oriented. 3. Fixed number of input-outputs/PLC. 4. Programmable. 5. Each I/O can be used as many times as necessary. 6. Downloaded from PC by a cable by the programming port. [3 ]
SCAN PROCESS OF A PLC Steps in PLC scan process • I/P processing • Program processing • O/p processing [4 ]

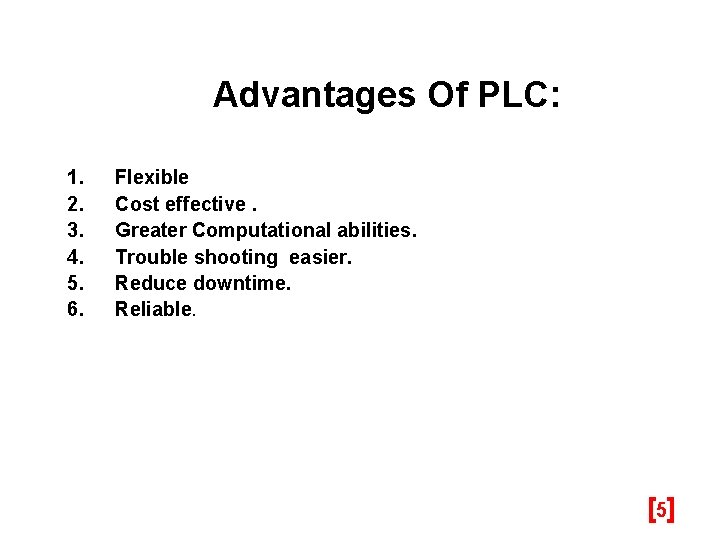

Advantages Of PLC: 1. 2. 3. 4. 5. 6. Flexible Cost effective. Greater Computational abilities. Trouble shooting easier. Reduce downtime. Reliable. [5 ]
PLC Programming Ladder programming is mostly used Ladder Programming has • Hot rail • Neutral line • Rungs • Input • Output [6 ]
![Batch Processing [7 ]](http://slidetodoc.com/presentation_image_h/e78e32062bcce35ad2ada5012d8817b8/image-7.jpg "Batch Processing [7 ]")

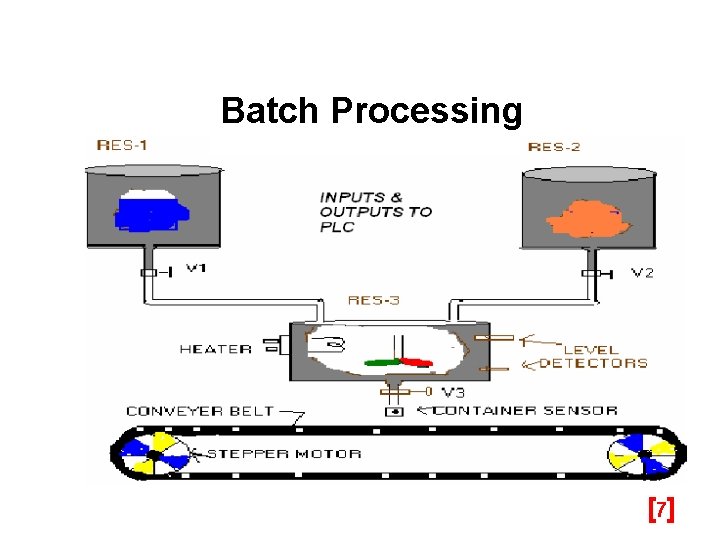

Batch Processing [7 ]
![Ladder Diagram For Batch Processing (VALVE 1) [8 ]](http://slidetodoc.com/presentation_image_h/e78e32062bcce35ad2ada5012d8817b8/image-8.jpg "Ladder Diagram For Batch Processing (VALVE 1) [8 ]")
Ladder Diagram For Batch Processing (VALVE 1) [8 ]
![Ladder Diagram (VALVE 2) [9 ]](http://slidetodoc.com/presentation_image_h/e78e32062bcce35ad2ada5012d8817b8/image-9.jpg "Ladder Diagram (VALVE 2) [9 ]")

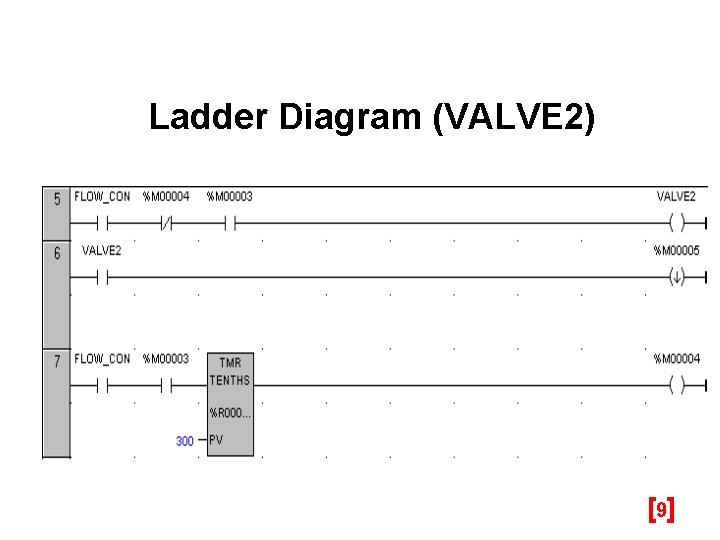

Ladder Diagram (VALVE 2) [9 ]
![Speed Control Of A Motor [10]](http://slidetodoc.com/presentation_image_h/e78e32062bcce35ad2ada5012d8817b8/image-10.jpg "Speed Control Of A Motor [10]")
Speed Control Of A Motor [10]

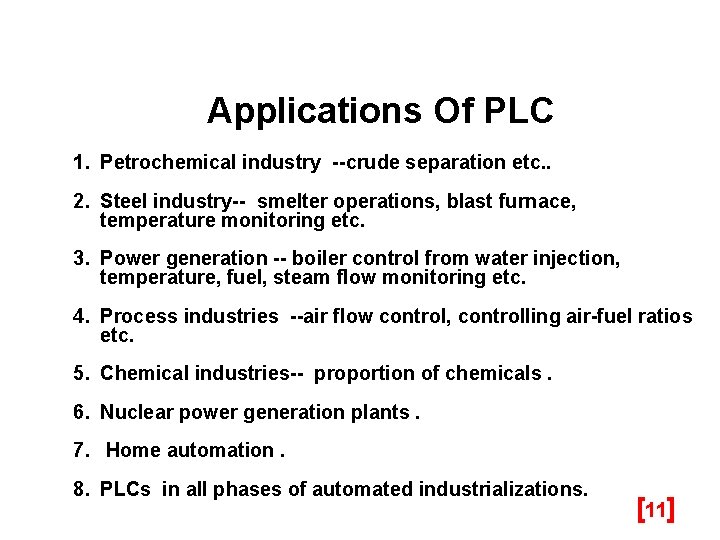

Applications Of PLC 1. Petrochemical industry --crude separation etc. . 2. Steel industry-- smelter operations, blast furnace, temperature monitoring etc. 3. Power generation -- boiler control from water injection, temperature, fuel, steam flow monitoring etc. 4. Process industries --air flow control, controlling air-fuel ratios etc. 5. Chemical industries-- proportion of chemicals. 6. Nuclear power generation plants. 7. Home automation. 8. PLCs in all phases of automated industrializations. [11]
Different PLCs GEFANUC Inputs— 14 Outputs— 10 Software used—Versapro (Windows gui) Power supply— 24 v MESSUNG Inputs— 8 Outputs— 6 Software used—Doxmini (dos) Power supply— 24 v [12]
Current Trends in the Industry • “Smart" PLCs microprocessors memory. • Multitasking. • Multiaxis control with sophisticated vision systems. • Hardened programmers Online & offline software development • Menu-driven software and concurrent operating systems. [13]
Conclusion • Hence we see that PLC are widely used in industries. • PLCs have been gaining popularity on the factory floor and will remain predominant for some time to come. • Future of advanced automation. • Better control and management achieved. [14]
![[15]](http://slidetodoc.com/presentation_image_h/e78e32062bcce35ad2ada5012d8817b8/image-15.jpg "[15]")
[15]
