PLB500 VISION SYSTEM PART LOCALIZATION FOR BIN PICKING

PLB-500 VISION SYSTEM PART LOCALIZATION FOR BIN PICKING

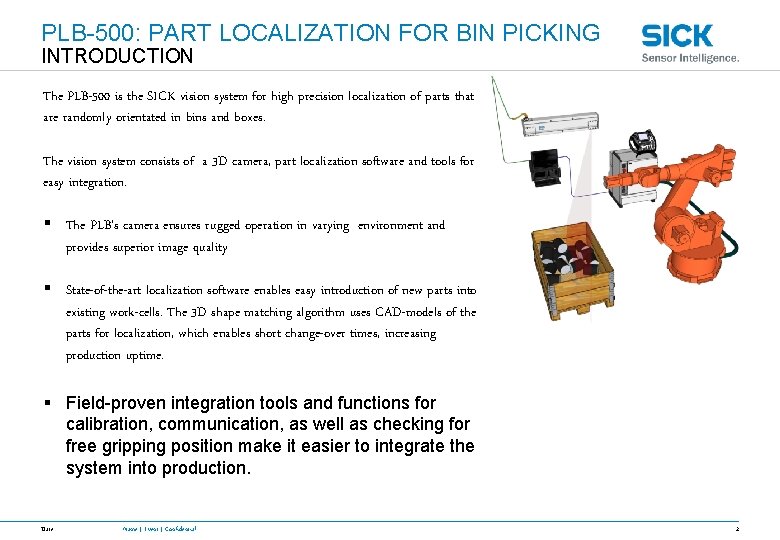

PLB-500: PART LOCALIZATION FOR BIN PICKING INTRODUCTION The PLB-500 is the SICK vision system for high precision localization of parts that are randomly orientated in bins and boxes. The vision system consists of a 3 D camera, part localization software and tools for easy integration. § The PLB’s camera ensures rugged operation in varying environment and provides superior image quality § State-of-the-art localization software enables easy introduction of new parts into existing work-cells. The 3 D shape matching algorithm uses CAD-models of the parts for localization, which enables short change-over times, increasing production uptime. § Field-proven integration tools and functions for calibration, communication, as well as checking for free gripping position make it easier to integrate the system into production. Date Name | Event | Confidential 2

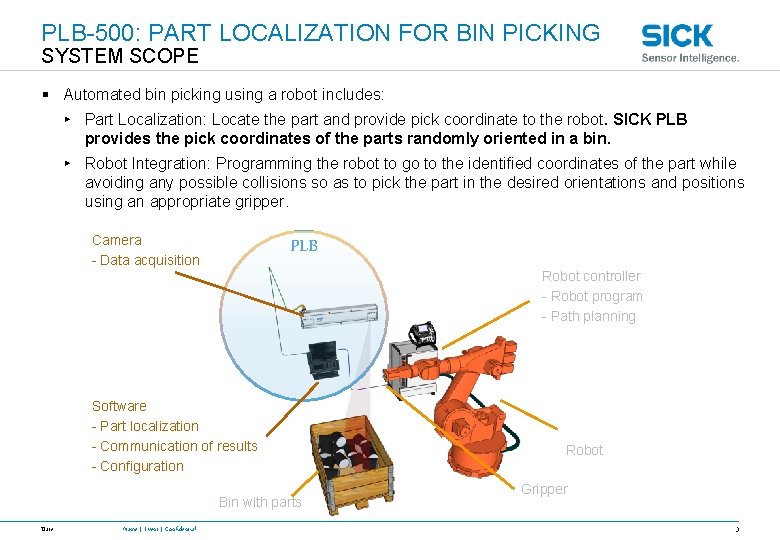

PLB-500: PART LOCALIZATION FOR BIN PICKING SYSTEM SCOPE § Automated bin picking using a robot includes: ▸ Part Localization: Locate the part and provide pick coordinate to the robot. SICK PLB provides the pick coordinates of the parts randomly oriented in a bin. ▸ Robot Integration: Programming the robot to go to the identified coordinates of the part while avoiding any possible collisions so as to pick the part in the desired orientations and positions using an appropriate gripper. Camera - Data acquisition PLB Robot controller - Robot program - Path planning Software - Part localization - Communication of results - Configuration Bin with parts Date Name | Event | Confidential Robot Gripper 3

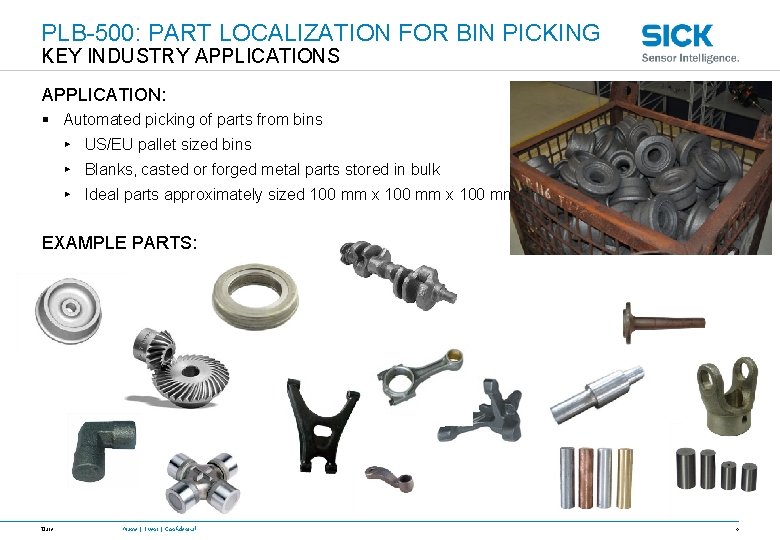

PLB-500: PART LOCALIZATION FOR BIN PICKING KEY INDUSTRY APPLICATIONS APPLICATION: § Automated picking of parts from bins ▸ US/EU pallet sized bins ▸ Blanks, casted or forged metal parts stored in bulk ▸ Ideal parts approximately sized 100 mm x 100 mm and larger EXAMPLE PARTS: Date Name | Event | Confidential 4

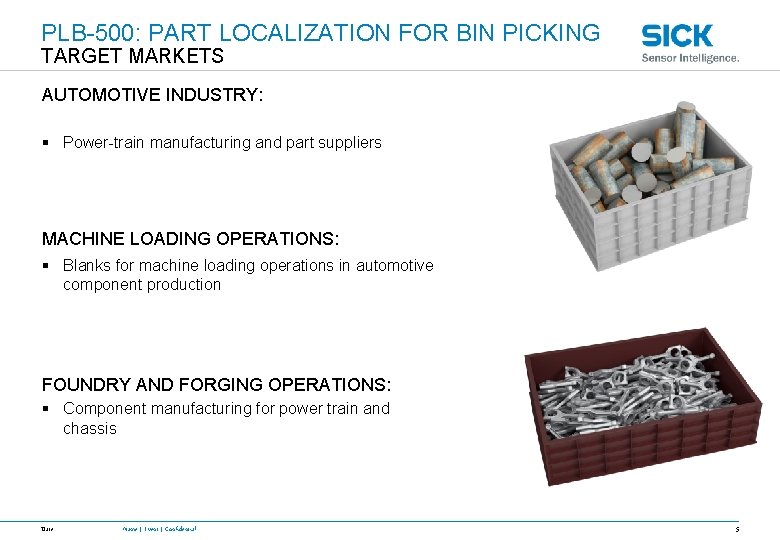

PLB-500: PART LOCALIZATION FOR BIN PICKING TARGET MARKETS AUTOMOTIVE INDUSTRY: § Power-train manufacturing and part suppliers MACHINE LOADING OPERATIONS: § Blanks for machine loading operations in automotive component production FOUNDRY AND FORGING OPERATIONS: § Component manufacturing for power train and chassis Date Name | Event | Confidential 5

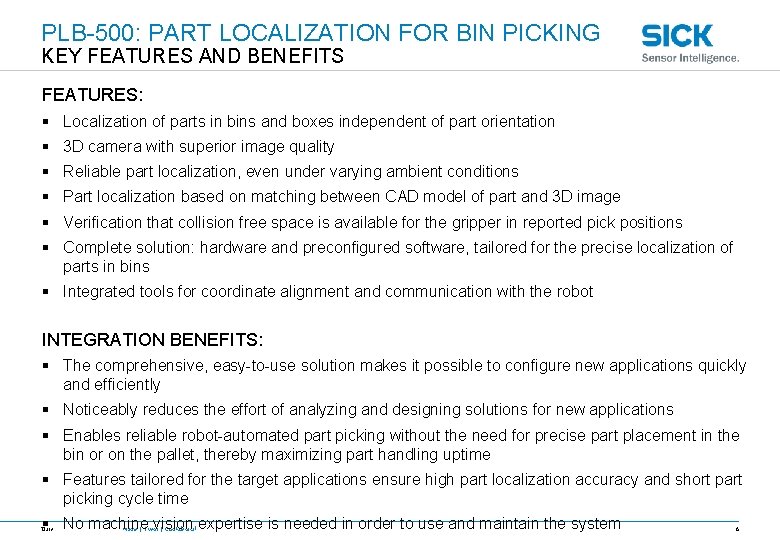

PLB-500: PART LOCALIZATION FOR BIN PICKING KEY FEATURES AND BENEFITS FEATURES: § Localization of parts in bins and boxes independent of part orientation § 3 D camera with superior image quality § Reliable part localization, even under varying ambient conditions § Part localization based on matching between CAD model of part and 3 D image § Verification that collision free space is available for the gripper in reported pick positions § Complete solution: hardware and preconfigured software, tailored for the precise localization of parts in bins § Integrated tools for coordinate alignment and communication with the robot INTEGRATION BENEFITS: § The comprehensive, easy-to-use solution makes it possible to configure new applications quickly and efficiently § Noticeably reduces the effort of analyzing and designing solutions for new applications § Enables reliable robot-automated part picking without the need for precise part placement in the bin or on the pallet, thereby maximizing part handling uptime § Features tailored for the target applications ensure high part localization accuracy and short part picking cycle time § No machine vision Name | Event | Confidential expertise is needed in order to use and maintain the system Date 6

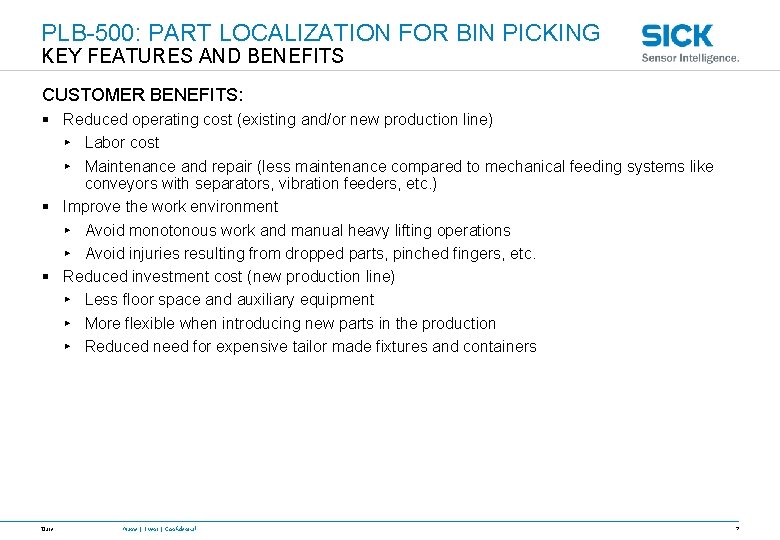

PLB-500: PART LOCALIZATION FOR BIN PICKING KEY FEATURES AND BENEFITS CUSTOMER BENEFITS: § Reduced operating cost (existing and/or new production line) ▸ Labor cost ▸ Maintenance and repair (less maintenance compared to mechanical feeding systems like conveyors with separators, vibration feeders, etc. ) § Improve the work environment ▸ Avoid monotonous work and manual heavy lifting operations ▸ Avoid injuries resulting from dropped parts, pinched fingers, etc. § Reduced investment cost (new production line) ▸ Less floor space and auxiliary equipment ▸ More flexible when introducing new parts in the production ▸ Reduced need for expensive tailor made fixtures and containers Date Name | Event | Confidential 7

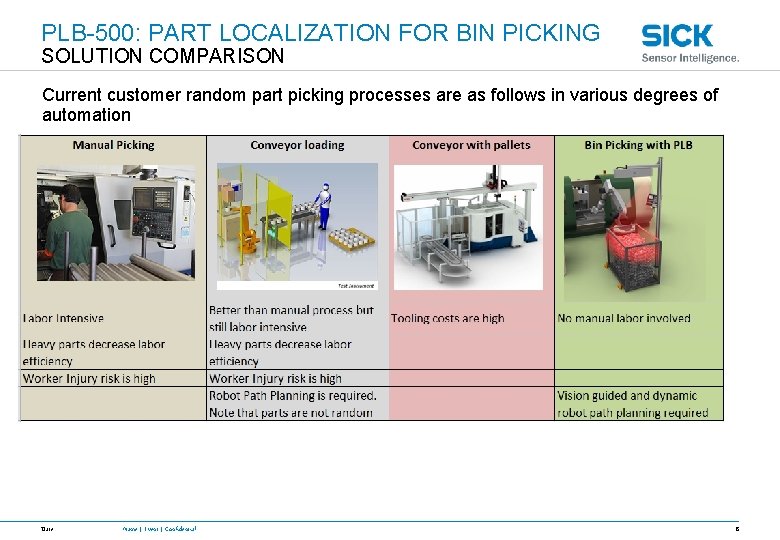

PLB-500: PART LOCALIZATION FOR BIN PICKING SOLUTION COMPARISON Current customer random part picking processes are as follows in various degrees of automation Date Name | Event | Confidential 8

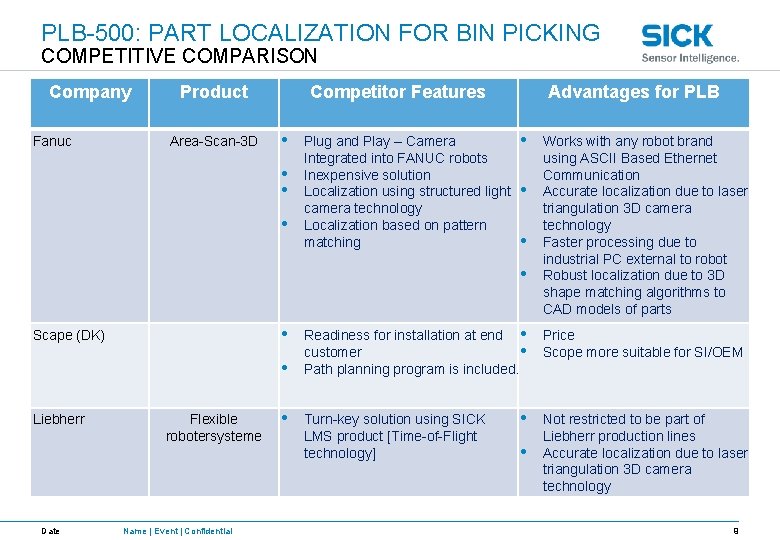

PLB-500: PART LOCALIZATION FOR BIN PICKING COMPETITIVE COMPARISON Company Fanuc Product Area-Scan-3 D Competitor Features • • Plug and Play – Camera Integrated into FANUC robots Inexpensive solution Localization using structured light camera technology Localization based on pattern matching Advantages for PLB • • • Scape (DK) • Liebherr Date Flexible robotersysteme Name | Event | Confidential • Readiness for installation at end • customer • Path planning program is included. Turn-key solution using SICK LMS product [Time-of-Flight technology] • • Works with any robot brand using ASCII Based Ethernet Communication Accurate localization due to laser triangulation 3 D camera technology Faster processing due to industrial PC external to robot Robust localization due to 3 D shape matching algorithms to CAD models of parts Price Scope more suitable for SI/OEM Not restricted to be part of Liebherr production lines Accurate localization due to laser triangulation 3 D camera technology 9

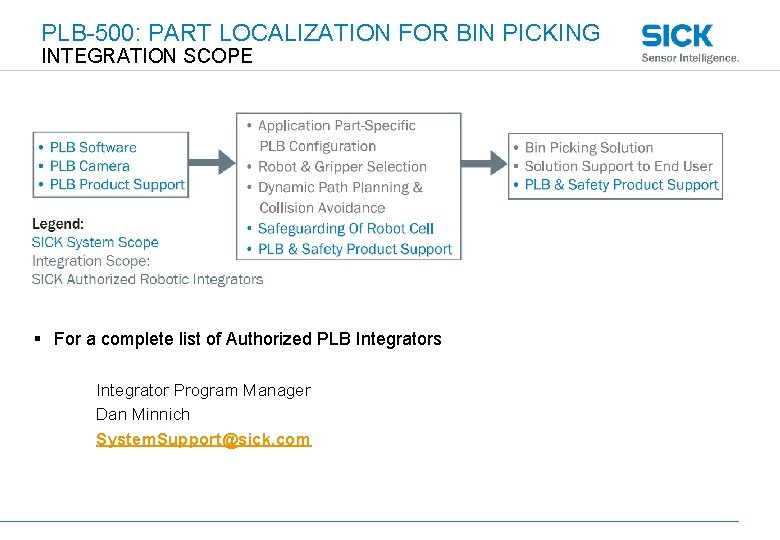

PLB-500: PART LOCALIZATION FOR BIN PICKING INTEGRATION SCOPE § For a complete list of Authorized PLB Integrators Integrator Program Manager Dan Minnich System. Support@sick. com

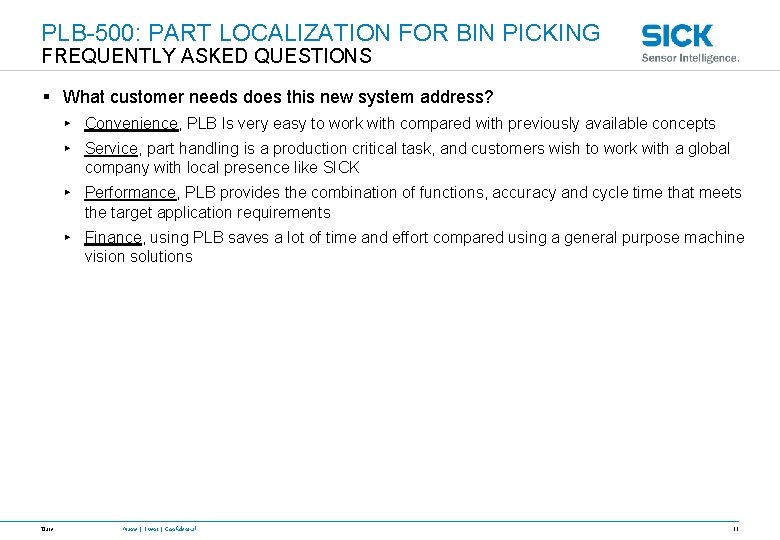

PLB-500: PART LOCALIZATION FOR BIN PICKING FREQUENTLY ASKED QUESTIONS § What customer needs does this new system address? ▸ Convenience, PLB Is very easy to work with compared with previously available concepts ▸ Service, part handling is a production critical task, and customers wish to work with a global company with local presence like SICK ▸ Performance, PLB provides the combination of functions, accuracy and cycle time that meets the target application requirements ▸ Finance, using PLB saves a lot of time and effort compared using a general purpose machine vision solutions Date Name | Event | Confidential 11

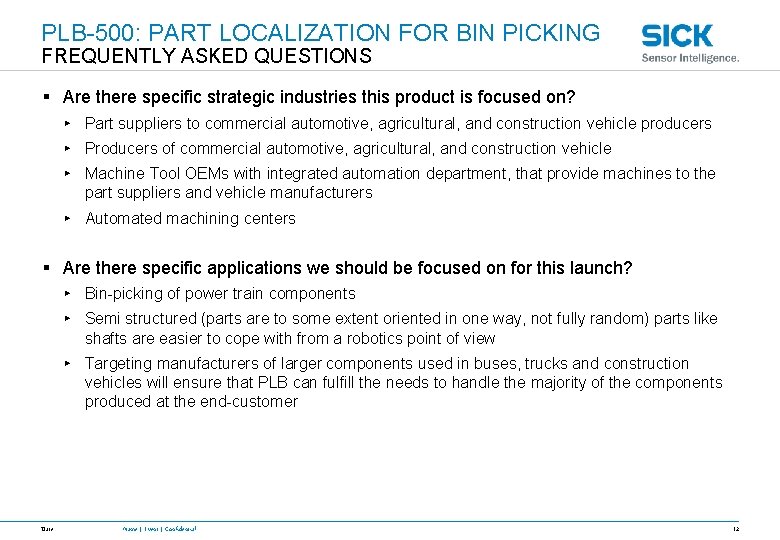

PLB-500: PART LOCALIZATION FOR BIN PICKING FREQUENTLY ASKED QUESTIONS § Are there specific strategic industries this product is focused on? ▸ Part suppliers to commercial automotive, agricultural, and construction vehicle producers ▸ Producers of commercial automotive, agricultural, and construction vehicle ▸ Machine Tool OEMs with integrated automation department, that provide machines to the part suppliers and vehicle manufacturers ▸ Automated machining centers § Are there specific applications we should be focused on for this launch? ▸ Bin-picking of power train components ▸ Semi structured (parts are to some extent oriented in one way, not fully random) parts like shafts are easier to cope with from a robotics point of view ▸ Targeting manufacturers of larger components used in buses, trucks and construction vehicles will ensure that PLB can fulfill the needs to handle the majority of the components produced at the end-customer Date Name | Event | Confidential 12

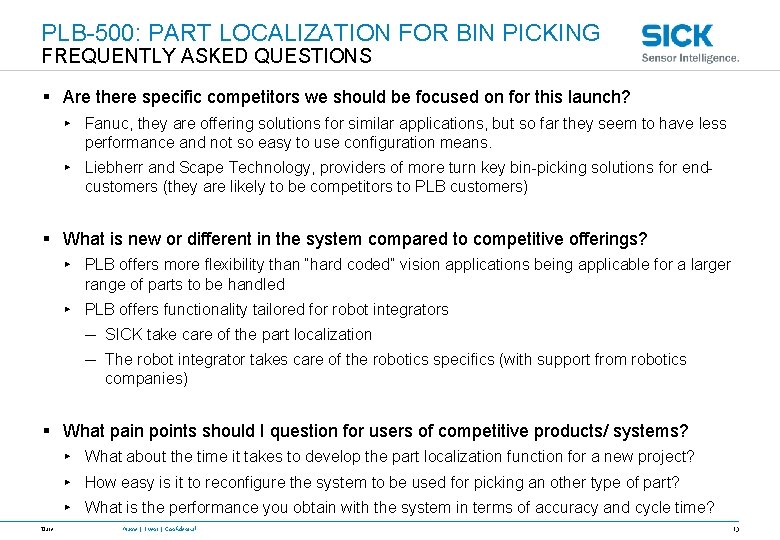

PLB-500: PART LOCALIZATION FOR BIN PICKING FREQUENTLY ASKED QUESTIONS § Are there specific competitors we should be focused on for this launch? ▸ Fanuc, they are offering solutions for similar applications, but so far they seem to have less performance and not so easy to use configuration means. ▸ Liebherr and Scape Technology, providers of more turn key bin-picking solutions for endcustomers (they are likely to be competitors to PLB customers) § What is new or different in the system compared to competitive offerings? ▸ PLB offers more flexibility than “hard coded” vision applications being applicable for a larger range of parts to be handled ▸ PLB offers functionality tailored for robot integrators ― SICK take care of the part localization ― The robot integrator takes care of the robotics specifics (with support from robotics companies) § What pain points should I question for users of competitive products/ systems? ▸ What about the time it takes to develop the part localization function for a new project? ▸ How easy is it to reconfigure the system to be used for picking an other type of part? ▸ What is the performance you obtain with the system in terms of accuracy and cycle time? Date Name | Event | Confidential 13

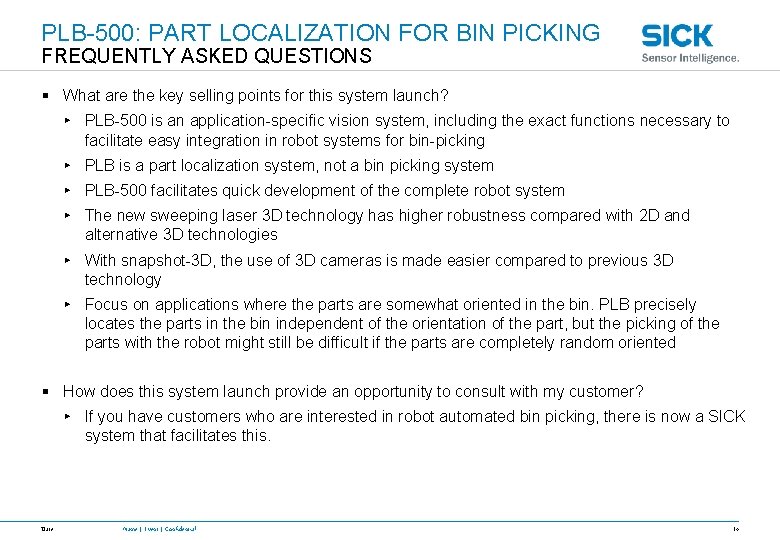

PLB-500: PART LOCALIZATION FOR BIN PICKING FREQUENTLY ASKED QUESTIONS § What are the key selling points for this system launch? ▸ PLB-500 is an application-specific vision system, including the exact functions necessary to facilitate easy integration in robot systems for bin-picking ▸ PLB is a part localization system, not a bin picking system ▸ PLB-500 facilitates quick development of the complete robot system ▸ The new sweeping laser 3 D technology has higher robustness compared with 2 D and alternative 3 D technologies ▸ With snapshot-3 D, the use of 3 D cameras is made easier compared to previous 3 D technology ▸ Focus on applications where the parts are somewhat oriented in the bin. PLB precisely locates the parts in the bin independent of the orientation of the part, but the picking of the parts with the robot might still be difficult if the parts are completely random oriented § How does this system launch provide an opportunity to consult with my customer? ▸ If you have customers who are interested in robot automated bin picking, there is now a SICK system that facilitates this. Date Name | Event | Confidential 14

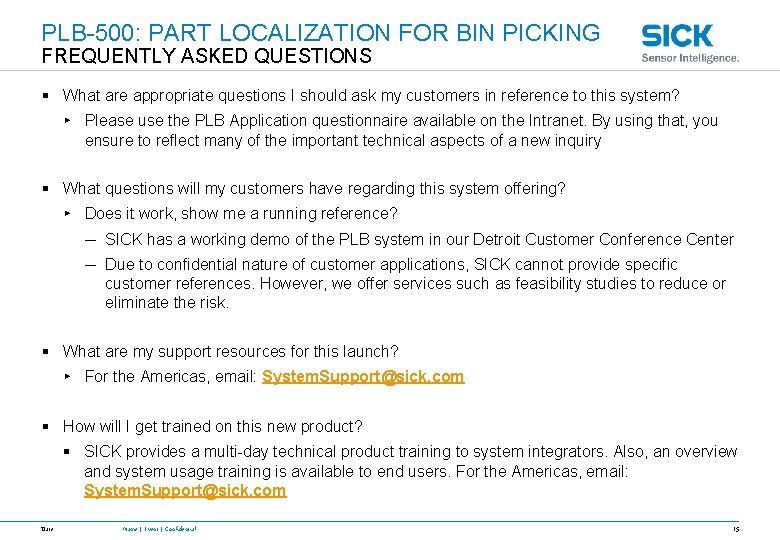

PLB-500: PART LOCALIZATION FOR BIN PICKING FREQUENTLY ASKED QUESTIONS § What are appropriate questions I should ask my customers in reference to this system? ▸ Please use the PLB Application questionnaire available on the Intranet. By using that, you ensure to reflect many of the important technical aspects of a new inquiry § What questions will my customers have regarding this system offering? ▸ Does it work, show me a running reference? ― SICK has a working demo of the PLB system in our Detroit Customer Conference Center ― Due to confidential nature of customer applications, SICK cannot provide specific customer references. However, we offer services such as feasibility studies to reduce or eliminate the risk. § What are my support resources for this launch? ▸ For the Americas, email: System. Support@sick. com § How will I get trained on this new product? § SICK provides a multi-day technical product training to system integrators. Also, an overview and system usage training is available to end users. For the Americas, email: System. Support@sick. com Date Name | Event | Confidential 15

MANY THANKS FOR YOUR ATTENTION.
