PLATOON FIRE PLAN SKETCH CHECKLIST 1 Significant terrain

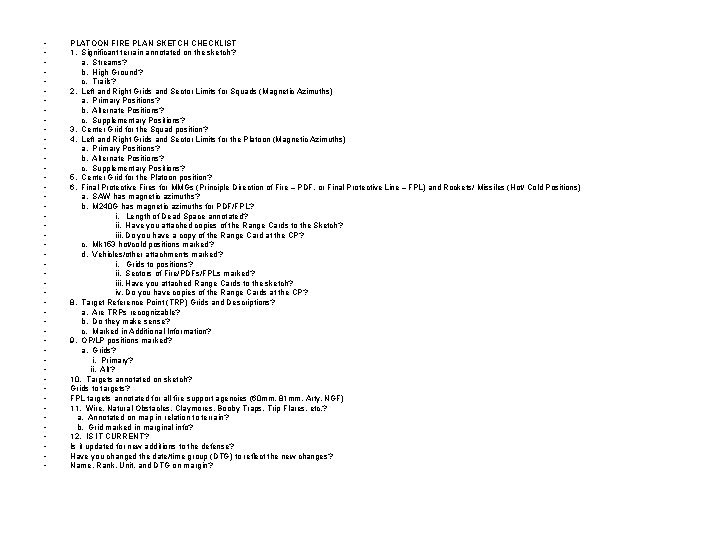

• • • • • • • • • • • • PLATOON FIRE PLAN SKETCH CHECKLIST 1. Significant terrain annotated on the sketch? a. Streams? b. High Ground? c. Trails? 2. Left and Right Grids and Sector Limits for Squads (Magnetic Azimuths) a. Primary Positions? b. Alternate Positions? c. Supplementary Positions? 3. Center Grid for the Squad position? 4. Left and Right Grids and Sector Limits for the Platoon (Magnetic Azimuths) a. Primary Positions? b. Alternate Positions? c. Supplementary Positions? 5. Center Grid for the Platoon position? 6. Final Protective Fires for MMGs (Principle Direction of Fire – PDF, or Final Protective Line – FPL) and Rockets/ Missiles (Hot/ Cold Positions) a. SAW has magnetic azimuths? b. M 240 G has magnetic azimuths for PDF/FPL? i. Length of Dead Space annotated? ii. Have you attached copies of the Range Cards to the Sketch? iii. Do you have a copy of the Range Card at the CP? c. Mk 153 hot/cold positions marked? d. Vehicles/other attachments marked? i. Grids to positions? ii. Sectors of Fire/PDFs/FPLs marked? iii. Have you attached Range Cards to the sketch? iv. Do you have copies of the Range Cards at the CP? 8. Target Reference Point (TRP) Grids and Descriptions? a. Are TRPs recognizable? b. Do they make sense? c. Marked in Additional Information? 9. OP/LP positions marked? a. Grids? i. Primary? ii. Alt? 10. Targets annotated on sketch? Grids to targets? FPL targets annotated for all fire support agencies (60 mm, 81 mm, Arty, NGF) 11. Wire, Natural Obstacles, Claymores, Booby Traps, Trip Flares, etc. ? a. Annotated on map in relation to terrain? b. Grid marked in marginal info? 12. IS IT CURRENT? Is it updated for new additions to the defense? Have you changed the date/time group (DTG) to reflect the new changes? Name, Rank, Unit, and DTG on margin?

68 91

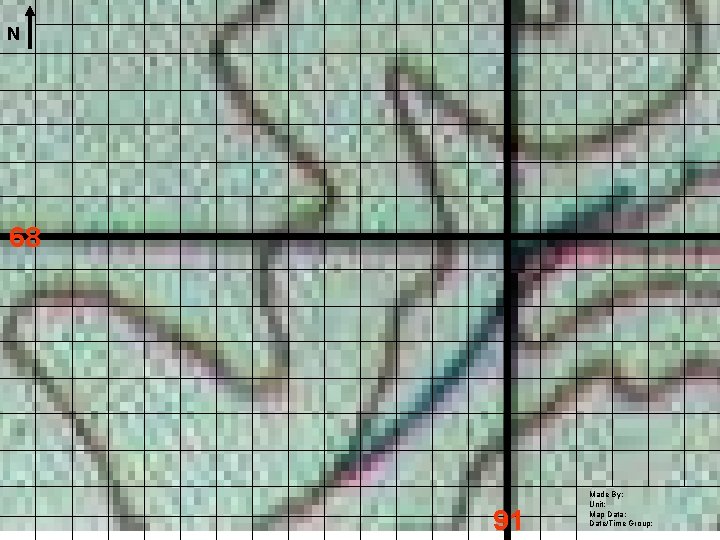

N 68 91 Made By: Unit: Map Data: Date/Time Group:

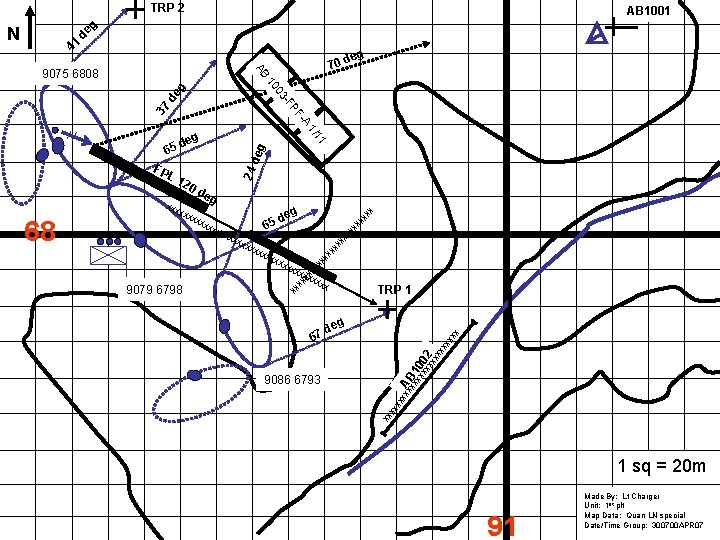

TRP 2 41 de g N AB 1001 AB 9075 6808 -A PF 37 -F de 03 g 10 1/ deg g X XX XX XX X X TRP 1 eg XXAB XX 1 XX 00 XX 2 XX XX X d 67 XX XX 9086 6793 XX 9079 6798 XX XX XX g de XX 65 XX XX XX de XX 68 20 24 L 1 11 deg 65 FP deg 70 1 sq = 20 m 91 Made By: Lt Charger Unit: 1 st plt Map Data: Quan LN special Date/Time Group: 300700 APR 07
