PLATE TECTONICS The Earths Crust is in Motion

PLATE TECTONICS The Earth’s Crust is in Motion

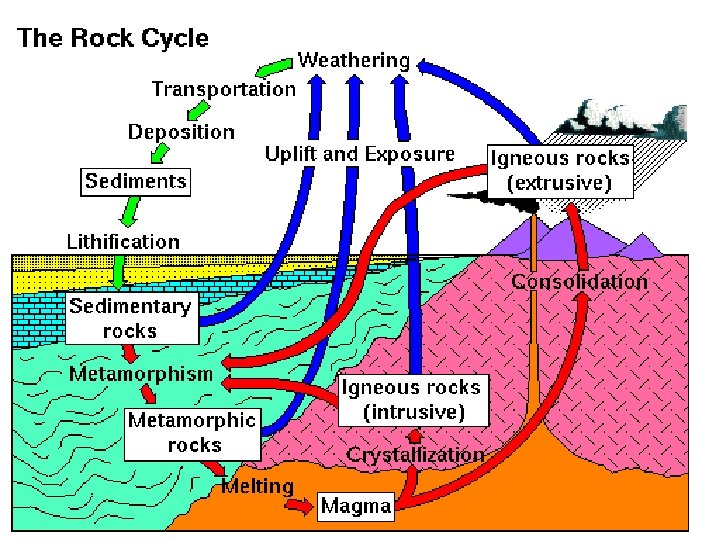

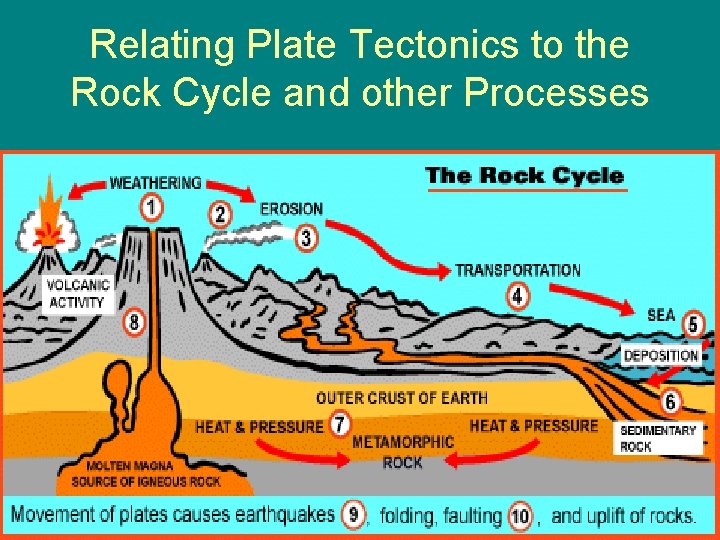

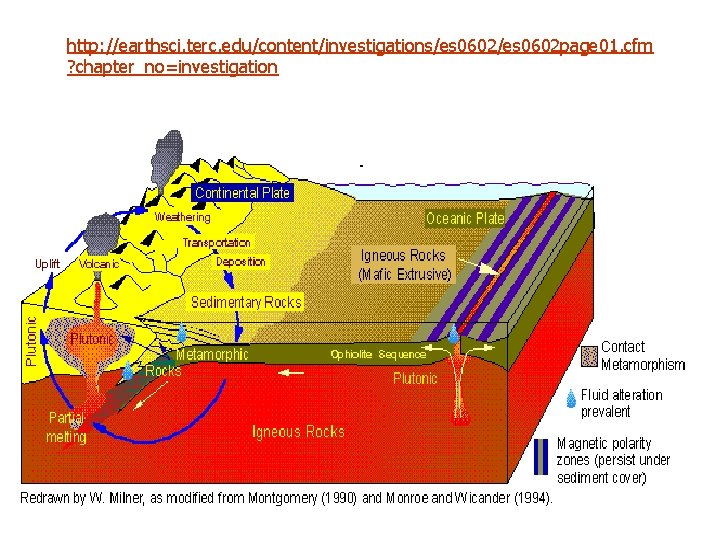

Relating Plate Tectonics to the Rock Cycle and other Processes

http: //earthsci. terc. edu/content/investigations/es 0602 page 01. cfm ? chapter_no=investigation

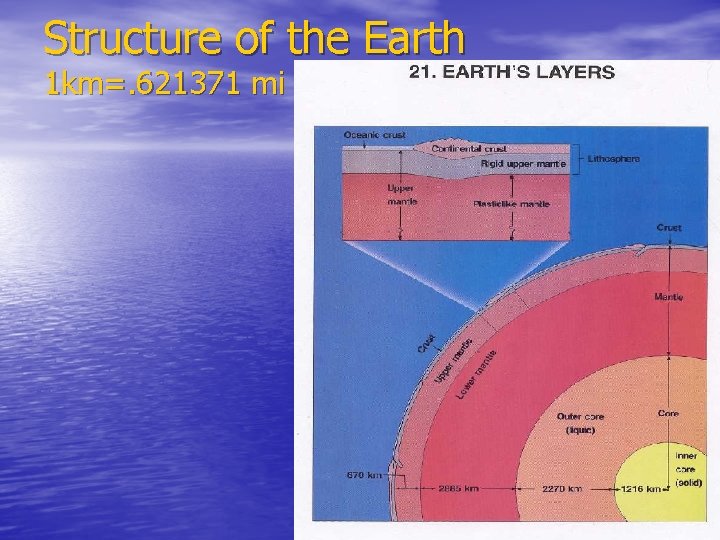

Structure of the Earth 1 km=. 621371 mi

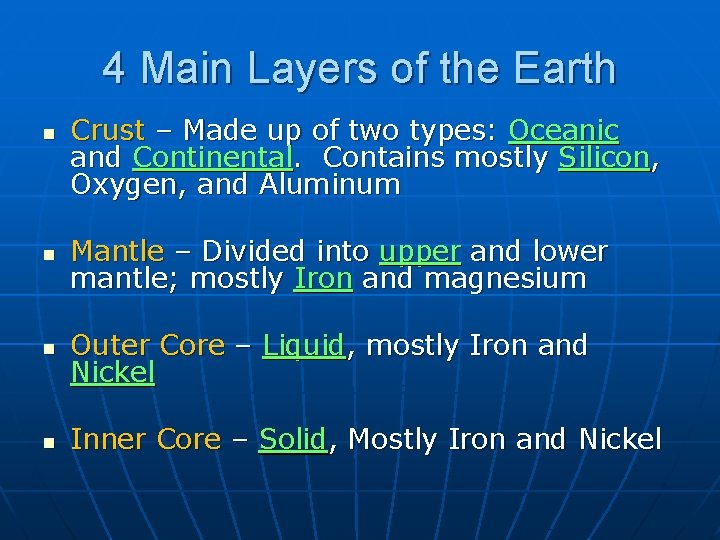

4 Main Layers of the Earth n Crust – Made up of two types: Oceanic and Continental. Contains mostly Silicon, Oxygen, and Aluminum n Mantle – Divided into upper and lower mantle; mostly Iron and magnesium n Outer Core – Liquid, mostly Iron and Nickel n Inner Core – Solid, Mostly Iron and Nickel

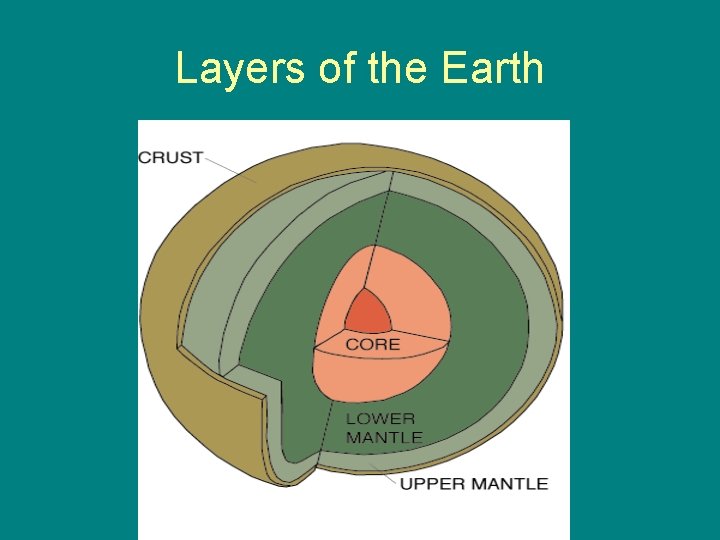

Layers of the Earth

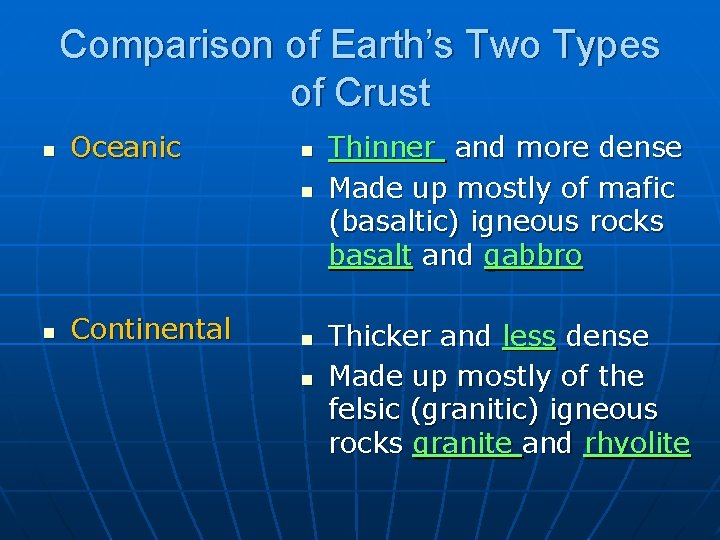

Comparison of Earth’s Two Types of Crust n Oceanic n n n Continental n n Thinner and more dense Made up mostly of mafic (basaltic) igneous rocks basalt and gabbro Thicker and less dense Made up mostly of the felsic (granitic) igneous rocks granite and rhyolite

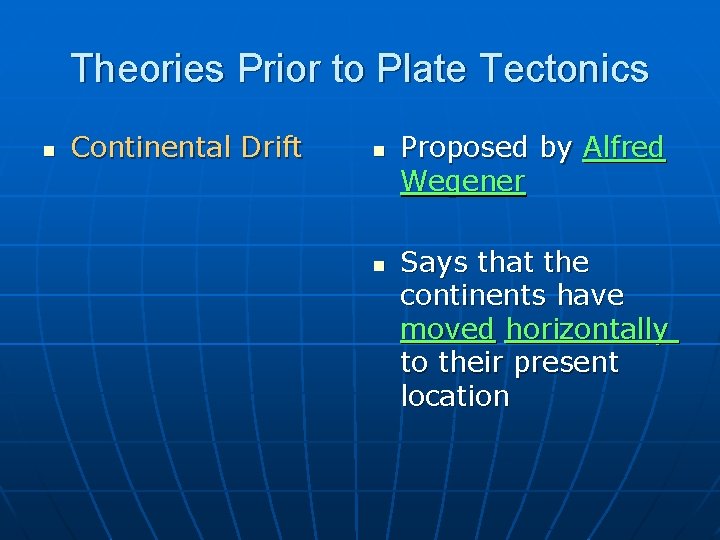

Theories Prior to Plate Tectonics n Continental Drift n n Proposed by Alfred Wegener Says that the continents have moved horizontally to their present location

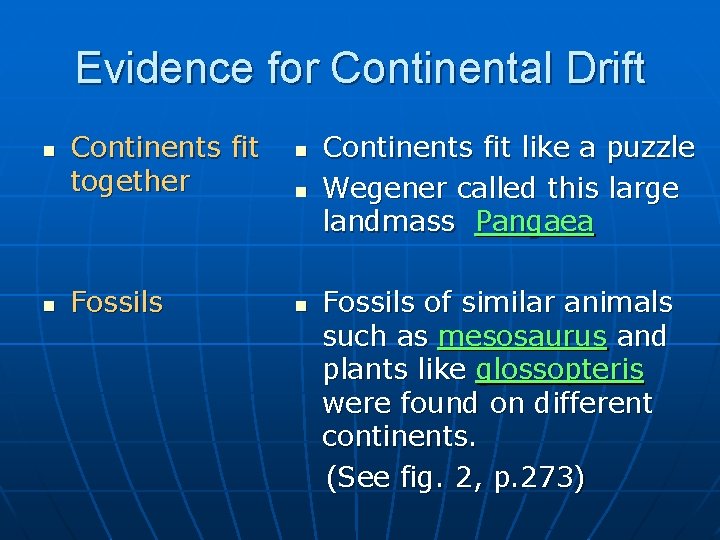

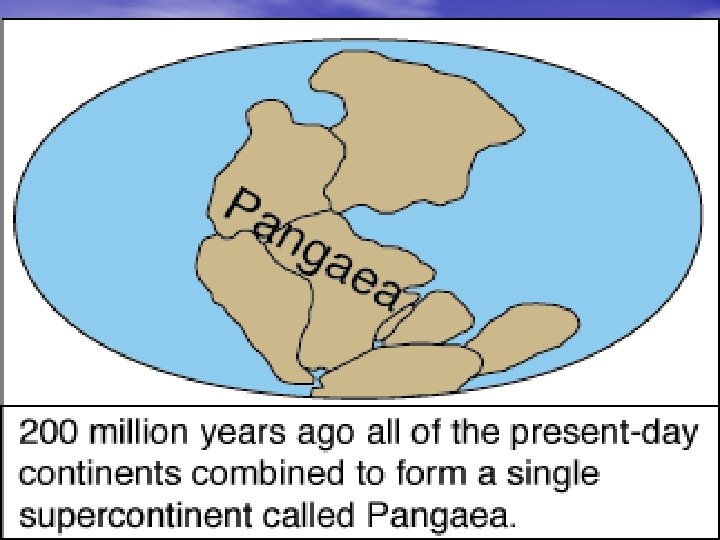

Evidence for Continental Drift n n Continents fit together Fossils n n n Continents fit like a puzzle Wegener called this large landmass Pangaea Fossils of similar animals such as mesosaurus and plants like glossopteris were found on different continents. (See fig. 2, p. 273)

Movement of the Continents

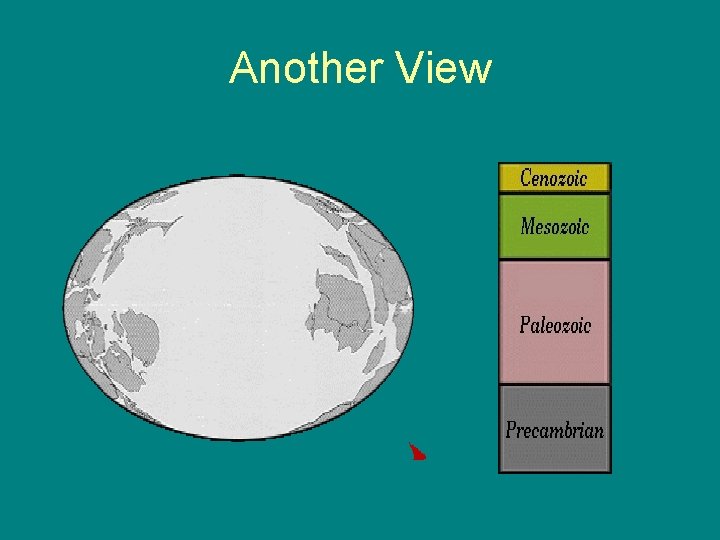

Another View

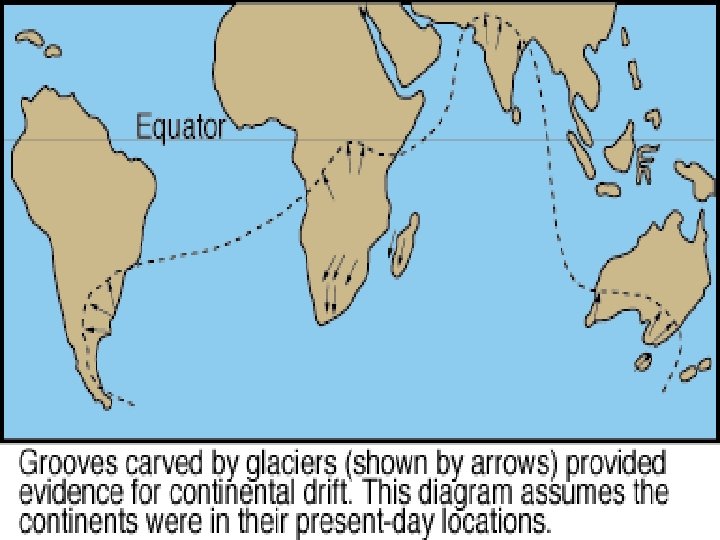

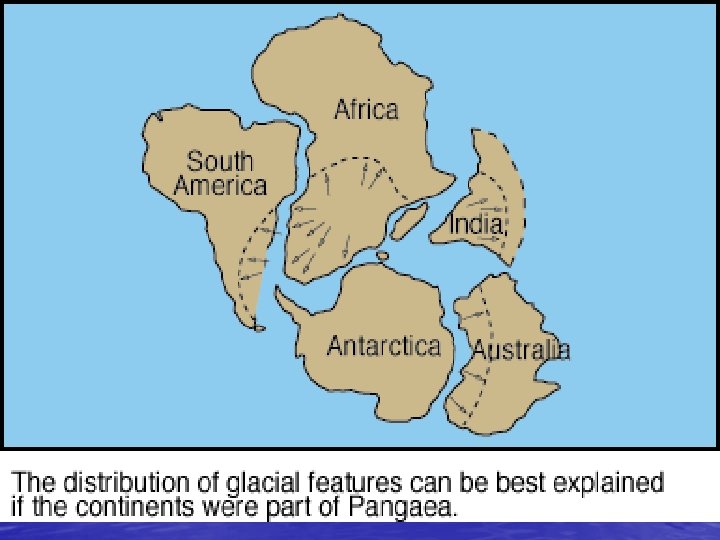

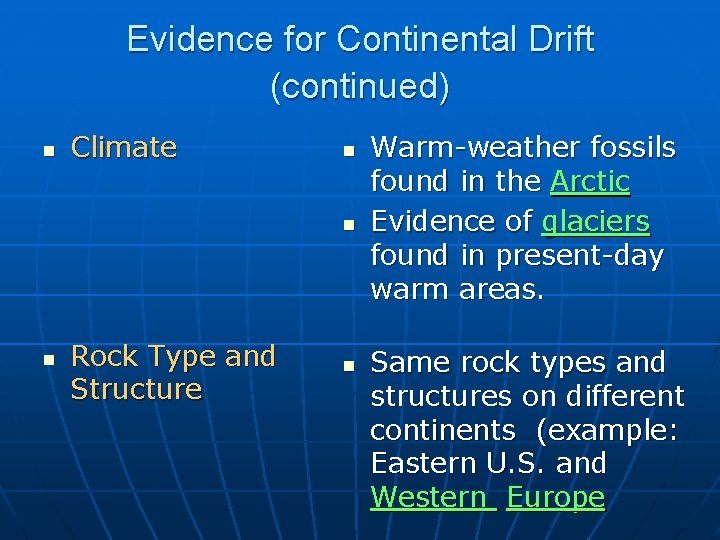

Evidence for Continental Drift (continued) n Climate n n n Rock Type and Structure n Warm-weather fossils found in the Arctic Evidence of glaciers found in present-day warm areas. Same rock types and structures on different continents (example: Eastern U. S. and Western Europe

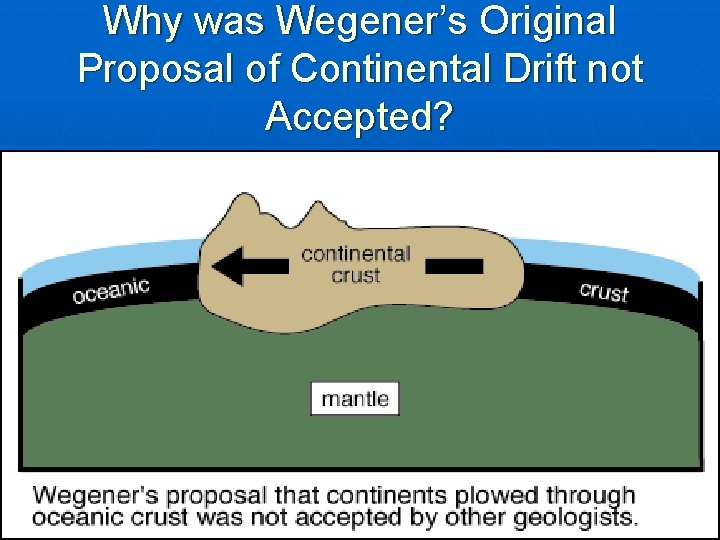

Why was Wegener’s Original Proposal of Continental Drift not Accepted?

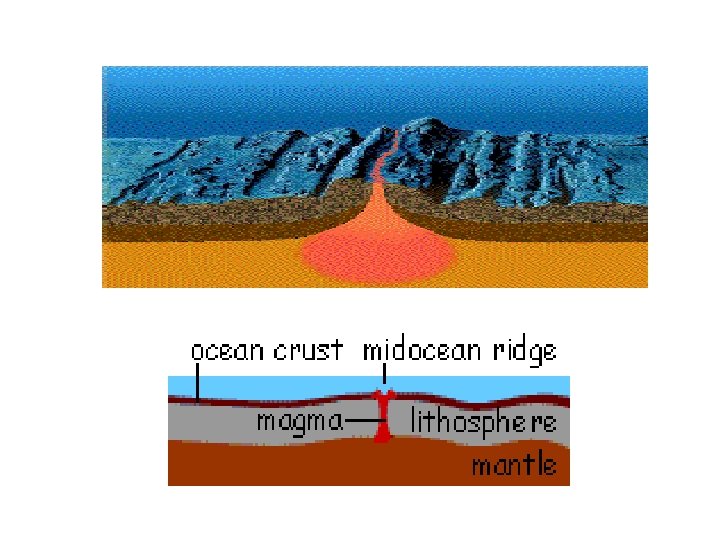

Theories Prior to Plate Tectonics (continued) • Seafloor Spreading • Proposed by Harry Hess. • The theory states that hot, less dense material in the mantle is forced upward to the surface at the mid - ocean ridges.

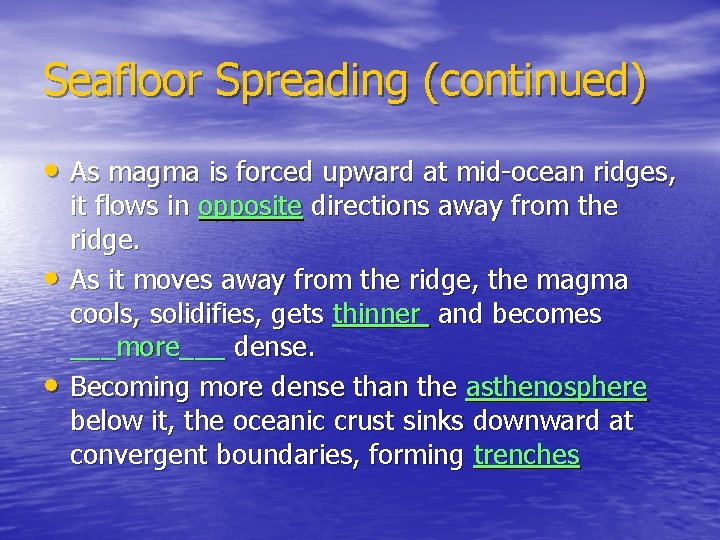

Seafloor Spreading (continued) • As magma is forced upward at mid-ocean ridges, • • it flows in opposite directions away from the ridge. As it moves away from the ridge, the magma cools, solidifies, gets thinner and becomes ___more___ dense. Becoming more dense than the asthenosphere below it, the oceanic crust sinks downward at convergent boundaries, forming trenches

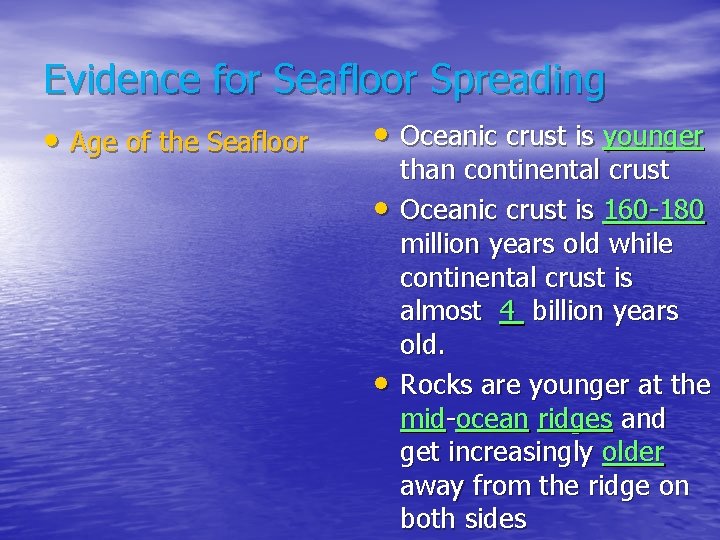

Evidence for Seafloor Spreading • Age of the Seafloor • Oceanic crust is younger • • than continental crust Oceanic crust is 160 -180 million years old while continental crust is almost 4 billion years old. Rocks are younger at the mid-ocean ridges and get increasingly older away from the ridge on both sides

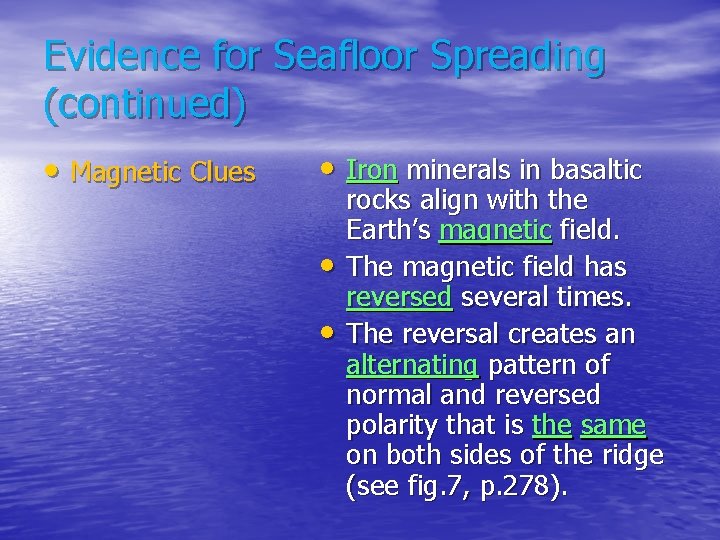

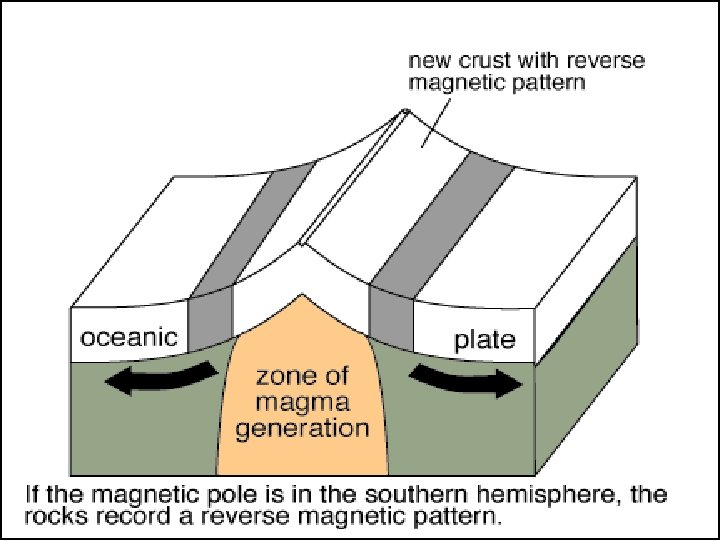

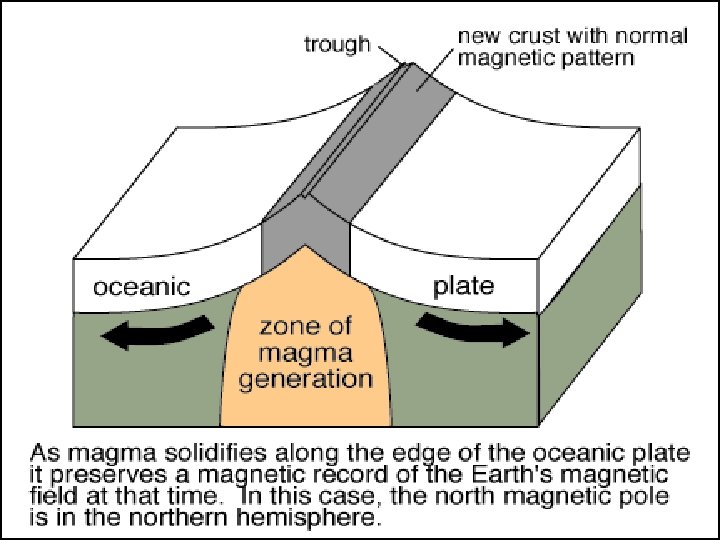

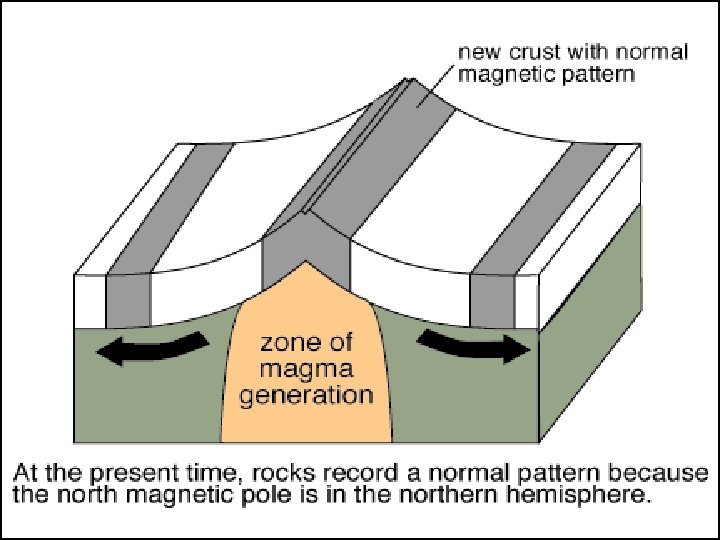

Evidence for Seafloor Spreading (continued) • Magnetic Clues • Iron minerals in basaltic • • rocks align with the Earth’s magnetic field. The magnetic field has reversed several times. The reversal creates an alternating pattern of normal and reversed polarity that is the same on both sides of the ridge (see fig. 7, p. 278).

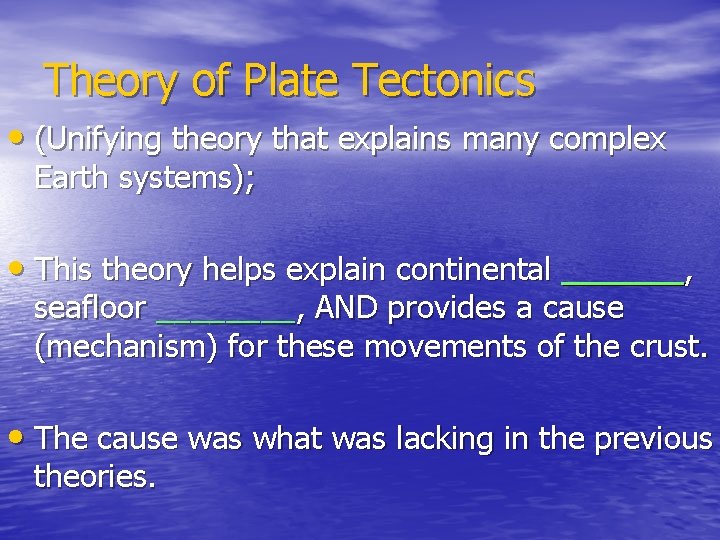

Theory of Plate Tectonics • (Unifying theory that explains many complex Earth systems); • This theory helps explain continental _______, seafloor ____, AND provides a cause (mechanism) for these movements of the crust. • The cause was what was lacking in the previous theories.

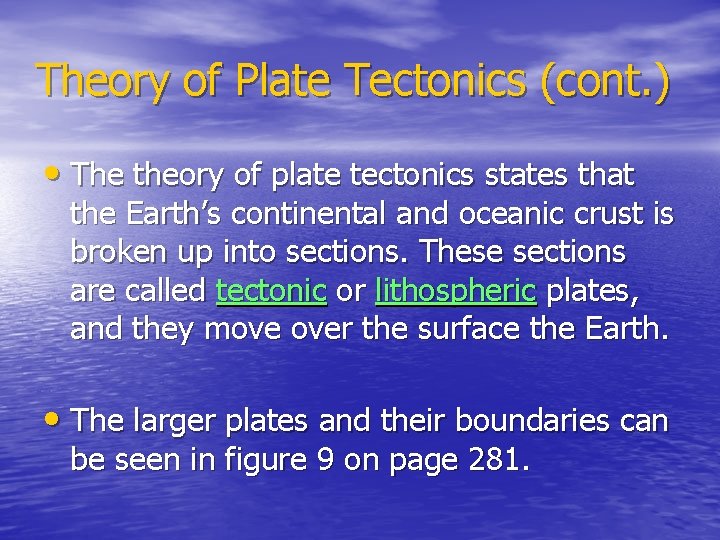

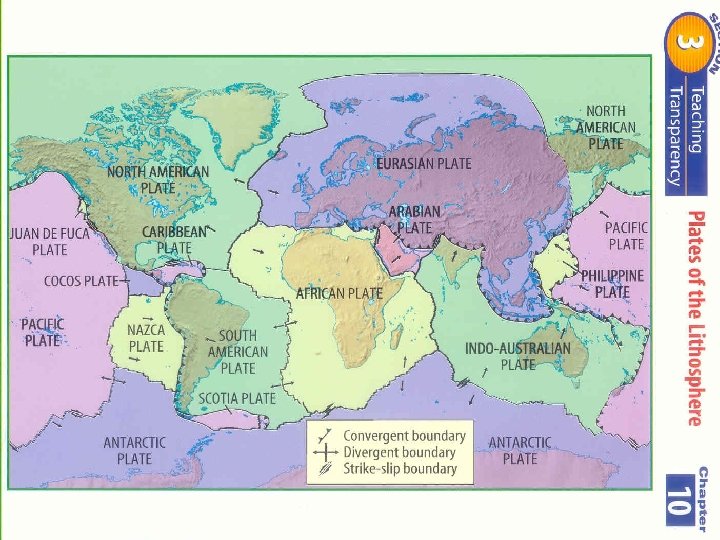

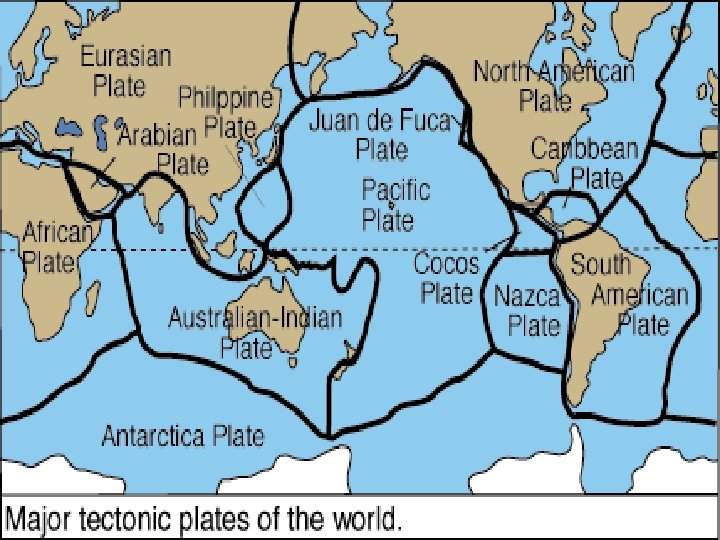

Theory of Plate Tectonics (cont. ) • The theory of plate tectonics states that the Earth’s continental and oceanic crust is broken up into sections. These sections are called tectonic or lithospheric plates, and they move over the surface the Earth. • The larger plates and their boundaries can be seen in figure 9 on page 281.

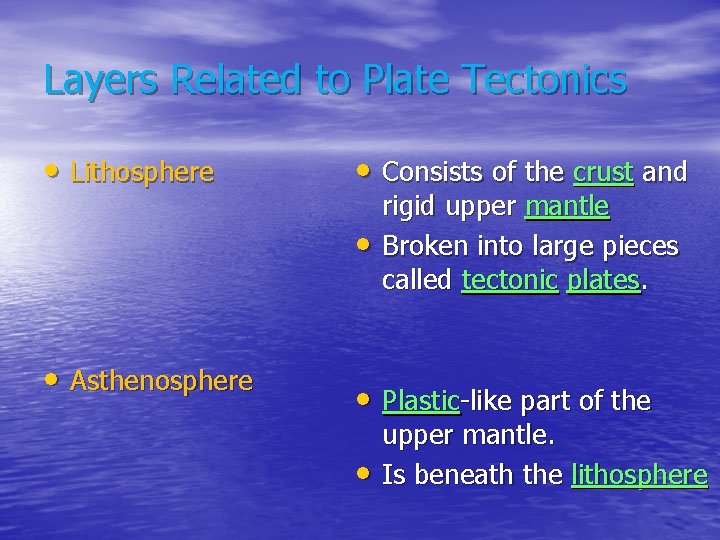

Layers Related to Plate Tectonics • Lithosphere • Consists of the crust and • • Asthenosphere rigid upper mantle Broken into large pieces called tectonic plates. • Plastic-like part of the • upper mantle. Is beneath the lithosphere

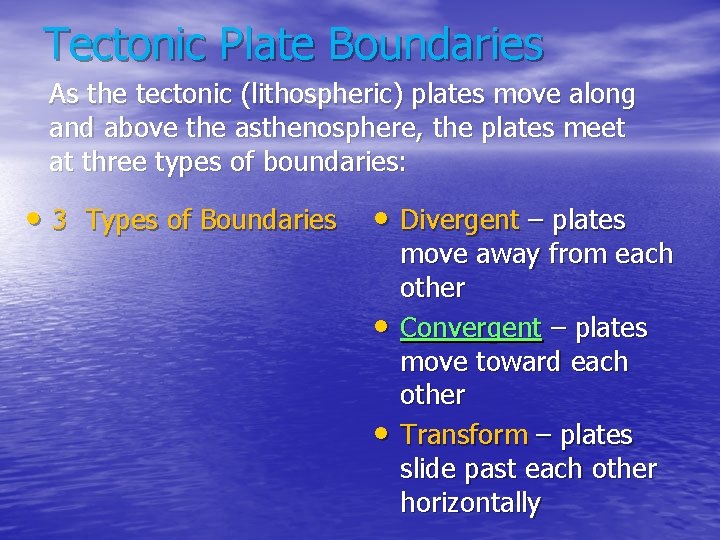

Tectonic Plate Boundaries As the tectonic (lithospheric) plates move along and above the asthenosphere, the plates meet at three types of boundaries: • 3 Types of Boundaries • Divergent – plates • • move away from each other Convergent – plates move toward each other Transform – plates slide past each other horizontally

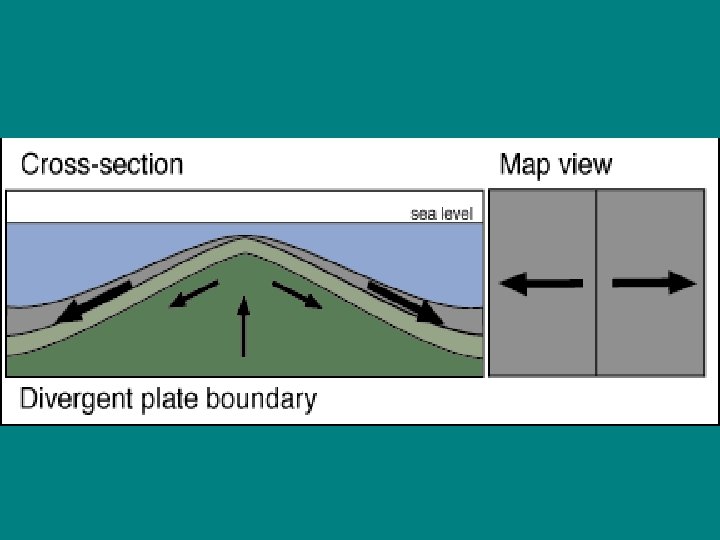

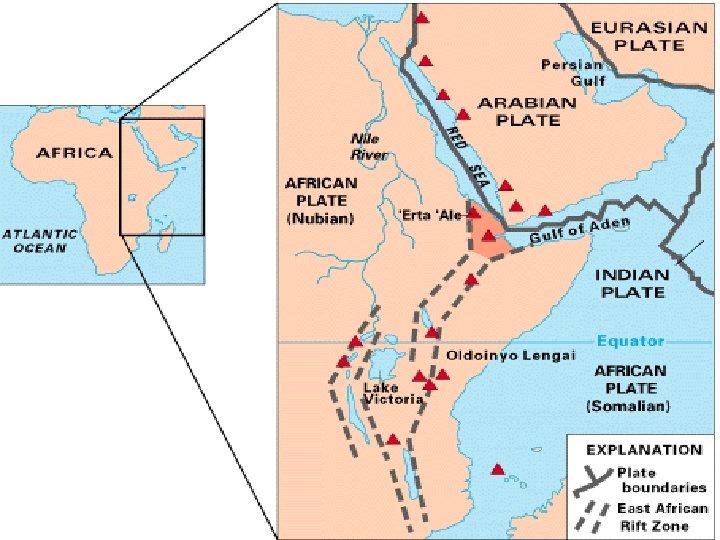

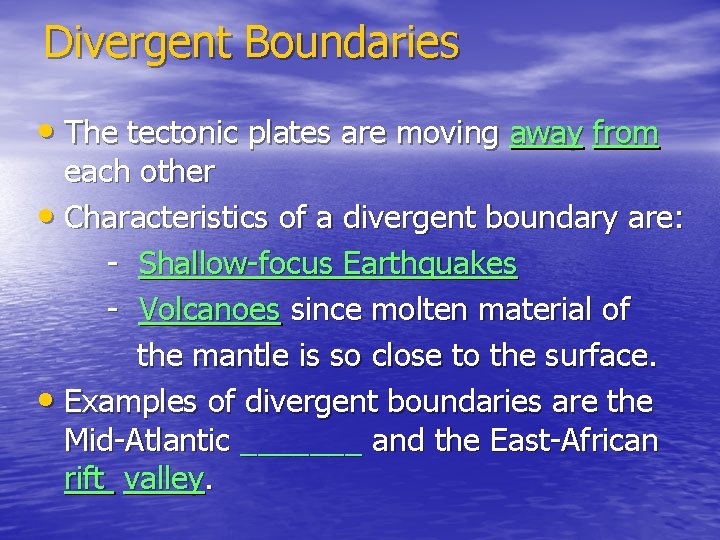

Divergent Boundaries • The tectonic plates are moving away from each other • Characteristics of a divergent boundary are: - Shallow-focus Earthquakes - Volcanoes since molten material of the mantle is so close to the surface. • Examples of divergent boundaries are the Mid-Atlantic _______ and the East-African rift valley.

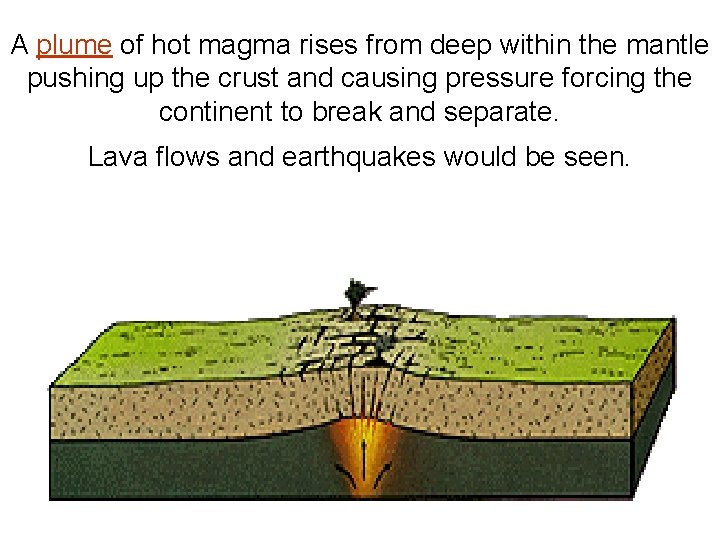

A plume of hot magma rises from deep within the mantle pushing up the crust and causing pressure forcing the continent to break and separate. Lava flows and earthquakes would be seen.

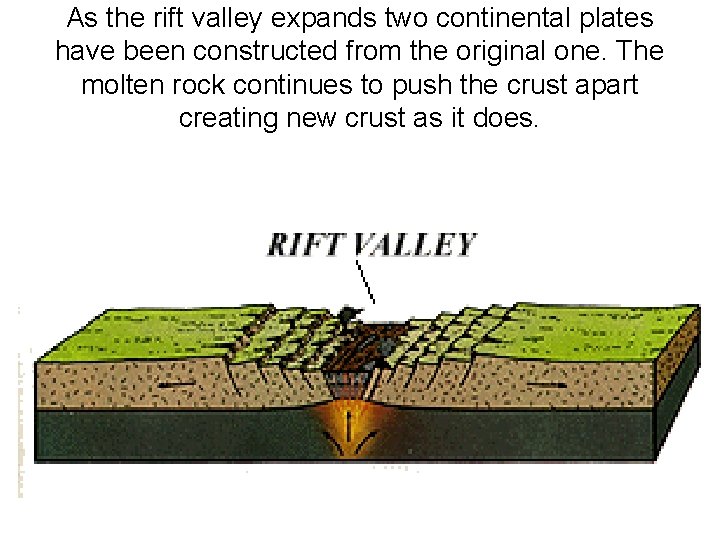

As the rift valley expands two continental plates have been constructed from the original one. The molten rock continues to push the crust apart creating new crust as it does.

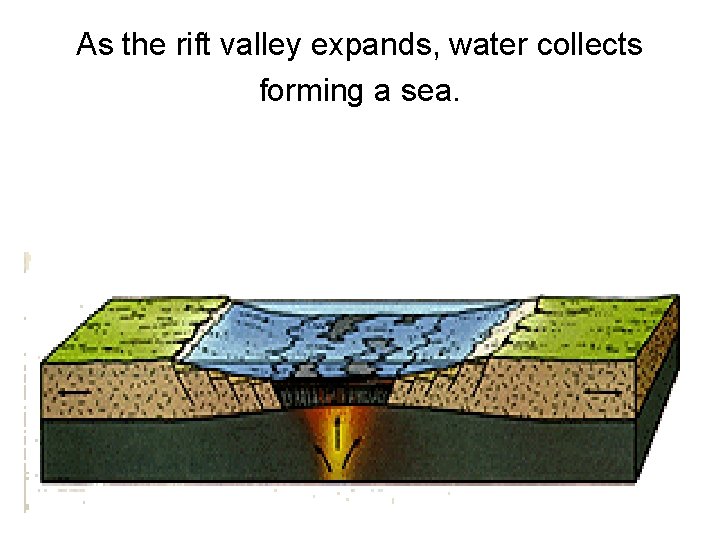

As the rift valley expands, water collects forming a sea.

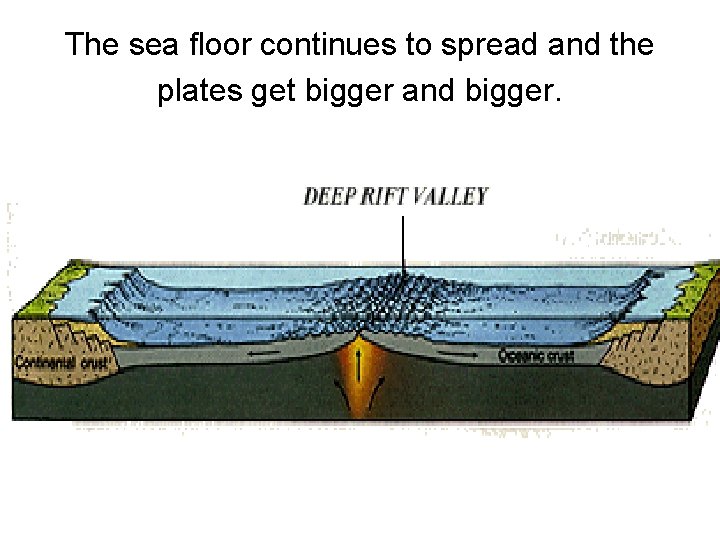

The sea floor continues to spread and the plates get bigger and bigger.

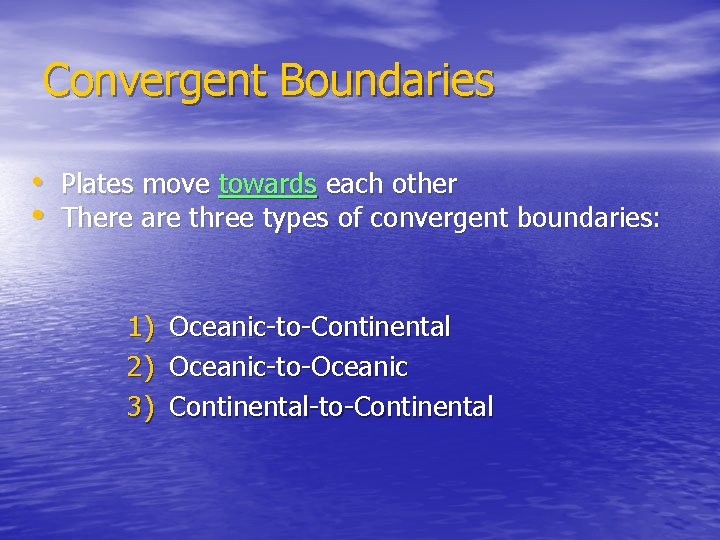

Convergent Boundaries • Plates move towards each other • There are three types of convergent boundaries: 1) 2) 3) Oceanic-to-Continental Oceanic-to-Oceanic Continental-to-Continental

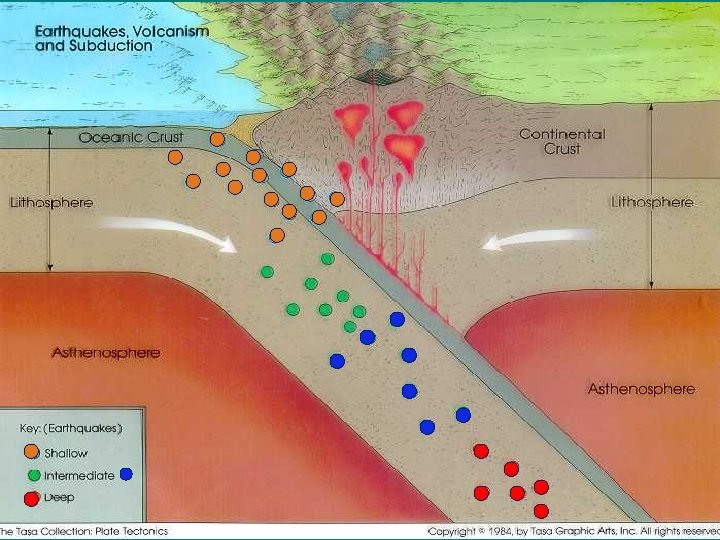

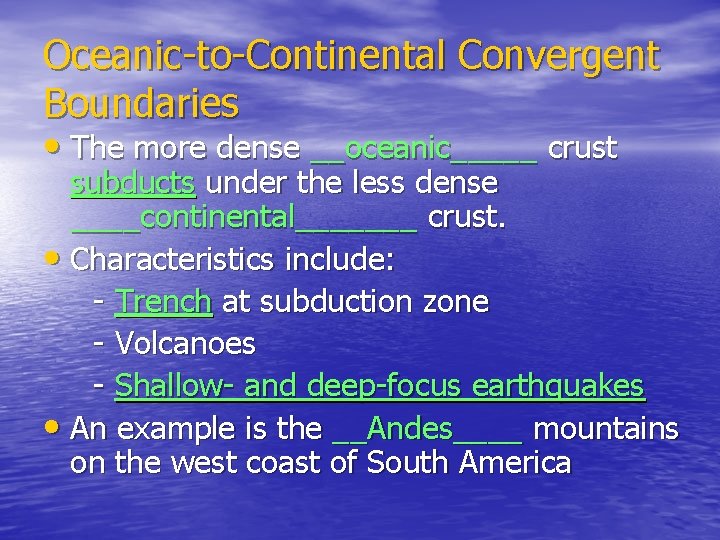

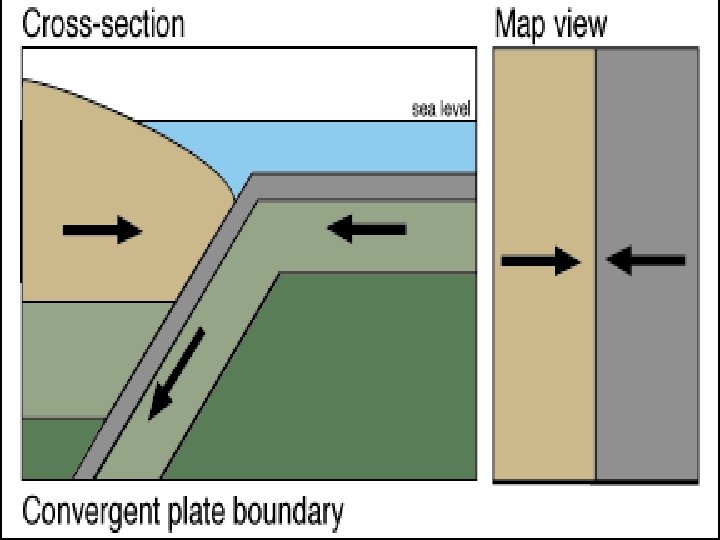

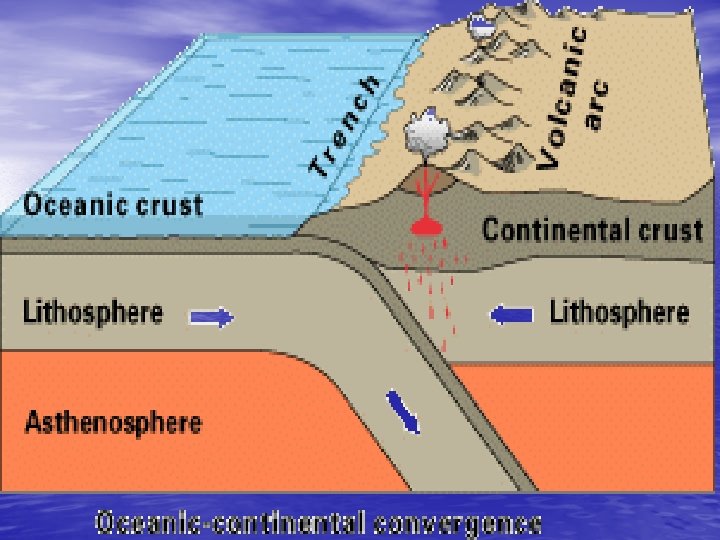

Oceanic-to-Continental Convergent Boundaries • The more dense __oceanic_____ crust subducts under the less dense ____continental_______ crust. • Characteristics include: - Trench at subduction zone - Volcanoes - Shallow- and deep-focus earthquakes • An example is the __Andes____ mountains on the west coast of South America

Andes Mountains in South America

http: //www. pbs. org/wnet/savageearth/animations/

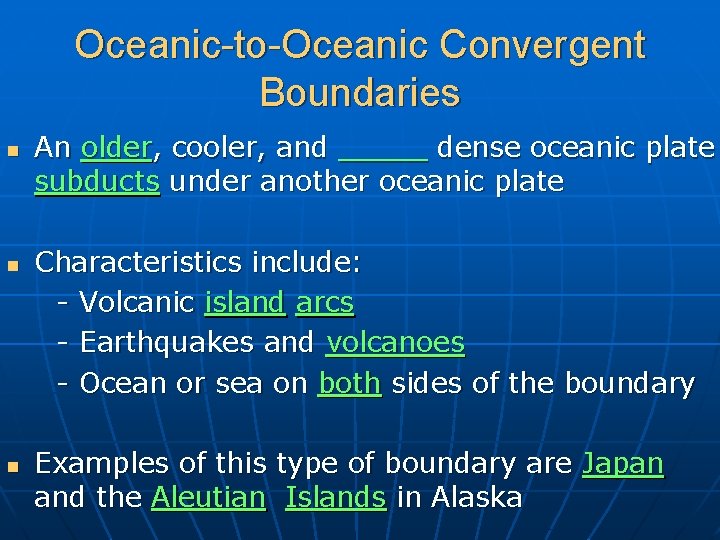

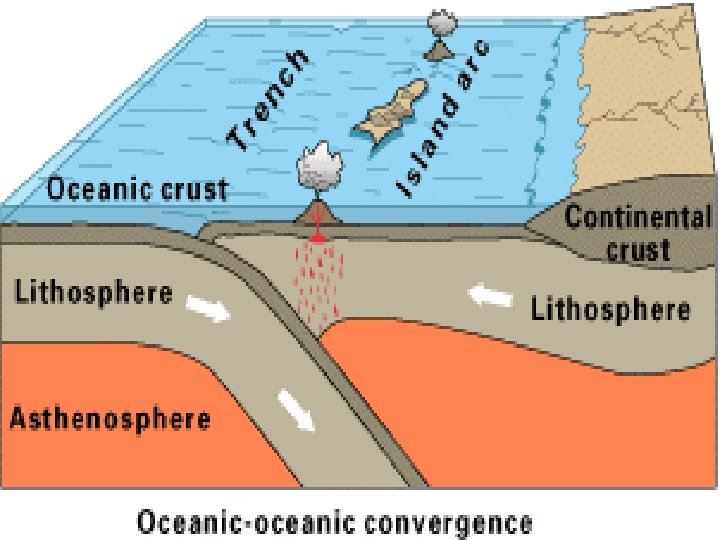

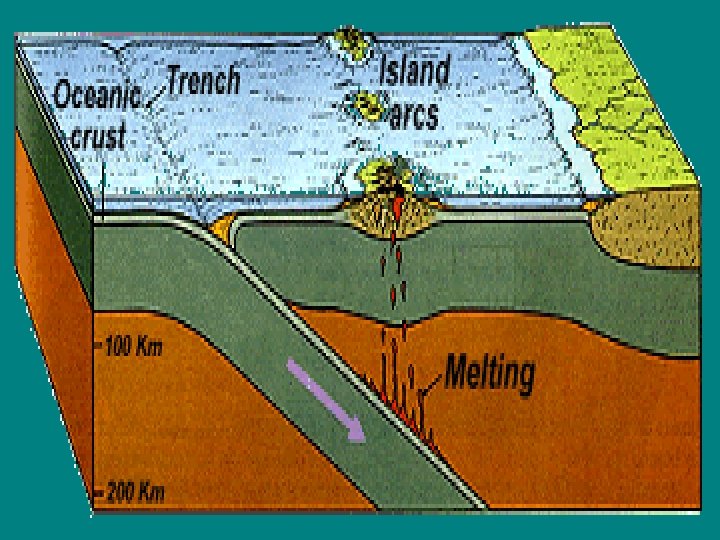

Oceanic-to-Oceanic Convergent Boundaries n n n An older, cooler, and _____ dense oceanic plate subducts under another oceanic plate Characteristics include: - Volcanic island arcs - Earthquakes and volcanoes - Ocean or sea on both sides of the boundary Examples of this type of boundary are Japan and the Aleutian Islands in Alaska

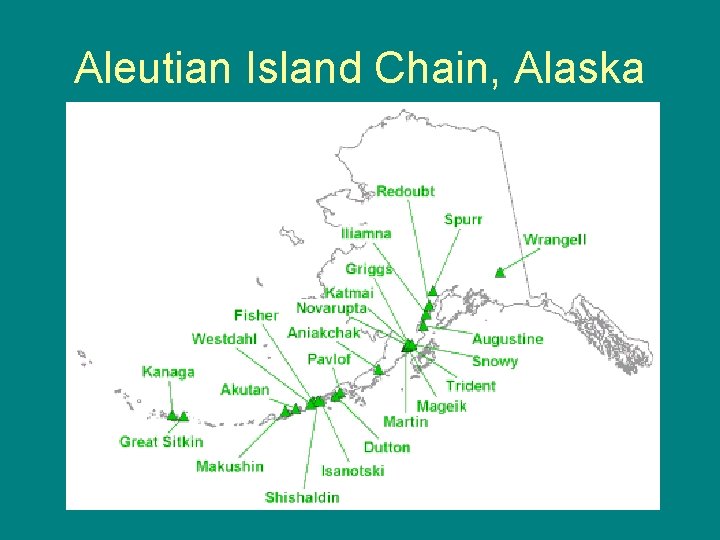

Aleutian Island Chain, Alaska

Aleutian Mountains

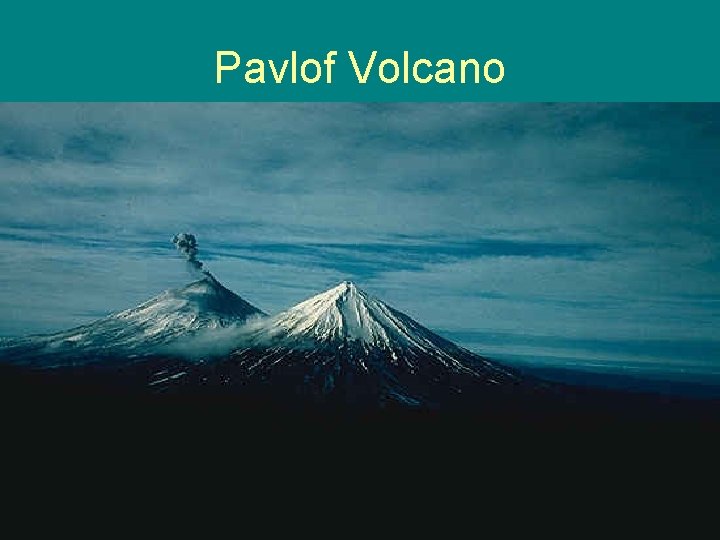

Pavlof Volcano

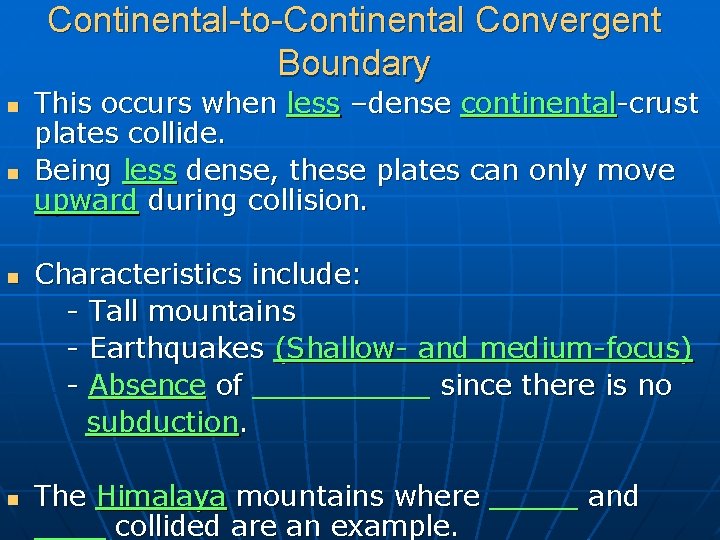

Continental-to-Continental Convergent Boundary n n This occurs when less –dense continental-crust plates collide. Being less dense, these plates can only move upward during collision. Characteristics include: - Tall mountains - Earthquakes (Shallow- and medium-focus) - Absence of _____ since there is no subduction. The Himalaya mountains where _____ and ____ collided are an example.

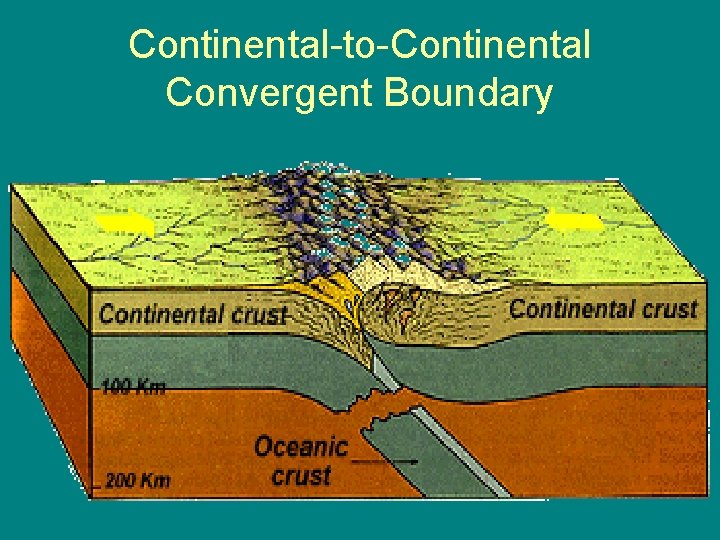

Continental-to-Continental Convergent Boundary

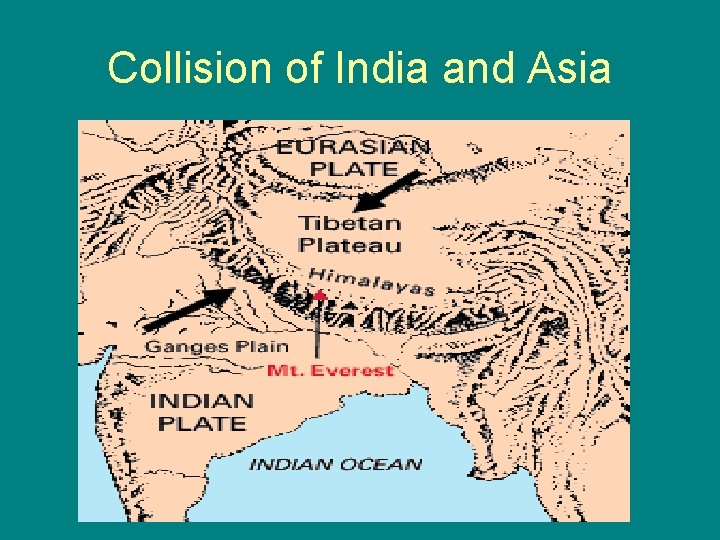

Collision of India and Asia

Himalaya Mountains

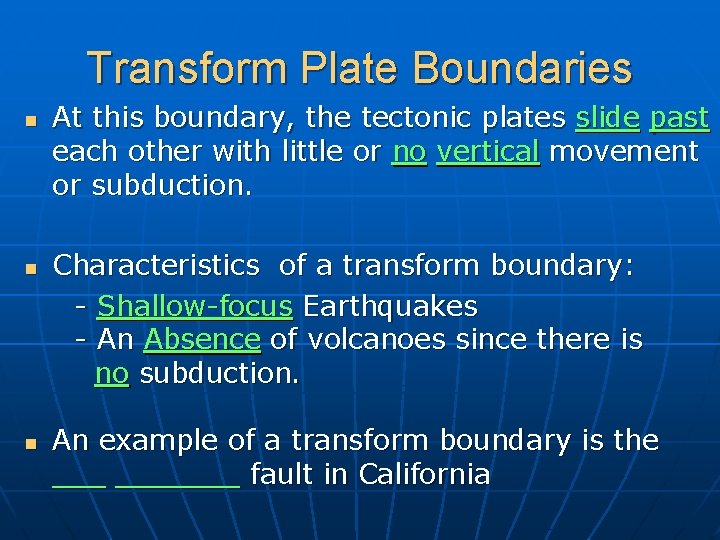

Transform Plate Boundaries n n n At this boundary, the tectonic plates slide past each other with little or no vertical movement or subduction. Characteristics of a transform boundary: - Shallow-focus Earthquakes - An Absence of volcanoes since there is no subduction. An example of a transform boundary is the _______ fault in California

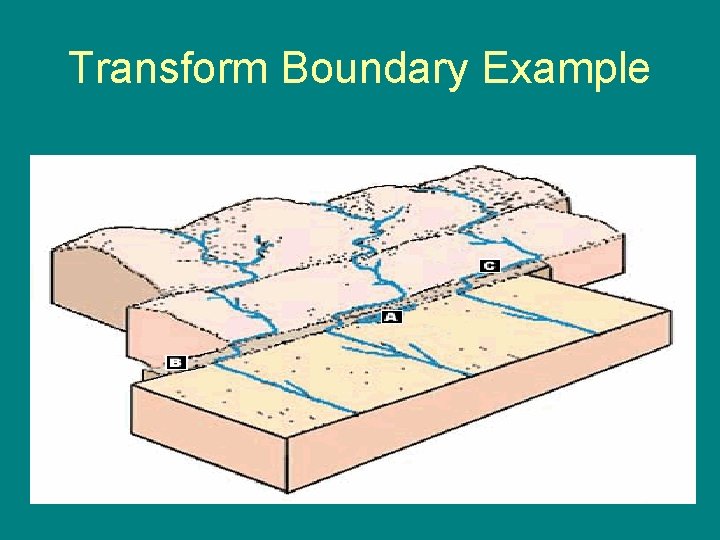

Transform Boundary Example

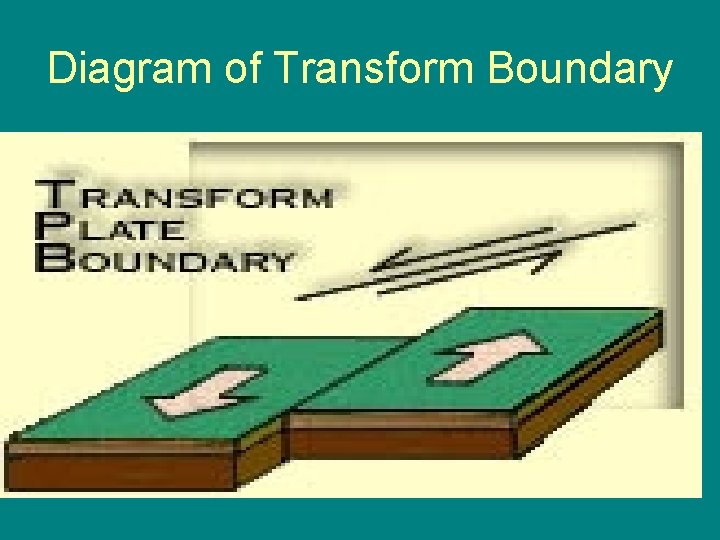

Diagram of Transform Boundary

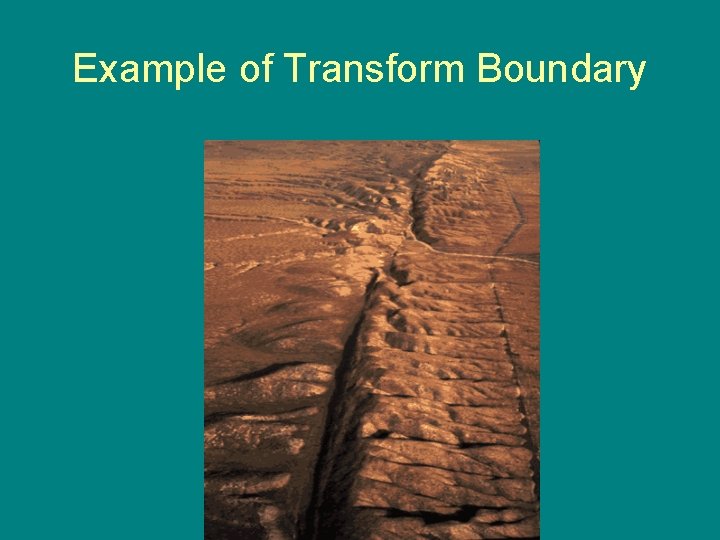

Example of Transform Boundary

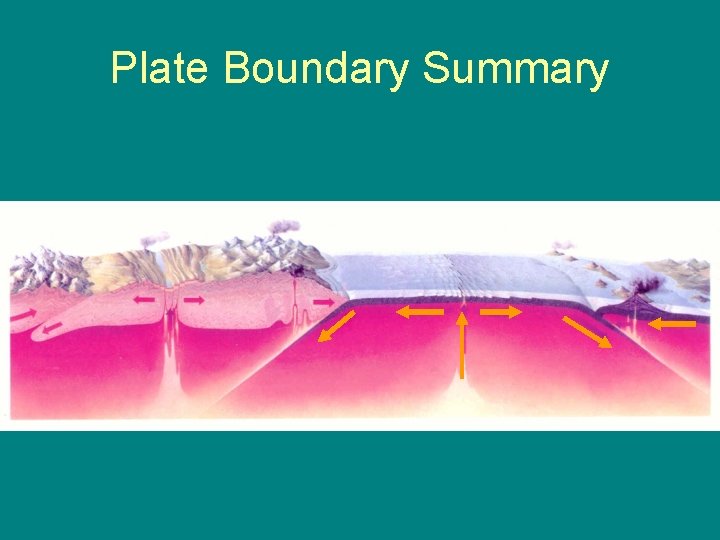

Plate Boundary Summary

Plate Boundary Summary

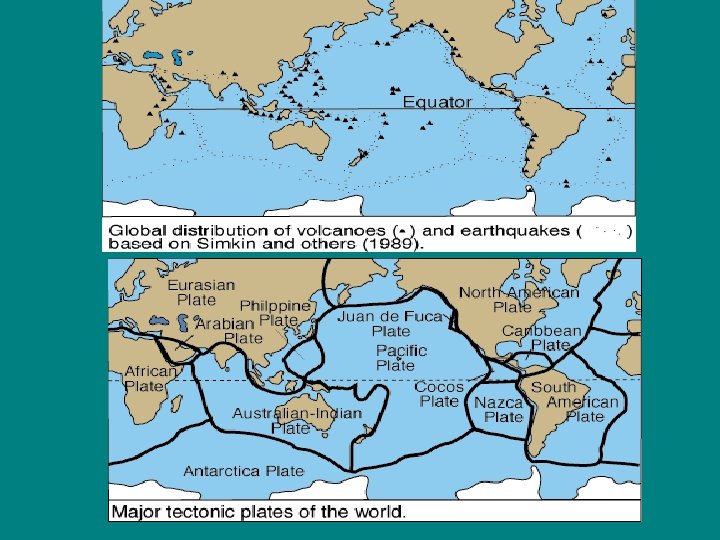

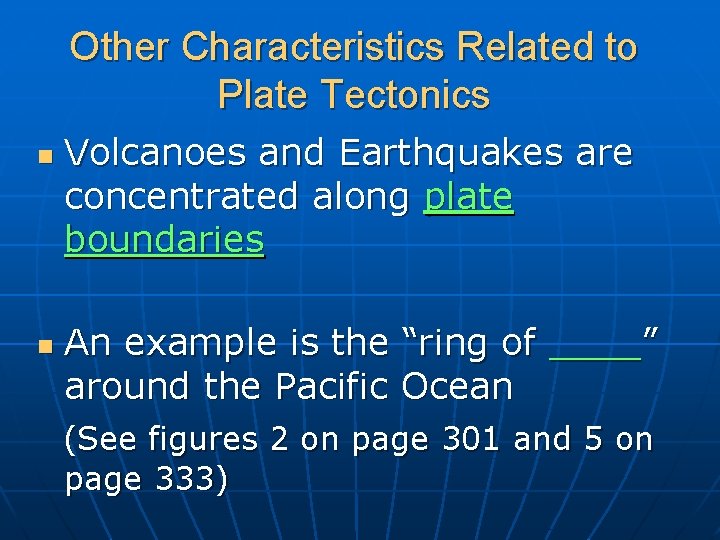

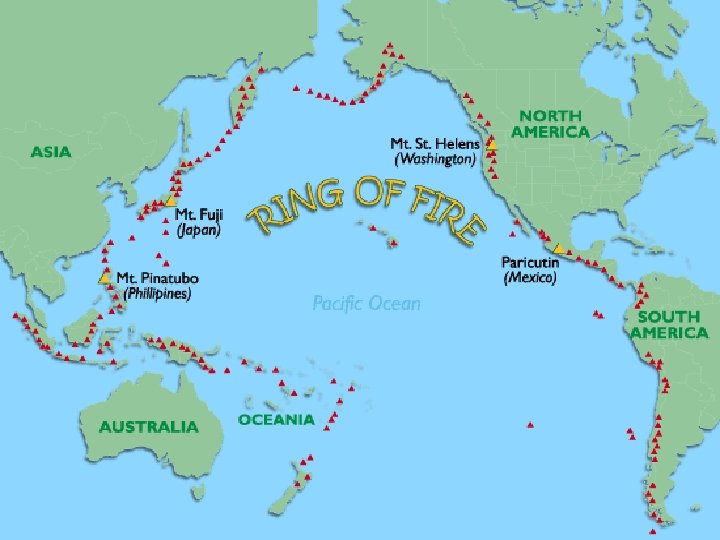

Other Characteristics Related to Plate Tectonics n n Volcanoes and Earthquakes are concentrated along plate boundaries An example is the “ring of ____” around the Pacific Ocean (See figures 2 on page 301 and 5 on page 333)

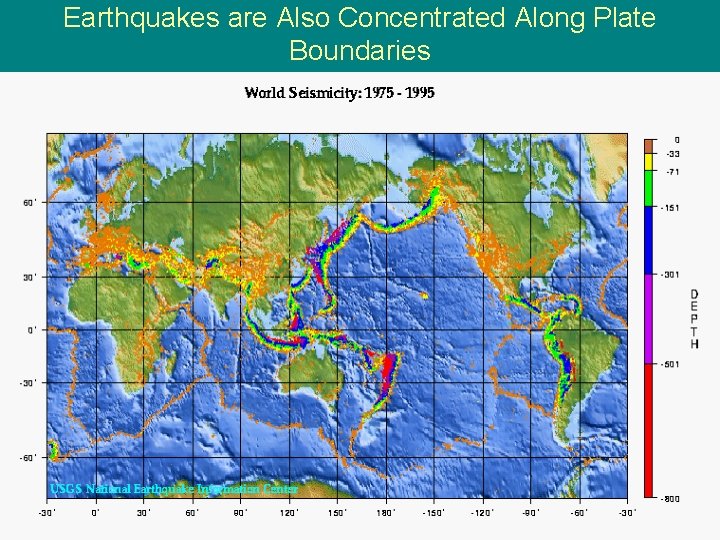

Earthquakes are Also Concentrated Along Plate Boundaries

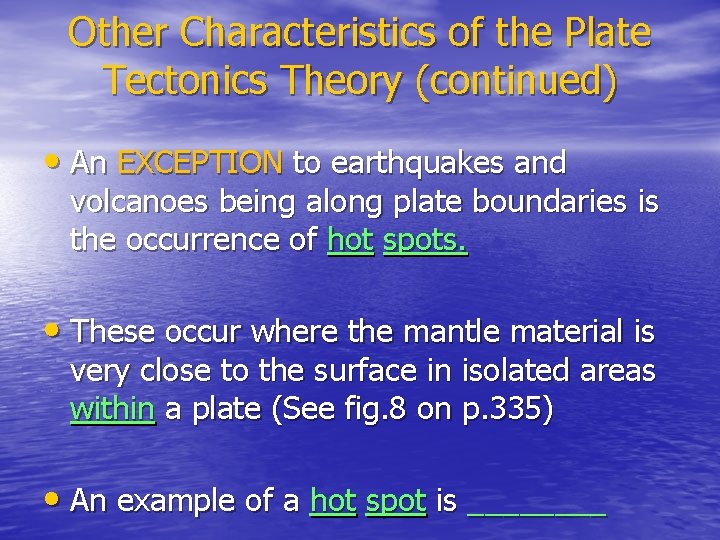

Other Characteristics of the Plate Tectonics Theory (continued) • An EXCEPTION to earthquakes and volcanoes being along plate boundaries is the occurrence of hot spots. • These occur where the mantle material is very close to the surface in isolated areas within a plate (See fig. 8 on p. 335) • An example of a hot spot is ____

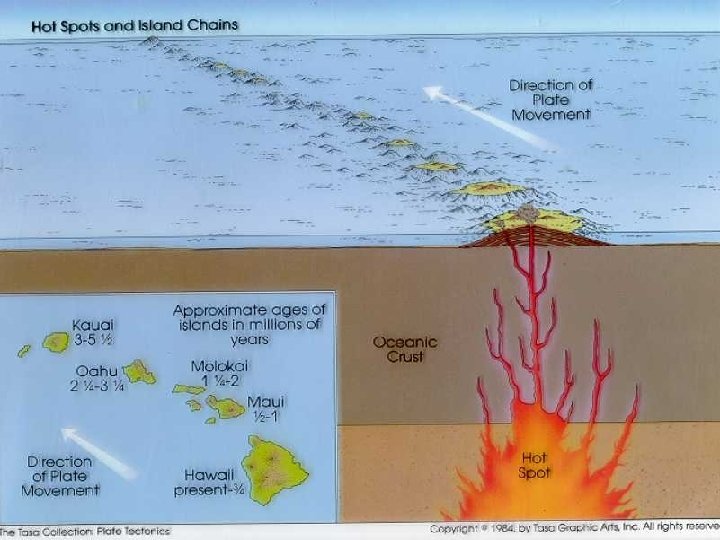

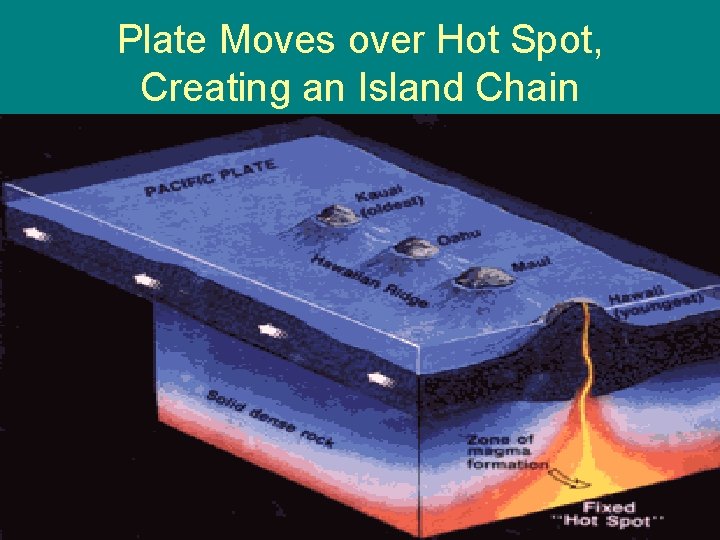

Plate Moves over Hot Spot, Creating an Island Chain

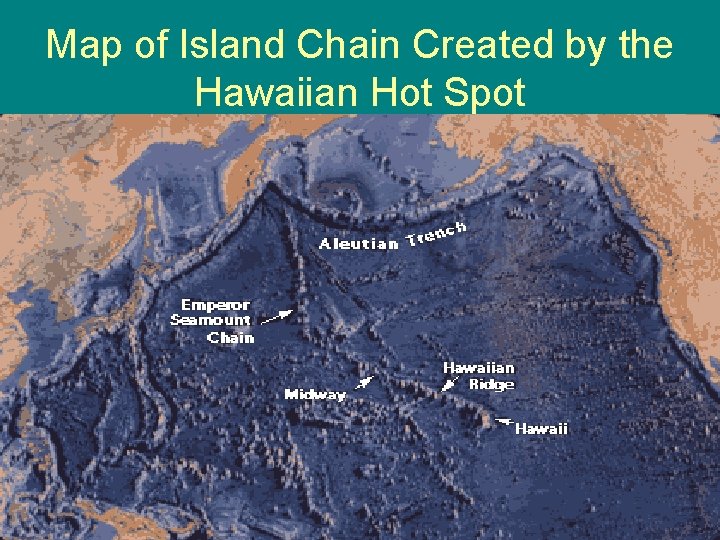

Map of Island Chain Created by the Hawaiian Hot Spot

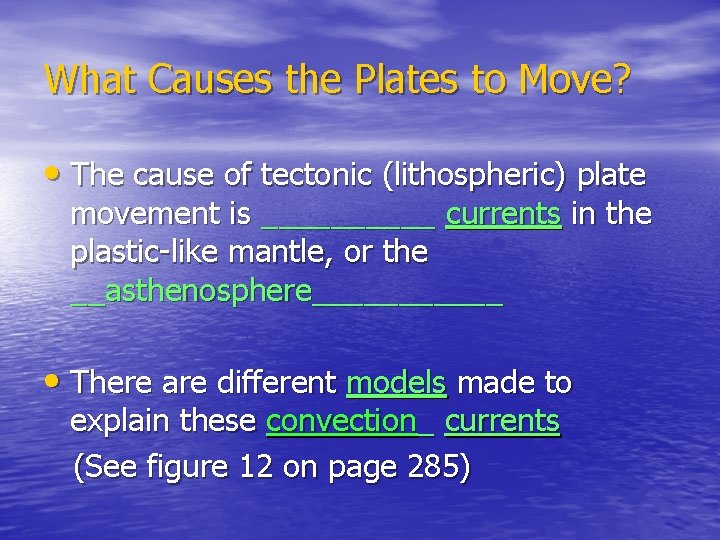

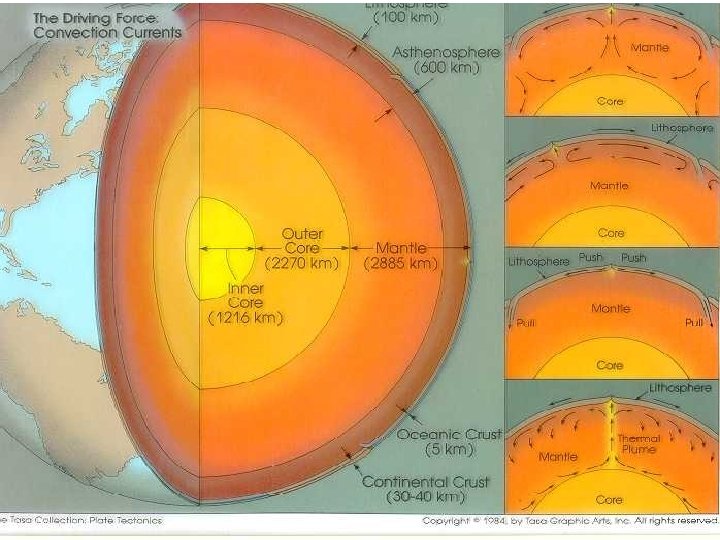

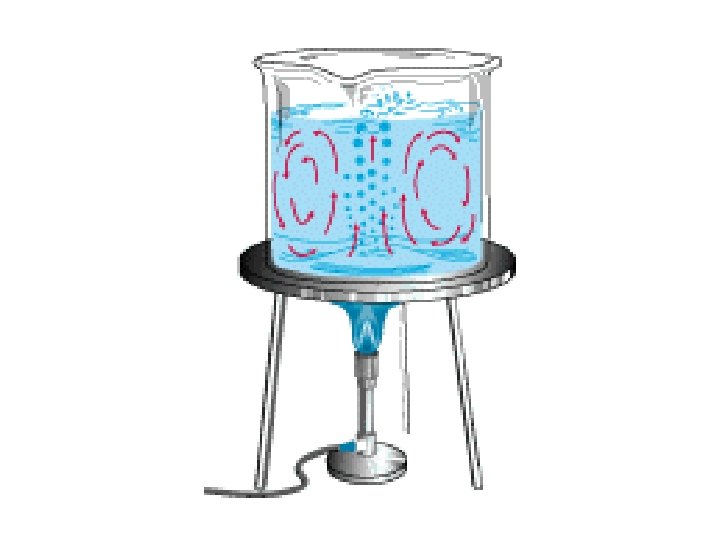

What Causes the Plates to Move? • The cause of tectonic (lithospheric) plate movement is _____ currents in the plastic-like mantle, or the __asthenosphere______ • There are different models made to explain these convection_ currents (See figure 12 on page 285)

Now, Repeat Everything

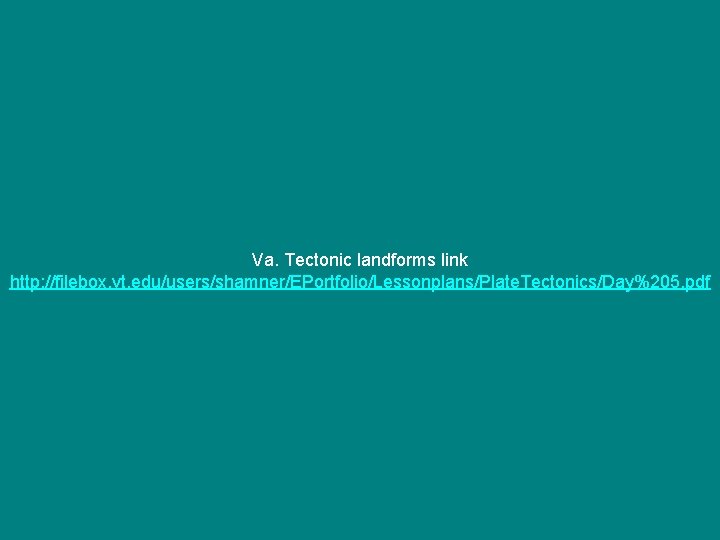

Va. Tectonic landforms link http: //filebox. vt. edu/users/shamner/EPortfolio/Lessonplans/Plate. Tectonics/Day%205. pdf
